6
The unit is now ready to use As soon as the actual mV-value drops below the adjusted set point,

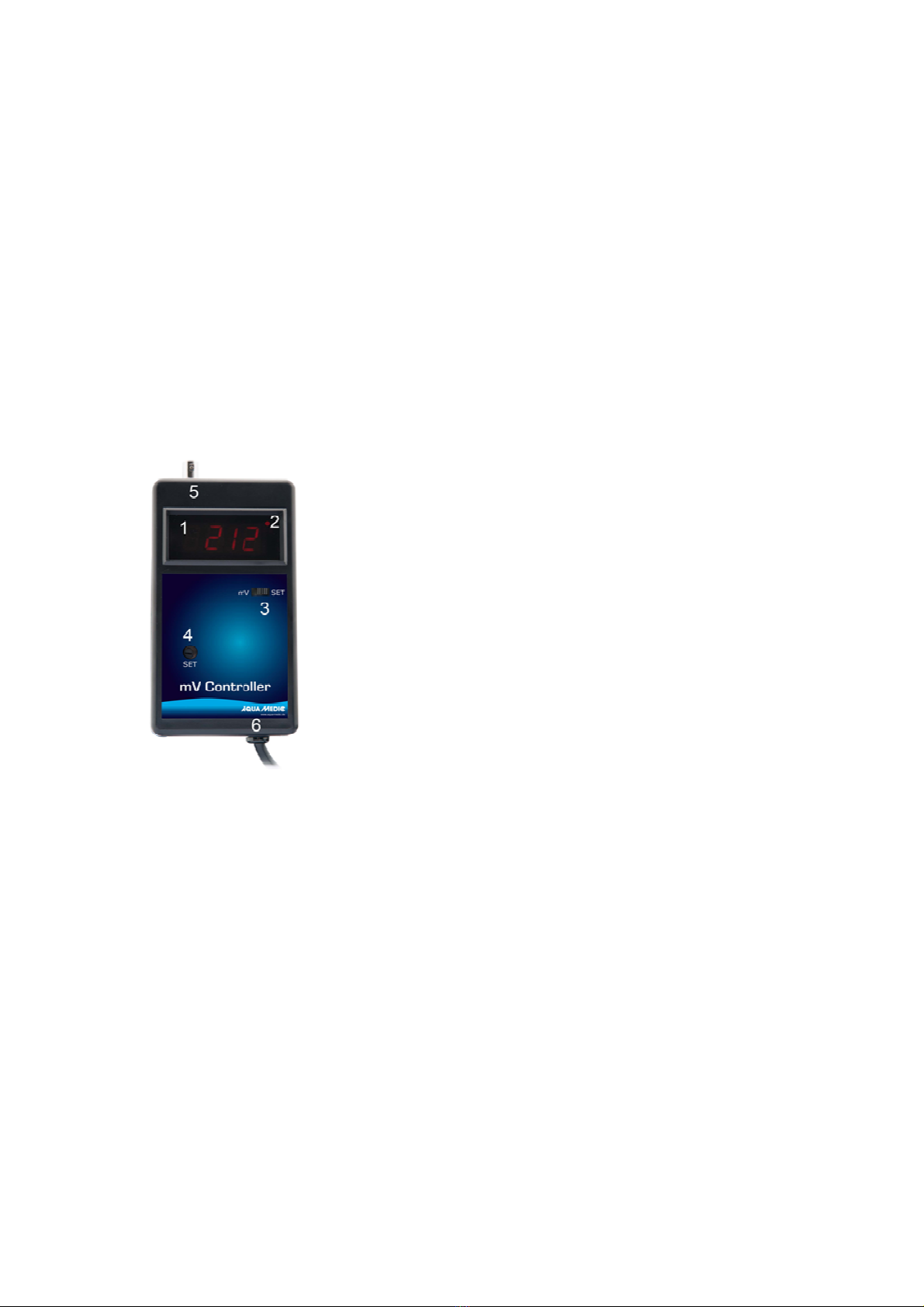

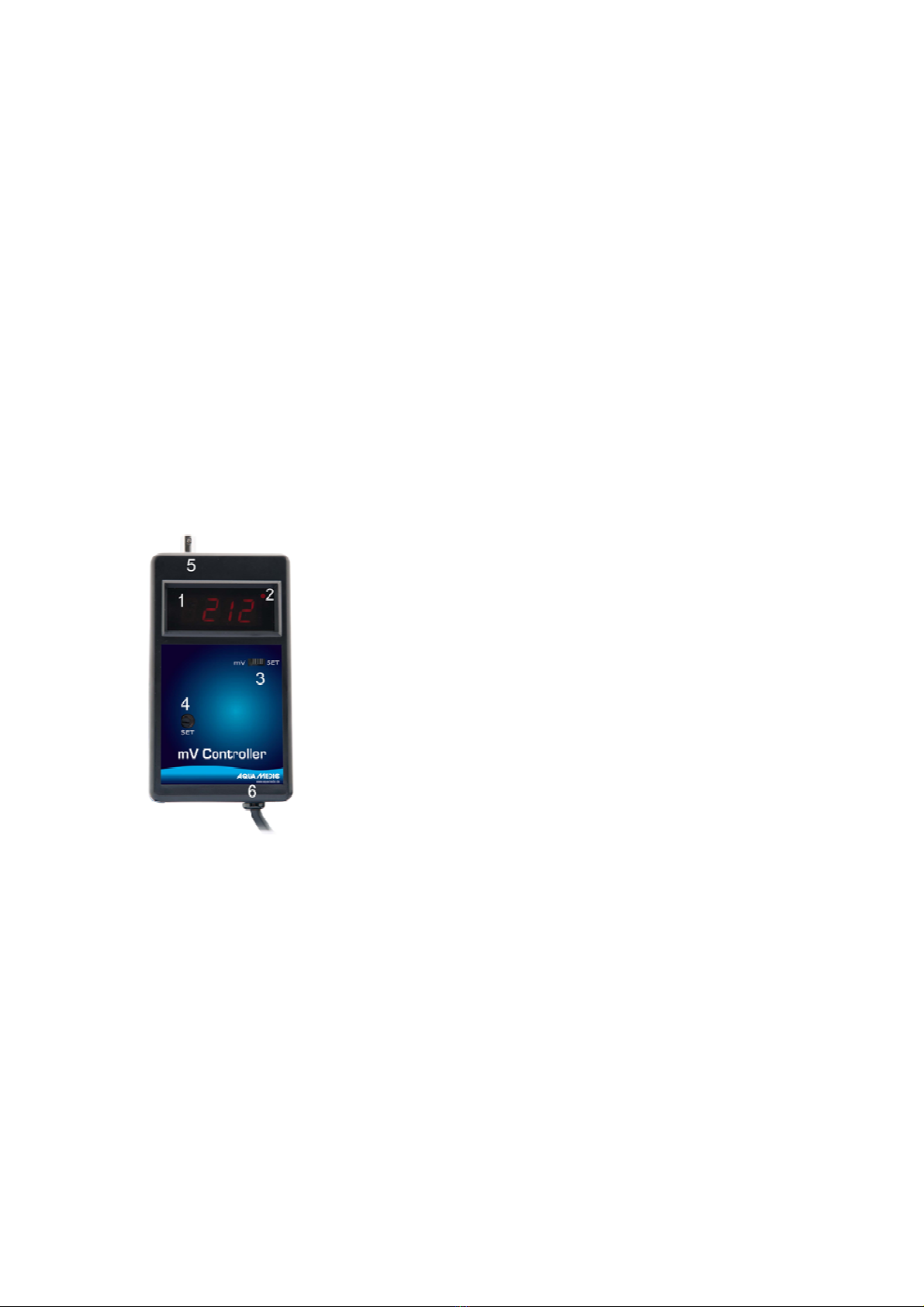

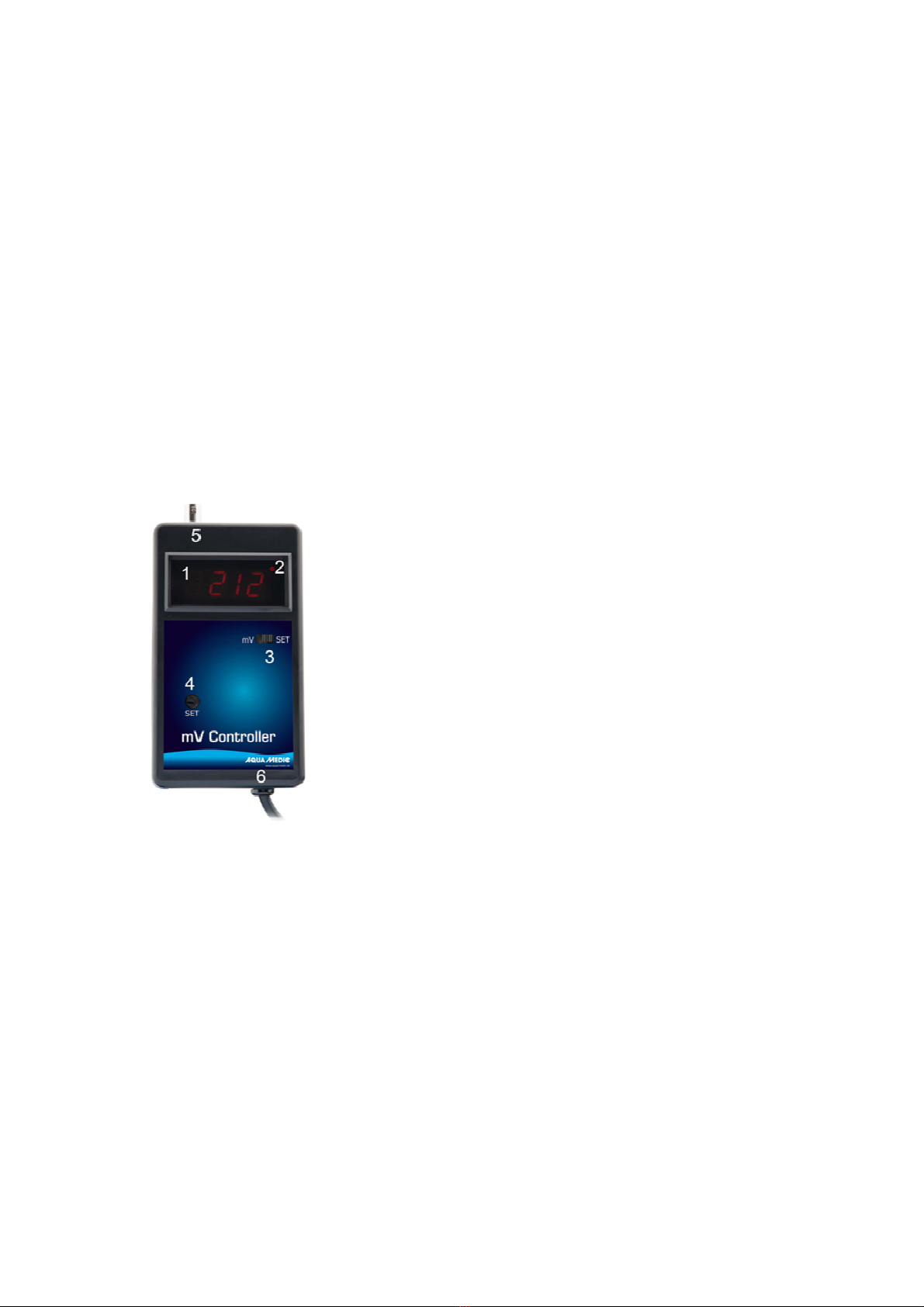

the plug (6) is activated
5. Troubles
- The unit shows wrong values – clean electrode
- Redox potential electrodes have only a limited lifespan – depending on use, between 1 and 3
years
6. Tec nical data:
Display: 0 5" LED, 3,5 digits
Measuring range: mV –1,000 up to +1,000
Resolution: 1 mV
Accuracy: +1 mV (+ 1 digit)
Relay contact: 5 amps at 100 - 240 V
Working temperature: 0 - 50° C
Humidity: below 80%
Control range: -500 up to +500 mV, digitally adjustable
Control accuracy: +5 mV (+ 1 digit)
Power consumption: AC 100 - 240 V, 50 Hz, if not stated otherwise
Dimensions: 150 x 85 x 40 mm
Weight: 550 g
7. Operation manual for Aqua Medic Redox potential electrode
The redox electrode is not included in shipment It is, however, absolutely necessary for the
function of the unit
The Aqua Medic mV electrode with a plastic shaft is especially made for determing the redox
potential in water It is used in aquaria, chemical industry, medicine and research laboratories
7.1. Tec nical Data:
Measuring range: - 1,000 up to + 1,000 mV
Sample temperature: 5 – 60° C (short term)
Connection: BNC–plug
Material: plastic shaft, platinum
7.2. Measuring/Maintenance
- During the measuring, the platinum top has to be submersed in sample liquid
- A new electrode or an electrode that has not been used for a longer time, has to be submersed
for at least 24 hours
8. Warranty
Should any defect in materials or workmanship be found within 24 months of the date of purchase
AB Aqua Medic undertakes to repair, or at our option replace, the defective part free of charge –
always provided the product has been installed correctly, is used for the purpose that was intended
by us, is used in accordance with the operating instructions and is returned to us carriage paid
Proof of Purchase is required by presentation of the original invoice or receipt indicating the
dealer’s name, the model number and date of purchase This warranty may not apply if any model
or production number has been altered, deleted or removed, unauthorised persons or organisations
have executed repairs, modifications or alterations, or damage is caused by accident, misuse or
neglect Please note that the product is not defective under the terms of this Warranty where the
product, or any of its component parts, was not originally designed and / or manufactured for the
market in which it is used These statements do not affect your statutory rights as a customer
AB Aqua Medic GmbH - Gewerbepark 24 - 49143 Bissendorf/Germany
- Technical changes reserved - 04/2017
Current manuals are available for download at www aqua-medic de
