ARB AC08C User manual

15-02-2019 Page 1 of 44 ARB Copyright 2019 3789507
If you have any queries regarding the installation of this product please contact the distributor from whom it was purchased, or alternatively the ARB office in your state.
Head Office –ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: [phone] Fax: [phone]
WA:[phone] NSW: [phone] ACT: [phone] SA: [phone] QLD: [phone] NT: [phone] TAS: [phone]
DUAL CAB ASCENT CANOPY
AC08C–Mitsubishi Triton MQ
(2015 Vehicle Production Onwards)
FITTING KIT: 6174003 with 664143 and 664144 Front Mount Rails
! PLEASE PROVIDE A COPY OF THESE INSTRUCTIONS TO THE CUSTOMER !
IMPORTANT:
Vehicle bodies and vehicle specific installation can vary, so please read the following
instructions as they refer to important information, which could affect the quality of the
final installation.
It is advisable to have the canopy fitted by an authorised dealer.
The majority of installation can be completed by one person, (however, at least 4 people
will be required to lift the canopy onto the vehicle).
FITMENT:
For Bed Liners refer to Section 6, additional time for fitting is required and trimming of bed
liners is required. Fitting with under rail bed liners is recommended (ARB part number
KUL2179). Tailgate liners must have the tailgate over rail portion trimmed off. ARB
Sport Guard (P/N:10052233) also requires additional trimming. For 2019 MR Model
the OEM bed liner part number is MZ330745TB
Cabin Guards and Sports bars must be removed prior to canopy fitment. These
components can be returned to the customer if required.
CARE OF YOUR CANOPY:
Please refer to the “owner’s manual supplement” to be given to the purchaser on
installation, and to details referred to in the second last page of these fitting instructions.

15-02-2019 Page 2 of 44 ARB Copyright 2019 3789507
If you have any queries regarding the installation of this product please contact the distributor from whom it was purchased, or alternatively the ARB office in your state.
Head Office –ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: [phone] Fax: [phone]
WA:[phone] NSW: [phone] ACT: [phone] SA: [phone] QLD: [phone] NT: [phone] TAS: [phone]
HAVE AVAILABLE THESE SAFETY ITEMS WHEN FITTING PRODUCT:
Protective eyewear
Hearing protection
NOTE: ‘WARNING’ notes in the fitting procedure relate to OHS situations, where to avoid a potentially
hazardous situation it is suggested that protective safety gear be worn or a safe work procedure be
employed. If these notes and warnings are not heeded, injury may result.
TOOL LIST FOR FITMENT:
Torque Wrench 0-25Nm
Sockets ¼”, 10 & 13mm, hex Allen key
sockets, socket extension bar and driver
Spanners, ratchet type, 8, 10 and 13mm.
Tape measure
150mm ruler
Power or pneumatic drill
Drill bits 6.5mm, 5.2mm.
10 and 12mm drill stops
12mm deep drill stops for 6.5 and 5.2mm
drill bits.
Knife
Sharp scissors
File or sheet metal de-burring tool
Metal primer touch up paint
Engineer’s scribe
Sheet metal vice grip clamp
Quicklock G clamp
Centre punch
Silicon Caulking Gun
Neutral cure Non Acetic Silicon
Phillips head screwdrivers
Flat blade screwdrivers
Side Cutters
Non-permanent marker
Electrical tape
Masking tape
Plastic Squeegee
Cleaning cloths / rags
Angle grinder and grinding and cut off
wheels
Sheet of plywood A3 in size.
Cable ties 2 off 200mm long (not supplied)
Cable ties 3 off 450mm long (not supplied)
FITTING THE CANOPY IS UNDERTAKEN IN THE FOLLOWING STAGES:
1. Removing any sports bars, cabin guards and bed liners.
2. Fitting the tub mounting brackets. (Note details of fitting with bed liners refer to
Section 6)
3. Fitting vehicle wiring.
4. Fitting the canopy to the vehicle
5. Operational checks and adjustment options for doors and windows.
6. Fitting the tub mounting brackets with bed liners.
7. Recording of key code and owner’s manual supplement.
8. Check list and sign off.
NOTE: DURING THE INSTALLATION IT IS NECESSARY TO DRILL SOME HOLES THROUGH THE
VEHICLE’S TUB SHEET METAL. IT IS RECOMMENDED THAT THESE ARE DE-BURRED
AND THE RUST INHIBITOR THAT IS PROVIDED BE USED TO AVOID RUST & ANY
SWARF LEFT OVER SHOULD BE CLEANED FROM THE TUB.

15-02-2019 Page 3 of 44 ARB Copyright 2019 3789507
If you have any queries regarding the installation of this product please contact the distributor from whom it was purchased, or alternatively the ARB office in your state.
Head Office –ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: [phone] Fax: [phone]
WA:[phone] NSW: [phone] ACT: [phone] SA: [phone] QLD: [phone] NT: [phone] TAS: [phone]
!! IMPORTANT !! other than specifically specified in this instruction
REQUIRED SCREW TORQUES: M6=9Nm M8=22Nm
Screw torques must be adhered to avoid warranty issues and should be checked at
vehicle service intervals.
THE FITTING KITS CONSIST OF:
Packed under the canopy are:
664143 UPPER FRONT HEADBOARD MOUNT RAIL BRACKET- QTY 1
664144 LOWER FRONT HEADBOARD MOUNT RAIL BRACKET- QTY1
Part No
Qty
Description
1. 6174003
MAIN CANOPY
HARDWARE KIT
6602018
2
ALCHOL WIPES
665505
2
RUST INHIBITOR SACHET
3199779
2
GRINDING PLATE (DISPOSABLE)
665076
2
BUMPON STRIP OF 5 PIECES
665044
3
PRIMER STICK
668PM005
1
PAIR OF RUBBER SELF-ADHESIVE TUB CORNER SEAL
BRIDGES
668PB023
1
HANDED PAIR OF FOAM TAPE DIE CUTS –REAR TUB
BRACKET CORNER SEALS- WITH SELF-ADHESIVE
668PB018
2
ROLL OF FOAM TAPE 2MMX26X1650MM
665037
1
ROLL- CLEAR TAILGATE PROTECTION TAPE 30MM
WIDE
6609087
29
RIVET POP 3/16" DIA GRIP 4.8-11.1

15-02-2019 Page 4 of 44 ARB Copyright 2019 3789507
If you have any queries regarding the installation of this product please contact the distributor from whom it was purchased, or alternatively the ARB office in your state.
Head Office –ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: [phone] Fax: [phone]
WA:[phone] NSW: [phone] ACT: [phone] SA: [phone] QLD: [phone] NT: [phone] TAS: [phone]
6151625
6
M8 X 25 TORX PAN HEAD SCREW - BLACK
4581303
6
M8 X 25.4MM X 3MM THICK BLACK FLAT WASHERS
4581307
6
M8 X 20MM X 2MM THICK BLACK FLAT WASHERS
6151212
6
M8X1.25 BLACK NYLOC NUT
6151213
8
M6X20MM BLACK HEX HEAD SCREWS GD 8.8
6151173
9
M6 WIZZLOCK FLANGE NUTS - BLACK
4584310
8
M6 X 25MM X 2.8MM THICK BLACK FLAT WASHERS
6151354
4
NUT HEX M5 X 0.8 NYLOC ZINC PLATE
4584347
8
WASHER FLAT M5
6151650
4
SCREW BUTTON HEAD M5 X 20
668PJ020
1
ELECTRICAL LOOM- VEHICLE HARNESS
668PB015
2
FOAM TAPE ANTI RATTLE 30MMX150MM STRIPS
668PB025
1
(1 PAIR OF ) 75 X 2 0X 9.5MM THCK SELF-ADHESIVE
FOAM TAPE BLOCKS
6672001
8
DOUBLE SIDED TAPE STRIP 10X50X2.3MM
668PJ015
1
ELECTRICAL RELAY BOX
6821293
1
CABLE TIE ADHESIVE BASE
180302
1
CABLE TIE 4.8x200MM
668PD054
2
CENTER TUB MOUNT BRACKET
668PD076R
1
BRACKET RH FRONT TUB MOUNT
668PD076L
1
BRACKET LH FRONT TUB MOUNT
668PD077
2
BRACKET REAR TUB MOUNT
668PD079R
1
RH REAR CANOPY MOUNT & TAILGATE SEALING
BRACKET
668PD079L
1
LH REAR CANOPY MOUNT & TAILGATE SEALING
BRACKET

15-02-2019 Page 5 of 44 ARB Copyright 2019 3789507
If you have any queries regarding the installation of this product please contact the distributor from whom it was purchased, or alternatively the ARB office in your state.
Head Office –ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: [phone] Fax: [phone]
WA:[phone] NSW: [phone] ACT: [phone] SA: [phone] QLD: [phone] NT: [phone] TAS: [phone]
SECTION 1: PREPARING THE VEHICLE TUB –REMOVAL OF SPORTS BARS AND CABIN
GUARDS.
1.1) Remove any sports bars (retain sports bar bolts and washers) or cabin guards fitted on the
front bed rail of the vehicle’s tub.
1.2) The sports bar will need to be removed if fitted and returned to the customer if requested
to do so.
1.3) Remove and retain all bed liner components and tie down hardware.
1.4) If your vehicle is fitted with a cabin guard frame it
must be removed. Some protectors can be
unbolted, if not, remove it in the following manner.
1.5) Slide a sheet of cardboard (from the box) or
similar between the cab and Ute body.
1.6) Apply 200mm lengths of overlapping masking
tape to the top and side of the tray, up to the
cabin guard main support leg on both sides of the
tub.
1.7) Position the steel protective grinding plates
(3199779) next to the cabin guard main support
leg on both sides of the tub.
1.8) Secure the protective steel grinding plate to the
tray body by covering it completely with masking
tape as shown.

15-02-2019 Page 6 of 44 ARB Copyright 2019 3789507
If you have any queries regarding the installation of this product please contact the distributor from whom it was purchased, or alternatively the ARB office in your state.
Head Office –ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: [phone] Fax: [phone]
WA:[phone] NSW: [phone] ACT: [phone] SA: [phone] QLD: [phone] NT: [phone] TAS: [phone]
1.9) Insert a suitable protective wooden board of
adequate thickness between the cardboard and
the cabin guard main brace as shown.
1.10) Using a medium sized angle grinder, partially cut
through the rear and side faces of the cabin guard
main support legs.
1.11) Completely cut through the inner ladder rack bars
(if fitted) at the base, flush to the tray panel, as
shown. Move the protective board from Step 1.9
to each bar before cutting.
1.12) Cut completely through the remaining rear faces
of the LH & RH cabin guard main side legs, flush
to the grinding plates in step 1.8.
1.13) Remove the cabin guard from the vehicle and
discard it.

15-02-2019 Page 7 of 44 ARB Copyright 2019 3789507
If you have any queries regarding the installation of this product please contact the distributor from whom it was purchased, or alternatively the ARB office in your state.
Head Office –ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: [phone] Fax: [phone]
WA:[phone] NSW: [phone] ACT: [phone] SA: [phone] QLD: [phone] NT: [phone] TAS: [phone]
1.14) Move the protective board before cutting.
Carefully cut away any remaining metal not flush
with the top of the vehicle’s side tub rail panels.
1.15) Using metal files, de-burr the outer and inner
edges of the remaining portions of the cabin
guard support legs on the vehicle’s tub.
1.16) Using compressed air, completely blow out any
metal filings / swarf in the tray floor.
1.17) After removal, touch up the bare metal with
primer, and then fill any holes exposed from the
removal of the cabin guard with a neutral cure
silicone.

15-02-2019 Page 8 of 44 ARB Copyright 2019 3789507
If you have any queries regarding the installation of this product please contact the distributor from whom it was purchased, or alternatively the ARB office in your state.
Head Office –ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: [phone] Fax: [phone]
WA:[phone] NSW: [phone] ACT: [phone] SA: [phone] QLD: [phone] NT: [phone] TAS: [phone]
SECTION 2: FITTING THE CANOPY TUB MOUNTING BRACKET SYSTEM
Remove any bed liner and associated hardware to include any accessory ties downs at this point.
2.0) Clean the front tub rail at the back of the vehicle’s
cabin with Isopropyl Alcohol wipe and a lint free
rag.
Starting from the inside edge of the side tub rails,
apply soft foam tape (668PB018) seal along the top
face of the front of the vehicle’s tub, aligning an
edge towards the inside edge of the tub. Trim the
tape level to butt up to the inside of the side tub rail
on the opposite side.

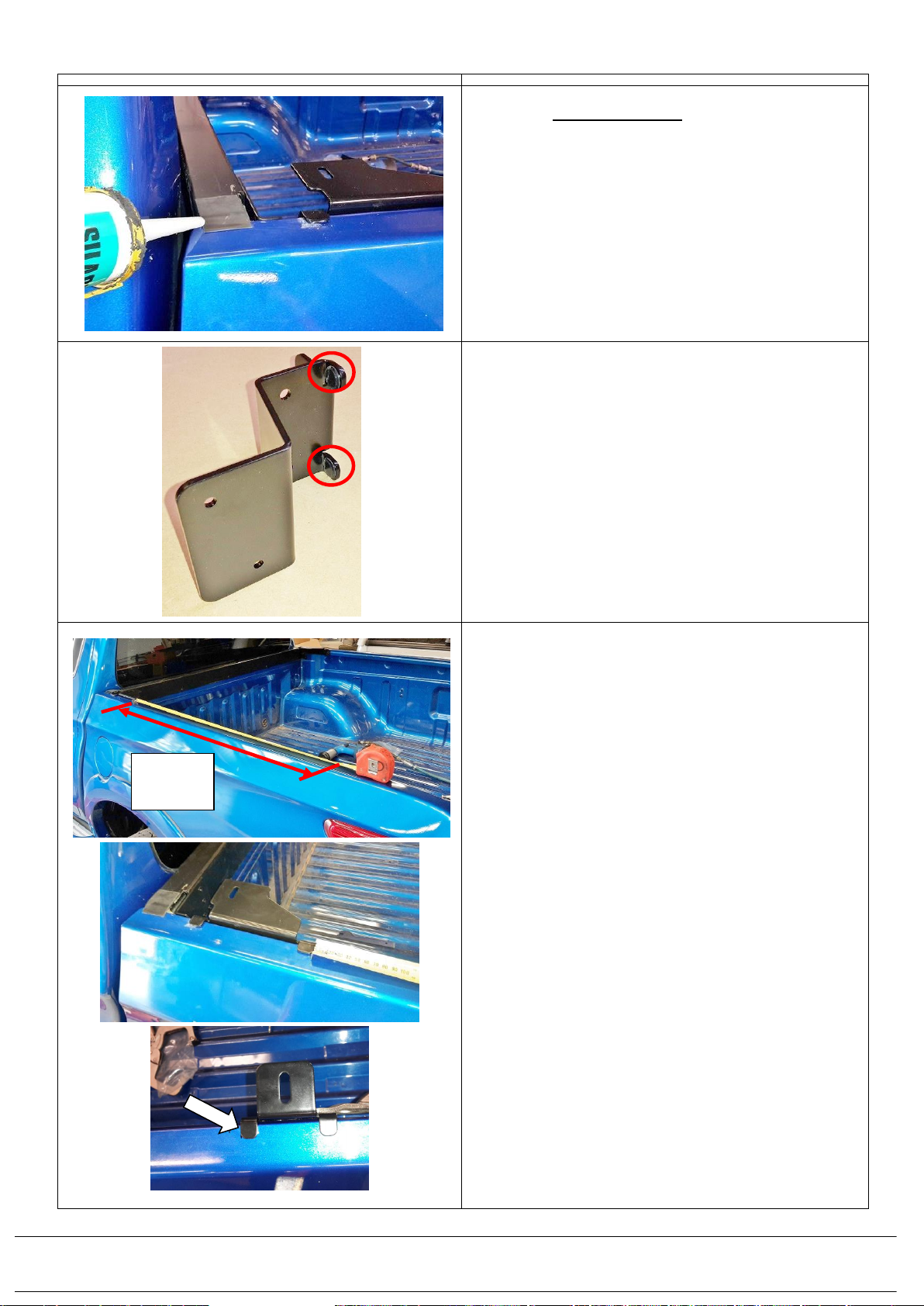

2.1) Apply neutral cure silicon to the ends of the foam
tape at the junction to the side tub walls on both
sides of the tub.
2.2) Fit the lower front headboard rail (664144) down
onto the front of the vehicle’s tub. Ensure the ends
of this bracket align to the ends of the vehicle’s tub
with an even gap at the ends to the sides of the
tub. The main return fold should be facing down
and in towards the inside of the tub. The 4 cut outs
in the top of the part should be facing with their
open sides in towards the inside of the tub.
Apply silicon
to tub joins in
front corners
inside.

15-02-2019 Page 9 of 44 ARB Copyright 2019 3789507
If you have any queries regarding the installation of this product please contact the distributor from whom it was purchased, or alternatively the ARB office in your state.
Head Office –ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: [phone] Fax: [phone]
WA:[phone] NSW: [phone] ACT: [phone] SA: [phone] QLD: [phone] NT: [phone] TAS: [phone]

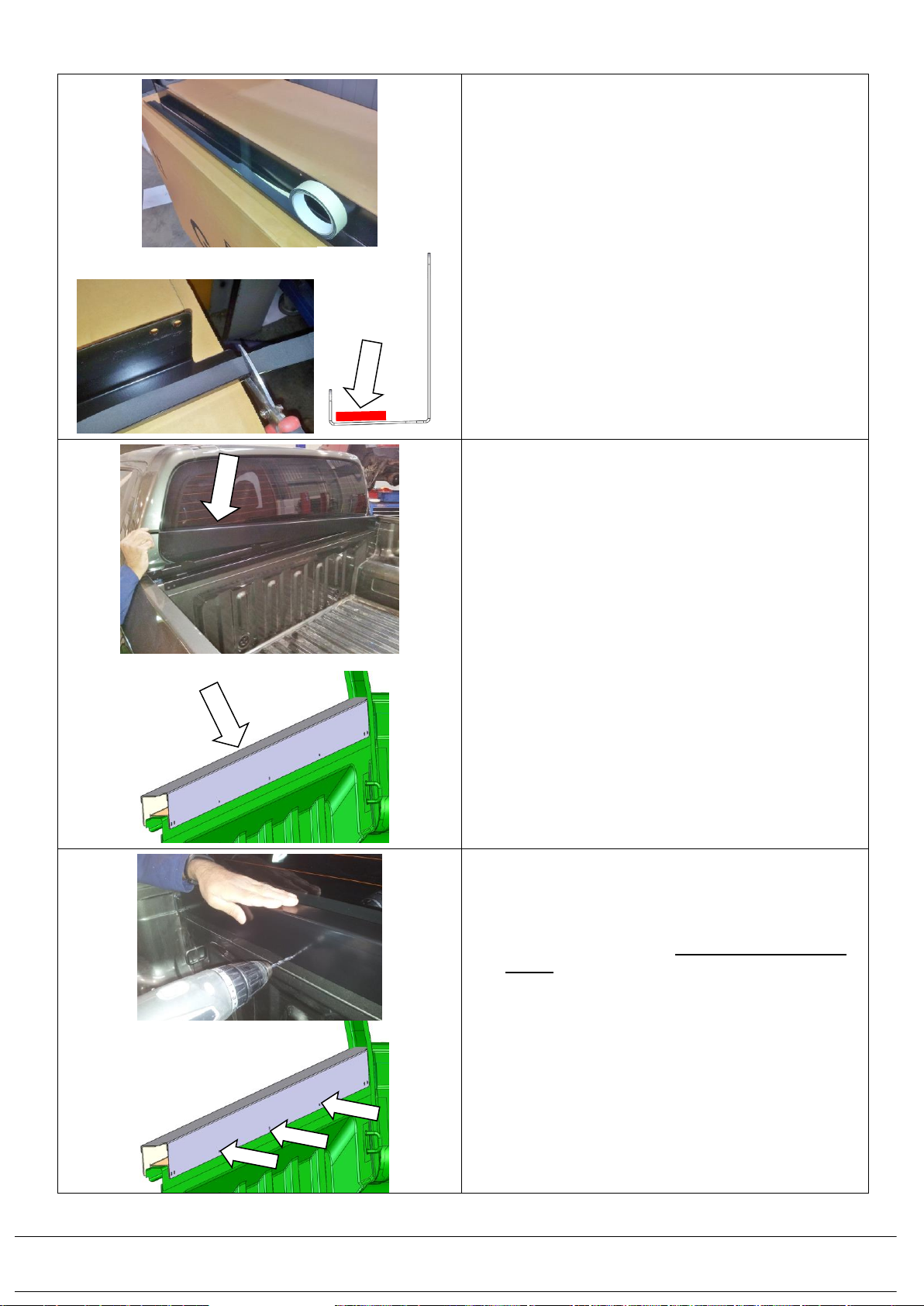

2.3) With the front headboard rail (664144) centralised
at the front of the tub, and holding down with firm
pressure, drill 5.2mm holes with a 12mm drill stop
fitted through the 4 existing holes in the face of the
bracket through into the top face of the vehicle’s
front tub panel.
2.4) Apply rust inhibitor (665505) to the 4 drilled holes
through the front headboard rail and insert 4 rivets
into the holes to keep alignment, then rivet the rail
in place using 4 off (6609087) rivets.
2.5) Apply neutral cure silicon to seal both ends of the
lower headboard rail and the tub as shown all
around the ends of the lower front head board rail.
Push down and push lip in
towards tub before drilling 4
holes in top surface only

15-02-2019 Page 10 of 44 ARB Copyright 2019 3789507
If you have any queries regarding the installation of this product please contact the distributor from whom it was purchased, or alternatively the ARB office in your state.
Head Office –ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: [phone] Fax: [phone]
WA:[phone] NSW: [phone] ACT: [phone] SA: [phone] QLD: [phone] NT: [phone] TAS: [phone]

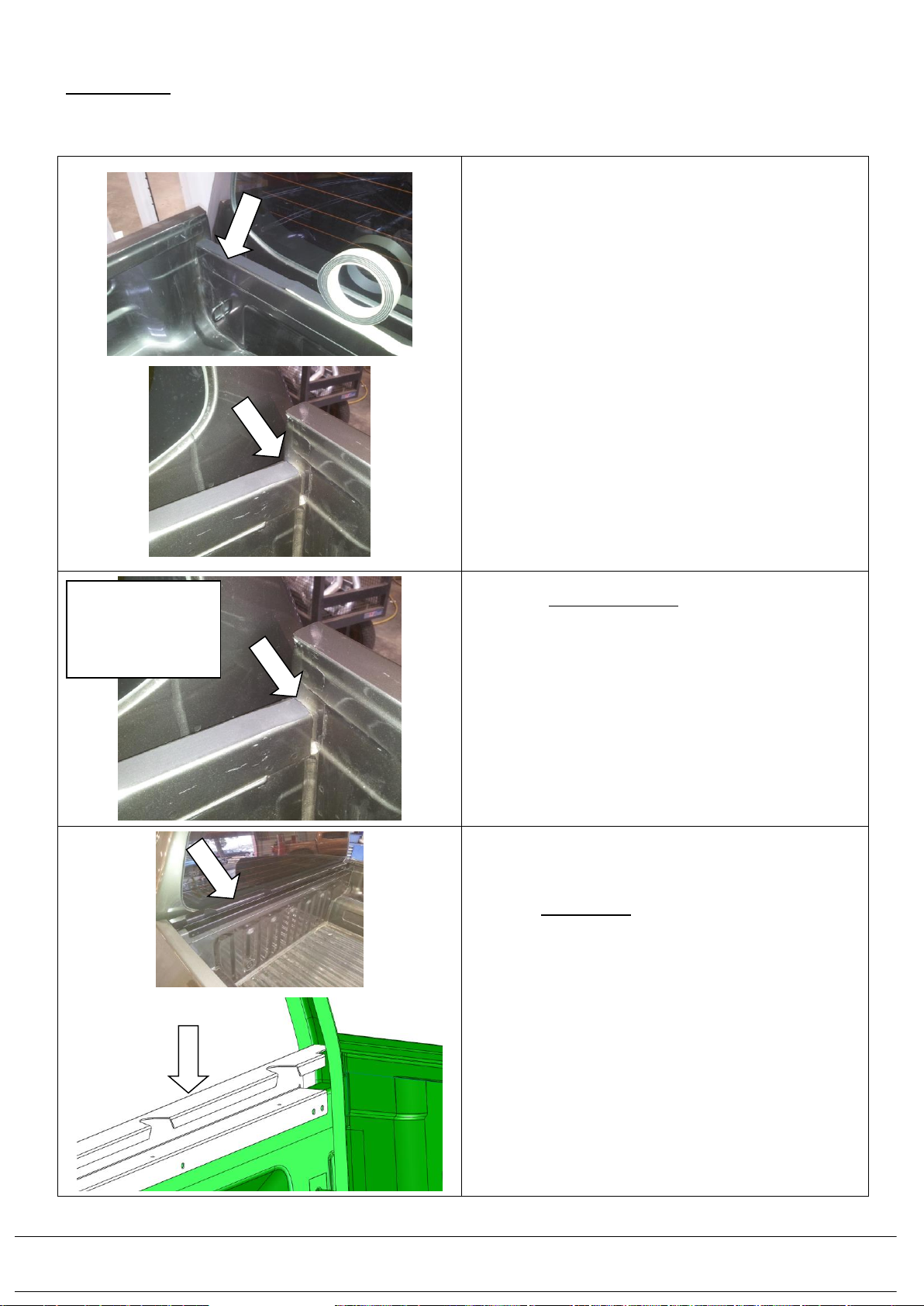

2.6) Apply the second roll of foam tape (668PB018) to
the inside of the front upper head board mount rail
(664143) towards the inner edge of the smaller lip
and cut the foam tape off level with both ends.
2.7) Load the front upper headboard mount rail
(664143) down onto the lower front head board
mount rail that is mounted to the vehicle’s tub. Align
the rail with the holes on the lower head board
bracket on the inside of the tub and align the rail
centrally left to right on the tub.

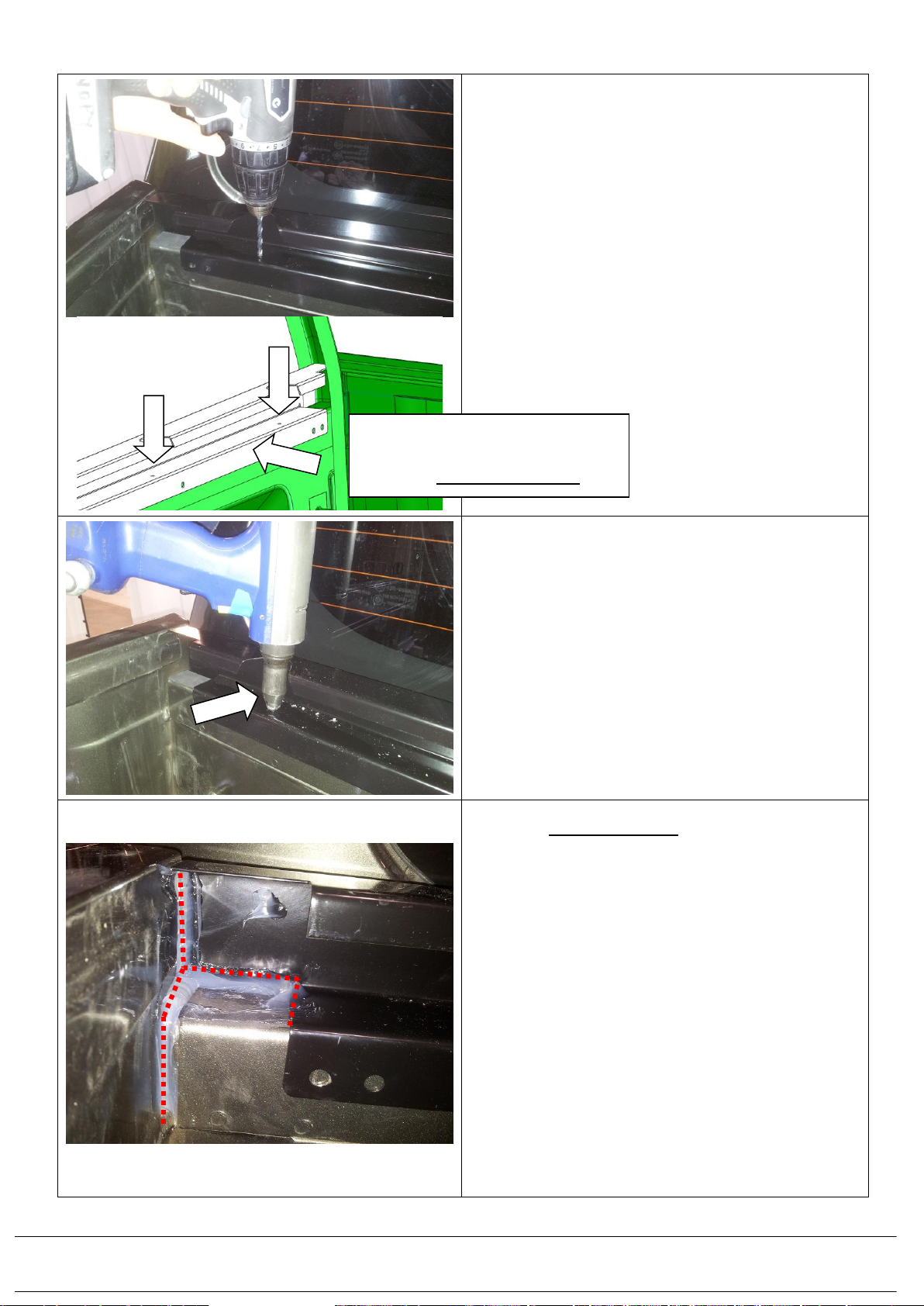

2.8) With the front upper headboard mount rail aligned
centrally, check all holes are aligned to the lower
headboard rail and while holding down with firm
pressure, drill 5.2mm holes with a 12mm drill
stop fitted through the 3 central existing holes
ONLY! in the face of the bracket through into the
front face of the tub.

15-02-2019 Page 11 of 44 ARB Copyright 2019 3789507
If you have any queries regarding the installation of this product please contact the distributor from whom it was purchased, or alternatively the ARB office in your state.
Head Office –ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: [phone] Fax: [phone]
WA:[phone] NSW: [phone] ACT: [phone] SA: [phone] QLD: [phone] NT: [phone] TAS: [phone]
2.9) Apply rust inhibitor (665505) to the 3 drilled holes
through the front upper headboard rail and insert 3
rivets into the holes to keep alignment, then rivet
the rail in place using 3 off (6609087) rivets.
2.10) Prepare the pair of front corner brackets
(668PD076R&L) with self-adhesive round clear
bumpons (665076) applied to the tags on each
bracket as shown.
2.11) Clamp the bracket (LH shown) to the side of the
vehicle’s tub lip in the front corner. Ensure the
bracket is pushed down so the bumpons on
the underside of the bracket engage to top of
the side vehicle tub rails and the front end of
the bracket is pushed up the front head board
rail assembly. Repeat on other side of tub for the
opposite bracket.
2.12) Drill 5.2mm holes through the exiting hole in lower
bracket corner on the side tub wall with a
12mm deep drill stop fitted. It is important this
position is done first to level out the bracket
to the front rail. Remove any swarf. Apply rust
inhibitor (665505) to the drilled holes and insert
two rivets (6609087). Repeat on other side of tub
for the opposite bracket

15-02-2019 Page 12 of 44 ARB Copyright 2019 3789507
If you have any queries regarding the installation of this product please contact the distributor from whom it was purchased, or alternatively the ARB office in your state.
Head Office –ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: [phone] Fax: [phone]
WA:[phone] NSW: [phone] ACT: [phone] SA: [phone] QLD: [phone] NT: [phone] TAS: [phone]
2.13) Drill the other 4 remaining holes in the front end
of the front corner bracket to 5.2mm holes
through the exiting holes in the bracket, with a
12mm deep drill stop fitted. Remove any swarf.
Apply rust inhibitor (665505) to the drilled holes
and assemble 4 rivets (6609087).
Repeat on other side of tub for the opposite
bracket
2.14) In total there should be now 6 assembled rivets in
each front corner bracket.
2.15) Clamp the bracket to the side of the vehicle’s tub
lip. Drill a 6.5mm through the exiting hole in the
rear of the front tub corner brackets with a 12mm
deep drill stop fitted. Remove any swarf.

15-02-2019 Page 13 of 44 ARB Copyright 2019 3789507
If you have any queries regarding the installation of this product please contact the distributor from whom it was purchased, or alternatively the ARB office in your state.
Head Office –ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: [phone] Fax: [phone]
WA:[phone] NSW: [phone] ACT: [phone] SA: [phone] QLD: [phone] NT: [phone] TAS: [phone]
2.16) Apply rust inhibitor to the hole. Fit M6 x 20 mm
hex bolt with M6 x 25mm flat washer under its
head through the bracket holes and on the
inside secure these in place with M6 wizzlock
flange nuts (6151173). Do these up to 9Nm on
both sides of the tub.
2.17) If a sports bar was fitted, using the retained
sports bar bolts and washers install two of them
through the bracket and do up 22NM.
2.18) Apply neutral cure silicon to the ends of the front
head board rail to the side edges of the tub and
smooth down. ! Important ! Wipe off any
excess outside the joint area with an
Isopropyl Alcohol wipe.
2.19) Cut a pair of rubber tub bridges (668PM005)
down to 35mm width as shown.
2.20) Place on the cut down tub bridge rubber self-
adhesive ramps (668PM005) at either end of the
front tub rail, aligning the back edge of them to
the inside edge of the front head board bracket.
The bridge should lip over onto the side tub
rails by 10mm only.
35mm
10mm
Orientation of seal
This face to this side

15-02-2019 Page 14 of 44 ARB Copyright 2019 3789507
If you have any queries regarding the installation of this product please contact the distributor from whom it was purchased, or alternatively the ARB office in your state.
Head Office –ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: [phone] Fax: [phone]
WA:[phone] NSW: [phone] ACT: [phone] SA: [phone] QLD: [phone] NT: [phone] TAS: [phone]
2.21) Apply neutral cure silicon to the ends of the rubber
bridge extrusions and seal down the front side of
the corner of the tub.
2.22) Prepare a pair of rear tub mounting bracket
(668PD077) with self-adhesive bumpons
(665076) applied to the tags on each bracket.
2.23) Locate the rear mounting brackets (668PD077)
toward the rear of the tub’s top side rails.
Measure 950mm between the edges of the tags
overlapping the sides of the tub edge on the front
bracket to the leading edge position of the rear
bracket as shown.
950mm

15-02-2019 Page 15 of 44 ARB Copyright 2019 3789507
If you have any queries regarding the installation of this product please contact the distributor from whom it was purchased, or alternatively the ARB office in your state.
Head Office –ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: [phone] Fax: [phone]
WA:[phone] NSW: [phone] ACT: [phone] SA: [phone] QLD: [phone] NT: [phone] TAS: [phone]
2.24) Clamp the rear tub mounting bracket to the side
of the vehicle’s tub lip at the correct distance from
the front brackets. Ensure the bracket is
pushed down so the bumpons on the
underside of the bracket engage to top of the
side vehicle tub rails. Drill 6.5mm holes
through the exiting holes at the top of the
brackets where they mate up to the lip on the
vehicle’s tub. Ensure a 12mm deep drill stop
is fitted first. Remove any swarf.
2.25) Apply rust inhibitor to the holes. Fit M6 x 20 mm
hex bolts with M6 x 25mm flat washer under their
heads through the bracket holes and on the
inside secure these in place with M6 wizzlock
flange nuts (6151173). Do these up to 9Nm.

15-02-2019 Page 16 of 44 ARB Copyright 2019 3789507
If you have any queries regarding the installation of this product please contact the distributor from whom it was purchased, or alternatively the ARB office in your state.
Head Office –ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: [phone] Fax: [phone]
WA:[phone] NSW: [phone] ACT: [phone] SA: [phone] QLD: [phone] NT: [phone] TAS: [phone]
2.26) Drill 5.2mm holes through the exiting holes in
lower part of the rear bracket with a 12mm
deep drill stop fitted to avoid drilling too far.
Remove any swarf. Apply rust inhibitor (665505)
to the drilled holes and assemble two rivets
(6609087).
2.27) If an ARB bed liner or Sport Guard is now to be
fitted refer to Section 6. For an OEM bed liner do
this after measuring off bracket positions on the
tub and measuring these out on the bed liner and
cut away sections of the bed liner to suit the
canopy mounting brackets.
SECTION 3: FITTING THE VEHICLE WIRING
The diagram below offers a reference to assist the routing of wires

15-02-2019 Page 17 of 44 ARB Copyright 2019 3789507
If you have any queries regarding the installation of this product please contact the distributor from whom it was purchased, or alternatively the ARB office in your state.
Head Office –ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: [phone] Fax: [phone]
WA:[phone] NSW: [phone] ACT: [phone] SA: [phone] QLD: [phone] NT: [phone] TAS: [phone]
3.0) Go to the passenger side front door
3.1) Carefully remove the lower scuff panel by peeling
back the front and rear edges from the inside, and
lifting the panel with the aid of a plastic trim
removal tool
3.2) Remove the side kick panel, by first removing the
two fasteners shown and gently pulling into the foot
well. A plastic trim removal tool will aid
3.3) The vehicle electrical patch wiring loom (668PJ020)
has 2 parts. The main patch loom and the blade
fuse adaptor.
Ensure the blade fuse adaptor is fitted with a
7.5 Amp and 15 Amp blade fuse as shown
opposite
Main
patch
loom
Blade fuse adaptor
7.5A
15A

15-02-2019 Page 18 of 44 ARB Copyright 2019 3789507
If you have any queries regarding the installation of this product please contact the distributor from whom it was purchased, or alternatively the ARB office in your state.
Head Office –ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: [phone] Fax: [phone]
WA:[phone] NSW: [phone] ACT: [phone] SA: [phone] QLD: [phone] NT: [phone] TAS: [phone]
3.4) Connect the assembled blade fuse adaptor to the
connector on the main patch loom as shown.
3.5) Remove the top 14 pin connector from the junction
box in the kick panel area.
3.6) Insert the vehicle’s 14 pin connector plug into the
canopy loom 14 pin receptacle.
3.7) Insert the canopy patch loom 14 pin connector plug
into the vehicle 14 pin receptacle as shown.
3.8) Remove the bottom 18 pin connector from the
vehicle’s junction box.
3.9) Insert the vehicle’s 18 pin connector plug into the
canopy loom 18pin receptacle.
3.10) Insert the canopy patch loom 18 pin connector
plug into the vehicle’s 18pin receptacle as shown.

15-02-2019 Page 19 of 44 ARB Copyright 2019 3789507
If you have any queries regarding the installation of this product please contact the distributor from whom it was purchased, or alternatively the ARB office in your state.
Head Office –ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: [phone] Fax: [phone]
WA:[phone] NSW: [phone] ACT: [phone] SA: [phone] QLD: [phone] NT: [phone] TAS: [phone]

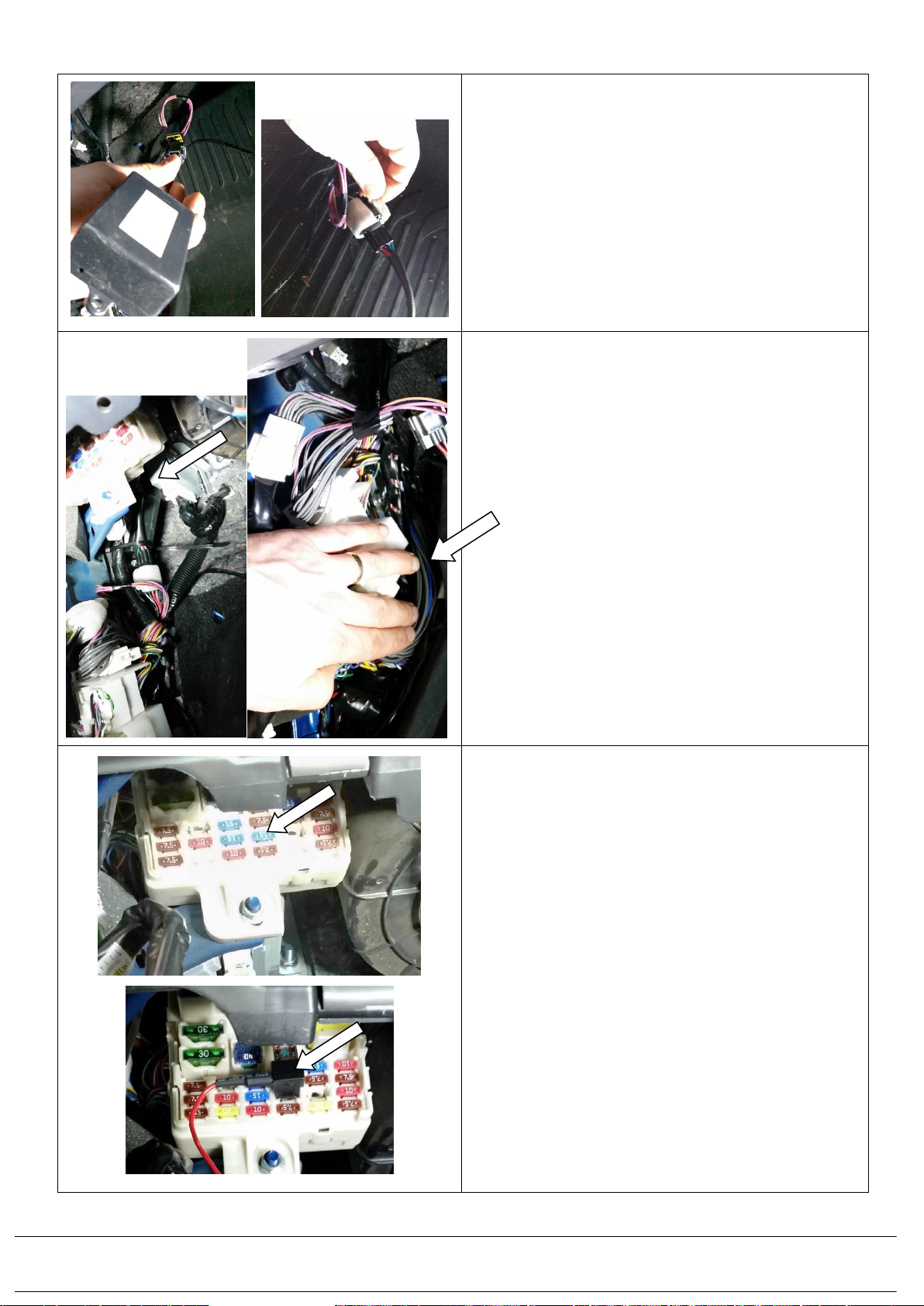

3.11) Connect the (668PJ015) latching relay to the
matching 6 pin connector on the canopy patch
loom.
3.12) Wrap all connectors in anti-rattle foam tape
(669PB015)
3.13) Using 2 off 200mm cable ties secure the
668PJ015 latching relay to the loom branch
behind the fuse box under the dash.
3.14) Neatly tuck the wiring in behind the junction box.
3.15) Remove the 15 Amp fuse indicated in the fuse
box.
3.16) Insert the blade fuse adapter form the canopy
patch loom in replacement of the 15 Amp fuse.

15-02-2019 Page 20 of 44 ARB Copyright 2019 3789507
If you have any queries regarding the installation of this product please contact the distributor from whom it was purchased, or alternatively the ARB office in your state.
Head Office –ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: [phone] Fax: [phone]
WA:[phone] NSW: [phone] ACT: [phone] SA: [phone] QLD: [phone] NT: [phone] TAS: [phone]

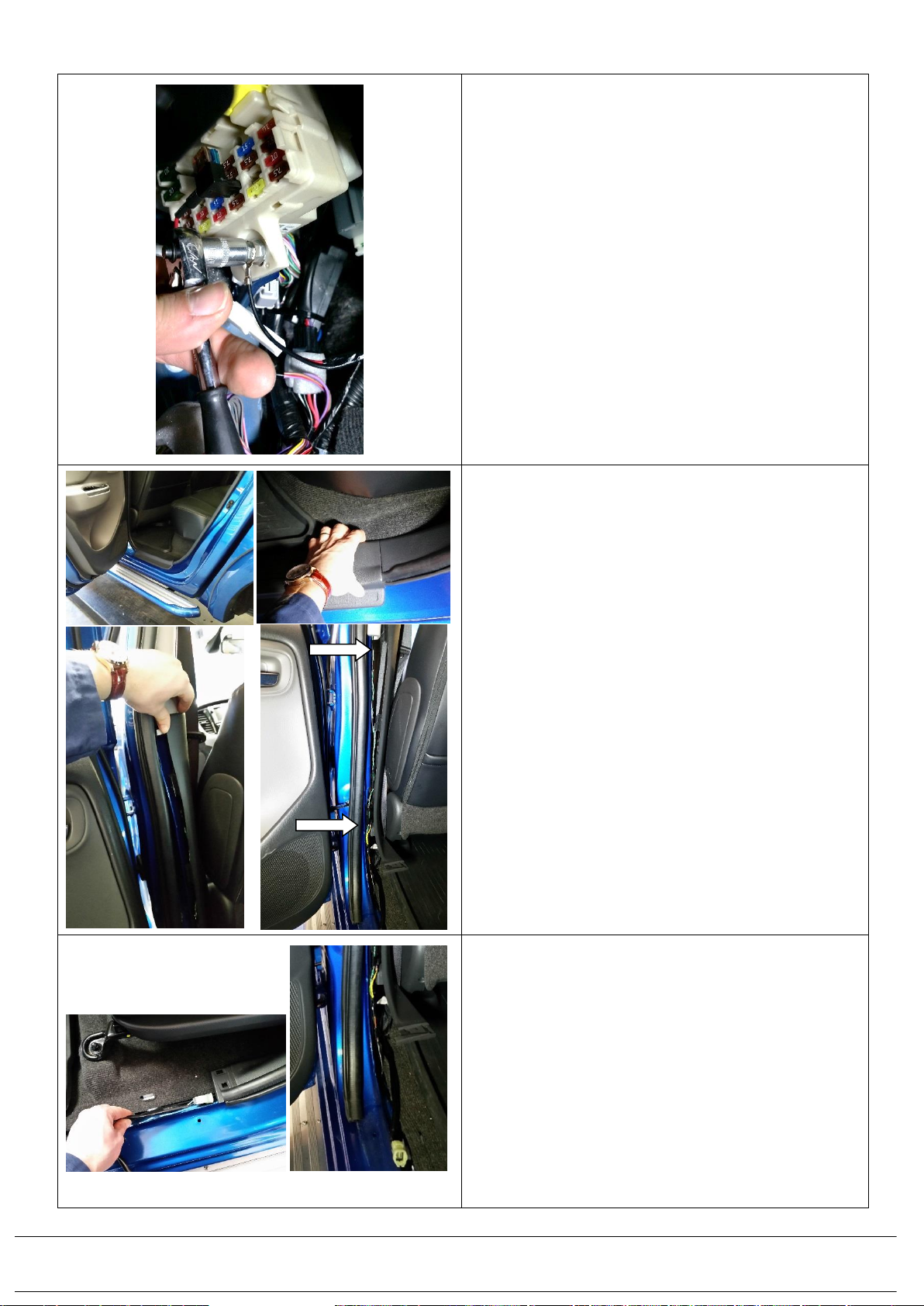

3.17) Using an M6 flange nut (6151173), fix the earth
eyelet on the canopy patch loom over the top of
the existing M6 nut at the bottom of the fuse box.
3.18) Open the passenger side rear door.
3.19) Remove the lower scuff plate.
3.20) Unclip the B-Pillar mouilding and prise it away
from the vehicle pillar.
3.21) Run the 4 pin white connector on the canopy
patch loom from the front kick panel behind the B-
pillar cover to the rear kick panel, keeping away
from the seatbelt.
