Arbor Technology ARTS-3250W User manual

1
ARTS-3250/3672W
Fanless Train PC w/ Intel
®
Core™ i7 (ARTS-3672W) &
Fanless Train PC w/ Intel
®
Core™ Atom™ D2550 (ARTS-3250)
User’s Manual
Version 1.2
2015.03P/N: 4012325000120P

- 2 -
This page is intentionally left blank.

- i -
Revision History
Version Release Time Description
1.0 October 2013 Initial release
1.1 December 2013 Add Appendix E External and Internal
Cables
1.2 March 2015
Change ARTS-3672 to ARTS-3672W
Revise Page 4 :
1. Operating Temp. : From -25~55°C
(-13~131°F), ambient w/ air ow,
EN50155 Class T1 to -40 ~ 70°C
(-40 ~158°F ), ambient w/ air ow,
EN50155 Class TX
2. Relative Humidity : From 5 ~ 95%
@ 40°C (non-condensing) to 5 ~
95% @ 70°C (non-condensing)
Reviser P.69 picture of Power terminal
receptacle
P.144
Reverse LAN port PIN4 and PIN6 Pin
assignment

- ii -
Contents
Revision History ............................................................................. i
Preface............................................................................................ v
Copyright Notice ....................................................................................... v
Declaration of Conformity ......................................................................... v
CE...................................................................................................... v
FCC Class A....................................................................................... v
RoHS .................................................................................................vi
SVHC / REACH .................................................................................vi
Important Safety Instructions...................................................................vii
Warning ..................................................................................................viii
Replacing Lithium Battery.......................................................................viii
Technical Support ...................................................................................viii
Warranty ...................................................................................................ix
Chapter 1 - Introduction................................................................ 1
1.1. Product Highlights ............................................................................. 2
1.2. About this Manual .............................................................................. 2
1.3. Specications .................................................................................... 3

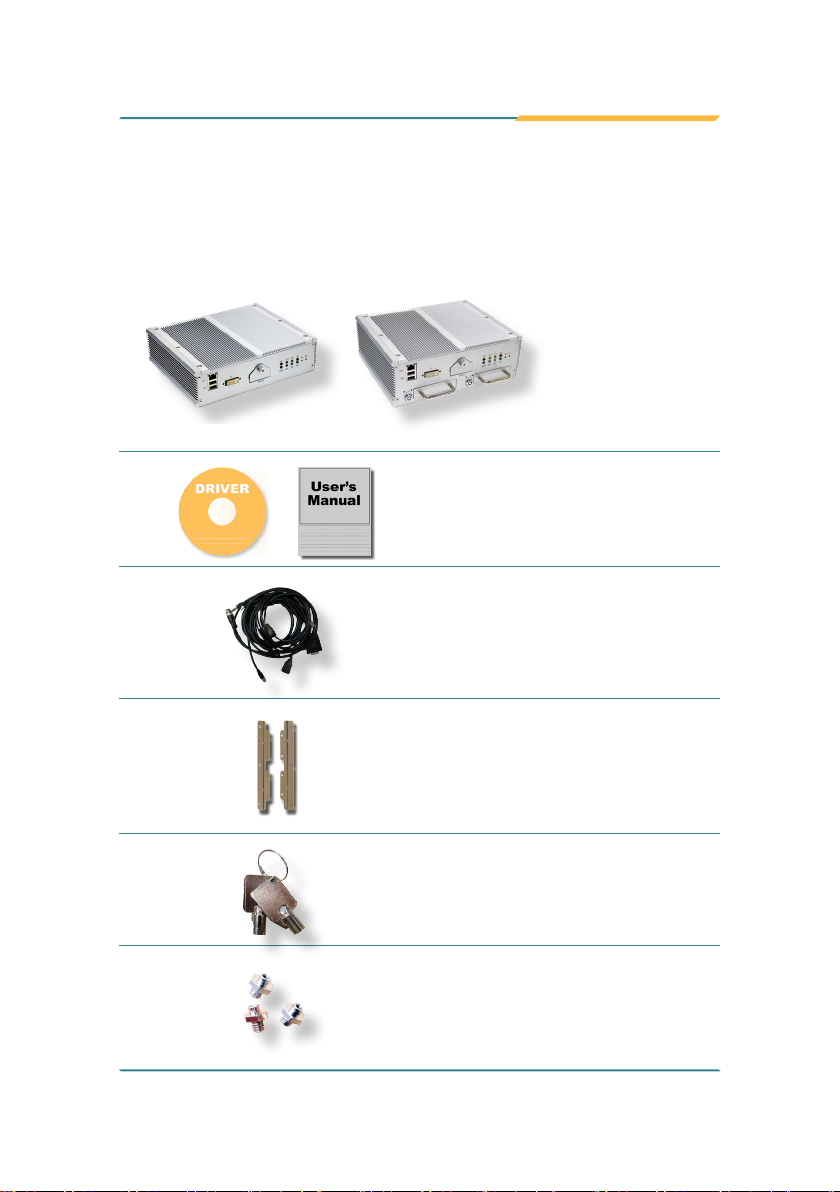

1.4. Inside the Package ............................................................................ 5
1.5. Ordering Information.......................................................................... 6

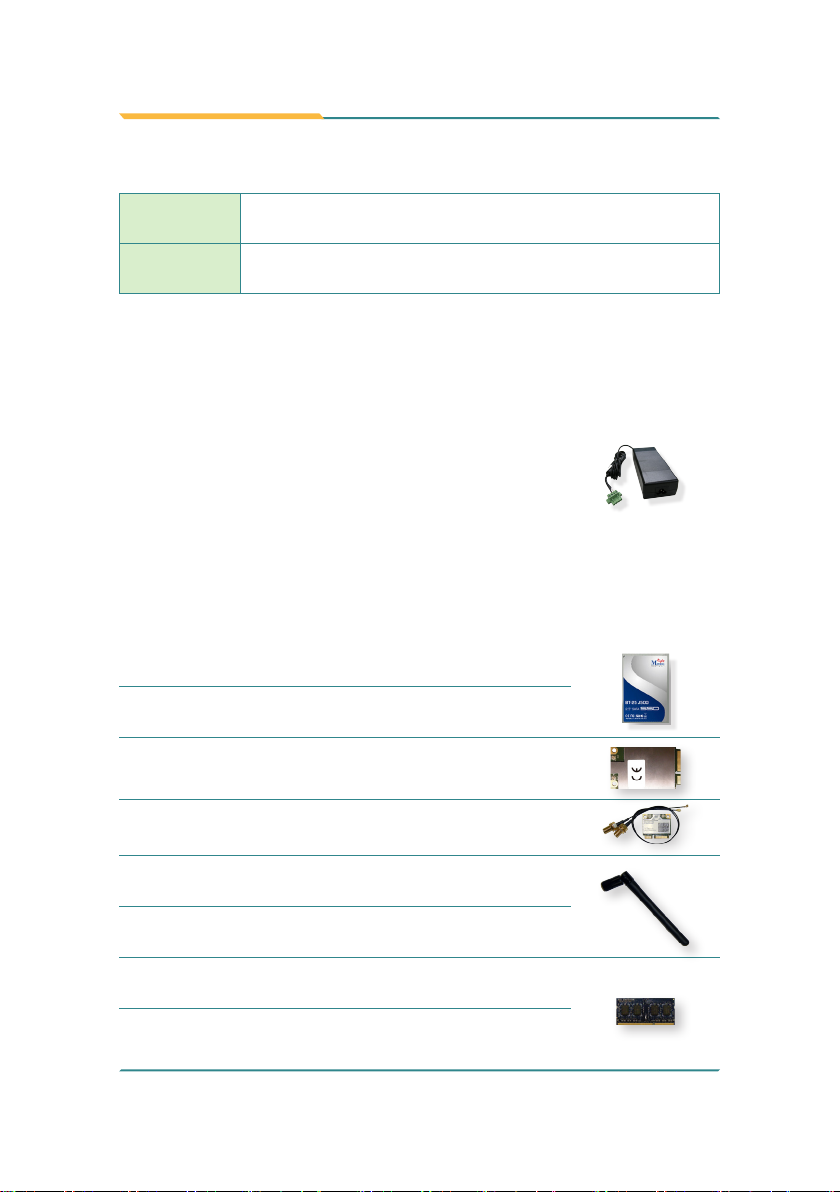

1.5.1. Optional Accessories ............................................................... 6
1.5.2. Congure-to-Order Service...................................................... 6
Chapter 2 - Getting Started........................................................... 7
2.1. Dimensions........................................................................................ 8
2.1.1. ARTS-3250 .............................................................................. 8
2.1.2. ARTS-3672W ........................................................................... 9
2.2. Take A Tour ...................................................................................... 10
2.2.1. ARTS-3250 ............................................................................ 10
2.2.2. ARTS-3672W ......................................................................... 12
2.3. Driver Installation Notes .................................................................. 14
Chapter 3 - System Conguration ............................................. 15
3.1. Board Layout ................................................................................... 16
3.1.1. CPU Boards........................................................................... 16
3.1.2. Carrier Board ......................................................................... 19
3.2. Jumpers and Connectors ................................................................ 21
3.2.1. Jumpers ................................................................................. 21
3.2.2. Connectors............................................................................. 32
Chapter 4 - Installation and Maintenance.................................. 57
4.1. Install Hardware............................................................................... 58
4.1.1. Open the Computer ............................................................... 58
4.1.2. Install/uninstall SIM Card ....................................................... 60

- iii -
Contents
4.1.3. Install/uninstall CFast Card.................................................... 62
4.1.4. Install SATA HDD/SSD (ARTS-3672W only).......................... 64
4.1.5. Install Wireless Modules ........................................................ 67
4.2. Mount the Computer........................................................................ 68
4.3. Wire DC-in Power Source................................................................ 69
Chapter 5 - BIOS.......................................................................... 71
5.1. ARTS-3250 ...................................................................................... 74
5.1.1. Main ....................................................................................... 74
5.1.2. Advanced ............................................................................... 75
5.1.3. Chipset................................................................................... 86
5.1.4. Boot........................................................................................ 92
5.1.5. Security.................................................................................. 94
5.1.6. Save & Exit ............................................................................ 95
5.2. ARTS-3672W................................................................................... 96
5.2.1. Main ....................................................................................... 96
5.2.2. Advanced ............................................................................... 97
5.2.3. Chipset................................................................................. 110
5.2.4. Boot...................................................................................... 115
5.2.5. Security................................................................................ 117
5.2.6. Save & Exit .......................................................................... 118
Appendices ................................................................................ 119
Appendix A: Digital I/O Setting ............................................................. 120
Appendix B: Watchdog Timer (WDT) Setting ....................................... 122
Appendix C: HSPA-SI1400 Hardware/Software Installation ................. 123
C.1. Install HSPA-SI1400............................................................... 123
C.2. Install Device Driver ............................................................... 128
C.3. Install Application Program..................................................... 130
Appendix D: WIFI-IN1350 Hardware/Software Installation................... 133
D.1. Install WIFI-IN1350................................................................. 133
D.2. Install Device Driver & Application Program........................... 139
Appendix D: WIFI-IN1350 Hardware/Software Installation................... 143
Appendix E:External and Internal Cables............................................. 144

- iv -
This page is intentionally left blank.

- v -
Preface
Copyright Notice
All Rights Reserved.
The information in this document is subject to change without prior notice in
order to improve the reliability, design and function. It does not represent a
commitment on the part of the manufacturer.
Under no circumstances will the manufacturer be liable for any direct, indirect,
special, incidental, or consequential damages arising from the use or inability
to use the product or documentation, even if advised of the possibility of such
damages.
This document contains proprietary information protected by copyright. All rights
are reserved. No part of this document may be reproduced by any mechanical,
electronic, or other means in any form without prior written permission of the
manufacturer.
Declaration of Conformity
CE
The CE symbol on the computer indicates that it is in compliance with the
directives of the Union European (EU). A Certicate of Compliance is available
by contacting Technical Support.
This product has passed the CE test for environmental specications when
shielded cables are used for external wiring. We recommend the use of
shielded cables. This kind of cable is available from ARBOR. Please contact
your local supplier for ordering information.
Warning
This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Preface

- vi -
Preface
NOTE:
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
RoHS
ARBOR Technology Corp. certies that all components in its products
are in compliance and conform to the European Union’s Restriction of Use
of Hazardous Substances in Electrical and Electronic Equipment (RoHS)
Directive 2002/95/EC.
The above mentioned directive was published on 2/13/2003. The main purpose
of the directive is to prohibit the use of lead, mercury, cadmium, hexavalent
chromium, polybrominated biphenyls (PBB), and polybrominated diphenyl
ethers (PBDE) in electrical and electronic products. Member states of the EU
are to enforce by 7/1/2006.
ARBOR Technology Corp. hereby states that the listed products do not contain
unintentional additions of lead, mercury, hex chrome, PBB or PBDB that exceed
a maximum concentration value of 0.1% by weight or for cadmium exceed
0.01% by weight, per homogenous material. Homogenous material is dened
as a substance or mixture of substances with uniform composition (such as
solders, resins, plating, etc.). Lead-free solder is used for all terminations
(Sn(96-96.5%), Ag(3.0-3.5%) and Cu(0.5%)).
SVHC / REACH
To minimize the environmental impact and take more responsibility to the earth
we live, Arbor hereby conrms all products comply with the restriction of SVHC
(Substances of Very High Concern) in (EC) 1907/2006 (REACH --Registration,
Evaluation, Authorization, and Restriction of Chemicals) regulated by the
European Union.
All substances listed in SVHC < 0.1 % by weight (1000 ppm)

- vii -
Preface
Important Safety Instructions
Read these safety instructions carefully
1. Read all cautions and warnings on the equipment.
2. Place this equipment on a reliable surface when installing. Dropping it or
letting it fall may cause damage
3. Make sure the correct voltage is connected to the equipment.
4. For pluggable equipment, the socket outlet should be near the equipment
and should be easily accessible.
5. Keep this equipment away from humidity.
6. The openings on the enclosure are for air convection and protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
7. Position the power cord so that people cannot step on it. Do not place
anything over the power cord.
8. Never pour any liquid into opening. This may cause re or electrical shock.
9. Never open the equipment. For safety reasons, the equipment should be
opened only by qualied service personnel.
10. If one of the following situations arises, get the equipment checked by
service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work
according to the user’s manual.
e. The equipment has been dropped or damaged.
f. The equipment has obvious signs of breakage.
11. Keep this User’s Manual for later reference.
Product Heat
The computer generates heat during operation. Contact the
computer's chassis with your body could cause discomfort or
even a skin burn.

- viii -
Preface
Warning
The Box PC and its components contain very delicately Integrated Circuits (IC).
To protect the Box PC and its components against damage caused by static
electricity, you should always follow the precautions below when handling it:
1. Disconnect your Box PC from the power source when you want to work
on the inside.
2. Use a grounded wrist strap when handling computer components.
3. Place components on a grounded antistatic pad or on the bag that came
with the Box PC, whenever components are separated from the system.
Replacing Lithium Battery
Incorrect replacement of the lithium battery may lead to a risk of explosion.
The lithium battery must be replaced with an identical battery or a battery type
recommended by the manufacturer.
Do not throw lithium batteries into the trash can. It must be disposed of in
accordance with local regulations concerning special waste.
Technical Support
If you have any technical difculties, please consult the user’s manual rst at:
ftp://ftp.arbor.com.tw/pub/manual
Please do not hesitate to call or e-mail our customer service when you still
cannot nd out the answer.
http://www.arbor.com.tw
E-mail:[e-mail]

- ix -
Preface
Warranty
This product is warranted to be in good working order for a period of one year
from the date of purchase. Should this product fail to be in good working order
at any time during this period, we will, at our option, replace or repair it at no
additional charge except as set forth in the following terms. This warranty does
not apply to products damaged by misuse, modications, accident or disaster.
Vendor assumes no liability for any damages, lost prots, lost savings or any
other incidental or consequential damage resulting from the use, misuse of, or
inability to use this product. Vendor will not be liable for any claim made by any
other related party.
Vendors disclaim all other warranties, either expressed or implied, including but
not limited to implied warranties of merchantability and tness for a particular
purpose, with respect to the hardware, the accompanying product’s manual(s)
and written materials, and any accompanying hardware. This limited warranty
gives you specic legal rights.
Return authorization must be obtained from the vendor before returned
merchandise will be accepted. Authorization can be obtained by calling or
faxing the vendor and requesting a Return Merchandise Authorization (RMA)
number. Returned goods should always be accompanied by a clear problem
description.

- x -
This page is intentionally left blank.

- 1 -
1Chapter 1
Introduction
Chapter 1 - Introduction

- 2 -
Introduction
1.1. Product Highlights
• Fanless and rugged design
• M12 connector for DC power input
with isolated protection
• Isolated RS-232/485 and GPIO
• Support outside-accessible CFast
and SIM slot
• Support optional WiFi or HSUPA
wireless connectivity
• Support power on/off delay control
• Compliant with EN50155
• Removable bay: Support 2 x 2.5” drive bays for SATA SSD
(ARTS-3672W only)
1.2. About this Manual
This manual is meant for the experienced users and integrators with hardware
knowledge of personal computers. If you are not sure about the description
herein, consult your vendor before further handling.
We recommend that you keep one copy of this manual for the quick reference
for any necessary maintenance in the future. Thank you for choosing ARBOR
products.

- 3 -
Introduction
1.3. Specications
System
CPU
(soldered onboard)
ARTS-3250 Intel®Dual Core Atom™ D2550 1.86GHz
ARTS-3672W Intel®Core™ i7-2610UE 1.5GHz
BIOS AMI BIOS
Chipset ARTS-3250 Intel®NM10
ARTS-3672W Intel®PCH QM67 for ARTS-3672W
Graphics ARTS-3250 Integrated Intel®HD Graphics 3650
ARTS-3672W Integrated Intel®HD Graphics 3000
Memory
ARTS-3250
One 204-pin SO-DIMM socket that
supports DDR3 800/1066MHz SDRAM up
to 4GB
ARTS-3672W
One 204-pin SO-DIMM socket that
supports DDR3 1066/1333MHz SDRAM
up to 8GB
Serial ATA
ARTS-3250 One serial ATA port with 300MB/s HDD
transfer rate
ARTS-3672W • One internal SATA Disk on Module.
• Two external SATA SSD.
LAN Chipset
ARTS-3250 Three Intel®82583V GbE controllers
ARTS-3672W • One Intel®82579LM GbE PHY
• Two Intel®82583V GbE controllers
Watchdog Timer 1 ~ 255 levels reset
I/O Ports
Serial Port
•One RS-232/485 with DB-9 connector, rear side, 2.5 KV
isolated protection
•Three RS-485 ports with M8-Female 3P connectors,
rear side, IP67, 2.5 KV isolated protection
USB Port •Two USB 2.0 ports of type A connector, front side
•Two M8-Female 4P connectors, IP67, rear side
LAN Port
•One RJ-45 port for Gigabit Ethernet, front side
•Two M12-Female 8P connectors, IP67 for Gigabit
Ethernet, rear side, support WOL
Video Port One DVI-I female connector fwith DVI-D and VGA output
Audio One M12-female 8P connector, IP67 for Mic-in & Line-out
(2W pre-amplied)

- 4 -
Introduction
Expansion Bus
•One Mini-PCIe slot for optional WiFi/GPS module
•One Mini-PCIe slot interconnected with SIM card socket
for optional HSUPA/LTE module
•One SIM socket (outside accessible)
Storage
Type
•ARTS-3250: One 2.5” drive bay for SATA SSD
ARTS-3672W: Two 2.5” drive bays for SATA SSD
•One SATA port for SATA Disk on Module
•One outside-accessible CFast socket with protection
cover
Qualification
Certication CE, FCC Class A, EN50155-Compliant
Environment
Operating Temp.
ARTS-3250 -40~70°C (-40 ~158°F ), ambient w/ air
ow, EN50155-TX
ARTS-3672W -40 ~ 70°C (-40 ~158°F ), ambient w/ air
ow, EN50155 Class TX
Storage Temp. -40~80°C (-40 ~ 185°F)
Relative Humidity 5 ~ 95% @ 70°C (non-condensing)
Damp Heat 55°C, 95% RH (non-operating, EN 50155-10.2.5)
Vibration EN61373 Category 1 Class B
Shock EN61373 Category 1 Class B
Mechanical
Construction Aluminum alloy
Mounting Wall-mount
Weight ARTS-3250 4.3 kg (9.47 lb)
ARTS-3672W 5.07Kg (11.15 lb)
Dimensions
(W x D x H)
ARTS-3250 254.6 x 208 x 70 mm (9.99” x 8.18” x 2.75”)
ARTS-3672W 254.6 x 208 x 90 mm (9.99” x 8.18” x 3.54”)
Power Requirement
Power Input DC 9~36V input, w/ M12 connector, 2KV isolated protection
Power
Consumption Max. 50W

- 5 -
Introduction
1.4. Inside the Package
Upon opening the package, carefully inspect the contents. If any of the items
is missing or appears damaged, contact your local dealer or distributor. The
package should contain the following items:
ARTS-3250 ARTS-3672W
One ARTS-3250 or
ARTS-3672W Fanless
Train PC
One Driver CD
One User’s Manual
Power cables
• M12 waterproof 3-pin power cable
• M12 waterproof Gigabit Ethernet cable
• M12 waterproof audio-in/out cable
• M8 waterproof USB 2.0 cable
• M8 waterproof RS-485 cable
One Wall-Mount Kit
WMK-5000
Keys for HDD/SSD bays & Mini-PCI
Express cards
Screws for HDD/SSD brackets & Mini-PCI
Express cards

- 6 -
Introduction
1.5. Ordering Information
ARTS-3250 Train PC barebone system w/ Intel®Atom™ D2550, w/o storage
device and memory
ARTS-3672W Train PC barebone system w/ Intel®Core™ i7-2610UE, w/o
storage device and memory, w/ 2 x removable drive bays
1.5.1. Optional Accessories
The following items are normally optional, but some vendors may include them
as a standard package, or some vendors may not carry all the items.
PAC-P120W-FSP 19V/5.96A 120W AC/DC adapter kit
1.5.2. Congure-to-Order Service
Make the computer more tailored to your needs by selecting one or more
components from the list below to be fabricated to the computer.
SSD-25032 Memoright 2.5" 32GB SATAII SSD kit
SSD-25016 Memoright 2.5" 16GB SATAII SSD kit
HSPA-SI1400 HSUPA 3.75G module kit & internal
wiring
WIFI-IN1350 Intel®Centrino®Advanced-N 6205 WiFi
module w/ 20cm & 30cm internal wires
ANT-H11 2dBi HSUPA antenna
ANT-D11 WiFi Dual-band 2.4G/5G antenna
2GB SO-DIMM DDR3-1333 2GB SDRAM
4GB SO-DIMM DDR3-1333 4GB SDRAM

- 7 -
2Chapter 2
Getting Started
Chapter 2 - Getting Started

- 8 -
Getting Started
2.1. Dimensions
The following illustration shows the dimensions of the computer, with the
measurements in width, depth, and height called out.
2.1.1. ARTS-3250
50.00 50.00
80.00 80.00
92.50 92.50
266.80
11.50 11.50
208.00
70
254.60
76
