Arbor Technology EPC-20X0-2610UE User manual

EPC-20x0-2610UE
Fanless Embedded Computer with
Intel®i7-i2610UE Platform
User’s Manual
Version 1.0
P/N: 4012200002100P 2015.03

This page is intentionally left blank.

- I -
Index
Contents
Copyright Notice..................................................................... IV
Important Safety Instructions................................................ VI
About This User’s Manual .................................................... VII
Warning .................................................................................. VII
Replacing the Lithium Battery.............................................. VII
Technical Support ................................................................. VII
Warranty ................................................................................ VIII
Ordering Information............................................................ VIII
Chapter 1 - General Information..............................................1
1.1 Introduction................................................................2
1.2 Packing List................................................................3
1.3 The Installation Paths of CD Driver..........................5
1.4 Specications ............................................................6
1.5 Power Information .....................................................7
1.6 Dimensions ................................................................8
1.7 Locating Controls and Connectors........................10
1.8 Connecting Peripherals ..........................................12
Chapter 2 - The Engine of EPC-20x0-2610UE ......................19
2.1 Board Layout............................................................20
2.2 Jumpers and Connectors .......................................24
Chapter 3 - Installation and Maintenance.............................35
3.1 How to Install HDD, CFast, PCI/PCIe Card ............36
3.2 Wall Mounting ..........................................................43
3.3 Din-rail Mounting .....................................................44
3.4 Wiring the DC-Input Power Source........................46
Chapter 4 - BIOS.....................................................................47
4.1. Main...........................................................................49
4.2. Advanced..................................................................50
4.3. Chipset......................................................................64
4.4. Boot...........................................................................71
4.5. Security.....................................................................72
4.6. Save & Exit ...............................................................73

- II -
Index
4.7 Beep Sound codes list ............................................74
4.8 AMI BIOS Checkpoints............................................76
Appendix .................................................................................87
Appendix A: I/O Port Address Map ..............................88
Appendix B: Memory Mapping.....................................91
Appendix C: Watchdog Timer (WDT) Setting..............93

- III -
Revision History
Version Release Time Description
1.0 March, 2015 Initial release

- IV -
Copyright Notice
All Rights Reserved.
The information in this document is subject to change without prior notice in
order to improve the reliability, design and function. It does not represent a
commitment on the part of the manufacturer.
Under no circumstances will the manufacturer be liable for any direct, indirect,
special, incidental, or consequential damages arising from the use or inability
to use the product or documentation, even if advised of the possibility of such
damages.
This document contains proprietary information protected by copyright. All
rights are reserved. No part of this document may be reproduced by any
mechanical, electronic, or other means in any form without prior written
permission of the manufacturer.
Declaration of Conformity
CE
The CE symbol on your product indicates that it is in compliance with the
directives of the Union European (EU). A Certicate of Compliance is available
by contacting Technical Support.
This product has passed the CE test for environmental specications when
shielded cables are used for external wiring. We recommend the use of
shielded cables. This kind of cable is available from ARBOR. Please contact
your local supplier for ordering information.
Warning
This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference
that may cause undesired operation.
NOTE:
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when

- V -
RoHS
ARBOR Technology Corp. certies that all components in its products are
in compliance and conform to the European Union’s Restriction of Use of
Hazardous Substances in Electrical and Electronic Equipment (RoHS)
Directive 2002/95/EC.
The above mentioned directive was published on 2/13/2003. The main
purpose of the directive is to prohibit the use of lead, mercury, cadmium,
hexavalent chromium, polybrominated biphenyls (PBB), and polybrominated
diphenyl ethers (PBDE) in electrical and electronic products. Member states
of the EU are to enforce by 7/1/2006.
ARBOR Technology Corp. hereby states that the listed products do not
contain unintentional additions of lead, mercury, hex chrome, PBB or PBDB
that exceed a maximum concentration value of 0.1% by weight or for cadmium
exceed 0.01% by weight, per homogenous material. Homogenous material is
dened as a substance or mixture of substances with uniform composition
(such as solders, resins, plating, etc.). Lead-free solder is used for all
terminations (Sn(96-96.5%), Ag(3.0-3.5%) and Cu(0.5%)).
SVHC / REACH
To minimize the environmental impact and take more responsibility to the
earth we live, Arbor hereby conrms all products comply with the restriction
of SVHC (Substances of Very High Concern) in (EC) 1907/2006 (REACH
--Registration, Evaluation, Authorization, and Restriction of Chemicals)
regulated by the European Union.
All substances listed in SVHC < 0.1 % by weight (1000 ppm)
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.

- VI -
Important Safety Instructions
Read these safety instructions carefully.
1. Read all cautions and warnings on the equipment.
2. Place this equipment on a reliable surface when installing. Dropping it
or letting it fall may cause damage
3. Make sure the correct voltage is connected to the equipment.
4. For pluggable equipment, the socket outlet should be near the
equipment and should be easily accessible.
5. Keep this equipment away from humidity.
6. Disconnect this equipment from the A/C outlet before cleaning it. Use a
moist cloth. Do not use liquid or sprayed detergent for cleaning.
7. The openings on the enclosure are for air convection and protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
8. Position the power cord so that people cannot step on it. Do not place
anything over the power cord.
9. If the equipment will not be used for a long time, disconnect it from the
power source to avoid damage by transient overvoltage.
10. Never pour any liquid into opening. This may cause re or electrical
shock.
11. Never open the equipment. For safety reasons, the equipment should
be opened only by qualied service personnel.
12. If one of the following situations arises, get the equipment checked by
service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work according
to the user's manual.
e. The equipment has been dropped or damaged.
f. The equipment has obvious signs of breakage.
13. The sound pressure level at the operator's position, according to IEC
704-1:1982, is no more than 70dB(A).
14. Keep this User’s Manual for later reference.

- VII -
About This User’s Manual
This User’s Manual is intended for experienced users and integrators with
hardware knowledge of personal computers. If you are not sure about any
description in this User’s Manual, please consult your vendor before further
handling.
Warning
The Box PC and its components contain very delicately Integrated Circuits
(IC). To protect the Box PC and its components against damage caused by
static electricity, you should always follow the precautions below when han-
dling it:
1. Disconnect your Box PC from the power source when you want to work
on the inside.
2. Use a grounded wrist strap when handling computer components.
3. Place components on a grounded antistatic pad or on the bag that
comes with the Box PC, whenever components are separated from the
system.
Replacing the Lithium Battery
Incorrect replacement of the lithium battery may lead to a risk of explosion.
The lithium battery must be replaced with an identical battery or a battery type
recommended by the manufacturer.
Do not throw lithium batteries into the trash can. It must be disposed of in
accordance with local regulations concerning special waste.
Technical Support
If you have technical difculties, please consult the user’s manual rst at:
ftp://ftp.arbor.com.tw/pub/manual
Please do not hesitate to call or e-mail our customer service when you still
cannot nd out the answer.
http://www.arbor.com.tw E-mail:[e-mail]

- VIII -
Warranty
This product is warranted to be in good working order for a period of one year
from the date of purchase. Should this product fail to be in good working order
at any time during this period, we will, at our option, replace or repair it at no
additional charge except as set forth in the following terms. This warranty does
not apply to products damaged by misuse, modications, accident or disaster.
Vendor assumes no liability for any damages, lost prots, lost savings or any
other incidental or consequential damage resulting from the use, misuse of,
or inability to use this product. Vendor will not be liable for any claim made by
any other related party.
Vendors disclaim all other warranties, either expressed or implied, including but
not limited to implied warranties of merchantability and tness for a particular
purpose, with respect to the hardware, the accompanying product’s manual(s)
and written materials, and any accompanying hardware. This limited warranty
gives you specic legal rights.
Return authorization must be obtained from the vendor before returned
merchandise will be accepted. Authorization can be obtained by calling or
faxing the vendor and requesting a Return Merchandise Authorization (RMA)
number. Returned goods should always be accompanied by a clear problem
description.
EPC-2020-2610UE EPC-2020-2610UE with 1 x PCIe slot & 1 x PCI slot
EPC-2030-2610UE EPC-2030-2610UE with 2 x PCIe slots & 1 x PCI slot
PAC-P065W 65W AC/DC adapter kit
80GB SSD Intel®2.5"80GB SATAIII SSD kit
WMK-2000 Wall mount kit for EPC-2000 series
DRK-2000 Din rail mounting kit for EPC-2000 series
MM-3C-2G DDR3-1600 2GB SDRAM
Ordering Information

- 1 -
General Information
1Chapter 1
General Information

- 2 -
General Information
1.1 Introduction
EPC-20X0-2610UE is targeted at many different application elds. By adopting
it, you can pinpoint specic markets, such as Automatic Optical Inspection,
SMT/PCB Industry, In-Vehicle, environment-critical and space-critical
applications.
• All-In-One Platform
The CPU, DRAM and even software are integrated to provide a plug-
and-play machine.
• Compact-sized
The kernel of EPC-20X0-2610UE is EmETXe-i67M1, which is a multi-
function COM (Computer-on-Module) embedded board. The whole
system consumes only a few space.
• Fanless, Cable-less and Modular Design
By using a low power processor, the system does not have to rely on
fans, which are often unreliable and cause dust to circulate inside the
equipment. The modular design facilitates maintenance or possible
upgrades on the CPU board. Modular Box PC can be easily modied
to t many different applications according to customers' requests.
• Powerful Communication Capability
The EPC-20X0-2610UE provides COM, Ethernet, USB, PCI slots.
• Numerous Display/Video Output
Integrated with Intel®HD Graphics core, EPC-20X0-2610UE improves
graphics and 3D rendering performance and supports numerous
display/video output options includes VGA and LVDS.
• Advanced Storage Solution
EPC-20X0-2610UE comes with CFast slot, which offers a better,
faster and more cost-effective expansibility for various applications.
• Trustworthy
The onboard Watchdog Timer can invoke an NMI or system RESET
when your application loses control over the system.

- 3 -
General Information

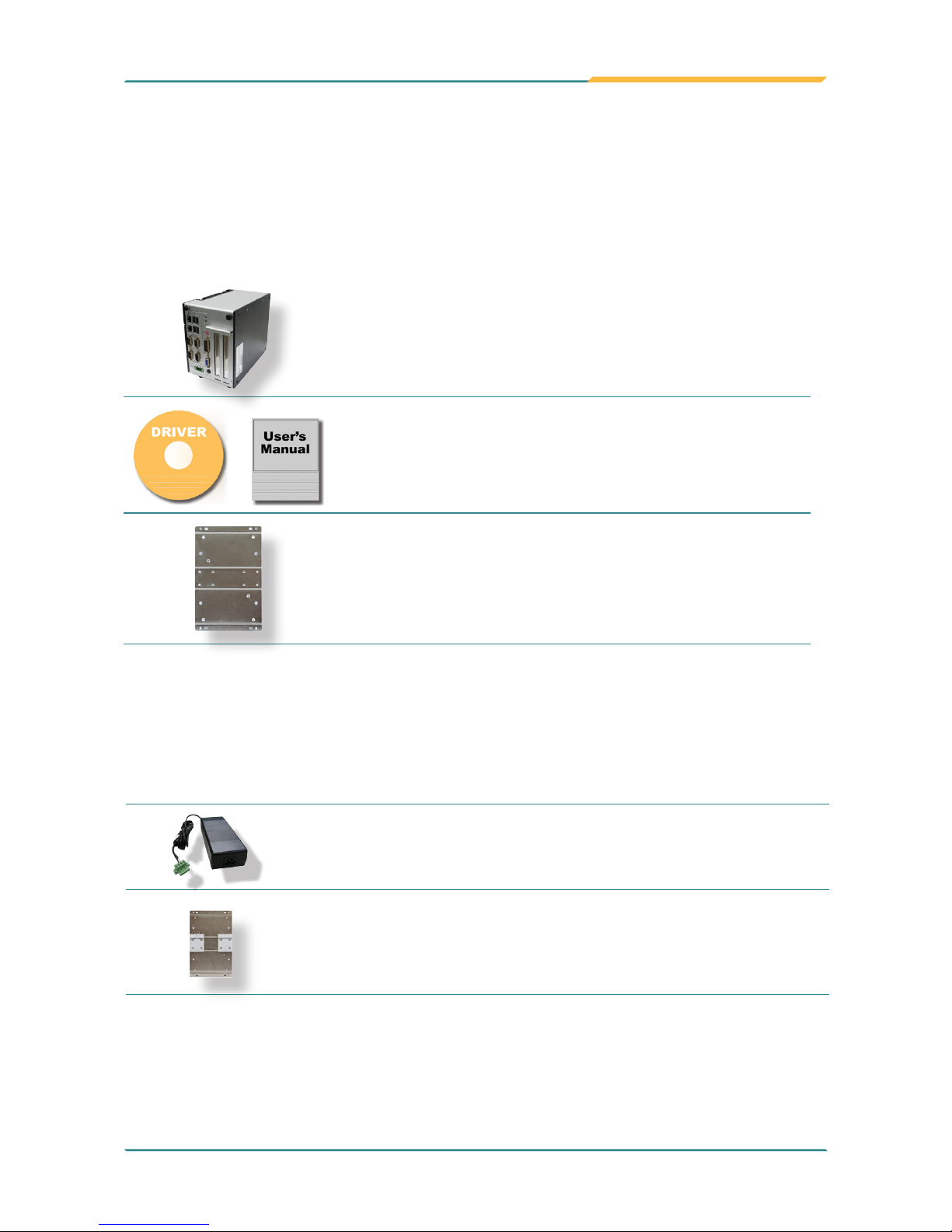

1.2 Packing List
Options:
The following items are normally optional, but some vendors may include them
as a standard package, or some vendors may not to carry all the items.
Optional Accessories
PAC-P065W
65W AC/DC adapter kit
DRK-2000
Din rail mounting kit for EPC-20X0-2610UE
After opening the package, carefully inspect the contents. If any of the items is
missing or appears damaged, please contact with your local dealer or distributor.
The package should contain the following items:
Standard:
1 x EPC-20X0-2610UE Box PC
1 x Accessory Box
(Driver CD/User’s Manual/Screws/
Cable/Terminal Block)
1 x Wall-mount kit for EPC-20X0-2610UE

- 4 -
General Information
Optional Conguration (CTOS* Kit)
80GB SSD
Intel®2.5" 80GB SATAIII SSD kit
MM-3C-2G
DDR3-1600 2GB SDRAM

- 5 -
General Information
1.3 The Installation Paths of CD Driver
Windows 2000 & XP
Driver Path
CHIPSET \XP\INF\Setup.exe
LAN \XP\LAN\PROWin32.exe
VGA \XP\GRAPHICS\Setup.exe
AUDIO \XP\AUDIO\XP_2000 WDM_R261 32_64 bit.exe
ME \ME\Setup.exe
Windows 7
Driver Path
CHIPSET \Win7\INF\Setup.exe
LAN 32bit: \Win7\LAN\PROWin86.exe
64bit: \Win7\LAN\PROWin64.exe
VGA 32bit: \Win7\GRAPHIC\32bit\Setup.exe
64bit: \Win7\GRAPHIC\64bit\Setup.exe
AUDIO 32bit: \Win7\AUDIO\Win7_R261-32_64 bit .exe
64bit: \Win7\AUDIO\Vista_Win7_R261-32_64 bit .exe
ME \Win7\ME\Setup.exe
Windows 8
Driver Path
CHIPSET \Win8\INF\Setup.exe
LAN 32bit: \Win8\LAN\PROWin32.exe
64bit: \Win8\LAN\PROWin64.exe
VGA 32bit: \Win8\GRAPHIC\32bit\Win32_152818.exe
64bit: \Win8\GRAPHIC\64bit\Win64_152818.exe
AUDIO 32bit: \Win8\AUDIO\32bit_Win7_Win8_Win81_R273.exe
64bit: \Win8\AUDIO\64bit_Win7_Win8_Win81_R273.exe
ME \Win8\ME\Setup.exe

- 6 -
General Information
System Kernel
Processor Soldered onboard Intel®Core®Processor
i7-2610UE 1.5GHz
BIOS AMI Flash BIOS
Chipset Intel®QM67 PCH
Graphics Integrated with Intel HD Graphics 3000
System Memory 2 x DDR3 SO-DIMM sockets, Support SDRAM up to
16GB
Serial ATA
1 x 2.5"drive bay for SATA interface HDD/SSD,
supporting 300MB/s HDD transfer rate
1 x CFast socket
Expansion Bus 1x PCIe x1 slot & 1x PCI slot (EPC-2020-2610UE)
2x PCIe slots & 1x PCI slot (EPC-2030-2610UE)
Ethernet
Controller
Intel 82583V x1, Intel 82574L x1
Watchdog Timer 1 ~ 255 levels reset
I/O Ports
Serial Port
• 4 x COM ports with DB-9 male connectors
• COM1~2: RS-232
• COM3~4: RS-232/422/485 selectable
USB Port 4 x USB type A connectors for USB 2.0 ports
LAN Port 2 x RJ-45 GbE ports
Video Port
1 x DB-15 female connector for Analog RGB
1 x DB-26 male connector for dual channel 24-bit
LVDS port
KB/MS PS/2 interface Keyboard/ Mouse via Y-cable
Audio Mic-in/Line-out with Realtek ALC886 HD Audio
CODEC
Storage
HDD/SSD 1 x 2.5" drive bay for HDD or SSD
CF 1 x CFast socket
1.4 Specications

- 7 -
General Information
Safety
FCC Class A certied
CE Certied
Environment
Operating Temp. -20 ~ 60ºC (-4 ~ 140ºF), ambient w/ air ow
Storage Temp. -40 ~ 85ºC (-40 ~ 185ºF)
Relative Humidity 10 ~ 90% @ 60oC (non-condensing)
Vibration 3Grms/5 to 500Hz/random operation, with SSD
Shock & Crash Operating 40G, 11ms
Non-operating 60G (with CFast/ SSD)
Mechanical
Construction Aluminum alloy
Mounting Support wall-mount/Din rail mounting
Weight Max. 2.92 kg (6.42 lb)
Dimensions
(W x D x H)
EPC-2020-2610UE: 164 x 192 x 120 mm
(6.46"x 7.56"x 4.72")
EPC-2030-2610UE: 164 x 192 x 140 mm
(6.46”x 7.56”x 5.51”)
1.5 Power Information
Input Voltage DC 10V~30V input (w/ 3-pin terminal block)
Power Consumption 60W (Max.)

- 8 -
General Information
1.6 Dimensions
• Dimension (W x D x H): 164 x 192 x 120 mm (6.46"x 7.56"x 4.72")
EPC-2020-2610UE
164.00
192.00
120.00
Unit:mm

- 9 -
General Information
• Dimension (W x D x H): 164 x 192 x 140 mm (6.46"x 7.56"x 5.51")
EPC-2030-2610UE
164.00
192.00
140.00
Unit:mm

- 10 -
General Information
Front Panel
1.7 Locating Controls and Connectors
Both EPC-2020-2610UE and EPC-2030-2610UE have the same I/O ports
and connectors at the front panel. Please take a moment to identify those
controls and connectors shown in the following gures.
EPC-2020-2610UE
COM1
COM2
LAN1, 2
.
.
..
..
USB1~4
Power On/Off
Power Input
1 x PCIe
..LVDS
VGA
KB/MS
Mic-in
Line-out
HDD LED
Power LED
1 x PCI
COM3
COM4
