Arbor Technology LYNC-712-1900G4 Series User manual

I
LYNC-712/715-1900G4
Series
Fanless 12.1”/15” Industrial Panel PC with
Intel®J1900 Quad-Core™ Processor
User’s Manual
Version 1.1
2016.09
P/N: 4012071003110P

- II -
Revision History
Version Time Description
1.0 2015/11 Initial release
1.1 2016/09 • Updated 1.3. Specifications
• Added driver path for Windows
10 in 2.3. Driver Installation
Note

- i -
Contents
Revision History ................................................................................II
Contents..............................................................................................i
Preface...............................................................................................iii
Copyright Notice .....................................................................................iii
Declaration of Conformity .......................................................................iii
CE....................................................................................................iii
FCC Class A ....................................................................................iii
RoHS .............................................................................................. iv
SVHC / REACH .............................................................................. iv
Important Safety Instructions .................................................................. v
Warning.................................................................................................. vi
Lithium Battery Replacement................................................................. vi
Technical Support .................................................................................. vi
Warranty.................................................................................................vii
Chapter 1 - Introduction....................................................................1
1.1. The Computer ..................................................................................2
1.2. About this Manual ...........................................................................2
1.3.Specications...................................................................................3
1.4. Inside the Package ..........................................................................5
1.5. Ordering Information ........................................................................5
1.5.1. Optional Accessories .............................................................6
1.5.2.Congure-to-OrderService.................................................... 6
Chapter 2 - Getting Started...............................................................7
2.1. Dimensions ......................................................................................8
2.2. Tour the Computer .........................................................................10

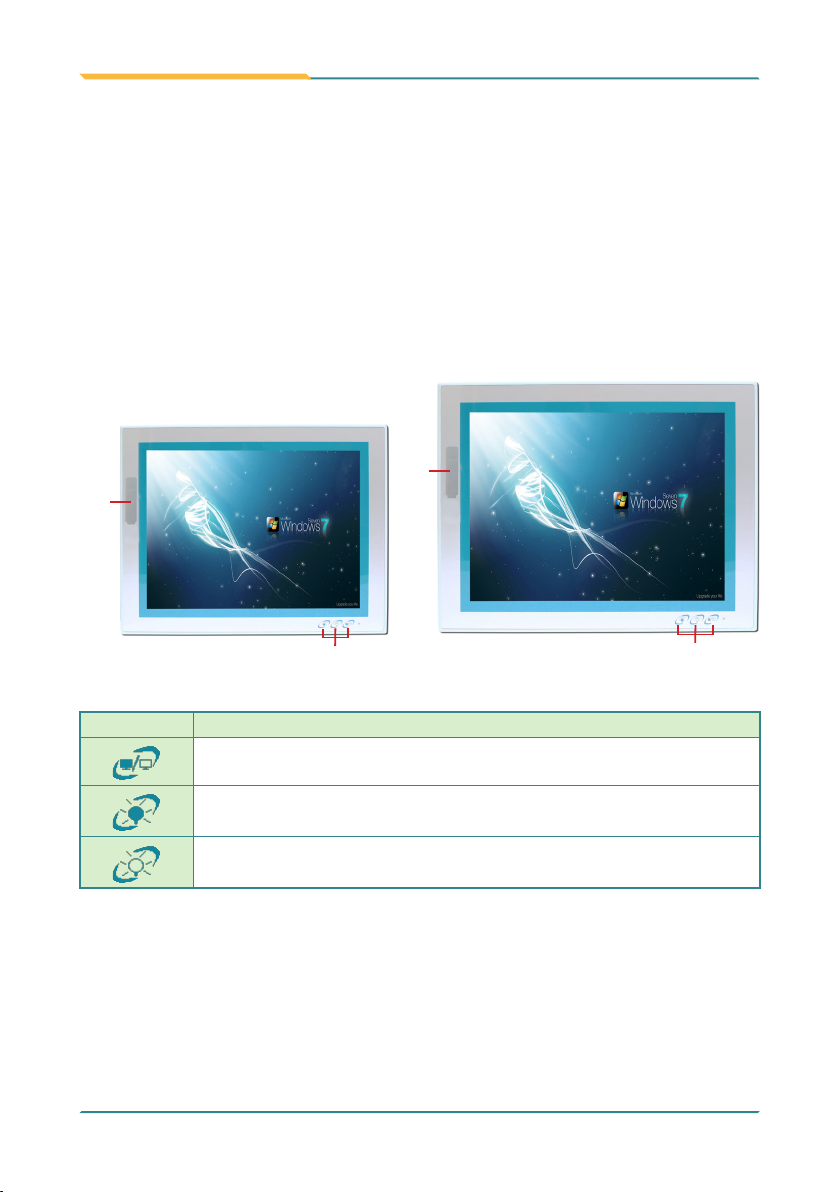

2.2.1. Front View............................................................................10
2.2.2. Rear View ............................................................................ 11
2.2.3. Bottom View.........................................................................12
2.2.4. Side View.............................................................................13
2.2.5. Top View ..............................................................................13
2.3. Driver Installation Note................................................................... 14
Chapter 3 - Engine of the Computer..............................................17
3.1. Board Layout..................................................................................18
3.1.1. CPU Module (EmQ-i230B) ..................................................18
3.1.2. Daughterboard (SCDB-141B)..............................................18
3.1.3. Carrier Board (PBQ-9014) ...................................................19
3.2. Jumpers and Connectors...............................................................20
3.2.1. Jumpers ..............................................................................20
3.2.2. Connectors ..........................................................................24
Contents

- ii -
Contents
Chapter 4 - Installation and Maintenance......................................31
4.1. Use Onboard Jumpers and Connectors ........................................32
4.2. Install Hardware .............................................................................33
4.2.1. Install SSD or HDD ..............................................................33
4.2.2. Install CFast Card ................................................................34
4.2.3. Install Wi-Fi Module .............................................................35
4.2.4. Install Memory Module......................................................... 36
4.3. Mount the Computer ......................................................................39
4.3.1. Panel Mounting....................................................................39
4.3.2. VESA Mounting....................................................................41
4.4. Wire DC-Input Power Source......................................................... 44
Chapter 5 - BIOS..............................................................................45
5.1. Main ...............................................................................................48
5.2. Advanced .......................................................................................49
5.2.1.BootConguration ...............................................................50
5.2.2.PCIExpressConguration ..................................................50
5.2.3.USBConguration ...............................................................50
5.2.4.SATAConguration.............................................................51
5.2.5. SIO FINTEK81866D ............................................................51
5.2.6. USB TO UART XR21V1412 ................................................51
5.3. Security ..........................................................................................54
5.4. Power ............................................................................................55
5.5. Boot................................................................................................56
5.6. Exit .................................................................................................57
Appendices ......................................................................................59
Appendix A: WIFI-AT2350 Hardware Installation..................................60
A.1. Install WIFI-AT2350................................................................60
Appendix B: PenMount Utilities............................................................. 64
B.1. PenMount Control Panel ........................................................64
B.2. PenMount Gesture .................................................................69

- iii -
Preface
Copyright Notice
All Rights Reserved.
The information in this document is subject to change without prior notice in
order to improve the reliability, design and function. It does not represent a
commitment on the part of the manufacturer.
Under no circumstances will the manufacturer be liable for any direct, indirect,
special, incidental, or consequential damages arising from the use or inability
to use the product or documentation, even if advised of the possibility of such
damages.
This document contains proprietary information protected by copyright. All rights
are reserved. No part of this document may be reproduced by any mechanical,
electronic, or other means in any form without prior written permission of the
manufacturer.
Declaration of Conformity
CE
The CE symbol on your product indicates that it is in compliance with the
directivesoftheUnionEuropean(EU).ACerticateofComplianceisavailable
by contacting Technical Support.
This product has passed the CE test for environmental specications when
shielded cables are used for external wiring. We recommend the use of shielded
cables. This kind of cable is available from ARBOR. Please contact your local
supplier for ordering information.
Warning
This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.

- iv -
Preface
NOTE:
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
RoHS
ARBOR Technology Corp. certies that all components in its products are
in compliance and conform to the European Union’s Restriction of Use of
Hazardous Substances in Electrical and Electronic Equipment (RoHS) Directive
2002/95/EC.
The above mentioned directive was published on 2/13/2003. The main purpose
of the directive is to prohibit the use of lead, mercury, cadmium, hexavalent
chromium, polybrominated biphenyls (PBB), and polybrominated diphenyl
ethers (PBDE) in electrical and electronic products. Member states of the EU are
to enforce by 7/1/2006.
ARBOR Technology Corp. hereby states that the listed products do not contain
unintentional additions of lead, mercury, hex chrome, PBB or PBDB that exceed
a maximum concentration value of 0.1% by weight or for cadmium exceed
0.01%byweight,perhomogenousmaterial.Homogenousmaterialisdenedas
a substance or mixture of substances with uniform composition (such as solders,
resins, plating, etc.). Lead-free solder is used for all terminations (Sn(96-96.5%),
Ag(3.0-3.5%) and Cu(0.5%)).
SVHC / REACH
To minimize the environmental impact and take more responsibility to the earth
welive,ArborherebyconrmsallproductscomplywiththerestrictionofSVHC
(Substances of Very High Concern) in (EC) 1907/2006 (REACH --Registration,
Evaluation, Authorization, and Restriction of Chemicals) regulated by the
European Union.
All substances listed in SVHC < 0.1 % by weight (1000 ppm)

- v -
Preface
Important Safety Instructions
Read these safety instructions carefully
1. Read all cautions and warnings on the equipment.
2. Place this equipment on a reliable surface when installing. Dropping it or
letting it fall may cause damage
3. Make sure the correct voltage is connected to the equipment.
4. For pluggable equipment, the socket outlet should be near the equipment
and should be easily accessible.
5. Keep this equipment away from humidity.
6. The openings on the enclosure are for air convection and protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
7. Position the power cord so that people cannot step on it. Do not place
anything over the power cord.
8. Neverpouranyliquidintoopening.Thismaycausereorelectricalshock.
9. Never open the equipment. For safety reasons, the equipment should be
openedonlybyqualiedservicepersonnel.
10. If one of the following situations arises, get the equipment checked by
service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work according
to the user’s manual.
e. The equipment has been dropped or damaged.
f. The equipment has obvious signs of breakage.
11. Keep this User’s Manual for later reference.

- vi -
Preface
Warning
The Panel PC and its components contain very delicately Integrated Circuits
(IC). To protect the Panel PC and its components against damage caused by
static electricity, you should always follow the precautions below when handling
it:
1. Disconnect your Panel PC from the power source when you want to work
on the inside.
2. Use a grounded wrist strap when handling computer components.
3. Place components on a grounded antistatic pad or on the bag that came
with the Panel PC, whenever components are separated from the system.
Lithium Battery Replacement
Incorrect replacement of the lithium battery may lead to a risk of explosion.
The lithium battery must be replaced with an identical battery or a battery type
recommended by the manufacturer.
Do not throw lithium batteries into the trash can. It must be disposed of in
accordance with local regulations concerning special waste.
Technical Support
Ifyouhaveanytechnicaldifculties,pleaseconsulttheuser’smanualrstat:
ftp://ftp.arbor.com.tw/pub/manual
Please do not hesitate to call or e-mail our customer service when you still cannot
ndouttheanswer.
http://www.arbor-technology.com
E-mail:[e-mail]

- vii -
Preface
Warranty
This product is warranted to be in good working order for a period of one year
from the date of purchase. Should this product fail to be in good working order
at any time during this period, we will, at our option, replace or repair it at no
additional charge except as set forth in the following terms. This warranty does
notapplytoproductsdamagedbymisuse,modications,accidentordisaster.
Vendor assumesnoliabilityfor any damages,lostprots,lost savings orany
other incidental or consequential damage resulting from the use, misuse of, or
inability to use this product. Vendor will not be liable for any claim made by any
other related party.
Vendors disclaim all other warranties, either expressed or implied, including but
not limited to implied warranties of merchantability and tness for a particular
purpose, with respect to the hardware, the accompanying product’s manual(s)
and written materials, and any accompanying hardware. This limited warranty
givesyouspeciclegalrights.
Return authorization must be obtained from the vendor before returned
merchandise will be accepted. Authorization can be obtained by calling or faxing
the vendor and requesting a Return Merchandise Authorization (RMA) number.
Returned goods should always be accompanied by a clear problem description.

- viii -
This page is intentionally left blank.

- 1 -
1Chapter 1
Introduction
Chapter 1 - Introduction

- 2 -
Introduction
1.1. The Computer
ARBOR’s LYNC-712 & 715-1900G4 is cost-effective
industrial panel PC to feature light weight and slim form
factor. The computer comes with rich I/O to meet the
demand of the automation and manufacturing process
required in modern factories. The system includes four
serialports,veUSBports,oneDVI-IportandtwoLAN
ports for wired data connection. The computer also
supports one CFast card and features one 2.5” drive bay for
extensive data storage. One PCI Express Mini-card is also built
on the main board of the computer to enhance the system with Wi-Fi
networking.
Product Highlights
• Fewer Cables, Fanless Design
• 12.1” (LYNC-712) or 15” (LYNC-715) 1024 x 768 XGA LCD Display w/ LED
Backlight
• Front Bezel with Completely Covered Membrane
• Flush Front Panel, IP65-Compliant
• Brightness Control Button
• Outside-accessible Push-pull CFast Socket
• Outside-accessible USB port with rubber cover on the front bezel
• SerialPorts(RS-485),w/Auto-owControl
• 1 x MiniCard socket for WiFi module
• 2 x SMA Antenna Holes for Optional WiFi Function
• 9~36V Wide-Range DC Input with reverse protection
1.2. About this Manual
This manual is meant for the experienced users and integrators with hardware
knowledge of personal computers. If you are not sure about the description in
this manual, consult your vendor before further handling.
We recommend that you keep one copy of this manual for the quick reference
for any necessary maintenance in the future. Thank you for choosing ARBOR
products.

- 3 -
Introduction
1.3. Specications
System
CPU Intel®J1900 Quad-Core™ Processor 2.0GHz
Memory 1 x 4GB DDR3L SO-DIMM memory module (installed)
LAN 2 x Realtek®8111E GbE controllers
Watchdog Timer 1~255 levels reset
Storage
1st Device 1 x outside-accessible CFast slot
2nd Device 1 x 2.5” drive bay
Audio
Speaker 2 x 1.5W speakers (optional)
LCD Display
Size/Type LYNC-712: 12.1" TFT LCD Panel
LYNC-715: 15” TFT LCD Panel
Max. Resolution 1024 x 768, XGA
Max. Colors 16.7M
Luminance LYNC-712: 350 cd/m²
LYNC-715: 420 cd/m²
Touch Screen 5-wire Analog Resistive
View Angle (U/D/R/L) 80°/80°/80°/80°
Button & Indicator
Function Key Brightness up/down, Screen on/off
LED Indicator Power on LED
Power System
Power Input DC 9~36V
Certication
EMC / EMI UL, CE, FCC Class A
Expansion
Expansion Bus 1 x Mini-card socket
External I/O
Serial Ports 4 x DB-9 connectors for COM1~4
(COM1~COM4areRS-232/485congurable)
USB Ports 4 x Type-A USB 2.0 ports (rear)
1 x Type-A USB 2.0 port with rubber cover on front bezel

- 4 -
Introduction
LAN 2 x RJ-45 GbE ports
DVI 1 x DVI connector
WiFi 2 x SMA antenna holes for optional WiFi function
Mechanical
Mounting Type Panel Mounting and VESA-75/100 Mounting
Chassis Panel-mounting chassis, aluminum front bezel and SECC steel chassis
Dimension
(W x H x D)
LYNC-712: 325.88 x 258.86 x 44.00 mm (12.8” x 10.2” x 2.26”)
LYNC-715: 389.93 x 309.93 x 46.80 mm (15.4” x 12.2” x 2.37”)
Weight (Net) LYNC-712: 2.2 kg (without VESA bracket)
LYNC-715: 3.4 kg (without VESA bracket)
Environmental
Operating Temp. -20 ~ 55ºC (-4 ~ 131°F)
Storage Temp. -20 ~ 70°C (-4 ~ 158°F)
Operating Humidity 10 ~ 95% RH @ 55°C (non-condensing)
Vibration 5 ~ 500Hz, 2Grms X,Y,Z axis (with CFast/SSD)
Shock Operating 20G, 11ms X,Y,Z axis (with CFast/SSD)
OS Support
Windows 7 / Windows 8.1 / Windows 10/ Linux (Kernel: 3.1X)

- 5 -
Introduction
1.4. Inside the Package
Upon opening the package, carefully inspect the contents. If any of the items
is missing or appears damaged, contact your local dealer or distributor. The
package should contain the following items:
1 x LYNC-712 or 715-1900G4
industrial panel PC
LYNC-712-
1900G4
LYNC-715-
1900G4
1 x Accessory Box that contains the
following items:
• driver CD
• user’s manual
• screws/cable
• 3-pin plug for terminal block
1.5. Ordering Information
LYNC-712-1900G4 12.1” Intel®J1900 Quad-Core™ Processor industrial
panel PC
LYNC-715-1900G4 15” Intel®J1900 Quad-Core™ Processor industrial
panel PC

- 6 -
Introduction
1.5.1. Optional Accessories
The following items are normally optional, but some vendors may include them in
the standard package, or some vendors may not carry all the items.
PAC-P060W-02
60W AC/DC power adapter kit
Power input: 100 ~ 240 VAC
Power output: 12VDC, 5A
VMB-712
LYNC-712 VESA-mount bracket kit
Material: stainless steel
VESA support: 75 x 75 mm / 100 x 100 mm
VMB-715
LYNC-715 VESA-mount bracket kit
Material: stainless steel
VESA support: 75 x 75 mm / 100 x 100 mm
1.5.2. Congure-to-Order Service
Make the computer more tailored to your needs by selecting one or more
components from the list below to be fabricated to the computer.
80GB SSD Intel®2.5" 80GB SATAIII SSD Kit
WIFI-AT2350 Atheros AR9462 WiFi module w/ 20cm
& 30cm internal wiring
ANT-D11 1 x 2.4G/5G Dual-band WiFi antenna
ADK-712 LYNC-71x Audio Kit

- 7 -
2Chapter 2
Getting Started
Chapter 2 - Getting Started

- 8 -
Getting Started
2.1. Dimensions
The following illustration shows the dimensions of the computer, with the
measurements in width, depth, and height called out.
LYNC-712-1900G4
Unit: mm

- 9 -
Getting Started
LYNC-715-1900G4
Unit: mm

- 10 -
Getting Started
2.2. Tour the Computer
Takealookaroundthecomputerandndtheexternalcontrolsandconnectors.
2.2.1. Front View
On the front side of the computer is a LCD display, a few function keys and one
USB port recessed in the lower-right of the bezel.
LYNC-712-1900G4 LYNC-715-1900G4
function keys
USB
function keys
USB
Use the function keys to launch the following actions from the computer:
Icon Description
Turns on/off the LCD display.
Decreases LCD backlight.
Increases LCD backlight.
