Arbor Technology ASLAN-W812C-2930G2 User manual

I
ASLAN-W810/812C-
2930G2
Fanless 10.1”/11.6” Industrial Panel PC with
Intel®Bay Trail SoC Processor
User’s Manual
Version 1.1
2019.09
P/N: 4018080000110P

- II -
Revision History
Version Time Description
1.0 May, 2016 Initial release
1.1 Sep, 2019 • Revised Operating Temp. in 1.3. Specifications
• Remove driver DVD from packing list in 1.4.
Inside the Package
• Add cutout info to dimension drawing in 2.1.
Dimensions
• Revised the BIOS provider in Chapter 5 -
BIOS
• Added 4.4.2 Panel Mounting

- i -
Contents
Revision History ................................................................................II
Contents..............................................................................................i
Preface...............................................................................................iii
Copyright Notice .....................................................................................iii
Declaration of Conformity .......................................................................iii
CE....................................................................................................iii
FCC Class A ....................................................................................iii
RoHS .............................................................................................. iv
SVHC / REACH .............................................................................. iv
Important Safety Instructions .................................................................. v
Warning.................................................................................................. vi
Lithium Battery Replacement................................................................. vi
Technical Support .................................................................................. vi
Warranty.................................................................................................vii
Chapter 1 - Introduction....................................................................1
1.1. The Computer ..................................................................................2
1.2. About this Manual ...........................................................................2
1.3.Specications................................................................................... 3
1.4. Inside the Package ..........................................................................5
1.5. Ordering Information ........................................................................5
Chapter 2 - Getting Started...............................................................7
2.1. Dimensions ......................................................................................8
2.2. Tour the Computer ........................................................................... 9
2.2.1. Front View..............................................................................9
2.2.2. Rear View ............................................................................10
2.3. Driver Installation Note................................................................... 11
Chapter 3 - Engine of the Computer..............................................13
3.1. Board Layout..................................................................................14
3.2. Jumpers and Connectors............................................................... 15
3.2.1. Jumpers ..............................................................................15
3.2.2. Connectors ..........................................................................19
Chapter 4 - Installation and Maintenance......................................37
4.1. Access the Inside of the Computer ................................................38
4.1.1. Disassemble the Computer .................................................38
4.1.2. Reassemble the Computer ..................................................40
4.2. Use Onboard Jumpers and Connectors ........................................41
4.3. Install Hardware .............................................................................42
4.3.1. Install mSATA Storage ......................................................... 42
4.3.2. Install Memory Module......................................................... 43
4.3.3. Install Wi-Fi Module .............................................................46
Contents

- ii -
Contents
4.4. Mount the Computer ......................................................................47
4.4.1 VESA Mounting.....................................................................47
4.4.2 Panel Mounting..................................................................... 47
Chapter 5 - BIOS..............................................................................51
5.1. Main ...............................................................................................54
5.2. Advanced .......................................................................................56
5.2.1.BootConguration ...............................................................57
5.2.2.PCIExpressConguration ..................................................57
5.2.3.USBConguration ...............................................................57
5.2.4.LPSS&SCCConguration .................................................58
5.2.5.VideoConguration .............................................................58
5.2.6.SATAConguration..............................................................59
5.2.7. LM90 Thermal Sensor .........................................................60
5.3. Security ..........................................................................................61
5.4. Power ............................................................................................62
5.5. Boot................................................................................................63
5.6. Exit .................................................................................................65
Appendices ......................................................................................67
Appendix A: Wi-Fi Module Hardware Installation..................................68

- iii -
Preface
Copyright Notice
All Rights Reserved.
The information in this document is subject to change without prior notice in
order to improve the reliability, design and function. It does not represent a
commitment on the part of the manufacturer.
Under no circumstances will the manufacturer be liable for any direct, indirect,
special, incidental, or consequential damages arising from the use or inability
to use the product or documentation, even if advised of the possibility of such
damages.
This document contains proprietary information protected by copyright. All rights
are reserved. No part of this document may be reproduced by any mechanical,
electronic, or other means in any form without prior written permission of the
manufacturer.
Declaration of Conformity
CE
The CE symbol on your product indicates that it is in compliance with the
directivesoftheUnionEuropean(EU).ACerticateofComplianceisavailable
by contacting Technical Support.
This product has passed the CE test for environmental specications when
shielded cables are used for external wiring. We recommend the use of shielded
cables. This kind of cable is available from ARBOR. Please contact your local
supplier for ordering information.
Warning
This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.

- iv -
Preface
NOTE:
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
RoHS
ARBOR Technology Corp. certies that all components in its products are
in compliance and conform to the European Union’s Restriction of Use of
Hazardous Substances in Electrical and Electronic Equipment (RoHS) Directive
2002/95/EC.
The above mentioned directive was published on 2/13/2003. The main purpose
of the directive is to prohibit the use of lead, mercury, cadmium, hexavalent
chromium, polybrominated biphenyls (PBB), and polybrominated diphenyl
ethers (PBDE) in electrical and electronic products. Member states of the EU are
to enforce by 7/1/2006.
ARBOR Technology Corp. hereby states that the listed products do not contain
unintentional additions of lead, mercury, hex chrome, PBB or PBDB that exceed
a maximum concentration value of 0.1% by weight or for cadmium exceed
0.01%byweight,perhomogenousmaterial.Homogenousmaterialisdenedas
a substance or mixture of substances with uniform composition (such as solders,
resins, plating, etc.). Lead-free solder is used for all terminations (Sn(96-96.5%),
Ag(3.0-3.5%) and Cu(0.5%)).
SVHC / REACH
To minimize the environmental impact and take more responsibility to the earth
welive,ArborherebyconrmsallproductscomplywiththerestrictionofSVHC
(Substances of Very High Concern) in (EC) 1907/2006 (REACH --Registration,
Evaluation, Authorization, and Restriction of Chemicals) regulated by the
European Union.
All substances listed in SVHC < 0.1 % by weight (1000 ppm)

- v -
Preface
Important Safety Instructions
Read these safety instructions carefully
1. Read all cautions and warnings on the equipment.
2. Place this equipment on a reliable surface when installing. Dropping it or
letting it fall may cause damage
3. Make sure the correct voltage is connected to the equipment.
4. For pluggable equipment, the socket outlet should be near the equipment
and should be easily accessible.
5. Keep this equipment away from humidity.
6. The openings on the enclosure are for air convection and protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
7. Position the power cord so that people cannot step on it. Do not place
anything over the power cord.
8. Neverpouranyliquidintoopening.Thismaycausereorelectricalshock.
9. Never open the equipment. For safety reasons, the equipment should be
openedonlybyqualiedservicepersonnel.
10. If one of the following situations arises, get the equipment checked by
service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work according
to the user’s manual.
e. The equipment has been dropped or damaged.
f. The equipment has obvious signs of breakage.
11. Keep this User’s Manual for later reference.

- vi -
Preface
Warning
The Box PC and its components contain very delicately Integrated Circuits (IC).
To protect the Box PC and its components against damage caused by static
electricity, you should always follow the precautions below when handling it:
1. Disconnect your Box PC from the power source when you want to work on
the inside.
2. Use a grounded wrist strap when handling computer components.
3. Place components on a grounded antistatic pad or on the bag that came
with the Box PC, whenever components are separated from the system.
Lithium Battery Replacement
Incorrect replacement of the lithium battery may lead to a risk of explosion.
The lithium battery must be replaced with an identical battery or a battery type
recommended by the manufacturer.
Do not throw lithium batteries into the trash can. It must be disposed of in
accordance with local regulations concerning special waste.
Technical Support
Ifyouhaveanytechnicaldifculties,pleaseconsulttheuser’smanualrstat:
http://www.arbor.com.tw
Please do not hesitate to call or e-mail our customer service when you still cannot
ndouttheanswer.
http://www.arbor-technology.com
E-mail:[e-mail]

- vii -
Preface
Warranty
This product is warranted to be in good working order for a period of one year
from the date of purchase. Should this product fail to be in good working order
at any time during this period, we will, at our option, replace or repair it at no
additional charge except as set forth in the following terms. This warranty does
notapplytoproductsdamagedbymisuse,modications,accidentordisaster.
Vendorassumesnoliability for anydamages,lostprots, lost savingsorany
other incidental or consequential damage resulting from the use, misuse of, or
inability to use this product. Vendor will not be liable for any claim made by any
other related party.
Vendors disclaim all other warranties, either expressed or implied, including but
not limited to implied warranties of merchantability and tness for a particular
purpose, with respect to the hardware, the accompanying product’s manual(s)
and written materials, and any accompanying hardware. This limited warranty
givesyouspeciclegalrights.
Return authorization must be obtained from the vendor before returned
merchandise will be accepted. Authorization can be obtained by calling or faxing
the vendor and requesting a Return Merchandise Authorization (RMA) number.
Returned goods should always be accompanied by a clear problem description.

- viii -
This page is intentionally left blank.

- 1 -
1Chapter 1
Introduction
Chapter 1 - Introduction

- 2 -
Introduction
1.1. The Computer
Product Highlights
• High Resolution LCD Display w/ LED Backlight
• Flat panel with projected capacitive touchscreen
• Front panel compliant with IP65
• Anti-scratch surface: 7H hardness
• Slim and Compact Design
• Mini PCIe expansion slot support
• Fanless cooling system
• Cable-less Design
• Low power consumption
1.2. About this Manual
This manual is meant for the experienced users and integrators with hardware
knowledge of personal computers. If you are not sure about the description in
this manual, consult your vendor before further handling.
We recommend that you keep one copy of this manual for the quick reference
for any necessary maintenance in the future. Thank you for choosing ARBOR
products.

- 3 -
Introduction
1.3. Specications
System
CPU Intel® N2930 Quad-Core™ Processor 1.83GHz
Memory 2GB DDR3L SO-DIMM RAM module installed
1 x DDR3L SO-DIMM Socket, supporting 1600MHz SDRAM up to 8GB
LAN 2 x Intel® I210AT GbE controllers
Watchdog Timer 1~255 levels reset
Storage
Device 1 x mSATA for SATA interface SSD
Supports 300MB/s HDD transfer rate
Audio
Type 1x Mic-in / 1xLine out
LCD Display
Size/Type ASLAN-W810C: 10.1” TFT LCD Panel
ASLAN-W812C: 11.6” TFT LCD Panel
Max. Resolution ASLAN-W810C: 1280 x 800, WXGA
ASLAN-W812C: 1920 x 1080, Full HD
Max. Colors 16.7M
Luminance ASLAN-W810C: 350 cd/m²
ASLAN-W812C: 300 cd/m²
Touch Screen Projected capacitive touch panel
View Angle (U/D/R/L) 85°/85°/85°/85°
Power System
Power Input DC 12V input with DC jack
Certication
EMC / EMI CE, FCC Class A
Expansion
Expansion Bus 1 x Full-Size mPCIE (PCIex1+USB2.0)
1 x Half-Size mPCIE (PCIex1 Lane only)

- 4 -
Introduction
External I/O
USB Ports 1 x Type-A USB 3.0 port
1 x Type-A USB 2.0 port
LAN 2 x RJ-45 GbE ports
DVI 1 x DVI-I connector
WiFi 1 x SMA antenna hole for optional WiFi function
Mechanical
Mounting Type VESA-75 / 100 mounting and panel mounting with bracket
Chassis Aluminum front bezel and SECC steel chassis
Dimension
(W x H x D)
ASLAN-W810C: 255.00 x 175.0. x 39.50 mm (10.04” x 6.89” x 1.56”)
ASLAN-W812C: 306.00 x 206.00 x 39.50 mm (12.05” x 8.11” x 1.56”)
Weight (Net) ASLAN-W810C: 1.7 kg (3.75 lb)
ASLAN-W812C: 2.1 kg (4.63 lb)
Environmental
Operating Temp. ASLAN-W810C: -10ºC ~ 60ºC (14°F ~ 140°F)
ASLAN-W812C: -10ºC ~ 55ºC (14°F ~ 131°F)
Storage Temp. -30ºC ~ 70°C (-22°F ~ 158°F)
Operating Humidity 10 ~ 95% RH @ 60°C (non-condensing)
Vibration 5 ~ 500Hz, 1Grms Random (with CFast/SSD)
Shock Operating 10G, 11ms Non-operating 30G, 11ms (with CFast/SSD)
OS Support
W7 Pro / WS7E / Linux: Ubuntu

- 5 -
Introduction
1.4. Inside the Package
Upon opening the package, carefully inspect the contents. If any of the items
is missing or appears damaged, contact your local dealer or distributor. The
package should contain the following items:
1 x ASLAN-W810/812C-2930G2 Industrial
panel PC
1 x Accessory Box that contains the following
items:
• User’s manual
• Screws/cable
1.5. Ordering Information
ASLAN-W810C-2930G2 10.1” Intel® N2930 Quad-Core™ Processor
industrial panel PC with 2GB Memory
ASLAN-W812C-2930G2 11.6” Intel® N2930 Quad-Core™ Processor
industrial panel PC with 2GB Memory

- 6 -
This page is intentionally left blank.

- 7 -
2Chapter 2
Getting Started
Chapter 2 - Getting Started

- 8 -
Getting Started
2.1. Dimensions
The following illustration shows the dimensions of the computer.
ASLAN-W810C
175.00
255.00
16.00
39.50
75.00
100.00
75.00
100.00
228.00(CUT OUT)
146.00(CUT OUT)
Unit:mm
ASLAN-W812C
306.00
206.00
16.00
39.50
75.00
100.00
75.00
100.00
270.00(CUT OUT)
172.00(CUT OUT)
Unit:mm

- 9 -
Getting Started
2.2. Tour the Computer
Takealookaroundthecomputerandndtheexternalcontrolsandconnectors.
2.2.1. Front View
ASLAN-W810C
ASLAN-W812C

- 10 -
Getting Started

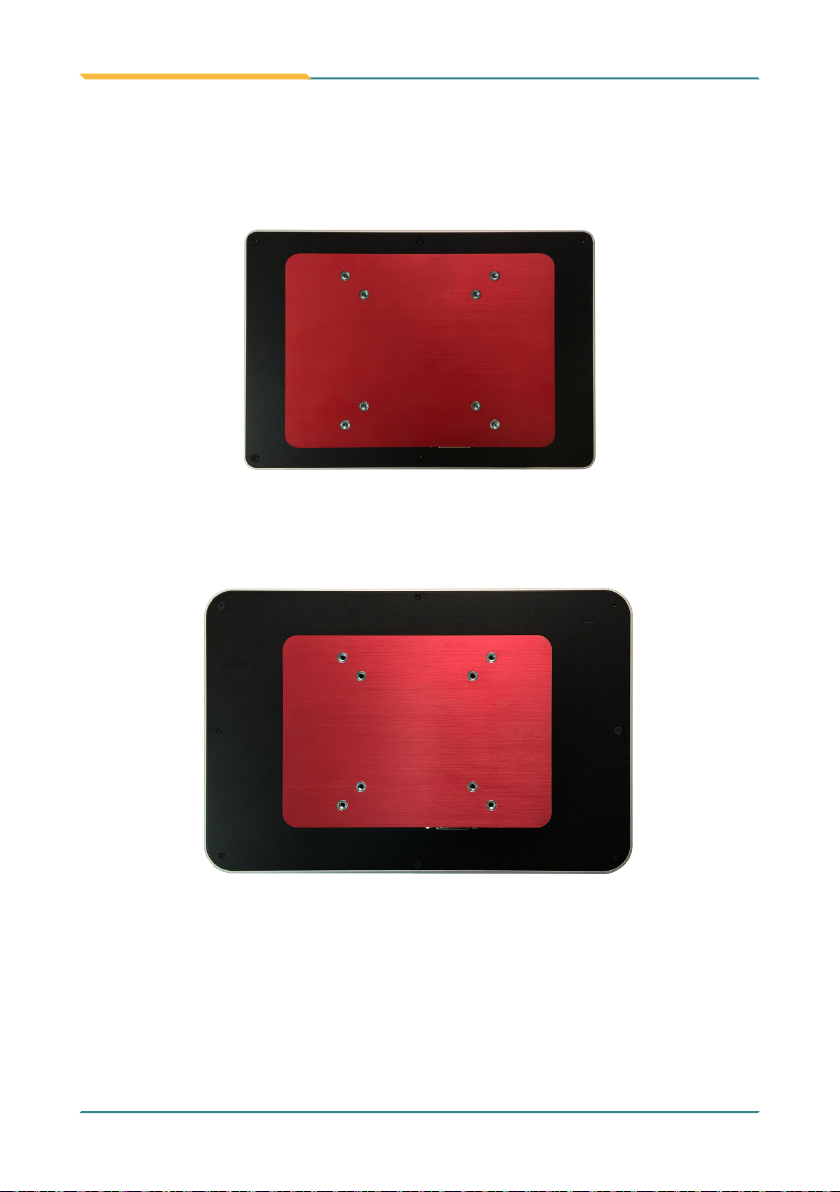

2.2.2. Rear View
ASLAN-W810C
ASLAN-W812C
