Arbor Technology IEC-3350 User manual

1
IEC-3350
Fanless Boxed Chassis System with
Intel®Celeron®Processor
User’s Manual
Version 1.0
2020.09
P/N: 4010335000100P

- 2 -
This page is intentionally left blank.

- i -
Revision History
Version Date Description
1.0 2020.09 Initial release

- ii -
Contents
Revision History ............................................................................. i
Preface........................................................................................... iv
Copyright Notice .......................................................................................iv
Declaration of Conformity .........................................................................iv
CE......................................................................................................iv
FCC Class A.......................................................................................iv
RoHS ................................................................................................. v
SVHC / REACH ................................................................................. v
Important Safety Instructions....................................................................vi
Warning ...................................................................................................vii
Replacing Lithium Battery........................................................................vii
Technical Support ....................................................................................vii
Warranty .................................................................................................viii
Chapter 1 - Introduction................................................................ 1
1.1. Product Highlights ............................................................................. 2
1.2. About this Manual .............................................................................. 2
1.3. Specications .................................................................................... 2

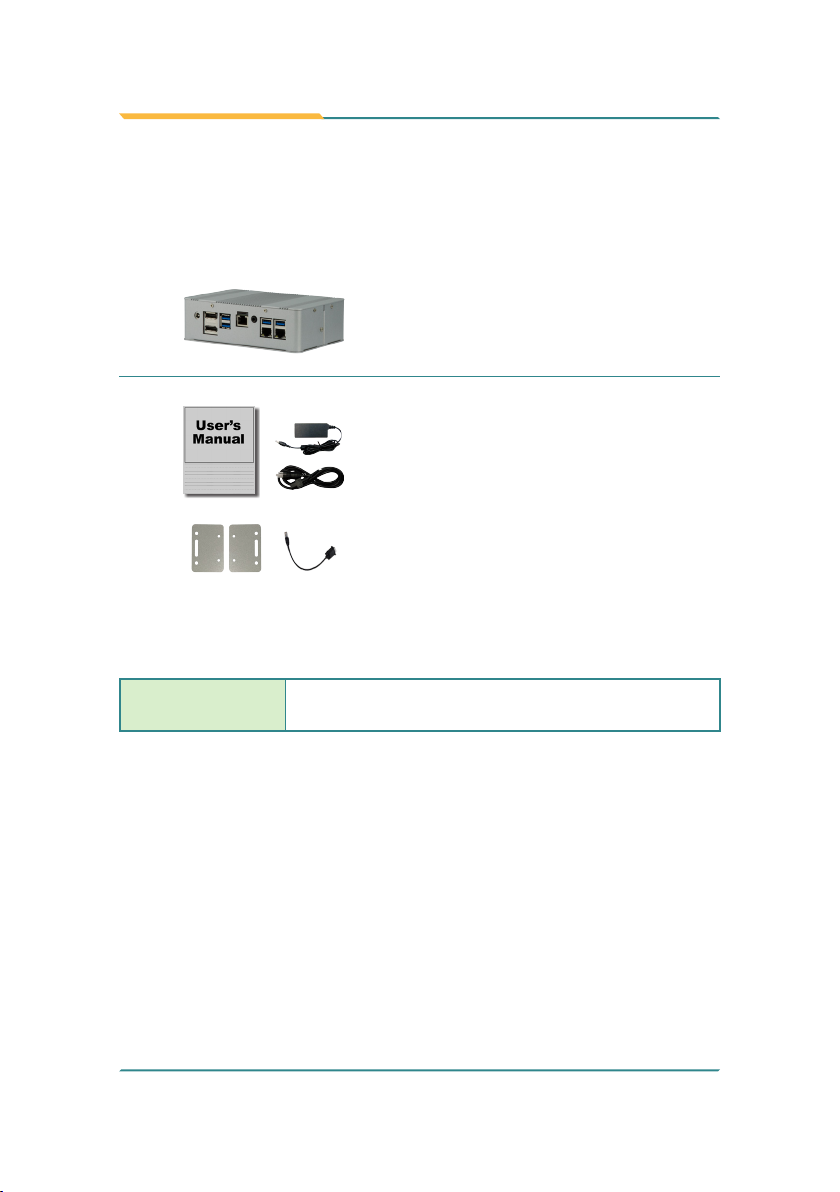

1.4. Inside the Package ............................................................................ 4
1.5. Ordering Information.......................................................................... 4
1.5.1. Standard Accessories .............................................................. 5
1.5.2. Congure-to-Order Service...................................................... 5
Chapter 2 - Getting Started........................................................... 7

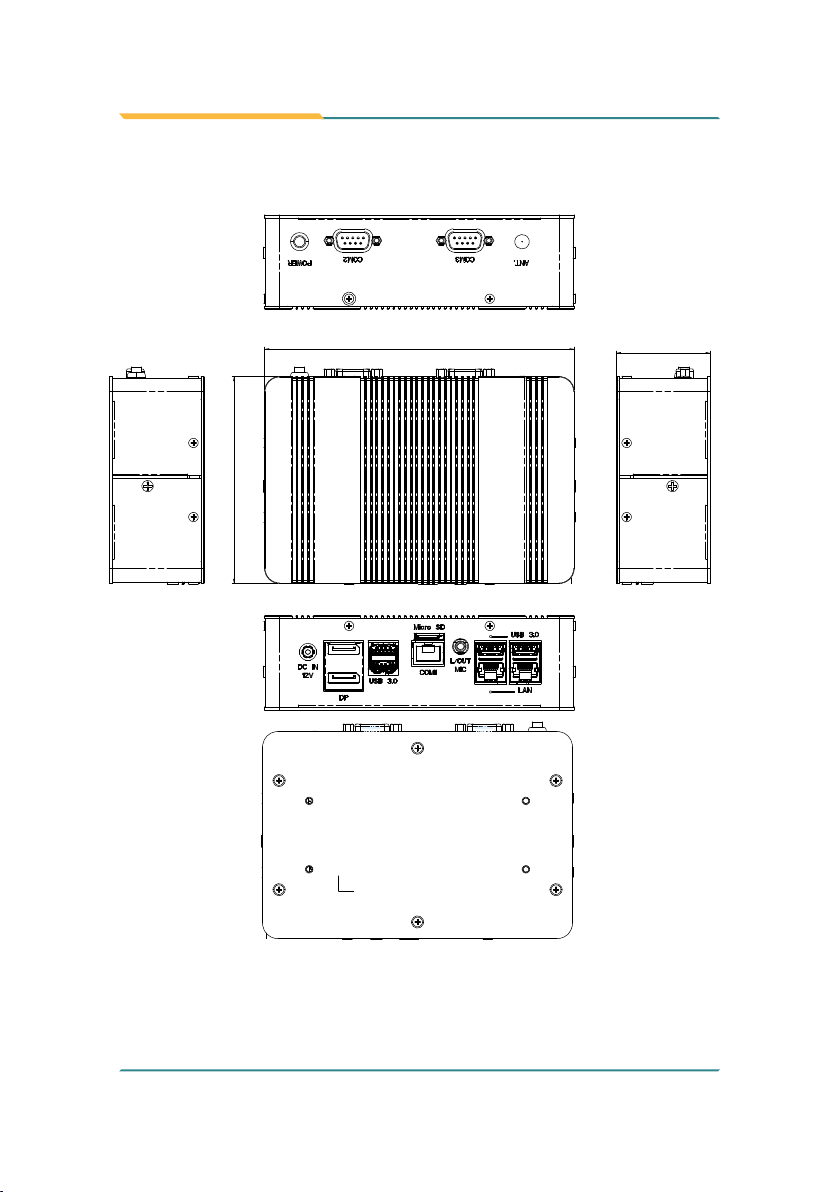

2.1. Dimensions........................................................................................ 8
2.2. Take A Tour ........................................................................................ 9
2.3. Driver Installation Notes .................................................................. 10
Chapter 3 - System Conguration ............................................. 11
3.1. Board Layout ................................................................................... 12
3.2. Jumpers........................................................................................... 14
3.3. Connectors ...................................................................................... 17
3.4. Headers ........................................................................................... 19
Chapter 4 - Installation and Maintenance.................................. 23
4.1. Disassemble the Computer ............................................................. 24
4.2. Install Memory Module .................................................................... 25
4.3. Install M.2 Module ........................................................................... 26
4.4. Install SIM Card ............................................................................... 26
4.5. Install Wi-Fi Module ......................................................................... 28
4.6. Wall Mounting (optional) .................................................................. 32

- iii -
Contents
Chapter 5 - BIOS.......................................................................... 33
5.1. Entering Setup................................................................................. 34
5.1.1. Function Keys ........................................................................ 35
5.1.2. Menu Bars.............................................................................. 35
5.2. Main Menu....................................................................................... 36
5.3. Advanced Menu............................................................................... 37
5.4. Chipset Menu .................................................................................. 48
5.5. Security Menu.................................................................................. 50
5.6. Boot Menu ....................................................................................... 52
5.7. Save & Exit Menu ............................................................................ 53

- iv -
Preface
Copyright Notice
All Rights Reserved.
The information in this document is subject to change without prior notice in
order to improve the reliability, design and function. It does not represent a
commitment on the part of the manufacturer.
Under no circumstances will the manufacturer be liable for any direct, indirect,
special, incidental, or consequential damages arising from the use or inability
to use the product or documentation, even if advised of the possibility of such
damages.
This document contains proprietary information protected by copyright. All rights
are reserved. No part of this document may be reproduced by any mechanical,
electronic, or other means in any form without prior written permission of the
manufacturer.
Declaration of Conformity
CE
The CE symbol on the computer indicates that it is in compliance with the
directives of the Union European (EU). A Certicate of Compliance is available
by contacting Technical Support.
This product has passed the CE test for environmental specications when
shielded cables are used for external wiring. We recommend the use of
shielded cables. This kind of cable is available from ARBOR. Please contact
your local supplier for ordering information.
Warning
This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
Preface

- v -
Preface
NOTE:
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
RoHS
ARBOR Technology Corp. certies that all components in its products
are in compliance and conform to the European Union’s Restriction of Use
of Hazardous Substances in Electrical and Electronic Equipment (RoHS)
Directive 2002/95/EC.
The above mentioned directive was published on 2/13/2003. The main purpose
of the directive is to prohibit the use of lead, mercury, cadmium, hexavalent
chromium, polybrominated biphenyls (PBB), and polybrominated diphenyl
ethers (PBDE) in electrical and electronic products. Member states of the EU
are to enforce by 7/1/2006.
ARBOR Technology Corp. hereby states that the listed products do not contain
unintentional additions of lead, mercury, hex chrome, PBB or PBDB that exceed
a maximum concentration value of 0.1% by weight or for cadmium exceed
0.01% by weight, per homogenous material. Homogenous material is dened
as a substance or mixture of substances with uniform composition (such as
solders, resins, plating, etc.). Lead-free solder is used for all terminations
(Sn(96-96.5%), Ag(3.0-3.5%) and Cu(0.5%)).
SVHC / REACH
To minimize the environmental impact and take more responsibility to the earth
we live, Arbor hereby conrms all products comply with the restriction of SVHC
(Substances of Very High Concern) in (EC) 1907/2006 (REACH --Registration,
Evaluation, Authorization, and Restriction of Chemicals) regulated by the
European Union.
All substances listed in SVHC < 0.1 % by weight (1000 ppm)

- vi -
Preface
Important Safety Instructions
Read these safety instructions carefully
1. Read all cautions and warnings on the equipment.
2. Place this equipment on a reliable surface when installing. Dropping it or
letting it fall may cause damage
3. Make sure the correct voltage is connected to the equipment.
4. For pluggable equipment, the socket outlet should be near the equipment
and should be easily accessible.
5. Keep this equipment away from humidity.
6. The openings on the enclosure are for air convection and protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
7. Position the power cord so that people cannot step on it. Do not place
anything over the power cord.
8. Never pour any liquid into opening. This may cause re or electrical shock.
9. Never open the equipment. For safety reasons, the equipment should be
opened only by qualied service personnel.
10. If one of the following situations arises, get the equipment checked by
service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work
according to the user’s manual.
e. The equipment has been dropped or damaged.
f. The equipment has obvious signs of breakage.
11. Keep this User’s Manual for later reference.
Product Heat
The computer generates heat during operation. Contact the
computer's chassis with your body could cause discomfort or
even a skin burn.

- vii -
Preface
Warning
The Box PC and its components contain very delicately Integrated Circuits (IC).
To protect the Box PC and its components against damage caused by static
electricity, you should always follow the precautions below when handling it:
1. Disconnect your Box PC from the power source when you want to work
on the inside.
2. Use a grounded wrist strap when handling computer components.
3. Place components on a grounded antistatic pad or on the bag that came
with the Box PC, whenever components are separated from the system.
Replacing Lithium Battery
Incorrect replacement of the lithium battery may lead to a risk of explosion.
The lithium battery must be replaced with an identical battery or a battery type
recommended by the manufacturer.
Do not throw lithium batteries into the trash can. It must be disposed of in
accordance with local regulations concerning special waste.
Technical Support
If you have any technical di󰀩culties, please consult the user’s manual rst at:
http://www.arbor-technology.com
Please do not hesitate to e-mail our customer service when you still cannot nd
out the answer.
E-mail:[e-mail]

- viii -
Preface
Warranty
This product is warranted to be in good working order for a period of one year
from the date of purchase. Should this product fail to be in good working order
at any time during this period, we will, at our option, replace or repair it at no
additional charge except as set forth in the following terms. This warranty does
not apply to products damaged by misuse, modications, accident or disaster.
Vendor assumes no liability for any damages, lost prots, lost savings or any
other incidental or consequential damage resulting from the use, misuse of, or
inability to use this product. Vendor will not be liable for any claim made by any
other related party.
Vendors disclaim all other warranties, either expressed or implied, including but
not limited to implied warranties of merchantability and tness for a particular
purpose, with respect to the hardware, the accompanying product’s manual(s)
and written materials, and any accompanying hardware. This limited warranty
gives you specic legal rights.
Return authorization must be obtained from the vendor before returned
merchandise will be accepted. Authorization can be obtained by calling or
faxing the vendor and requesting a Return Merchandise Authorization (RMA)
number. Returned goods should always be accompanied by a clear problem
description.

- 1 -
1Chapter 1
Introduction
Chapter 1 - Introduction

- 2 -
Introduction

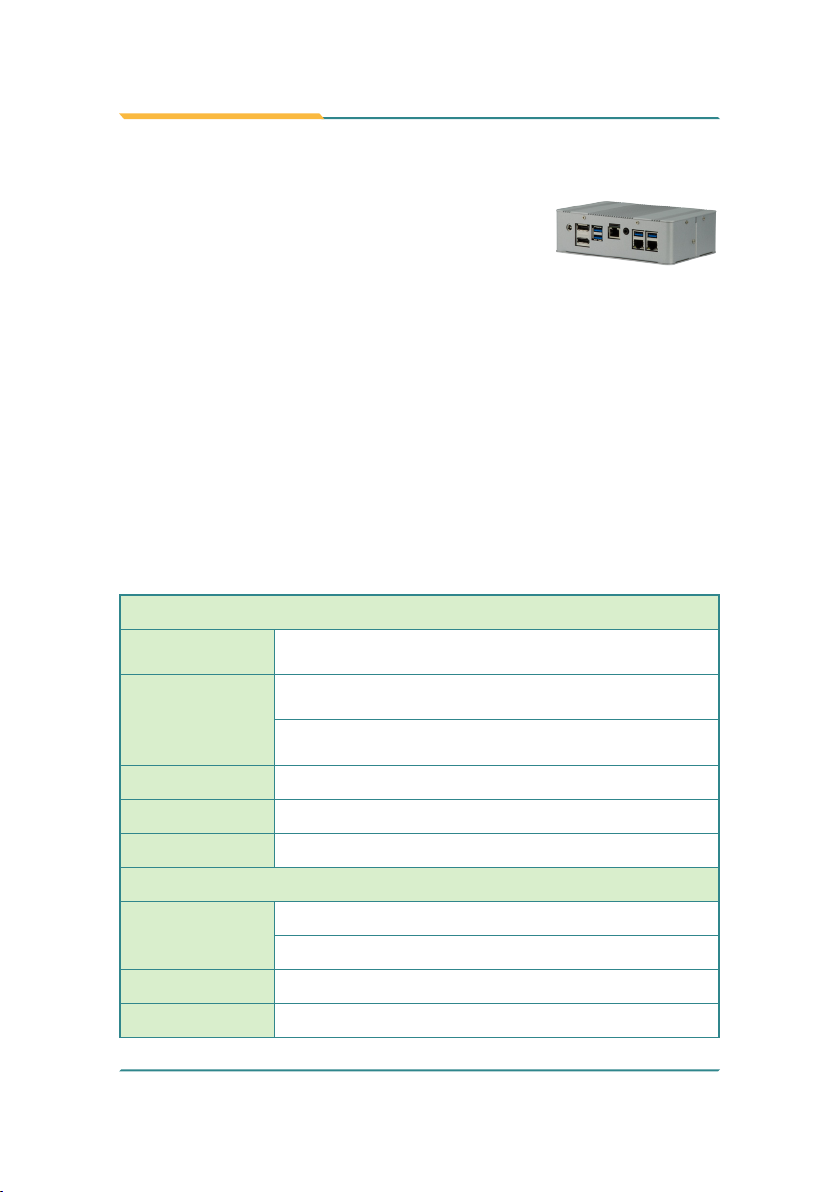

1.1. Product Highlights
• Ultra Low Power and Fanless Design
• HDMI / DisplayPort output supported
• Optional Wi-Fi Connection supported
• Rugged Design for Shock/Vibration Protection
• Easy Installation/Maintenance
1.2. About this Manual
This manual is meant for the experienced users and integrators with hardware
knowledge of personal computers. If you are not sure about the description
herein, consult your vendor before further handling.
We recommend that you keep one copy of this manual for the quick reference
for any necessary maintenance in the future. Thank you for choosing ARBOR
products.
1.3. Specications
System
CPU Soldered onboard Intel®Celeron®Processor N3350 dual-core
1.10GHz
Memory
1 x 204-pin DDR3L SO-DIMM socket, supporting
1600MHz SDRAM up to 8GB
Optional pre-install 4GB/8GB DDR3L SO-DIMM Memory
Module
Graphics Integrated Intel®HD Graphic
LAN Chipset 2 x Intel® i211AT PCIe GbE controllers
Watchdog Timer 1~255 levels reset
I/O
Serial Port
2 x DB-9 male connector for RS-232
1 x RJ-45 port for RS-232
USB Port 4 x USB 3.0/2.0 port
LAN 2 x RJ-45 ports for GbE

- 3 -
Introduction
Video Port 2 x DisplayPort
Audio 1 x Headpone jack connector for Line-out & Mic
Expansion Bus 1 x Mini-card socket (Full Size)
Environmental
Operating Temp. 0 ~ 50°C (32 ~ 122°F), ambient w/ air flow
Storage Temp. -40 ~ 85°C (-40 ~ 185°F)
Operating Humidity 10 ~ 95% @ 60°C (non-condensing)
Vibration 3 Grms/5~500Hz/random operation
Shock Operating 40G (11ms), Non-operating 60G with M.2
Qualication
Certification CE, FCC
Power Requirement
Power Input DC 12V input
Power Consumption 0.58A@12V (typical w/ N3350)
Storage
Storage 1 x NGFF M.2 socket, optional pre-installed 32GB/64GB M.2
SSD
Mechanical
Construction Aluminum alloy
Weight 766g (1.69lb)
Dimensions
(W x D x H) 163 x 109 x 50 mm (6.41” x 4.29” x 1.96”)
OS Support
Windows 10 64-bit
Linux: Ubuntu

- 4 -
Introduction
1.4. Inside the Package
Upon opening the package, carefully inspect the contents. If any of the items
is missing or appears damaged, contact your local dealer or distributor. The
package should contain the following items:
1 x IEC-3350
1 x Accessory Box that contains
the following items:
• User’s manual
• Wall mount kit
• 60W AC/DC adaptor with
power cord
• RJ-45 to DB-9 male cable
1.5. Ordering Information
IEC-3350-N3350 Barebone system with Intel®Celeron® Processor N3350

- 5 -
Introduction
1.5.1. Standard Accessories
Power Adaptor 12VDC, 5A, 60W, 2.5φ JACK, AC/DC
Adaptor with power cord
WMK-3350 Wall mount kit
COM Port Cable RJ-45 to DB-9 male cable
1.5.2. Congure-to-Order Service
Make the computer more tailored to your needs by selecting one or more
components from the list below to be fabricated to the computer.
WiFi-AT2200 Atheros AR9462 Wi-Fi module w/ 15cm internal
wiring
ANT-D11 1 x Wi-Fi Dual-band 2.4G/5G antenna
4GB SO-DIMM DDR3L-1600 4GB SO-DIMM Memory module
8GB SO-DIMM DDR3L-1600 8GB SO-DIMM Memory module
32GB SSD M.2 MLC 32GB
64GB SSD M.2 MLC 64GB

- 6 -
This page is intentionally left blank.

- 7 -
2Chapter 2
Getting Started
Chapter 2 - Getting Started

- 8 -
Getting Started
2.1. Dimensions
163 50
Unit:mm
109

- 9 -
Getting Started
2.2. Take A Tour
Front View
Power Button
RS-232
Serial Port
RS-232
Serial Port
Antenna Hole
Rear View
Micro SD
Card Socket
DP Ports
RJ-45 LAN
Ports
Line out
& Mic
COM Port
(RJ-45 Type)
USB 3.0 Ports
USB 3.0 Ports
12V DC-In
Power Jack

- 10 -
Getting Started
2.3. Driver Installation Notes
The computer supports Windows 10. To install the drivers, please go to our
website at www.arbor-technology.com and download the driver pack from the
product page.
Device Driver Path
Audio \Audio
Chipset \Chipset\inf
Ethernet \Ethernet\intellan
IRMT \IRMT
ISH \ISH
SIO \SIO\Serial_IO\x64
TXW \TXW\txe
VGA \VGA\win64
