Featuring a compact and stand-alone design, AREC MS-650 Media Station consists of diverse features and
functionality, including multi-signals capturing, recording synchronously, codec, streaming online, multi-channel
split screen, live broadcasting, and web-based video switcher, providing complete lecture capture solution.
Product Name Media Station
Model Name MS-650
Dimension 354mm(L) x 188.2mm(W) x 46mm(H)
Weight 1320g
Power Requirement 12V / 2A
Power Consumption (Max.) 24W (Max.)
Operating Temperature / Humidity 0ºC ~ 40ºC / 90%
Maximum normal load description Insert 2 IP CAM to LAN port and insert 2 video signals (either HDMI or
VGA input).Using external USB flash to record the transcoded video /
audio. And output the transcoded video / audio to both HDMI and VGA
port.
Chapter 1 Package Accessories
Introduction
Package Contents
AREC Media Station Quick Installation Guide
Antenna Power AdapterRemote Controller

3 4
MS-650 User Manual
1
4
62
53
7 10 13 15 1611
12
8 9 14 17
No. Name Brief introduction
1 Remote Control receiver Remote Control receiving area
2 Led light Bluetooth / Record / Power
3 Function key Record / Play / Pause / Stop / Menu / Channel / Preview Layout
4 Select key: Up / Down / Left / Right / Back/OK
5 Power Power on / off devices
6 USB port Export document by driving USB flash drive into USB port /
Firmware update through USB disk
7 Power port 12V / 2A
8 Video input source VGA / HDMI cables input source
9 Video output source VGA / HDMI cables output source
10 Audio input source Line / Mic audio input source
11 Audio output source Line audio output connect to amplier
12 Hard drive port USB flash drive / eSATA hard drive
13 Network jack Connect to network
14 Network camera input jack Network camera / Auto-Tracking Mount video input
15 Antenna keyhole Antennas for wireless microphone receivers
16 DIDO RS-232 Bidirectional control signal connector
17 Reset Restoring devices to its factory default state
Chapter 2 Product Overview
2.1 Host View
Front
Back

5 6
MS-650 User Manual
blue light orange light red/green dual-color light
Indicators Product Status Display Method of Indicator
blue light Wireless microphone (AM-500) match
completed
Blue light glows continuously
orange light Recording Orange light glows continuously
red/green dual-color
light
Standby mode Red light glows continuously
Booting up Red/green lights flicker alternately
Boot up completed Green light glows continuously
Fan anomaly Red light flickers rapidly
Firmware updating Red /green /orange lights flicker alternately
Receiving command from remote control Green light flickers once
2.2 Remote Control Receiver
2.3 Control Panel
2.3.1 Indicators
Please point the remote control to the infrared receiver at the front panel of the product to ensure proper signal
reception. The applicable range is between +/- 30 degrees, and the maximum vertical distance is within 10 meters.
The control panel is used to operate this product and enter menu.

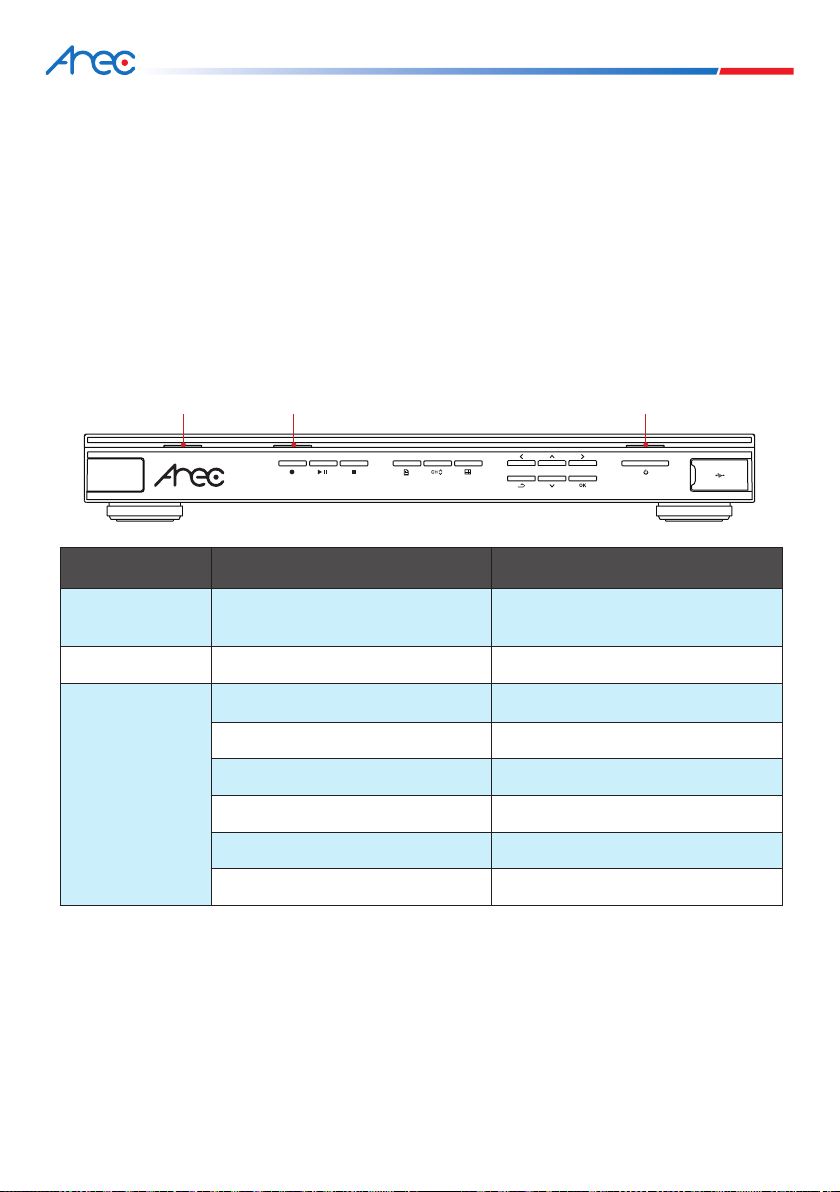

The control panel’s power indicator displays the product’s status. There are three types of indicators on this product:
blue light, orange light and red/green dual-color light. The illumination and flickering of these three lights indicate
different statuses of this product, described below.

5 6
MS-650 User Manual
Button Icon Name Function Description
Power Power ON/OFF; holding the button down can force power OFF.
Record Start recording.
Play/Pause Playback video; pressing it again during playback will pause the video.
Stop Stop the video playback and exits the channel; stops recording.
Menu Enter main menu.
Channel Switche channel.
Layout Switches the screen’s layout style under Display Screen.
Directional buttons Moves Up/Down/Left/Right to select items.
OK Selects item under menu.
Zooms-in the pane under Display Screen.
Return Cancels option/Exits to previous level.
2.3.2 Button Functions
There are frequently used control buttons on the front panel of the AREC Media Station. They can be used to turn the
product ON and enter the operation menu.

7 8
MS-650 User Manual
Chapter 3 Wiring and Initial Installation

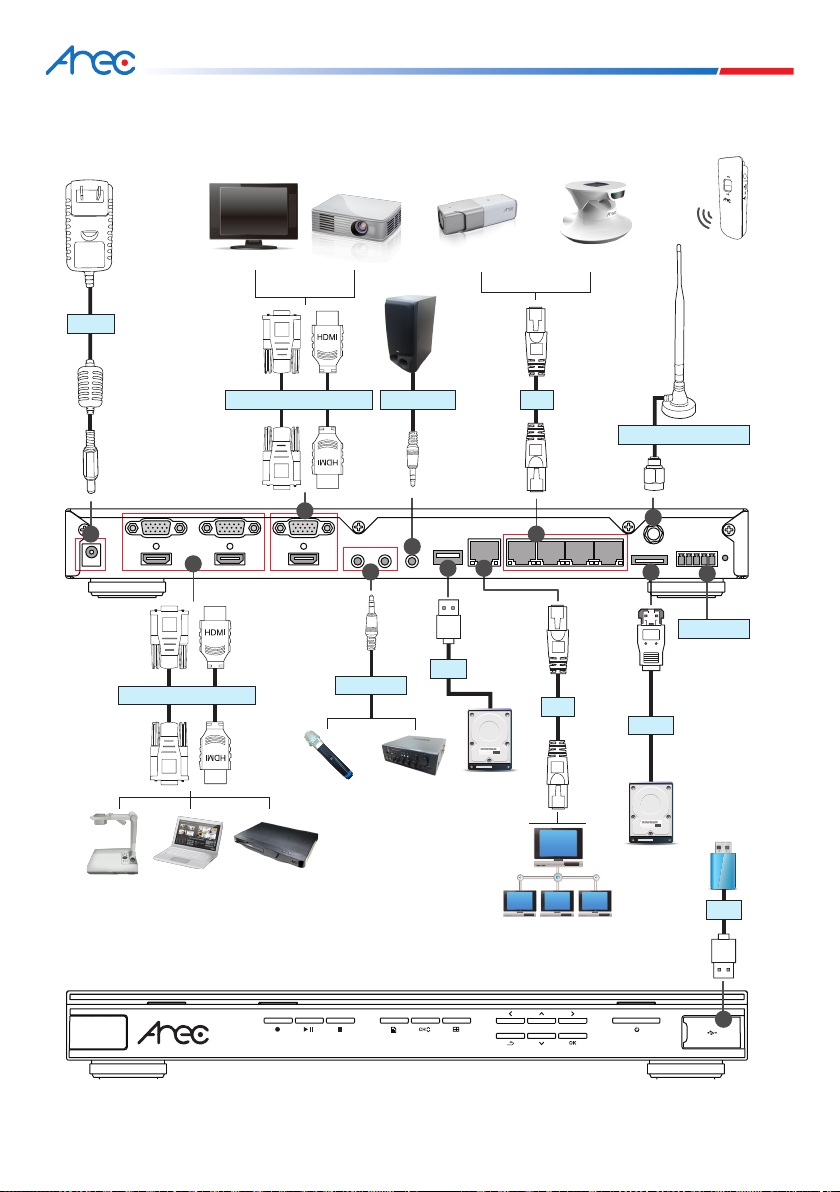

3.1 Product Connection
2
3
4
5
6 7
8
9
10
6
1
Power
TV
Speaker
projector AREC CI-200
Network Camera
document cam notebook DVD player
microphone amplier
Local area network
Hard drive
Hard drive
AREC TP-100
Auto-Tracking System
AREC AM-500
Wireless
Microphone
Audio output
Wireless audio receiver
LAN
Video output VGA / HDMI
Video input VGA / HDMI Audio input
USB
USB
Digital I/O
eSATA
11
LAN

7 8
MS-650 User Manual
NO. Name Brief introduction
1 Power Power connection
2 Video input Video input for VGA or HDMI cables.
For example: Connected to notebook or document cam.
3 Video output Video output for VGA or HDMI cables.
For example: Connected to projector or TV.
4 Audio input Audio input for Line or Mic.
For example: Connected to amplier or microphone.
5 Audio output Audio output for Line or Mic.
For example: Connected to amplier or Speaker
6 Hard drive USB flash drive or eSATA hard drive for storage.
7 Local area network (LAN) Connected to LAN for remote system management or
Internet video streaming.
8 Network camera input Connected to Auto-Tracking Mount (TP-100) or
Network Camera (CI-200).
9 Wireless audio receiver Antennas receive audio of wireless microphone (AM-500).
10 DIDO Connected to RS-232 device for input and output command.
11 Export USB hard drive Driving USB flash drive into USB port to export document or
update rmware.

9 10
MS-650 User Manual
3.2 First installation
Product setup
Get IP address from About option in Setup item of the host output interface main menu and input it in the Browser
page

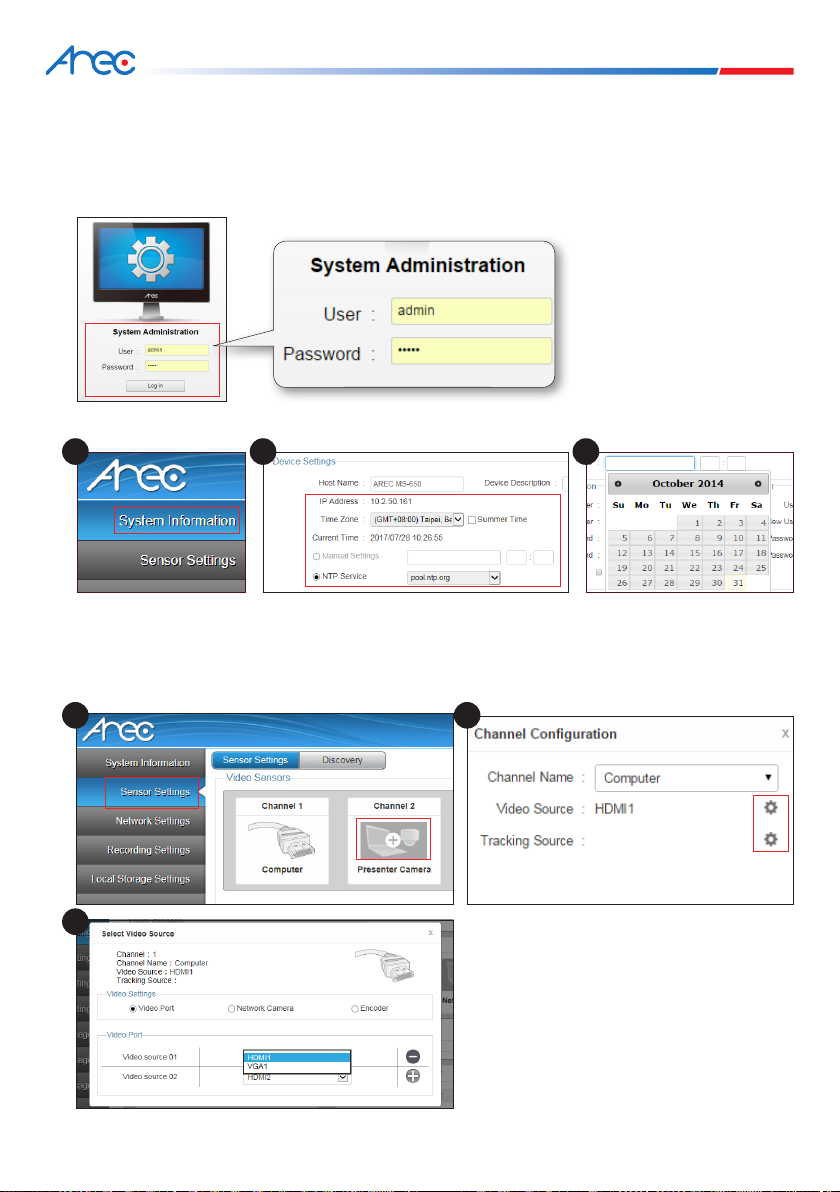

Step 1：Log in System Administration with default user ID admin and password admin.
Step 2：Set up time of host machine by selecting settings in time tab in System Information.
Step 3：Set up name / video source/tracking source/tracking mode by selecting + icon in image sensor in sensor
setup tab. The image capturing source is video in 1 and 2 with option VGA or HDMI. If only one of the latter is
connected, the system would detect and auto switch to source of signal.
Note
：
Factory default output display: input channel 1 full screen, input source: HDMI image of host input terminal video in 1.
1 2 3
21
3
