Argos Anderson 609/5521 User manual

MADE IN
BRITAIN
Dimensions
Width - 100cm
Depth - 39.5cm
Height - 51.7cm
Anderson - TV Unit
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 2 - 13/06/12
Important - Please read these instructions fully before starting assembly
ALR2745
609/5521
609/5514
Issue 2 - 13/06/12 - Changed nail ID to D in Step 20.

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 24kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: If there is any
chance of this unit being pulled
over by children etc. it is
recommended that the unit is
secured to a wall using suitable
fixings (not supplied).
• Dispose of all packaging
carefully and responsibly.
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.

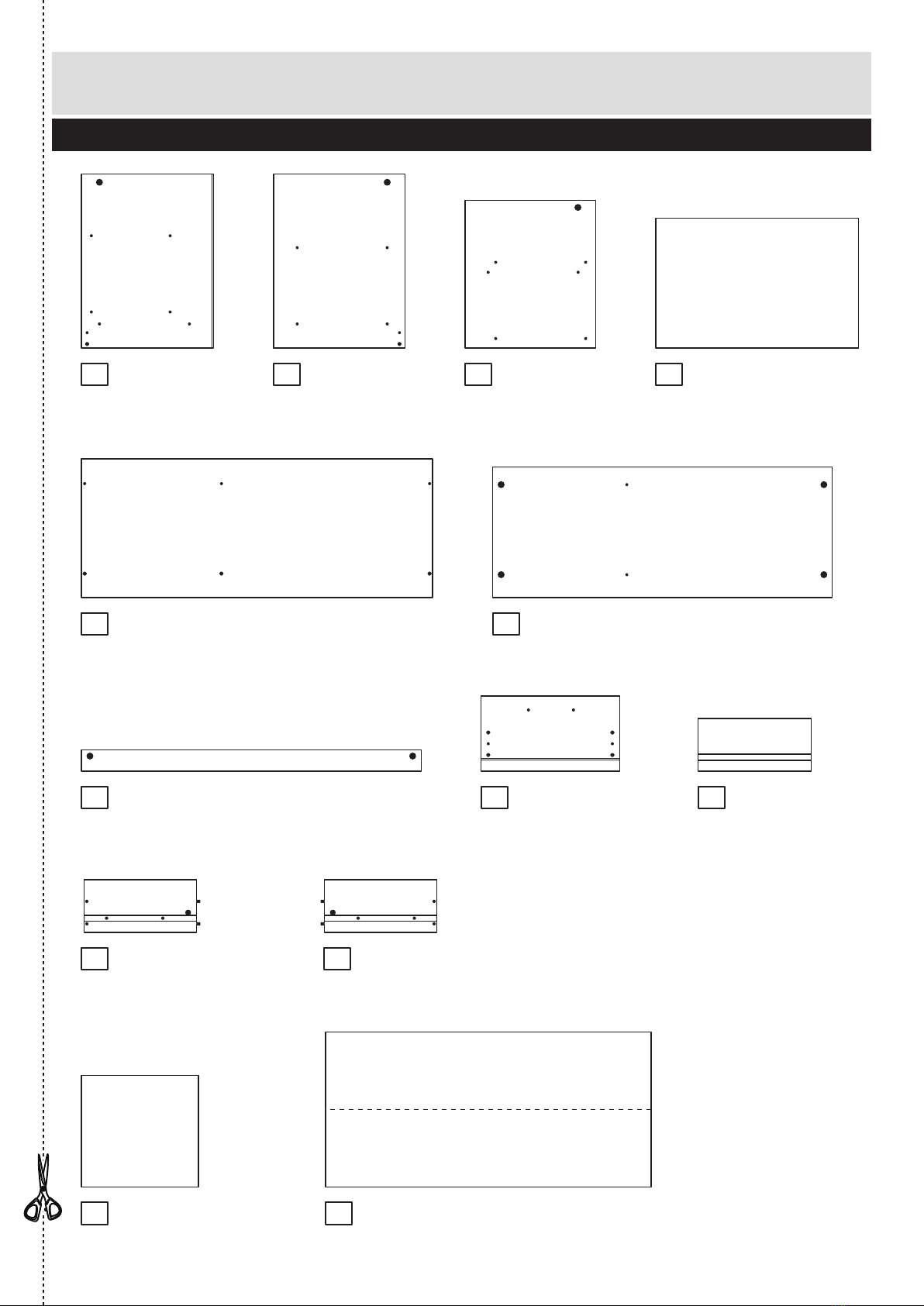

Components - Panels
Please check you have all the panels listed below
2
1
80%
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Left Side (D1499A)
(495 x 375mm)
Divider (D1502A)
(419.5 x 370mm)
Base (D1503A)
(966 x 371mm)
Drawer Front (D1504A)
(394 x 214mm) x 2
Plinth (D1505A)
(966 x 60mm)
Shelf (D1506A)
(577 x 369mm)
Right Side (D1500A)
(495 x 375mm)
Top (D1501A)
(999 x 395mm)
2
Left Drawer Side (W415LH)
(320 x 150mm) x 2
Right Drawer Side (W415RH)
(320 x 150mm) x 2
Back (X883)
(926 x 440mm)
Drawer Back (W526)
(322 x 150mm) x 2
Drawer Base (T526)
(333 x 317mm) x 2
3
5
4
7
10
8 9
6
12 13
11

Please check you have all the fittings listed below
Tools required
3
Components - Fittings If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 5
B
Metal dowel (F901) x 13
C
D
Large locking
nut (F900) x 9
E
Small locking
nut (F3) x 4
F
G H I
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Nail (F51) x 21
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
J
Knock-in Peg (F171) x 8
13mm Screw (F52) x 8
Shelf stud (F110) x 4
13mm Screw (F63) x 8
Handle (F847a ) x 2
K
Handle Screw (F847b) x 4
b
40mm Screw (F910) x 2
C
Ka
LR Runner (F160) x 2
b
L Runner (F161) x 2
Lc
L Runner (F159) x 2
La
R Runner (F162) x 2
Ld

Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Step 1
B
8
10
B
B
F
Step 2
Prepare the drawer
fronts
Screw 2 metal dowels
into the holes shown on
the back of the drawer
front .
Note: Tighten metal
dowels up fully against
the panels.
B
8
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and right drawer
side .
Note: Arrow on locking
nut must point towards
hole in edge of panel.
Step 3
F
10
11
Attach the drawer
sides to the drawer
front
Push the left drawer side
. and right drawer side
. onto the back of the
drawer front .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
10
11
8
F
10
11
F
D
FF
10
11
8
Small
groove
10
11
Note: Due to the manufacturing process, the holes for the
locking nut can be on either surface of the drawer sides.
Note: The locking nuts can be on
either surface of the drawer sides.
Make sure that the small groove
is on the inside, as shown.
80% B
B
8
x 2
x 2 x 2

I
I
Assembly Instructions
5
Step 4
Fit the drawer base
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the drawer
front .
Step 5
Fit the drawer back
Fit the drawer back
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
Step 6
12
10 11
8
9
10 11
12
9
9
I
10 11
Attach the handle
Attach the handle
to the drawer front
using 2 screws .
8
K a
K b
8
10
11
12
8
11
12
10
I
I
9
K b
K b
K a
8
x 2
x 2
x 2

1
Assembly Instructions
6

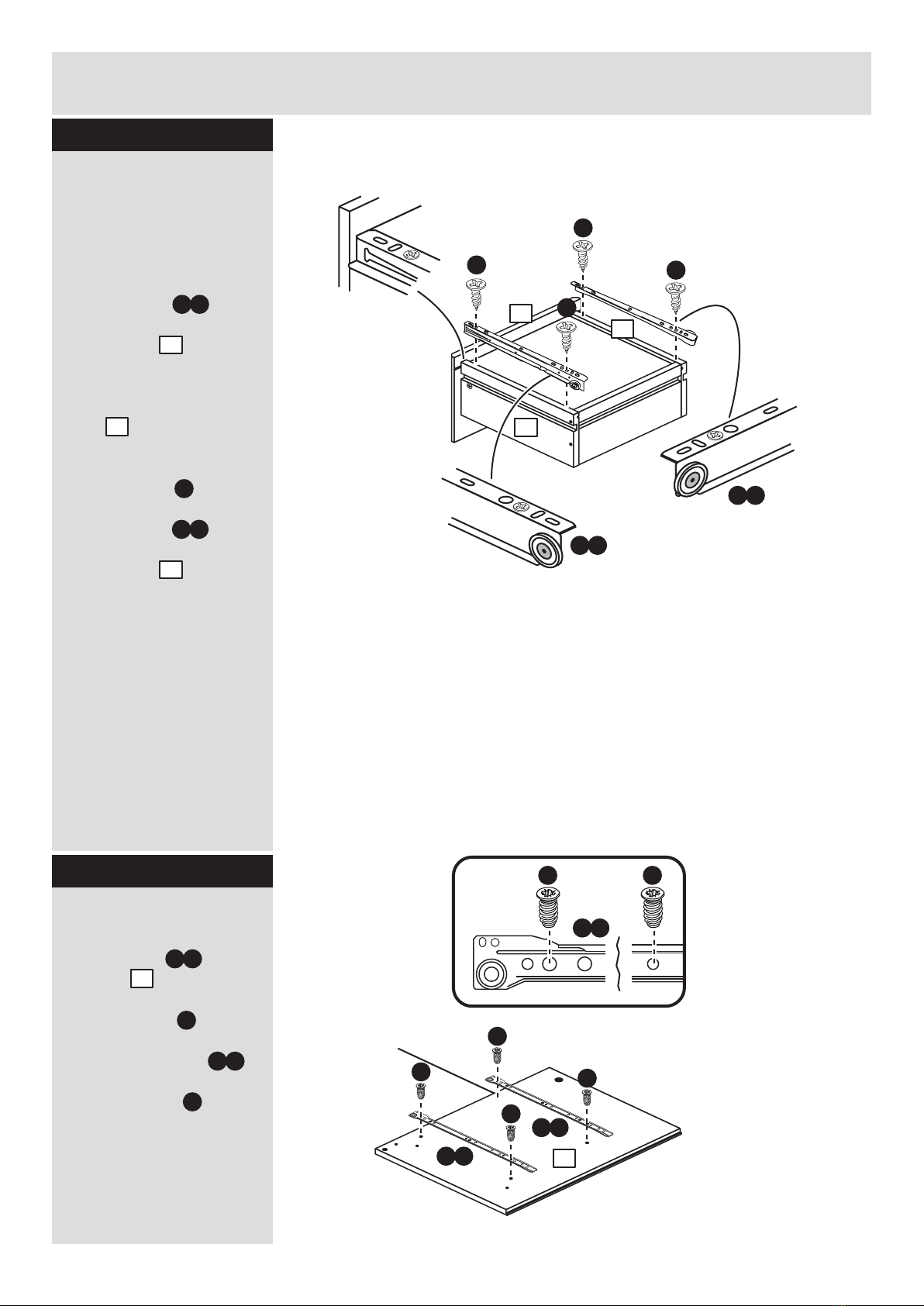

Step 7
Fit runners to the
drawers
Turn the drawer
assemblies over.
Fit the runner to the
bottom edge of the left
drawer side , as
shown, making sure that
it is pushed up against
the back of the drawer
front . Use a bradawl
to mark the fixing
positions, then secure
with 2 screws .
Fit the runner to the
bottom edge of the right
drawer side using the
same method.
11
L c
10
8
H
L d
L c
L d
Runners must be
pushed up against
the drawer front
Step 8
8
10
11
L a
G G
1st
screw
2nd
screw
Prepare the left side
Fit 2 runners to the
left side .
The 1st screw uses
the 2nd hole in from the
front of the runner .
The 2nd screw uses
the hole that lines up
with the other panel hole.
L a
1
G
G
L a
G
G
L a
G
G
L a
H
H
H
H
x 2
Finished
front edge

Finished
front edge
A
A
Assembly Instructions
7
Step 9
Finish preparing the
left side
Tap a wooden dowel
into the left side .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Screw 3 metal dowels
into the left side .
Insert a large locking
nut into the left side
. .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.

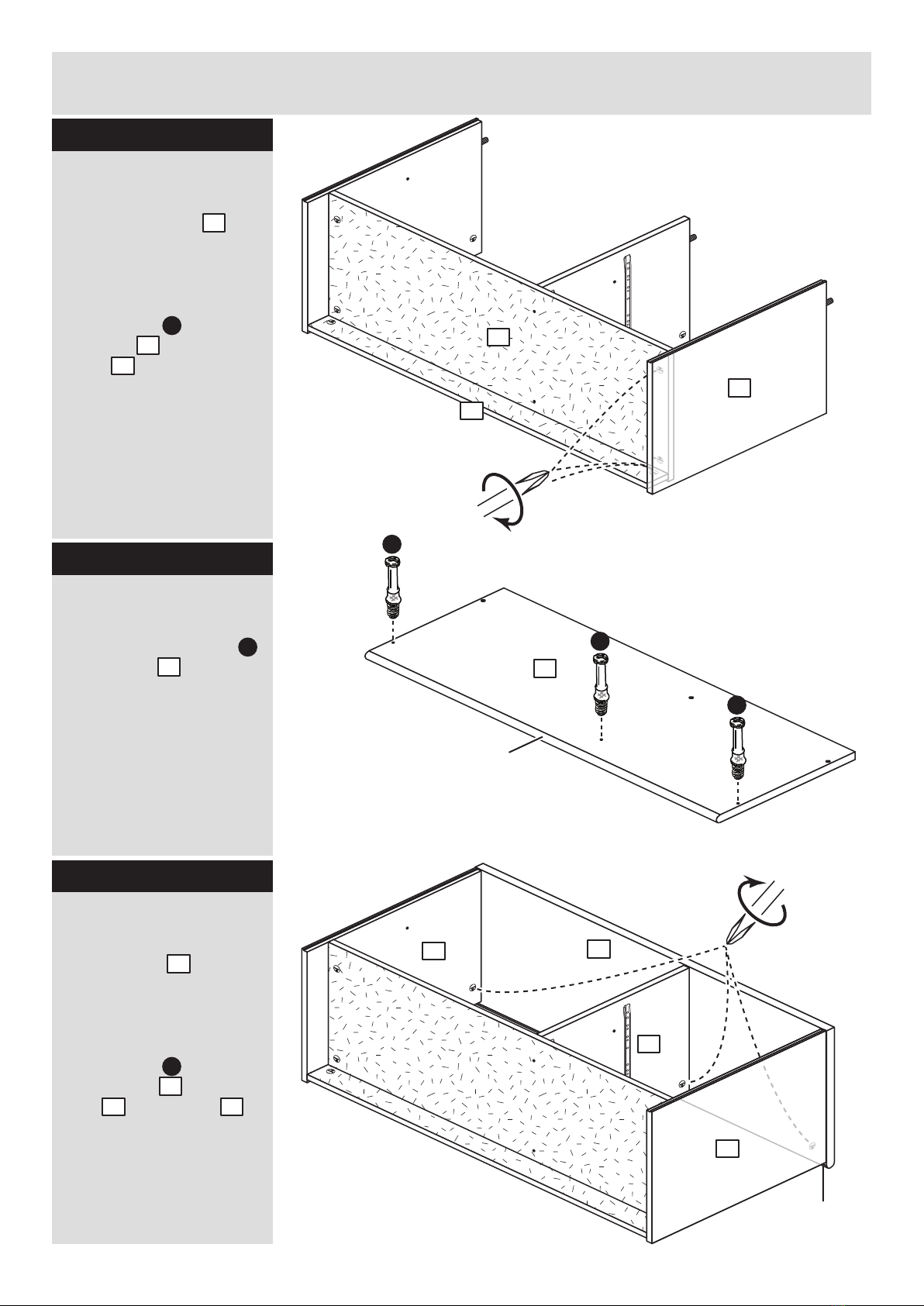

Step 10
E
10mm
A
A
1
B
1
1
E
Prepare the right side
Tap a wooden dowel
into the right side .
Screw 3 metal dowels
into the right side .
Insert a large locking
nut into the right side
. .
A
2
B
2
2
E
1
BB
B
E
B
B
B
E
2
Finished
front edge

Finished
front edge
A
Assembly Instructions
8

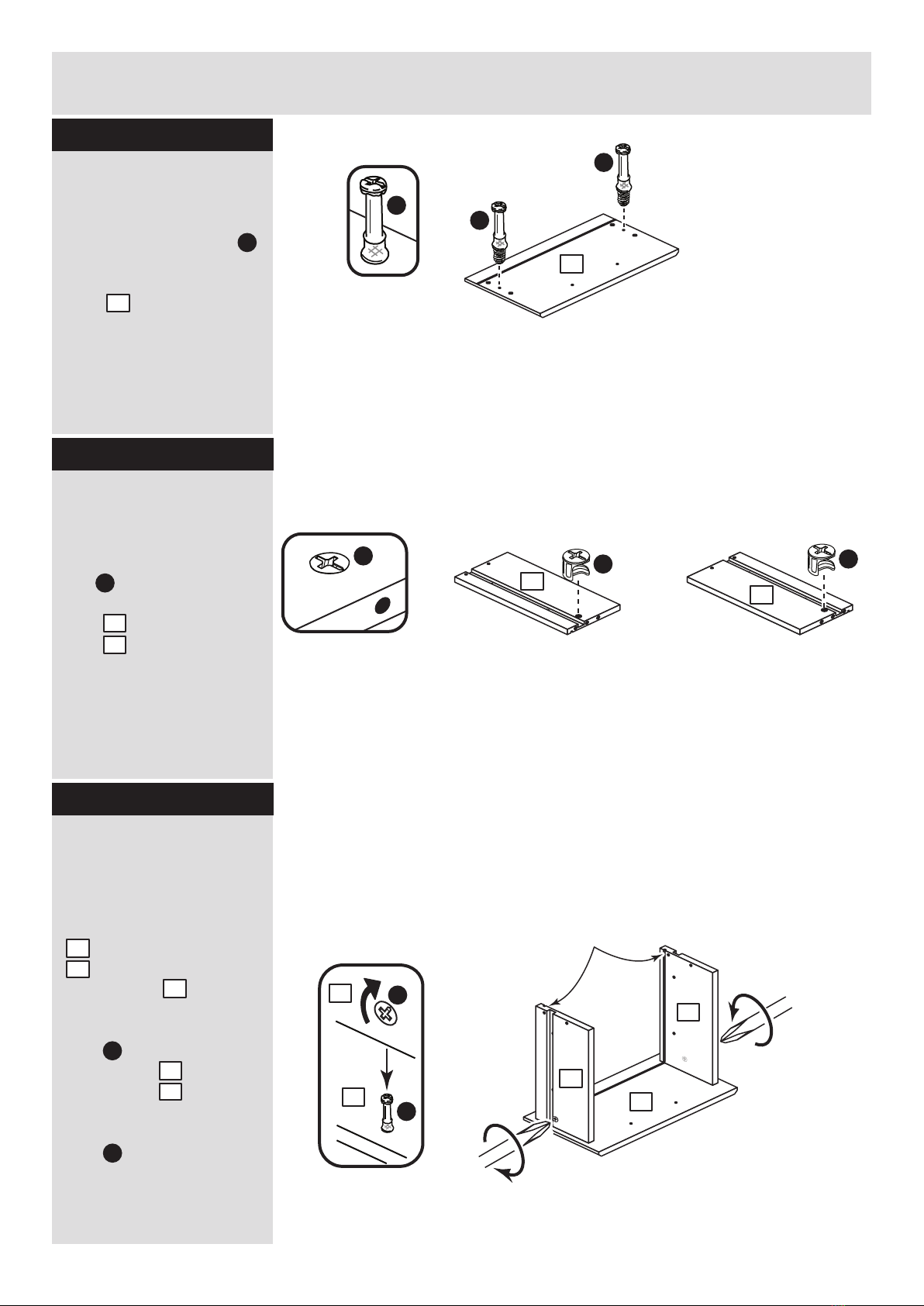

Step 11 E
E
Prepare the base
Insert 4 large locking
nuts into the base
6
E.
E
E
plain chipboard surface
6
Step 12
Join the right side and
base
Push the base onto
the right side .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the base .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
Step 13
B
E
plain chipboard surface
6
2
E
6
E
6
2
L b
G G 1st
screw
2nd
screw
Prepare the divider
Fit 2 runners to the
divider .
The 1st screw uses
the 2nd hole in from the
front of the runner.
The 2nd screw uses
the hole that lines up
with the other panel hole.
Tap a wooden dowel
into the divider .
Insert a large locking
nut into the divider .
L b
3
G
G
3
A
E3
E
G
G
L b
3
G
G
L b
.
Finished
front edge
Finished
front edge

Finished
front edge
Assembly Instructions
9
Step 14
Step 16
Step 15
3
J
J
6
3
6
J
Fit the divider
Attach the divider to
the base using 2
screws .
Prepare the plinth
Tap 2 wooden dowels
into the plinth .
Insert 2 large locking
nuts into the plinth 7
E.
A
7
E
E
A
A
plain chipboard surface
plain chipboard surface
7
7
Fit the plinth
Push the plinth onto
the right side .
Use a screwdriver to
tighten the large locking
nut fitted to the plinth
. .
E
7
2
7
2

Profiled
front edge
Assembly Instructions
10
Step 17
Fit the left side
Push the left side
onto the assembly.
Use a screwdriver to
tighten the 3 large
locking nuts fitted to
the base and the
plinth .
1
E
6
7
1
6
7
B
B
B
5
Step 18
Prepare the top
Screw 3 metal dowels
into the top .
Step 19
B
5
Fit the top
Push the top onto
the assembly.
Use a screwdriver to
tighten the 3 large
locking nuts fitted to
the left side , right
side and divider .
2 3
1
5
E
5
2
3
1
Profiled
front edge

Assembly Instructions
11
Step 20
This gap is for
cable management
y
y
x
xb:
Fit the back
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
onto the unit making
sure that it is pushed into
the rebate on the left
side .
Nail the back into
the left side , top ,
base and divider
as shown.
Note: Nails should
be spaced about 150mm
apart.
Stand the unit up for
the next step.
13
D
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
13
1
6 3
5
D
1
1
Cx 4
Step 21
Fit the shelf studs
Insert 4 shelf studs
into the holes on the
right side and divider
. .
C
2
3
2
3
13
6
3
5

Assembly Instructions
12
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 22
Fit the shelf
Lower the shelf down
onto the shelf studs .
4
C
4
Step 23
Fit the drawers
Slide the wheels of the
runners fitted to the
drawer, over the wheels
of the runners fitted to
the unit and push the
drawer into position.
Assembly is complete
Side panel
Drawer
Warning: The
unit is heavy.
Lift with care.

ALR2745

MADE IN
BRITAIN
Dimensions
Width - 100cm
Depth - 39.5cm
Height - 51.7cm
Anderson - TV Unit
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 3 - 05/04/13
Important - Please read these instructions fully before starting assembly
ALR2745
609/5521
609/5514
Issue 2 - 13/06/12 - Changed nail ID to D in Step 20.
NEW MK2 VERSION
Issue 3 - 05/04/13 - Rebates taken off. Some sizes and drillings have been altered. Panel names have changed.

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 24kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: If there is any
chance of this unit being pulled
over by children etc. it is
recommended that the unit is
secured to a wall using suitable
fixings (not supplied).
• Dispose of all packaging
carefully and responsibly.
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.

Components - Panels
Please check you have all the panels listed below
2
1
80%
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
2
Left Drawer Side (W415LH)
(320 x 150mm) x 2
Right Drawer Side (W415RH)
(320 x 150mm) x 2
Drawer Back (W526)
(322 x 150mm) x 2
Drawer Base (T526)
(333 x 317mm) x 2
3
5
4
7
10
8 9
6
12 13
11
Left Side (D2273A)
(495 x 375mm)
Divider (D2276A)
(419.5 x 373mm)
Base (D2275A)
(966 x 374mm)
Drawer Front (D2278A)
(394 x 214mm) x 2
Plinth (D2277A)
(966 x 60mm)
Shelf (D2279A)
(577 x 369mm)
Right Side (D2274A)
(495 x 375mm)
Top (D2272A)
(999 x 398mm)
Back (X929-452)
(929 x 452mm)

Please check you have all the fittings listed below
Tools required
3
Components - Fittings If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 5
B
Metal dowel (F901) x 13
C
D
Large locking
nut (F900) x 9
E
Small locking
nut (F3) x 4
F
G H I
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Nail (F51) x 21
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
J
Knock-in Peg (F171) x 8
13mm Screw (F52) x 8
Shelf stud (F110) x 4
13mm Screw (F63) x 8
Handle (F847a ) x 2
K
Handle Screw (F847b) x 4
b
40mm Screw (F910) x 2
C
Ka
LR Runner (F160) x 2
b
L Runner (F161) x 2
Lc
L Runner (F159) x 2
La
R Runner (F162) x 2
Ld
