Argos Canterbury 2 DR 2 DRW ROBE User manual

Canterbury 2 DR 2 DRW ROBE
Assembly Instructions - Please save for future reference
803/5754
803/9664
797/9055
Dimensions
Width - 104.3cm
Depth - 62.7cm
Height - 202.1cm
Important – Please read these instructions carefully before starting the assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
71938 Version F Date 22/02/2018
max.
lbs
kg 8
18
lbs
kg 20
44
lbs
kg 25
55
Rev B 19-01-2016 ahs: 4 stk. grebsskruer skiftet fra 26228 til 26232.
Nb: ingen syl på argos vejledninger
Rev C 14-11-2017 kol: Skuffedele udskiftet, Trimann logo tilføjet.
71938 -50
71938
C
www.tvilum.com
max.
lbs
kg 8
18
lbs
kg 20
44
lbs
kg 25
55
Rev B 19-01-2016 ahs: 4 stk. grebsskruer skiftet fra 26228 til 26232.
Nb: ingen syl på argos vejledninger
Rev C 14-11-2017 kol: Skuffedele udskiftet, Trimann logo tilføjet.
71938 -50
71938
C
www.tvilum.com

2
Safety and Care Advice
Important – Please read these instructions carefully before starting the assembly
Note: If required, the next
page can be cut out and used
as reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• Check that you have all the
components and tools as listed
on the following pages.
• Remove all ttings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area - small
parts can choke if swallowed.
• Make sure that you have
enough space to lay out the
parts before starting.
• During assembly, do not stand
or put weight on the product, as
this may cause damage.
• Assemble the item as close
to its nal position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your oor.
• Parts of the assembly will
be easier with 2 people to
complete.
• We do not
recommend the use
of power drivers for
inserting screws, as
this could damage
the unit. Please only use hand
screw drivers.
• Only clean the unit using a
damp cloth and mild detergent.
Do no use bleach or abrasive
cleaners.
• From time to time, check to
see if screws have become
loose. If so, please tighten them
again.
• This product should not be
discarded with household waste.
Take it to your local authority
waste disposal centre.
Care and maintenance

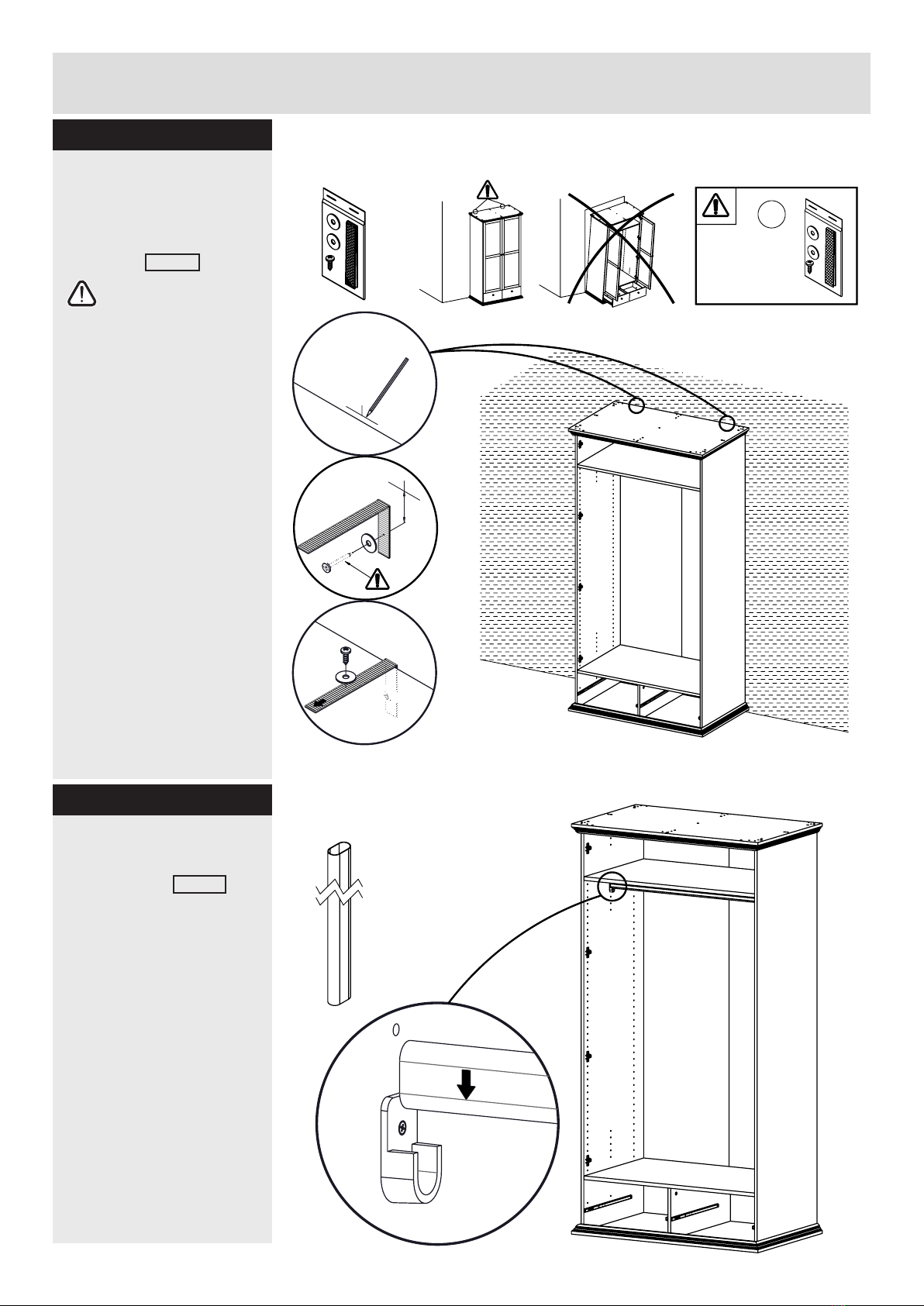

• The provided tip-over restraint
must be installed in order to
optimize user safety.
Safety

3

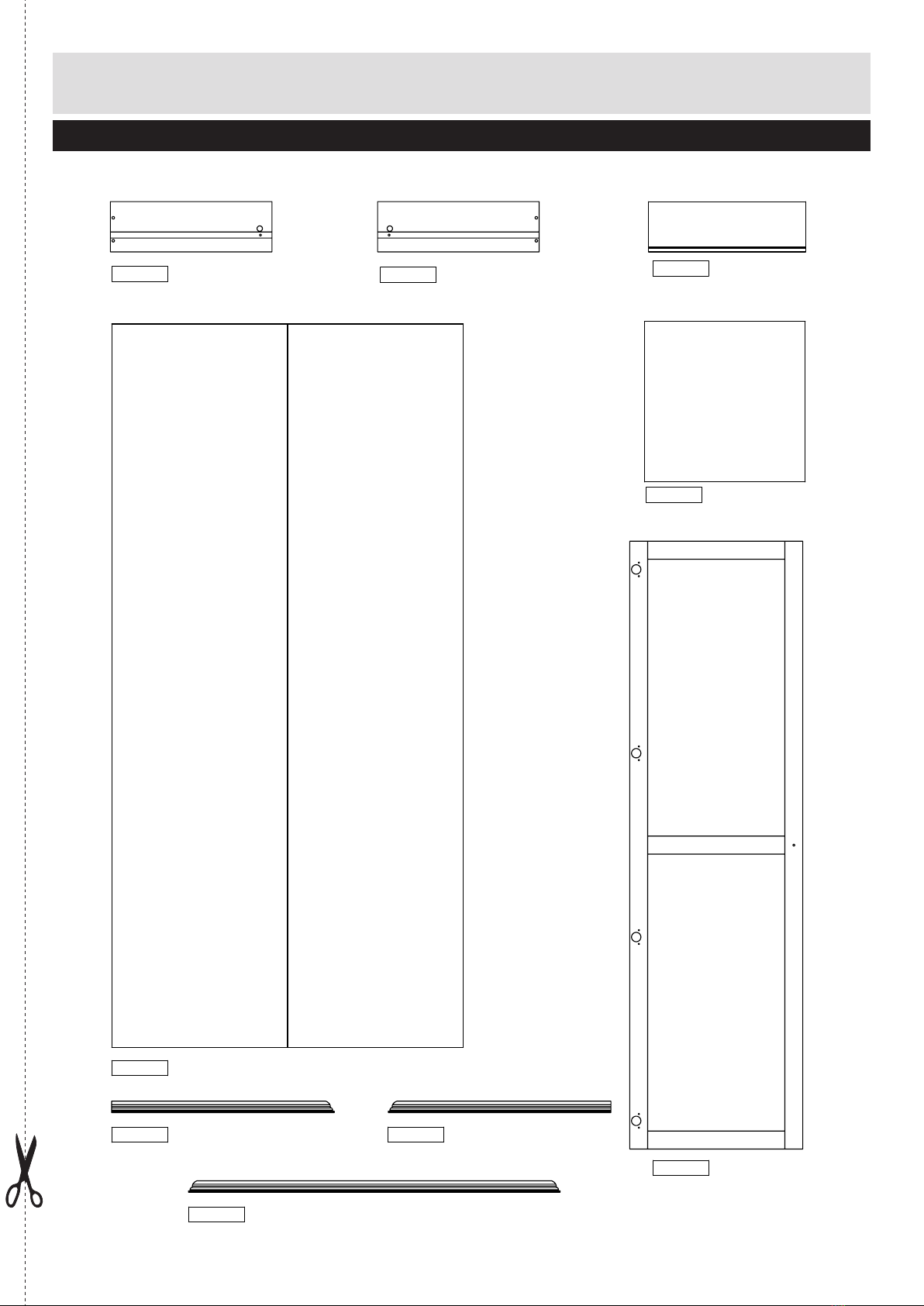

Components - Panels
Please check that you have all the panels as listed below (1/2)
If you have damaged or missing components, call the
Customer Helpline: Argos = 0345 6400800

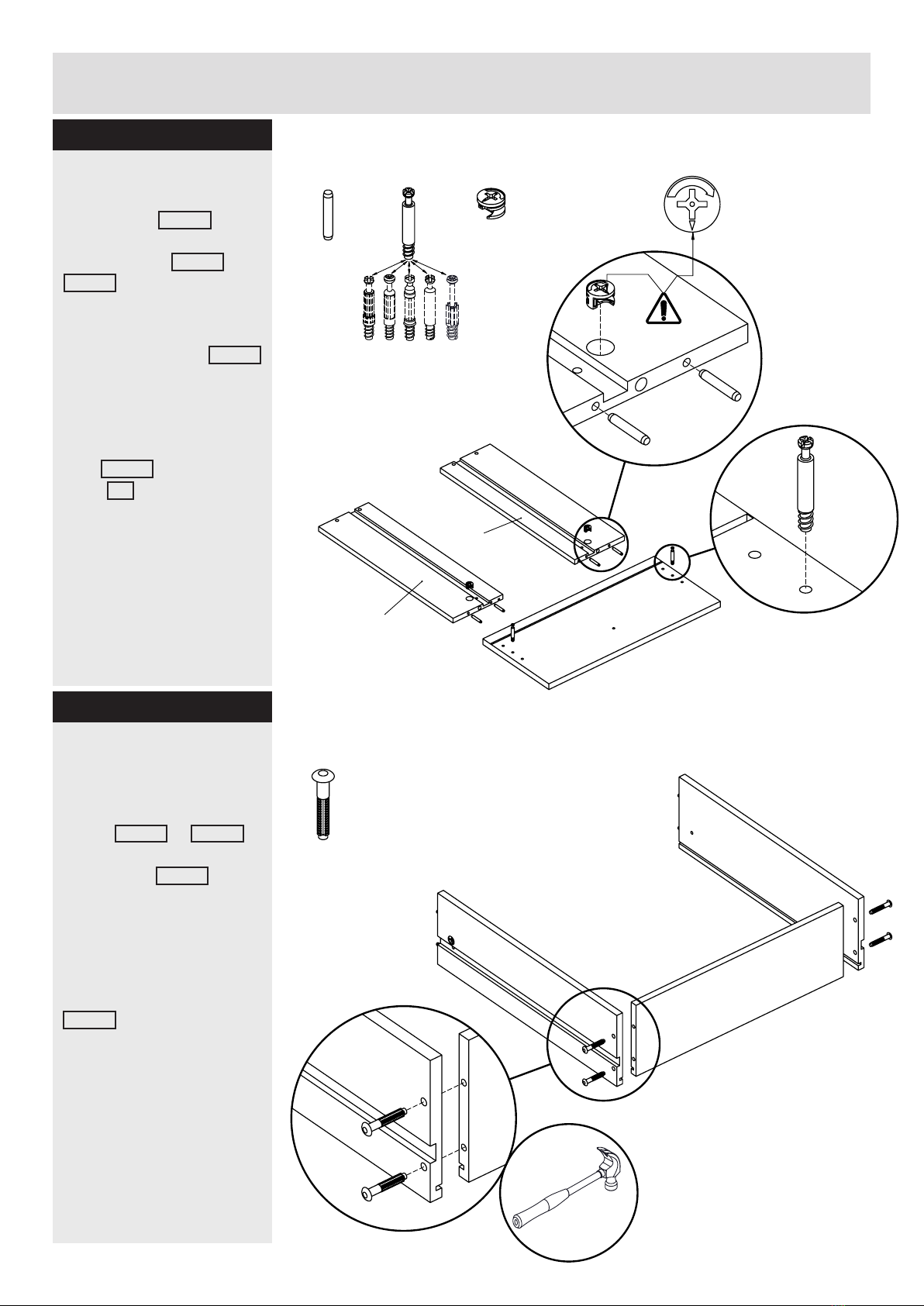

00734 Left drawer side
(45.0 x 14 cm) x 2
00733 Right drawer side
(45.0 x 14 cm) x 2
03328 Drawer back
( 43.7 x 14 cm) x 2
06383 Drawer bottom
(44.8 x 44.7 cm) x 2
09788 Back Panel (201.5 x 97.9 cm)
18731 Frame door
(169.3 x 48.2 cm) x 2
76427 Side Profile
(62 x 2.5 cm) x 2
76428 Side Profile
(62 x 2.5 cm) x 2
76430 Front Profile (103.5 x 4 cm) x 2

4

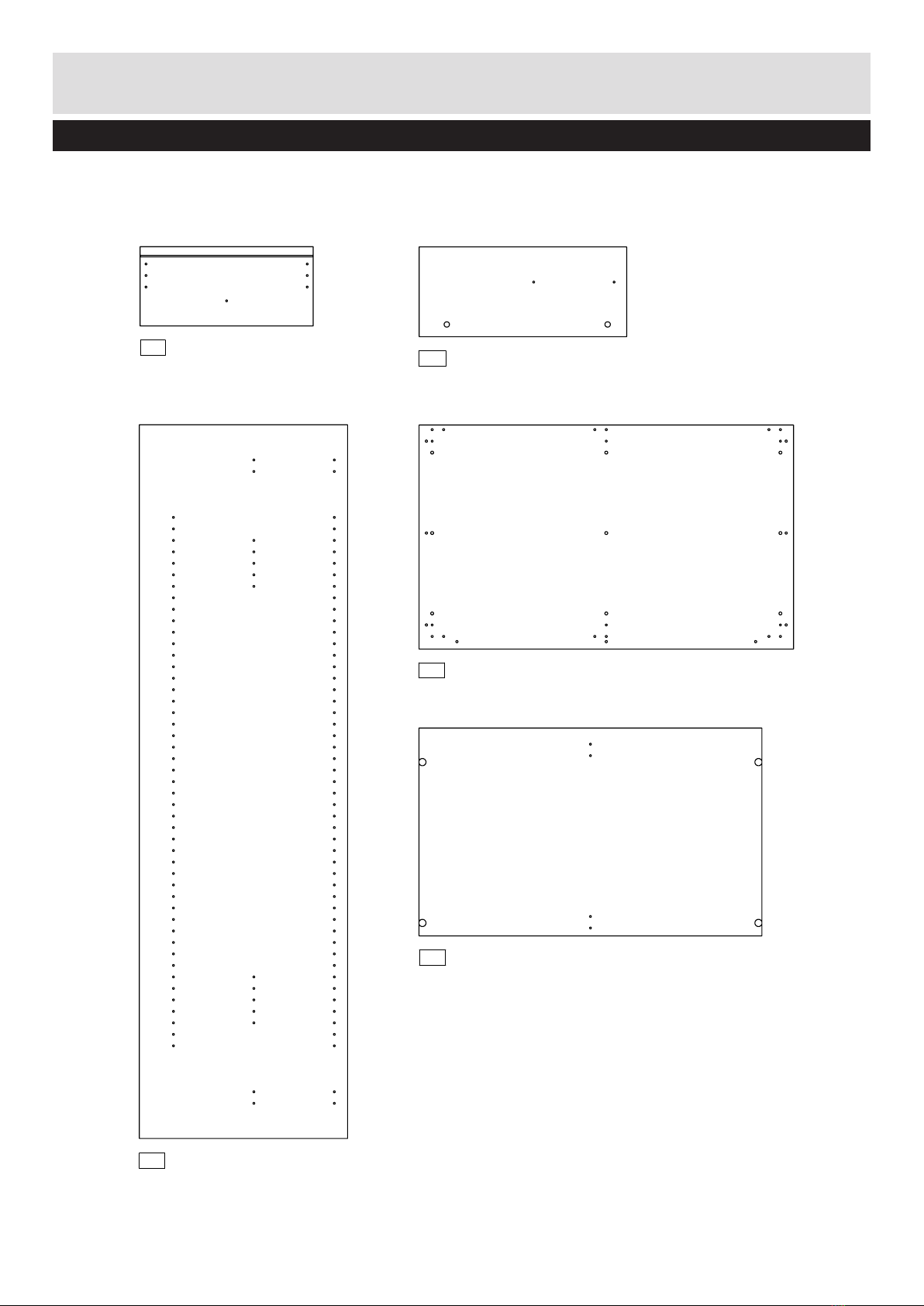

Components - Panels
Please check that you have all the panels as listed below (2/2)
If you have damaged or missing components, call the
Customer Helpline: Argos = 0345 6400800
EF Drawer front
(48.2 x 22.1 cm) x 2
FA Side panel L / R
(198.8 x 58 cm) x 2

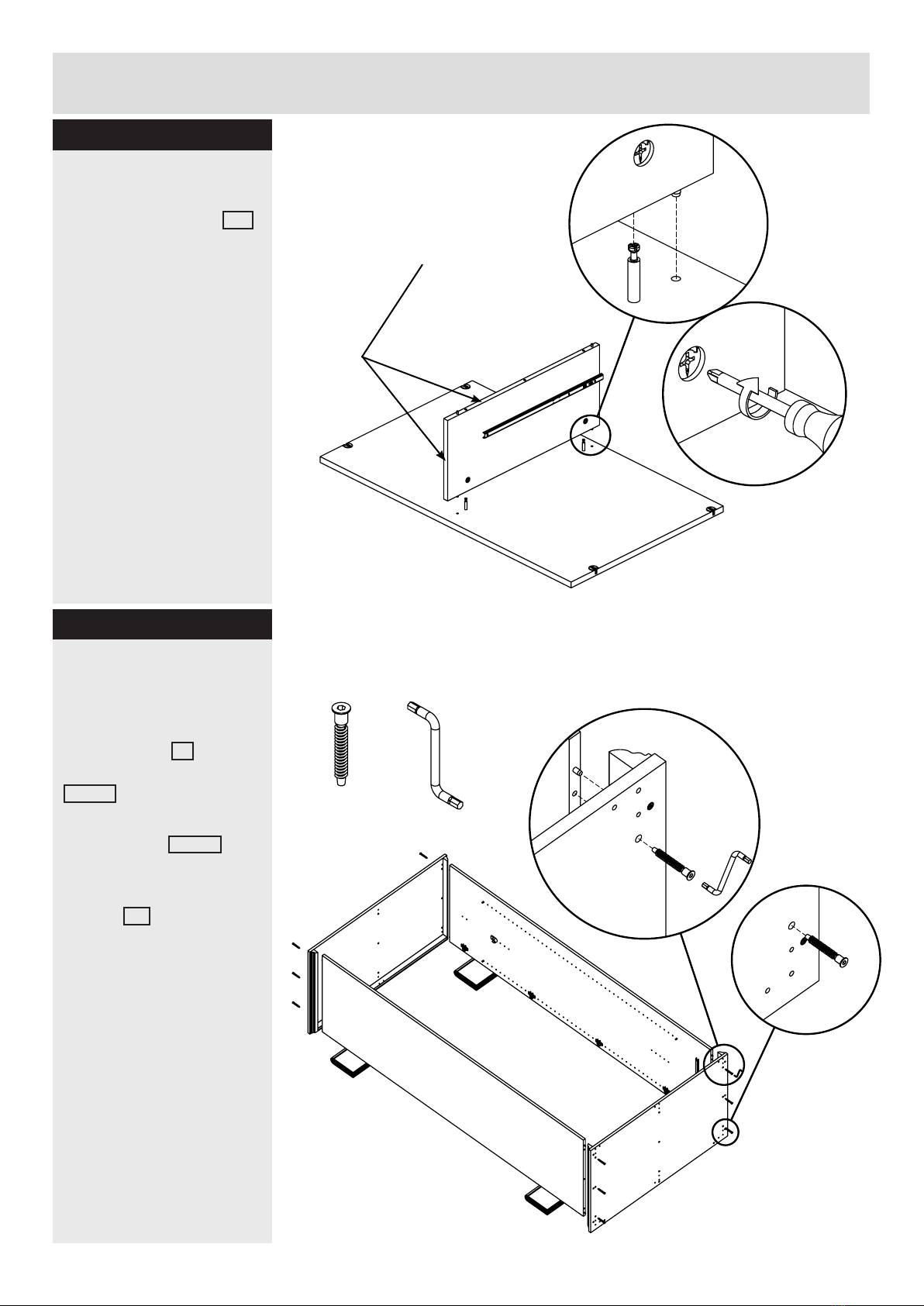

GA Divider Panel (25 x 57.8 cm)
IB
IB
Bottom / Top panel (104.3 x 62.4 cm) x 2
UB Fixed shelf (95.5 x 57.9 cm) x 2

5
Drawer runner x4
41421
Hanger x1
72509

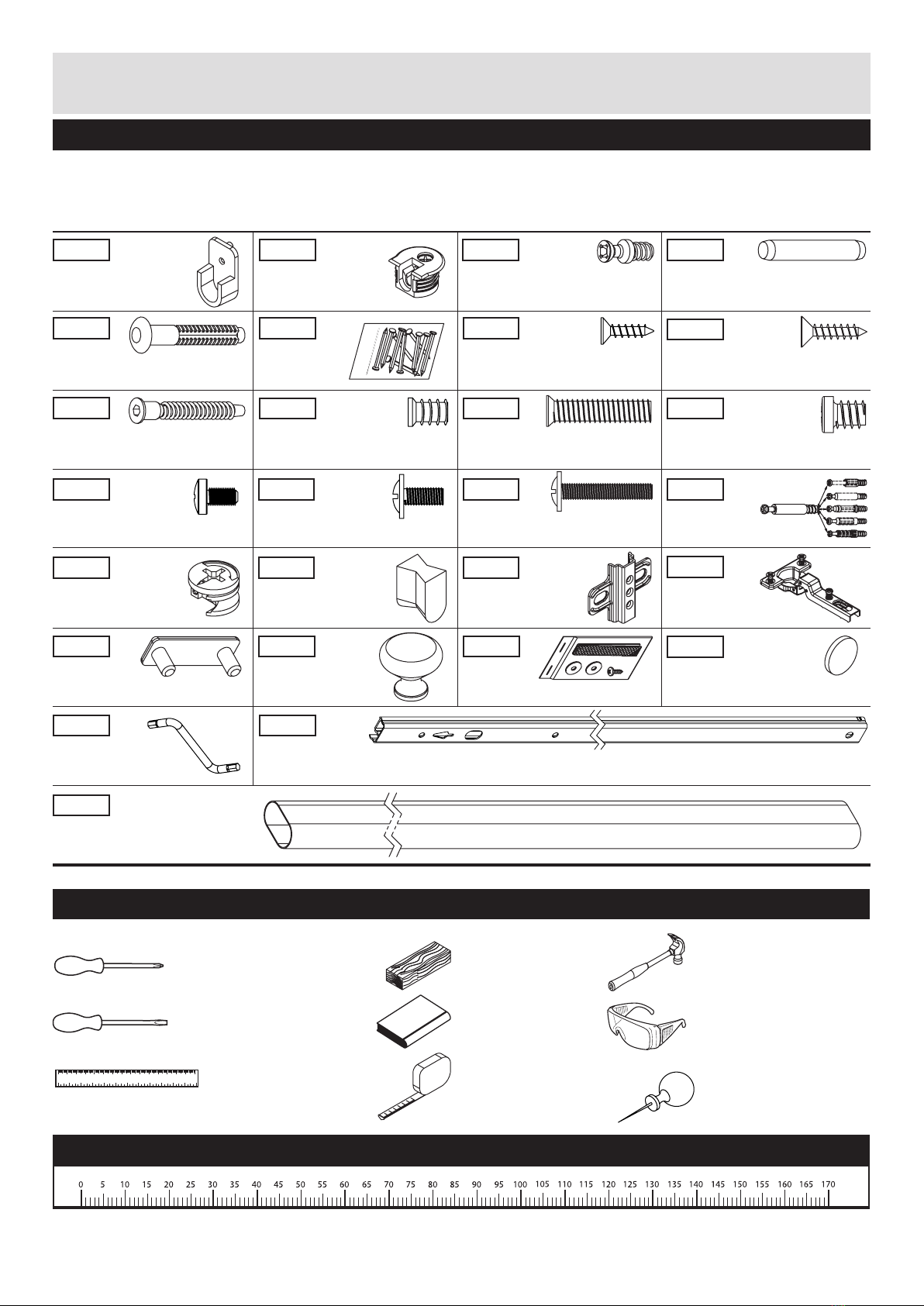

Please check that you have all the ttings as listed below
Note: The quantities below are the correct amounts to complete the assembly.
In some cases, more ttings may be supplied than required.
Components - Fittings
Ruler - Use this ruler to help correctly identify the screws
Tools required
Allen key x1
97642
Dowel (ø5 x 30mm) x20
20203
Hinge x8
52291
Floor glider x6
63008
Handle x4
81040
Stop x4
96203
Strap x2
94009
Cross head screwdriver
(medium & large)
Wooden block
Books x6
Tape measure
Flathead screwdriver
(medium)
Ruler
01 02 03 04 05 06 07 08 09 0 100 110 120 130 140 150
01 23 45 6
Eye protection
(when using a
hammer or glue)
Hammer
Holder x2
10601
Bracket x8
11229
Screw (ø5 x 7.5mm) x8
11230
Drawer fastener x8
20228
25 pcs
Nails x3
23006
Flat head screw
(ø3 x 15mm) x8
25233
Screw (ø7 x 8mm) x16
26071
Machine screw
(M4 x 23mm) x4
26232
Flat head screw
(ø3 x 12mm) x2
25215

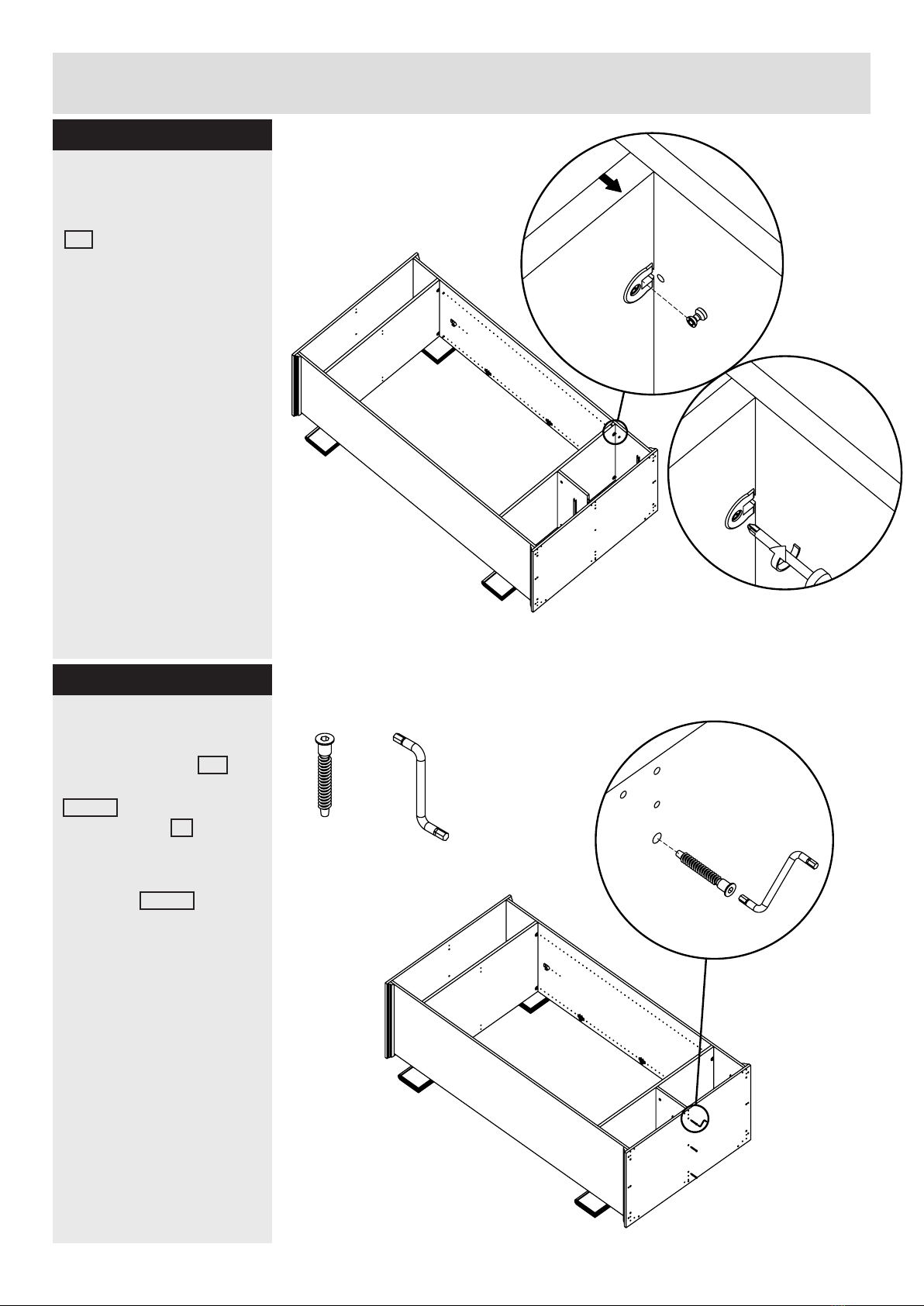

Connector bolt
(ø7 x 50mm) x15
25610
Flat head screw
(ø6.3 x 27mm) x18
26033
Flat head screw
(ø5.8 x 9mm) x8
26020
Cam bolt x6
31513
Cam x6
31687
Wedges x4
33204
Hinge plate x8
50491
Machine screw
(M4 x 9mm) x4
26214
Machine screw
(M4 x 7mm) x8
26211
Awl

6
Assembly Instructions
# $PRPVIEW:{Pos_Beslag}
x8
FA
FA
GA
FA
FA
?
Beslag sættes ind i scala 1:2 som udgangspunkt
# $PRPVIEW:{Pos_Beslag}
x8
FA
FA
GA
FA
FA
?
Beslag sættes ind i scala 1:2 som udgangspunkt
# $PRPVIEW:{Pos_Beslag}
x8
FA
FA
GA
FA
FA
?
Beslag sættes ind i scala 1:2 som udgangspunkt
Step 2
Attach hanger holder
Attach holder 10601
with at head screw
25215 on side panel
FA .
# $PRPVIEW:{Pos_Beslag}
x8
FA
FA
GA
FA
FA
?
Beslag sættes ind i scala 1:2 som udgangspunkt
Dowel
#20203 x12
Cam
#31687 x2
Fittings you will need for this step:
Fittings you will need for this step:
Holder
#10601 x2
Flat head screw
#25215 x2
Step 1
Insert dowels
Insert dowels 20203
into outer holes on the
ends of side panel FA +
divider panel GA
Place cam 31687 into
the holes on divider pan-
el GA with the arrows
facing the edges of the
panels.

7
Step 3
Assembly Instructions
Step 4
# $PRPVIEW:{Pos_Beslag}
x8
FA
FA
GA
FA
FA
?
Beslag sættes ind i scala 1:2 som udgangspunkt
# $PRPVIEW:{Pos_Beslag}
x8
FA FA
FA
FA
1
3
4
19
20
35
36
FA FA
1
3
4
19
20
35
36
FA
FA
?
Beslag sættes ind i scala 1:2 som udgangspunkt
# $PRPVIEW:{Pos_Beslag}
x8
FA FA
FA
FA
1
3
4
19
20
35
36
FA FA
1
3
4
19
20
35
36
FA
FA
?
Beslag sættes ind i scala 1:2 som udgangspunkt
# $PRPVIEW:{Pos_Beslag}
x8
FA FA
FA
FA
1
3
4
19
20
35
36
FA FA
1
3
4
19
20
35
36
FA
FA
?
Beslag sættes ind i scala 1:2 som udgangspunkt
# $PRPVIEW:{Pos_Beslag}
x8
FA FA
FA
FA
1
3
4
19
20
35
36
FA FA
1
3
4
19
20
35
36
FA
FA
?
Beslag sættes ind i scala 1:2 som udgangspunkt
# $PRPVIEW:{Pos_Beslag}
x8
FA FA
FA
FA
1
3
4
19
20
35
36
FA FA
1
3
4
19
20
35
36
FA
FA
?
Beslag sættes ind i scala 1:2 som udgangspunkt
Fittings you will need for this step:
Screw
#26071 x16
Machine screw
#26211 x8
Hinge Plate
#50491 x8
Fittings you will need for this step:
# $PRPVIEW:{Pos_Beslag}
x8
FA FA
FA
FA
1
3
4
19
20
35
36
FA FA
1
3
4
19
20
35
36
FA
FA
?
Beslag sættes ind i scala 1:2 som udgangspunkt
Screw
#11230 x8

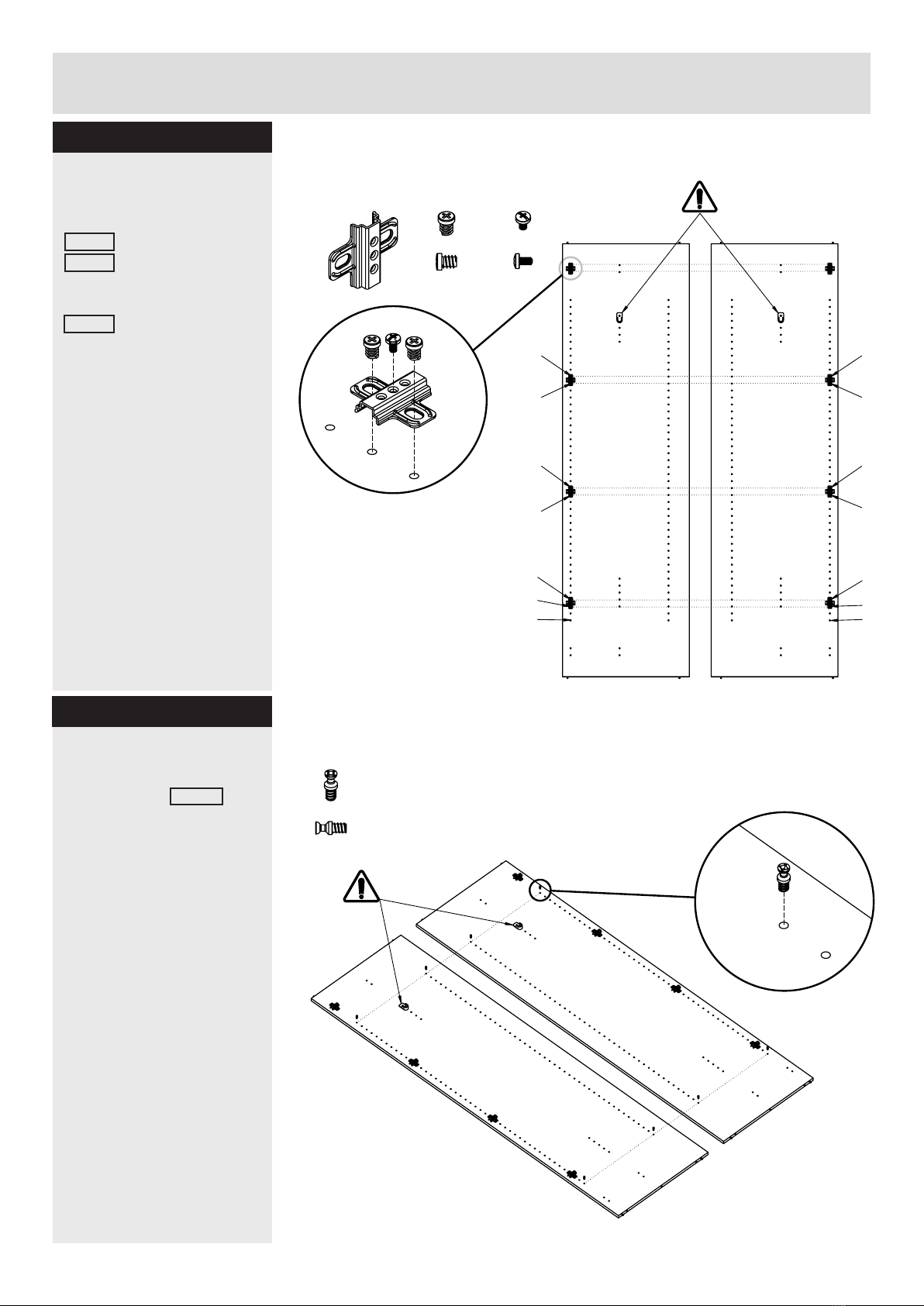

Attach hinge plates
Fix each hingplate
50491 with two screw
26071 .
Insert machine screw
26211 in the center of
each hinge plate as illus-
trated.
Attach screws
Attach screw 11230 in
the holes of the top and
bottom hole rows as
illustrated.

8
Assembly Instructions
# $PRPVIEW:{Pos_Beslag}
x8
241
1
2.
12
5.
24
4.
22
3.
1.
FA FA
?
Beslag sættes ind i scala 1:2 som udgangspunkt
Front Front
Front
Fittings you will need for this step:
# $PRPVIEW:{Pos_Beslag}
x8
241
1
2.
12
5.
24
4.
22
3.
1.
FA FA
?
Beslag sættes ind i scala 1:2 som udgangspunkt
Flat head screw
#26020 x4
Flat head screw
#25233 x4
Drawer runner
#41421 x2

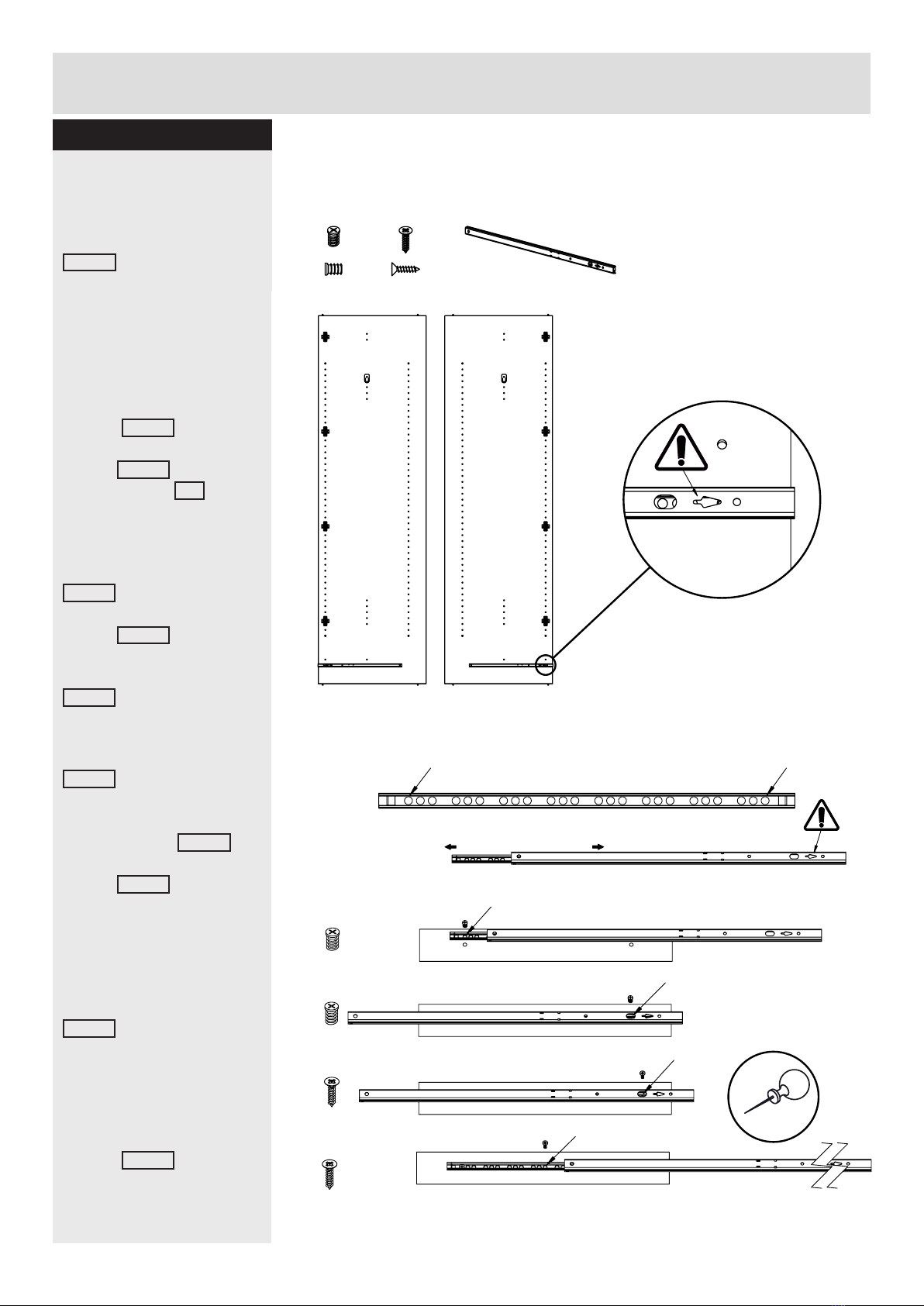

Step 5

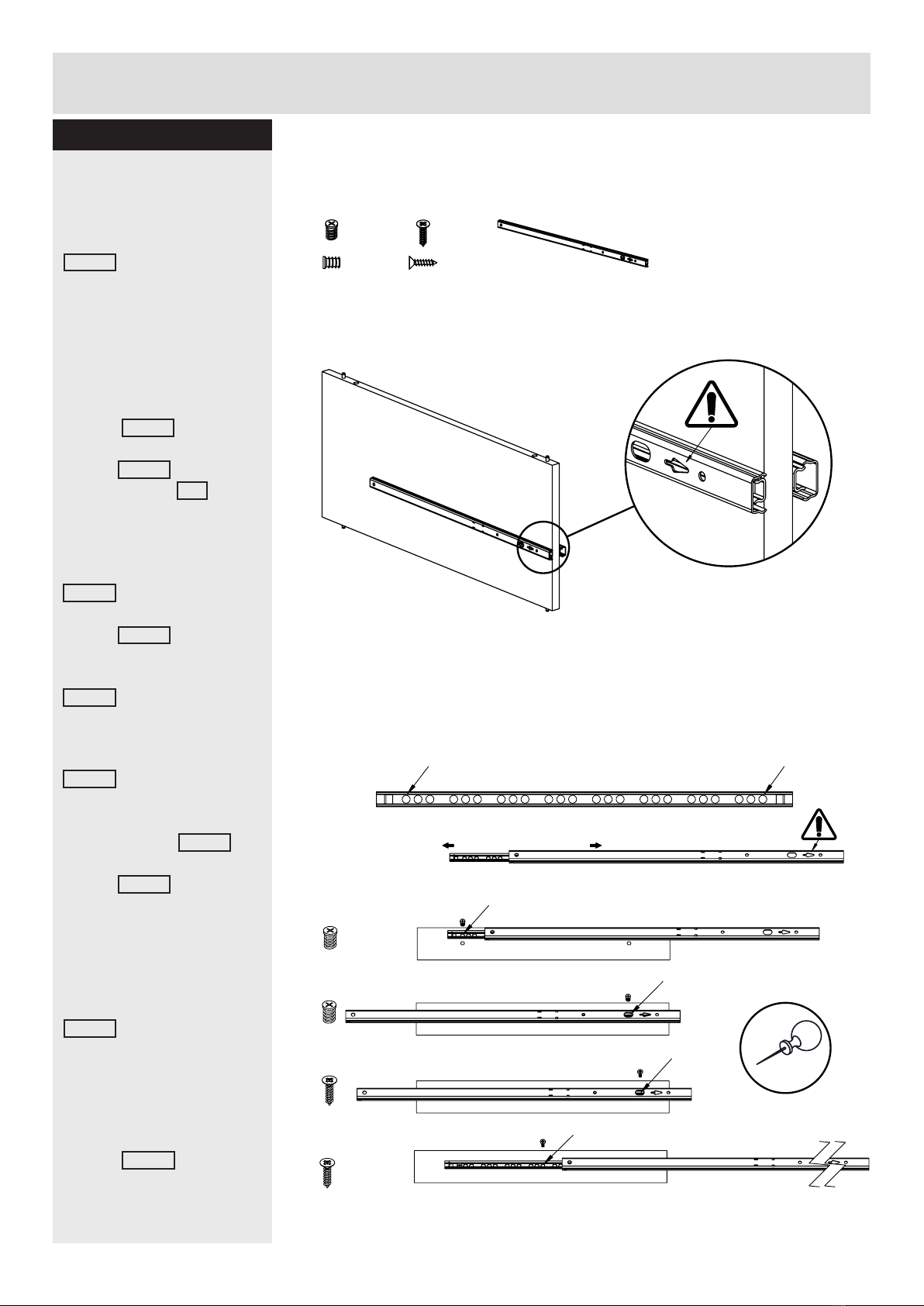

Mount drawer runners
1. Note the holes when
extending drawer runner
41421 . The arrow at
the end of the drawer
runners must face
towards the front edges
as illustrated.
2. Extend the drawer
runner 41421 , and
attach one at head
screw 26020 in hole
nr. 1 on panel FA , as
illustrated.
3. Pull drawer runner
41421 backwards, and
attach the next at head
screw 26020 in hole
nr. 22, through the hole
in the drawer runner
41421 .
4. Extend drawer runner
41421 a bit forward, and
use an awl to pre-drill
a hole in hole nr. 24 of
drawer runner 41421 .
Then, insert at head
screw 25233 in that
hole.
5. Like step 4, use an awl
in hole nr. 12, and then
insert at head screw
25233 .
Repeat these 5 steps
for the remaining drawer
runner 41421 .

9
Assembly Instructions
Step 6
# $PRPVIEW:{Pos_Beslag}
x8
241
1
2.
12
5.
24
4.
22
3.
1.
?
GA
?
Beslag sættes ind i scala 1:2 som udgangspunkt
71938
-50
# $PRPVIEW:{Pos_Beslag}
x8
241
1
2.
12
5.
24
4.
22
3.
1.
?
GA
?
Beslag sættes ind i scala 1:2 som udgangspunkt
71938
-50
# $PRPVIEW:{Pos_Beslag}
x8
241
1
2.
12
5.
24
4.
22
3.
1.
?
GA
?
Beslag sættes ind i scala 1:2 som udgangspunkt
71938
-50
# $PRPVIEW:{Pos_Beslag}
x8
241
1
2.
12
5.
24
4.
22
3.
1.
?
GA
?
Beslag sættes ind i scala 1:2 som udgangspunkt
71938
-50
# $PRPVIEW:{Pos_Beslag}
x8
241
1
2.
12
5.
24
4.
22
3.
1.
?
GA
?
Beslag sættes ind i scala 1:2 som udgangspunkt
71938
-50
Front
Front
Fittings you will need for this step:
Flat head screw
#26020 x4
Flat head screw
#25233 x4
Drawer runner
#41421 x2
Mount drawer runners
1. Note the holes when
extending drawer runner
41421 . The arrow at
the end of the drawer
runners must face
towards the front edge as
illustrated.
2. Extend the drawer
runner 41421 , and
attach one at head
screw 26020 in hole
nr. 1 on panel GA , as
illustrated.
3. Pull drawer runner
41421 backwards, and
attach the next at head
screw 26020 in hole
nr. 22, through the hole
in the drawer runner
41421 .
4. Extend drawer runner
41421 a bit forward, and
use an awl to pre-drill
a hole in hole nr. 24 of
drawer runner 41421 .
Then, insert at head
screw 25233 in that
hole.
5. Like step 4, use an awl
in hole nr. 12, and then
insert at head screw
25233 .
Repeat these 5 steps
for the remaining drawer
runner 41421 .

10
Assembly Instructions

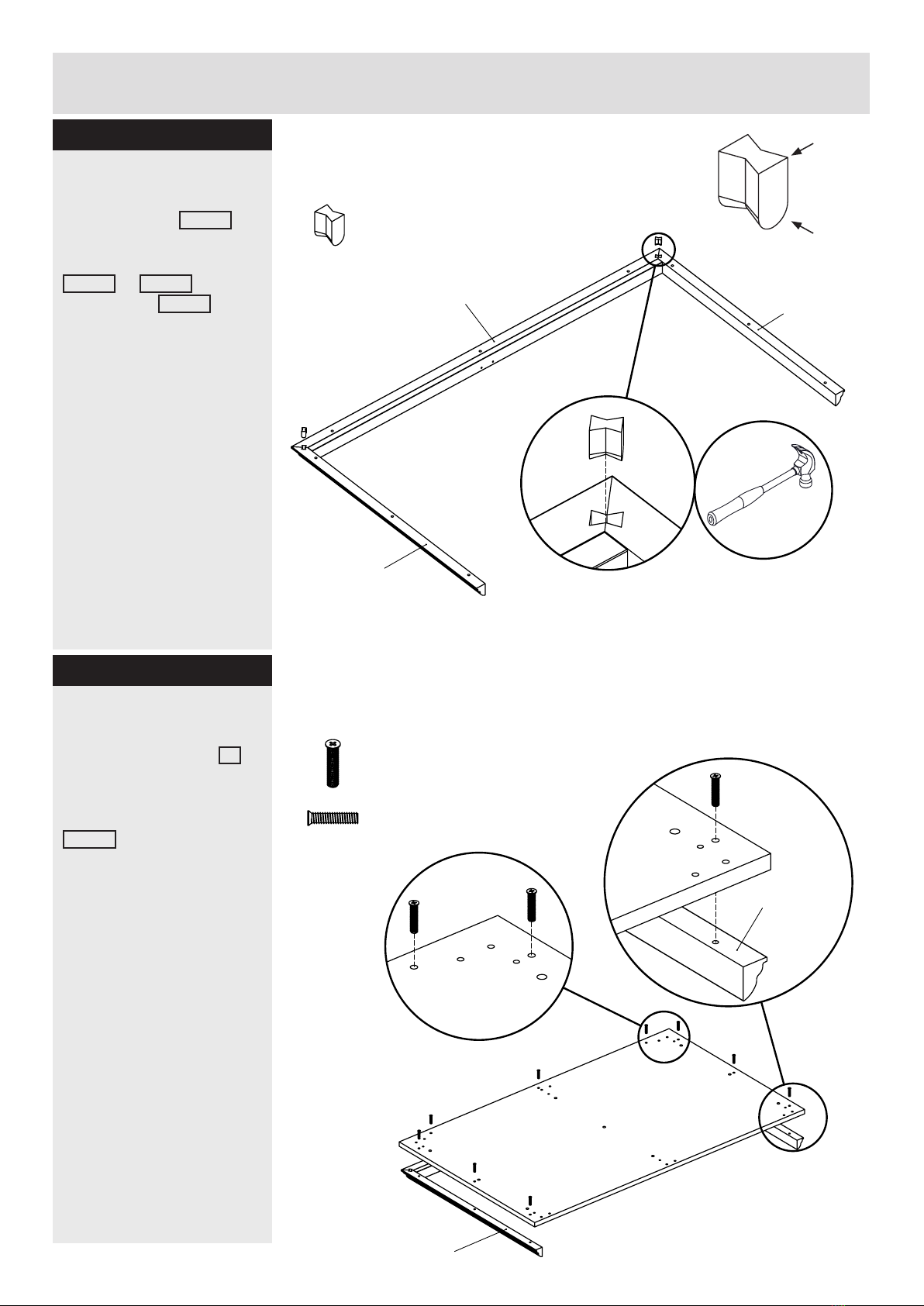

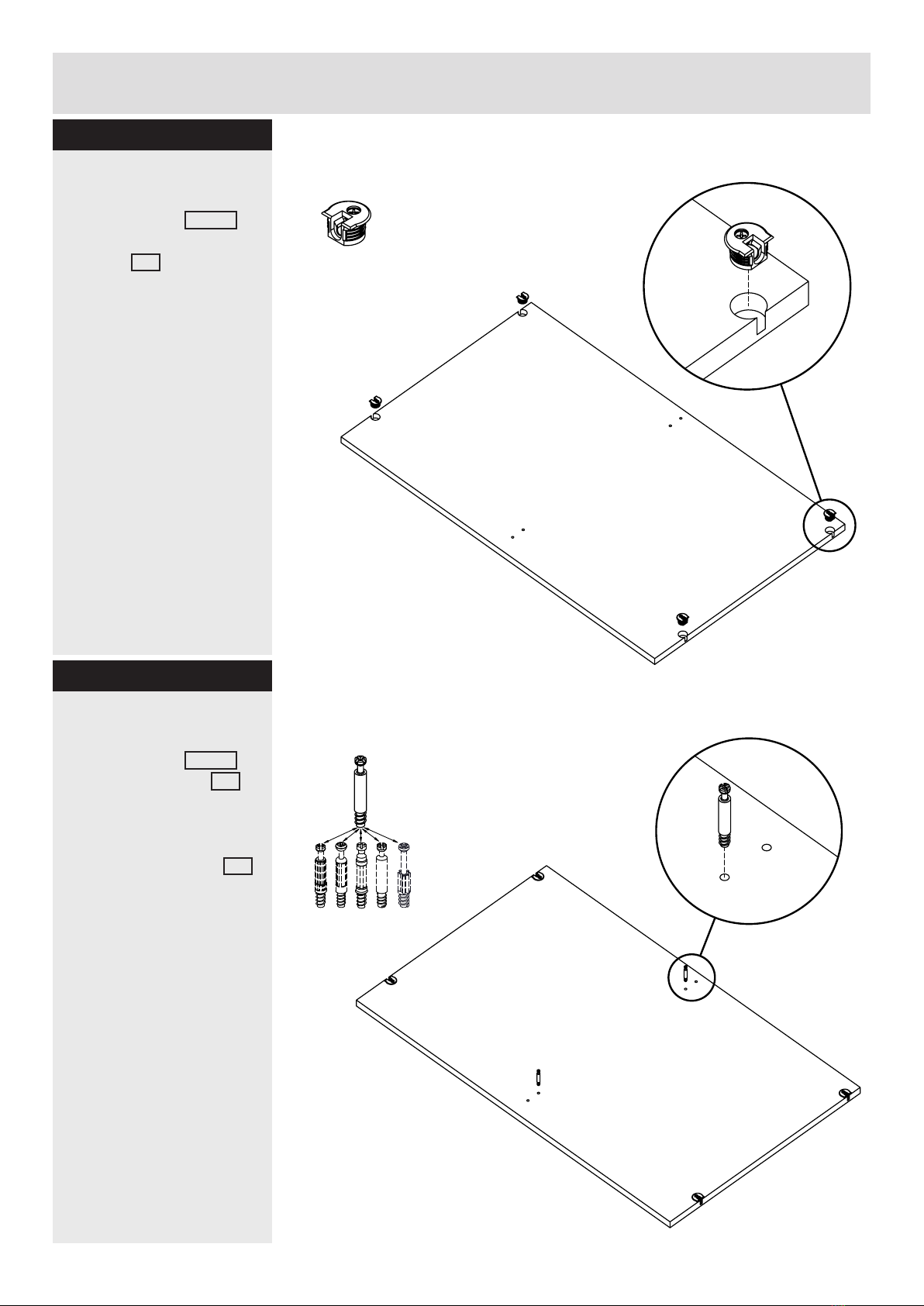

Step 7
Step 8
# $PRPVIEW:{Pos_Beslag}
x8
76428
76430
76427
x2
IB
x2
76427
76428
?
Beslag sættes ind i scala 1:2 som udgangspunkt
# $PRPVIEW:{Pos_Beslag}
x8
76428
76430
76427
x2
IB
x2
76427
76428
?
Beslag sættes ind i scala 1:2 som udgangspunkt
Top
Bottom
Fittings you will need for this step:
# $PRPVIEW:{Pos_Beslag}
x8
76428
76430
76427
x2
IB
x2
76427
76428
?
Beslag sættes ind i scala 1:2 som udgangspunkt
Wedges
#33204 x4
Fittings you will need for this step:
Screw
#26033 x18
Assemble proles
Insert wedges 33204
into the slots on the an-
gle ends of side proles
76427 + 76428 and
front prole 76430 .
Use a hammer for this
assembly step.
Attach panel
Place bottom panel IB
on top of the proles
as illustrated, and then
insert at head screw
26033 .
