Argos Canterbury 3 DR Robe User manual

Canterbury 3 DR 3 DRW MIR ROBE
Assembly Instructions - Please save for future reference
803/8177
803/9846
803/5431
71939 Version G Date 23/02/2018
Dimensions
Width - 152.8cm
Depth - 62.7cm
Height - 202.1cm
Important – Please read these instructions carefully before starting the assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
max.
lbs
kg 8
18
lbs
kg 30
66
lbs
kg 20
44
lbs
kg 25
55
lbs
kg 20
44
rev B 19-01-2016 ahs: 6 stk. grebsskruer skiftet fra 26228 til 26232.
rev C 16-11-2017 kol: Skuffedele udskiftet. Trimann logo tilføjet.
71939 -50
71939
B01
www.tvilum.com
max.
lbs
kg 8
18
lbs
kg 30
66
lbs
kg 20
44
lbs
kg 25
55
lbs
kg 20
44
rev B 19-01-2016 ahs: 6 stk. grebsskruer skiftet fra 26228 til 26232.
rev C 16-11-2017 kol: Skuffedele udskiftet. Trimann logo tilføjet.
71939 -50
71939
B01
www.tvilum.com

2
Safety and Care Advice
Important – Please read these instructions carefully before starting the assembly
Note: If required, the next
pages can be cut out and used
as reference throughout the
assembly. Keep the pages with
these instructions for future
reference.
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
Care and maintenance
• Assemble all parts and bolts
loosely during assembly, only
once the product is complete
should you fully tighten the bolts
• Regularly check and ensure
that all bolts and ttings are
tightend properly.
Handy Hints
• Check that you have all the
components and tools as listed
on the following pages.
• Remove all ttings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area - small
parts could choke if swallowed.
• Make sure that you have
enough space to lay out the
parts before starting.
• During assembly, do not stand
or put weight on the product, as
this may cause damage.
• Assemble the item as close
to its nal position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your oor.
• Parts of the assembly will
be easier with 2 people to
complete..
• We do not
recommend the use
of power drivers for
inserting screws, as
this could damage
the unit. Only use hand screw
drivers.
• The provided tip-over restraint
must be installed in order to
optimize user safety.
Safety

3
Components - Panels
Please check you have all the panels as listed below (1/2)
If you have damaged or missing components, call the
Customer Helpline: Argos = 0345 6400800
00734 Left drawer side x3
(45.0 x 14 cm)
00733 Right drawer side x3
(45.0 x 14 cm)
03328 Drawer back x3
(43.7 x 14 cm)
06383 Drawer bottom x3
(44.8 x 44.7 cm)
09790 Back Panel
(201.5 x 48.9 cm)
09789 Back Panel (201.5 x 97.4 cm)
76427 Profile side x2
(62 x 2.5 cm)
76428 Profile side x2
(62 x 2.5 cm)
76431 Profile front x2 (152 x 4 cm)
18731 Frame door x2 (169.3 x 48.2 cm)
?
?
(x3)
Emne oplægning korpus
Skuffe dele

4
Components - Panels
Please check you have all the panels as listed below (2/2)
If you have damaged or missing components, call the
Customer Helpline: Argos = 0345 6400800
EF Drawer front x3 (48.2 x 22.1 cm)
GA Small divider panel (25 x 57.8 cm)
UB Large fixed shelf x2
(95.5 x 57.9 cm)
FA Side panel x2 (198.8 x 58 cm)
GB Large divider panel
(198.8 x 58 cm)
IC Bottom / Top panel x2 (152.8 x 62.4 cm)
W Door w/mirror (169.3 x 48.2 cm)
T Loose shelf x2 (46.95 x 57.9 cm)
UC Small fixed shelf x2 (47 x 57.9 cm)
?
?
(x3)
Emne oplægning korpus
Skuffe dele

5
Hanger x1
72509
Allen key x1
97642
Dowel (ø5 x 30mm) x28
20203
Hinge x12
52291
Floor glider x8
63008
Handle x6
81040
Stop x6
96203
Strap x2
94009
Holder x2
10601
Bracket x16
11229
Shelf support x8
11042
Screw (ø5 x 7.5mm) x16
11230
Drawer fastener x12
20228
25 pcs
Nails x3
23006
Flat head screw
(ø3 x 15mm) x12
25233
Screw (ø7 x 8mm) x24
26071
Machine screw
(M4 x 23mm) x6
26232
Big nail x18
23010
Flat head screw
(ø3 x 12mm) x2
25215
Connector bolt
(ø7 x 50mm) x21
25610
Flat head screw
(ø6.3 x 27mm) x20
26033
Flat head screw
(ø5.8 x 9mm) x12
26020
Cam bolt x8
31513
Cam x8
31687
Wedges x4
33204
Hinge plate x12
50491
Drawer runner x6
41421
Machine screw
(M4 x 9mm) x6
26214
Machine screw
(M4 x 7mm) x12
26211
Ruler - Use this ruler to help correctly identify the screws
Tools required
Cross head screwdriver
(medium & large)
Wooden block
Books x6
Tape measure
Flathead screwdriver
(medium)
Ruler
01 02 03 04 05 06 07 08 09 0 100 110 120 130 140 150
01 23 45 6
Eye protection
(when using a
hammer or glue)
Hammer
Awl

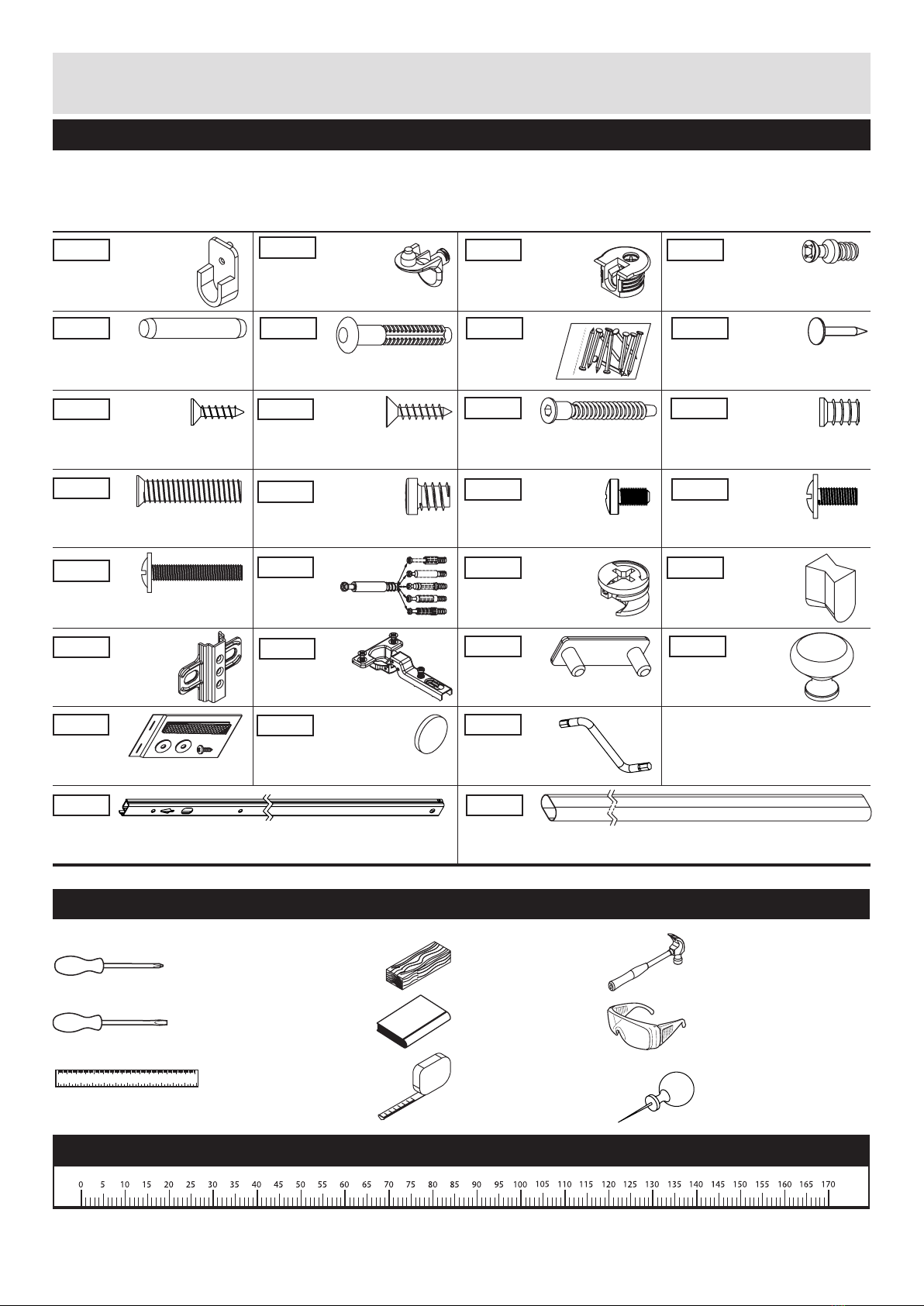

Please check that you have all the ttings as listed below
Note: The quantities below are the correct amounts to complete the assembly.
In some cases, more ttings may be supplied than required.
Components - Fittings

6
# $PRPVIEW:{Pos_Beslag}
x8
GA
FA
GB
FA
GB
FA
?
Beslag sættes ind i scala 1:2 som udgangspunkt
# $PRPVIEW:{Pos_Beslag}
x8
GA
FA
GB
FA
GB
FA
?
Beslag sættes ind i scala 1:2 som udgangspunkt

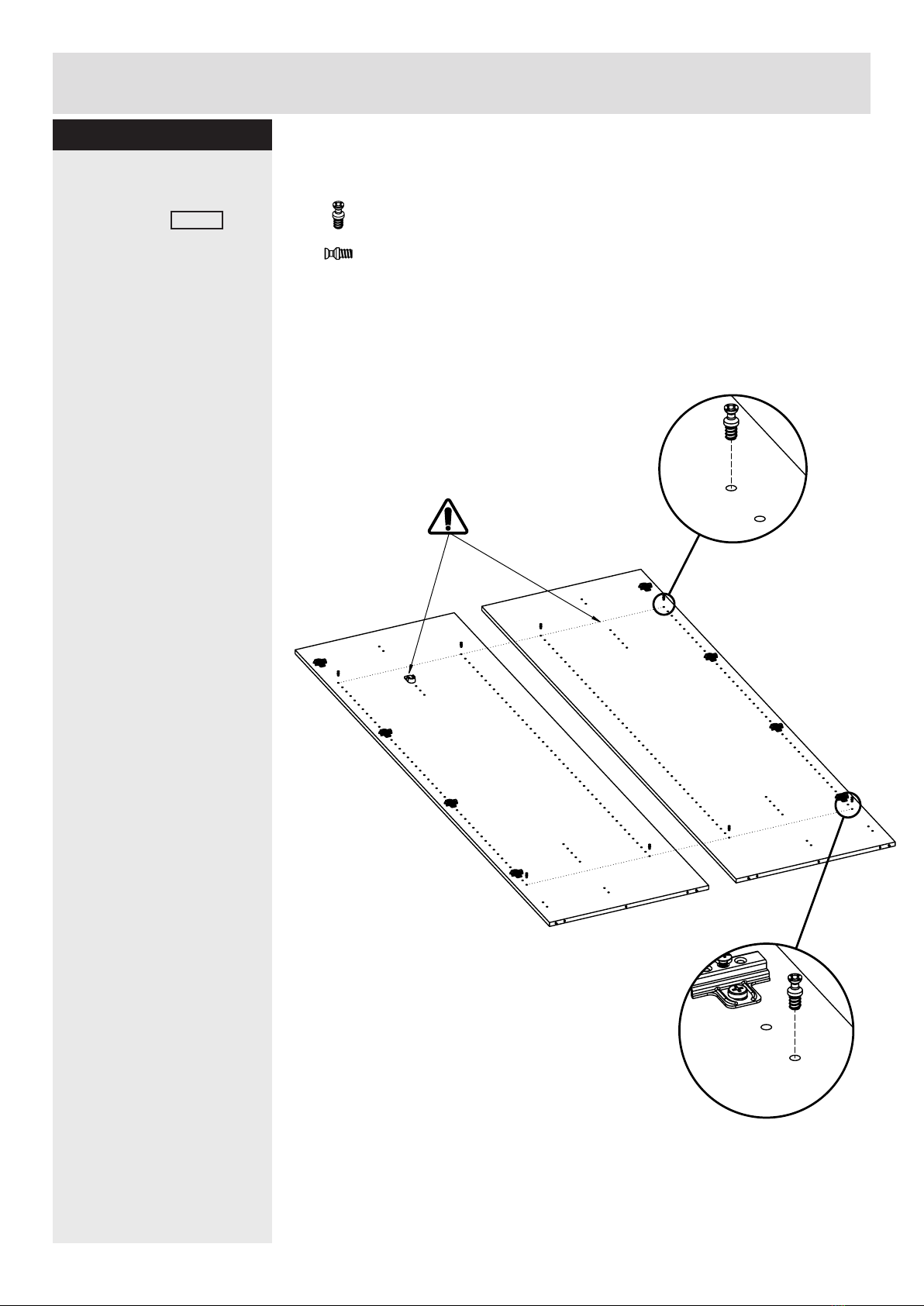

Assembly Instructions
Attach hanger holders
Attach holder 10601
with at head screw
25215 on side panel FA
and divider panel GB .
# $PRPVIEW:{Pos_Beslag}
x8
GA
FA
GB
FA
GB
FA
?
Beslag sættes ind i scala 1:2 som udgangspunkt
Flat head screw
#25215 x2
# $PRPVIEW:{Pos_Beslag}
x8
GA
FA
GB
FA
GB
FA
?
Beslag sættes ind i scala 1:2 som udgangspunkt
Holder
#10601 x2
Fittings you will need for this step:
Cam
#31687 x2
Dowel
#20203 x16
Fittings you will need for this step:
# $PRPVIEW:{Pos_Beslag}
x8
GA
FA
GB
FA
GB
FA
?
Beslag sættes ind i scala 1:2 som udgangspunkt
# $PRPVIEW:{Pos_Beslag}
x8
GA
FA
GB
FA
GB
FA
?
Beslag sættes ind i scala 1:2 som udgangspunkt

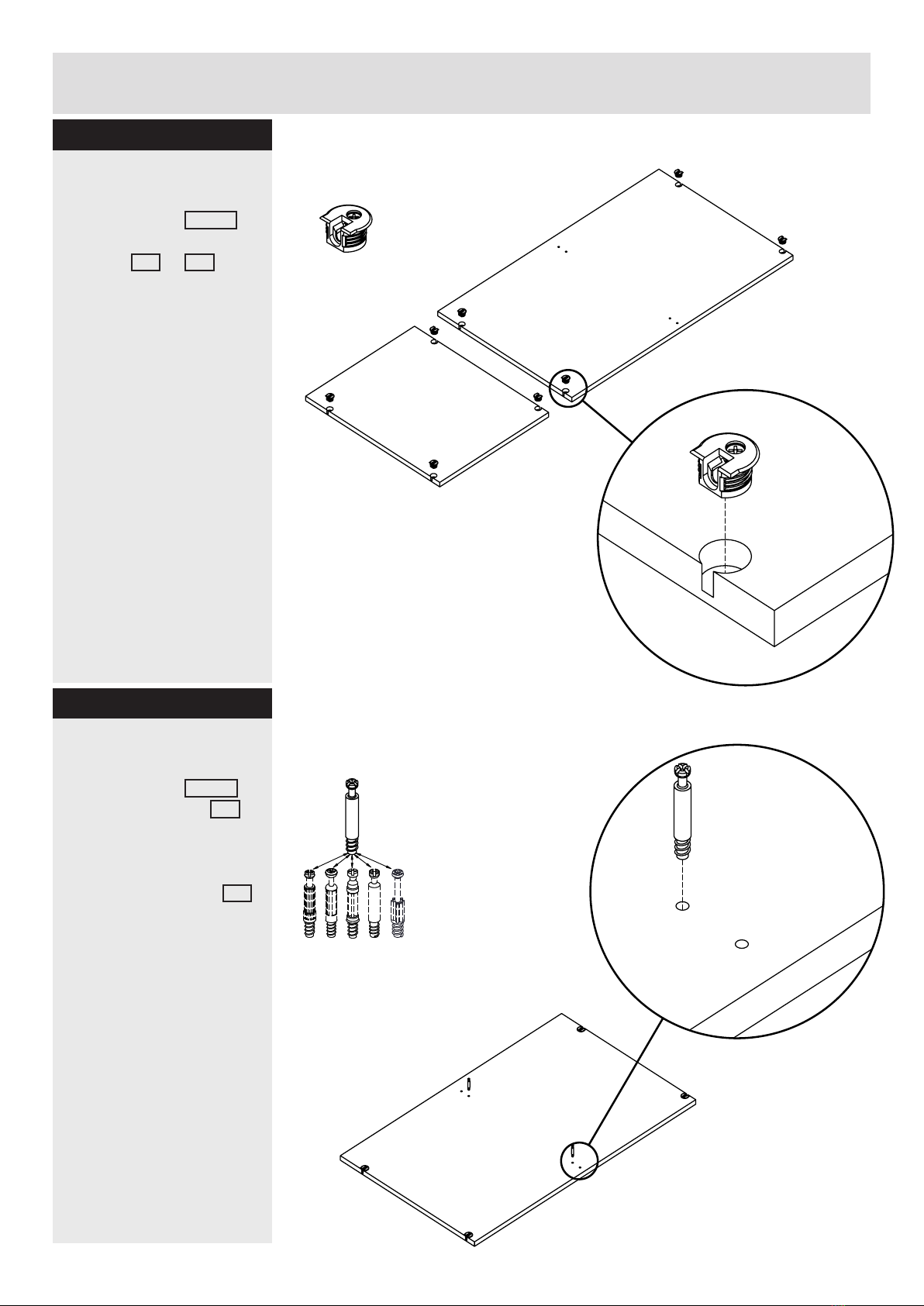

Step 2
Insert dowels
Insert dowels 20203
into outer holes on the
ends of panel FA +GB
Place cam 31687 into
the holes on top of small
divider panel GA .
Arrow facing the edge of
the panel.
Step 1

7
# $PRPVIEW:{Pos_Beslag}
x8
1
3
4
20
19
35
36
49
48
FA
GB
FA
?

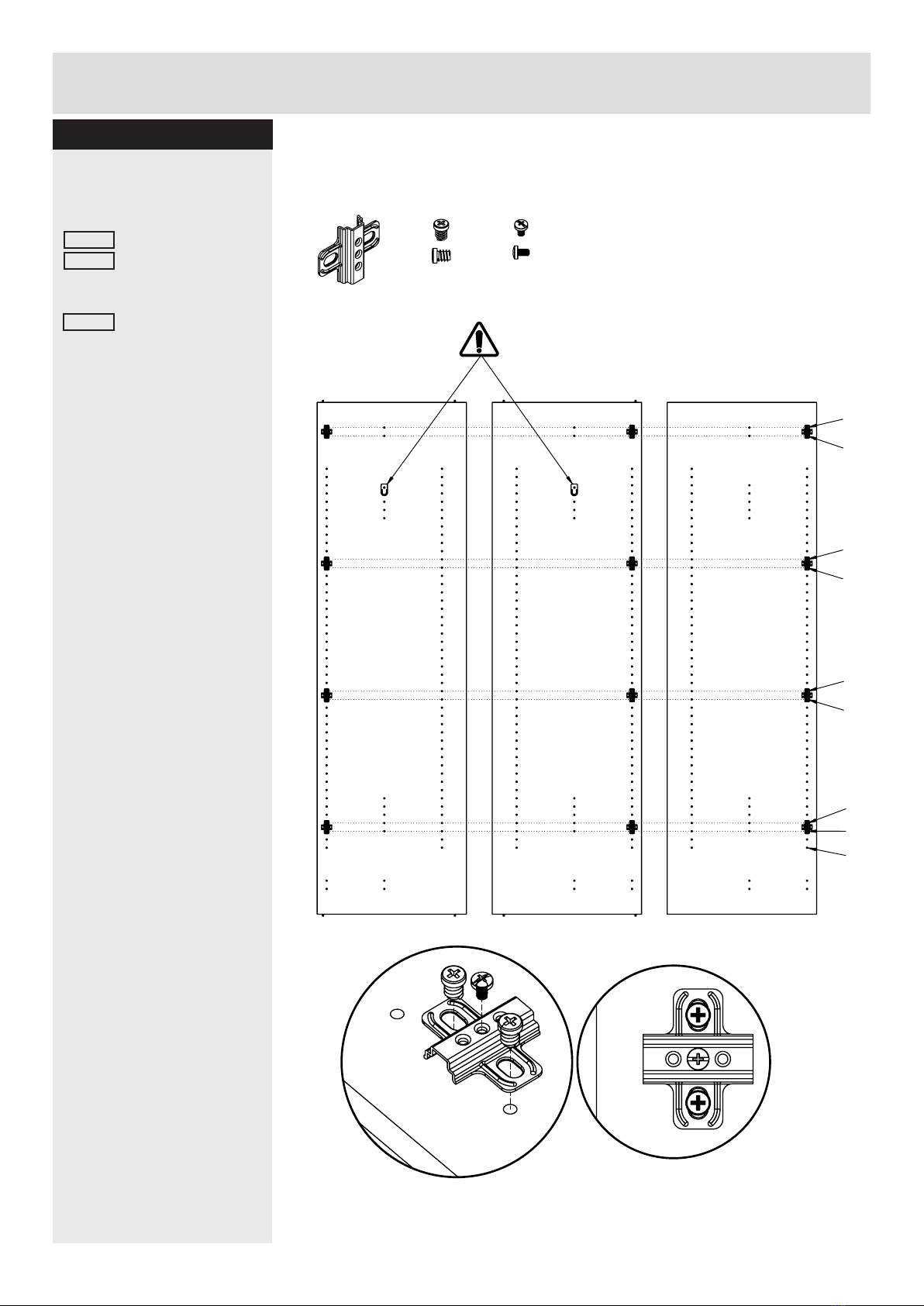

Assembly Instructions
Attach hinge plates
Fix each hingplate
50491 with two screw
26071 .
Insert machine screw
26211 in the center of
each hinge plate as illus-
trated.
Fittings you will need for this step:
Hinge
#50491 x12
Screw
#26071 x24
Machine screw
#26211 x12
Step 3
# $PRPVIEW:{Pos_Beslag}
x8
1
3
4
20
19
35
36
49
48
FA
GB
FA
?
# $PRPVIEW:{Pos_Beslag}
x8
1
3
4
20
19
35
36
49
48
FA
GB
FA
?
# $PRPVIEW:{Pos_Beslag}
x8
1
3
4
20
19
35
36
49
48
FA
GB
FA
?

8
# $PRPVIEW:{Pos_Beslag}
x8
FA
FA
?
Assembly Instructions
# $PRPVIEW:{Pos_Beslag}
x8
FA
FA
?
Screw
#11230 x8
Step 4
Attach screws
Attach screw 11230 in
the holes of the top and
bottom hole rows as
illustrated.
Fittings you will need for this step:

9
# $PRPVIEW:{Pos_Beslag}
x8
241
1
2.
12
5.
24
4.
22
3.
1.
FA
FA
?
# $PRPVIEW:{Pos_Beslag}
x8
241
1
2.
12
5.
24
4.
22
3.
1.
FA
FA
?
# $PRPVIEW:{Pos_Beslag}
x8
241
1
2.
12
5.
24
4.
22
3.
1.
FA
FA
?
# $PRPVIEW:{Pos_Beslag}
x8
241
1
2.
12
5.
24
4.
22
3.
1.
FA
FA
?
Front Front

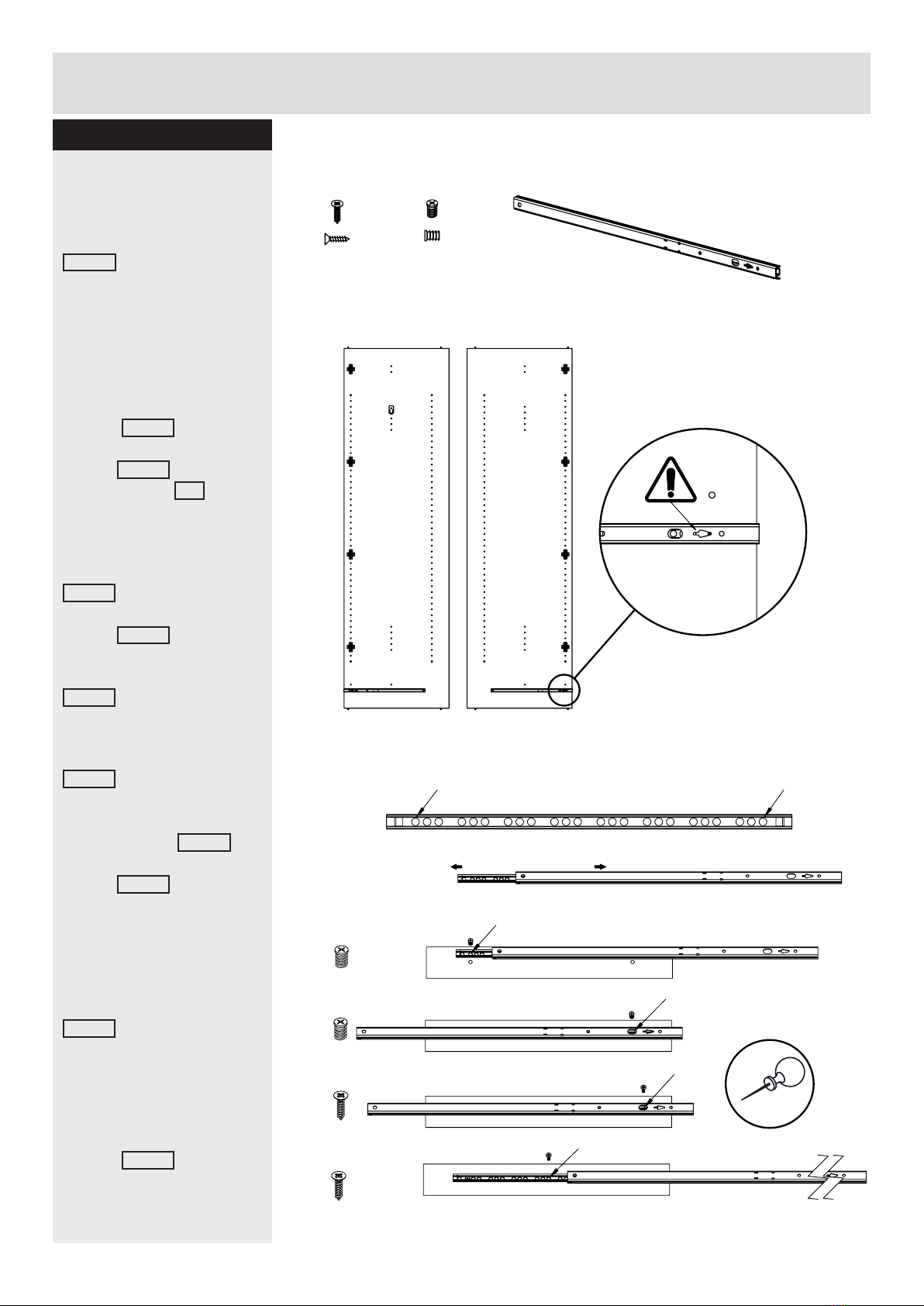

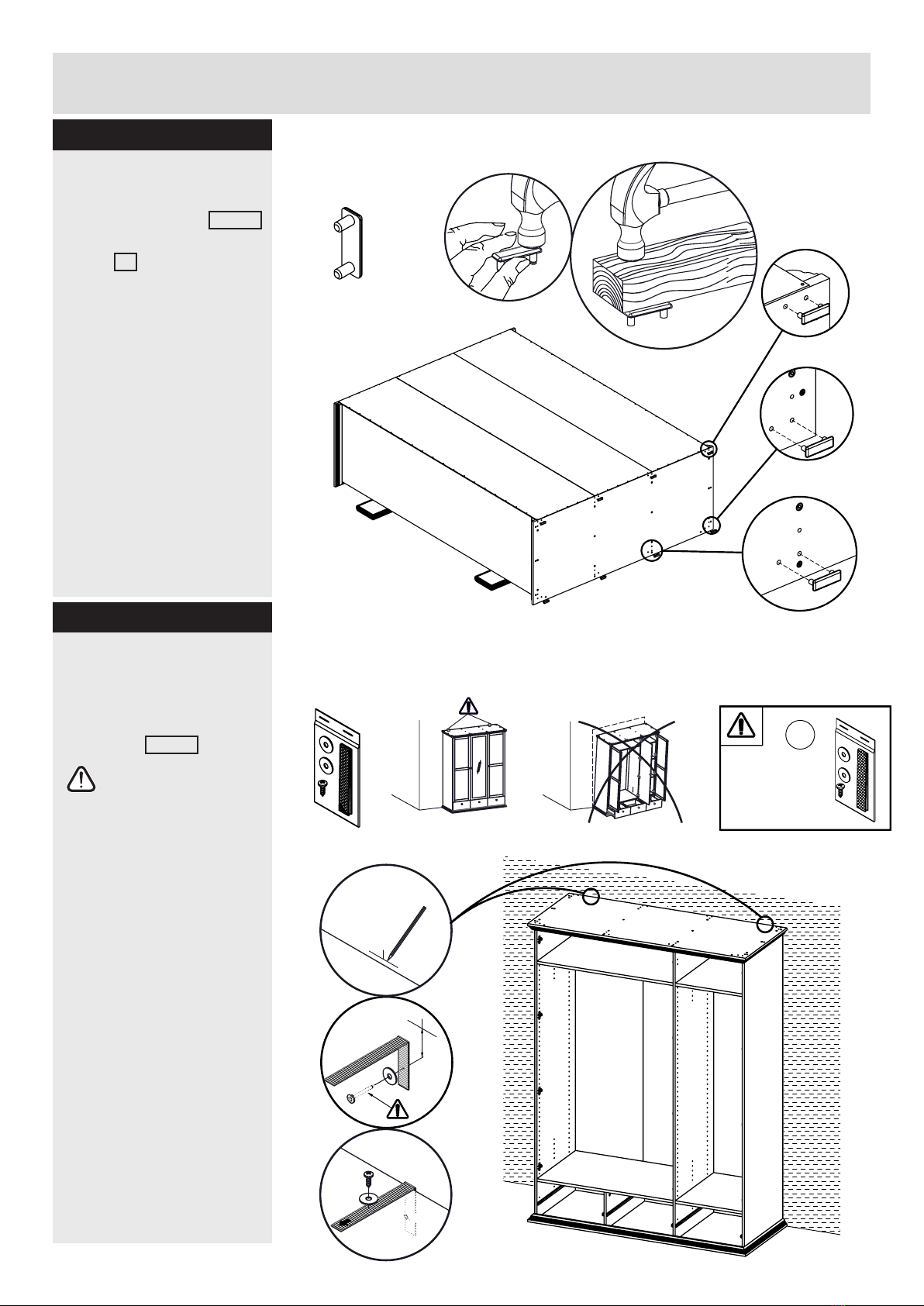

Assembly Instructions
Fittings you will need for this step:
Drawer runner
#41421 x2
Flat head screw
#25233 x4
Flat head screw
#26020 x4
Step 5
Mount drawer runners
1. Note the holes when
extending drawer runner
41421 . The arrow at
the end of the drawer
runners must face
towards the front edges
as illustrated.
2. Extend the drawer
runner 41421 , and
attach one at head
screw 26020 in hole
nr. 1 on panel FA , as
illustrated.
3. Pull drawer runner
41421 backwards, and
attach the next at head
screw 26020 in hole
nr. 22, through the hole
in the drawer runner
41421 .
4. Extend drawer runner
41421 a bit forward, and
use an awl to pre-drill
a hole in hole nr. 24 of
drawer runner 41421 .
Then, insert at head
screw 25233 in that
hole.
5. Like step 4, use an awl
in hole nr. 12, and then
insert at head screw
25233 .
Repeat these 5 steps
for the remaining drawer
runner 41421 .
Front

10
Fittings you will need for this step:
# $PRPVIEW:{Pos_Beslag}
x8
GB
?
# $PRPVIEW:{Pos_Beslag}
x8
GB
?
Assembly Instructions
Screw
#11230 x8
Bottom
Step 6
Attach screws
Attach screw 11230 on
both sides of the divider
panel GB .

11
# $PRPVIEW:{Pos_Beslag}
x8
241
1
2.
12
5.
24
4.
22
3.
1.
GB
GA
190
180
DD
GB
?
# $PRPVIEW:{Pos_Beslag}
x8
241
1
2.
12
5.
24
4.
22
3.
1.
GB
GA
190
180
DD
GB
?
# $PRPVIEW:{Pos_Beslag}
x8
241
1
2.
12
5.
24
4.
22
3.
1.
GB
GA
190
180
DD
GB
?
# $PRPVIEW:{Pos_Beslag}
x8
241
1
2.
12
5.
24
4.
22
3.
1.
GB
GA
190
180
DD
GB
?
Front Front
Front
Assembly Instructions
Fittings you will need for this step:
Flat head screw
#25233 x8
Flat head screw
#26020 x8
Drawer runner
#41434 x4
Step 7
Mount drawer runners
1. Note the holes when
extending drawer runner
41421 . The arrow at
the end of the drawer
runners must face
towards the front edges
as illustrated.
2. Extend the drawer
runner 41421 , and
attach one at head
screw 26020 in hole nr.
1 on divider panels GA
+ GB , as illustrated.
3. Pull drawer runner
41421 backwards, and
attach the next at head
screw 26020 in hole
nr. 22, through the hole
in the drawer runner
41421 .
4. Extend drawer runner
41421 a bit forward, and
use an awl to pre-drill
a hole in hole nr. 24 of
drawer runner 41421 .
Then, insert at head
screw 25233 in that
hole.
5. Like step 4, use an awl
in hole nr. 12, and then
insert at head screw
25233 .
Repeat these 5 steps
for the remaining drawer
runner 41421 .

12
# $PRPVIEW:{Pos_Beslag}
x8
76428
76431
76427
x2
x2
76427
IC
76428
?
# $PRPVIEW:{Pos_Beslag}
x8
76428
76431
76427
x2
x2
76427
IC
76428
?
Top
Bottom
# $PRPVIEW:{Pos_Beslag}
x8
76428
76431
76427
x2
x2
76427
IC
76428
?
Assembly Instructions
Fittings you will need for this step:
Wedges
#33204 x4
Fittings you will need for this step:
Assemble proles
Insert wedges 33204
into the slots on the an-
gle ends of side proles
76427 + 76428 and
front prole 76431 .
Use a hammer for this
assembly step.
Step 8
Attach panel
Place bottom panel IC
on top of the proles
as illustrated, and then
insert at head screw
26033 .
Step 9
Flat head screw
#26033 x20

13
# $PRPVIEW:{Pos_Beslag}
x8
76428
76431
76427
x2
x2
76427
IC
76428
?
# $PRPVIEW:{Pos_Beslag}
x8
UC
(x2)
UB
(x2)
UB
?
# $PRPVIEW:{Pos_Beslag}
x8
UC
(x2)
UB
(x2)
UB
?
Assembly Instructions
Bracket
#11229 x16
# $PRPVIEW:{Pos_Beslag}
x8
UC
(x2)
UB
(x2)
UB
?
Cam bolt
#31513 x2
Fittings you will need for this step:
Fittings you will need for this step:
Attach brackets
Insert brackets 11229
into the holes of xed
shelves UB + UC .
Step 10
# $PRPVIEW:{Pos_Beslag}
x8
UC
(x2)
UB
(x2)
UB
?
Insert cam bolts
Insert cam bolt 31513
into the xed shelf UB .
The cam bolts must be
screwed down ush with
the surface of panel UB .
Step 11

14
# $PRPVIEW:{Pos_Beslag}
x8
IC
FA
GB
FA
IC
?
# $PRPVIEW:{Pos_Beslag}
x8
IC
FA
GB
FA
IC
?
# $PRPVIEW:{Pos_Beslag}
x8
IC
FA
GB
FA
IC
?
Assembly Instructions
Fittings you will need for this step:
Allen key
#97642 x1
Attach top and
bottom panels
Attach the top and
bottom panel IC by
inserting connector bolt
25610 into the holes.
Tighten the screws with
the allen key 97642 .
Please use books, or
the like, to support side
panels FA and divider
panel GB when doing
this assembly step.
Step 12
Connector bolt
#25610 x18

15
# $PRPVIEW:{Pos_Beslag}
x8
UB
GA
UB
UC
FA
IC
FA
GB
IC
UB
UC
?
Unnish edges
# $PRPVIEW:{Pos_Beslag}
x8
UB
GA
UB
UC
FA
IC
FA
GB
IC
UB
UC
?
Assembly Instructions
Step 13
Attach divider panel
Attach divider panel GA
by inserting dowel pins
and cam bolts into the
holes.
Once pushed together,
tighten the cams.
Step 14
Attach shelves
Attach both xed shelves
UB + UC by sliding
them down over the
previously attached
screws, as illustrated.
Once pushed together,
tighten the brackets.

16
# $PRPVIEW:{Pos_Beslag}
x8
IC
FA
UB
IC
FA
UC
IC
GB UB
IC
FA
GB
UB
IC
FA
UB
UC
UC
?
# $PRPVIEW:{Pos_Beslag}
x8
IC
FA
UB
IC
FA
UC
IC
GB UB
IC
FA
GB
UB
IC
FA
UB
UC
UC
?
Assembly Instructions
Fittings you will need for this step:
# $PRPVIEW:{Pos_Beslag}
x8
IC
FA
UB
IC
FA
UC
IC
GB UB
IC
FA
GB
UB
IC
FA
UB
UC
UC
?
Big nail
#23010 x4
Fittings you will need for this step:
Connector bolt
#25610 x3
Allen key
#97642 x1

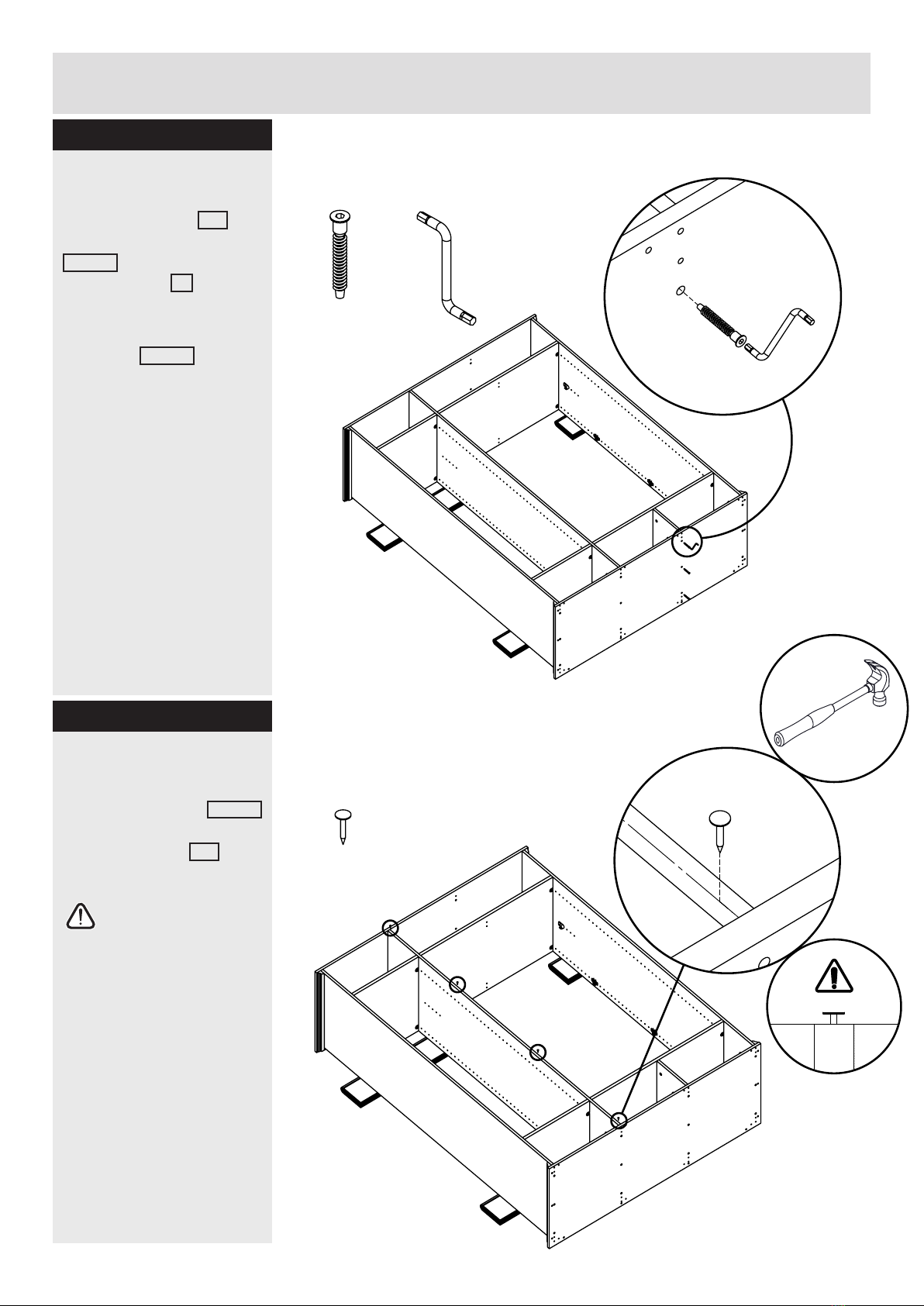

Step 15
Fix divider panel
Fix divider panel GA by
inserting connector bolt
25610 into the holes of
bottom panel IC .
Tighten the connector
bolts with the provided
allen key 97642 .
# $PRPVIEW:{Pos_Beslag}
x8
IC
FA
GB
FA
IC
?
# $PRPVIEW:{Pos_Beslag}
x8
IC
FA
UB
IC
FA
UC
IC
GB UB
IC
FA
GB
UB
IC
FA
UB
UC
UC
?
Step 16
Attach nails
By using a hammer,
place the big nails 23010
in the center of the edge
of divider panel GB .
Pay attention to the
warning about the gap
between the nails and
the edge of the divider
panel.

17
# $PRPVIEW:{Pos_Beslag}
x8
25 pcs
09789
09790
IC
FA
09789
09790
IC
FA
?
Assembly Instructions

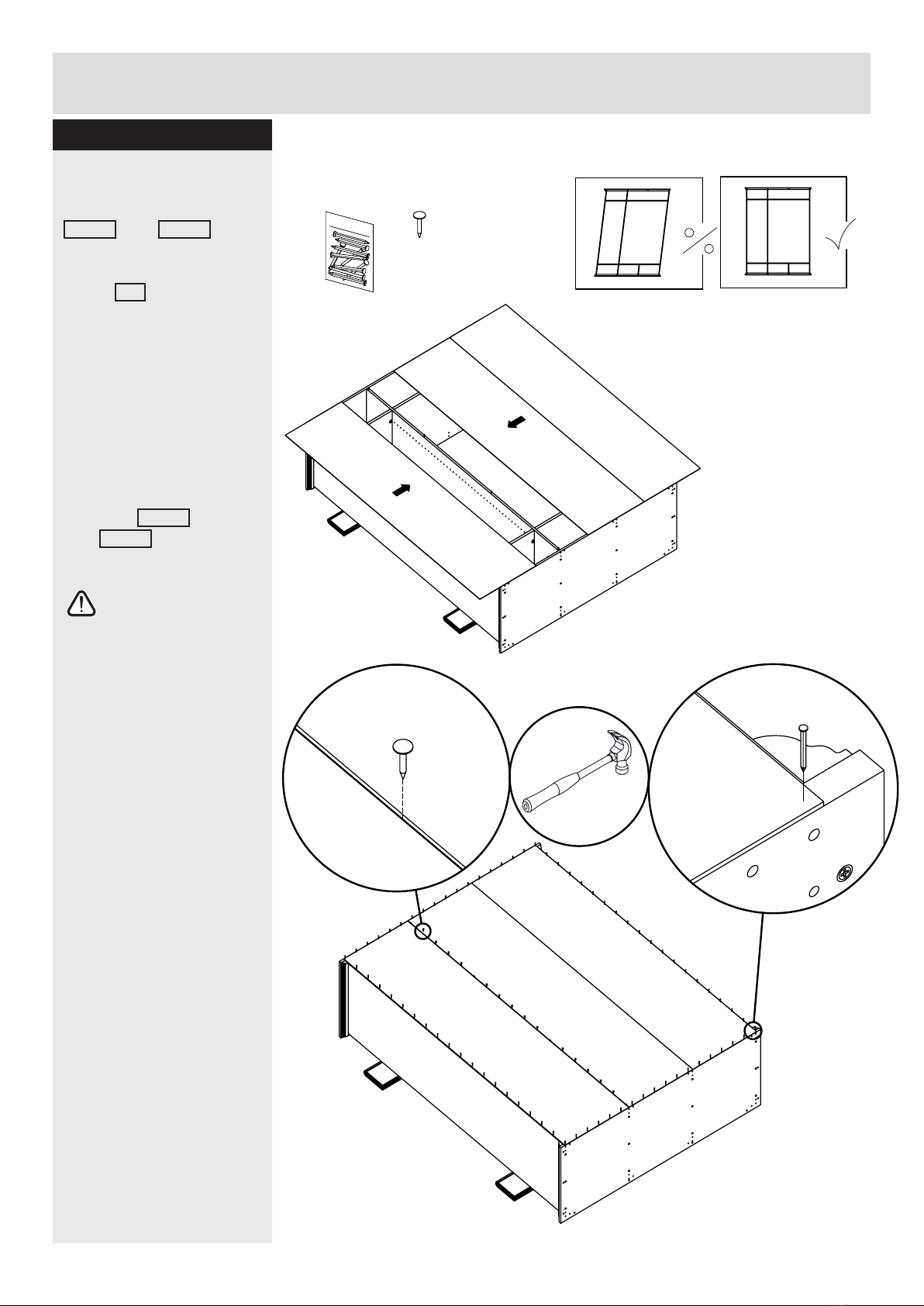

Attach back panels
Slide back panels
09789 and 09790 as
illustrated, so that they
meet in the center of
panel GB .
Note the previously
attached big nails, as
they act as stops for the
back panels.
Once pushed together,
x the back panels with
both nail 23006 and big
nail 23010 as illustrated.
Important:
The unit MUST be
square when the back
panels are attached.
Fittings you will need for this step:
Nail
#23006 x3
Big nail
#23010 x14
Step 17
# $PRPVIEW:{Pos_Beslag}
x8
25 pcs
09789
09790
IC
FA
09789
09790
IC
FA
?
# $PRPVIEW:{Pos_Beslag}
x8
25 pcs
09789
09790
IC
FA
09789
09790
IC
FA
?
# $PRPVIEW:{Pos_Beslag}
x8
25 pcs
09789
09790
IC
FA
09789
09790
IC
FA
?

18
Step 19
# $PRPVIEW:{Pos_Beslag}
x8
94009
3 cm
IC
FA
GB
UB
IC
UB
UC
09789
UC
FA
09789
09790
IC
FA
?
# $PRPVIEW:{Pos_Beslag}
x8
94009
3 cm
IC
FA
GB
UB
IC
UB
UC
09789
UC
FA
09789
09790
IC
FA
?
# $PRPVIEW:{Pos_Beslag}
x8
94009
3 cm
IC
FA
GB
UB
IC
UB
UC
09789
UC
FA
09789
09790
IC
FA
?
Assembly Instructions
Fittings you will need for this step:
Fittings you will need for this step:
Floor glider
#63008 x8
Strap
#94009 x2
Step 19
Mount the unit
to your wall
Fix the unit to your wall
with strap 94009 .
The screw supplied
together with the anti-
topple bracket is to be
used only for xing the
anti-topple bracket to
the furniture. In addition
to this, you will need
to choose a screw or
tting which is suitable
for securing the bracket
to the kind of walls you
have. If you are unsure
about what type of screw
to contact your local
hardware store.
WARNING: In order to
prevent overturning
this furniture must
be used with the wall
attachment device
provided. Furniture
overturning poses a
safety hazard.
Step 18
Attach oor gliders
Place oor gliders 63008
in the holes of bottom
panel IC . Use a wooden
block between your
hammer and the oor
gliders.

19
Step 20
# $PRPVIEW:{Pos_Beslag}
x8
IC
FA
GB
UB
IC
UB
UC
09789
T
T
UC
FA
IC
FA
GB
UB
IC
UB
UC
09789
T
T
UC
FA
GB
09789
FA
?
# $PRPVIEW:{Pos_Beslag}
x8
IC
FA
GB
UB
IC
UB
UC
09789
T
T
UC
FA
IC
FA
GB
UB
IC
UB
UC
09789
T
T
UC
FA
GB
09789
FA
?
# $PRPVIEW:{Pos_Beslag}
x8
IC
FA
GB
UB
IC
UB
UC
09789
T
T
UC
FA
IC
FA
GB
UB
IC
UB
UC
09789
T
T
UC
FA
GB
09789
FA
?
Assembly Instructions
Fittings you will need for this step:
Fittings you will need for this step:
Hanger
#72509 x1
# $PRPVIEW:{Pos_Beslag}
x8
IC
FA
GB
UB
IC
UB
UC
09789
T
T
UC
FA
IC
FA
GB
UB
IC
UB
UC
09789
T
T
UC
FA
GB
09789
FA
?
Shelf support
#11042 x8
Step 20
Place the hanger
Place hanger 72509 in
the previously mounted
hanger holders as
illustrated.
Step 21
Insert shelf supports
Press shelf support
11042 in the holes of
side panel FA and
divider panel GB .
Once inserted, press
down loose shelf panels
Tonto the shelf supports
as illustrated.
Make sure that the shelf
supports get into the
holes of the shelf panels.

20

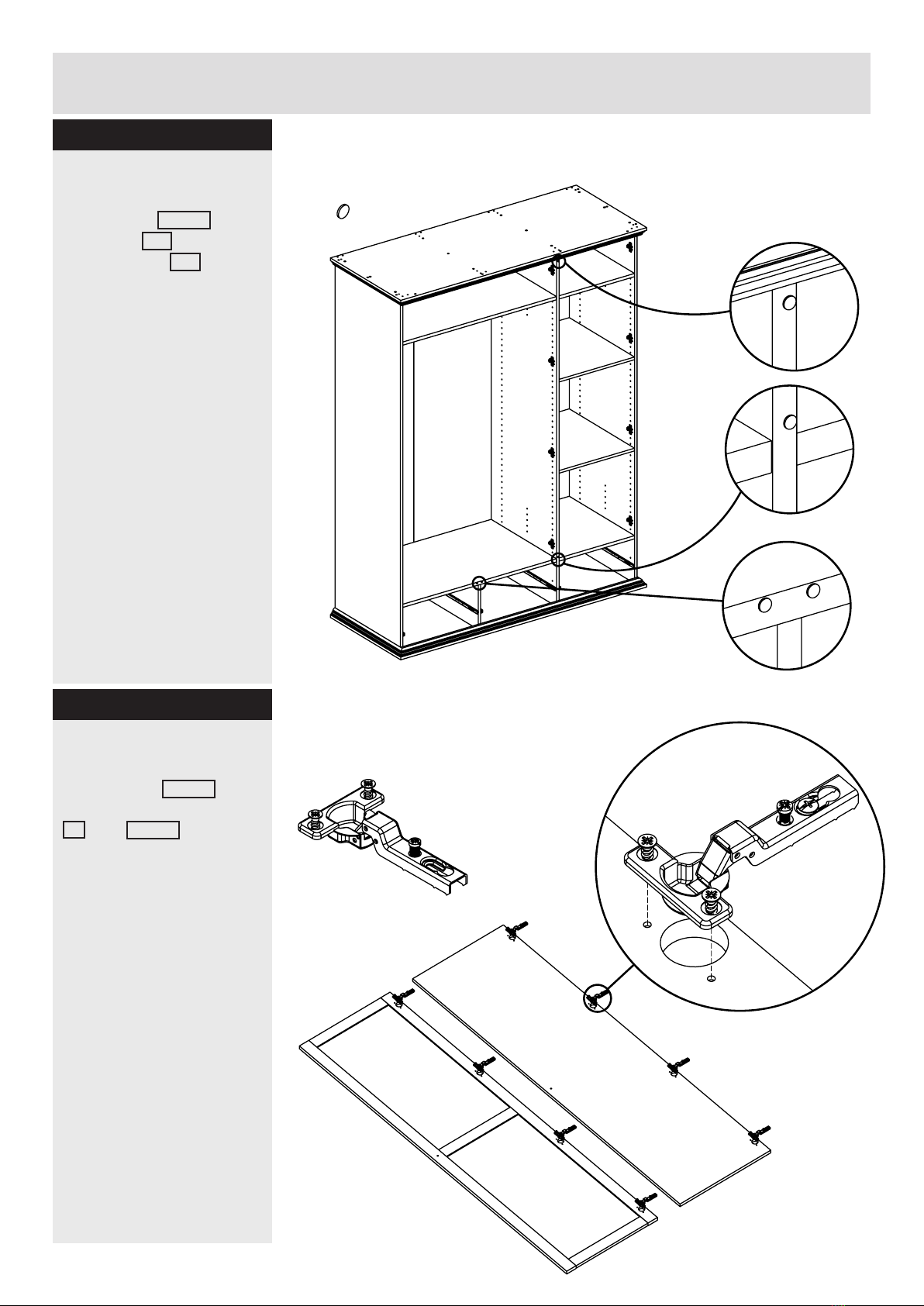

Assembly Instructions
Step 23
# $PRPVIEW:{Pos_Beslag}
x8
IC
FA
GB
UB
IC
UB
UC
09789
T
T
UC
FA
18731
(x2)
W
?
# $PRPVIEW:{Pos_Beslag}
x8
IC
FA
GB
UB
IC
UB
UC
09789
T
T
UC
FA
18731
(x2)
W
?
# $PRPVIEW:{Pos_Beslag}
x8
IC
FA
GB
UB
IC
UB
UC
09789
T
T
UC
FA
18731
(x2)
W
?
# $PRPVIEW:{Pos_Beslag}
x8
IC
FA
GB
UB
IC
UB
UC
09789
T
T
UC
FA
18731
(x2)
W
?
Assembly Instructions
Fittings you will need for this step:
Stop
#96203 x4
Step 22
Attach stops
Attach stop 96203 on
one shelf UB and
divider panel GB as
illustrated.
Step 23
Attach hinges
Press hinge 52291 into
the large holes on door
W and 18731 . Drive the
pre-attached screws into
the holes of the doors.
Fittings you will need for this step:
Hinge
#52291 x12
