Arkon BBBOLD128 User manual

Package Contents:
(1) CM048-2 - 1” Multi angle adhesive dash mount
(3) Self tapping screws (optional)
(1) CC007-BOLD - Custom cradle for BlackBerry Bold
(1) Alcohol cleaning pad
!Safety Precautions
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and / or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
The Mobile Mounting Specialists™
Consumer Hotline:
USA [phone]
INT’L [phone]
Monday - Friday 9 am - 5 pm, PST
Do not place mount in or near an air bag deployment zone or where it will
obstruct view of the road.
Drilling into the dash, oor, or console will permanently damage the vehicle.
Use caution and consult a mobile install professional to avoid drilling into
the gas tank, electrical system or other highly sensitive vehicle components.
!
BBBOLD128
|1” Multi Angle Dash / Console Mount for BlackBerry® Bold™ 9000
CM048-2
Multi Angle
Dash Mount
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in China and Taiwan
© Copyright 2009 Arkon Resources, Inc.

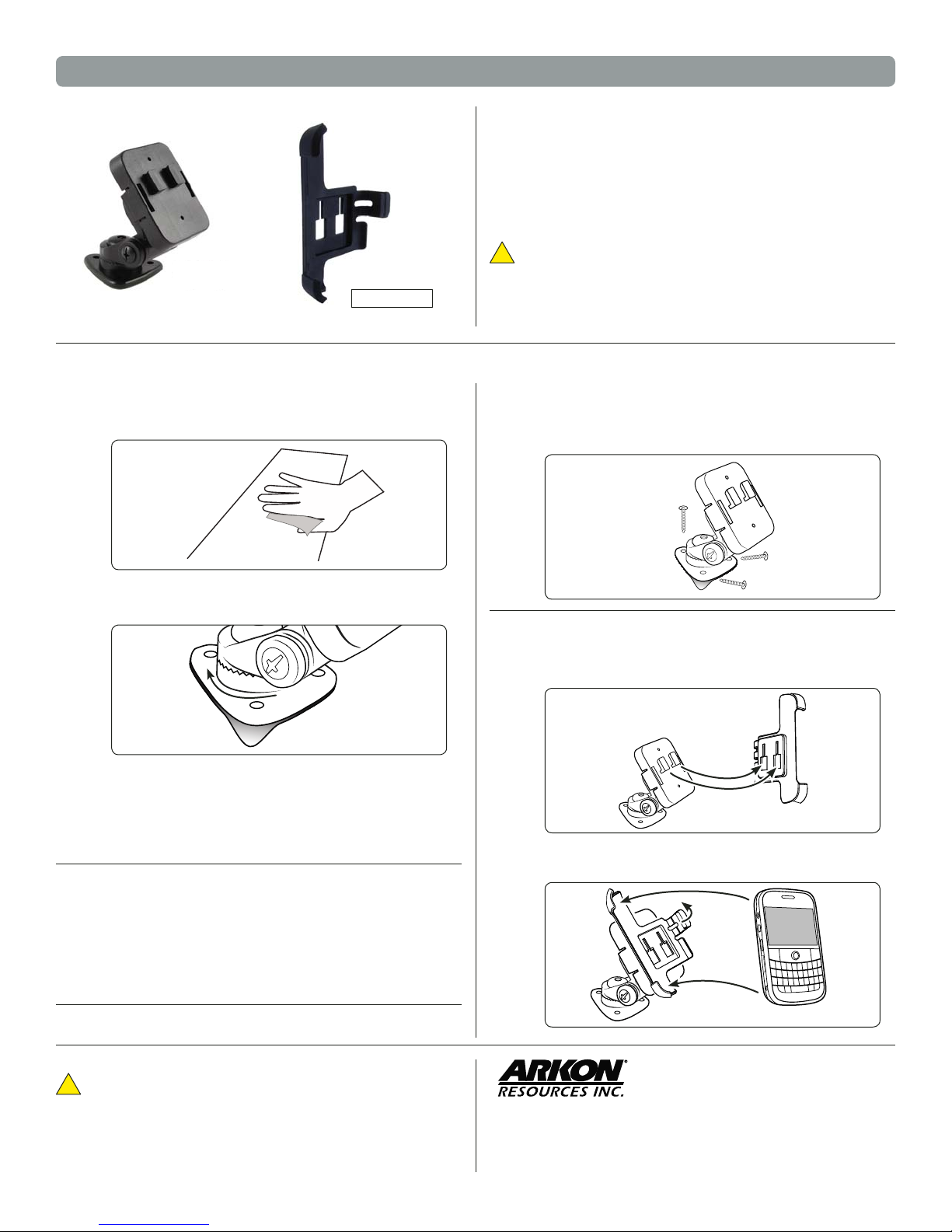

Dash or Console Adhesive Mounting
Step 1.
Step 1.
Step 2. Using a screwdriver, tighten the 3 screws (B) through the
pedestal base into the mounting surface. Adjust the angle
of the pedestal head by rmly holding the base and rotating
to the desired angle.
Find a safe location on the dash or console to mount the
pedestal. Make sure the area is clean and dry. Use the
included alcohol pad to clean the mounting surface.
Remove the adhesive backing (A) under the triangular
pedestal and rmly press into place.
Step 2.
Find a safe location on the dash or console to mount the
pedestal. Make sure the area is clean and dry. Use the
included alcohol pad to clean the mounting surface.
Remove the adhesive backing (A) under the triangular
pedestal and rmly press into place.
After adhesive has bonded at room temperature (approx.
72°F), allow 24 hours prior to use for best results.
Adjust the angle of the pedestal head by rmly holding the
base and rotating to the desired angle.
Step 1.
Step 2.
Step 3.
Step 4.
Dash or Console Screw Mounting (Optional)
Continued on next column...
A
A
C
D
E
Compatible with:
• BlackBerry Bold 9000 smartphone
CC007-BOLD
Custom Cradle
for BlackBerry Bold
BlackBerry brand name and Bold product name are trademarks or registered trademarks of
Research in Motion, Ltd. Arkon Resources, Inc. is not aliated with Research in Motion, Ltd.
Patent Pending
Cradle Connection and Bold Insertion into Cradle
(Device sold separately)
Attach the dual T-slots (C) on the back of the Bold cradle
to the dual T-tabs (D) on the dash mount pedestal head.
Push and hold the right thumb tab (E) and gently insert the
Bold device (not included, sold separately) into the cradle.
