Arkon GPS129 User manual

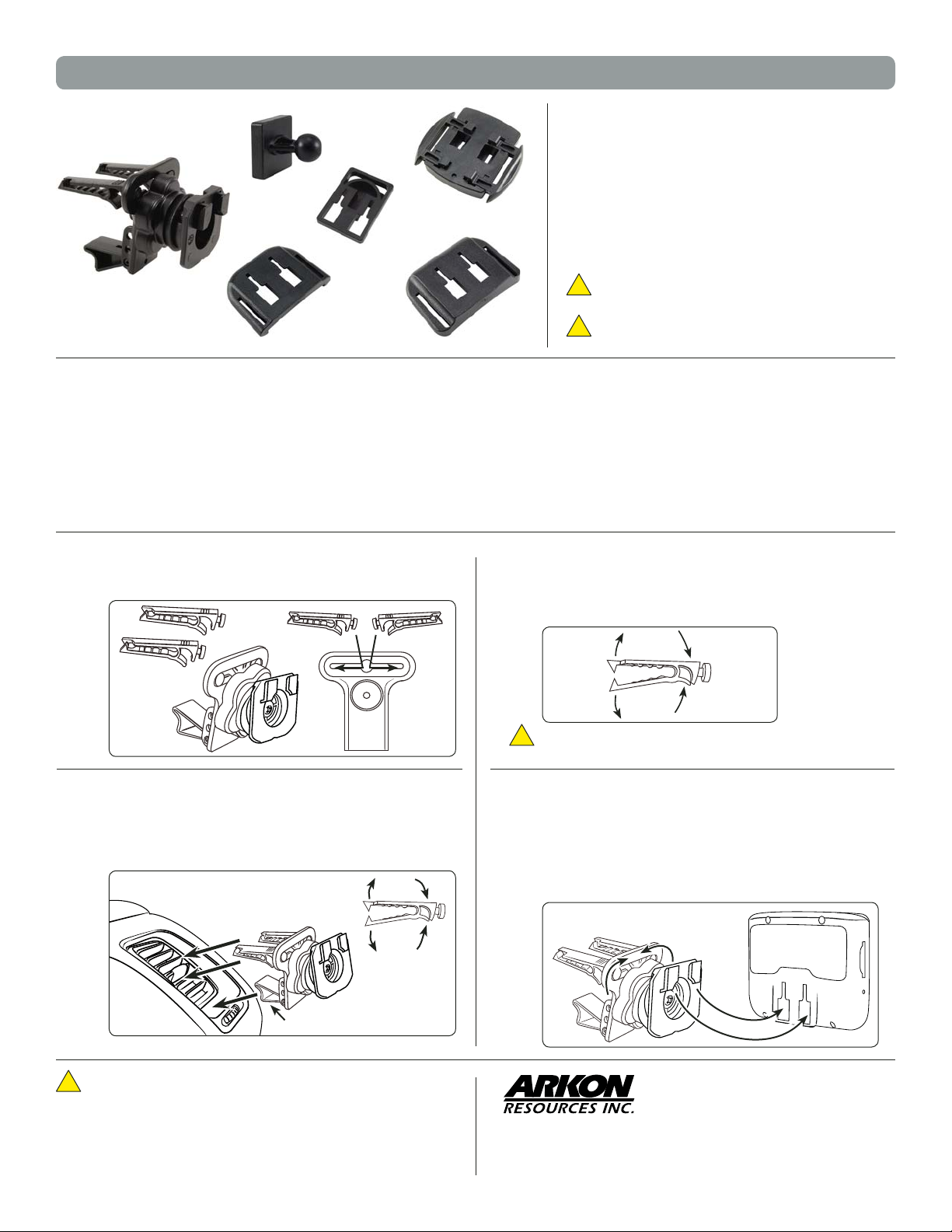

Package Contents:
A - CM047-ST2-RVC - Removable swivel air vent mount
B - AP2T17MM - Dual T to 17mm ball adapter plate
C - AP031 - Dual T to 4 prong Euro adapter plate
D - APTTO - Adapter plate for Tomtom ONE
E - APTTOXL - Adapter plate TomTom ONE XL
and TomTom ONE XL • S
F - APTTGO520 - Adapter plate for TomTom GO 520,
530, 720, 730, 920, 920T and 930 models.
Compatible with:
TomTom
• TomTom ONE - 1st, 2nd, & 3rd Editions
• TomTom ONE (UK version)
• TomTom ONE XL - 1st, 2nd, & 3rd Editions
• TomTom ONE XL-S - 1st, 2nd, & 3rd Editions
• TomTom GO - 520, 530, 720, 730, 920, 920T, and 930 models.
Mio
• C220, C310, C310x, C320, C520, and C710 models
HP
• iPAQ 300 and rx5900 series
Garmin
• Nüvi - 200, 200w, 250, 250w, 260, 260w, 270, 300, 310, 350, 360, 370, 600, 610, 650, 660, 670,
680, 710, 750, 760, 770, 780, 850, and 880 models
• StreetPilot - c310, c510, c530, c550, and c580 models
Magellan
• Maestro - 3100, 3140, 3200, 3220, 3250, 4000, 4040, 4050, 4210, 4220, and 4250 models
• RoadMate - 1200, 2000, 2200T, 300, 3000T, 3050T, 360, 6000T, 700, 760, 800, and 860T models
• Triton - 1500, 200, 2000, 300, 400, and 500 models
• Crossover GPS models
Do not place mount in or near an air bag deploy-
ment zone or where it will obstruct view of the road.
!
!
!
GPS129 |Universal Air Vent Mount for Portable Navigation Devices
A
BC
F
E
D
Pedestal Assembly Pedestal Removal
Dual T Device Attachment
Step 1.
Step 2.
Step 1.
Step 2.
Remove the device from the vent mount assembly.
Pinch the vent clips (A) so that the teeth open and carefully
slide the pedestal from the vent blade.
Adjust the lateral angle and the rotation of the pedestal
head by loosening the swivel tightening ring (D).
Attach the device to the pedestal by inserting the dual T-Tabs
of the pedestal (E) into the T-slots of the device (F). (Device
sold separately)
Use caution when removing the pedestal. Make sure that the
teeth of the vent clips are open enough to not damage vent.
A
D
E
F
Step 1.
Step 1.
Attach the vent mounting clips (A) to the back of the pedestal
(B) with the vent clips positioned with the at sides facing up.
Pinch the vent clips (A) so that the teeth open and gently
insert vent pedestal into vent louvres until the clips attach
to the vent n / blade. Adjust the support leg (C) until it
rests rmly along the bottom of the vent or dash surface.
Insertion of Pedestal into the Air Vent
A
B
A
C
Use caution when adjusting the swivel movement
to avoid damaging your air vents.
The Mobile Mounting Specialists™
www.arkon.com
Arcadia, CA 91006 USA
Made in Taiwan
© Copyright 2008 Arkon Resources, Inc.
Safety Precautions
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and/or air
bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
®
!
Consumer Hotline:
USA [phone]
INT’L [phone]
Monday - Friday 9 am - 5 pm, PST

Step 1.
Step 1.
Step 2.
Slide the adapter plate up into the grooves on the
back of the TomTom ONE, ONE XL, or ONE XL • S.
Attach the adapter plate by sliding it up into the slot on the
back of the Tomtom GO 520, 530, 720, 730, 920, 920T or 930
device as shown above.
Follow the Pedestal Attachment step above.
TomTom ONE, ONE XL, and ONE XL • S Mount Installation
Pedestal Attachment
Instructions for APTTGO520 Adapter Plate
TomTom ONE, ONE XL, and ONE XL • S Plate Installation
GPS129 |Universal Air Vent Mount for Portable Navigation Devices - Continued
All brand names and product names are trademarks or registered trademarks of their respective owners.
Step 1. Slide the dual T slots on the 4 prong adapter plate on to the
dual T tabs on the air vent pedestal.
Step 1.
Step 2.
Adjust the lateral angle and the rotation of the pedestal head
by loosening the swivel tightening ring (D).
Attach the device cradle to the pedestal by inserting the
dual T-Tabs of the pedestal (E) into the T-slots of the
adapter plate (F).
Dual T to 4 prong Euro Adapter Plate installation Mio
Dual T to 4 prong Euro Adapter Plate installation for Mio
Step 1.
Step 2.
With the plate adjustment arms out, insert the cradle or
device onto the 4 prong pattern (D).
Push together both plate adjustment arms (E) until the
prongs are tightly gripping the cradle or device.
E
D
F
E
D
F
Dual T to 17mm Ball Mount Installation for Garmin
Step 1. Slide the dual T slots on ball adapter plate on to the dual T
tabs on the air vent pedestal.
Step 1. Attach the device cradle to the pedestal by inserting the
17mm ball (E) into the cradle cavity (F).
17mm Ball Device and Pedestal Adjustment for Garmin
DE
The Mobile Mounting Specialists™
www.arkon.com
Arcadia, CA 91006 USA
Made in Taiwan
© Copyright 2008 Arkon Resources, Inc.
Safety Precautions
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and/or air
bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
®
!
Consumer Hotline:
USA [phone]
INT’L [phone]
Monday - Friday 9 am - 5 pm, PST
