Arkon TT123-G User manual

!Safety Precautions
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and/ or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
The Mobile Mounting Specialists™
Consumer Hotline:
USA [phone]
INT’L [phone]
Monday - Friday 9 am - 5 pm, PST
TT123-G
|Cup Holder Mount with Flexible Gooseneck for TomTom GPS
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in China and Taiwan
© Copyright 2010 Arkon Resources, Inc.
APTTO
Adapter plate for
TomTom ONE
APTTOXL
Adapter plate for
TomTom ONE XL
and XL • S
APTTGO520
Adapter plate for
TomTom GO x20, x30
Check Compatibility
Check Compatibility
Check Compatibility
Check Compatibility
Check Compatibility
APTTEP
Adapter Plate for
TomTom EasyPort™
APTTSE
Adapter Plate for
TomTom Start™ & Ease™
Patented & Patents Pending

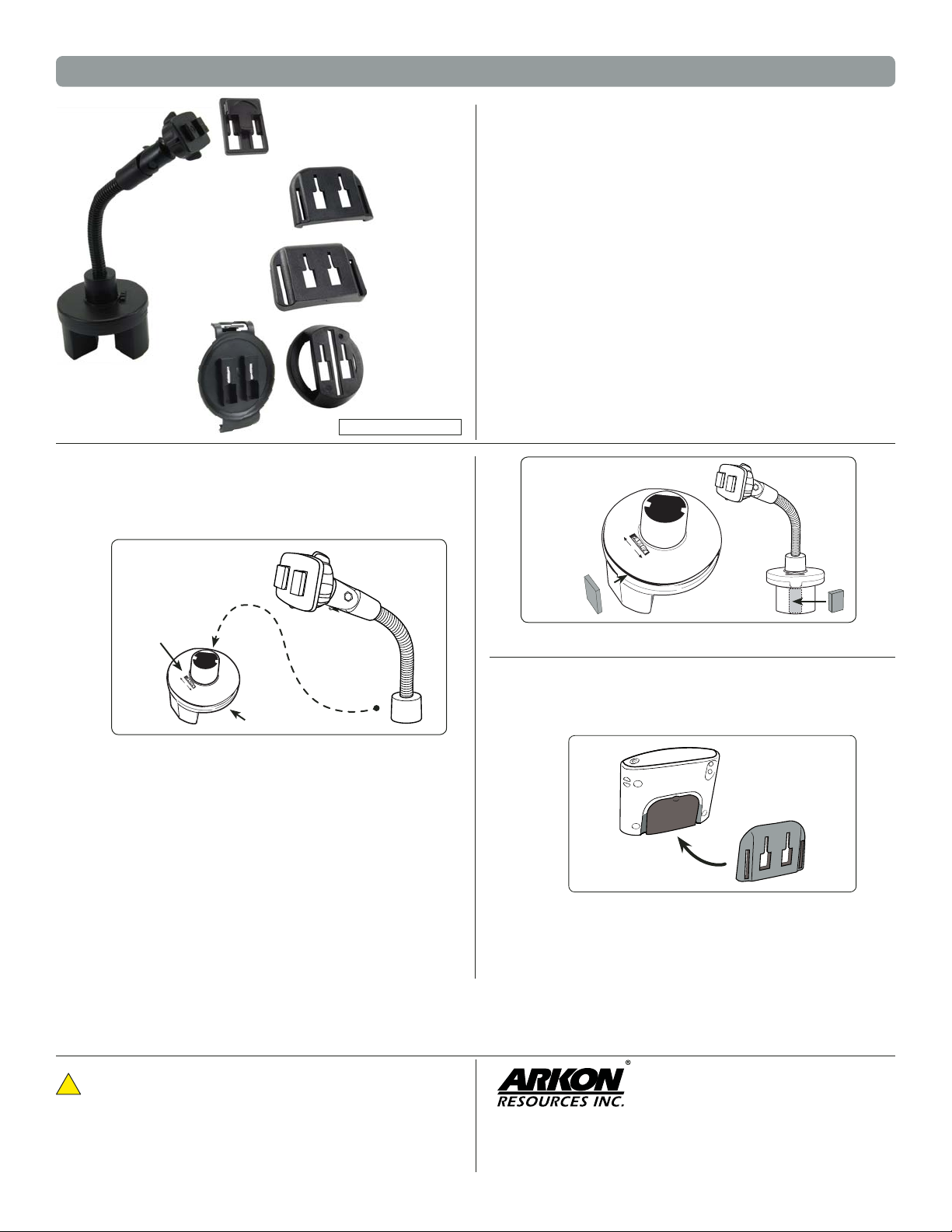

Package Contents:
(1) GN033-SBH - 5” Cup holder pedestal mount with flexible gooseneck shaft
(1) APTTO - Adapter plate for TomTom ONE™ Series
(1) APTTOXL - Adapter plate for TomTom ONE XL / XL • S™ Series
(1) APTTGO520 - Adapter plate for TomTom GO™ Series
(1) APTTEP - Adapter plate for TomTom EasyPort™ Series
(1) APTTSE - Adapter plate for TomTom Start™ and Ease™
TomTom, ONE, GO, and EasyPort, Start and Ease are product names, trademarks, or registered trademarks
of TomTom International b.v. Arkon Resources, Inc. is not affiliated with TomTom International b.v.
TomTom Device Compatibility:
TomTom ONE 125 125-SE (TomTom EasyPort Mount)
TomTom ONE 130, ONE 130-S (TomTom EasyPort Mount)
TomTom ONE 140, ONE 140-S (TomTom EasyPort Mount)
TomTom XL 325, XL 325-S, XL 325-SE (TomTom EasyPort Mount)
TomTom XL 330, XL 330-S (TomTom EasyPort Mount)
TomTom XL 335 Series (TomTom EasyPort Mount)
TomTom XL 340, XL 340-S, XL 340 LIVE Series (TomTom EasyPort Mount)
TomTom XL 350 Series (TomTom EasyPort Mount)
TomTom XXL 530-S, XXL 535-T, XXL 540-S/WTE, XXL 550 Series (TomTom EasyPort Mount)
TomTom ONE (US Edition, US 3rd Edition)
TomTom ONE XL (1st Edition) - TomTom ONE XL-S (1st Edition)
TomTom ONE 22, ONE 22 Regional, ONE 22 Regional Traffic
TomTom XL 22, XL 22 Regional (TomTom EasyPort Mount)
TomTom ONE UK / EUROPE (NEW Edition aka 2nd Edition, 3rd Edition)
TomTom GO 520 / 530 / 630 / 720 / 730 / 920 / 920T / 930
TomTom Start and Ease
Slide the adapter plate up into the grooves on the back of the
TomTom ONE, ONE XL, or ONE XL• S device.
TomTom ONE, ONE XL, and ONE XL• S Plate Installation
Step 1.
GN033-SBH
Cup Holder Pedestal
(A) Cup Holder
Neck
Cup Holder Mounting
Connect the gooseneck shaft (A) to the cup holder base (B)
by aligning the groove on the base to the ridge inside of the
bottom of the shaft.
Place the Universal Cup Holder Mount into the designated
cup holder in the vehicle. Adjust the thumb wheel adjuster
(C) to open or close the cup holder prongs to fit in the cup
holder.
For oversize cup holder openings or the adjustable “pop
out” cup holders use the optional self-adhesive side support
pads (D). Install the pads by removing the adhesive backing
and placing it on the flat surface side of the cup holder
support leg.
Step 1.
Step 2.
Step 3.
CLOSE
OPEN
(B) Cup Holder Base
(C) Thumb wheel
adjustment
knob
(D) Optional
support
pads
CLOSE
OPEN
Continued on other side...

!Safety Precautions
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and/ or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
The Mobile Mounting Specialists™
Consumer Hotline:
USA [phone]
INT’L [phone]
Monday - Friday 9 am - 5 pm, PST
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in China and Taiwan
© Copyright 2010 Arkon Resources, Inc.
TomTom GO Adapter Plate Installation
Step 1. Attach the adapter plate by sliding it up into the slot on the
back of the TomTom GO 520, 530, 630, 720, 730, 920, 920T or
930 device as shown. Attach the device as shown below.
Connect the dual T-slots (A) on adapter plate to the dual T-tabs
(B) on the pedestal head. Adjust the angle of the head by
tightening the head adjustment knob (C).
Step 1.
A
B
C
TomTom EasyPort Adapter Plate Installation
Step 1. While holding the mounted adapter plate, gently insert the
device (not included, sold separately) into the adapter plate
until an audible click is heard. The device can then be rotated
into the desired viewing angle.
TomTom EasyPort Device Insertion
TomTom Adapter Plate Attachment
Attach the TomTom dual-T adapter plate to the mount by
inserting the dual-T tabs of the pedestal (A) into the dual-T
slots on the adapter plate (B).
While holding the mounted TomTom adapter plate, gently
insert the TomTom device (not included, sold separately) into
the adapter plate until an audible click is heard.
Step 1.
Step 2.
H
(Device sold
separately)
A
B
TT123-G
|Cup Holder Mount with Flexible Gooseneck for TomTom GPS
