Arrow PT15G User manual

Instruction Manual
Important Information.
Please read carefully before use.
Upon purchase of this product, read and
follow all safety rules and operating
instructions before first use.
Includes:
Technical Data
Important Safety Rules
Operating Instruction
Maintenance
Parts List
www.arrowfastener.com
PNEUMATIC
ANGLED NAILER
PNEUMATIC
BRAD NAILER
PNEUMATIC
PIN NAILER
15G™
18G™
23G™

2
3 YEAR LIMITED WARRANTY
Arrow Fastener Company warrants to the original consumer purchaser (“you”) that this
product will be free from original defects in materials and workmanship for 3 years after
you purchase it. If the product does not comply with this warranty, Arrow will, at its
option, repair or replace the product with an equivalent product at no charge to you. This
warranty is not transferable. For best performance, use genuine Arrow nails. Arrow nails
are made to exact tolerances to insure trouble-free performance. This warranty does not
cover defect or damage to the extent caused by the use of non Arrow branded nails. This
warranty also does not cover damage relating to normal wear and tear, misuse, abuse,
neglect, accident, natural disaster, or alteration of the product without Arrow’s consent.
TO THE EXTENT PERMITTED BY LAW, ANY IMPLIED WARRANTIES, INCLUDING ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO THE SAME DURATION AS THIS EXPRESS WARRANTY. Some states do not
allow limitations on how long an implied warranty lasts, so the above limitation may not
apply to you. NO OTHER EXPRESS WARRANTY HAS BEEN MADE OR WILL BE MADE
BY ARROW WITH RESPECT TO THIS PRODUCT. ARROW SHALL NOT BE RESPONSIBLE
FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES WHETHER ARISING OUT
OF BREACH OF WARRANTY, BREACH OF CONTRACT, TORT, OR OTHERWISE. Some
states do not allow the exclusion of incidental or consequential damages so the above
exclusion and limitation may not apply to you. This warranty gives you specific legal
rights, and you also may have other rights which vary from state to state. This guarantee
does not affect your statutory rights. In Canada, the above provisions are not intended
to operate where prohibited by law and do not preclude the operation of any applicable
provincial consumer protection statute which may in certain circumstances extend the
express warranty herein. To obtain the benefits of this warranty, you must send the
product securely packaged with proof of purchase and postage prepaid to:
Arrow Fastener Co., LLC
271 Mayhill Street, Saddle Brook, N.J. 07663 U.S.A.
Technical Data
Capacity......................................................80pcs
Staple length..............................................1 1/4”-2 1/2” (32-64mm)
Fastener size..............................................15Gauge
Operation pressure....................................60-100PSI (4-7bar)
Air inlet.......................................................1/4”N.P.T.
Dimension...................................................3.35”x11.96”x13.66” (85x304x347mm)
Weight ........................................................4.85lbs (2.2kgs)

3
GENERAL SAFETY RULES
1. KEEP CHILDREN, VISITORS AND BYSTANDERS AWAY FROM TOOL. Distractions
can cause misuse and possible loss of control. When tool is not operational it
should be locked in a safe place out of the reach of children.
2. USE SAFETY GLASSES AND EAR PROTECTION: Air tool operators and others in
work area should always wear safety glasses and ear protection to prevent injury
from flying debris as well as possible hearing damage.
3. NEVER USE OXYGEN, COMBUSTIBLE OR ANY OTHER BOTTLED GAS as a power
source or it can cause an explosion and serious personal injury. (See fig 2.)
4. DO NOT CONNECT TOOL TO COMPRESSED AIR THAT EXCEEDS 120PSI.
5. MAKE SURE HOSE IS FREE OF ANY OBSTRUCTIONS OR SNAGS. Entangled hoses
can cause loss of balance or footing.
6. KEEP THE TOOL POINTED AWAY FROM YOURSELF and others at all times and
keep hands, any body parts away from rear area to safety guard against possible
injury.
7. DISCONNECT TOOL FROM AIR SUPPLY BEFORE LOADING FASTENERS to
prevent accidental firing during connection.
8. DO NOT KEEP THE TRIGGER OR SAFETY DEPRESSED WHEN LOADING STAPLES.
This can cause unintentional firing and accidental injury may occur.
9. DISCONNECT TOOL FROM AIR SUPPLY HOSE and close the compressor before
performing maintenance and during non-operation.
10. DO NOT OVERREACH DURING USAGE. Maintain proper footing at all times to avoid
loss of balance and possible injury.
11. DO NOT DRIVE FASTENERS CLOSE TO THE EDGE OF THE MATERIAL. This can
cause the workpiece to potentially split resulting in fasteners ricocheting causing
injury to you or your coworkers.
12. DO NOT DRIVE FASTENER ON TOP OF NAILED FASTENERS, or the fasteners can
ricochet causing personal injury.
13. NEVER USE A TOOL THAT IS LEAKING AIR, HAS MISSING OR DAMAGED PARTS
OR REQUIRES REPAIR. and make sure all the screws are securely tightened.
14. ALWAYS OPERATE TOOL IN CLEAN WELL LIT AREAS. Be sure the work area is
clear of any debris.
15. ONLY USE PARTS AND ACCESSORIES recommend by manufacturer.
16. BE AWARE OF MATERIAL THICKNESS DURING USE. A protruding nail can cause
injury.
17. DO NOT DRIVE NAILS BLINDLY INTO SURFACES. Be aware of possible electrical
wires, plumbing or other types of obstructions that can cause injury or damage.
Fig 2.

4
GENERAL SAFETY RULES
WARNING!
Some dust created by power sanding, sawing, grinding, drilling, and other construction
activities contains chemicals known to the State of California to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work.
To reduce your exposure to these chemicals: work in a well ventilated area, and work
with approved safety equipment, such as those dust masks that are specially designed to
filter out microscopic particles.
Use of this tool can generate and/or disburse dust, which may cause serious and
permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory
protection appropriate for the dust exposure. Direct particles away from face and body.
Always operate tool in well-ventilated area and provide for proper dust removal. Use dust
collection system wherever possible.

5
OPERATING INSTRUCTIONS
Description
Arrow’s 15GPT angle finish nailer drives 15G finish nails from 1 ¼” (32mm) to 2 1/2”
(64mm) length. Its large cast aluminum body provides the power to easily drive nails
in to harder woods. The angled magazine makes it easy to reach tight corners and the
360-degree exhaust port minimizes dust and debris. It also features a quick release nose
cover to easily clear jams. Arrow’s 15GPT Angle finish nailer is ideal for door and window
trims, exterior trims, and cabinet work, finish paneling, decorative trims and etc.

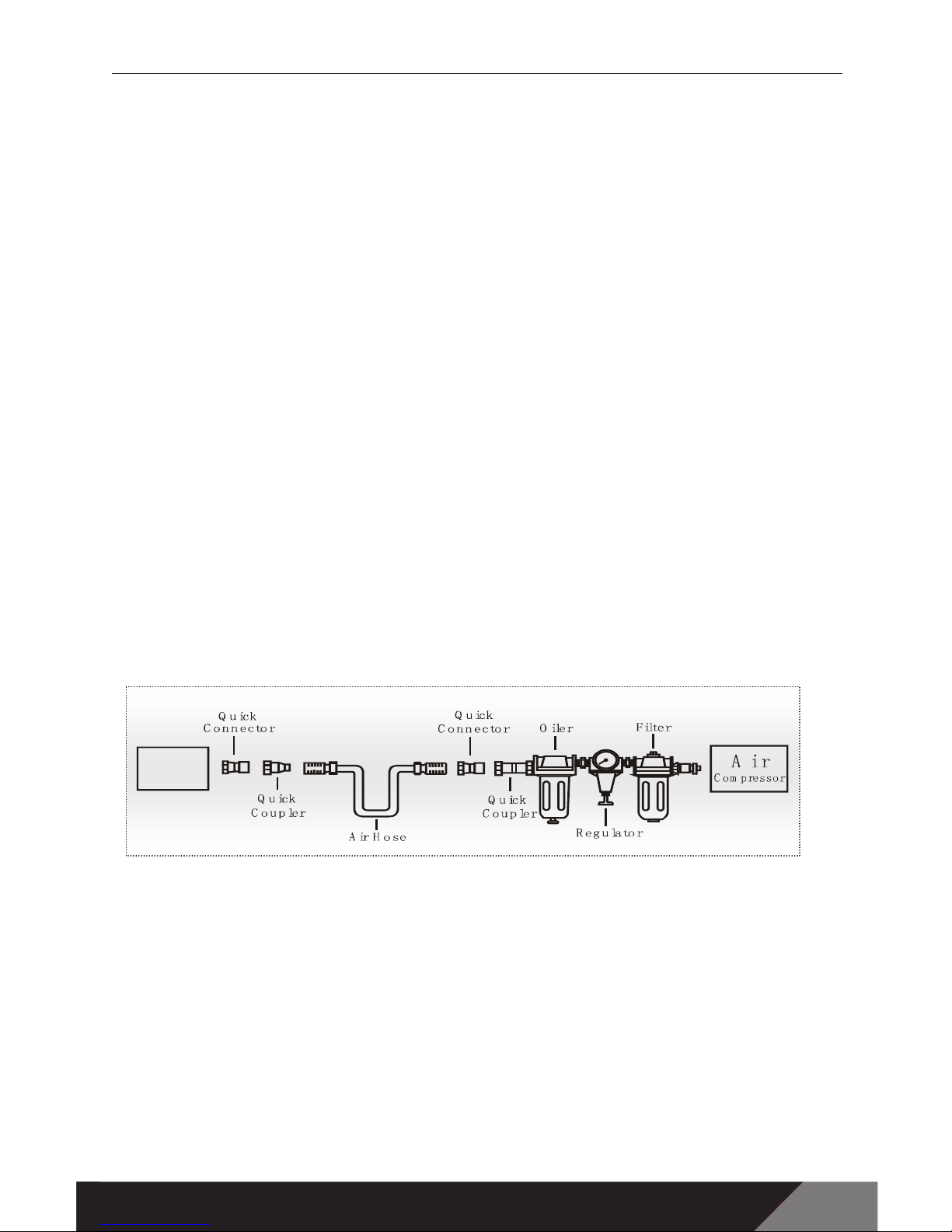

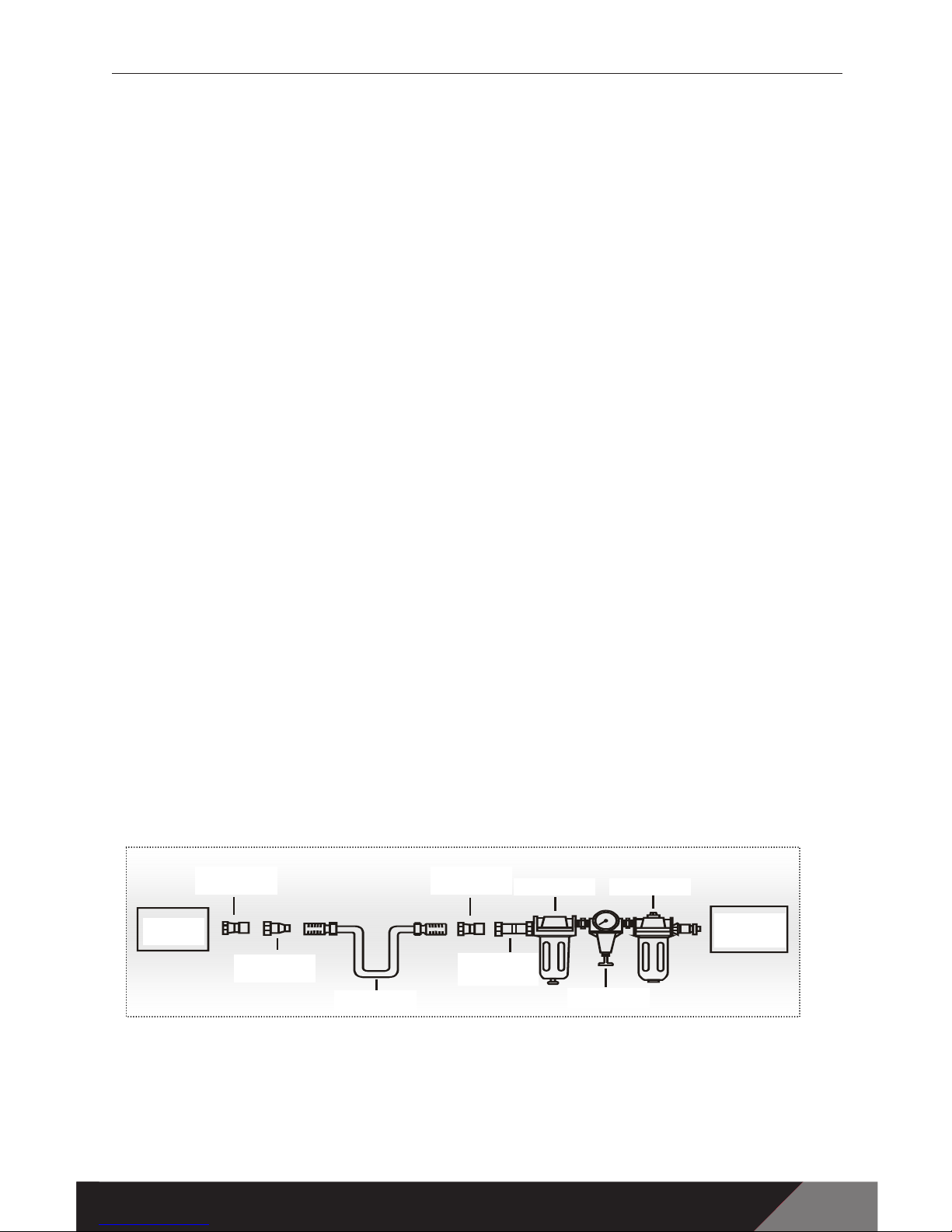

Air supply
1. Use clean, Dry and Regulated compressed air at 60-100psi (4-7 bar)
2. Never exceed maximum and minimum pressure. Too low or too high pressure would
cause noise wear and tear or misfiring.
3. When connecting air supply always keep hands and body away from discharge area of
tool.
4. A filter-regulator-lubrication is required and should be located as close to tool as
possible.
5. Keep air filter clean. A dirty filter will reduce the air pressure to the tool causing a
reduction in power and efficiency.
6. For better performance, install a quick connector in your tool and quick coupler on the
hose if possible.
7. Be sure all connections in air supply system are sealed to prevent air loss.
Fig 4.
Tool
