Aspire MAXI LIFESTYLE User manual

USER MANUAL
MAXI LIFESTYLE
COMMUNITY CARE BED

2 3www.aspirecare.com.au
TABLE OF CONTENTS
Thank you for choosing the Aspire MAXI Bed,
from our Lifestyle Community Bed Range.
This product has been specifically designed
to oer comfort, support and safety.
It is important that you read this user manual
carefully before using your new bed.
1. Introduction
2. Safety Precautions
3. Product Overview
4. Assembly Instructions
5. Operation
6. Accessories
7. Transport & Storage
8. Troubleshooting
9. Cleaning
10. Service & Maintenance
11. Specifications
12. Technical Information
13. Warranty
14. Service Log Book
4
5
7
8
11
13
14
16
17
18
20
21
21
22

4 5www.aspirecare.com.au
2. SAFETY PRECAUTIONS1. INTRODUCTION
The Aspire MAXI Lifestyle Community Bed is an electrically operated bed for the
community, homecare, aged care and acute care environments. The bed has a
fabricated steel frame with a powder coat finish and utilises plastic components of
various material specifications.
Clinical Applications and Area of Use
The bed is appropriate for adult patient care and should only be used under the
instruction of a carer or health professional where concerns exist around patient
safe use.
Key Features
• Maximum safe working load (SWL) of the bed is 385kg with a maximum user
weight of 350kg.
• Available in Super King Single size.
• Electrically adjusted height range of 330-730mm.
• Total lock foot operated castor wheels.
• Four section electrically operated mattress platform with independent adjustment
of backrest angle (maximum 73°) and knee section angle (maximum 30°).
• Trendelenburg / Reverse Trendelenburg angle of 10°.
• Removable mattress retainer handles.
• Electric folding bed facilitates easy relocation and storage without the need to
disassemble bed sections.
It is important that this User Manual is read in its entirety prior to operating the
bed. The manual is designed to ensure that users are equipped with the information
required to competently and responsibly operate the bed and its accessories.
It is recommended that the User Manual be kept in an easily accessible place for
quick reference. If required, Aspire product specialists can provide additional
training.
All warnings and cautions within this manual should be strictly adhered to. Failure to
do so could result in harm to the patient or operator.
Warnings highlighted throughout this manual identify possible hazards
in procedures or conditions which if not followed correctly could result in
serious injury or fatality.
Cautions highlighted throughout this manual identify possible hazards in
procedures or conditions, which if not followed correctly could result in equipment
damage or failure.
GENERAL
•Electrical equipment can be hazardous if used incorrectly.
• Residual current devices (RCD) are not supplied with the Aspire MAXI Lifestyle
Community Beds. Please consult with your Biomedical Engineer/Advisor
concerning RCD requirements.
• The clinically qualified person responsible should consider the age, size and
condition of the patient before using the bed and its accessories.
• The maximum safe working load of the Aspire MAXI Lifestyle Community
Bed is 385kg including the mass of the patient, mattress and any accessories fitted
to the bed.
• The maximum user weight is 350kg.
• Suggested maximum mattress thickness that can be used on the Aspire
MAXI Lifestyle Community Care Bed is 200mm.
• Side rails must only be used with a mattress of appropriate size, which is approved
for use with the bed.
• If a patient’s condition could lead to possible entrapment risk the mattress support
platform should be left in the flat position whilst unattended.

6 7www.aspirecare.com.au
• ALWAYS position the bed at its lowest height when unattended by
caregivers to minimise the risk of patient injury.
• ALWAYS use a mattress of appropriate size and type. A range of suitable
pressure reducing and pressure relieving mattresses are also available from
Aidacare.
• ALWAYS make sure that the patient is safely positioned to miminise the risk of
entrapment before operating the bed.
• ALWAYS ensure that attendant and patient limbs are free from potential
entrapment areas before operating any functions.
• ALWAYS ensure that the bed is at a suitable height to avoid stooping or
straining before transporting.
• ALWAYS apply the brakes when the bed is stationary.
• ALWAYS store the handset when not in use to avoid accidental operation of the
beds functions. The handset can be stored by hooking it on to the side rail of the
bed.
• ALWAYS ensure that all drips, drains and power cables are free from possible
entanglement with mechanical parts of the bed.
• DO NOT place the handset, or power cord across the mattress surface of the
bed when the bed is not connected to mains power. Always store the power
cord within the power cord fixtures fitted to the bed.
• DO NOT use electrically operated beds in operating theatres.
• DO NOT use electrically operated beds in the presence of flammable gases.
• DO NOT use the bed to support more than one patient. Aspire MAXI Lifestyle
Community Beds are intended for single person use and may become unstable
if used incorrectly.
• DO NOT use accessories that are not designed, or approved for use with Aspire
MAXI Lifestyle Community Beds.

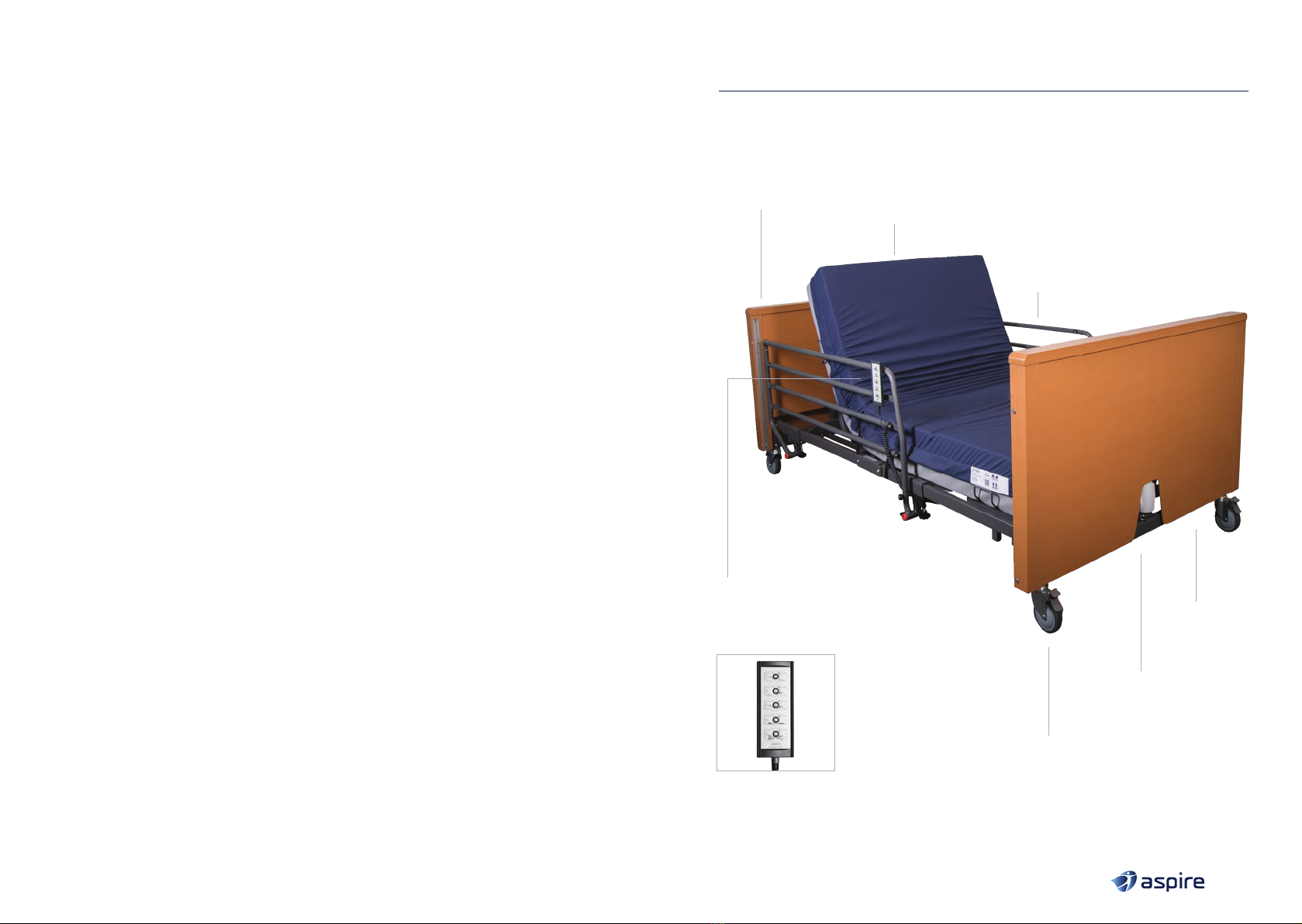

3. PRODUCT OVERVIEW
Please take the time to familiarise yourself with the key components shown below:
LIFT ACTUATOR
EASY MOVE
LOCKING CASTORS
Locking with foot leverHANDSET
MATTRESS PLATFORM
(mattress surface)
HEAD SECTION
Raises the patient’s upper
torso to a sitting position
FOOT PANEL
LINAK
ELECTRONICS
HEAD PANEL

8 9www.aspirecare.com.au
UNLOCKED
UNLOCKED
Assembly and Operation

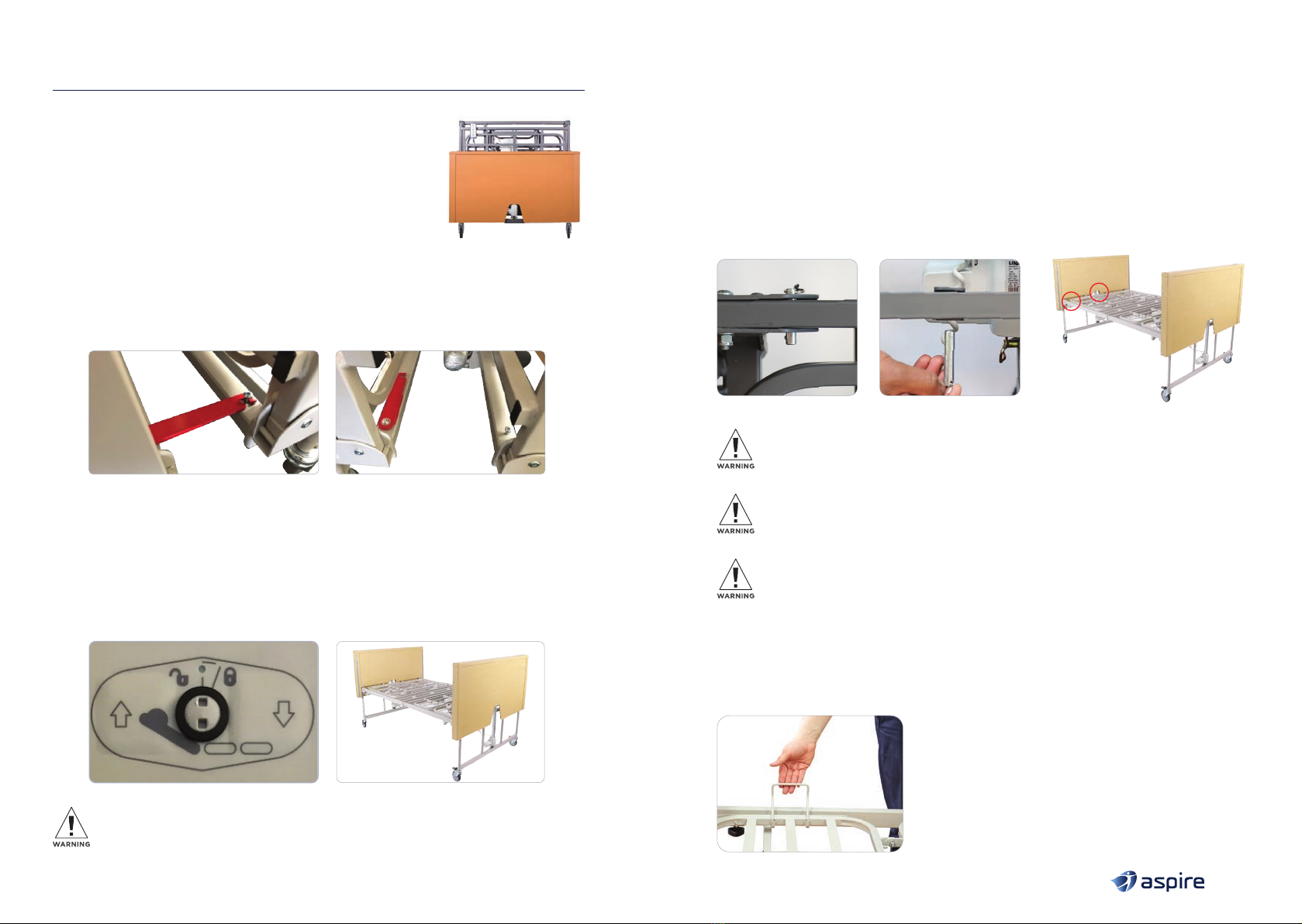

Aspire MAXI Lifestyle Community Beds come packaged on their
transport bracket, ready to be transported and set up as necessary.
Remove cardboard sleeves o bed ends and central frame prior
to assembly.
4. ASSEMBLY INSTRUCTIONS
1. Unhook the locking latch allowing the bed to start to open on it’s own. This latch needs to
be unhooked prior to placing the bed into it’s flat position.
1. Move bed against wall where it will be positioned, ensuring the castors closest to the wall
are locked in place.
2. Press the backrest down button to engage the bed actuators. The bed will slowly extend
out from the wall into the flat position.
1. Prior to use, the backrest actuator must be secured in place, so the bed does not fold when
in use. Unhook the pin located in the side pivot of the bed.
2. Locate pin in hole between backrest to lock the backrest in place.
LOCKED
LOCKED
Never attempt to unfold the bed automatically before unhooking the
locking latch.
Before folding the bed back up make sure that the mattress platform, including the
leg rest, is completely flat and that the bed is in the lowest position.
Never attempt to use any other functions on the bed when in the folded position.
Only the backrest buttons to either fold or unfold the bed. Only use the other
functions when the bed is completely unfolded and flat.
Make sure not to damage any cables. Verify that the cables do not get tangled and
that they do not get caught in any in moving parts.
Unlocking Locking Latch
Move Bed to Flat Position
Lock the Bed in Place
1. Slide mattress retainers into metal slots located on the side at both ends of the bed
(4 x retainers in total).
Attaching Mattress Retainers

10 11www.aspirecare.com.au
1. Insert self-help or IV pole into sleeve at head end of the bed, aligning the notch with
the groove.
1. Unscrew fastening hand wheels to bring side rail locking clamp into an open neutral
position.
2. Align side rail mounting plate with side of mattress platform ensuring that when rails swing
away, they swing towards the foot end of the bed.
3. Tighten fastening hand wheels to lock rails into place.
4. Release rails into the downward position by pulling black spring button.
Attaching Self Help or IV Pole (optional accessories)
Attaching Side Rails (optional accessory)
5. OPERATION
Activating the handset
The handset has a locking key
permanently fastened to the
cord. This is designed to lock
out functionality for patients
with safe use concerns when
unsupervised.
To lock out positions, insert the
key with the function you want
locked out and turn to the right
to lock and left to unlock.
Power on light indicates system
is active.
Backrest incline/decline
Backrest & knee bend synchronous incline/
decline
Knee bend incline/decline
Hand Control Functions

12 13www.aspirecare.com.au
Always ensure that a health professional has assessed the patient regarding
their suitability for Trendelenburg positioning.

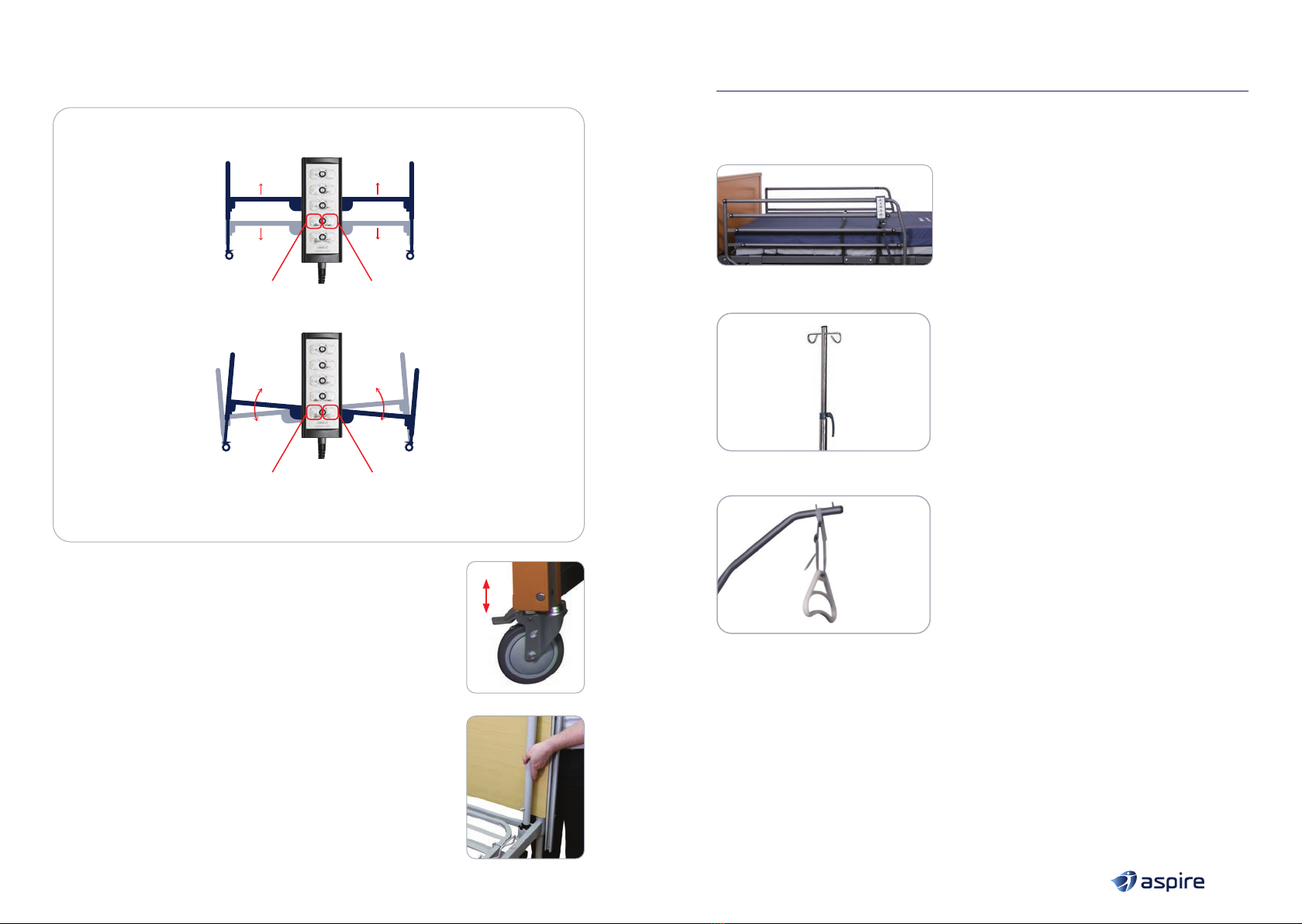

Hand Control Functions (continued...)
Bed raise to 730mm* Bed lower to 330mm*
*Measurements taken from top of bed frame to ground level.
Trendelenburg tiltReverse Trendelenburg tilt
Castor Use
• This bed has 4 total-lock castors.
• To apply the brake, use your foot to press down on the
lever at each castor.
• To unlock the brake, use your foot to down on the
unlocking latch at the top of the castor.
Self-Help Pole
• This should be placed on the side of the bed that the
user gets in/out of bed to assist for safe egress. Ensure
that the Self Help Pole is sitting securely in place with
notch in groove.
6. ACCESSORIES
3/4 Folding Side Rails
BEA016586
Refer to page 10 for further instructions.
The following accessories are sold separately or as part of a bed package kit.
IV Pole
BEA016592
Refer to page 10 for further instructions.
Self Help Pole
BEA016598
Refer to page 10 for further instructions.

14 15www.aspirecare.com.au

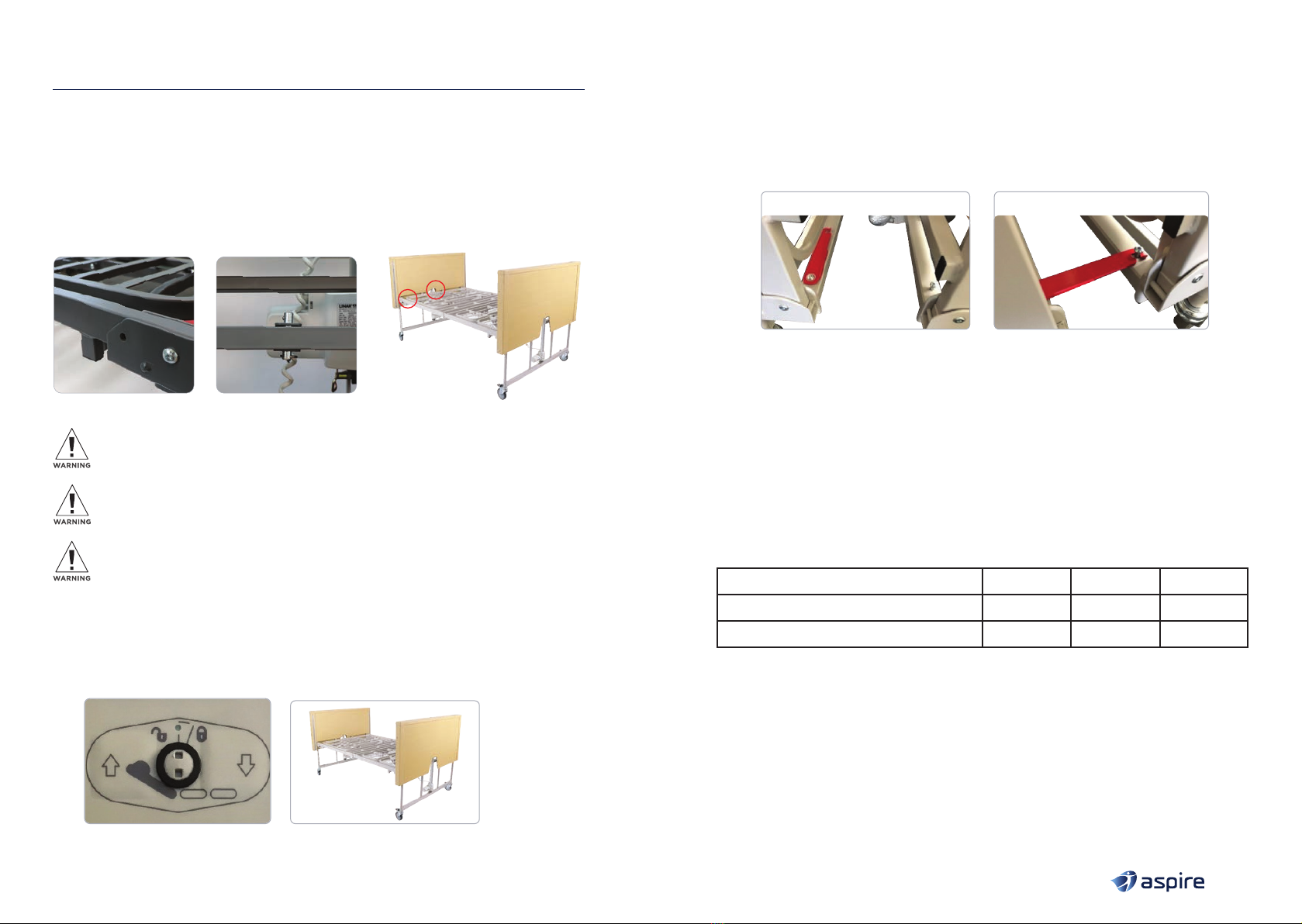

LOCKED
1. Unhook pin from hole mounted between backrest.
2. Locate pin in side pivot mount.
3. Mount.
Before folding the bed back up make sure that the mattress platform, including the
leg rest, is completely flat and that the bed is in the lowest position.
Never attempt to use any other functions on the bed when in the folded position.
Only the backrest buttons to either fold or unfold the bed. Only use the other
functions when the bed is completely unfolded and flat.
Make sure not to damage any cables. Verify that the cables do not get tangled and
that they do not get caught in any in moving parts.
Locking the Bed
7. TRANSPORT & STORAGE
UNLOCKED
1. Once bed is electrically raised to it’s furthest point, lock in place.
1. Press the backrest up button to engage the actuators. The bed will slowly retract and fold
up (about 70% of the way).
Lock Bed in Place
Fold Bed Up
LOCKED
Storage Conditions
Aspire MAXI Lifestyle Community Beds should be stored in a clean, dry, well
ventilated area.
The following limits apply during transport and or a storage period of up to 15
weeks duration:
Ambient Temperature -25°C To +70°C
Relative Humidity 10% To 75%
Air Pressure 50 kPa To 106 kPa
UNLOCKED

16 17www.aspirecare.com.au
Fault Cause Solution
Controller
inactive and
power on light is
not active
Power fault • Primary power cable connection should be
checked for cable damage and correct insertion.
• All power leads to actuators should be checked
for correct insertion and or damage.
Lift Actuator
control not
working
Linak
Electronics Fault
• All power leads and plugs should be checked for
correct insertion and not visible damage.
• Connector pins should be aligned, any unusual
bends may suggest damage.
Handset buttons
do not work?
The safety
lockout function
is active
• Ensure specific function is not locked out and that
handset cable is securely fastened.
Should problems persist contact Aspire Service on 1300 133 120.
8. TROUBLESHOOTING 9. CLEANING
Before cleaning always disconnect the bed from the mains power source
and remove Linak electronics system from mattress platform.
Note: It is strongly recommended that protective clothing be used when cleaning.
Note: The following procedure also applies to the bed accessories, but does not
include mattresses.
• Wipe the bed surfaces with a soft cloth moistened with hot water and mild
detergent (or the facility’s recommended cleaning solution). It is recommended
that the cloth be a white material to prevent bleeding of dye colours to the bed.
Take extra care in areas that can harbour dirt or dust.
• Rinse with clean water and a dry clean cloth.
• To remove potentially infectious materials such as body fluids, or when the bed
has been used by someone with a known infection, clean with NaDCC (e.g.
Presept, Actichlor) at 10,000 ppm of available chlorine. Rinse and dry.
• Allow the cleaned parts to dry before replacing the mattress.
CAUTION
Do not use abrasive Hypocarbonate or Phenolic compounds or pads.

18 19www.aspirecare.com.au
10. SERVICE & MAINTENANCE
To prolong the working life of the bed and for trouble free operation it is
recommended that routine inspections should be performed by a person who
is suitably qualified and well acquainted with the design, use and care of MAXI
Lifestyle Community Beds.
If inspection reveals that the safety of the bed is compromised in any way, it should
be IMMEDIATELY WITHDRAWN FROM SERVICE, tagged as such and the owner
notified, until repair or replacement has occurred.
Inspection:
A visual and functional inspection should be performed monthly and every time the
bed changes user.
• Visually inspect electrical components: can you see damage to the hand control
or power cord?
• Visually inspect mechanical components: can you see damage, chips or
deformation to the frame, bed ends, side rails or self help pole?
• Is the hand control functioning as it should?
• Are the castors, brakes and accessories functioning as they should?
1. Overall functional check that all
hand control functions are operating
the bed as expected.
2. Overall inspection for visible signs of
wear, tear or damage to the integrity
of electronics and cables.
3. Actuators and all moving
components should not make
unusual noises.
4. Side rail attachment and function
should be assessed along with the
locking integrity of castors.
5. Electrical test & tag – where
beds are in use in a commercial
environment then the testing regime
applied should align with the risk
assessment made by the owner
for safety and other compliance
requirements.
Preventative Maintenance:
NOTE: Other than general maintenance activities all other service or repair
work must be performed by qualified and trained persons or agents approved
by Aidacare.
The following preventative maintenance procedures should be carried out every
12 months or as otherwise specified:
General
1Examine all the warning signs on the bed. Examine the bed for obvious signs of
damage. Check that all nuts, bolts and other fasteners are tight and are not missing.
2Examine flexible cables and conduits for cuts, cracks, abrasions or other
deterioration.
3
Check that the power supply plug is not damaged. If either the power cable or plug is
damaged then both the cable and plug must be replaced as a complete assembly by
an approved service agent.
Braking System
1Apply the brakes and push the bed forwards. If any of the four braking castors rotate
the brake is not fully eective.
2Check the castors for correct operation.
3If any are not working correctly contact an approved service agent.
Side Rails (if fitted)
1
• The locking pin mechanism and striker plate arrangement should be checked every
three months.
• Inspect the side rails for general wear and tear on fittings and pivot joints every six
months.
• Check for rust, structural integrity of welds and paint finish every twelve months.
2Raise the side rail to the upright position until the locking mechanism clicks into
place.
3Check that the rail clamps are securely fitted to the bed.
The bed must be disconnected from the mains power supply before
starting the following maintenance activities:

20 21www.aspirecare.com.au

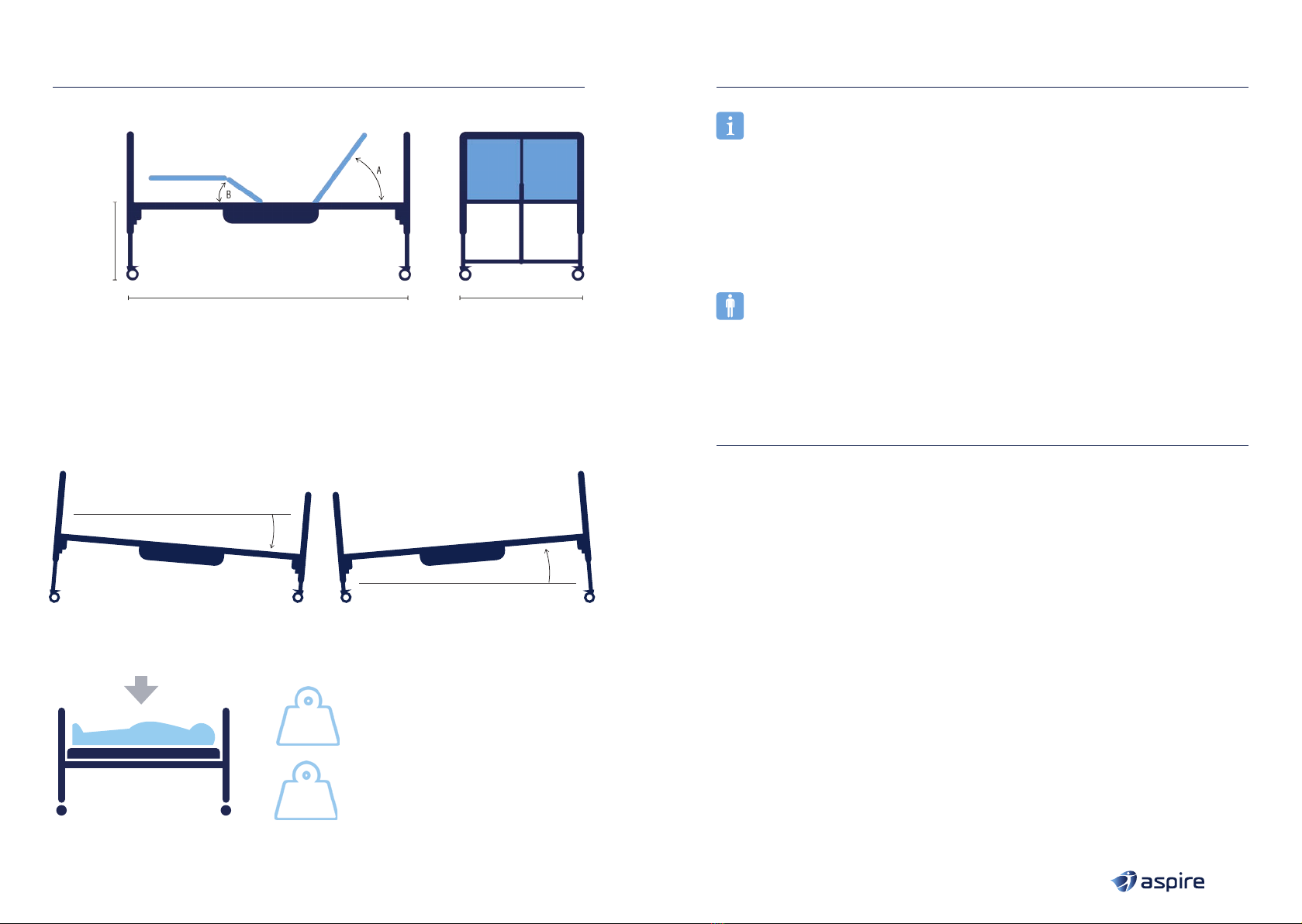

11. SPECIFICATIONS
Degrees of Movement
A. Upper body profiling 73° Max.
B. Lower body profiling 30° Max.
C. Trendelenburg 10° Max.
D. Reverse Trendelenburg 10° Max.
Weight Capacity
Leg 510mm
Main Actuator 706mm
2020 - 2120mm 990mm
Thigh 349mm Sacral 217mm Upper Body 718mm
Highest
1100mm
Lowest
710mm
156mm B
A
C
D
BACKREST
INCLINE/DECLINE
60°
KNEE BEND
INCLINE/DECLINE
30°
TRENDELENBURG
TILT
12° (both ends)
S.W.L
150 kg
BED HEIGHT RANGE
220 – 710 mm
BED WIDTH
940 mm
MATRESS PLATFORM
LENGTH
2020 – 2120 mm
(in 25mm increments)
Safe Working Load
(incl. mattress & accessories)
Max. Patient Load
Overall Width: 1360mm
Mattress Platform Width: 1150mm
Overall Length: 2290mm
Mattress Platform Length: 2060mm
Main Actuator 706mm
Overall Height:
930-1330mm
Mattress
Platform Height:
330-730mm
385KG
350KG
12. TECHNICAL INFORMATION
Electrical Ratings:
Voltage: 230V ~ +/- 10%V
Max current: 5A
Voltage output: 24V DC ~ max. 70V DC.
Operating Frequency: 2 min on, 18 min off Push force
Pull force: Max 0 N to 4000N
Protection: IP 54
Insulation: III
User is not isolated from the ground or frame structure.
Design Focus:
IEC60601-2-52 - Anti Entrapment
For further information contact [e-mail]
13. WARRANTY
Warranty
Aspire MAXI Lifestyle Community Beds come with a two year warranty. Please keep
the purchase invoice as proof of warranty commencement.
Aidacare is bound by Australian Consumer Law in respect to Warranty Against
Defects. A copy of the Aidacare Warranty Against Defects statement is available on
the Aidacare homepage at www.aidacare.com.au. All warranty matters should be
directed to Aidacare Customer Service on 1300 133 120.
Aidacare does not warrant against excessive or incorrect use, modification or any
situation that could be deemed as fair wear and tear. This is a back to base warranty
and does not cover freight costs pertaining to the return of any items under
warranty. Aidacare acknowledges and conforms to all ACCC guidelines around
consumer rights. For further information contact Aidacare on 1300 133 120 or email
[e-mail].
Aidacare will not warrant the safety and or correct functioning of products where
any original components have been changed or modified by non-Aidacare approved
and trained service & maintenance sta or external providers. Furthermore, safety is
not guaranteed where components have been replaced with non-original Aidacare
approved parts. If any faults are detected upon receipt of this product please
phone Aidacare. Any faults that are detected during normal use should be reported
to Aidacare immediately to determine if warranty conditions apply and if so, the
necessary repair or replacement work to be completed.

22 23www.aspirecare.com.au
14. SERVICE LOG BOOK
YEAR 1
Service Type:
Condition Report:
Action taken:
Inspected By:
Date:
Signature: __________________________
YEAR 2
Service Type:
Condition Report:
Action taken:
Inspected By:
Date:
Signature: __________________________
YEAR 3
Service Type:
Condition Report:
Action taken:
Inspected By:
Date:
Signature: __________________________
YEAR 4
Service Type:
Condition Report:
Action taken:
Inspected By:
Date:
Signature: __________________________
YEAR 5
Service Type:
Condition Report:
Action taken:
Inspected By:
Date:
Signature: __________________________
NOTES

ASUM69.8 290921
AIDACARE PTY LTD
Building 3A, 1 Moorebank Avenue,
Moorebank NSW Australia 2170
1300 133 120 | www.aspirecare.com.au
MADE IN VIETNAM
