Asus PCE-N13 User manual

User Manual
Wireless N PCI-Express Adapter
PCE-N13
(
For 802.11n draft, 802.11g & 802.11b Networks
)
®
E4935 / October 2009

2 ASUS WLAN Adapter
No part of this manual, including the products and software described in it,
may be reproduced, transmitted, transcribed, stored in a retrieval system,
or translated into any language in any form or by any means, except
documentation kept by the purchaser for backup purposes, without the
express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY
OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN
NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES
OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR
LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA,
INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING
FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
Product warranty or service will not be extended if: (1) the product is repaired,
modied or altered, unless such repair, modication of alteration is authorized
in writing by ASUS; or (2) the serial number of the product is defaced or
missing.
Products and corporate names appearing in this manual may or may not be
registered trademarks or copyrights of their respective companies, and are
used only for identication or explanation and to the owners’ benet, without
intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL
ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT
TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT
BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES
THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND
SOFTWARE DESCRIBED IN IT.
Copyright © 2009 ASUSTeK COMPUTER INC. All Rights Reserved.
Copyright Information

ASUS WLAN Adapter 3
Contact Information
ASUSTeK COMPUTER INC. (Asia Pacic)
Address 15 Li-Te Road, Peitou, Taipei, Taiwan 11259
Website www.asus.com
Technical Support
Telephone [phone]
Support Fax [phone]
Software download support.asus.com*
ASUS COMPUTER INTERNATIONAL (America)
Address 800 Corporate Way, Fremont, CA 94539, USA
Telephone [phone]
Fax [phone]
Website usa.asus.com
Software download support.asus.com*
ASUS COMPUTER GmbH (Germany and Austria)
Address Harkort Str. 25, D40880 Ratingen, Germany
Fax [phone]
Online contact www.asus.com.de/sales
Technical Support
Component Telephone [phone]
System/Notebook
/Eee/LCD Telephone [phone]
Support Fax [phone]
Online support www.asus.com.de/support
Website www.asus.com.de/news
* Available on this site is an online Technical Inquiry Form that you can ll out to contact
technical support.

4 ASUS WLAN Adapter
Manufacturer: ASUSTeK Computer Inc.
Tel: [phone]
Address: No. 150, LI-DE RD., PEITOU, TAIPEI
112, TAIWAN
Authorised representative
in Europe:
ASUS Computer GmbH
Address: HARKORT STR. 21-23, 40880
RATINGEN, GERMANY
Authorised distributors
in Turkey:
BOGAZICI BIL GISAYAR SAN. VE TIC. A.S.
Tel: [phone]
Address: AYAZAGA MAH. KEMERBURGAZ
CAD. NO.10 AYAZAGA/ISTANBUL
INDEX BILGISAYAR SISTEMLERI
MUHENDISLIK SAN. VE TIC. A.S.
Tel: [phone]
Address: AYAZAGA MAH: CENDERE YOLU
NO:9 AYAZAGA/ISTANBUL
EEE Yönetmeliğine Uygundur

ASUS WLAN Adapter 5
Table of Contents
Introduction....................................................................................7
Package contents ..................................................................................7
Features.................................................................................................7
Installation......................................................................................8
System Requirements ...........................................................................8
The WLAN status indicators ..................................................................8
Installation Procedures ..........................................................................8
Installing the utilities and driver on Windows®XP/Vista OS .....................8
Installing the driver on Windows®7 OS..................................................10
Installing the driver on Linux OS ............................................................11
Using the WPS Wizard ........................................................................12
Launching the WPS Wizard ...................................................................12
Connecting via the WPS button .............................................................13
Connecting via the PIN code..................................................................14
Adding network devices using a USB ash drive...................................19
Conguring with the WLAN utility (Infrastructure)................................21
Conguring with the WLAN utility (Ad Hoc) .........................................22
Software Reference.....................................................................24
ASUS WLAN Control Center ...............................................................24
Launching the Control Center ................................................................24
Using the Control Center........................................................................24
ASUS Wireless Settings ......................................................................26
Launching the ASUS Wireless Settings .................................................26
Status - Status........................................................................................26
Status - Connection................................................................................28
Status - IP Cong ...................................................................................29
Status - Ping...........................................................................................29
Cong - Basic.........................................................................................30
Cong - Encryption.................................................................................32
Cong - Authentication ...........................................................................35
Cong - Advanced..................................................................................36
Soft AP (Windows XP/Vista)...................................................................37

6 ASUS WLAN Adapter
Survey - Site Survey...............................................................................39
About - Version Info................................................................................40
Link State ...............................................................................................41
Exit Wireless Settings.............................................................................41
ASUS Mobile Manager ........................................................................42
Site Monitor..........................................................................................51
A-S (AP mode <--> Station mode).......................................................53
Windows®XP wireless options ............................................................54
Windows®Vista wireless options .........................................................56
Windows®7 wireless options ...............................................................57
Application...................................................................................58
Setting up the XLink Mode...................................................................58
Troubleshooting ..........................................................................61
Appendix ......................................................................................63
Table of Contents

ASUS WLAN Adapter 7
Chapter 1
Introduction
Chapter 1 - Introduction
Introduction
Package contents
Check the following items in your ASUS Wireless LAN Adapter package.
Contact your retailer if any item is damaged or missing.
1 x ASUS Wireless LAN Adapter (PCE-N13)
2 x External Dipole Antenna
1 x Low Prole Bracket
1 x Warranty Card
1 x Support CD
1 x Quick Start Guide
Features
High speed networking (11n Draft) for fast download, le transfer, and
media streaming
Easy setup: Use the WPS function for easy wireless setup.
Multiple OS support: Windows, and Linux.

Chapter 2
8 ASUS WLAN Adapter
Chapter 2 - Installation
Installation
Installation
System Requirements
Before using the WLAN Adapter, ensure that your system meets the following
minimum requirements:
• Windows XP/2000/2003/Vista/7, Linux (for Linux Kernel 2.4, 2.6.29)
• 128MB system memory or larger
• 750MHz processor or higher
• The ASUS WLAN utility cannot run on Windows®7 and Linux.
• Install the utilities and driver before using the WLAN Adapter.
Installing the utilities and driver on Windows®XP/Vista OS
To install the utilities and driver on Windows®XP/Vista:
1. Insert the support CD into your optical drive. An autorun screen appears if Autorun is
enabled on your computer.
Installation Procedures
NOTE: If Autorun is disabled, double-click SETUP.EXE from the root
directory of the supportCD.
The WLAN status indicators

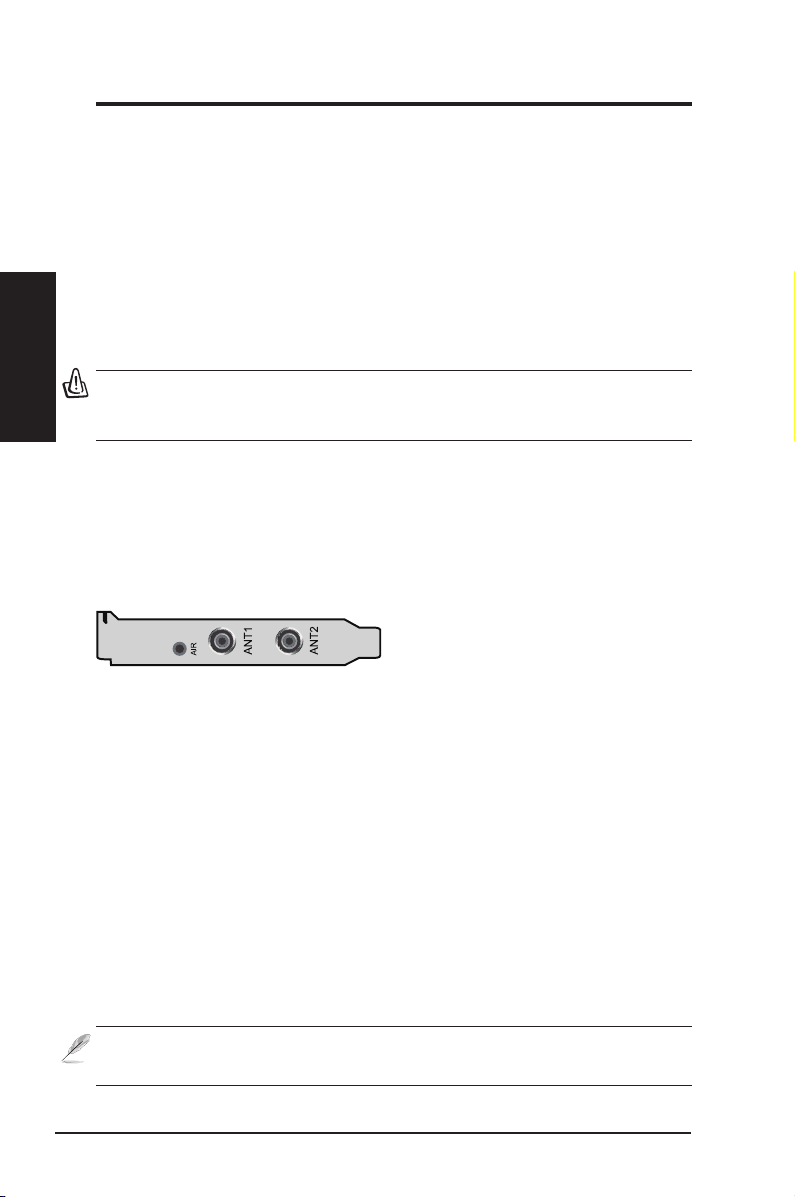

Tne AIR indicator on the ASUS WLAN card shows the status of the ASUS
WLAN card.
Orientating the antennas
The ASUS WLAN Card has two external antennas. For the maximum range
and best link quality, we recommend that you adjust the external antenna
straight up.
OFF: No wireless activity.
Blinking: Transmitting or receiving
wireless data

ASUS WLAN Adapter 9
Chapter 2 - Installation
Chapter 2
Installation
3. Click Next on the Welcome screen.
2. Select your language and click Install
ASUS WLAN Card Utilities/Driver.
5. Click Next to create short cut.
4. Click Next to use the default Destination Folder
or click Browse to select another folder.
8. Click OK to disable Windows Zero
Conguration and allow ASUS WLAN
utilities to manage your wireless network.
6. The installation process takes several
seconds.
7. When Setup is complete, click Finish to
exit the installation wizard and restart the
computer.

Chapter 2
10 ASUS WLAN Adapter
Chapter 2 - Installation
Installation
Installing the driver on Windows
®
7 OS
1. Place the Support CD into your computer's optical drive.

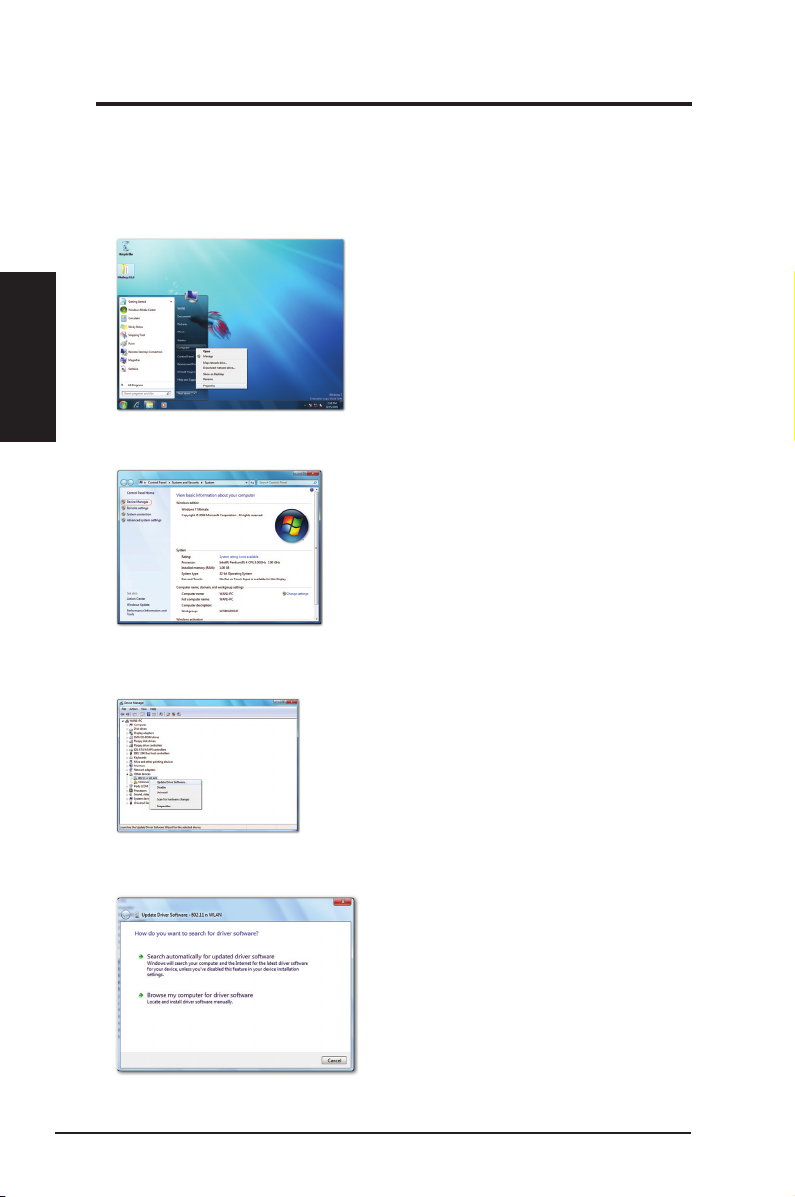

2. From the Windows®Start menu, right-click Computer then select Properties.
3. Click Device Manager at the left side of the screen.
4. The Device Manager windows appears. From the Other devices category, right-click
802.11 n WLAN then select Update Driver Software.
5. Select Browse my computer for driver software.

ASUS WLAN Adapter 11
Chapter 2 - Installation
Chapter 2
Installation

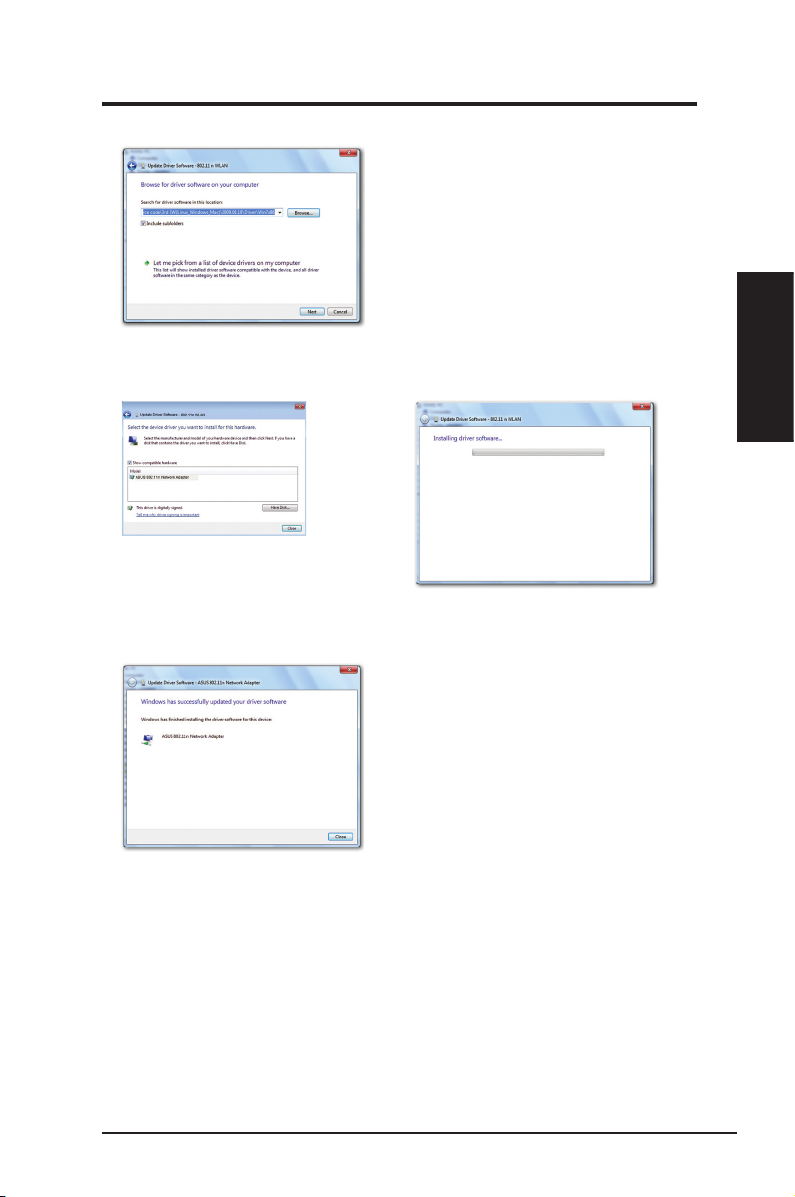

6. Click Browse to locate the Support CD folder, then click Next to start the driver installation.
You may also click Let me pick from a list of device drivers on my computer, then
select ASUS 802.11 n Network Adapter and click Next to start the driver installation.
7. Windows has successfully updated your driver software. Click Close and restart your
computer to activate the new settings.
Installing the driver on Linux OS
Refer to the README text in the Linux zip le included in the support CD.
Obtain the Linux driver source code from the support CD and build the driver
for the Linux OS that you are using.

Chapter 2
12 ASUS WLAN Adapter
Chapter 2 - Installation
Installation
Using the WPS Wizard
WPS Wizard is a utility that allows you to easily set up your wireless network
using the following:
• PIN code of the WPS router or AP that you want to connect to.
Launching the WPS Wizard
To launch the WPS Wizard:

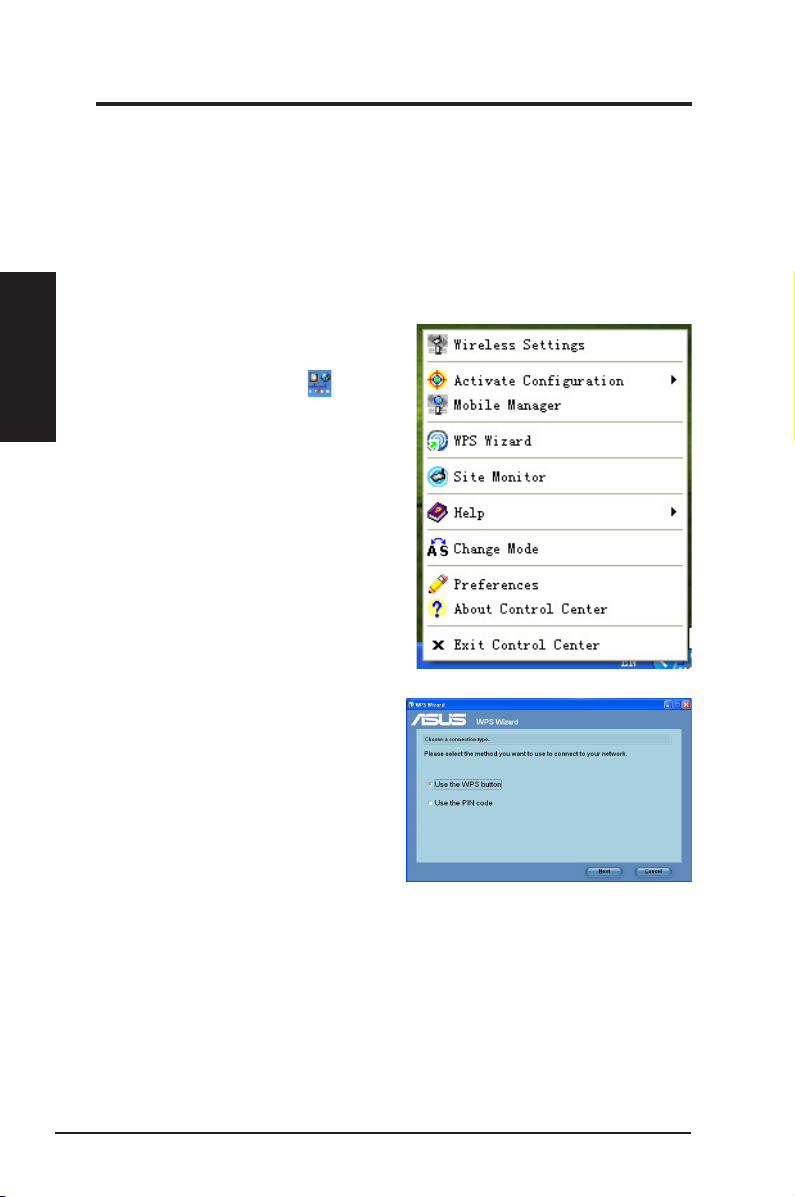

1. From the Windows®taskbar,
right-click the WLAN icon , then
select WPS.
2. The WPS Wizard appears. Select
the method that you want to use to
connect to the network.

ASUS WLAN Adapter 13
Chapter 2 - Installation
Chapter 2
Installation
Connecting via the WPS button
1. From the WPS Wizard, select Use the WPS button. Click Next.
2. Press the WPS button on the router.

Chapter 2
14 ASUS WLAN Adapter
Chapter 2 - Installation
Installation

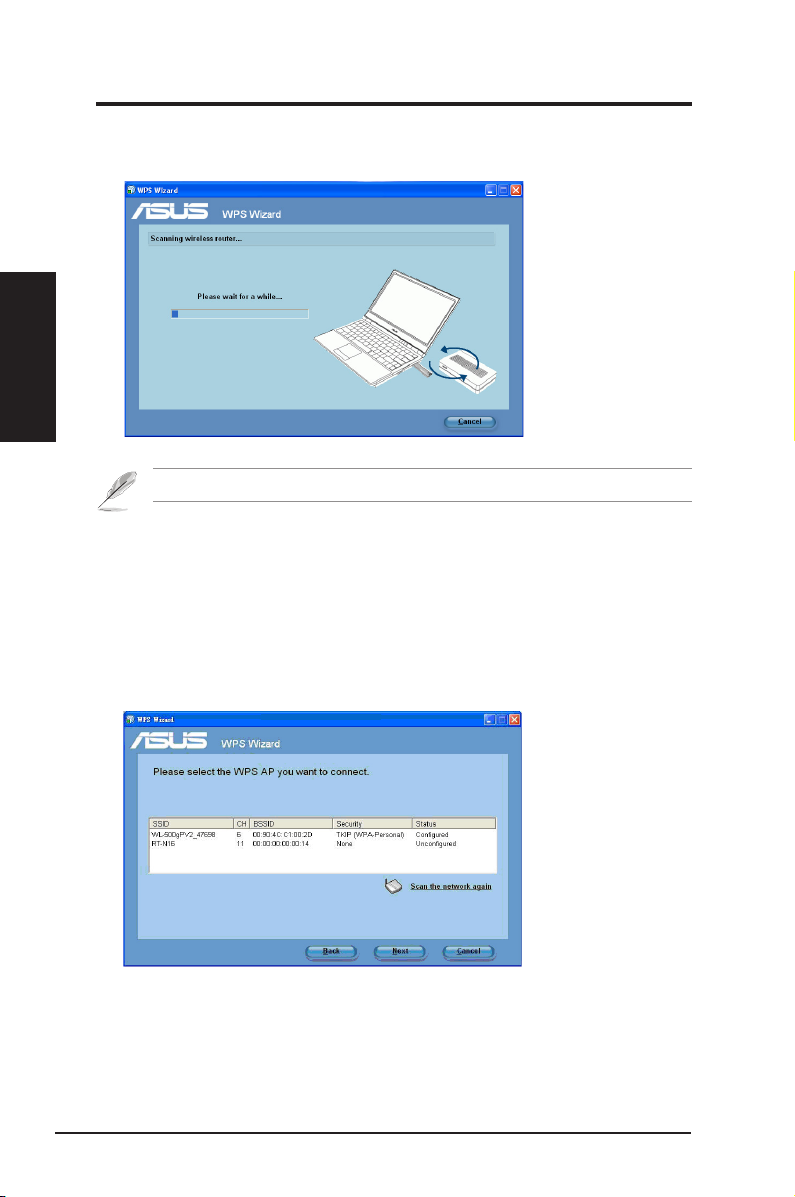

3. The 802.11n network adapter searches for the wireless router. When done,
click Next and follow the succeeding onscreen instructions.
Connecting via the PIN code
1. From the WPS Wizard, select Use the PIN code. Click Next.
2. Select the router that you want to connect to. The router's status is displayed
as either Congured (with security settings) or Uncongured (without security
settings).
Note: If WPS conguration failed, move your computer closer to the router then try again.

ASUS WLAN Adapter 15
Chapter 2 - Installation
Chapter 2
Installation
3. Click Next. The router's PIN code is displayed.
4. If your selected router’s status is Congured, key in the PIN code in the web
user interface.
Note: If your selected router's status is Uncongured, proceed to the section Using the PIN
code on an uncongured router.
5. Wait until the WPS Wizard nishes applying the wireless settings.

Chapter 2
16 ASUS WLAN Adapter
Chapter 2 - Installation
Installation
6. WPS Wizard is completed. Click Finish to close the WPS Wizard.
Using the PIN code on an uncongured router
To use the PIN code on an uncongured router:
1. Follow steps 1-3 in Connecting via the PIN code.
2. If your selected router's status is Uncongured, the WPS Wizard screen below
appears. Key in the PIN code in this screen. Click Next.

ASUS WLAN Adapter 17
Chapter 2 - Installation
Chapter 2
Installation
4. Assign a name to your network. When done, click Next.
If the router is used for the rst time, the WPS Wizard assigns the SSID (network name)
automatically.
3. Wait until the WPS Wizard nishes applying the wireless settings.
5. Use the auto-generated passphrease as your network’s security key or
manually assign a passphrase containing between 8 and 63 characters. When
done, click Next.

Chapter 2
18 ASUS WLAN Adapter
Chapter 2 - Installation
Installation
To congure the advanced security settings, click Show advanced network
security options. Select the Security Method and manually key in your
Security key or passphrase.
6. WPS Wizard is completed. Click Finish to close the WPS Wizard.

ASUS WLAN Adapter 19
Chapter 2 - Installation
Chapter 2
Installation
Adding network devices using a USB ash drive
With the WPS Wizard utility, you can add devices to your network using a USB
ash drive.
To add network devices using a USB ash drive:
1. In the WPS Wizard, click Save settings to a USB ash drive.
2. Plug a USB ash drive into the USB port on your computer, and then select the
drive from the dropdown list. When done, click Next to continue.

Chapter 2
20 ASUS WLAN Adapter
Chapter 2 - Installation
Installation
3. Remove the USB ash drive from this computer, and then plug to the computer
that you want to add to the wireless network.
4. Locate the SetupWireless.exe from the USB drive, and double-click to run it.
Click Yes to add the computer to the wireless network.
5. Click OK to exit the Wireless Network Setup Wizard.
