Atlas Copco LTP61 H700-25 Instruction sheet

LTP61 H700-25
Printed Matter No. 9836 9381 04 Nutrunner
Valid from Serial No. B3350001
2011-01-01 Product Instructions
LTP61 H700-25 (280 - 650 Nm) 8431 0800 42
WARNING
Read all safety warnings and instructions
Failure to follow the safety warnings and in-
structions may result in electric shock, fire and/
or serious injury.
Save all warnings and instructions for future
reference

2© Atlas Copco Industrial Technique AB - 9836938104
Table of Contents
EN Product Instructions.......................................................................... 3
FR Instructions sur le produit .............................................................. 18
DE Produktanweisungen...................................................................... 31
ES Instrucciones del producto ............................................................ 44
PT Instruções do produto .................................................................... 57
IT Istruzioni sul prodotto..................................................................... 70
NL Productinstructies ........................................................................... 83
DA Produktanvisninger......................................................................... 96
NO Produktanvisninger....................................................................... 109
FI Tuoteohjeet.................................................................................... 121
SV Produktanvisningar....................................................................... 133
RU Инструкции по изделию ............................................................ 145
PL Instrukcje produktu ....................................................................... 158
JA 製品の説明書................................................................................. 169

LTP61 H700-25 EN Safety and operating instructions
© Atlas Copco Industrial Technique AB - 9836 938104 04 3
Safety and operating instructions
Safety instructions
Warning
Make sure you are familiar with the operating instructions before you use this
machine.
The machine, together with any attachments and accessories, must never be
used for anything other than the designated purpose.
All locally legislated safety rules with regard to installation, operation and
maintenance shall be respected at all times.
Refer installation and servicing to qualified personnel only.
Before making any adjustments (e.g. changing sockets) disconnect the machine
from the compressed air line.
Check the direction of the rotation before using the machine.
Operators of nutrunners with a torque reaction bar should take particular care to
avoid injuries due to squeezing. For safety reasons – never allow anyone to op-
erate the machine unless he is trained and thoroughly familiar with how the ma-
chine works in different circumstances. Refer to the section headed “Reaction
bar”.
The machine may only be used together with the associated torque reaction
bar which is adapted to the screw joint application concerned. See also the in-
structions under the heading “Reaction bar”.
Never put your hand on or close to the reaction bar while the machine is be-
ing used.
Check that the power socket is properly fastened. Replace the retaining or lock-
ing pin when necessary. Also replace any worn socket.
Keep hands, long hair or other objects away from the rotating socket.
Do not use gloves.
When using a suspension yoke, check that it is in good condition and correctly
fastened.
General information
EC DECLARATION OF CONFORMITY
We, Atlas Copco Industrial Technique AB, S-105 23 STOCKHOLM, SWE-
DEN declare that the product (with name, type and serial number, see front
page) is in conformity with the following Directive(s):
2006/42/EC
Harmonised standards applied:
ISO 11148-6
Technical file available from:
Quality Manager, Atlas Copco Industrial Technique, Stockholm, Sweden
Stockholm, 1 July 2013
Tobias Hahn, Managing Director

Safety and operating instructions EN LTP61 H700-25
4© Atlas Copco Industrial Technique AB - 9836 938104 04
Signature of issuer
Installation
Installation of vibrating tools
It is recommended that a minimum length of 300 mm of flexible hose for com-
pressed air is inserted between a vibrating tool and the quick-action coupling.
Air quality
• For optimum performance and maximum machine life we recommend the
use of compressed air with a maximum dew point of +10°C. We also rec-
ommend the installation of an Atlas Copco refrigeration-type air dryer.
• Use a separate air filter of type Atlas Copco FIL. This filter removes solid
particles larger than 15 microns and also removes more than 90 % of liquid
water. The filter must be installed as close as possible to the machine/equip-
ment and prior to any other air preparation unit such as REG or DIM (please
see Air Line Accessories in our main catalogue). Blow out the hose before
connecting.
Models which need air lubrication:
• The compressed air must contain a small quantity of oil.
We strongly recommend that you install an Atlas Copco oil lubricator
(DIM). This should be set according to air consumption by the air line tool
according to the following formula:
L = Air consumption (litre/s)
D = Number of drops per min (1 drop = 15 mm3)
L* 0.2 = D
this applies to the use of long work cycle air line tools. A single point lubri-
cator type Atlas Copco Dosol can also be used for tools with short running
cycles.
Information about Dosol settings may be found under Air Line Accessories
in our main catalogue.
Lubrication-free models:
• In the case of lubrication-free tools it is up to the customer to decide on the
peripheral equipment to be used. However, it is no disadvantage if the com-
pressed air contains a small quantity of oil e.g. supplied from a fog lubrica-
tor (DIM) or Dosol system.
•Note – This does not apply to turbine tools, which should be kept oil free.
Compressed air connection
• The machine is designed for a working pressure of 6–7 bar = 600–700 kPa =
87–102 psi.
• Blow out the hose before connecting.

LTP61 H700-25 EN Safety and operating instructions
© Atlas Copco Industrial Technique AB - 9836 938104 04 5
Installation proposal
Choosing the correct couplings, hose and clamps can be a troublesome digging
into details. To save your time and to ensure correct capacity of the airline in-
stallation, from the tapping point to the tool, we offer you an installation pro-
posal.
For more information please read, Atlas Copco Industrial Power Tools cata-
logue Ordering No. 9837 3000 01.
Handling
Tightening torque
For accurate operation and safety, the tightening torque of the nut runner must
be set correctly in relation to the screw joint. Check the tightening torque given
to the joint in question.
The air pressure is set at as high a level as possible up to max 6.3 bar – with the
aid of a compressed air regulator. Installation of an Atlas Copco regulator, type
MIDI REG 15, is recommended.
Loosen the set screw and adjust the torque setting by means of the screw. The
torque is increased when screwing the screw clock-wise. After adjustment,
tighten the screw.
If shut-off is carried out at high speed of revolution, causing a high torque
scatter, it is recommended to reduce the air pressure.
Verification of tightening torque
Atlas Copco Torque Analyser, ACTA 3000, plus an appropriately-sized in-line
transducer, IRTT together with the available test joints are recommended equip-
ment.
Reaction bar
Adapt and use the torque reaction bar (see figure in Service instructions) as fol-
lows:

Safety and operating instructions EN LTP61 H700-25
6© Atlas Copco Industrial Technique AB - 9836 938104 04
1 Shaping the reaction bar, Fig. A
The torque reaction bar must be shaped to fit a suitable fixed support. To avoid
overloading of the bearings for the tool drive and of the reaction bar, the
point of contact on the reaction bar should be within the shaded area (F),
see Fig. A.
• Measure the distance (L) for the hexagon sleeve to be used. Mark out points
(A and B) on a sheet of paper.
• Consult Table No.1 to find the angle (α) applicable to the diameter (D) of
the machine and the tightening torque in question. Draw a line from point
(A) in angle (α) from the centre line (A – C).
• Draw a line (B – E) at right angles (90o to the centre line (A – C) of the ma-
chine from point (B). Starting at point (B), draw two lines at angles of +15o
and -15o respectively from the marked 90o-line.
• Mark the area (F) between the drawn lines.
• Adapt the shape of the reaction bar so that the point of contact (K) falls
within the marked area (F). The minimum breaking force is obtained if
the point of contact (K) is on or close to line (B – E).
• If the point of contact falls within angle (α) – in area (G) – there is a risk of
overloading of the bearings for the machine drive and deformation of the re-
action bar.
• If the point of contact is outside angles ± 15o – in areas (H) – there is a risk
of rapid wear of the hexagon sleeve and reduced torque accuracy.
2 Bending, Fig. B
• Heat the spot to red colour.
It is recommended to concentrate the heat to the inside radius in order not
to reduce the original width (W), see fig. B.
• After bending, allow to cool slightly in room temperature and then chill.
• In order for the torque reaction bar to be as light as possible it is recom-
mended that the section outside the bend be configured as shown in Fig. B.
After bending, attach the accompanying warning sign to the reaction bar,
see fig. C, and mark the side of the reaction bar that should be placed
against the support i a suitable way.
3 Assembly
• Place the reaction bar in the wanted position on the machine.
• Tighten the nut to a torque of 70 Nm, 90 Nm or 100 Nm respectively.
• Check regularly that the lock ring is firmly secured.
4 Use
• Apply the reaction bar according to figure C – opposite the direction of the
drive of the machine – before starting the machine.
•Never put your hand on or close to the reaction bar while the machine is
being used.
Table No. 1
LTP61 H100-13, LTP61 H170-13, LTP61 H230-19

LTP61 H700-25 EN Safety and operating instructions
© Atlas Copco Industrial Technique AB - 9836 938104 04 7
D = 54 mm, Wmin = 28.5 mm
Torque Nm 75 100 150 200 250
Angle α 21° 27° 37° 46° 55°
LTP61 H500-20, LTP61 H350-20
D = 62 mm, Wmin = 39.5 mm
Torque Nm 250 300 400 500
Angle α 30° 35° 44° 50°
LTP61 H900-25, LTP61 H700-25
D = 63.5 mm, Wmin = 64.5 mm
Torque Nm 500 600 700 800 950
Angle α 32° 38° 43° 47° 53°
Example: LTP61 H500-20
D = 62 mm
500 Nm = 50°
Maintenance
For maximum performance
It is important to lubricate regularly to get maximum performance and trouble-
free operation. The motor should be lubricated with oil; i.e. drops of oil can be
dropped either into the compressed air or directly into the air inlet.
The trigger, planetary gears, needle bearings and ball bearings should be lubri-
cated with grease during the regular overhaul of the machine.
The angle gear and clutch must be lubricated using grease that contains molyb-
denum disulphide: Molykote BR2 Plus, for example, or an equivalent brand.
Use lubricants of good quality. The oils and greases mentioned in the table are
examples of lubricants which are recommended.
Rust protection and internal cleaning
Water in the compressed air, dust and wear particles cause rust and sticking of
vanes, valves etc. An air filter should be installed close to the machine (see ‘Air
quality’).
Reporting, RE – signal
Reporting (RE) machines supply an air signal that can be connected to a moni-
toring instrument that counts the number of approved tightening and detects
premature shut-off and rehits and other irregularities.

Safety and operating instructions EN LTP61 H700-25
8© Atlas Copco Industrial Technique AB - 9836 938104 04
Service instructions
Overhaul and preventive maintenance is recommended at regular intervals once
per year or after maximum 250.000 tightening depending on which occurs
sooner. More frequent overhaul may be needed, if used at high torque and long
tightening times. If the machine not is working properly, it should immediately
be taken away for inspection.
The strainer at the air inlet and the exhaust silencer should be cleaned fre-
quently or replaced in order to prevent clogging, which decreases the capacity.
At the overhauls, all parts should be cleaned accurately and defective or worn
parts (i.e. O-rings, vanes) should be replaced.
Disassembling / assembling
It is important that the machines threaded connections are tightened properly;
i.e. in accordance with the specifications on the exploded views.
Lubricate o-rings and threaded connections with grease before assembling.
Cleaning
Clean all parts thoroughly in white spirit or similar cleaning agent. To prevent
clogging and decreased power, it could be necessary to clean the strainer (if
used) and the exhaust filter between the overhauls.
Inspection
After the cleaning, inspect all parts. Damaged and worn parts should be re-
placed.
Lubrication
Lubricate specially gears, valve and clutch with grease containing molybdenum
disulphide (e.g. Molykote BR2 Plus). Please see exploded views and fig. under
Service instructions.
Grease guide
Brand
Bearings /
General purpose
Free wheel unit (gear
rim and gear wheels) Free wheel
BP Energrease LS-EP2 Energrease LS-EP2
Castrol Spheerol EP L2
Esso Beacon EP2 Beacon EP2
Q8 Rembrandt EP2 Rembrandt EP2
Mobil Mobilegrease XHP 222
Shell Alvania EP2 Alvania EP2
Texaco Multifak EP2
Molycote
Lubricating Suntemp LE 9102
STP Oil treatment
Brand Gears Air lubrication
Bp Energol E46
Castro

LTP61 H700-25 EN Safety and operating instructions
© Atlas Copco Industrial Technique AB - 9836 938104 04 9
Brand Gears Air lubrication
Esso AroxEP46
Q8 Chopin 46
Mobil Almo oil 525
Shell Torcula 32
Texaco Aries 32
Molycote BR2 Plus
Useful information
Log in to Atlas Copco www.atlascopco.com
You can find information concerning our products, accessories, spare parts and
published matters on our website.
Ergonomic guidelines
Consider your workstation as you read through this list of general ergonomic
guidelines and see if you can identify areas for improvement in posture, compo-
nent placement, or work environment.
• Take frequent breaks and change work positions frequently.
• Adapt the workstation area to your needs and the work task.
• Adjust for convenient reach range by determining where parts or tools
should be located to avoid static load.
• Use workstation equipment such as tables and chairs appropriate for the
work task.
• Avoid work positions above shoulder level or with static holding during as-
sembly operations.
• When working above shoulder level, reduce the load on the static mus-
cles by reducing the weight of the tool, using for example torque arms,
hose reels or weight balancers. You can also reduce the load on the static
muscles by holding the tool close to the body.
• Make sure to take frequent breaks.
• Avoid extreme arm or wrist postures, particularly for operations requir-
ing a degree of force.
• Adjust for convenient field of vision by minimizing movement of the eyes
and head during the work task.
• Use the appropriate lighting for the work task.
• Select the appropriate tool for the work task.
• Use ear protection equipment in noisy environments.
• Use high-quality inserted tools or consumables to minimize exposure to ex-
cessive levels of vibration.
• Minimize exposure to reaction forces.
• When cutting:

Safety and operating instructions EN LTP61 H700-25
10 © Atlas Copco Industrial Technique AB - 9836 938104 04
A cut-off wheel can get stuck if the wheel is either bent or if it is not
guided properly. Make sure to use the correct flanges for cut-off wheels
and avoid bending the wheel during cut-off operation.
• When drilling:
The drill might stall when the drill bit breaks through. Makes sure you
use support handles if the stall torque is too high. The safety standard
ISO11148 part 3 recommends using something to absorb the reaction
torque above 10 Nm for pistol grip tools and 4 Nm for straight tools.
• When using direct-driven screw or nutrunners:
Reaction forces depend on tool setting and joint characteristics. The abil-
ity to bear reaction forces depends on the operator’s strength and pos-
ture. Adapt the torque setting to the operator's strength and posture and
use a torque arm or reaction bar if the torque is too high.
• Use dust extraction system or mouth protection mask in dusty environments.
Country of origin
Please refer to the information on the product label.
Spare parts
Parts without ordering number are not delivered separately for technical rea-
sons.
The use of other than genuine Atlas Copco replacement parts may result in de-
creased tool performance and increased maintenance and may, at the company
option, invalidate all warranties.
Warranty
Contact the Atlas Copco sales representative within your area to claim a prod-
uct. Warranty will only be approved if the product has been installed, operated
and overhauled according to the Operating Instructions.
Please also see the delivery conditions applied by the local Atlas Copco com-
pany.
ServAid
ServAid is a utility for providing updated product information concerning:
- Safety instructions
- Installation, Operation and Service instructions
- Exploded views
ServAid facilitates the ordering process of spare parts, service tools and acces-
sories for the product of your choice. It is continuously updated with informa-
tion of new and redesigned products.
You can use ServAid to present content in a specific language, provided that
translations are available, and to display information about obsolete products.
ServAid offers an advanced search functionality of our entire product range.
ServAid is available on DVD and on the web:
http://servaidweb.atlascopco.com

LTP61 H700-25 EN Safety and operating instructions
© Atlas Copco Industrial Technique AB - 9836 938104 04 11
For further information contact your Atlas Copco sales representative or e-mail
us at:
[email protected]
Safety Data Sheets MSDS/SDS
The safety data sheets describes chemical products sold by Atlas Copco.
For more information, consult the website
http://www.atlascopco.com/.
Choose Products - Safety Data Sheets, and follow the instructions on the
page.

Technical data EN LTP61 H700-25
12 © Atlas Copco Industrial Technique AB - 9836 938104 04
Technical data
Technical data
Noise and vibration emission
Noise (in accordance with ISO15744) dBA
Sound pressure level 80
Sound power level -
Uncertainty 3
Vibration total value, valid from 2010
(3-axes value in accordance with ISO28927-2) m/s2
Vibration value <2.5
Uncertainty -
Noise and Vibration Declaration Statement
These declared values were obtained by laboratory type testing in accordance
with the stated standards and are suitable for comparison with the declared val-
ues of other tools tested in accordance with the same standards. These declared
values are not adequate for use in risk assessments and values measured in indi-
vidual work places may be higher. The actual exposure values and risk of harm
experienced by an individual user are unique and depend upon the way the user
works, the workpiece and the workstation design, as well upon the exposure
time and the physical condition of the user.
We, Atlas Copco Industrial Technique AB, cannot be held liable for the con-
sequences of using the declared values, instead of values reflecting the actual
exposure, in an individual risk assessment in a work place situation over which
we have no control.
This tool may cause hand-arm vibration syndrome if its use is not adequately
managed. An EU guide to managing hand-arm vibration can be found by ac-
cessing http://www.pneurop.eu/index.php and selecting 'Tools' then 'Legisla-
tion'.
We recommend a programme of health surveillance to detect early symptoms
which may relate to noise or vibration exposure, so that management proce-
dures can be modified to help prevent future impairment.

LTP61 H700-25 EN Service instructions
© Atlas Copco Industrial Technique AB - 9836 938104 04 13
Service instructions
Service instructions
Tightening of threaded connections
The tightening torques indicated in the spare parts list are established to achieve
the correct clamping force and to prevent the parts from coming loose. When
serviced these parts must be able to open up without being destroyed. In special
circumstances (depending on application and usage) the parts may however
come loose after some time of operation. In such cases the torque could be in-
creased 10-20% and if necessary some type of low or medium threadlocking
fluid could also be applied.

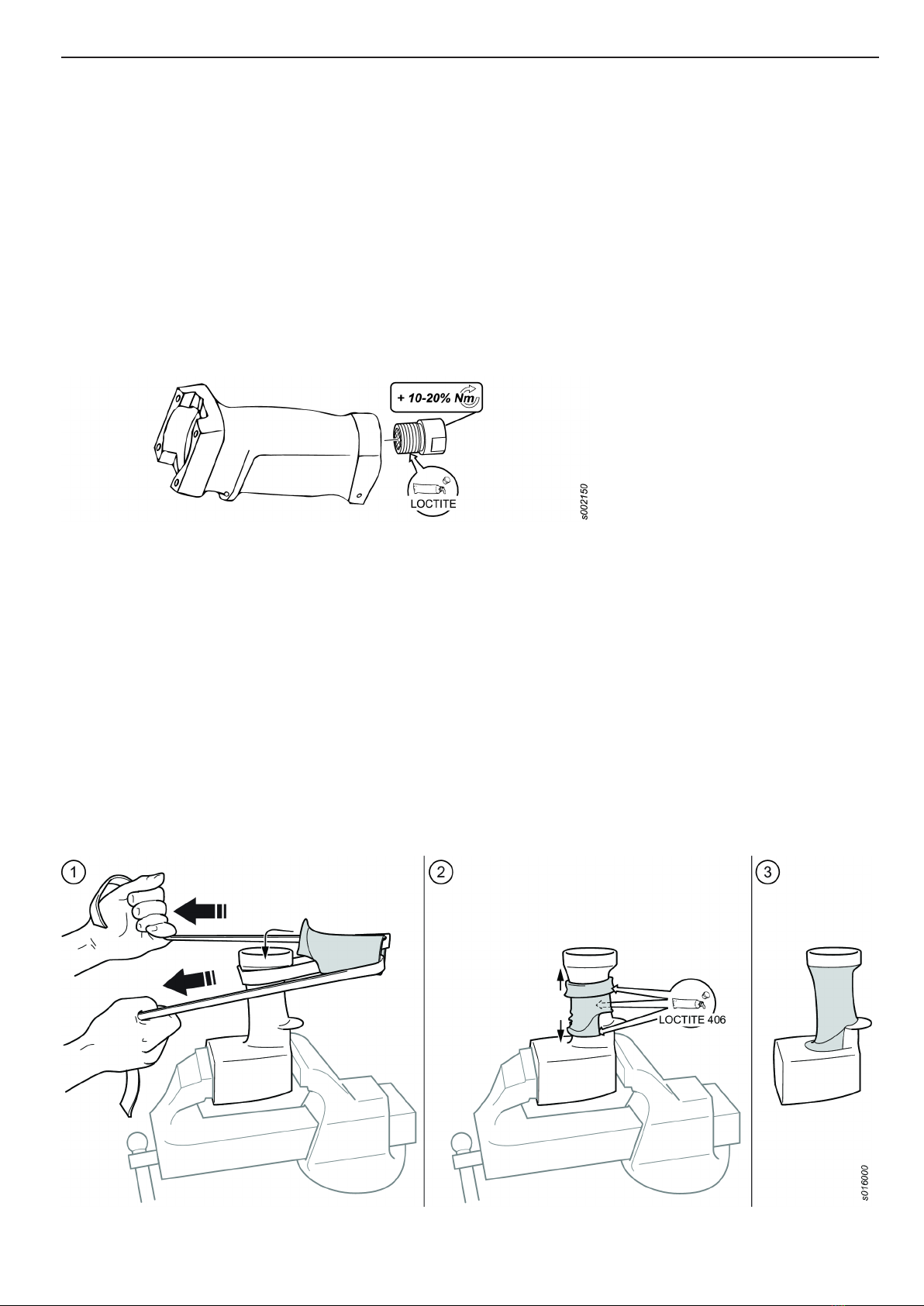

Example
Assembly
Remove silencer and air nipple. Then completely remove the old Rubber cover.
Fix the Motor casing in a vice. To easy the assembly put some soap-water mix-
ture on the new Rubber cover ends. Make a loop of a heawy duty strap and then
put the loop of strap through the Rubber cover and then around the Handle, see
illustration 1 below. Pull on strap until Rubber cover is completely over the
lower part of handle.
Gluing
When cover is in correct position clean the ends of cover from soap. Then care-
fully apply glue (Loctite 406) on the inside around edges and in the middle of
cover, see illustration 2 below. It is especially important that the surface near
the trigger is carefully coated with glue. Press Rubber cover so it fits nice and
thight, see illustration 3 below.

Service instructions EN LTP61 H700-25
14 © Atlas Copco Industrial Technique AB - 9836 938104 04
Diagram, RE - signal
With the RE-signal Kit an air pressure signal will be supplied, which can be
connected to a control unit to count the number of tightening and to detect pre-
mature and rehits
Testing of tightening torque
Torque and angle testing instrument
ACTA* 3000/ 4000. For further informatiom, please see our main catalogue or
separate leaflet.
Testjoint and Transducer
Select testjoint and transducers according to maximum torque of your tool
Soft joints
Bolt size
Torque range
Nm Ordering No.
Torque rate
Nm/rev.
Degrees at
rated
capacity Service kit*
M8 15 4080 0788 91 10 540 4080 0788 80
M10 30 4080 0789 91 24 450 4080 0789 80
M12 60 4080 0790 91 40 540 4080 0790 80
M14 90 4080 0791 91 60 540 4080 0791 80

LTP61 H700-25 EN Service instructions
© Atlas Copco Industrial Technique AB - 9836 938104 04 15
Bolt size
Torque range
Nm Ordering No.
Torque rate
Nm/rev.
Degrees at
rated
capacity Service kit*
M16 200 4080 0866 90 200 360 4080 0865 80
M20 400 4080 0868 90 400 360 4080 0867 80
M30 800 4080 0876 92 800 360 4080 0867 80
* Including 2x bolts, 2x nuts, 2x washers
In-line torque transducers – Torque models
Model Drive Hex inch
Drive Square
inch
Rated capacity
Nm ft lb Ordering No
IRTT 5-I06 ¼ 5 4 8092 1129 05
IRTT 20-I06 ¼ 20 15 8092 1129 10
IRTT 20-06 ¼ 20 15 8092 1129 15
IRTT 25-10 3/8 25 18 8092 1129 20
IRTT 75-10 3/8 75 55 8092 1129 25
IRTT 180-13 ½ 180 133 8092 1129 30
IRTT 500-20 ¾ 500 369 8092 1129 35
IRTT 750-25 1 750 553 8092 1129 40
IRTT 1400-25 1 1400 1033 8092 1129 45
In-line torque transducers – Torque/angle models
Model Drive Hex inch
Drive Square
inch
Rated capacity
Nm ft lb Ordering No
IRTT 2A-I06 ½ 2 1.5 8092 1130 01
IRTT 5A-I06 ¼ 5 4 8092 1130 06
IRTT 20A-I06 ¼ 20 15 8092 1130 11
IRTT 20A-06 ¼ 20 15 8092 1130 16
IRTT 25A-10 3/8 25 18 8092 1130 21
IRTT 75A-10 3/8 75 55 8092 1130 26
IRTT 180A-13 ½ 180 133 8092 1130 31
IRTT 500A-20 ¾ 500 369 8092 1130 36
IRTT 750A-25 1 750 553 8092 1130 41
IRTT 1400A-25 1 1400 1033 8092 1130 46
IRTT 3000A-38 1½ 3000 3000 8092 1130 51

Service instructions EN LTP61 H700-25
16 © Atlas Copco Industrial Technique AB - 9836 938104 04
Reaction bar

LTP61 H700-25 EN Service instructions
© Atlas Copco Industrial Technique AB - 9836 938104 04 17
Instructions for vane motor

Consignes d'utilisation et de sécurité FR LTP61 H700-25
18 © Atlas Copco Industrial Technique AB - 9836 938104 04
Consignes d'utilisation et de sécurité
Consignes de sécurité
Attention
Familiarisez-vous avec les instructions d’emploi avant de mettre l’outil en ser-
vice.
Cet outil et ses accessoires sont strictement réservés aux utilisations prévues par
son fabricant.
Toute réglementation de sécurité locale concernant l’installation, le fonctionne-
ment et l’entretien doit toujours être respectée.
Ne confiez l'installation et la maintenance qu'à du personnel qualifié.
Avant de procéder à un réglage quelconque, notamment un changement de
douille, assurez-vous que la conduite d’air comprimé est débranchée.
Vérifiez le sens de rotation avant d’utiliser la machine.
Les boulonneuses avec toc de réaction demandent une attention particulière de
l’opérateur pour éviter toute blessure engendrée par un pincement. Avant toute
utilisation, l’opérateur devra connaître le fonctionnement de l’outil dans toutes
les conditions de travail possibles et se sera entraîné à son maniement. Il devra
également veiller à ce que l’outil ne soit manipulé par aucune personne qui n’a
pas reçu la formation requise. Reportez-vous à la section intitulée “Toc de réac-
tion”.
L’outil doit être utilisé exclusivement avec le toc de réaction correspon-
dant, qui doit être adapté à l’assemblage à effectuer. Reportez-vous également
aux instructions de la section “Toc de réaction”.
Ne posez jamais la main sur le toc de réaction ou à proximité de celui-ci pen-
dant l’utilisation de l’outil.
Vérifiez si la douille impact est correctement fixée. Remplacez la goupille de
rétention ou de verrouillage s’il y a lieu. Remplacez également les douilles
usées.
Maintenez les mains, les cheveux longs ou tout autre objet à l’écart de la broche
rotative.
Ne pas utiliser de gants.
Lorsqu'un anneau de suspension est utilisé, vérifiez son état et assurez-vous
qu’il est correctement fixé.
Informations générales
DÉCLARATION DE CONFORMITÉ CE
Nous, Atlas Copco Industrial Technique AB, S-105 23 STOCKHOLM,
SUÈDE, déclarons que le produit (dont le nom, le type et le numéro de série fi-
gurent en première page) est en conformité avec la ou les directives suivantes:
2006/42/EC
Normes harmonisées appliquées:
ISO 11148-6
Dossier technique disponible auprès de:
Directeur de la qualité, Atlas Copco Industrial Technique, Stockholm, Suède.

LTP61 H700-25 FR Consignes d'utilisation et de sécurité
© Atlas Copco Industrial Technique AB - 9836 938104 04 19
Fait à Stockholm, le 1er juillet 2013
Tobias Hahn, Directeur général
Signature du déclarant
Installation
Installation d'outils vibrants
Il est recommandé d'insérer une longueur minimale de 300mm de tuyau souple
pour air comprimé entre un outil vibrant et le raccord rapide.
Qualité de l'air
• Pour assurer à la machine des performances optimums et une durée de vie
maximum, nous recommandons d'utiliser de l'air comprimé avec un point de
rosée maximum de +10°C. Nous recommandons également d'installer un
déshydrateur d'air Atlas Copco à réfrigération.
• Utilisez un filtre à air indépendant de type Atlas Copco FIL. Ce filtre retient
les particules solides supérieures à 15 microns et plus de 90 % d'eau sous
forme liquide. Il doit être placé aussi prêt que possible de la machine ou de
l'équipement et avant toute autre unité de préparation de l'air telles que des
unités REG ou DIM (voir "Accessoires de distribution d'air" dans notre ca-
talogue général). Mettez le flexible à l'air libre avant de le raccorder.
Modèles nécessitant une lubrification de l'air :
• L'air comprimé doit contenir une petite quantité d'huile.
Nous recommandons fortement l'installation d'un graisseur à brouillard
d'huile Atlas Copco (DIM). Celui-ci devra être réglé en fonction de la
consommation d'air de l'outil pneumatique conformément à la formule sui-
vante :
L = Consommation d’air (litre/s).
(voir notre documentation commerciale).
D = Nombre de gouttes par minute (1 goutte = 15 mm3)
L* 0.2 = D
cette formule s'appliquant aux outils pneumatiques à cycle de fonctionne-
ment long. Avec des outils à cycle de fonctionnement court, vous pouvez
également utiliser un lubrificateur à un seul point type Atlas Copco Dosol.
Vous trouverez des informations sur le réglage du Dosol dans notre cata-
logue général, sous le chapitre "Accessoires de distribution d'air".
Modèles sans lubrification :
• Pour les outils n'exigeant pas de lubrification, le client a le choix de l'équi-
pement périphérique à utiliser. Néanmoins, il n'y a aucun inconvénient à ce
que l'air comprimé contienne une petite quantité d'huile fournie par un équi-
pement tel qu'un graisseur à brouillard d'huile (DIM) ou un système Dosol.
•Remarque – ceci ne concerne pas les outils à turbine qui doivent rester
exempts d'huile.

Consignes d'utilisation et de sécurité FR LTP61 H700-25
20 © Atlas Copco Industrial Technique AB - 9836 938104 04
Raccordement de l'air comprimé
• L'outil est conçu pour une pression d'utilisation de 6 à 7 bar = 600 – 700 kPa
= 6 – 7 kg/cm2.
• Soufflez de l’air dans le flexible avant de le connecter.
Solution d'installation proposée
Choisir le raccord adapté, le tuyau et les colliers peut devenir un sérieux soucis
dans le détail. Pour économiser votre temps et garantir une capacité de débit de
votre installation d’air comprimé, de la ligne principale jusqu’à l’outil, nous
vous proposons une installation adaptée à chaque outil.
Pour plus d'information, veuillez vous reporter au catalogue Atlas Copco Indus-
trial Power Tools réf. 9837 3000 01.
Administration
Couple de serrage
Pour garantir la sécurité et le bon fonctionnement de la visseuse, ajustez correc-
tement le couple de serrage en fonction du joint de la vis. Vérifiez les spécifica-
tions de couple du joint concerné.
La pression d'air est réglée aussi haut que possible, jusqu'à 6,3 bar au maxi-
mum, à l'aide d'un régulateur pour air comprimé. Le montage d'un régulateur
Atlas Copco, type MIDI REG 15, est recommandé.
Desserrez la vis d'arrêt et réglez le couple de serrage à l'aide de la vis. Tournez
la vis dans le sens des aiguilles d'une montre pour augmenter le couple. Une
fois le réglage terminé, serrez la vis d'arrêt.
Si l'arrêt s'opère à grande vitesse de rotation, provoquant une forte disper-
sion du couple, il est recommandé de réduire la pression d'air.
Vérification du couple de serrage
Nous vous recommandons d’utiliser l’Analyseur de couple Atlas Copco, ACTA
3000, ainsi qu’un transducteur en ligne de taille appropriée (IRTT) avec les
joints de test disponibles.
