User manual ver. 202000830
The document contains information on the safety, installation and use of the Auraton
Libra SET device.
Weekly, wireless temperature
controller with AURATON Fornax
heating or air conditioning controller
(set)

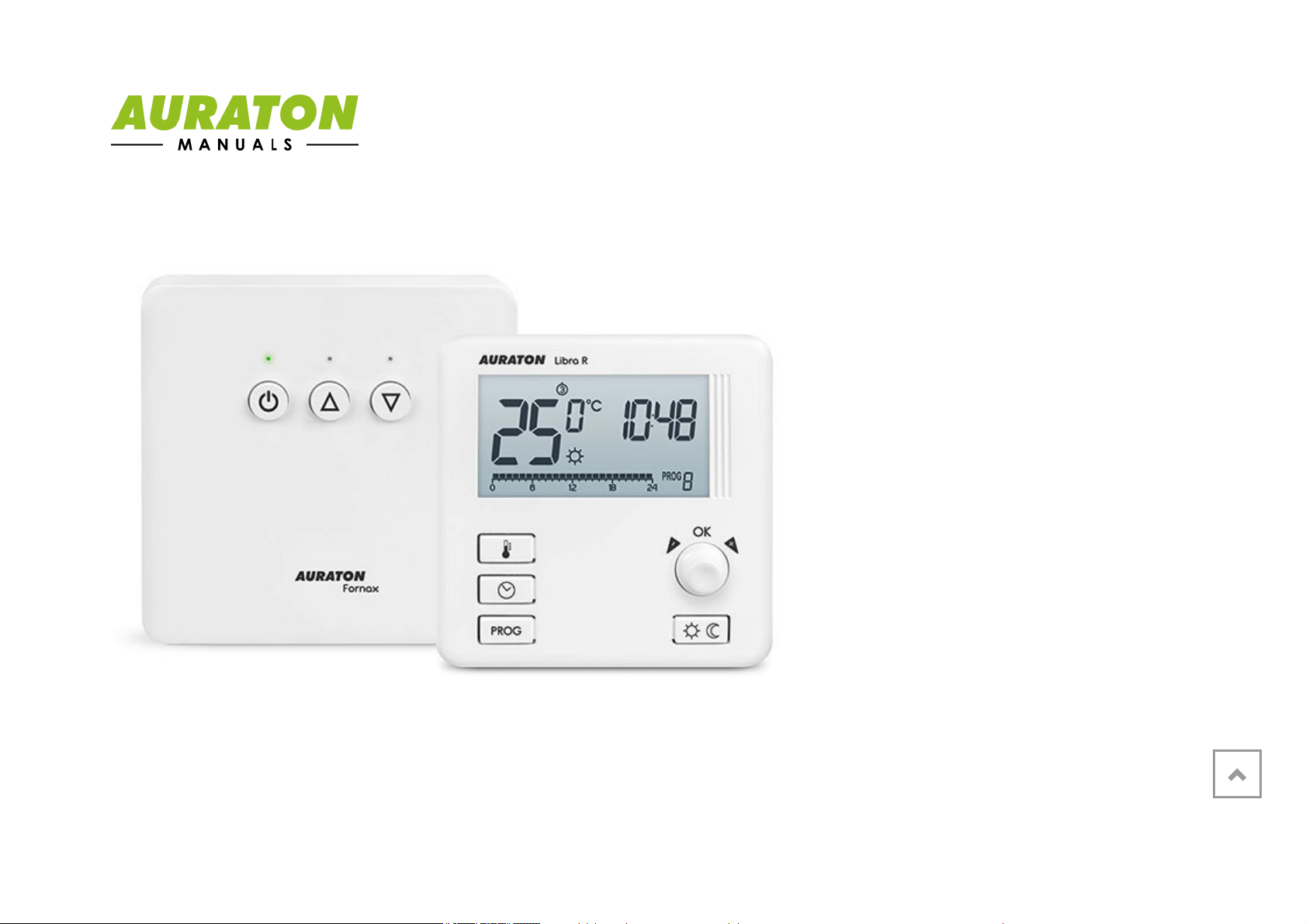

AURATON Libra SET is a set of a weekly, wireless temperature regulator with a
controller of the AURATON Fornax heating or air-conditioning device, designed to work
with a gas or electric heating or air-conditioning device.
AT 3 independently adjustable temperatures
Day, night, anti-freeze.
&9 independent temperature programs,
including 6 user-modifiable.
Introduction to programming
programming
Manual control
Anti-freeze temperature
Description of AURATON Fornax
Pairing AURATON Libra R of a weekly, wireless
temperature controller (transmitter) with AURATON
Fornax - a wireless controller for a heating or air-
conditioning device (receiver)
RESET AURATON Libra R
MASTER RESET AURATON Libra R
Configuration settings
PWM operating mode
Special situations
Unique features of AURATON Fornax
Additional remarks
Connection diagram of AURATON Fornax
Cleaning and maintenance
Technical data
Disposal of the device
To download
Weekly, wireless temperature controller with
AURATON Fornax heating or air conditioning
controller (set)
The description of AURATON Libra R
The first launch of AURATON Libra R.


26/10/21, 4:32 μ.μ.
AURATON Libra SET - AURATON manuals
https://manuals.auraton.pl/manuals/auraton-libra-set-pl/
3/50
LCD Backlit LCD display The
backlit display enables the device operation supervision even in poorly
lit rooms.
The description of AURATON Libra R
weekly, wireless temperature controller (transmitter)
On the front part of the AURATON Libra R casing there is a backlit LCD display, four
function buttons and a temperature setting knob with an OK button .
Introduction to programming
programming
Manual control
Anti-freeze temperature
Description of AURATON Fornax
Pairing AURATON Libra R of a weekly, wireless
temperature controller (transmitter) with AURATON
Fornax - a wireless controller for a heating or air-
conditioning device (receiver)
RESET AURATON Libra R
MASTER RESET AURATON Libra R
Configuration settings
PWM operating mode
Special situations
Unique features of AURATON Fornax
Additional remarks
Connection diagram of AURATON Fornax
Cleaning and maintenance
Technical data
Disposal of the device
To download
Weekly, wireless temperature controller with
AURATON Fornax heating or air conditioning
controller (set)
The description of AURATON Libra R
The first launch of AURATON Libra R.


26/10/21, 4:32 μ.μ.
AURATON Libra SET - AURATON manuals
https://manuals.auraton.pl/manuals/auraton-libra-set-pl/
4/50
1 – LCD display
2 – Setting knob with integrated "OK" button
3 – Mode selection button: S - day mode, T - night mode
4 – Program selection button
5 – Time, day and week setting button
6 – Temperature setting button
Introduction to programming
programming
Manual control
Anti-freeze temperature
Description of AURATON Fornax
Pairing AURATON Libra R of a weekly, wireless
temperature controller (transmitter) with AURATON
Fornax - a wireless controller for a heating or air-
conditioning device (receiver)
RESET AURATON Libra R
MASTER RESET AURATON Libra R
Configuration settings
PWM operating mode
Special situations
Unique features of AURATON Fornax
Additional remarks
Connection diagram of AURATON Fornax
Cleaning and maintenance
Technical data
Disposal of the device
To download
Weekly, wireless temperature controller with
AURATON Fornax heating or air conditioning
controller (set)
The description of AURATON Libra R
The first launch of AURATON Libra R.


26/10/21, 4:32 μ.μ.
AURATON Libra SET - AURATON manuals
https://manuals.auraton.pl/manuals/auraton-libra-set-pl/
5/50

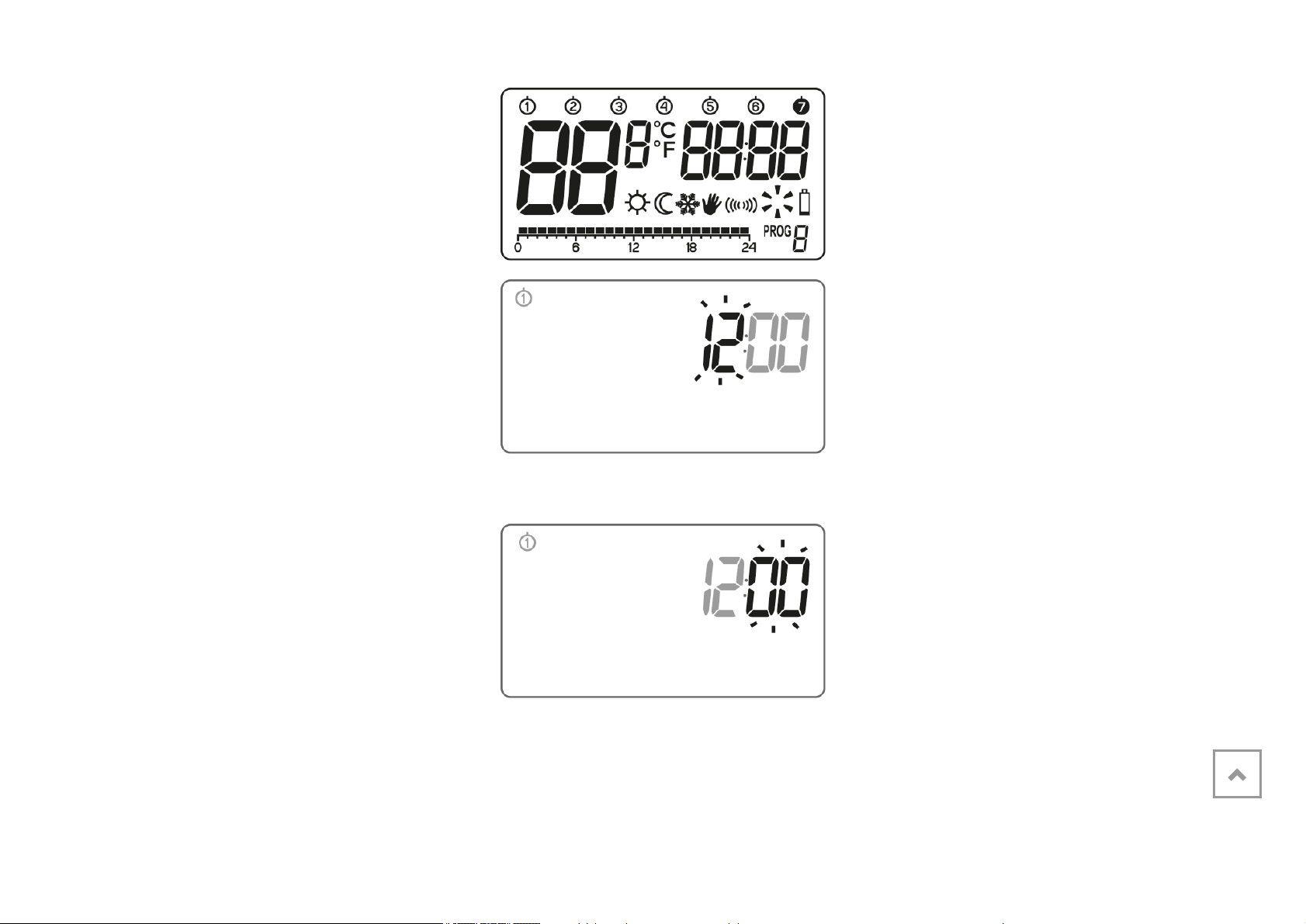

Display
1 – Day of the week ( 8 ) - Indicates the day of the week. Each day is assigned a
number.
2 – Temperature - In normal operation mode, AURATON Libra R displays the
temperature of the room in which it is installed.
3 – Temperature unit - Informs that the temperature is displayed in degrees Celsius
(° C).
4 – Clock
The time is displayed in the 24-hour system.
Introduction to programming
programming
Manual control
Anti-freeze temperature
Description of AURATON Fornax
Pairing AURATON Libra R of a weekly, wireless
temperature controller (transmitter) with AURATON
Fornax - a wireless controller for a heating or air-
conditioning device (receiver)
RESET AURATON Libra R
MASTER RESET AURATON Libra R
Configuration settings
PWM operating mode
Special situations
Unique features of AURATON Fornax
Additional remarks
Connection diagram of AURATON Fornax
Cleaning and maintenance
Technical data
Disposal of the device
To download
Weekly, wireless temperature controller with
AURATON Fornax heating or air conditioning
controller (set)
The description of AURATON Libra R
The first launch of AURATON Libra R.


26/10/21, 4:32 μ.μ.
AURATON Libra SET - AURATON manuals
https://manuals.auraton.pl/manuals/auraton-libra-set-pl/
6/50

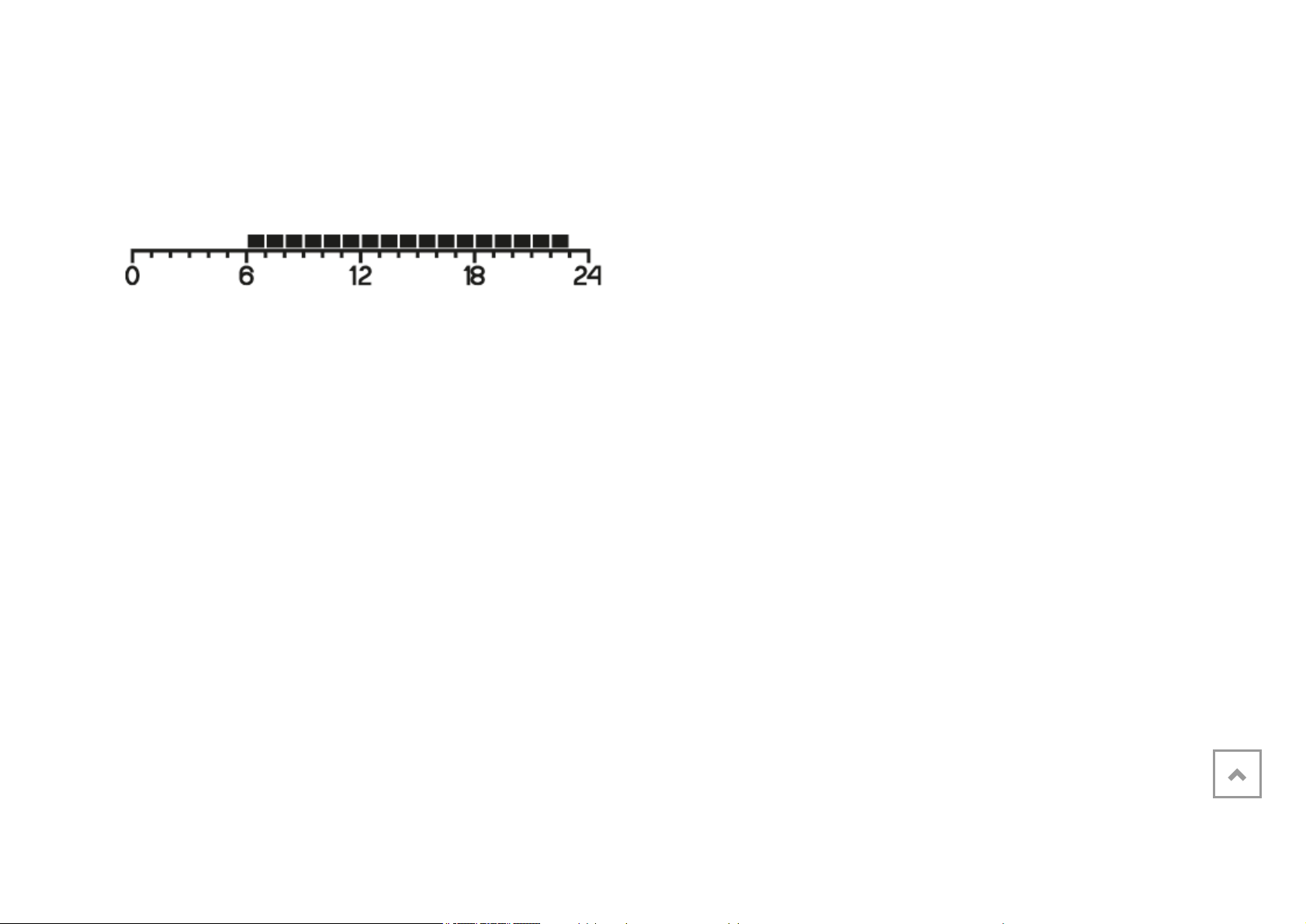

5 – Timeline
Program progress indicator. The line is divided into 24 sections, each of which
corresponds to one hour. It shows the way of implementing a given program. (see
chapter: "Timeline")
6 – Day mode indicator ( S )
Indicates that the AURATON Libra R is operating in day mode. (see chapter:
"Temperature programming")
7 – Night mode indicator ( T )
Indicates that the AURATON Libra R is in night mode. (see chapter: "Temperature
programming")
8 – Anti-freeze mode indicator ( U )
It indicates operation of the AURATON Libra R in anti-freeze mode. (see chapter:
"Antifreeze mode")
9 – Manual override indicator ( V )
Appears when programmed operation is canceled. (see chapter: "Manual control
mode")
10 – Transmission symbol ( = )
Indicates communication with the receiver.
11 – AURATON Libra R ( Y ) activation indicator
A segment informing about the device's operating status. Visible when the
controlled device is turned on.
12 – Program
number Indicates the number of the currently running program. (see chapters:
"Factory programs" and "Weekly programming")
Introduction to programming
programming
Manual control
Anti-freeze temperature
Description of AURATON Fornax
Pairing AURATON Libra R of a weekly, wireless
temperature controller (transmitter) with AURATON
Fornax - a wireless controller for a heating or air-
conditioning device (receiver)
RESET AURATON Libra R
MASTER RESET AURATON Libra R
Configuration settings
PWM operating mode
Special situations
Unique features of AURATON Fornax
Additional remarks
Connection diagram of AURATON Fornax
Cleaning and maintenance
Technical data
Disposal of the device
To download
Weekly, wireless temperature controller with
AURATON Fornax heating or air conditioning
controller (set)
The description of AURATON Libra R
The first launch of AURATON Libra R.


26/10/21, 4:32 μ.μ.
AURATON Libra SET - AURATON manuals
https://manuals.auraton.pl/manuals/auraton-libra-set-pl/
7/50
13 – Battery exhausted ( X )
The indicator is visible when the minimum permissible battery voltage is exceeded.
Replace the batteries as soon as possible.
NOTE:
To maintain the programmed parameters, the time of the battery
replacement operation should not exceed 30 seconds.
Choosing the right location for AURATON Libra
R.
Introduction to programming
programming
Manual control
Anti-freeze temperature
Description of AURATON Fornax
Pairing AURATON Libra R of a weekly, wireless
temperature controller (transmitter) with AURATON
Fornax - a wireless controller for a heating or air-
conditioning device (receiver)
RESET AURATON Libra R
MASTER RESET AURATON Libra R
Configuration settings
PWM operating mode
Special situations
Unique features of AURATON Fornax
Additional remarks
Connection diagram of AURATON Fornax
Cleaning and maintenance
Technical data
Disposal of the device
To download
Weekly, wireless temperature controller with
AURATON Fornax heating or air conditioning
controller (set)
The description of AURATON Libra R
The first launch of AURATON Libra R.


26/10/21, 4:32 μ.μ.
AURATON Libra SET - AURATON manuals
https://manuals.auraton.pl/manuals/auraton-libra-set-pl/
8/50
The correct operation of AURATON Libra R is largely influenced by its location.
Location in a place with no air circulation or direct sunlight may result in incorrect
temperature control. AURATON Libra R should be installed on the internal wall of the
building (partition wall), in an environment with free air circulation. Avoid proximity to
heat emitting devices (TV, heater, refrigerator) or locations exposed to direct sunlight.
Problems in proper operation may be caused by the vicinity of the door, exposing
AURATON Libra R to possible vibrations.
Introduction to programming
programming
Manual control
Anti-freeze temperature
Description of AURATON Fornax
Pairing AURATON Libra R of a weekly, wireless
temperature controller (transmitter) with AURATON
Fornax - a wireless controller for a heating or air-
conditioning device (receiver)
RESET AURATON Libra R
MASTER RESET AURATON Libra R
Configuration settings
PWM operating mode
Special situations
Unique features of AURATON Fornax
Additional remarks
Connection diagram of AURATON Fornax
Cleaning and maintenance
Technical data
Disposal of the device
To download
Weekly, wireless temperature controller with
AURATON Fornax heating or air conditioning
controller (set)
The description of AURATON Libra R
The first launch of AURATON Libra R.


26/10/21, 4:32 μ.μ.
AURATON Libra SET - AURATON manuals
https://manuals.auraton.pl/manuals/auraton-libra-set-pl/
9/50

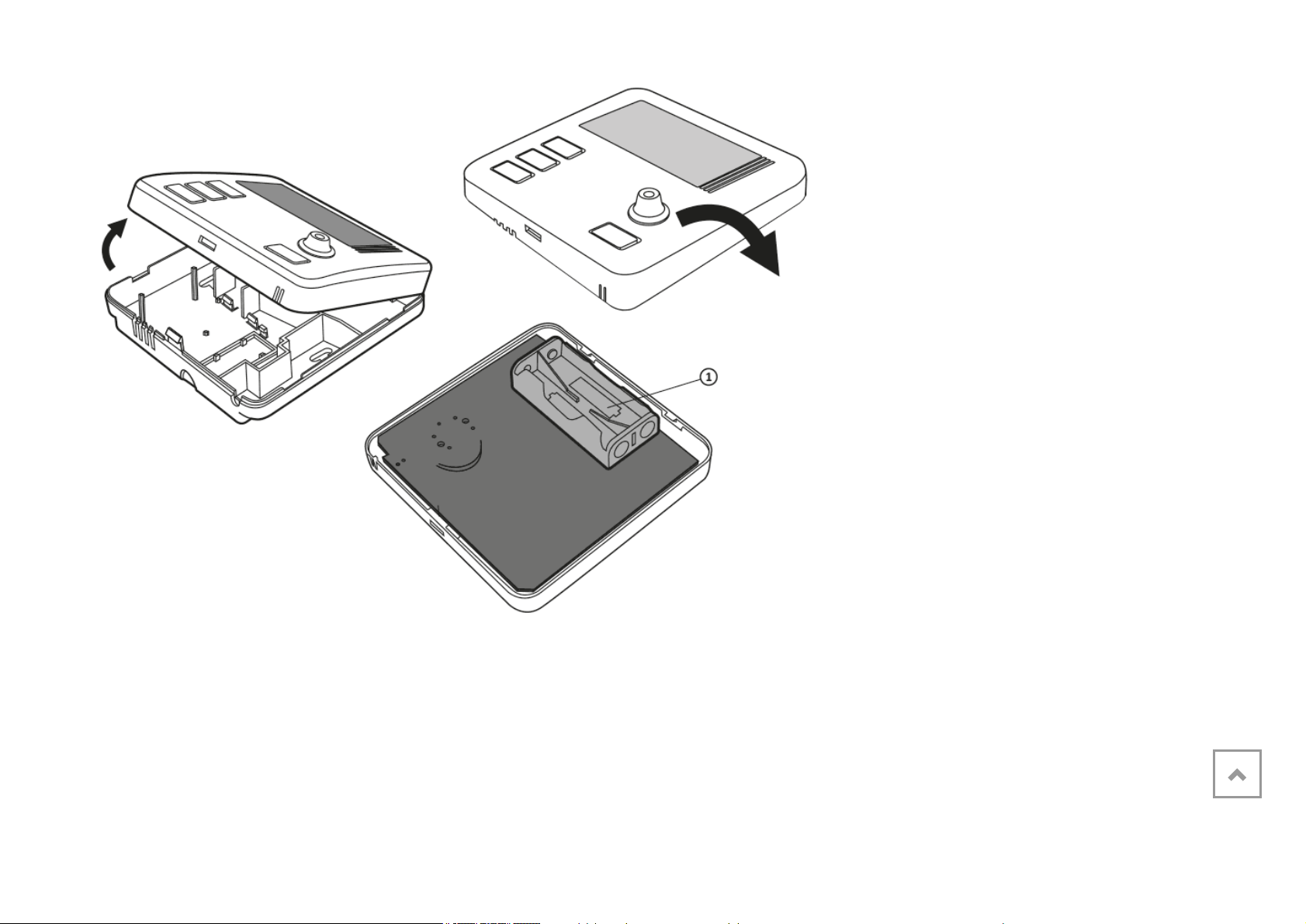

Battery change
The battery socket is located inside the AURATON Libra R on the front of the housing.
To install the batteries, remove the AURATON Libra R cover as shown in the figure
below:
NOTE:
We recommend alkaline batteries to power AURATON regulators. Do not use
"rechargeable batteries" because the rated voltage is too low.
Introduction to programming
programming
Manual control
Anti-freeze temperature
Description of AURATON Fornax
Pairing AURATON Libra R of a weekly, wireless
temperature controller (transmitter) with AURATON
Fornax - a wireless controller for a heating or air-
conditioning device (receiver)
RESET AURATON Libra R
MASTER RESET AURATON Libra R
Configuration settings
PWM operating mode
Special situations
Unique features of AURATON Fornax
Additional remarks
Connection diagram of AURATON Fornax
Cleaning and maintenance
Technical data
Disposal of the device
To download
Weekly, wireless temperature controller with
AURATON Fornax heating or air conditioning
controller (set)
The description of AURATON Libra R
The first launch of AURATON Libra R.


26/10/21, 4:32 μ.μ.
AURATON Libra SET - AURATON manuals
https://manuals.auraton.pl/manuals/auraton-libra-set-pl/
10/50
1 – 1.5V AAA battery socket
Insert two 1.5V AAA batteries into the battery socket, paying attention to the correct
polarity of the batteries.
Introduction to programming
programming
Manual control
Anti-freeze temperature
Description of AURATON Fornax
Pairing AURATON Libra R of a weekly, wireless
temperature controller (transmitter) with AURATON
Fornax - a wireless controller for a heating or air-
conditioning device (receiver)
RESET AURATON Libra R
MASTER RESET AURATON Libra R
Configuration settings
PWM operating mode
Special situations
Unique features of AURATON Fornax
Additional remarks
Connection diagram of AURATON Fornax
Cleaning and maintenance
Technical data
Disposal of the device
To download
Weekly, wireless temperature controller with
AURATON Fornax heating or air conditioning
controller (set)
The description of AURATON Libra R
The first launch of AURATON Libra R.


26/10/21, 4:32 μ.μ.
AURATON Libra SET - AURATON manuals
https://manuals.auraton.pl/manuals/auraton-libra-set-pl/
11/50
NOTE:
After replacing the battery and assembling the housing, we recommend pressing the
OK button twice to stabilize the relay operation.
Mount AURATON Libra R - weekly, wireless
temperature controller
To fix AURATON Libra R to the wall:
1. Remove the cover (as shown in the "Battery Replacement" section)
2. Drill two holes 6 mm in diameter in the wall (mark the spacing between the holes
using the rear part of the AURATON Libra R housing).
3. Put the wall plugs in the drilled holes.
4. Screw the rear part of the AURATON Libra R housing to the wall using the screws
included in the kit.
5. Put the cover on.
NOTE:
In the case of a wooden wall, there is no need to use expansion bolts. It is enough
to drill holes with a diameter of 2.7 mm (instead of 6 mm) and screw the screws
directly into the wood.
Introduction to programming
programming
Manual control
Anti-freeze temperature
Description of AURATON Fornax
Pairing AURATON Libra R of a weekly, wireless
temperature controller (transmitter) with AURATON
Fornax - a wireless controller for a heating or air-
conditioning device (receiver)
RESET AURATON Libra R
MASTER RESET AURATON Libra R
Configuration settings
PWM operating mode
Special situations
Unique features of AURATON Fornax
Additional remarks
Connection diagram of AURATON Fornax
Cleaning and maintenance
Technical data
Disposal of the device
To download
Weekly, wireless temperature controller with
AURATON Fornax heating or air conditioning
controller (set)
The description of AURATON Libra R
The first launch of AURATON Libra R.


26/10/21, 4:32 μ.μ.
AURATON Libra SET - AURATON manuals
https://manuals.auraton.pl/manuals/auraton-libra-set-pl/
12/50
1 – fixing screw hole
The first launch of AURATON Libra R.
After the batteries are correctly
inserted into the slots, the LCD will
display for a second all the segments
Introduction to programming
programming
Manual control
Anti-freeze temperature
Description of AURATON Fornax
Pairing AURATON Libra R of a weekly, wireless
temperature controller (transmitter) with AURATON
Fornax - a wireless controller for a heating or air-
conditioning device (receiver)
RESET AURATON Libra R
MASTER RESET AURATON Libra R
Configuration settings
PWM operating mode
Special situations
Unique features of AURATON Fornax
Additional remarks
Connection diagram of AURATON Fornax
Cleaning and maintenance
Technical data
Disposal of the device
To download
Weekly, wireless temperature controller with
AURATON Fornax heating or air conditioning
controller (set)
The description of AURATON Libra R
The first launch of AURATON Libra R.


26/10/21, 4:32 μ.μ.
AURATON Libra SET - AURATON manuals
https://manuals.auraton.pl/manuals/auraton-libra-set-pl/
13/50
followed by the software version
number.
After a while, AURATON Libra R will
automatically go back to the hour
setting. A flashing item on the screen
means that it is currently in edit mode.
Turn the knob to the left or right to set
the required hour and confirm by
pressing ( .
Turn the knob to the left or right to set
the correct value on the minute
segment and confirm again by
pressing the button ( .
A flashing day of the week symbol
appears in the upper left corner. Turn
the knob to the left or right to set the
Introduction to programming
programming
Manual control
Anti-freeze temperature
Description of AURATON Fornax
Pairing AURATON Libra R of a weekly, wireless
temperature controller (transmitter) with AURATON
Fornax - a wireless controller for a heating or air-
conditioning device (receiver)
RESET AURATON Libra R
MASTER RESET AURATON Libra R
Configuration settings
PWM operating mode
Special situations
Unique features of AURATON Fornax
Additional remarks
Connection diagram of AURATON Fornax
Cleaning and maintenance
Technical data
Disposal of the device
To download
Weekly, wireless temperature controller with
AURATON Fornax heating or air conditioning
controller (set)
The description of AURATON Libra R
The first launch of AURATON Libra R.


26/10/21, 4:32 μ.μ.
AURATON Libra SET - AURATON manuals
https://manuals.auraton.pl/manuals/auraton-libra-set-pl/
14/50
required day and confirm the selection
by pressing the button ( .
NOTE:
If no button is pressed for 60 seconds in the Initial Edit mode, it will automatically
default to 12:00 and Monday as the day of the week.
NOTE:
When programming any other functions, if you do not press any button for 10
seconds, you will use the ( button .
Setting the clock and day of the week
To set the clock:
1. Press the m button . The hour
segment starts flashing on the
display.
Introduction to programming
programming
Manual control
Anti-freeze temperature
Description of AURATON Fornax
Pairing AURATON Libra R of a weekly, wireless
temperature controller (transmitter) with AURATON
Fornax - a wireless controller for a heating or air-
conditioning device (receiver)
RESET AURATON Libra R
MASTER RESET AURATON Libra R
Configuration settings
PWM operating mode
Special situations
Unique features of AURATON Fornax
Additional remarks
Connection diagram of AURATON Fornax
Cleaning and maintenance
Technical data
Disposal of the device
To download
Weekly, wireless temperature controller with
AURATON Fornax heating or air conditioning
controller (set)
The description of AURATON Libra R
The first launch of AURATON Libra R.


26/10/21, 4:32 μ.μ.
AURATON Libra SET - AURATON manuals
https://manuals.auraton.pl/manuals/auraton-libra-set-pl/
15/50
2. Turn the knob to the left or right to set the required hour and confirm by pressing (
.
3. Turn the knob to the left or right to set
the correct value on the minute
segment and confirm again by
pressing the button ( .
4. A flashing day of the week symbol
appears in the upper left corner. Turn
the knob to the left or right to set the
required day and confirm the
selection by pressing the button ( .
NOTE:
You can also switch by pressing the m button .
Introduction to programming
programming
Manual control
Anti-freeze temperature
Description of AURATON Fornax
Pairing AURATON Libra R of a weekly, wireless
temperature controller (transmitter) with AURATON
Fornax - a wireless controller for a heating or air-
conditioning device (receiver)
RESET AURATON Libra R
MASTER RESET AURATON Libra R
Configuration settings
PWM operating mode
Special situations
Unique features of AURATON Fornax
Additional remarks
Connection diagram of AURATON Fornax
Cleaning and maintenance
Technical data
Disposal of the device
To download
Weekly, wireless temperature controller with
AURATON Fornax heating or air conditioning
controller (set)
The description of AURATON Libra R
The first launch of AURATON Libra R.


26/10/21, 4:32 μ.μ.
AURATON Libra SET - AURATON manuals
https://manuals.auraton.pl/manuals/auraton-libra-set-pl/
16/50
Default setting of programs
Monday - Friday:
the heating device maintains the day temperature ( S ) from 05:00 to 8:00 and
from 15:00 to 23:00
Saturday - Sunday:
the heating device maintains the day temperature ( S ) from 06:00 to 23:00
default temperature settings:
S day temperature - 21.0 ° C
T night temperature - 19.0 ° C
U anti-freeze temperature - 7.0 ° C
Programming day and night temperatures
AURATON Libra R allows you to program 2 types of temperature:
Day temperature ( S ) - 5 to 30 ° C
Night temperature ( T ) - from 5 to 30 ° C
To set one of the above temperatures:
1. Press the n button .
2. The display will show the currently
set temperature with the symbol:
Introduction to programming
programming
Manual control
Anti-freeze temperature
Description of AURATON Fornax
Pairing AURATON Libra R of a weekly, wireless
temperature controller (transmitter) with AURATON
Fornax - a wireless controller for a heating or air-
conditioning device (receiver)
RESET AURATON Libra R
MASTER RESET AURATON Libra R
Configuration settings
PWM operating mode
Special situations
Unique features of AURATON Fornax
Additional remarks
Connection diagram of AURATON Fornax
Cleaning and maintenance
Technical data
Disposal of the device
To download
Weekly, wireless temperature controller with
AURATON Fornax heating or air conditioning
controller (set)
The description of AURATON Libra R
The first launch of AURATON Libra R.


26/10/21, 4:32 μ.μ.
AURATON Libra SET - AURATON manuals
https://manuals.auraton.pl/manuals/auraton-libra-set-pl/
17/50
S - day temperature;
T - night temperature.
3. Turn the knob to the left or right to set the desired temperature value.
4. Pressing the n button will toggle the editing mode between the day and night
temperature ( S , T ).
5. After setting the temperatures, confirm with the ( ) button .
NOTE:
The night temperature setting may be equal to or lower than the day temperature.
It is impossible to set the night temperature higher than the day temperature.
Introduction to programming
Time line
The time line on the LCD is divided into 24 sections. Each of them symbolizes 1 hour
of the day.
Black rectangles above the time line mean that the day temperature has been
Introduction to programming
programming
Manual control
Anti-freeze temperature
Description of AURATON Fornax
Pairing AURATON Libra R of a weekly, wireless
temperature controller (transmitter) with AURATON
Fornax - a wireless controller for a heating or air-
conditioning device (receiver)
RESET AURATON Libra R
MASTER RESET AURATON Libra R
Configuration settings
PWM operating mode
Special situations
Unique features of AURATON Fornax
Additional remarks
Connection diagram of AURATON Fornax
Cleaning and maintenance
Technical data
Disposal of the device
To download
Weekly, wireless temperature controller with
AURATON Fornax heating or air conditioning
controller (set)
The description of AURATON Libra R
The first launch of AURATON Libra R.


26/10/21, 4:32 μ.μ.
AURATON Libra SET - AURATON manuals
https://manuals.auraton.pl/manuals/auraton-libra-set-pl/
18/50
programmed in the given hours, no, that the night temperature has been
programmed.
Example:
The figure above shows that from 6.00 a.m. to 11.00 p.m. AURATON Libra R will
control the heating device in such a way that the day temperature ( S ) prevails in
the room . From 23.00 to 6.00, AURATON Libra R will switch to night temperature (
T ).
Factory programs
In order for AURATON Libra R to know when to turn on the day and night
temperature, it should be set to an appropriate program for each day of the week.
For this purpose, we can use one of the three factory-set programs (from 0 to 2):
Program no. 0 - anti-freeze U
Unmodifiable factory program. Designed for all-day anti-freezing temperature setting.
Program no. 1 - weekly
Non-modifiable factory program. It sets the day temperature from 5:00 a.m. to 8:00
a.m. and from 3:00 p.m. to 11:00 p.m.
Introduction to programming
programming
Manual control
Anti-freeze temperature
Description of AURATON Fornax
Pairing AURATON Libra R of a weekly, wireless
temperature controller (transmitter) with AURATON
Fornax - a wireless controller for a heating or air-
conditioning device (receiver)
RESET AURATON Libra R
MASTER RESET AURATON Libra R
Configuration settings
PWM operating mode
Special situations
Unique features of AURATON Fornax
Additional remarks
Connection diagram of AURATON Fornax
Cleaning and maintenance
Technical data
Disposal of the device
To download
Weekly, wireless temperature controller with
AURATON Fornax heating or air conditioning
controller (set)
The description of AURATON Libra R
The first launch of AURATON Libra R.


26/10/21, 4:32 μ.μ.
AURATON Libra SET - AURATON manuals
https://manuals.auraton.pl/manuals/auraton-libra-set-pl/
19/50
Program no. 2 - weekend The
unmodifiable factory program. Day temperature setting from 6:00 am to 11:00 pm.
Program no. 3, 4,…., 8 - user
Programs no. 3 to no. 8 are user programs. They can be freely changed and
adapted to your requirements.
programming
Weekly programming
The programming of AURATON Libra R consists in defining the hours at which the
day temperature is to be realized for a given day of the week. The night temperature
then applies during the rest of the time.
An exemplary mode Auraton Libra R a d Monday to Sunday. Apart from the time
periods specified below, AURATON Libra R will have a lower night temperature.
Day Daytime
temperature
Monday 5:00 - 8:00;
15:00 - 23:00
Introduction to programming
programming
Manual control
Anti-freeze temperature
Description of AURATON Fornax
Pairing AURATON Libra R of a weekly, wireless
temperature controller (transmitter) with AURATON
Fornax - a wireless controller for a heating or air-
conditioning device (receiver)
RESET AURATON Libra R
MASTER RESET AURATON Libra R
Configuration settings
PWM operating mode
Special situations
Unique features of AURATON Fornax
Additional remarks
Connection diagram of AURATON Fornax
Cleaning and maintenance
Technical data
Disposal of the device
To download
Weekly, wireless temperature controller with
AURATON Fornax heating or air conditioning
controller (set)
The description of AURATON Libra R
The first launch of AURATON Libra R.


26/10/21, 4:32 μ.μ.
AURATON Libra SET - AURATON manuals
https://manuals.auraton.pl/manuals/auraton-libra-set-pl/
20/50
Tuesday 5:00 - 8:00;
15:00 - 23:00
Wednesday 5:00 - 8:00;
15:00 - 23:00
Thursday 5:00 - 8:00;
15:00 - 23:00
Friday 5:00 - 8:00;
15:00 - 23:00
Saturday 8:00 am - 11:00
pm
Sunday 8:00 am - 11:00
pm
Program selection
To set the program:
1. Press the h button . The program
number segment will start flashing.
Introduction to programming
programming
Manual control
Anti-freeze temperature
Description of AURATON Fornax
Pairing AURATON Libra R of a weekly, wireless
temperature controller (transmitter) with AURATON
Fornax - a wireless controller for a heating or air-
conditioning device (receiver)
RESET AURATON Libra R
MASTER RESET AURATON Libra R
Configuration settings
PWM operating mode
Special situations
Unique features of AURATON Fornax
Additional remarks
Connection diagram of AURATON Fornax
Cleaning and maintenance
Technical data
Disposal of the device
To download
Weekly, wireless temperature controller with
AURATON Fornax heating or air conditioning
controller (set)
The description of AURATON Libra R
The first launch of AURATON Libra R.

