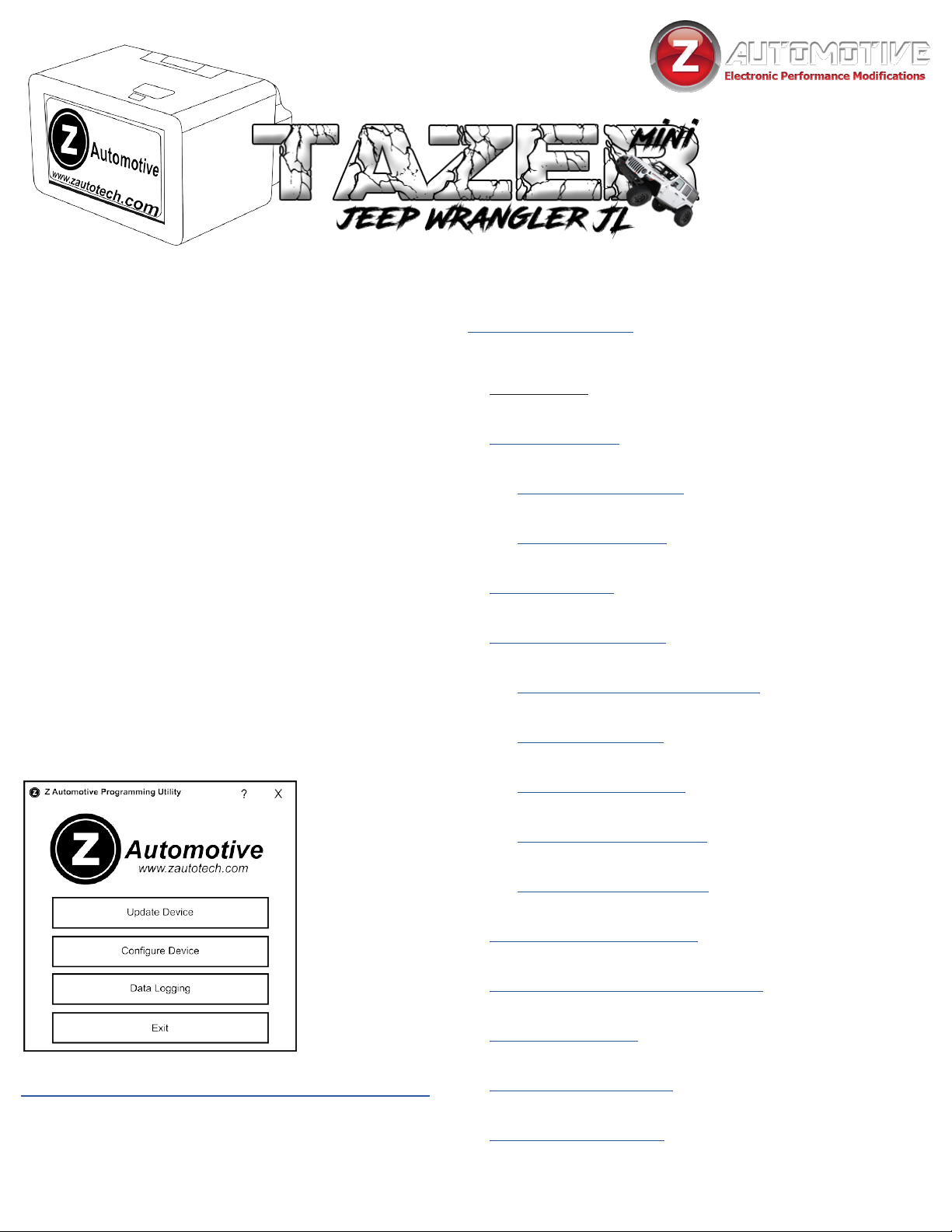

Automotive Tazer JL Mini User manual

1
User’s Guide
For Firmware 11.2.0-031220
Contents
Feature List 2
• Vehicle Settings 2
• Live Functions 3
Installation 4
Vehicle Settings 5
• Submenu Performance 6
• Submenu Tire 7
• Submenu Radio 7
• Submenu Lighting 7
• Submenu Comfort 8
Live Menu Settings 10
Non-Menu Live Functions 11
Conguration 13
The Unmarry Key 13
Troubleshooting 14
The Tazer JL Mini is an electronic plug-in
device for the following vehicles:
2018-2020 Jeep Wrangler JL
2020 Jeep Gladiator JT
Firmware Updates
New rmware
is available
periodically,
always free
and posted
to the Z
Automotive
website. Use
ZPU (Z Automotive Programming Utility),
also on the website, to install the rmware
over USB.
Also compatible with
Jeep Gladiator JT

2
Feature List
• change tire size
• change gear ratio
• change Transfer Case LOW ratio
• enable/disable TPMS system
• set TPMS pressure warning limit, front
and rear, between 25psi and 85psi
• enable/disable backup camera
• enable/disable Cargo Camera input
(8.4 UConnect only)
• enable/disable CD (wired audio) input*
• enable/disable TravelLink/XM trafc
and weather
• change daytime running lights (DRL)
region (CA/USA)
• change DRL location
• enable/disable DRL Dropout function
• enable/disable factory fog lights
• enable/disable Fog Light Dropout
(when fogs shut off while high beams
are on)
• enable/disable factory halo lights
(including BCM output for adding halos)
• enable/disable one-touch lane change
• change headlight type (Std/LED)
• change fog light type (Std/LED)
• change taillight type (Std/LED)/delete
sensor circuit for running aftermarket
lights
• change front turn signal type (std/
LED)/delete sensor circuit for running
aftermarket lights
• enable/disable Trailer Tow setting
• enable/disable Aux Buttons
• enable/disable Blind Spot Detection (if
the hardware is added or removed)
• enable/disable/change ParkSense
conguration
• disable electronic sway bar (if removed
from the vehicle)
• disable front axle disconnect module
for axle swaps
• disable front and rear lockers for axle
• Vehicle Settings are changes made to the Jeep such as tire size, gear ratios or
settings which accomodate other upgrades. These changes will continue to
operate after the Tazer JL Mini is unplugged.
• Live Functions are operations the Tazer JL Mini performs live, only while it is
physically connected.
Vehicle Settings
Tazer JL Mini features can be broken into two categories:

3
swaps
• disable electronic steering pump for
hydraulic steering conversions
• enable HVAC dual-zone switch
assembly when upgrading from 5” radio
• enable automatic headlights
• Change cluster splash screen — JL:
Wrangler/Sahara/Rubicon JT: Sport/
SportX/Rubicon
• enable/disable PANIC button on remote
• one-touch return-to-stock – quick
“Unmarry” function returns to stock.
Live Functions
• AutoStopStart Disable – Tazer JL Mini
will automatically remember the last
state of the auto stop/start system and
set it for you the next time you start the
vehicle
• AutoTracKill – Tazer JL Mini will
automatically remember the last state
of the traction control system and set
it for you the next time you start the
vehicle
• disconnect sway bar in 2WD up to
30mph or at any speed if mapped to a
button
• use backup camera and added cargo/
front/undercarriage camera/JT Trail
camera or media player at any speed
• TurnCAM – activate backup camera
when turn signals are used (7” and
8.4” UConnect)
• Dark Mode – turn off all exterior lighting
and dash/radio/shifter lights while
parked with the engine running
• Light Show – 6 preset and 3 make-
your-own light shows that ash all the
exterior lights – perfect for car shows/
rst responders/off-road visibility –
controlled from key fob or steering
wheel buttons – can be enabled in-
motion for use in parades, off-road and
for legal police/EMS applications
• Axle Locker Control (Rubicon) – engage
lockers in 2WD and 4Hi on demand.
• TC Kill – turn off traction control,
stability control and ABS
• Hood Alarm – monitors hood activity
when the vehicle theft alarm is armed
and will sound the alarm and ash a
light show if opened
• Cooldown Mode – turn on engine fans
on-demand when the ignition is on and
the engine is not running
• Line Lock – lock the front brakes for an
easy burnout
• Rock Crawl – lock all four brakes with

4
Installation

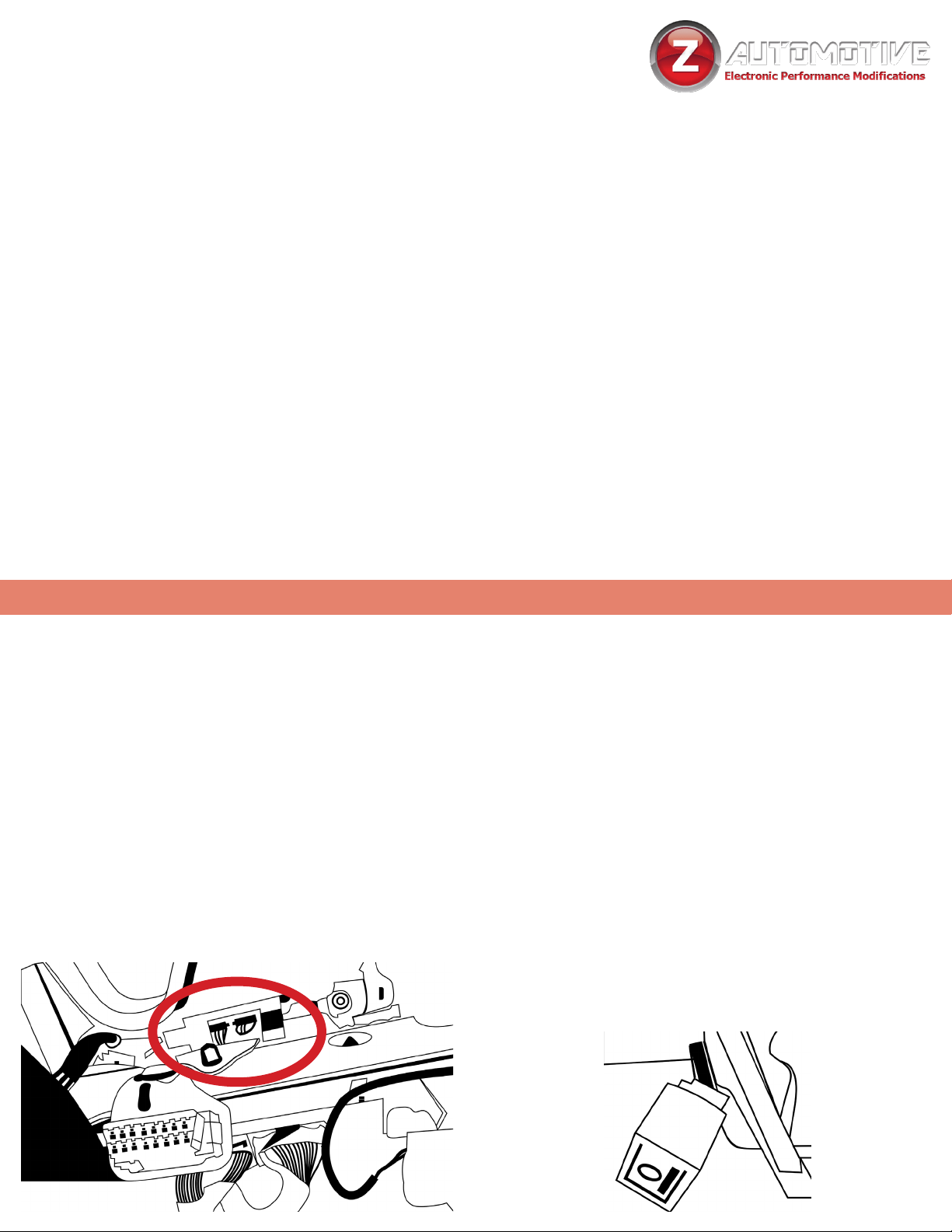

Installation is a matter of unplugging the
SGW module above the OBD2 diagnostic
connector and plugging the Tazer JL Mini
in its place. Simply locate the SGW and
unplug its two connectors by pressing
the tab with your index nger and gently
pulling straight down on the wires. Plug
those two connectors into the Tazer JL
Mini.
a steering wheel button combo to hold
the vehicle still, especially helpful when
off-road
• Winch Mode – raise idle RPM to user-
selected value between 1250 and
2000 RPM with a button press
• Button Mapping – use cruise up, down
and right buttons as quick-access to
some of Tazer JL Mini’s functions when
cruise control is off
• Display DTCs – display Diagnostic
Trouble Codes to see why the Check
Engine light may be on.
• Clear CELs – reset check engine light
and DTC codes
• 0 to 30 and 0 to 60 Timers – display
0-30 or 0-60 timers on EVIC
• display Boost/Vacuum readout on the
EVIC
• The Tazer JL Mini is intended to be left
plugged in, as many of its features (Live
Functions) only work when installed.
• The Tazer JL Mini should be Unmarried
and removed before dealer service.
• The Tazer JL Mini will go to sleep 30
seconds after the Jeep shuts down.
• It does not need to be plugged in
for any of the features in the Vehicle
Settings to remain operational.

5
If you made any changes in the setup menu, be sure to scroll to “full reboot?” and
“select” it. This step is critical after changing settings, or you may nd that the dash
doesn’t shut down, which can result in a dead battery.
Vehicle Settings
This section explains how to use the Tazer JL Mini to change the
vehicle settings for feature activation.
Menu Navigation
• For all functions involving the dash
(EVIC) display, the EVIC screen rst
needs to be in a state where it’s
showing the AUDIO screen. Use the left
and up/down arrows to set the EVIC
display like this. One the display is in
this state, press and hold the steering
wheel LEFT ARROW, and tap the Cruise
“CANCEL” button to enter the settings
menu. Pressing LEFT ARROW and
CANCEL will advance through the menu
items. To change/select a setting,
press and hold LEFT ARROW and tap
the Cruise “ON/OFF” (center) button.
• Advance through the menu slowly.
• You can exit the menu quickly and
safely by holding the left arrow and
pressing the cruise RES button.
• If the text is overwritten by another
message, press the left arrow and the
display will revert back to the Audio
display.
Some settings require two sleep/wake cycles. The quickest way to do this is to turn
the ignition off, leave the car, close the driver’s door and walk away with the key. Wait
about 60 seconds AFTER the dash goes dark, then re-enter. Do this twice.
Exit the menu quickly and safely by HOLDING the LEFT ARROW and TAPPING the
Cruise “RES” button.

6
After unmarrying, advance to the “full
reboot?” option and select it, allowing a
full 2.5 minutes for the Tazer JL Mini to
reboot all systems – the Uconnect will
reboot twice in this time, the dash will
reset, and when it’s nished, the red
security dot on the dash will turn on and
back off. A few sleep cycles might be
required for all changes to take effect.
Select “UNMARRY” to
return the vehicle to stock.
• Light Shows: Activate pre-programmed
and custom light shows, even when the
engine isn’t running.
• Clear CELs: Clear the check engine
light and diagnostic codes stored in the
PCM, TCM, ABS, and AWD modules.
• Display DTCs: Cycles through
Diagnostic Trouble Codes
• Marry/Unmarry: To advance to any
of the vehicle settings, you will rst
need to “Marry” the Tazer JL Mini
to the vehicle. When you select this
option, the Tazer JL Mini will download
your car’s current (presumably stock)
settings. This should take around 15
seconds. Do not disturb this process.
Once complete, you will be able to
advance to the Settings choices.
• Submenus: Once married, you can
advance though several sub-menus.
Select a submenu using the method
described above.
Submenu Perf:
performance-based options
• Set Tire Size: Use this setting to change
the calibration for tire size. Use the left
arrow and cruise +/- buttons to raise or
lower the value, then select it (left arrow
and cruise on/off) to save the new setting.
• Set Gear Ratio: Use this setting to change
the calibration for axle gear ratio. Use the
left arrow and cruise +/- buttons to raise
or lower the value, then select it (left arrow
and cruise on/off) to save the new setting.
• Set Transfer Case LOW ratio: Use this
setting to change the calibration for 4LOW
gear ratio. Use the left arrow and cruise
+/- buttons to raise or lower the value,
then select it (left arrow and cruise on/off)
to save the new setting.
The setup menu is accessed with the ignition ON but engine NOT running.
The menu items are listed in the order in which they will display.

7
Submenu Tire:
TPMS and tire size options
• Set TPMS: Turn the tire pressure
monitoring system on or off.
• Set Tire Pressures Front/Rear: Change
the TPMS warning pressures – use
the left arrow and cruise +/- buttons
to raise or lower the pressure, then
select it to save the new setting. (The
car’s computer will only recognize a
minimum of 25psi.)
Submenu Radio:
radio-based options
• Set Backup Camera: If factory backup
camera is deleted, this setting will disable
it.
• Set Cargo Cam: This will enable the
“cargo cam” selector on the “controls”
screen. Useful for front cameras.
• Set DVD_CD: This setting adds the CD
input on the UAQ radio, for use as an aux
input, particularly useful if adding a media
player or DVD player.
• Set Travel Link: This setting adds the
ability to disable SiriusXM Travel Link,
which turns off the weather pop-ups. Also
disables SiriusXM Trafc information.
Submenu Lighting:
DRL and other lighting options
• Set DRL Type: Choose USA (on but
selectable), Canada (on all the time), or
off.
• Set DRL Location: Choose which
lights to use as DRL’s (results vary with
vehicle model) – Dedicated DRL, SRT
DRL’s, Turns, Fogs, Hi beams or Low
beams.
• Set DRL Dropout: This setting is
enabled by default, making the DRL
turn off when using a turn signal.
Turning this OFF will keep the DRL on
even when a turn signal is in use.
• Set Fog Lights Enable: If factory fog
lights are added, this setting will enable
them.
• Set Fog Dropout: This setting is
enabled by default, making the Fogs
turn off when using high beams.
Turning this OFF will keep the fogs on
even when high beams are in use.
• One-touch: Enable one-touch lane
change
• Set Halo Enable: This setting is to

8
disable or enable factory Halos.
• Set LED Headlights: This setting
is to congure the vehicle for LED
headlights.
• Set LED Fogs: This setting is to
congure the vehicle for LED Fog lights.
• Set LED Tails: Congure the vehicle for
LED taillights. If using aftermarket LED
tails on a factory LED Jeep, switch this
setting to NO then back to YES, this will
clear the bulb out and hyperash.
• Taillight Type: Recongure taillight type
for overseas conversions
• Set LED Front Turn: This setting is
to congure the vehicle for LED front
turn signals. If using aftermarket LED
turns on a factory LED Jeep, switch this
setting to NO then back to YES, this will
clear the bulb out and hyperash.
• After conguration, perform a few
5 minute sleep cycles. Turn signals
should be run for 20 seconds each
before hyperash and errors clear up.
• Set Trailer Tow: Congure the vehicle
for MOPAR trailer towing wiring kit
Submenu Off-Road:
DRL and other lighting options
• Set Sway Bar: If the Electronic Sway
Bar has been removed, you can use this
setting to delete the warnings. You can
also use this feature to be able to drive
with the sway bar disconnected at any
speed or 4WD range. Simply shift to 4WD,
press the button to disconnect the sway
bar, and once it’s disconnected, enter the
Tazer JL Mini JL settings menu and set
the Sway Bar off. It’ll remain disconnected
until you set it on again.
• Set EPSteer: This setting is used if you
deleted the factory electronic steering
pump for a hydraulic pump.
• Set LOCKER: This setting is used if you
deleted the factory axle lockers. You can
delete front only, or both. If the front
locker is deleted then the front axle
disconnect is deleted as well and needs to
be disabled as well.
• Set Front Axle Disconnect: This
setting will delete the factory Front Axle
Disconnect for those that have done axle
swaps. This setting should be used in
conjunction with the Locker setting.
• DTCM: Declare the presence of a Drive
Train Control Module (Rubicon Transfer
Case)

9
Submenu Other:
DRL and other lighting options
• Set AUX: This setting is to congure the
vehicle for AUX button package.
• Set Blind Spot: This setting is to
congure the vehicle for blind spot
detection package.
• Set Belt ding: This setting is to delete
the seat belt reminder chime. The
reminder icon will remain on the dash.
Always wear your seatbelt!
• Set ParkSense: This setting is to
change or disable ParkSense system.
Choices are as follows:
0: None
1: Sahara
2: Rubicon
• Set Splash: With this setting you can
choose the cluster splash screen. For
Wranglers:
Sport
Sahara
Rubicon
For Gladiators:
Sport
SportX
Rubicon
• Set DualZone: With this setting you can
allow the use of the single zone or dual
zone center stack button assembly.
Useful when upgrading from a 5” radio
to 7 ot 8.4, and swapping in the dual
zone controls that come with volume
knobs. Note: the system will still be
single zone in this case, only the driver
controls will change the temperature.
• Set Auto Headlights: Enable the
factory automatic headlight assembly
• Set Panic: With this setting you can
choose whether the PANIC button on
the keyfobs will be enabled or not.
This needs to remain enabled for the
Tazer JL Mini JL hood alarm feature to
function.
• Firmware Version Display: Shows the current Tazer JL Mini rmware revision.
• Serial Number Display: Shows your Tazer JL Mini’s serial number for (only needed
in specic tech support situations)
• Unmarry Key: Displays the current one-time use Unmarry Key. See Page 13
• Full Reboot: Will reset vehicle modules and the Uconnect system twice. This takes 2.5
minutes to complete and should be performed after any Vehicle Settings are changed –
Uconnect will reboot twice, the dash will reset, and when it’s nished, the red security dot
on the dash will turn on and back off. Once complete, shut off the vehicle, open and close
the driver door and wait for a minute to be sure the dash turns off.

10
Live Menu Settings
This section explains how to use the Tazer JL Mini’s live functions – these are
activated with the same button presses as the Settings Menu, but while the engine is
RUNNING. These features will only work if the Tazer JL Mini remains plugged in. Please
note that AutoSport, Trac Kill, and StMode will be enabled after initial setup.
• Light Show: This is one method of activating
the light shows. Selecting this will activate
the rst show, unless ZPU was used to
change the startup show. There are 9 light
shows – you can toggle through all 9, then
back to OFF.
• Set In-Motion Nav: If set ON, this adds the
ability for address info to be entered into the
navigation system while vehicle is moving.
This is for the PASSENGER to use. It may be
illegal for the driver to use the navigation
system to enter information while the vehicle
is in motion. It is recommended to leave
this setting OFF, enabling it only when you
need to use it, as it can cause an occasional
radio reboot right after engine start-up. This
will automatically be disabled if TurnCAM is
enabled.
• TurnCAM: If enabled, will automatically turn
on the backup camera if the turn signals are
being used. When this is enabled, In-motion
nav will be disabled.
• Hood Alarm: Turn hood alarm on/off.
Requires that Set Panic is enabled
• Dark Mode: If enabled, turn off all exterior
lights and dash, radio, and shifter lighting.
Selecting again, advancing to next menu
item, pressing “screen off”, or driving over 5
mph will automatically cancel this mode.
• Video: If selected, will turn on backup camera
input.
• VAC or BOOST: If selected, will display the
Vacuum/Boost Gauge on the EVIC
• 0-30 Timer: When the vehicle is stopped,
this display will change to “start 30”. As soon
as the vehicle starts moving, the display will
change to “go to 30” and the timer starts.
When the vehicle reaches 30MPH, the time
will be displayed.
• 0-60 Timer: When the vehicle is stopped,
this display will change to “start 60”. As soon
as the vehicle starts moving, the display will
change to “go to 60” and the timer starts.
When the vehicle reaches 60MPH, the time
will be displayed.
• Winch RPM: Use left arrow and cruise +/-
buttons to adjust Winch Mode RPMs, 1300-
200RPM. Use left arrow and cruise on/off to
save the new setting.
• Display Tazer JL Mini Firmware Revision:
Displays the Tazer JL Mini’s current rmware
version: “TZ JL: x.x.x.” (ie “TZJL:11.2.0”)

11
Non-Menu Live Settings
Some live functions of the Tazer JL Mini are not accessed via a menu, but rather work
automatically or with button presses.
• Light Shows: The Tazer comes pre-
congured with 6 light shows out of
the box, plus 3 “make your own” light
shows that you can congure with
the ZPU utility. There are two ways to
control the light shows on the Tazer:
Keyfob: The light show can be
turned on by pressing unlock-
unlock-lock-unlock from the keyfob.
This will start the rst light show in
the sequence (depending on which
show it’s congured to start with).
Pressing unlock again will advance
to the next enabled show. Pressing
lock will turn off the light shows.
You may lock the vehicle while
the shows are on by pressing the
button on the door handle or using
the key.
Dash Menu: You can start the
show by setting the dash to “Audio”
mode, then press the left arrow
and tap cruise CANC button.
“Lightshow?” will display on the
dash. Hold left arrow and tap cruise
on/off (center) button to turn on
the rst light show in the sequence.
Again to advance to the next show.
Exit the menu (left arrow and CANC)
to turn off the show.
• Start/Stop Kill: Set the Start/Stop
system as you wish, enabled/disabled,
and the Tazer JL will set it that way then
next time you start the vehicle.
• Traction Kill: Set the traction control
system as you wish, enabled/disabled,
and the Tazer JL will set it that way then
next time you start the vehicle.
• Sway Bar in 2WD: Press the Sway
bar button while in 2WD and it will
disconnect or re-connect as if it were
in 4WD. It will automatically re-connect
at 30MPH and disconnect when the
Jeep comes back to a full stop. See
“SwayKill” in Button Remap section for
full sway bar control.
• Locker Control: Press the REAR locker
button in 2WD/4HI or the FRONT/REAR
button in 4HI while under 10mph and
lockers will engage. Press the Locker
OFF button to disengage lockers. This
is the same method to operate the

12
lockers as if in 4LO. See LOCKERS in
Button Remap section for full locker
control
• Cooldown Mode: With the ignition
on but engine not running, press the
right arrow and cruise cancel button
at the same time to turn the engine
fan on High. They will also turn off
automatically if the battery voltage
drops below 11V.
• Winch Mode: With the engine running,
press the left arrow and cruise RES
buttons at the same time. The engine
will rise to the RPM selected in the live
menu (default 2000). There may be a
few seconds delay before it changes.
It will NOT raise if you touch the
accelerator pedal, and will cancel if you
do.
• Hood Alarm: Arm the factory Vehicle
Theft Alarm. If the hood is opened while
armed, the alarm will sound and the
Tazer JL Light show will be invoked. To
turn off, press the PANIC button on the
keyfob to turn off the alarm, and the
LOCK button to turn off the light show.
Set Panic needs to remain enabled for
this feature to function.
• Line Lock: While in 2WD, press and
hold the left arrow and cruise set(+)
buttons. Continue to hold and pump the
brakes twice, rmly. The Jeep will stay
held using only the front brakes while
you press on the accelerator to do a
burnout. “LineLock” will be displayed in
the cluster.
• Rock Crawl (patent pending): Press
and hold the left arrow and cruise
set(-) button, and pump the brakes
twice. The Jeep will hold using all
four brakes while you can work the
pedals to apply torque, and release the
buttons when you’re ready to move.
“RockCrawl” will be displayed in the
cluster.
• Full traction control disable: Press and
hold the traction button for 5 seconds
to fully disable TC and ABS. Shut off
and re-start Jeep to re-enable.
• Force Backup camera: Double tap
the “mute” button to switch to backup
camera (8.4” and 7” only)
• Button Remap: This function allows
the assignment of “hotkeys” for
quick access to some of the Tazer’s
functions. The cruise +/-/RES may be
used for this function. While the dash
is in Audio mode, press and hold the
RIGHT arrow and press the button you’d
like to remap. The choices are:

13
Any of the 8 light shows
backup cameras
Line Lock
Rock Crawl
TC Kill
Cooldown
Front/Rear/Front+Rear Lockers
SwayKill
Keep in mind that not all functions
pertain to all vehicles. These remap
buttons will only program and operate
while Cruise Control is OFF. When
Cruise is on, they will operate as normal
cruise control buttons. For TC Kill, a
vehicle restart is required to bring the
system back to normal. For Lockers, the
normal Locker off button disengages
the lockers.
• Partial Reboot: Press left arrow and
cruise RES with the ignition set to
RUN and engine is not running, and
the Tazer will reset several systems
including the PCM (engine adaptives),
RF Hub, Instrument cluster, ABS, BCM.
Conguration
Conguration of the Tazer is accomplished by using the supplied USB cable connected
to a PC or Mac, using the ZPU Programming Utility. The ZPU User Guide explains how
to install ZPU and how to perform rmware updates. If you misplace or damage your
USB cable, you can replace it with any common “USB Mini B” data/charging cable.
Please see the accompanying “Light Show Conguration Guide” to congure your
Tazer’s light show options.
The Unmarry Key
When you select “Unmarry” from the Tazer menu, all of your settings will revert to whatever they were when
you originally Married your Tazer.
If you receive a Tazer second-hand, or lose access to your vehicle without unmarrying your Tazer and
receive the “Not VIN XXXX” error:
1. Navigate to the “UM Key” item in the Tazer’s EVIC menu, described on page 10.
2. Write this key down, and visit this URL to purchase our Unmarry Service, where you’ll be prompted to
enter that key: https://www.zautomotive.com/product/unmarry-key/
3. Return to the UM Key option in the EVIC menu and hit (Left Arrow + Cruise+/-) to begin entering the
code provided with your purchase.
4. Press Left + Cruise On/Off to proceed to the next character.
5. Once you’ve entered the last (eighth) digit, your Tazer will report whether the unmarry has succeeded or
failed.

14
Symptom Cause Solution
No menu in EVIC EVIC display has to be in
state where it can display
radio station name
Set EVIC so it’s showing radio
station name. This
would be the the “Audio” menu
on JL Dash screen
Changed a setting and it didn’t
take effect
Needs a sleep/wake cycle
and/or radio reboot
See the instructions above in
the “Settings Menu” section,
about sleep cycling and radio
rebooting.
Changed gear ratio and
“service AWD” is showing
Incorrect gear ratio chosen or
setting didn’t initialize
Vehicle needs a sleep cycle and
short drive to fully initialize.
Manual transmission, changed
tire size and have ESS error
ESS re-learn procedure not
completed.
Please see the ESS relearn
procedure on the support page
for Tazer JL.
LED Turn signals are
hyperashing
Needs a few sleep/wake cycles
and calibration
See the instructions above in
the “Settings Menu” section,
about sleep cycling and radio
rebooting. Then run each turn
signal for 20 seconds.
Red security light on, ignition
state won’t change or vehicle
won’t start
Needs a sleep/wake cycles
because computer didn’t nish
synchronization routine
Wait a few minutes and then
try changing ignition state, then
perform one sleep cycle.
Z Automotive cannot be held responsible misuse or consequential damages.
If you are in doubt, email [e-mail].
Please be aware that modifying your vehicle in any way can affect your vehicle’s warranty, longevity,
handling, etc.
Please use with caution, and AT YOUR OWN RISK.
USING THE LIGHT SHOW FEATURE ON PUBLIC ROADS: IMPERSONATING A POLICE OFFICER IS A
FELONY. LIGHT SHOW IS INTENDED FOR CAR SHOW/TRACK/OFF ROAD USE ONLY.
Z Automotive is in no way afliated with FCA.
Protected by US Patents 15/441,476 and 15/441,467
Common Troubleshooting Questions
