AV TOOL AP-299 User manual

Instruction Manual
AP-299
Dolby® Digital to Analog Audio Converter

Table of Contents
1.0
Introduction
2
2.0
Specifications
3
3.0
Checking Package Contents
4
4.0
Connecting The Hardware
4
5.0
Operating The Unit
5
6.0
Troubleshooting
6
7.0
Limited Warranty
6
8.0
Regulatory Compliance
7
9.0
Contacts
7

2
1.0 INTRODUCTION
Thanks for purchasing this AP-299 Dolby® Digital to Analog Audio Converter
from the AV Toolbox division of TV One. The AP-299 is a versatile tool that
provides conversion capabilities between Optical, Coaxial and L/R Analog audio
signals. The AP-299 has the ability to convert digital signals into analog and
analog signals into digital format and also allows simultaneous conversion of
audio formats. For example, when converting Optical digital signals into analog
L/R audio you can also create a Coaxial format output from the same input audio
source. If your requirements include supporting multiple audio formats, the
Dolby®Digital to Analog Audio Converter provides the technology you need. AV
Toolbox offers a wide range of video, audio and multimedia products.
1.1 Liability Statement
Every effort has been made to ensure that this product is free of errors. AV
Toolbox cannot be held liable for the use of this hardware or any direct or indirect
consequential damages arising from its use. It is the responsibility of the user of
the hardware to check that it is suitable for his/her requirements and that it is
installed correctly. All rights reserved. No parts of this manual may be
reproduced or transmitted by any form or means electronic or mechanical,
including photocopying, recording or by any information storage or retrieval
system without the written consent of the publisher.
AV Toolbox reserves the right to revise any of its hardware and software
following its policy to modify and/or improve its products where necessary or
desirable. This statement does not affect the legal rights of the user in any way.
All third party trademarks and copyrights are recognised. The AV Toolbox logo is
a trademark of AV Toolbox. All other trademarks are the property of their
respective holders.
1.2 Features
The AP-299 Dolby® Digital to Analog Audio Converter has many features that
enable it to perform in a superior manner. Among those features you will find:
Dolby® Digital Decoder
Digital Interpolator Filter
Digital to Analog Converter (DAC)
Sampling Frequencies from 32 to 96KHz
Analog, Optical & Coaxial I/O
Very Easy to Configure and Operate
Small Footprint
Low Power Consumption

3
2.0 SPECIFICATIONS
Signal Input
Optical Audio
1x Optical Connector
Coaxial Audio
1x Coaxial (RCA) Audio Connector
L/R Analog Audio
2x RCA (L/R) Connectors
Signal Outputs
Optical Audio
1x Optical Connector
Coaxial Audio
1x Coaxial (RCA) Audio Connector
L/R Analog Audio
2x RCA (L/R) Connectors
Performance
Digital Sample Rate
32kHz to 96kHz
Coaxial, Optical Formats
LPCM 2.0, Dolby®Digital
L/R Audio Format
Stereo Analog Audio
Analog Impedance
47KΩ Input, 600Ω Output
Audio Bandwidth
20 Hz to 20 KHz
Digital Output Level
0dBFS
Analog Output Level
1.8Vrms +/-0.1V
SNR/X-Talk Digital Input
Digital Output SNR
> 144dB w/Digital Input
Analog Output SNR
> 109dB w/Digital Input
Digital Output Crosstalk
< -161dB w/Digital Input
Analog Output Crosstalk
< -100dB w/Digital Input
SNR/X-Talk Analog Input
Digital Output SNR
> 96dB w/Analog Input
Analog Output SNR
> 95dB w/Analog Input
Digital Output Crosstalk
< -113dB w/Analog Input
Analog Output Crosstalk
< -100dB w/Analog Input
Mechanical
Size (H-W-D)
35x97x85mm (1.3”x3.8”x3.4")
Weight (Net)
120g (4.23 oz.)
Warranty
Limited Warranty
1 Year Parts and Labor
Environmental
Operating Temperature
0° to +40° C (+32° to +104° F)
Operating Humidity
20% to 90%, Non-condensing
Storage Temperature
-20° to +60° C (+4° to +140° F)
Storage Humidity
20% to 90%, Non-condensing
Power Requirement
External Power Supply
5VDC@1A
Regulatory Approvals
Audio Extractor
FCC, CE, RoHS
Power Adapter
UL, CUL, CE, PSE, GS, RoHS
Accessories Included
1x Power Adapter
US, UK or Euro
1x Operations Manual
Product Item Number
AP-299 Dolby® Digital to Analog Audio Converter

4
3.0 CHECKING PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make certain
the following items are contained in the shipping carton:
1x AP-299 Dolby® Digital to Analog Audio Converter
1x AC Adapter
1x Operation Manual
Note: Please retain the original packing material should the need ever arise to
return the unit. If you find any items are missing, contact your reseller or TV One
immediately. Have the Model Number, Serial Number and Invoice available for
reference when you call.
4.0 CONNECTING THE HARDWARE

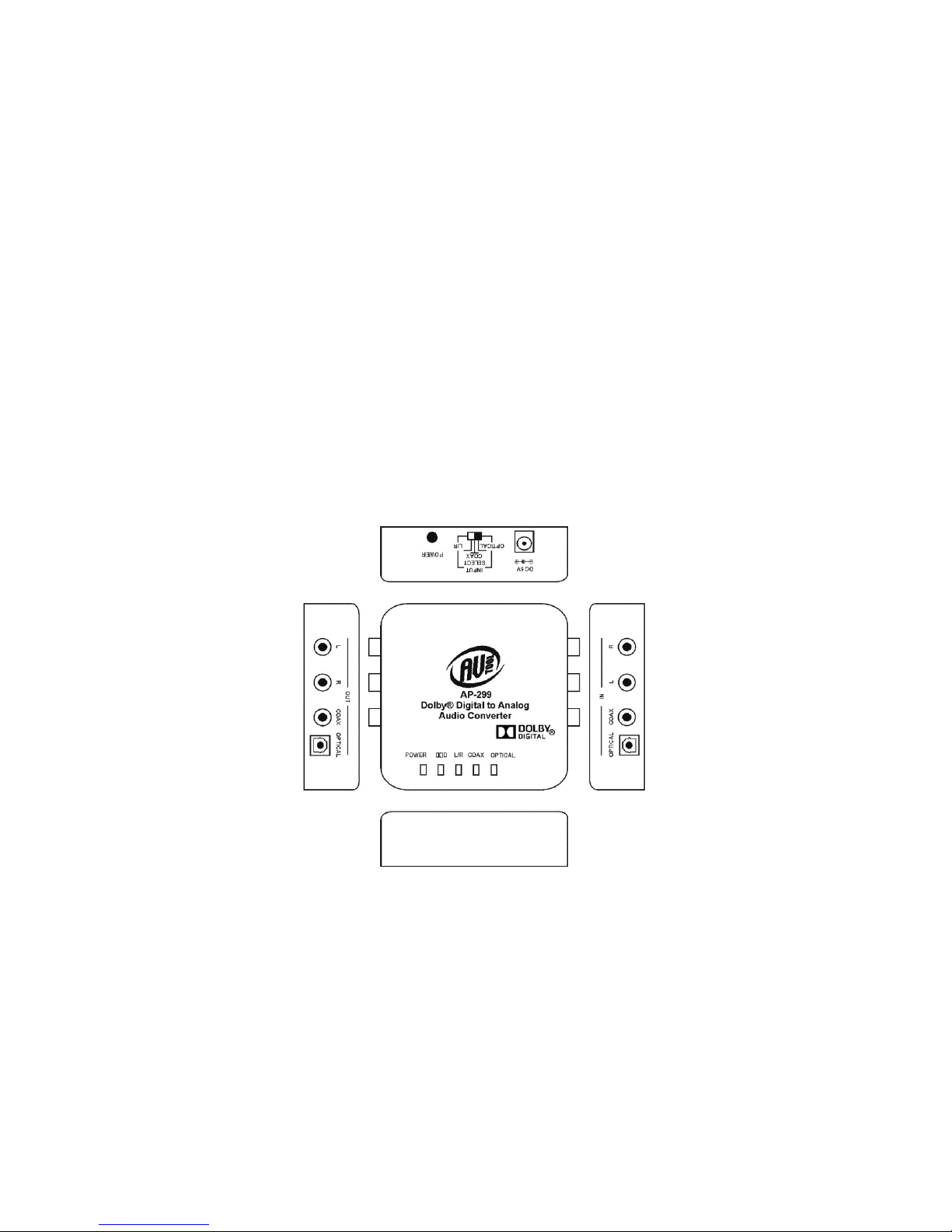

Please study the panel drawings below and become familiar with the locations of
the Signal Inputs, Outputs, Power connector and Input Select switch.
Connect the Output(s) from the source equipment to the appropriate Input con-
nectors on the AP-299. Next, connect the AP-299’s Optical, Coaxial and/or
analog L and R outputs to the destination audio equipment. Set the Input Select
Switch on the side of the AP-299 to the desired audio input mode (Optical, Coax
or L/R).
Connect the AC adapter to the AP-299 and to a working AC power socket. Press
the Power button on the side of the unit and then turn on the destination
equipment and the source equipment.

5
5.0 OPERATING THE UNIT
Other than connecting power, connecting the cables to the source and
destination equipment and making the desired audio Input type selection, there
are no operator interventions required.
5.1 LED Mode Indicators
To assist you knowing that power is applied to the AP-299, which input selection
has been made, and if Dolby® signal encoding is present, LED mode indicators
are provided on the top of the device.
From left to right, the indicators show Power is present*, Dolby® Encoding is
present, the Analog Input has been selected, the Coaxial Input has been
selected or the Optical Input has been selected.
* If power is available to the unit but the power button has not been pressed, the
power indicator will glow Red. When the button is pressed to turn on the device,
the indicator will glow Green.

6
6.0 TROUBLESHOOTING
In the event that the unit appears to be non-functional, make certain that the AC
power outlet is active for the source and destination equipment as well as the
AP-299. Next, Make certain that the source and destination equipment is
functioning properly. Lastly, substitute each cable in use with a known good
cable to remove that variable.
After trying the above suggestions should the problem still persist, contact your
dealer for additional suggestions before contacting AV Toolbox. Should the
dealer’s technical personnel be unable to assist you, contact AV Toolbox via the
TV One support website: http://tvone.crmdesk.com. Create a technical support
request on the site and our support team will respond within a short period of
time.
7.0 LIMITED WARRANTY
LIMITED WARRANTY –AV Toolbox warrants the original purchaser that the
equipment it manufactures will be free from defects in materials and
workmanship for a period of one year from the date of purchase. Should this
product, in AV Toolbox’s opinion, prove defective within this warranty period, AV
Toolbox, at its option, will repair or replace this product without charge. Any
defective parts replaced become the property of AV Toolbox. This warranty does
not apply to those products which have been damaged due to accident,
unauthorized alterations, improper repair, modifications, inadequate maintenance
and care, or use in any manner for which the product was not originally intended.
If repairs are necessary under this warranty policy, the original purchaser must
obtain a Return Authorization Number from AV Toolbox and return the product to
a location designated by AV Toolbox, freight prepaid. After repairs are complete,
the product will be returned, freight prepaid.
LIMITATIONS - All products sold are "as is" and the above Limited Warranty is in
lieu of all other warranties for this product, expressed or implied, and is strictly
limited to one year from the date of purchase. AV Toolbox assumes no liability to
distributors, dealers or end-users for any loss of use, revenue or profit.
AV Toolbox makes no other representation of warranty as to fitness for the
purpose or merchantability or otherwise in respect of any of the products sold.
The liability of AV Toolbox with respect to any defective products will be limited to
the repair or replacement of such products. In no event shall AV Toolbox be
responsible or liable for any damage arising from the use of such defective
products whether such damages be direct, indirect, consequential or otherwise,
and whether such damages are incurred by the reseller, end-user or any third
party.

7
8.0 REGULATORY COMPLIANCE
The AP-299 Dolby® Digital to Analog Audio Converter has been tested for
compliance with appropriate FCC and CE rules and regulations. The Power
Adaptor/Supplies have been tested for compliance with appropriate UL, CUL,
CE, PSE, GS Rules, Regulations and/or Guidelines. These Products and Power
Adapters are RoHS Compliant.
9.0 CONTACT INFORMATION
Should you have questions or require assistance with this product in areas not
covered by this manual, please contact AV Toolbox at the appropriate location.
AV Toolbox
A division of TVOne
2791 Circleport Drive
Erlanger, KY 41018
USA
Tel [phone]
Fax [phone]
[email protected]
www.avtoolbox.com
AV Toolbox
A division of TV One Ltd
Continental Approach
Westwood Industrial Estate
Margate, Kent CT9 4JG, UK
Tel [phone]
Fax [phone]
[email protected]
www.avtoolbox.co.uk
AV Toolbox Latin America
A division of TV One L.A.
6991 NW 82 Avenue #8
Miami, FL 33166
USA
Tel [phone]
Fax [phone]
[email protected]
www.avtoolboxla.com
TV One Mercosur
Av. Diaz Velez 3965 #PB
(1200) Capital Federal
Buenos Aires, Argentina
Tel [phone]
Fax [phone]
[email protected]
www.tvonela.com
TV One Asia
16F-4, NO.75, Sec. 1
Xintai 5th Rd., Xizhi Dist.
New Taipei City 22101
Taiwan R.O.C.
Tel [phone]
Fax [phone]
[email protected]
www.tvoneasia.com
TV One China
Rm. 1007, Golden Peach Bldg.
No. 1900 Shangcheng Road
Pudong, Shanghai
China 200120
Tel [phone]
Fax [phone]
Email: [email protected]
www.tvonechina.com
End of Manual
