AV TOOL AVT-3310 User manual

AVT-3310
Video to PC Up Converter
Instruction Manual

Table of Contents
1.0 Introduction 2
2.0 Specifications 4
3.0 Checking Package Contents 4
4.0 Connecting the Hardware 4
5.0 Operating The Unit 5
6.0 Troubleshooting 6
7.0 Limited Warranty 6
8.0 Regulatory Compliance 7
9.0 Contact Information 8

2
1.0 INTRODUCTION
Thanks for purchasing this product from the AV Toolbox Division of TV One. The
AVT-3310 Video to PC Up Converter is designed to convert interlaced NTSC or
PAL Video––S-Video or Composite Video format––to SVGA, XGA or SXGA
resolutions which allows the viewing of standard television images on your PC
monitor. Sophisticated 3D adaptive processing of the input signal provides a
sharp and clear image on the computer monitor. This is but one of our complete
range of video and audio products.
1.1 Liability Statement
Every effort has been made to ensure that this product is free of errors. TV One
cannot be held liable for the use of this hardware or any direct or indirect
consequential damages arising from its use. It is the responsibility of the user of
the hardware to check that it is suitable for his/her requirements and that it is
installed correctly. All rights reserved. No parts of this manual may be
reproduced or transmitted by any form or means electronic or mechanical,
including photocopying, recording or by any information storage or retrieval
system without the written consent of the publisher.
TV One reserves the right to revise any of its hardware and software following its
policy to modify and/or improve its products where necessary or desirable. This
statement does not affect the legal rights of the user in any way.
All third party trademarks and copyrights are recognised. The TV One logo, AV
Toolbox logo, TV One-task and CORIO are the registered Trademarks of TV
One. All other trademarks are the property of their respective holders.
1.2 Features
•Automatically detects either NTSC or PAL Television Inputs.
•Either Composite Video (CV) or S-Video (Y/C) Inputs available.
•Provides High Resolution PC Video outputs (SVGA, XGA and SXGA).
•Motion Adaptive Y/C Separation of Composite Video (3D Comb Filtering).
•Motion Adaptive 3D YNR/CNR Noise Reduction for Y/C Video Input.
•Automatic 2:2 and 3:2 Film Mode Detection.
•Small, palm size footprint.

3
1.3 Getting the Best Results
There are many factors affecting the quality of results when scaling video signals.
Some basic precautions will ensure the best possible performance from your Up
Converter.
•Output display device – The quality of the output signal will depend
largely upon the type and quality of display device used. For instance,
some video projectors just look better than others.
•Distance between the Up Converter and the display device – This
plays a major role in the final result. Long distances are possible, but
special measures should be taken in order to avoid cable losses.
These include using high quality cables. Line amplifiers may also be
necessary.
•Input/Output connection cables – Low quality cables are susceptible
to interference. They degrade signal quality due to poor matching and
cause elevated noise levels. Therefore, cables should be of the best
quality. Coax-type computer cables are recommended because of
their superior internal shielding characteristics.
•Interference from nearby electrical devices – These can have an
adverse effect on signal quality. For example, an older computer
monitor often emits very high electromagnetic fields that can interfere
with the performance of video equipment in its proximity.

4
2.0 SPECIFICATIONS
Input Format NTSC or PAL Television Formats
Input Signal Types Composite Video or S-Video (Y/C)
Output Format PC Video, RGB 0.7Vp-p, H-Sync 3Vp-p, V-Sync 3Vp-p, 75Ω
Output Signal Types SVGA, XGA, SXGA PC Video
Input Connector Composite Video via 1x RCA, S-Video via 1x 4-Pin DIN
Output Connectors 1x HD-15
Device Control Auto NTSC/PAL Selection, Manual PC Resolution Selection
Input Selection Composite Video, S-Video (Y/C), Manually Selected
Weight 0.44lbs (200g)
Dimensions–HxWxD 0.9”x3.9”x2.5” (24x100x64mm)
Power Source 100~240VAC to 3.3VDC Adapter
3.0 CHECKING PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make certain
the following items are contained in the shipping carton:
•1x AVT-3310 Video to PC Up Converter
•1x 100~240VAC to 3.3VDC Power Adapter
•1x User Manual
Note: Please retain the original packing material should the need ever arise to
return the unit. If you find any items are missing, contact your reseller or TV One
immediately. Have the Model Number, Serial Number and Invoice available for
reference when you call.
4.0 CONNECTING THE HARDWARE
The first step is to connect a Video Source to the input of the AVT-3310 Up
Converter, connect its output to a PC monitor and lastly connect the AC to DC
Power Adapter. The drawings below show the locations of the input, outputs,
power switch and power connector.
The Input Select Switch and
Input Indicator LED are
located on the top of the unit.

5
4.1 Connecting the Monitor to the AVT-3310
To make certain your monitor is working properly, check that a PC can produce a
picture on it before attempting to use it with the AVT-3310 then connect the
monitor to the output of the AVT-3310 using a high quality cable.
Note: If you do not know the maximum resolution that your monitor is capable of
accepting, set the AVT-3310 to XGA resolution using the three position switch
located on the output side of the unit initially.
4.2 Connecting the Input to the AVT-3310
You can connect either a NTSC or a PAL input signal to the AVT-3310. The unit
will automatically determine which type signal it is receiving. For the signal cable
type, you’ll want to use S-Video if possible because it will produce the best
picture in most cases. With either input always use a high quality cable, as short
a length as possible, for best results.
4.3 Connecting Power to the AVT-3310
The AVT-3310 is shipped with a Power Adapter to convert 100~240VAC@50-
60Hz to 3.3VDC. Connect the DC Output Cable from the Power Adapter to the
back of the unit and then plug the Power Adapter into an AC Receptacle. The
AVT-3310 has no power switch. As soon as the Power Adaptor is connected, the
unit is receiving power.
5.0 OPERATING THE AVT-3310
Once the AVT-3310 is connected to a monitor and an appropriate input signal is
connected, you can apply power. If you have connected a Composite Video
signal to the AVT-3310, press the input switch on the top of the unit until the LED
indicator turns Green. If you have connected an S-Video (Y/C) signal, press the
input switch until the LED indicator turns Orange. The unit will automatically

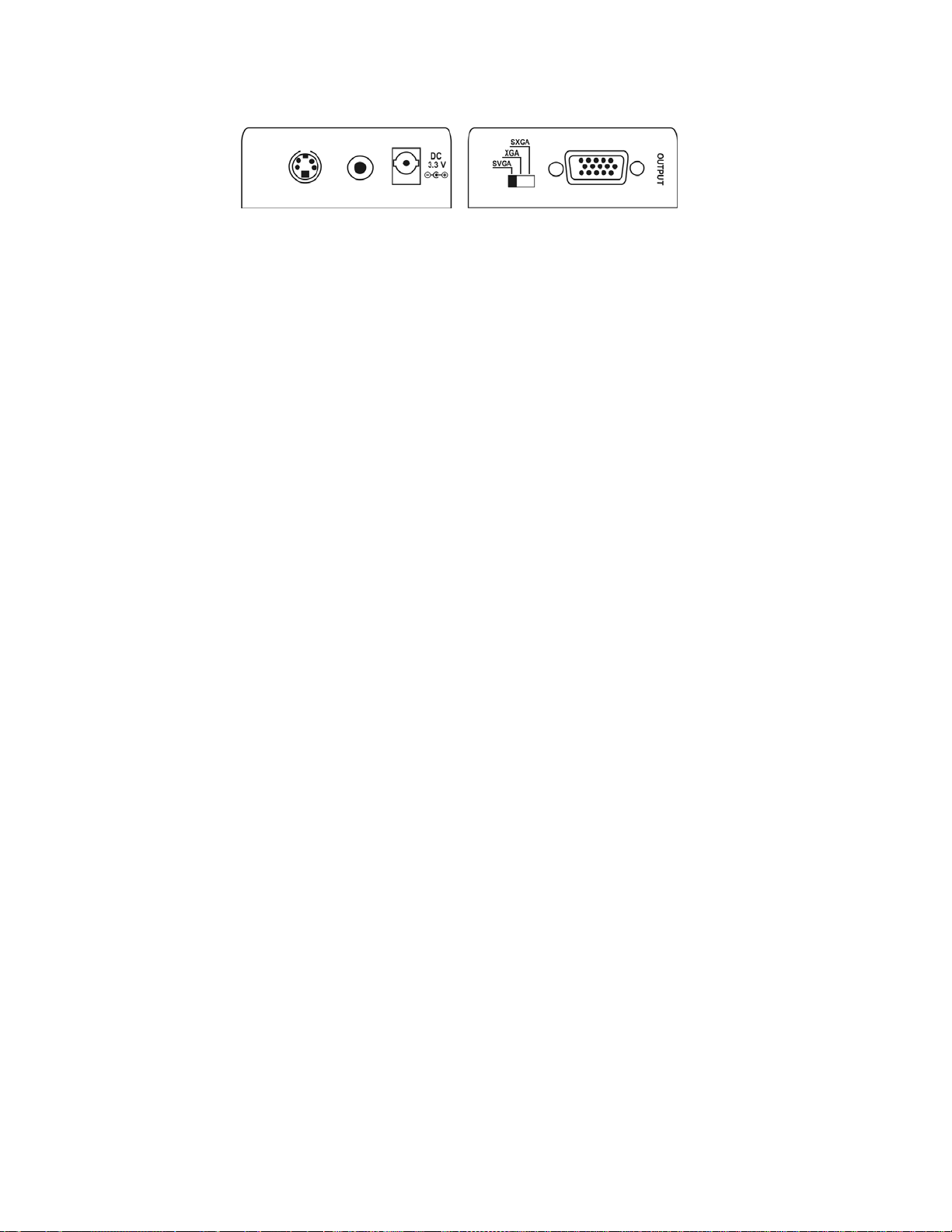

The input side of the AVT-
3310 is where the Comp-
osite Video, S-Video and
the 3.3 VDC Power
Adapter connectors are
located.
The output side of the
AVT-3310 is where the
HD-15 PC Video
connector and the Output
Resolution Switch are
located.

6
determine if the input signal is NTSC or PAL format. As previously noted, unless
you know for certain that your monitor will accept one of the available higher
resolutions, you should start with the lowest resolution by moving the Output
Resolution switch on the side of the unit to the XGA position. Once you have an
XGA image on the monitor, you can then experiment with the higher resolutions
to improve the image quality.
6.0 TROUBLESHOOTING
Other than checking for faulty cables, the only common problem would be
choosing a resolution setting that your monitor does not support. Make certain
you have a good NTSC/PAL input signal and the Power Adapter is securely
plugged in both to the AC receptacle and to the AVT-3310.
After trying the above suggestions should the problem still persist, contact your
dealer for additional suggestions before contacting TV One. Should the dealer’s
technical personnel be unable to assist you, contact TV One via our support
website: http://tvone.crmdesk.com. Create a technical support request on the
site and our support team will respond within a short period of time.
7.0 LIMITED WARRANTY
LIMITED WARRANTY – With the exceptions noted in the next paragraph, TV
One warrants the original purchaser that the equipment it manufactures or sells
will be free from defects in materials and workmanship for a period of one year
from the date of purchase. Should this product, in TV One’s opinion, prove
defective within this warranty period, TV One, at its option, will repair or replace
this product without charge. Any defective parts replaced become the property of
TV One. This warranty does not apply to those products which have been
damaged due to accident, unauthorized alterations, improper repair,
modifications, inadequate maintenance and care, or use in any manner for which
the product was not originally intended.
Items integrated into TV One products that are made by other manufacturers,
notably computer hard drives and liquid crystal display panels, are limited to the
term of the warranty offered by the respective manufacturers. Such specific
warranties are available upon request to TV One.
If repairs are necessary under this warranty policy, the original purchaser must
obtain a Return Authorization Number from TV One and return the product to a
location designated by TV One, freight prepaid. After repairs are complete, the
product will be returned, freight prepaid.
LIMITATIONS - All products sold are "as is" and the above Limited Warranty is in
lieu of all other warranties for this product, expressed or implied, and is strictly
limited to two years from the date of purchase. TV One assumes no liability to

7
distributors, resellers or end-users or any third parties for any loss of use,
revenue or profit.
TV One makes no other representation of warranty as to fitness for the purpose
or merchantability or otherwise in respect of any of the products sold. The
liability of TV One with respect to any defective products will be limited to the
repair or replacement of such products. In no event shall TV One be responsible
or liable for any damage arising from the use of such defective products whether
such damages be direct, indirect, consequential or otherwise, and whether such
damages are incurred by the reseller, end-user or any third party.
8.0 REGULATORY COMPLIANCE
The AVT-3310 has been tested for compliance with appropriate FCC and CE
rules and regulations. The Power Adaptor/Supply has been tested for compliance
with appropriate UL, CUL, CE, PSE, GS Rules, Regulations and/or Guidelines.
This Product and Power Adapter is RoHS Compliant.

8
9.0 CONTACT INFORMATION
Should you have questions or require assistance with this product in areas not
covered by this manual, please contact AV Toolbox at the location shown below.
AV Toolbox USA
2791 Circleport Drive
Erlanger, KY 41018
USA
Tel [phone]
Tel [phone]
Fax [phone]
[e-mail]
www.avtoolbox.com
AV Toolbox Europe
Continental Approach
Westwood Industrial Estate
Margate, Kent CT9 4JG, UK
Tel [phone]
Fax [phone]
[email protected]
www.avtoolbox.eu
AV Toolbox Latin America
6991 NW 82 Avenue #8
Miami, FL 33166
USA
Tel [phone]
Fax [phone]
[email protected]
www.avtoolboxla.com
AV Toolbox Mercosur
Honduras 5849, 2nd Floor, Office C
(C1414BNI) Capital Federal
Buenos Aires, Argentina
Tel [phone]
Fax [phone]
[email protected]
www.avtoolboxla.com
AV Toolbox
c/o TV One Asia
11F, NO.28, Sec. 2
San-Min Rd, Panchiao City
Taipei Hsien 220
Taiwan R.O.C.
Tel [phone]
Fax [phone]
[email protected]
www.tvoneasia.com
AV Toolbox
c/o TV One China
Room 1007, Golden Peach Building
No. 1900 Shangcheng Road
Pudong, Shanghai
China 200120
Tel [phone]
Fax [phone]
[email protected]
www.tvonechina.com
End of Manual
