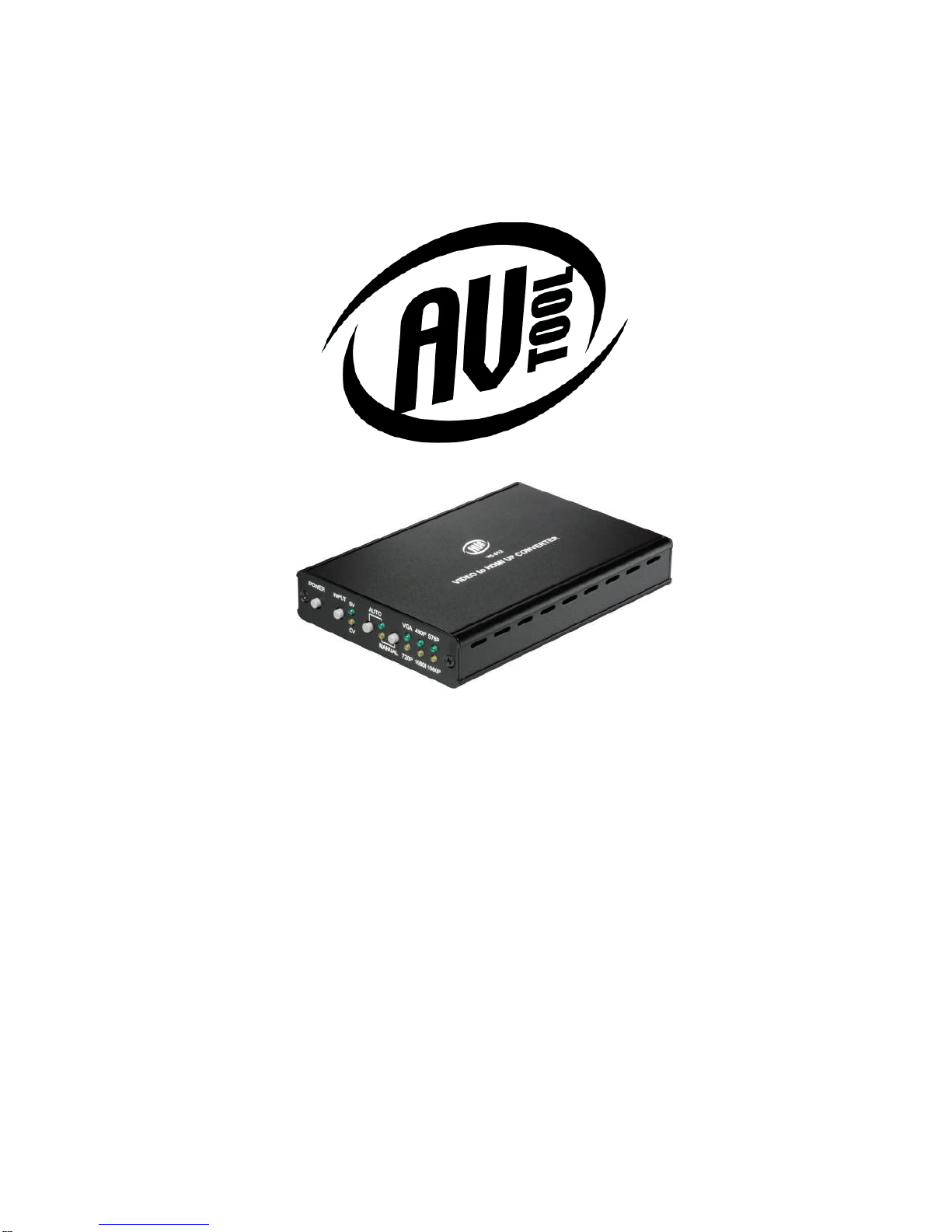

AV TOOL VS-612 User manual

VS-612
Video to HDMI Up Converter
Instruction Manual

Table of Contents
1.0 Introduction 2
2.0 Specifications 4
3.0 Checking Package Contents 5
4.0 Connecting the Hardware 5
5.0 Operating the Unit 7
6.0 Troubleshooting 7
7.0 Limited Warranty 7
8.0 Regulatory Compliance 8
9.0 Contact Information 9

2
1.0 INTRODUCTION
Thanks for purchasing this product from the AV Toolbox Division of TV One. The
VS-612 Video to HDMI Up Converter is designed to convert analog Composite or
S-Video signals to digital HDMI signals. It will also embed an analog stereo
audiosignal into the HDMI digital steam. Extensive noise reduction techniques
are employed as well as automatic restoration of lip sync via an audio delay
circuit. A motion adaptive 3D Y/C separation comb filter, advanced 3D motion
adaptive de-interlace and automatic 2:2/3:2 film mode detection are among the
other features offered by the VS-612.
1.1 Liability Statement
Every effort has been made to ensure that this product is free of errors. TV One
cannot be held liable for the use of this hardware or any direct or indirect
consequential damages arising from its use. It is the responsibility of the user of
the hardware to check that it is suitable for his/her requirements and that it is
installed correctly. All rights reserved. No parts of this manual may be
reproduced or transmitted by any form or means electronic or mechanical,
including photocopying, recording or by any information storage or retrieval
system without the written consent of the publisher.
TV One reserves the right to revise any of its hardware and software following its
policy to modify and/or improve its products where necessary or desirable. This
statement does not affect the legal rights of the user in any way.
All third party trademarks and copyrights are recognised. The TV One logo, AV
Toolbox logo, TV One-task and CORIO are the registered Trademarks of TV
One. All other trademarks are the property of their respective holders.
Features
HDMI 1.3 support deep color 12 bit, HDCP 1.1, DVI 1.0 compliance
Supports both NTSC and PAL Formats
Up Converts Composite Video or S-Video to HDTV 1080p format
Automatic lipsync (audio delay) ensures audio/video synchronization
8/10/12 bit deep color support for HDMI output
EDID support for automatic monitor resolution selection
HQE (High Quality Image enhancer) function
Digital Noise Reduction
Block Noise Reduction
MPEG Noise Reduction
Motion adaptive 3D Y/C separation comb filter
3D (frame based) motion adaptive noise reduction
Advanced 3D motion adaptive de-interlace
Automatic 2:2/3:2 film mode detection

3
1.3 Getting the Best Results
There are many factors affecting the quality of results when scaling video signals.
Some basic precautions will ensure the best possible performance from your Up
Converter.
Output display device – The quality of the output signal will depend largely
upon the type and quality of display device used. For instance, some video
projectors just look better than others.
Distance between the converter and the display device – This plays a
major role in the final result. Long distances are possible, but special measures
should be taken in order to avoid cable losses. These include using high quality
cables. Line amplifiers may also be necessary.
Output connection cables – Low quality cables are susceptible to
interference. They degrade signal quality due to poor matching and cause
elevated noise levels. Therefore, cables should be of the best quality. Coax-
type computer cables are recommended because of their superior internal
shielding characteristics.
Interference from nearby electrical devices – These can have an adverse
effect on signal quality. For example, an older computer monitor often emits
very high electromagnetic fields that can interfere with the performance of video
equipment in its proximity.

4
2.0 SPECIFICATIONS
Video Input Format Composite or S-Video
Video Input Connector 1x RCA connector and 1x S-Video Connector
Input Signal Types NTSC or PAL format analog video
Video Output Format HDMI 1.3, HDCP 1.1, DVI 1.0 compliance
Video Output Connectors 1x HDMI
Video Output Type Version 1.3 HDMI
Video Output Resolution VGA, 480p, 576p, 720p, 1080i, 1080p
Audio Input Analog Stereo
Audio Output Digital Audio embedded in HDMI Datastream
Audio Sampling Rate 48 KHz
Device Control Auto NTSC/PAL Select, Automatic Output Resolution
Output Adjustments Manual Resolution Selection of Output Resolution
Operating Temperatures 32oto 104oF (0 oto 40oC)
Weight 0.75 lbs (332g)
Dimensions–HxWxD 1” x 3.9” x 6.2” (25x100x157mm)
Power Source 100~240VAC to 5VDC/2A Adapter
Regulator Agency Info CE, FCC, UL, RoHS acceptance
Resolution
VGA 640 x 480 60 Hz
480p 720 x 480 60 Hz
576p 720 x 576 50 Hz
720p 1280 x 720 50 / 60 Hz
1080i 1920 x 1080 50 / 60 Hz
1080p 1920 x 1080 50 / 60 Hz
Note: NTSC is always 60 Hz and PAL is always 50 Hz Vertical Rate.
I/O VGA 480p 576p 720p 1080i 1080p
NTSC Y Y N Y Y Y
PAL N N Y Y Y Y

5
3.0 CHECKING PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make certain
the following items are contained in the shipping carton:
1x VS-612 CV/SV to HDMI Up Converter
1x 100~240VAC to 5VDC Power Adapter
1x User Manual
Note: Please retain the original packing material should the need ever arise to
return the unit. If you find any items are missing, contact your reseller or TV One
immediately. Have the Model Number, Serial Number and Invoice available for
reference when you call.
4.0 CONNECTING THE HARDWARE
The first step is to connect either a Composite Video or S-Video source to the
input of the VS-612 Up Converter, connect its output to a display device and
lastly connect the AC adapter. The series of drawings below show the locations
of the input, outputs, controls and power connector.

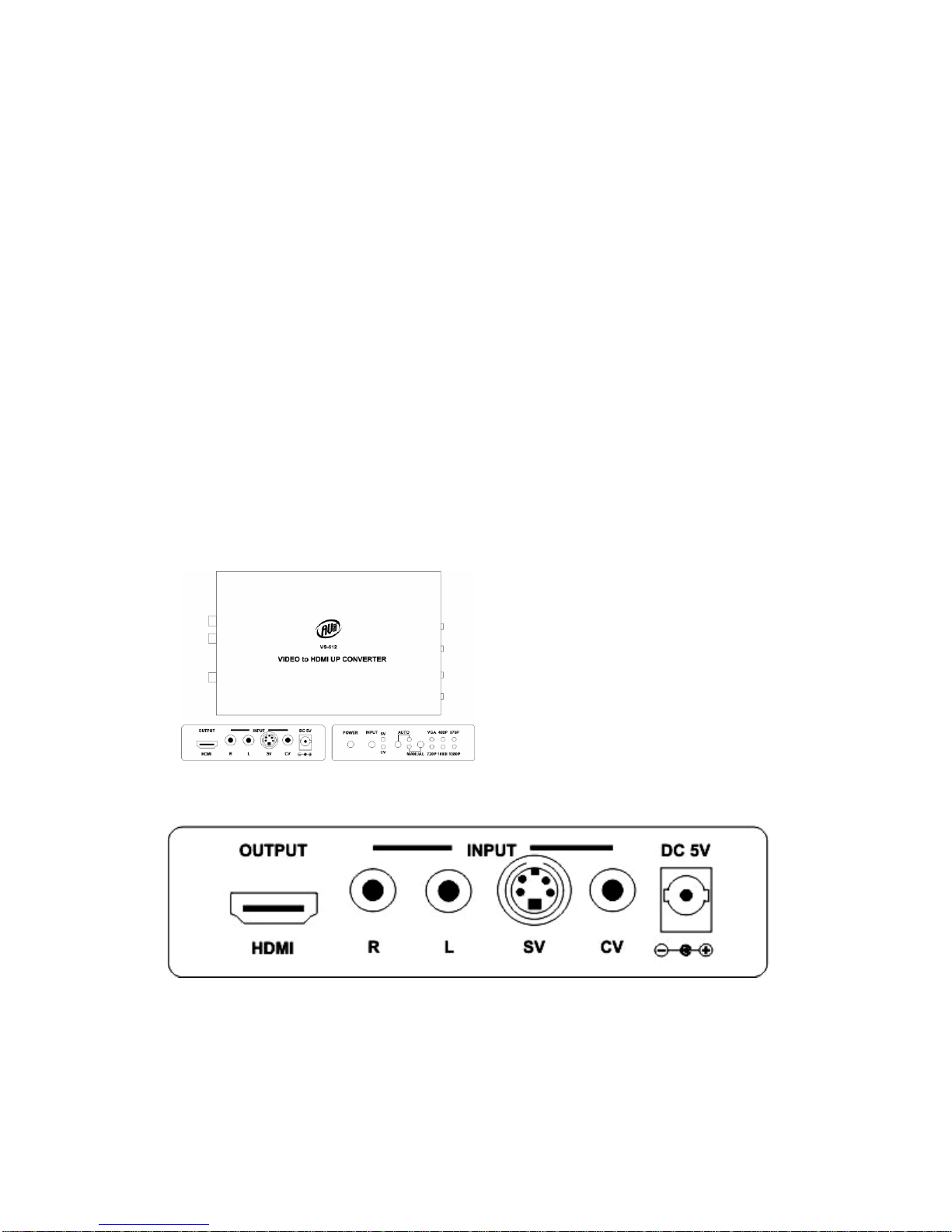

The I/O connectors and the power
connector are located on the rear
panel. The input selection and
signal controls are on the front
panel.
The rear panel of the VS-612 is where the HDMI output, audio inputs, video
inputs and the power connector can be found.
A general overview drawing of the
VS-612 shows the input and
output connectors and controls.

6
The power switch enables application of the +5 volts needed to operate the
unit. Pressing the input button toggles selection of either Composite Video
or S-video. Pressing the Auto button enables the EDID capabilities of the
VS-612 which will cause it to automatically determine the native resolution
for the monitor. Pressing the manual button will step through the available
resolutions and is used when the monitor does not have EDID capability.
4.1 Connecting the Inputs
Before using the VS-612, make certain that the Composite or S-Video source is
producing a picture on its regular monitor. If it is, connect either a Composite
Video or S-Video cable from the output of the source and the appropriate input of
the VS-612.
Next connect the audio output of the source device to the Right (R) and Left (L)
audio inputs of the VS-612 after first making certain that the source audio output
is working properly.
4.2 Connecting the Output
Connect an HDMI cable between the output connector on the VS-612 and the
input of the HDMI capable monitor. If you are going to use a HDMI monitor
capable of 1080p resolution, the cable run must be less than 20 feet due to
signal loss caused by the extremely high bandwidth required for 1080p signals.
4.3 Connecting Power to the Unit
The VS-612 Up Converter is shipped with a Power Adapter to convert
100~240VAC@50-60Hz to 5VDC. Connect the DC Output from the Power
Adapter to the back of the unit and then plug the Power Adapter into an AC
Receptacle. Press the Power Button on the front of the unit to apply voltage to
the circuitry.

7
5.0 OPERATING THE UNIT
After connecting the input of the VS-612 to an appropriate source and the output
to an appropriate display, apply power and the unit will automatically set the
resolution to the native resolution of the display provided the display supports the
EDID protocol. If the monitor does not have EDID capability, step through the
available resolutions using the manual button on the VS-612’s front panel until
you reach the highest resolution that the monitor will accept.
6.0 TROUBLESHOOTING
Other than checking for faulty cables and for power, the only common problem
would be choosing a wrong resolution setting when operating in the manual
resolution mode or attempting to view a 1080p signal using cables more than 20
feet in length. Please make certain none of these conditions are present before
assuming that the VS-612 is malfunctioning.
After trying the above suggestions should the problem still persist, contact your
dealer for additional suggestions before contacting TV One. Should the dealer’s
technical personnel be unable to assist you, contact TV One via our support
website: http://tvone.crmdesk.com. Create a technical support request on the
site and our support team will respond within a short period of time.
7.0 LIMITED WARRANTY
TV One warrants the original purchaser that the equipment it manufactures or
sells will be free from defects in materials and workmanship for a fixed term from
the date of purchase. The warranty term for specific product lines is defined
below.
1. TV One branded products based on TV One’s CORIO technology are
warranted for a period of five years from the date of purchase. This includes
products with the model number prefix of C2, 1T-C2, CX, A2 or S2.
2. TV One-task branded products, other than those based on TV One’s CORIO
technology mentioned above, are warranted for a period of three years from
the date of purchase. This includes products with the model number prefix of
1T, with the exception of 1T-C2.
3. LCD Monitors are warranted for a period of three years from the date of
purchase, with the exception of the LCD panels integrated into the monitors
that are supplied by third parties. LCD panels are limited to the term and
conditions of the warranty offered by the respective LCD panel manufacturer.
Such specific LCD panel warranties are available upon request to TV One.

8
Should a product, in TV One’s opinion, prove defective within this warranty
period, TV One, at its option, will repair or replace this product without charge.
Any defective parts replaced become the property of TV One. This warranty
does not apply to those products which have been damaged due to accident,
unauthorized alterations, improper repair, modifications, inadequate maintenance
and care, or use in any manner for which the product was not originally intended.
If repairs are necessary under this warranty policy, the original purchaser must
obtain a Return Authorization Number from TV One and return the product to a
location designated by TV One, freight prepaid. After repairs are complete, the
product will be returned, freight prepaid.
LIMITATIONS - All products sold are "as is" and the above Limited Warranty is in
lieu of all other warranties for this product, expressed or implied, and is strictly
limited to two years from the date of purchase. TV One assumes no liability to
distributors, resellers or end-users or any third parties for any loss of use,
revenue or profit.
TV One makes no other representation of warranty as to fitness for the purpose
or merchantability or otherwise in respect of any of the products sold. The
liability of TV One with respect to any defective products will be limited to the
repair or replacement of such products. In no event shall TV One be responsible
or liable for any damage arising from the use of such defective products whether
such damages be direct, indirect, consequential or otherwise, and whether such
damages are incurred by the reseller, end-user or any third party.
8.0 REGULATORY COMPLIANCE
The VS-612 has been tested for compliance with appropriate FCC and CE rules
and regulations. The Power Adaptor/Supply has been tested for compliance with
appropriate UL, CUL, CE, PSE, GS Rules, Regulations and/or Guidelines. This
Product and Power Adapter is RoHS Compliant.
9.0 CONTACT INFORMATION
Should you have questions or require assistance with this product in areas not
covered by this manual, please contact TV One at the appropriate location.

9
TV One USA
2791 Circleport Drive
Erlanger, KY 41018
USA
Tel [phone]
Fax [phone]
[email protected]
www.tvone.com
TV One Europe
Continental Approach
Westwood Industrial Estate
Margate, Kent CT9 4JG, UK
Tel [phone]
Fax [phone]
[email protected]
www.tvone.eu
TV One Latin America
6991 NW 82 Avenue #8
Miami, FL 33166
USA
Tel [phone]
Fax [phone]
[email protected]
www.tvonela.com
TV One Mercosur
Av. Diaz Velez 3965 #PB
(1200) Capital Federal
Buenos Aires, Argentina
Tel [phone]
Fax [phone]
[email protected]
www.tvonela.com
TV One Asia
16F-4, NO.75, Sec. 1
Hsin Tai Wu Road, Hsichih
Taipei Hsien 22101
Taiwan R.O.C.
Tel [phone]
Fax [phone]
[email protected]
www.tvoneasia.com
TV One China
Rm. 1007, Golden Peach Bldg.
No. 1900 Shangcheng Road
Pudong, Shanghai
China 200120
Tel [phone]
Fax [phone]
Email: [email protected]
www.tvonechina.com
End of Manual
