1. Foreword
Avant Tecno Oy would like to thank you for your purchase of this attachment for your Avant loader. It has
been designed and manufactured on the basis of years of experience on product development and
manufacturing. By familiarising yourself with this manual and following the instructions, you ascertain your
safety and ensure the reliable operation and long service life of the equipment. Read the instructions carefully
before starting to use the equipment or performing maintenance.
The purpose of this manual is to help you to:
operate the equipment in a safe and efficient manner
observe and prevent any hazardous situations
keep the equipment intact and ensure a long service life
With these instructions, even an inexperienced user can use the attachment and loader safely. The manual
includes important instructions for experienced AVANT operators as well. Ensure that all persons using the
loader have received proper guidance and familiarised themselves with the manual of the loader, each
attachment that are used, and all safety instructions before using the equipment. Using the equipment for
other purposes or use in any other way than described in this manual is prohibited. Keep this manual at hand
throughout the service life of the equipment. If you sell or transfer the equipment, be sure to hand over this
manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant
dealer or from the manufacturer.
In addition to the safety instructions included in this manual, you must observe all occupational safety
regulations, local laws, and other regulations concerning the use of the equipment. Particularly the regulations
concerning the use of the equipment on public road areas must be observed.
Contact your local AVANT dealer for any questions, service, spare parts or about any problems that may
occur with the operation of your machine.
This manual contains the original instructions in English. Due to continuous product development some of the
details shown in this manual may differ from your equipment. Pictures may also depict optional equipment or
features that are not currently available. We reserve the right to change the contents of the manual without
notification. Copyright © 2016 Avant Tecno Oy. All rights reserved.

5 (30)
.
Warning symbols used in this manual
The following warning symbols are used throughout this manual. They indicate factors that must be taken into
account to reduce the risk of personal injury or damage to property:
WARNING: SAFETY ALERT SYMBOL
This symbol means: “Warning, be alert! Your safety is involved!”
Carefully read the message that follows, it warns of an immediate hazard
that could cause serious personal injury.
The safety alert symbol by itself and with related safety statement
indicates important safety messages throughout this Manual. It is used to
draw attention to instructions involving your personal safety or the safety
of others. When you see this symbol, be alert, your safety is involved,
carefully read the message that follows, and inform other operators.
DANGER:
This signal word indicates a hazardous situation which, if not avoided, will result in
death or serious injury.
WARNING:
This signal word indicates a potentially hazardous situation which, if not avoided,
could result in serious injury or death.
CAUTION:
This signal word is used when minor injury could result if the instructions are not
followed properly.
This signal word indicates information about the correct operation and maintenance
of the equipment.
Failure to observe the instructions accompanying the symbol can lead to equipment
breakdown or other property damage.

6 (30)
2. Designed purpose of use
The AVANT Snow plow is an attachment suitable for use with AVANT multi purpose loaders shown in Table 1.
The plow is a versatile articulated plow intended for clearing and pushing snow on street areas. It has two
hydraulically movable blades. The position of the blades can be adjusted directly from the driver’s seat with
the auxiliary hydraulics of the loader. This makes it possible to use plow in various configurations, such as a
turnable straight dozer blade, collecting v-blade, or as a point plow.
A valve is installed on the plow to make it possible to control the blades in two different modes. The valve can
be controlled either with the optional attachment control switch pack of the loader or with a separate cable kit
that is supplied with the plow.
The floating mounting bracket allows vertical movement of the plow as well as limited horizontal tilting for the
best possible ground surface following. The lower blade sections are hinged and held in place by springs. This
allows them to tilt backwards to prevent a sudden stop of the loader if the blade hits an obstacle, protecting
both the driver and the blades. Standard, adjustable skids help the plow to move smoothly also on rough
surfaces.
The blade edges are made from superior quality wear resistant steel. They can be replaced if needed. A
rubber blade kit and an ice scraper kit are available as option.
Operating any control of the plow or the loader is permitted only for persons who are familiar with specific
safety instructions and are capable to operate the equipment safely. Operating any control is allowed only
while seated on the driver’s seat. Ít is prohibited to use the plow in other way or for other purposes than shown
in this manual.
Table 1 - Snow plow - Compatibility with Avant loaders
Avant
216
218
220
220series 2
225
225LPG
313S
320S
320S+
419
420
520
R20
525LPG
R28
528
630
R35
635
640
745
750
755i
760i
A36795
V1800
-
.
-




A36796
V2400
-
-
-
-



When using with models marked with (), full performance may not be achieved. Additional counterweights
may also be required. For compatibility with a model not shown in table, contact your Avant dealer.
Maintenance and service operations
The attachment has been designed to require as little maintenance as possible. The operator can perform
regular maintenance tasks. All repair work can’t be performed by the operator, and demanding repair and
maintenance operations are to be left for professional maintenance. All maintenance work must be done using
proper safety equipment. Spare parts must be identical with original specifications, which can be ensured by
using only original spare parts. A separate spare parts catalogue may be available, consult your Avant dealer.
Familiarise yourself with the manual's instructions regarding service and maintenance. Please contact your
AVANT retailer if you have additional questions about the operation or maintenance of the equipment, or if
you require spare parts or maintenance services.

7 (30)
3. Safety instructions for using the attachment
Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly
powerful and improper or careless use or maintenance may cause serious personal injury or property
damage. Due to this, all operators must carefully familiarise themselves about correct use and the operator's
manuals of both the loader and the attachment before starting operation. Do not use the attachment if you
have not completely familiarised yourself with its operation and the related hazards.
WARNING: Misuse, careless use, or using an attachment that is in poor condition,
may cause risk of serious injuries. Familiarise yourself with the controls of the
loader, correct coupling procedure, and the correct way to operate the attachment at
a safe area. Study especially how to stop the equipment in a safe manner. Read all
safety precautions carefully.
Read all safety instructions carefully before handling the attachment
When attaching an attachment to the loader, ensure that the locking pins of the
loader's quick attach plate are in the lower position and that they have locked
the attachment to the loader. Never lift or move an unlocked attachment.
The Snow plow is designed to be used by one operator at a time. Do not let others
near the danger area of the equipment when it is in use.
Always transport the attachment as low as possible to keep the centre of gravity low,
and keep the telescopic boom retracted during driving.
Do not drive at high speed unless you can be sure that there are no obstacles at the
working area. The loader may stop suddenly if it hits an obstacle, regardless of the
spring release mechanism. Remember that there may be hidden obstructions or
fragile surfaces under the snow.
Operate only at well lit areas. Make sure that all lights of the loader are in good
condition, clean, and adjusted correctly. Extra work lights are recommended for the
loader when operating during dark. Mark any obstacle at the work area before
plowing to avoid collisions.
Lower the attachment firmly on the ground before leaving the driver’s seat. Make
sure that the attachment is properly supported during any maintenance or
inspections. Do not leave the driver’s seat when the loader boom is lifted. Going
under a raised attachment or loader boom is dangerous, as the boom may lower due
to loss of stability, mechanical fault or when other person operates the controls of the
loader.
Be sure not to tilt the attachment too far up to prevent it from tilting over the tipping
point of the hinged, floating coupling system.
Be sure not to tilt the plow towards the loader when lifted to prevent it from hitting the
loader boom. The plow can slide towards the loader boom because of its floating
quick coupling bracket.
Always transport the plow as low and as close to the machine as possible to keep the
centre of gravity low. Operate the controls of the loader slowly and in calm manner
especially during plowing.
Shut down the loader and place the attachment to a safe position as shown in Safe
stopping procedure before any cleaning, maintenance, or adjustments.

8 (30)
Pay attention to the surroundings and any other persons and machines moving in the
vicinity. Pay attention to the contours of the terrain and other hazards, such as
branches and trees that can reach to the driver's area, loose rocks, and slippery
surfaces.
Make sure to use only an attachment that is in good condition. Do not modify the
attachment in any way that could affect its safety.
Use the attachment only for its intended purpose. Other use may create unnecessary
safety risks, and the equipment may get damaged.
Make sure that the loader is equipped with necessary safety components, and that
they are in working condition. Seat belt must be used. If there are specific hazards
related to the operating area, use appropriate safety equipment.
Shut down the loader engine and release any residual pressure before adjustments
or maintenance work.
Also read the safety instructions and correct use of the loader from the operator's
manual of the loader.
Remember to wear proper protective clothing:
The noise level at the driver's seat may exceed 85 dB(A). Wear hearing
protection while working with the loader.
Wear protective gloves.
Wear safety boots whenever working with the loader.
Wear safety glasses when handling hydraulic components.
.
..
Safe stopping of the attachment, before going near the attachment:
WARNING: Always stop the attachment following safe stopping procedure
before leaving the driver's seat. Safe stopping procedure prevents all
unintentional movements of the attachment. Note that the loader boom can move
down even if the engine of the loader is turned off. Safe stopping procedure:
Lower the boom and the attachment on the ground.
Shut down the loader engine and lock the parking brake.
Release residual pressure from the hydraulic system; move all hydraulic control
levers to their extreme positions a couple of times.
Prevent starting of the machine, remove ignition key.

9 (30)
.
WARNING: Risk of crushing - Never allow anyone to get under a lifted attachment
or loader boom. Keep in mind that the loader boom can be lowered or tilted even if the
engine has been shut down (crushing hazard). The loader is not intended to be left to keep
a load elevated for longer periods. Always lower the attachment to a safe position before
leaving the driver's seat.
Observe the local regulations concerning the use of the equipment on public roads. The
loader may need to be registered for road use. Contact your local Avant dealer or local
authorities for more information.

10 (30)
4. Technical specifications
Table 2 - Snow plow - Technical specifications
Model
V1800
V2400
Product number:
A36795
A36796
Blade width:
1510-1840 mm
2020-2450 mm
Total width (with curved end flat edge / ice
scraper blade)
1570-1900 mm
2080-2510 mm
Blade turning angle:
± 35°
Hydraulic
± 35°
Hydraulic
Weight:
330 kg
390 kg
Blade height:
770 mm
Maximum input of hydraulic energy:
max 22,5 MPa (225 bar)
Compatible Avant loaders:
See Table 1
The following equipment are recommended, but not mandatory equipment on the loader:
Attachment control switch pack (optional equipment for some loader models)
Electric joystick (optional equipment for some loader models)
These options are highly recommended for improved usability and ergonomics when the snow plow and its
blade turning functions are used frequently.
The snow plow is equipped with a separate electric cable with a switch to enable operation without any
optional equipment on loader.
Optional extras:
V1800
V2400
Rubber edges
A37173
A37171
Ice scraper edges
A36817
A36818
4.1 Safety labels and main components of the attachment
Listed below are the labels and markings, which must be visible on the equipment. Replace the warning
labels, if they have become unclear or if they have detached completely. New labels are available via your
retailer or contact information provided on the cover.
The warning labels contain important safety information and they help to identify and
remember the hazards related to the equipment. Replace damaged or missing
warning labels with new ones.

11 (30)
Attachment identification plate
A420622 / A420623
A46771
A46772
A46803
Table 3 - Decal locations and warning messages
Decal
Warning message
1
A46771
Misuse hazard - Read instructions before
use.
2
A46772
Crushing hazard - Do not go under a
raised attachment; stay away from raised
equipment.
3
A46803
Pinching and cutting hazard, keep clear
of moving parts, do not leave the
equipment running. Operate the
attachment only from the driver’s seat.
4
A420622 /
A420623
Attachment identification plate
Table 4 - Main components of the Snow plow
1
Frame with floating quick coupling system
2
Multi connector holder
3
Hydraulic slewing cylinders
4
Springs for hinged lower blade sections
5
Hinged lower blade section
6
Blades
7
Adjustable skid shoes (standard equipment)
8
Control valve

12 (30)
5. Attaching the attachment
Attaching the attachment to the loader is quick and easy, but it must be done carefully. The attachment is
mounted to the loader boom by using the quick attach plate on the loader boom and the counterpart on the
attachment.
If the attachment is not locked to the loader, it may detach from the loader and cause a hazardous situation.
The loader must not be driven and the boom must never be lifted when the attachment has not been locked.
To prevent hazardous situations, always follow the coupling procedure shown below. Also remember the
safety instructions shown in this manual. The attachment is mounted to the loader as follows:
WARNING: Crushing risk - Make sure that an unlocked attachment will not
move or fall over. Do not stay in the area between the attachment and the loader.
Mount the attachment only on level surface.
Never move or lift an attachment that has not been locked.

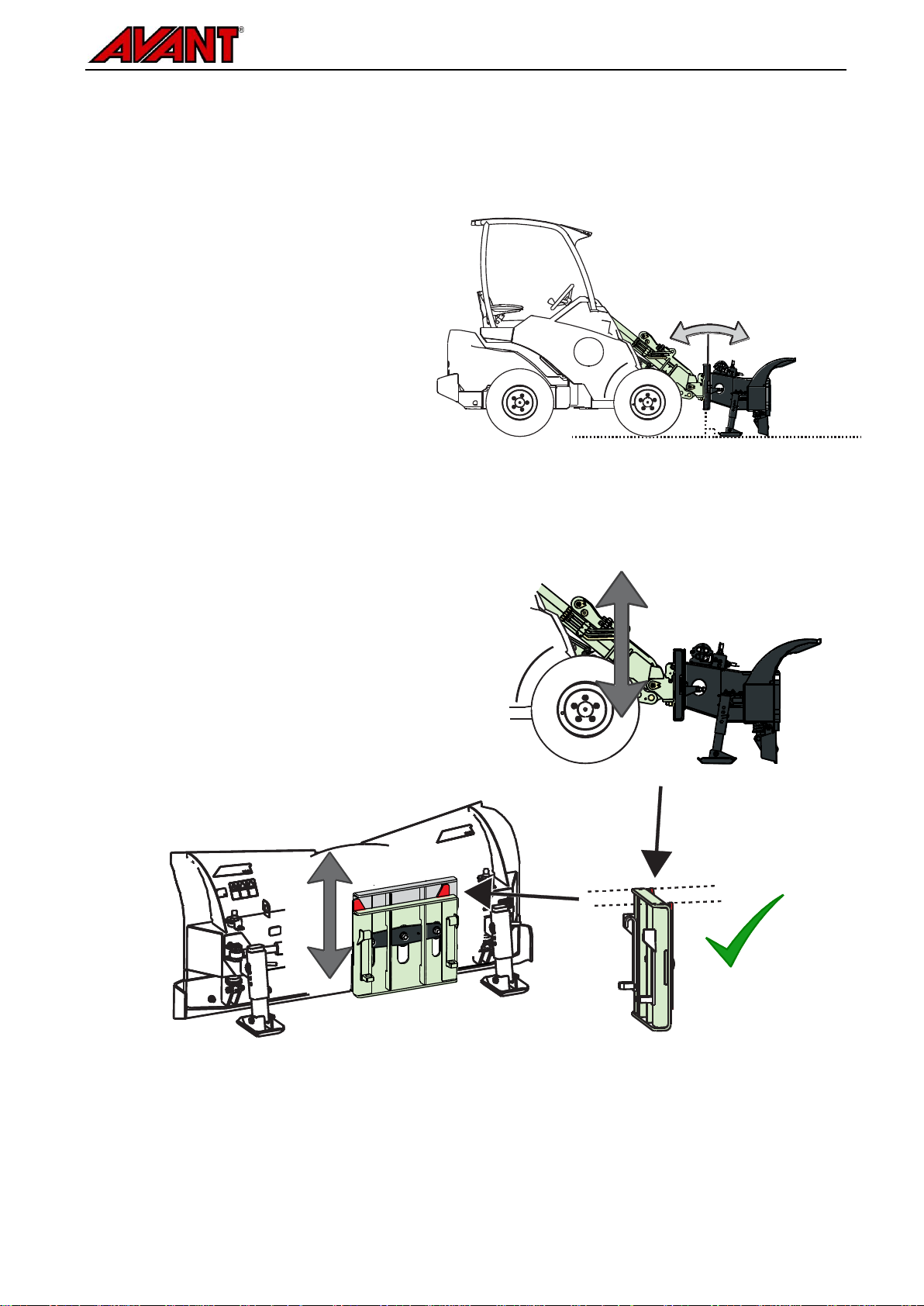

Step 1:
Lift the quick attach plate locking pins up and turn them backwards into the slot
so that they are locked in the upper position.
If your loader is equipped with a hydraulic attachment locking system, see
additional instructions about the use of the locking system from the relevant
manuals.
Ensure that the hydraulic hoses and the electric harness are not in the way
during installation.
Step 2:
Turn the quick attach plate hydraulically to an obliquely forward position.
Drive the loader onto the attachment. If your loader is equipped with a
telescopic boom, you can utilise this.
Align the upper pins of the loader’s quick coupling plate so that they are under
the corresponding brackets of the attachment.
Step 3:
Lift the boom slightly –pull the boom control lever backward to raise the
attachment off the ground.
Turn the boom control lever left to turn the bottom section of the quick attach
plate onto the attachment.
Lock the locking pins manually or lock the hydraulic locking.
Always check the locking of both locking pins.

13 (30)
DANGER - Risk of falling objects - Prevent dropping
of attachment
An attachment that has not been completely locked
to the loader may fall on the boom or towards the
operator, or fall under the loader during driving,
causing loss of control of the loader. Never move or
lift an attachment that has not been locked.
Before moving or lifting the attachment, make sure
that the locking pins are in the lower position and
come through the fasteners on the attachment on
both sides.
WARNING: Risk of crushing - Avoid tipping over the attachment.
Excessive tilting or lifting of an unlocked attachment increases the risk of tipping the
attachment over. Do not use the automatic locking of the locking pins when the
attachment is lifted more than one meter from the ground. If the locking pins do not return
to the normal position when tilting, do not tilt or raise the attachment any more. Lower the
attachment on the ground and secure the locking manually.
On Avant loaders the hydraulic hoses are connected using the multi connector system. If you have an Avant
300-700 series loader with the conventional quick couplers and wish to change to the multi connector system,
contact your Avant dealer or service point for instructions or installation services.

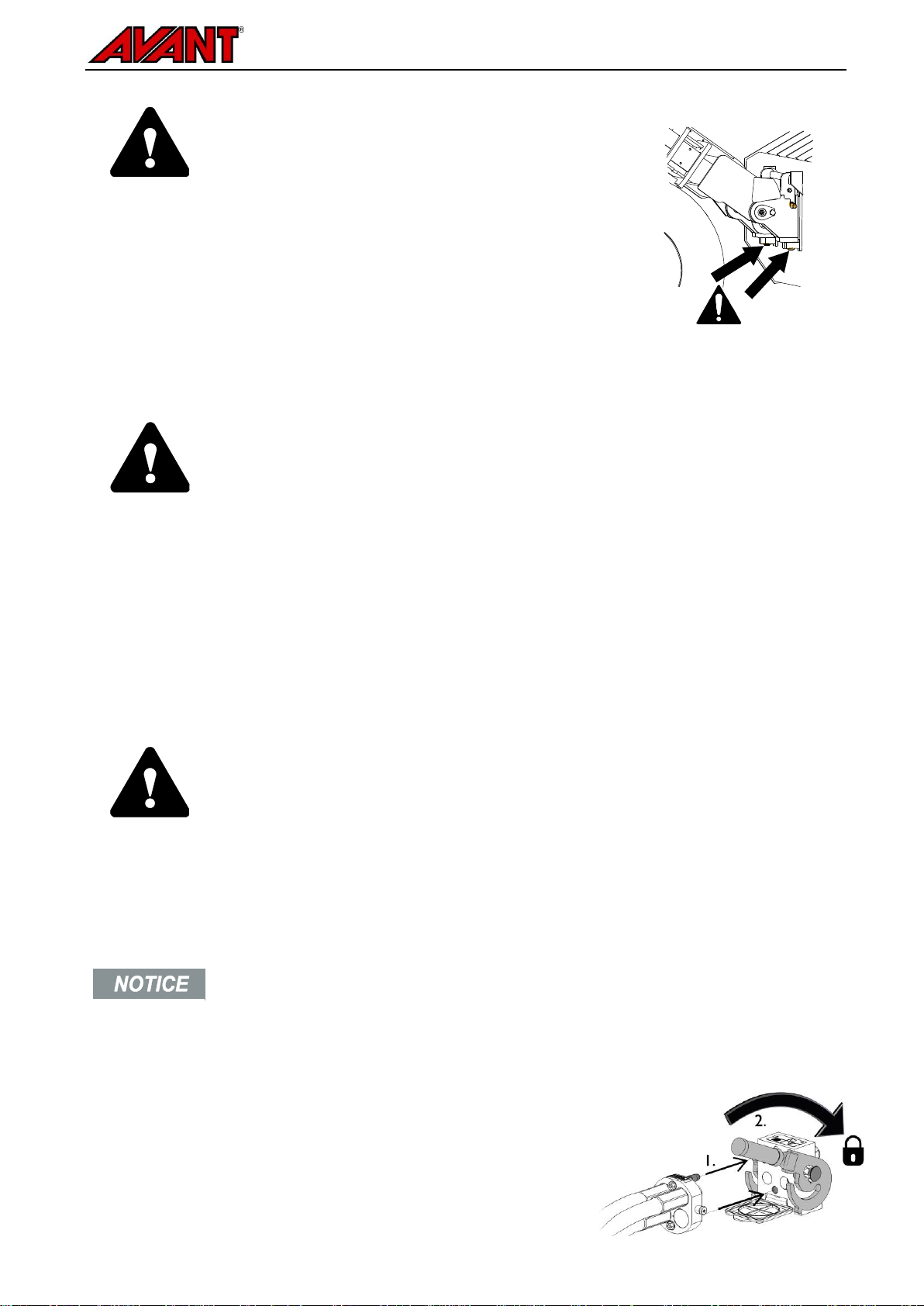

WARNING: Never connect or disconnect quick couplings or other hydraulic components
while the control lever of the auxiliary hydraulics control lever is locked on or if the system
is pressurized. Connecting or disconnecting the hydraulic couplings while the system is
pressurized may lead to unintended movements of the attachment, or ejection of
high-pressure fluid, which can cause serious injuries or burns. Follow safe stopping
procedure before disconnecting hydraulics.
Keep all fittings as clean as possible; use the protective caps on both the attachment and
the loader. Dirt, ice, etc. may make using the fittings significantly more difficult. Never
leave the hoses hanging on the ground; place the couplings onto the holder on the
attachment.
Connecting the multi connector system:
1. Align the pins of the attachment connector with corresponding
holes of the loader connector. The multi connector will not
connect if the attachment connector is upside down.
2. Connect and lock the multi connector by turning the lever towards
the loader.

14 (30)
The lever should move easily all the way to its locking position. If the lever does not slide smoothly, check the
alignment and position of the connector and clean the connectors. Also shut down the loader and release the
residual hydraulic pressure.
To disconnect the multi connector system:
Before disconnecting put the attachment down on a solid and even
surface.
1. Switch off the auxiliary hydraulics of the loader.
2. While pushing unlock button, turn the lever to disconnect the
connector.
3. After ending operation put the multi connector on its holder on the
attachment.
Conventional quick couplings
(alternative couplings for some loader models):
Before connecting or disconnecting the standard quick couplings, the
residual pressure must be released as shown below. The conventional
quick couplings will not connect, if there is pressure in the hydraulic
system.
To connect and disconnect the standard couplings, move the collar at the end of the female fitting. The hoses
should be connected so that the fitting equipped with a coloured cap is connected to the corresponding fitting
of the loader. Note that the protective caps on the loader and the attachment can be fastened to each other
during operation to reduce the accumulation of dirt. When disconnecting the standard quick couplings a small
amount of oil may drip from the couplings. Wear protective gloves and have some cloth at hand to keep the
equipment clean.
Disconnecting hydraulic hoses:
Before disconnecting the fittings, lower the attachment to safe position on solid and level surface. Turn the
control lever of the auxiliary hydraulics to its neutral position.
When uncoupling the attachment, always disconnect the hydraulic couplings before
unlocking the quick attach plate, to prevent hose damage and any oil spills. Reinstall the
protective caps on the fittings to prevent impurities from entering the hydraulic system.
Releasing residual hydraulic pressure:
In case residual pressure is left in the hydraulic system of the attachment, it is often possible to disconnect the
hydraulic couplings, but it may be difficult to connect them the next time. If the fittings will not connect, the
residual pressure must be released by turning the auxiliary hydraulics control lever of the loader, when the
engine is turned off. To make sure that there will not be residual pressure in the hydraulic system of the
attachment, shut down the loader engine and move the auxiliary hydraulics control lever of the loader back
and forth before disconnecting the couplings.

15 (30)
.
5.1 Electric connection
To operate the electric selection valve on the Snow plow, the electric harness must be connected to the
loader.
There are two options for the electric connection:
1.
The cable harness A34731, delivered with the attachment and
equipped with a 2-position switch, is connected to the 12 V outlet
near the driver's seat on the loader. Keep the switch in the cab so
that it is easily accessible, but will not be used inadvertently.
2.
Alternatively, the electric function can be controlled with the
attachment control switch pack, which is optional equipment for the
loader. In this case, the separate cable with the switch is not
needed, and the plug of the attachment can be connected directly
to the socket on the loader boom.
Electric socket is integrated in the multi connector on all
loaders equipped with attachment control switch pack from
January 1st 2016.
On loaders manufactured 2015 or before, there is a separate
socket next to the multi connector.

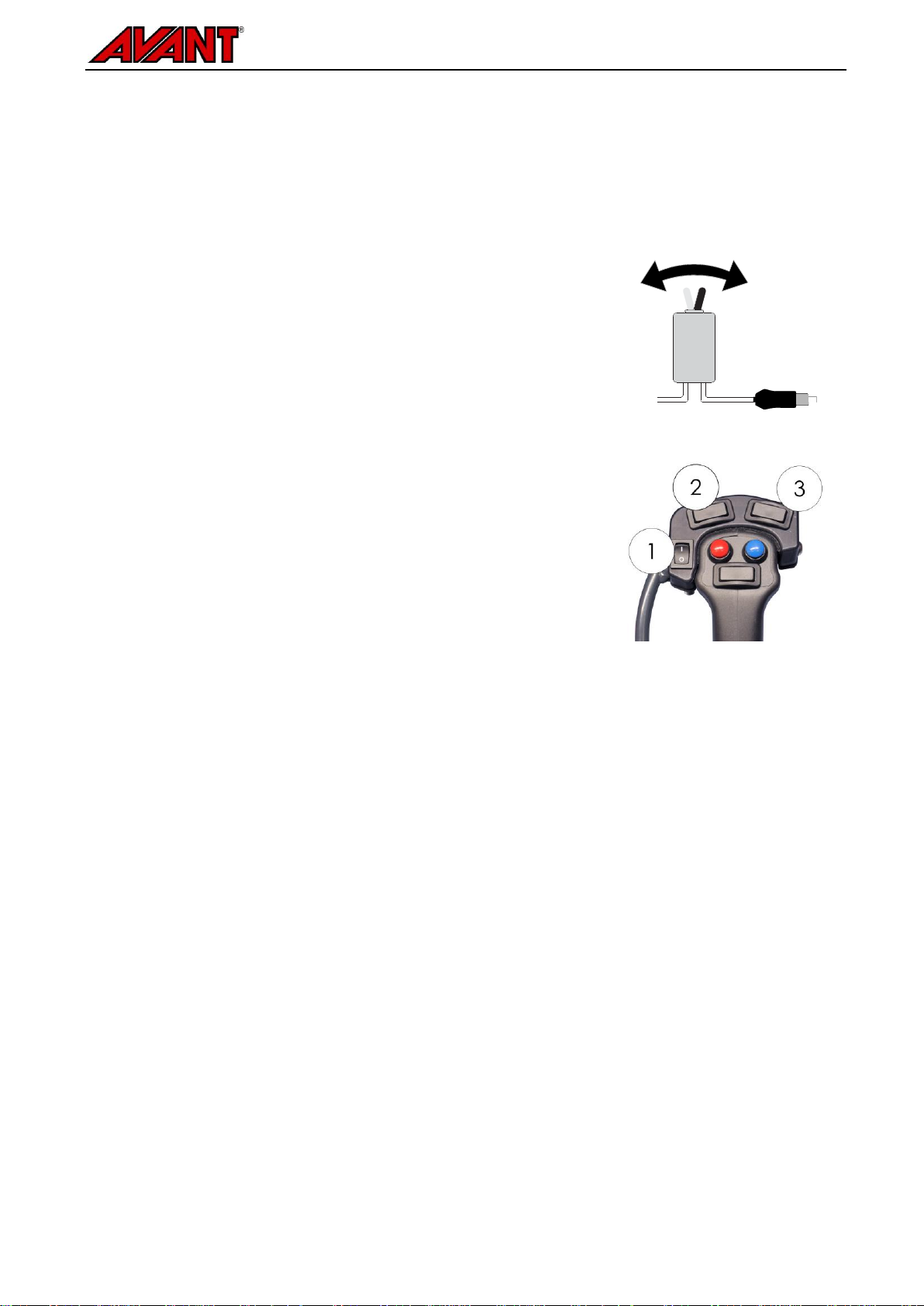

The electric feature on the Snow plow is controlled with the switch
number 1. Other switches are not in use with this attachment.
Route the selected cable in a way that it cannot get stuck or pinched, or stretch when the equipment moves.
With the help of the attachment control switch pack available for the loader, the attachment control switches
are easily accessible at the end of the boom control lever. Instructions about the power outlet of the loader
can be found in the operator’s manual of the loader.

16 (30)
6. Instructions for use
Check the attachment and the operating environment once more before starting to work, and that all obstacles
have been removed from the operating area. Quick inspection of the equipment and the operating area before
use are parts of ensuring safety and the best performance of the equipment.
Practise the use of the attachment and its controls in an open and safe area. If you are unfamiliar with the
loader in use, it is recommended to practise its use without any attachments.
WARNING: Collision risk - Check the operating area before using the equipment.
Running into an obstacle may stop the machine suddenly and unexpectedly causing
injuries from impact to head and body, regardless of the blade spring release system or
other safety systems.
Drive slowly and pay attention to operating area at all times.
Make sure that there are no hidden obstacles under the snow, for example.
Mark visibly any potential obstructions beforehand as far as practical so that
collisions can be avoided.
Operate equipment only at well lit areas or make sure the loader is equipped with
sufficient lights.
The spring loaded blade sections improve safety only when driving forward -
when reversing, drive extremely slow.
Always wear seat belt.
WARNING: Risk of collisions - Ensure good visibility. Never lift this attachment to a
height where visibility is obstructed. Ensure unobstructed visibility to all directions. Keep
all windows clean and free of dirt, ice, snow etc.
CAUTION: Risk of sudden stop when reversing - The blade edges tilt back only if
driving forward. When driving in reverse the blade sections are rigid. This can cause a
sudden stop and subsequent injuries in collision with an obstacle while reversing with the
plow on the ground. The plow is intended to be used and the safety features operate only
in forward travel direction.

17 (30)
.
6.1 Checks before use
Check that all obstacles, including any possibly hidden ones, have been removed from the working
area before operation.
Make sure that the lower blade sections and their spring release system is in full working condition
and unblocked before starting plowing work. All springs must be fastened securely and the lower
sections of the blades must be able to tilt.
Ensure that bystanders are at a safe distance when operating the equipment. Do not let anyone to
enter danger area of the boom or to stay directly in front of the loader. Also make sure that it is safe to
reverse with the loader. Never assume that bystanders will remain where you last saw them;
especially children are often attracted to the moving equipment.
Check the general condition of the attachment and the loader, and check for possible hydraulic oil
leaks. The attachment must not be used, if there is a fault in the hydraulic system of the loader or the
attachment. Refer to Chapter 7 for maintenance instructions.
Operate the attachment and the controls of the loader only when seated on the driver’s seat. Ensure
that the loader and the attachment are used in a safe manner and as intended. Do not allow children
to operate the equipment.
Never operate the loader or attachments while under the influence of alcohol, drugs, medication that
may impair judgement or cause drowsiness, or if not otherwise medically fit to operate the equipment.
Remember correct working methods and avoid leaving the driver’s seat unnecessarily.
.
..
WARNING: Risk of injuries related to sudden stop - Drive slow and always stay
alert for possible obstacles. For the safety of the operator, the blade is equipped with
safety mechanisms to reduce the risk of sudden stopping of the machine and the
possibility of injuries that could follow. However, the existence of the safety features will
not replace operator's responsibility. Careful and cautious operating are essential for
safety. Any safety feature by itself will not guarantee safe operating of the plow. The
performance of the safety features may be hindered in certain conditions, such as packed
snow or ice, or when reversing with the loader.

18 (30)
.
6.2 Operating the snow plow
The plow is equipped with a floating coupling bracket which
can be set quickly and easily to correct operating position
allows vertical movement of the attachment to keep the plowing edge and skids on the ground on
uneven surfaces
allows also limited sideways tilting of the plow
is reliable and easy to maintain
The correct operating position is essential for efficient plowing and controllability of the
loader. Keep the plow lightly against the ground in upright position. If the plow is pressed
down too hard the steerability of the loader may be reduced, as the front tyres tend to lift
off from the ground.
6.2.1 Preparing for use
Familiarise yourself with the controls and correct position of the plow, to be able to use the plow in the most
efficient way. When using the plow for the first time, set the blade sections to straight position for easy
understanding of the effects of changes in position of the plow.
Upright position:
As a general rule, the plow should be adjusted to an upright position. When the plow is set to correct operating
position:
the entire edge of the plow is in contact with the ground
the plow does not steer the loader to aside
the front wheels of the loader are firmly on the ground
the plow moves snow effectively
The actual best position of the plow depends on the operating area and position of the individual blade
sections and can be learned through experience.
Telescopic boom:
Set the telescopic boom of the loader to the position in which you intend to operate the plow. Normally the
telescopic boom should be kept retracted for the best visibility and stability.
Boom floating system of the loader:
If the loader is equipped with the optional bloom floating system, it should be switched on after the plow is set
to operating position. The floating bracket of the attachment makes it possible to use the plow efficiently even
if the loader is not equipped with boom floating system.

19 (30)
.
6.2.2 Correct operating position
1.
Set the blade on the ground and tilt it into upright position by using the boom control lever of
the loader:
Lower the plow on the ground.
Tilt of the quick coupling plate to vertical
position.
If necessary, adjust the support legs so that
also they touch the ground lightly together
with the edge of the plow. See page 22.
Depending on operating conditions, you may
try to tilt the blade a little front or back when
removing ice, for example.
2.
Correct height setting of the loader boom: Set the floating attachment bracket to its middle
position:
Set the height of the loader boom so that the
floating attachment bracket will be set to its
middle position as shown in adjacent figures.
The coupling plate brackets should be in level
with the markers to indicate correct height
setting.
If necessary, tilt the attachment again to keep it
upright.

20 (30)
.
6.2.3 Tips for use
If the snow plow is not adjusted into correct operating position, the following problems may arise:
Possible case
Solution
Only the corners of the blade are in contact with
the ground
Plow is tilted either towards front or back. Make sure
that plow is in upright position.
Spring release allows the lower blade sections to
tilt during tilt normal use
Plow is pressed too hard against the ground. Lift and
position it to correct working position.
Make sure spring release system is correctly
adjusted.
The front tyres of the loader tend to lift off from
the ground during use
The blade drags the loader aside and it is
difficult to drive in straight line
Plow is pressed too hard against the ground. Lift and
position it to correct working position.
Only the left/right side of the blade is in contact
with the ground
The floating quick coupling plate of the plow might
have become wedged stuck. Lift and reposition on
the ground.
The blade doesn't scrape the surface clean or
leaves packed snow
Consider using the ice scraper blade to clear snow
that is compacted during normal use.
6.3 To turn plow blade sections
The versatile plow and its separately controllable blade sections make it possible to use the plow efficiently at
different operating areas and in a way that best suits the operating conditions
Using the plow as a point plow makes clearing narrow roads or sidewalks with single drive, and makes it
possible to plow a path even on thick snow.
The tilted position can be adjusted as needed according to snow layer thickness and needed plowing
width. The side where the plow is tilted can be changed quickly.
Operating the plow as a collecting plow makes it easier to stack snow, and works as an excellent tool to
help finalising plowing.
The desired mode of operation is selected with either of the electric coupling alternatives. After the mode is
selected the plow sections are controlled with the auxiliary hydraulics control lever or the electric joystick
buttons of the loader.
Alternate between operating modes as needed to set the plow to the desired operating position.
