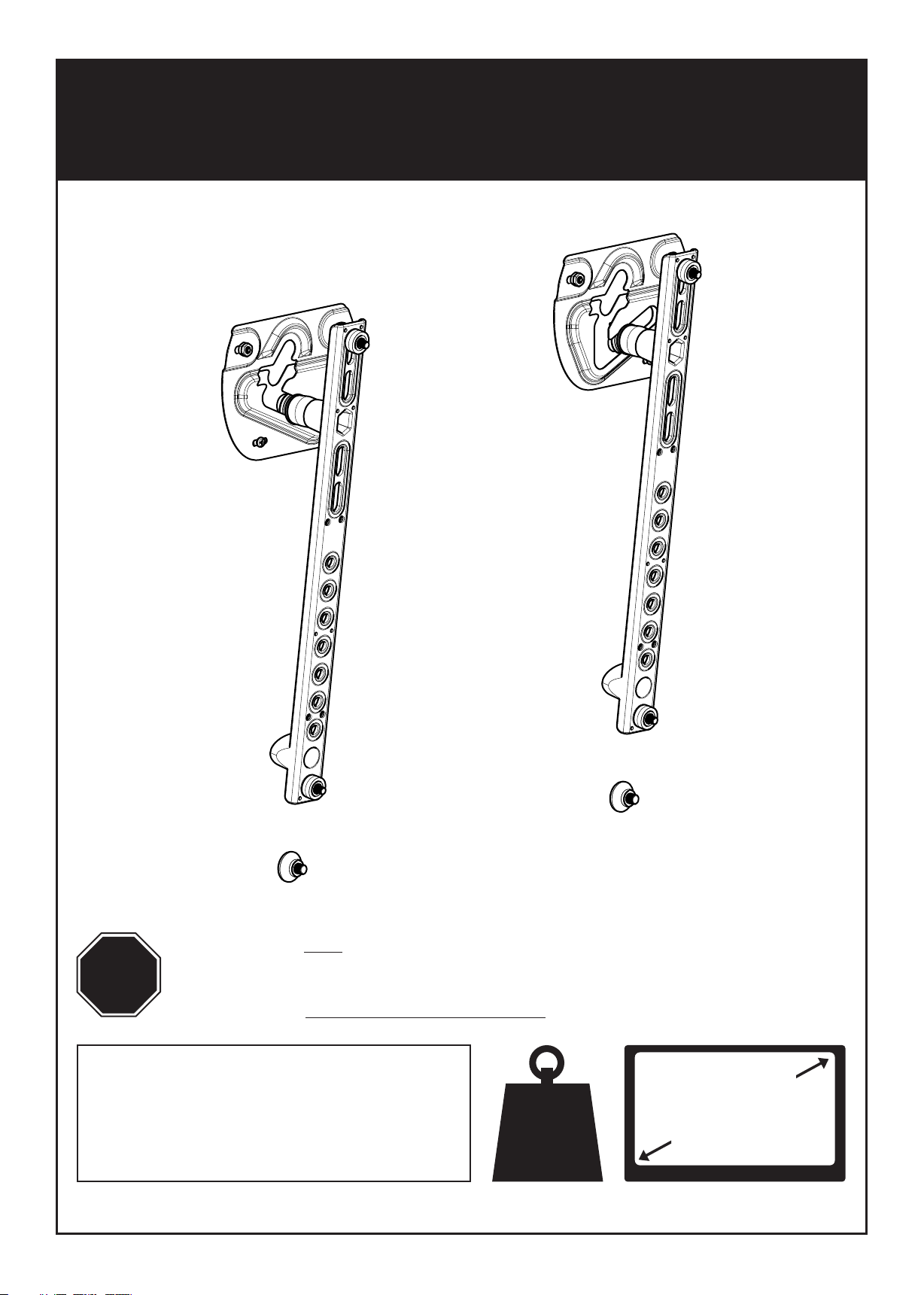

AVF Group JML8401 User manual

80"
203cm
121lbs
55kg
JML8401 Leaflet No. 463460 rev02
AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England
CUSTOMER SERVICES HELP LINE NUMBER:
01952 670009
STOP
Read through instructions before commencing installation.
If you have any questions about this product or issues with installation
contact the customer services helpline before returning this product to
the store. See jl.avfgroup.com/p/jml8401 for more information.
ALL

1Boxed Parts
You will not need all these parts, so expect there to be some left over depending upon the
specification of your TV.
TV Fixings: Parts go on the back of the TV
(specification of your TV will determine
which ones you require - see section 11).
Wall Fixings: Parts to attach to the wall
(type of wall will determine which fixings
you require).
F1
G4
G7
G10
F2
G5
G8
G11
F3
G6
G9
G12
- x4
- x4
- x4
- x4
- x4
- x4
- x4
- x4
- x4
- x4
- x4
- x6
M4 Adaptor
M5 16mm
M6 16mm
M8 16mm
M5 Adaptor
M5 25mm
M6 25mm
M8 25mm
M6 Adaptor
M5 45mm
M6 45mm
M8 45mm
A- x1
LH Wall Bracket
B- x1
RH Wall Bracket
C- x2
Hanger
D- x2
Stand-off
E1- x12
Spacer
E2- x4
Spacer (Red)
W- x2
Tilt Bracket
V- x2
Nyloc Nut
X- x2
Tilt Spacer
Included Tools
R- x1
18mm Wood Drill
S- x1
3mm Hex Key
U1- x1
Template
U2- x1
T- x1
Level
No.14 x 105mm
No.14 x 70mm
No.12 x 25mm
No.8 x 38mm
H I J
- x4 - x4 - x8
Wall Fixing Long Wall
Plug
Lock Nut
K L M
- x4 - x2 - x4
Long Screw Metal Stud
Screw
Wall Plug
N O P
- x4 - x2 - x2
Screw Screw Screw Plug
Q- x2
Wall Plug
K L M
- x4 - x2 - x4
G1G2G3
- x4 - x4 - x4
M4 16mm M4 25mm M4 45mm

2Tools Required
3Determine Correct TV Screw Size
Choose from the TV Fixings selection. You need to determine which length and diameter of screws
fits your TV. To determine the correct screw diameter, try screwing (G1), (G4), (G7) & (G10) into one
of the fixing holes on the back of the screen until you find the one that fits. Note the thread size and
ensure you use the appropriate diameter screws.
G1, 4, 7, 10
Flat or Tilt
Before you start please choose if you would like your TV to be either Flat to Wall or in a Tilt position.
Flat to Wall
Follow steps 4 to 11
Tilt Position
Follow steps 12 to 20

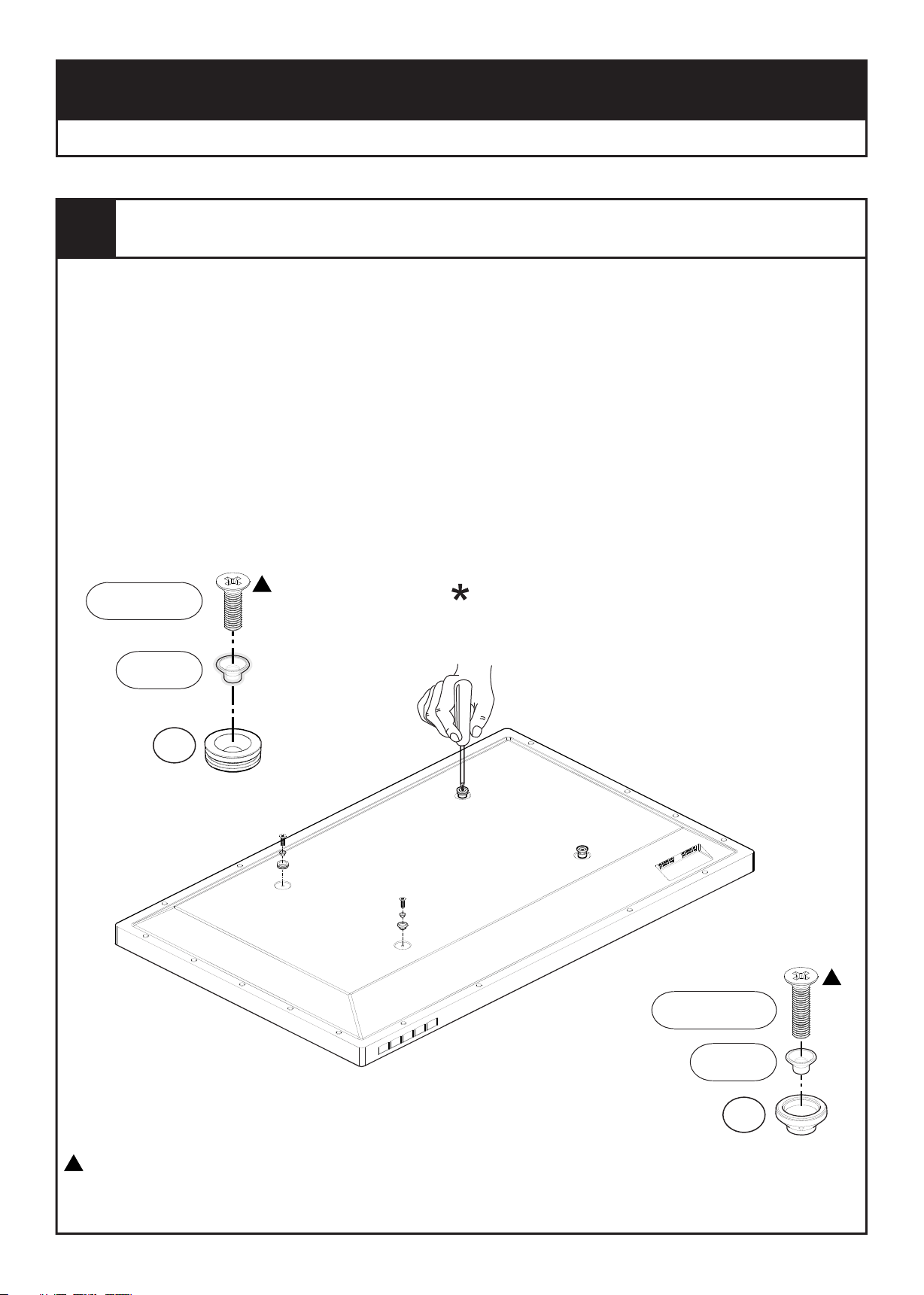

4Fit Screen Hangers To TV
Once you have established which screws you need for your TV, you can attach the Hangers (C)
and Stand-offs (D) to the back of your TV.
The example shown below is for fixing the TV 12mm from the wall.
The TV Mount can position your TV between 12mm and 40mm from the wall. For alternative
configurations see section 11.
You might need to use spacers to increase the clearance of your TV from the wall in order to avoid
cables coming out of your TV and improve access and ventilation to the back of your TV, spacers
(E1) allow you to increase the clearance to 20mm or 40mm, see section 11.
In certain circumstances it may be necessary to use red spacer (E2) as either a replacement or
addition to spacer (E1), for more information please see section 11.
If your TV fixing centres don’t fit, STOP installation and contact the customer services helpline.
You will only need to follow steps 4 to 11 if you have chosen to have your TV in a flat position
Flat Position
TV must be parallel to wall.
Use spacers / stand-offs as shown.
Use adapter with screws (F1) (G1)
Use adapter (F2) with screws (G4)
Use adapter (F3) with screws (G7)
No adapter required with screws (G10)
C
F1, 2, 3 *
G1, 4, 7, 10
Top Fixings
Bottom Fixings
F1, 2, 3
G1, 4, 7, 10
*
D
If you use screw for top fixing you must use screw G1G1 for bottom fixing
If you use screw G4 for top fixing you must use screw G4 for bottom fixing
If you use screw G7 for top fixing you must use screw G7 for bottom fixing
If you use screw G10 for top fixing you must use screw G10 for bottom fixing

5Assemble Positioning Template
The horizontal part of the positioning template is used to mark out
where you need to drill the mounting holes on your wall. The vertical
part is just a guide to allow you to see how high up the wall your TV
will be to help you find the perfect position for viewing your screen.
Thread template (U2) through template (U1) as shown.
6Determine Bracket Hole Centres
Line up with top of
the screen.
Lay the template on the back of the TV and follow the instructions below.
The centre line of the template
represents the centre of your TV.
If your screen fixings do not line
up with any holes on the template
then ensure template is on the
centre of the screen, and punch
holes to suit your screen fixings
centres with a pencil or sharp
object.
Line up the template with
the centre of the screen.
Mark off the fixing centres.
Tear off the template flush with the
bottom of your TV so that when
the template is on the wall you can
see exactly where your TV will be
vertically (distance from the floor
and ceiling).
U1
U2

7Marking Wall For Drill Points
Use your template to mark two points on the wall that correspond with the top fixing centres of
your TV.
Represents the top
of your TV.
Represents the base
of your TV.
Drill points
8Planning & Preparation
Determine the wall type that you have .
Ensure the drilling area is free from mains services (Gas/Electric/Water).
Drill six 3mm diameter pilot holes to verify the wall type and select the appropriate fixings (See
Section 9).
(See Section 9)
Represents the
centre of your TV.
A
Pencil Mark
Central Hole
Next, use the Wall Brackets (A) and (B) as a template
and position it over one of the PENCIL MARKS you
have made, so that the mark is in the middle of the
CENTRAL HOLE of the Wall Bracket (A). Ensure the
bracket is level and mark the three DRILL POINTS with
a pencil. Repeat for both brackets.
T
T
Drill points
B
A
Represents the
centre of your TV.
B

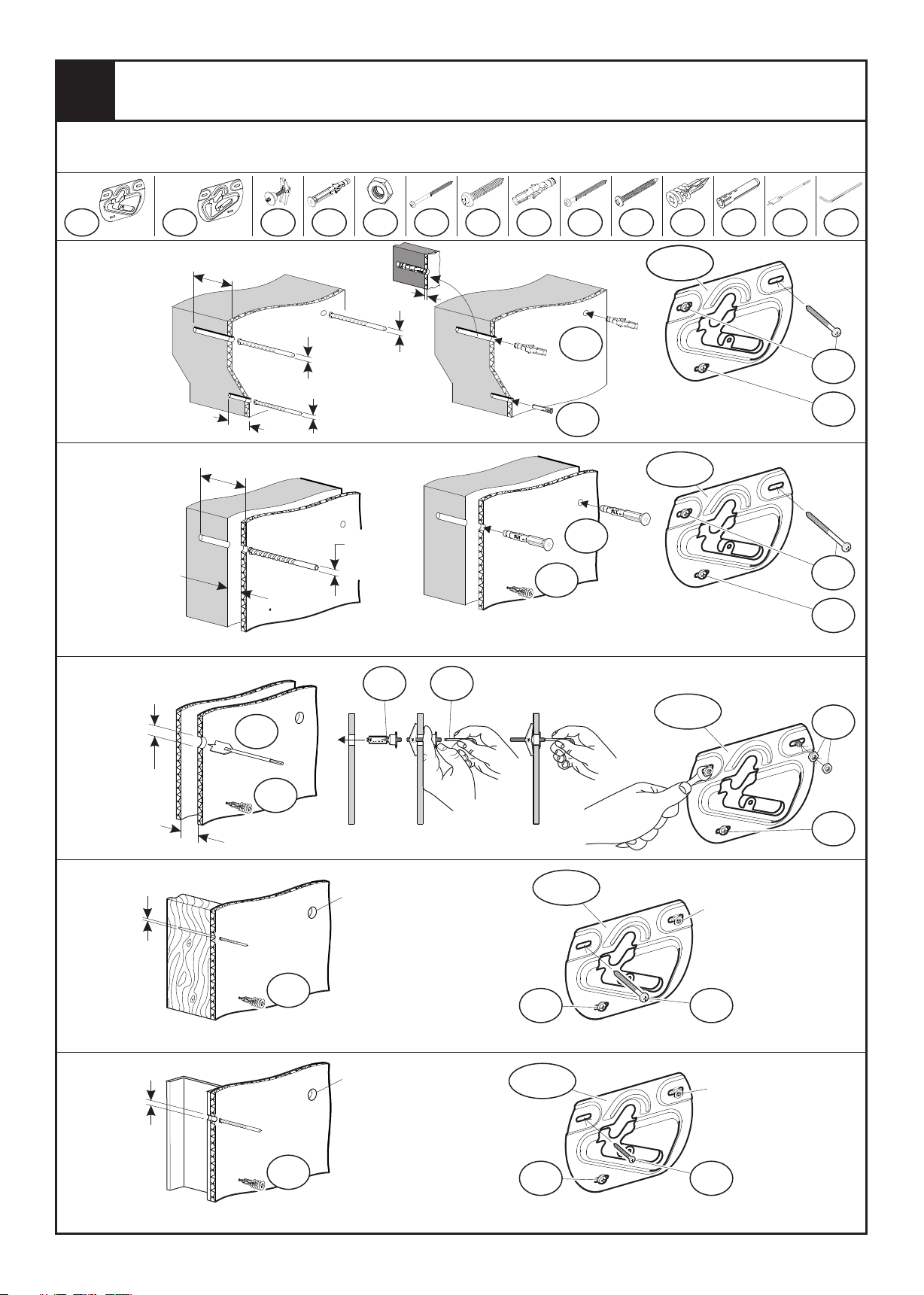

9
Install Wall Fixings
Use the correct fixings for your wall type. Mixing fixing types may be required for installations that
span different wall types. DO NOT OVER TIGHTEN SCREWS.
Remove
dust from
holes
Ø18mm
(3/4")
Solid WallDot & DabPlasterboard
/ Sheetrock
Wood StudMetal Stud
108mm
(41/4")
Ø10mm
(25/64")
Remove
dust from holes
40mm Max
(19/16")
If gap is above 40mm use
Plasterboard / Sheetrock fixing method
(19/16")
Ø3mm
(1/8")
Only one fixing will be in the wood stud. The other fixings will be in plasterboard / sheetrock (see above).
Only one fixing will be in the metal stud. The other fixings will be in plasterboard / sheetrock (see above).
Lubricate screw
thread with soap
Lubricate screw
thread with soap
Use Plasterboard /
Sheetrock fixings
Lubricate screw
thread with soap
Hand tighten
only
*
*
Turn until secure
Do not over
tighten
40mm (19/16") Min gap
A+B
A+B
Use Plasterboard /
Sheetrock fixings
A+B
Ø10mm
(25/64")
75mm (3")
Ø5.5mm
(7/32")
A+B
Use Plasterboard /
Sheetrock fixings
Ø3.5mm
(9/64")
SRQPONMLKJIHBA
N
O
M
Q
I
PK
O
J
O
R
P
H S
P
P
Use Plasterboard /
Sheetrock fixings
Self drilling
Self drilling
Self drilling
A+B
A+B
Self drilling
40mm (19/16")
O
O
N
L

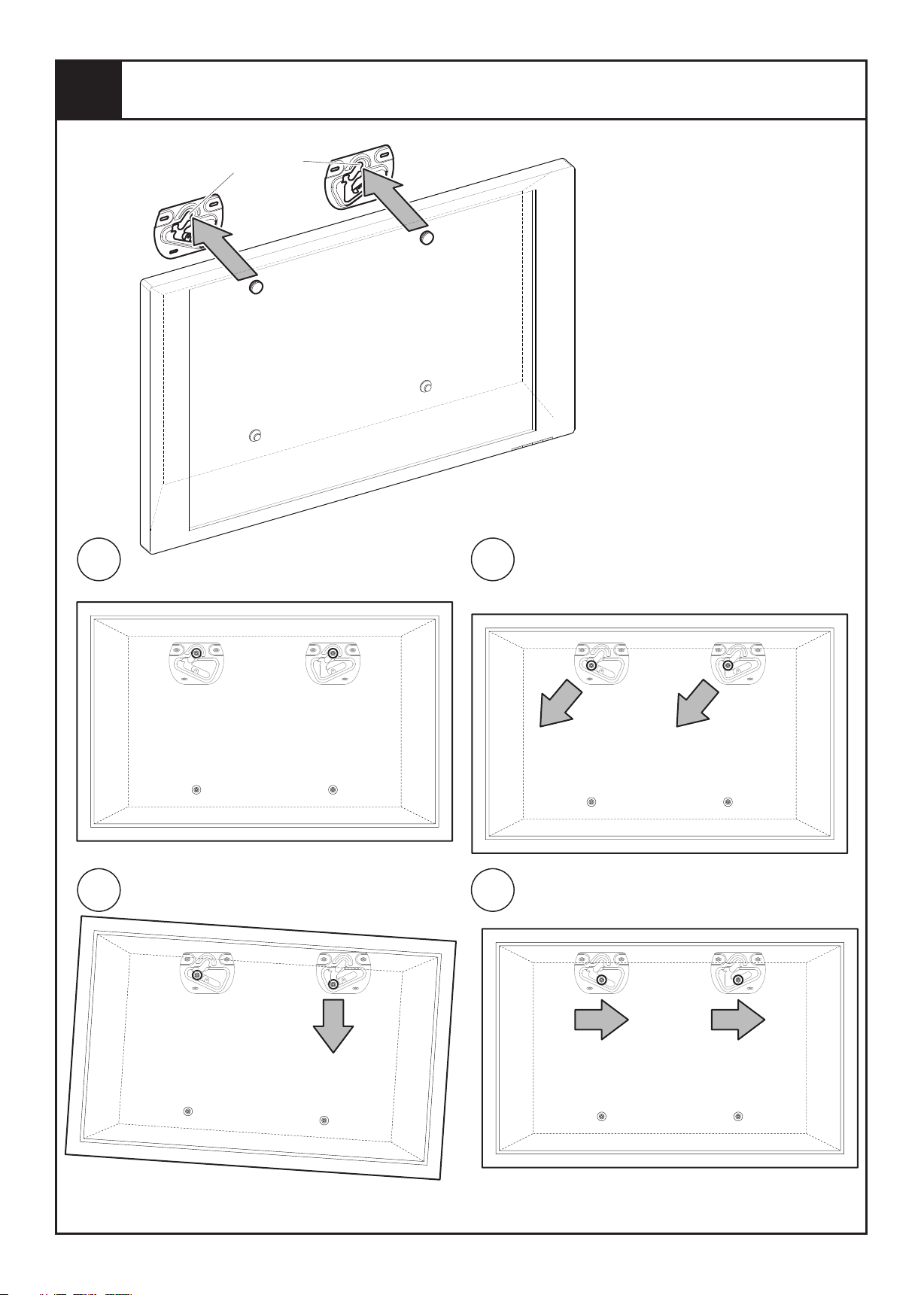

Present the Hangers
(on the back of the TV) to the
guide recess on the Wall
Brackets. Slide down and across
into place. Ensure both Hangers
are fully engaged.
If cables from the TV prevent
the TV resting against the wall
then an alternative hanger
configuration will be required
(See Section 11).
TV must be parallel to wall. Use
spacers / stand-offs as shown.
If required you can adjust
the level of your TV by moving
your TV from side to side.
Removing the TV
This is a two person job. To remove the TV reverse the movements as shown above.
Hanging The TV
II
IV
Guide
Recess
10
I
III

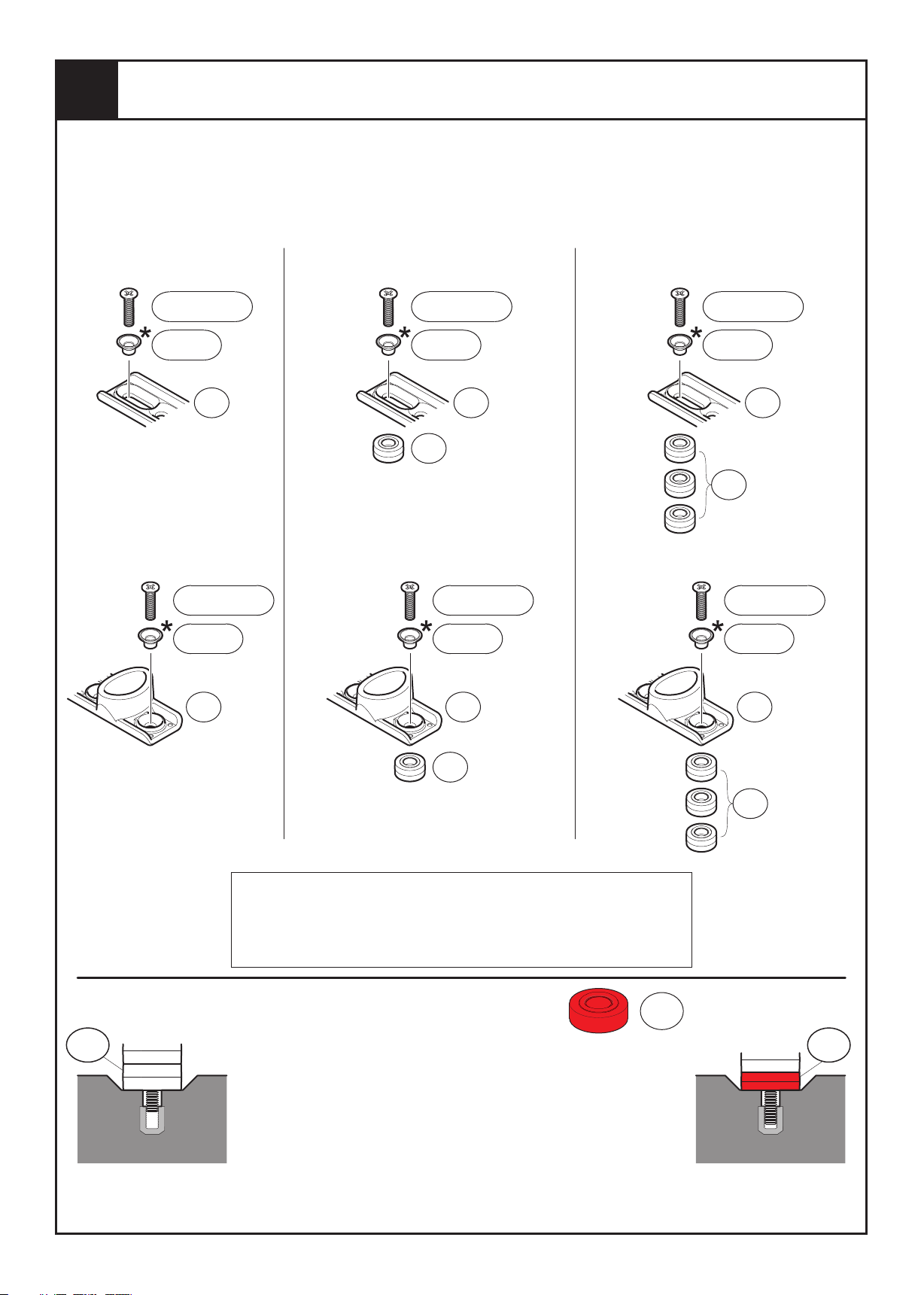

11
Alternative Hanger Configurations
Alternative Wall spacings of 12mm, 20mm & 40mm can
be achieved using the spacer / screw combinations
listed in this section.
12mm Wall Space
(as shown in section 4) 40mm Wall Space
* F1, 2, 3
G1, 4, 7, 10
Top FixingsTop Fixings Top Fixings
C
* F1, 2, 3
G2, 5, 8, 11
C
* F1, 2, 3
G3, 6, 9, 12
C
E1
Wall Space
E1
Bottom Fixings
E1
E1
*
When is it necessary to use red spacers? E2- x4
TV TV
E1E2
It is recommended that when fitting Hangers ( ) and
Stand-offs ( ) to your TV you have at least 5-10mm of
screw engagement. In certain circumstances you may
need to use red spacers ( ) as either a replacement, or
together with spacers ( ) to achieve this. Whenever
you use red spacers (E2) you must use all 4 provided.
C
D
E2
E1
Problem
Not enough
screw engagement
Solution
Red spacer (E2) has
replaced spacer (E1)
TV must be parallel to wall. Use spacers / stand-offs as shown.
If using screw (G1),(G2) or (G3) use Adapter (F1)
If using screw (G4),(G5) or (G6) use Adapter (F2)
If using screw (G7),(G8) or (G9) use Adapter (F3)
If using screw (G10),(G11) or (G12) No Adapter required
Bottom FixingsBottom Fixings
G1, 4, 7, 10
* F1, 2, 3
G2, 5, 8, 11
* F1, 2, 3
D
G3, 6, 9, 12
* F1, 2, 3
D
E1
D
E1
E1
E1
20mm Wall Space

Choose Tilt
You can choose between 2 different tilt positions, either 4 or 8°.°
12
4 tilt° 8 tilt°
Use your fingertip to hold
nyloc nut (V) steady
while you tighten screw ( )G12
Use your fingertip to hold
nyloc nut (V) steady
while you tighten screw ( )G12
Ensure a flush fit between
tilt bracket (W) and spacer
(X) by lining up the notch
and pip correctly
G12
XC
V
W
G12
C
V
W
You will only need to follow steps 12 to 20 if you have chosen to have your TV in a tilted position
Tilt Position
Notch Pip
WX

13 Assemble Positioning Template
The horizontal part of the positioning template is used to mark out
where you need to drill the mounting holes on your wall. The vertical
part is just a guide to allow you to see how high up the wall your TV
will be to help you find the perfect position for viewing your screen.
Thread template (U2) through template (U1) as shown.
14 Determine Bracket Hole Centres
Line up with top of
the screen.
Lay the template on the back of the TV and follow the instructions below.
The centre line of the template
represents the centre of your TV.
If your screen fixings do not line
up with any holes on the template
then ensure template is on the
centre of the screen, and punch
holes to suit your screen fixings
centres with a pencil or sharp
object.
Line up the template with
the centre of the screen.
Mark off the fixing centres using
the top row of numbers.
Tear off the template flush with the
bottom of your TV so that when
the template is on the wall you can
see exactly where your TV will be
vertically (distance from the floor
and ceiling).
U1
U2

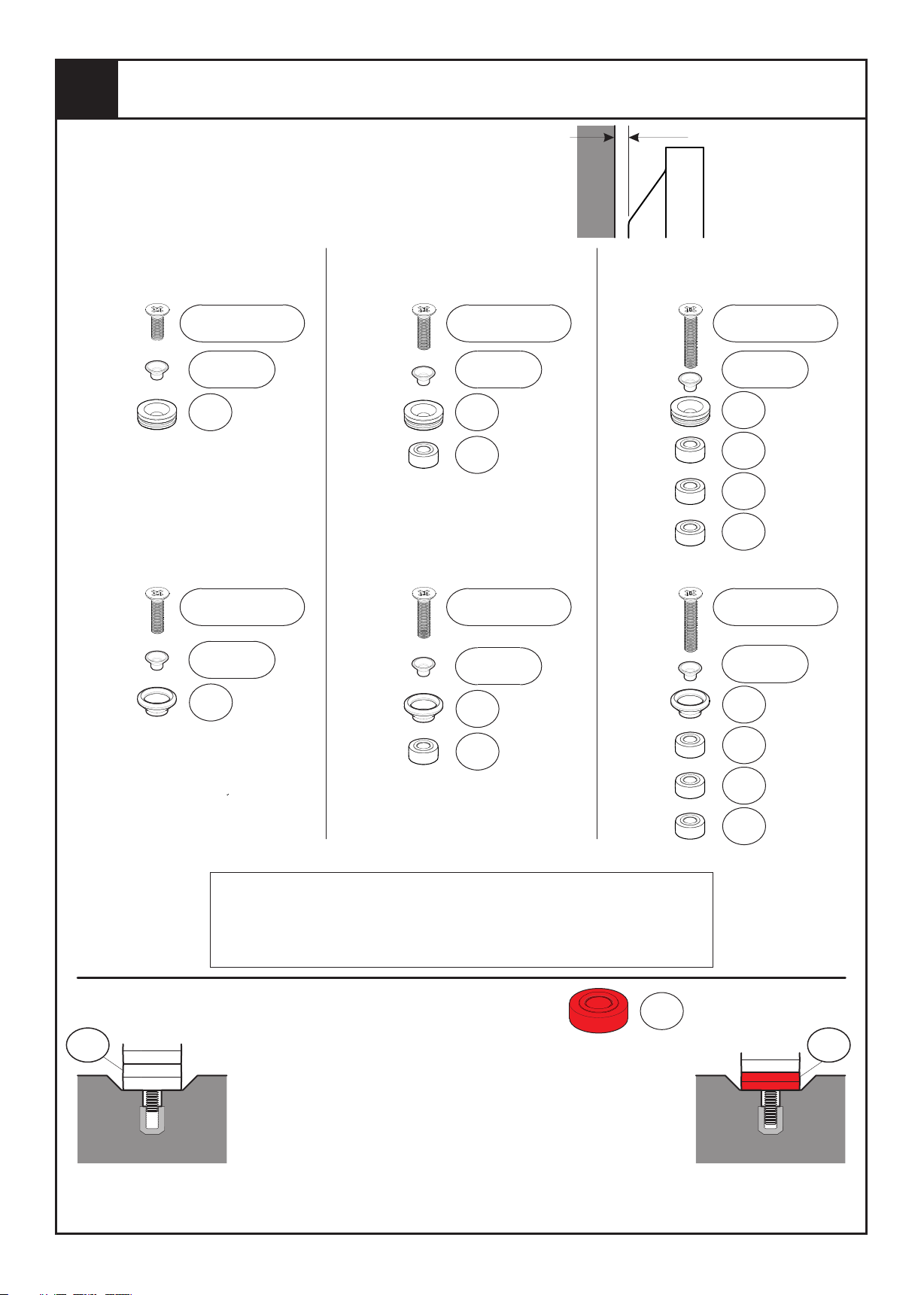

Fit Tilt Brackets to TV
15
Once you have established which screws you need for your TV you can attach Tilt brackets (W) to
the back of your TV.
Example shown below is only for TV’s with a flat back. If your TV has a curved back/obstructions or
you require more space for cables and to improve access and ventilation to the back of your TV
you will need to add spacers (E1), see section 20.
In certain circumstances it may be necessary to use red spacer (E2) in addition to the fixings
below, for more information see section 20.
If your TV fixing centres don’t fit, STOP installation and contact the customer services helpline.
If you have chosen 8° tilt option and your TV size is 65" or over it will be necessary to add spacers
to prevent your TV clashing with the wall, the size of your TV will determine if you need to use
1 or 3 spacers. Please see below for an example.
If you use screw for top fixing you must use screw G1G1 for bottom fixing
If you use screw G4 for top fixing you must use screw G4 for bottom fixing
If you use screw G7 for top fixing you must use screw G7 for bottom fixing
If you use screw G10 for top fixing you must use screw G10 for bottom fixing
Use adapter with screws (F1) (G1)
Use adapter (F2) with screws (G4)
Use adapter (F3) with screws (G7)
No adapter required with screws (G10)
Spacers are used between tilt bracket
and TV to prevent clash with wall
E1W
Bottom Fixings
G1, 4, 7, 10
F1, 2, 3
*
W
Top Fixings
G1, 4, 7, 10
F1, 2, 3
*
W
Clash No Clash
WW
Top
Bottom

17 Planning & Preparation
Determine the wall type that you have .
Ensure the drilling area is free from mains services (Gas/Electric/Water).
Drill six 3mm diameter pilot holes to verify the wall type and select the appropriate fixings (See
Section 18).
(See Section 18)
16 Marking Wall For Drill Points
Using the marks on the top row that you made in step 14 make the same marks on
the bottom row and use these to mark two points for drilling.
Represents the top
of your TV.
Represents the base
of your TV.
Drill points
Represents the
centre of your TV.
A
Pencil Mark
Central Hole
Next, use the Wall Brackets (A) and (B) as a template
and position it over one of the PENCIL MARKS you
have made, so that the mark is in the middle of the
CENTRAL HOLE of the Wall Bracket (A). Ensure the
bracket is level and mark the three DRILL POINTS with
a pencil. Repeat for both brackets.
T
T
Drill points
B
A
Represents the
centre of your TV.
B
Bottom Row
Top Row Marks

18
Install Wall Fixings
Use the correct fixings for your wall type. Mixing fixing types may be required for installations that
span different wall types. DO NOT OVER TIGHTEN SCREWS.
Remove
dust from
holes
Ø18mm
(3/4")
Solid WallDot & DabPlasterboard
/ Sheetrock
Wood StudMetal Stud
108mm
(41/4")
Ø10mm
(25/64")
Remove
dust from holes
40mm Max
(19/16")
If gap is above 40mm use
Plasterboard / Sheetrock fixing method
(19/16")
Ø3mm
(1/8")
Only one fixing will be in the wood stud. The other fixings will be in plasterboard / sheetrock (see above).
Only one fixing will be in the metal stud. The other fixings will be in plasterboard / sheetrock (see above).
Lubricate screw
thread with soap
Lubricate screw
thread with soap
Use Plasterboard /
Sheetrock fixings
Lubricate screw
thread with soap
Hand tighten
only
*
*
Turn until secure
Do not over
tighten
40mm (19/16") Min gap
A+B
A+B
Use Plasterboard /
Sheetrock fixings
A+B
Ø10mm
(25/64")
75mm (3")
Ø5.5mm
(7/32")
A+B
Use Plasterboard /
Sheetrock fixings
Ø3.5mm
(9/64")
SRQPONMLKJIHBA
N
O
M
Q
I
PK
O
J
O
R
P
H S
P
P
Use Plasterboard /
Sheetrock fixings
Self drilling
Self drilling
Self drilling
A+B
A+B
Self drilling
40mm (19/16")
O
O
N
L

Present the Hangers
(on the back of the TV) to the
guide recess on the Wall
Brackets. Slide down and across
into place. Ensure both Hangers
are fully engaged.
If cables from the TV prevent
the TV resting against the wall
then an alternative hanger
configuration will be required
(See Section 20).
Removing the TV
This is a two person job. To remove the TV reverse the movements as shown above.
Hanging The TV
II
IV
Guide
Recess
19
I
III
If required you can adjust
the level of your TV by moving
your TV from side to side.

20
Alternative Hanger Configurations
Alternative spacings can be achieved using the spacer / screw combinations shown in this section.
When is it necessary to use red spacers?
TV
E1It is recommended that when fitting Tilt Brackets ( )
to your TV you have at least 5-10mm of screw
engagement. In certain circumstances you may need
to use red spacers ( ) as either a replacement, or
together with spacers ( ) to achieve this. Whenever
you use red spacers (E2) you must use all 4 provided.
W
E2
E1
Problem
Not enough
screw engagement
No Spacer Combination
(as shown in section 13)
Bottom Fixings
W
G1, 4, 7, 10
F , 2, 31
Top Fixings
G1, 4, 7, 10
F , 2, 31
1 Spacer Combination
Bottom Fixings
E1
E1
Top Fixings
3 Spacer Combination
Top Fixings
Bottom Fixings
E2- x4
Solution
Red spacer (E2) has
replaced spacer (E1)
TV
E2
E1
E1
Use adapter with screws (F1) (G1), (G2) & (G3)
Use adapter (F2) with screws (G4), (G5) & (G6)
Use adapter (F3) with screws (G7), (G8) & (G9)
No adapter required with screws (G10), (G11) & (G12)
*
G2, 5, 8, 11
F , 2, 31
G3, 6, 9, 12
F , 2, 31
G3, 6, 9, 12
F , 2, 31
G2, 5, 8, 11
F , 2, 31
W W
W W W
