Avidsen ORANE-CONNECT User manual

CONNECTED MOTOR DRIVE
WITH PIVOTING ARMS
For 2-panel swing gates
ORANE-CONNECT
Ref.114202
www.avidsen.com
V2
FONCTIONNE
AVEC AVIDSEN
HOME
CONNECTE 24V
L
2,50M
PAR BATTANT
250KG
PAR BATTANT
KG
COMPATIBLE
AVEC TOUS TYPES
DE PORTAILS
PORTAIL
BATTANT
YEARS
3
SMART 24V 2.50M
PER PANEL
250KG
PER PANEL
SWING
PANEL
COMPATIBLE WITH
WITH ALL TYPES
OF GATES
WORKS
WITH AVIDSEN
HOME
EN

EN3EN 2
CONTENTS
A - SAFETY INSTRUCTIONS
1 - OPERATING PRECAUTIONS 04
2 - INSTALLATION PRECAUTIONS 04
3 - MAINTENANCE AND CLEANING 05
4 - RECYCLING 05
B - PRODUCT DESCRIPTION
1 - CONTENTS OF THE KIT 06
2 - EQUIPMENT REQUIRED
(NOT INCLUDED) 07
C - INSTALLATION
1 - HAZARD ANALYSIS 08
1.1- Regulations 08
1.2- Specifications of the gate to motorise 08
1.3- Safety check on the gate 08
1.4- Safety rules 09
2 - ELIMINATING HAZARDS 09
2.1- Subpanels 09
2.2 - Bottom edges 09
2.3 - Between the panels and the fixed
parts close to each other 10
2.4 - Prevention of other hazards 11
3 - INSTALLING THE MOTOR DRIVE 11
3.1- Installing the stops 12
3.2 - Assembling the pivoting arm 13
3.3 - Installing the motors - for opening
towards the inside of the property 14
3.4 - Installing the motors - for opening
towards the outside of the property 20
4 - INSTALLING THE FLASHING LIGHT 25
5 - INSTALLING THE SET OF PHOTOCELLS 26
5.1- Opening outwards 26
5.2- Opening inwards 27
5.3- 2nd set of photocells (optional) 28
6 - CONNECTIONS 30
6.1- The mains electricity 30
6.2- Motors 31
6.3- Flashing light 31
6.4- Photocells 32
6.5- Control parts
(optional) 34
6.6- Backup battery
(optional) 34
6.7- Solar power kit
(optional) 35
D - BEGINNING OPERATION
1 - SETTINGS INTERFACE 36
2 - BASIC SETTINGS (MENU 1) 36
2.1- Menu structure 36
2.2- Photocell alignment procedure
(optional) 38
2.3- Operating mode 38
2.4- Time delay 38
2.5- Motor force 39
2.6- Speed 39
2.7- Self-learning 39
2.8- Programming remote controls 41

EN3EN 2
3 - ADVANCED SETTINGS 42
3.1- Accessing the advanced settings
(MENUS 2 and 3) 43
3.2- Advanced settings menu
(MENU 2) 43
3.3- Advanced settings menu
(MENU 3) 45
E - USE
1 - WARNINGS 47
2 - OPENING/CLOSING 46
3 - TYPE OF COMMAND 47
4 - HOW IT WORKS 47
4.1- “Semi-automatic closing” mode 48
4.2- “Automatic closing” mode 48
4.3- “Collective” mode 48
5 - PHOTOCELLS 49
5.1- Obstacle detection 49
6 - MANUAL MOVEMENT 49
7. STARTING UP THE HOMEGATE
CONNECTED MODULE 50
7.1- Installing the mobile application and
creating an account 50
7.2 - Connecting the contactor 51
8 - USE VIA THE APP 52
9 - USING THE PRODUCT WITH GOOGLE
HOME 53
9.1 - If you have an Android smartphone with
Google assistant 54
10 - USING THE PRODUCT WITH AMAZON
ALEXA 54
11 - SCENARIO AND AUTOMATION 55
11.1 Scénario 55
11.2 - Creating an automation 56
F - MAINTENANCE AND
UPKEEP
1 - MAINTENANCE WORK 62
2 - OPERATING INDICATORS 63
2.1- History of events and error
codes 63
2.2- Manual control 65
2.3- Total reset 65
2.4- Replacing the remote control
battery 65
2.5- Replacing the power fuse 66
G - TECHNICAL AND LEGAL
INFORMATION
1 - COMPATIBLE ACCESSORIES 67
2 - TECHNICAL CHARACTERISTICS 67
3 - WARRANTY 70
4 - HELP AND ADVICE 70
5 - PRODUCT RETURNS/AFTER-SALES
SERVICE 71
6 - DECLARATION OF CONFORMITY 71

EN5EN 4
In our efforts to continually improve our products,
we reserve the right to make any changes to the
technical, functional, or aesthetic characteristics
related to their development.
This automatic gate opening mechanism, and
its manual, were designed to enable a gate to be
motorised in compliance with current European
standards.
WARNING
Important safety instructions. A automatic gate
opening mechanism is a product that can cause
injury to people and animals and damage to
property. It is important for people’s safety to follow
these instructions and keep them.
1 - OPERATING PRECAUTIONS
• This apparatus may be used by children over the
age of 8 and by persons with reduced physical,
sensory or mental abilities or lack of experience
or familiarity, if they are correctly supervised or
if the instructions relating to the safe use of
the apparatus have been given to them and
the possible hazards are understood. Children
must not play with the device. Keep the remote
controls out of the reach of children. Cleaning and
maintenance must not be conducted by children
without supervision.
• This apparatus should only be used for its
intended purpose, that is, to motorise a one- or
two-panel gate for vehicle access. Any other use
will be considered dangerous.
• The opening or closing manoeuvre control must
be used with perfect visibility of the gate. Should
the gate be outside the user’s field of vision, the
installation must be protected by a photocell type
safety device, and its operation must be checked
every six months.
• All potential users must be instructed in the use
of the motorised gate by reading this manual. It
must be ensured that no persons who have not
been instructed in the use of the device may set
the gate into motion.
• Before setting the gate into motion, ensure that
there is no person in the area in which the gate
moves.
• Avoid any natural obstacles (branch, stone, high
grass, etc.) impeding the gate’s movement.
• Do not manually activate the gate when the motor
drive is not disengaged from the gate.
• Avidsen cannot be held liable for any use that
does not comply with the instructions in this
manual and causes damage.
2 - OPERATING PRECAUTIONS
• Read this entire manual before starting the
installation.
• The electrical installation of the motorised gate
must meet current standards (in particular NF C
15100) and should be undertaken by a qualified
person.
• The 230 V mains supply must be protected with
a suitable circuit breaker which meets current
standards.
• All electrical connections must be performed
with the power switched off (safety switch in OFF
position) and battery disconnected.
• Ensure that crushing and shearing between
the mobile parts of the motorised gate and the
surrounding fixed parts due to the gate’s opening/
closing movement are avoided or signalled on the
installation.
• The motorised part must be installed on a gate
according to the specifications provided in this
manual.
• The motorised gate must not be installed in
an explosive atmosphere (presence of gas,
flammable smoke, etc.).
• The installer must check that the temperature
range shown on the motor drive is suitable for the
location.
• The wire that acts as an antenna must remain
inside the electronic panel.
• It is strictly forbidden to modify any of the
components provided in this kit, or to use an
additional component not provided for in this
manual.
• During installation, but above all during adjustment
of the motorised gate, you must ensure that no
person, including the installer, is in the area in
which the gate moves at the start and throughout
the duration of adjustment.
A - SAFETY INSTRUCTIONS

EN5EN 4
• The flashing light is an essential safety
component.
• If installation does not correspond to one of the
cases shown in this manual, you must contact
us so that we can provide all the components
necessary for smooth installation with no risk of
damage.
• After installation, ensure that the mechanism
is correctly adjusted and that the protection
systems as well as the manual override device
work correctly.
• Do not let children play with the fixed control
devices. Keep the remote controls out of the
reach of children.
• The Avidsen company shall not be responsible
in case of damage if installation is not conducted
as indicated in these instructions.
3 - MAINTENANCE AND CLEANING
• Read all the instructions given in this manual
before carrying out maintenance on the
motorised gate.
• Disconnect the power supply during cleaning
or maintenance operations, in particular if the
device is automatically controlled.
• Any technical, electronic or mechanical change
to the motorised gate must be made with our
technical department’s approval. Otherwise, the
guarantee will be immediately cancelled.
• In the event of breakdown, the damaged part
should be replaced by an original part and
nothing else.
• Check the installation frequently to reveal any
fault on the gate or the motor drive (see the
chapter on maintenance).
• Never use abrasive or corrosive substances to
clean the product.
• Do not clean the product with a pressure washer.
• Use a lightly damp, soft cloth.
• Do not use aerosol sprays on the product
because they could damage its interior.
• Regularly check the lubrication of all the joints of
the automatic gate opening mechanism and of
the gate.
4 - RECYCLING
Disposing of used batteries in household
waste is strictly forbidden. Batteries/
accumulators containing harmful
substances are marked with symbols
(shown opposite) which indicate that it is
forbidden to discard them in the household waste.
The heavy metals are referred to as follows: Cd=
cadmium, Hg= mercury, Pb= lead.
You can dispose of these used batteries/
accumulators at local waste treatment centres
(centres for sorting recyclable materials), which
are required to accept them. Keep batteries/
button cells/accumulators out of reach of children
and store them in a safe place not accessible to
them. They could be swallowed by children or
pets. May be fatal if swallowed! In the event that a
battery is swallowed, consult a doctor or go to A&E
immediately. Never short-circuit the batteries, and
do not burn or recharge them They may explode!
This logo denotes that devices which are
no longer in use must not be disposed of
as household waste. They are likely to
contain hazardous substances which are
dangerous to both health and the
environment. Return the equipment to your local
distributor or use the recycling collection service
provided by your local council.
Pour en savoir plus :
www.quefairedemesdechets.fr
A - SAFETY INSTRUCTIONS

EN7EN 6
B - PRODUCT DESCRIPTION

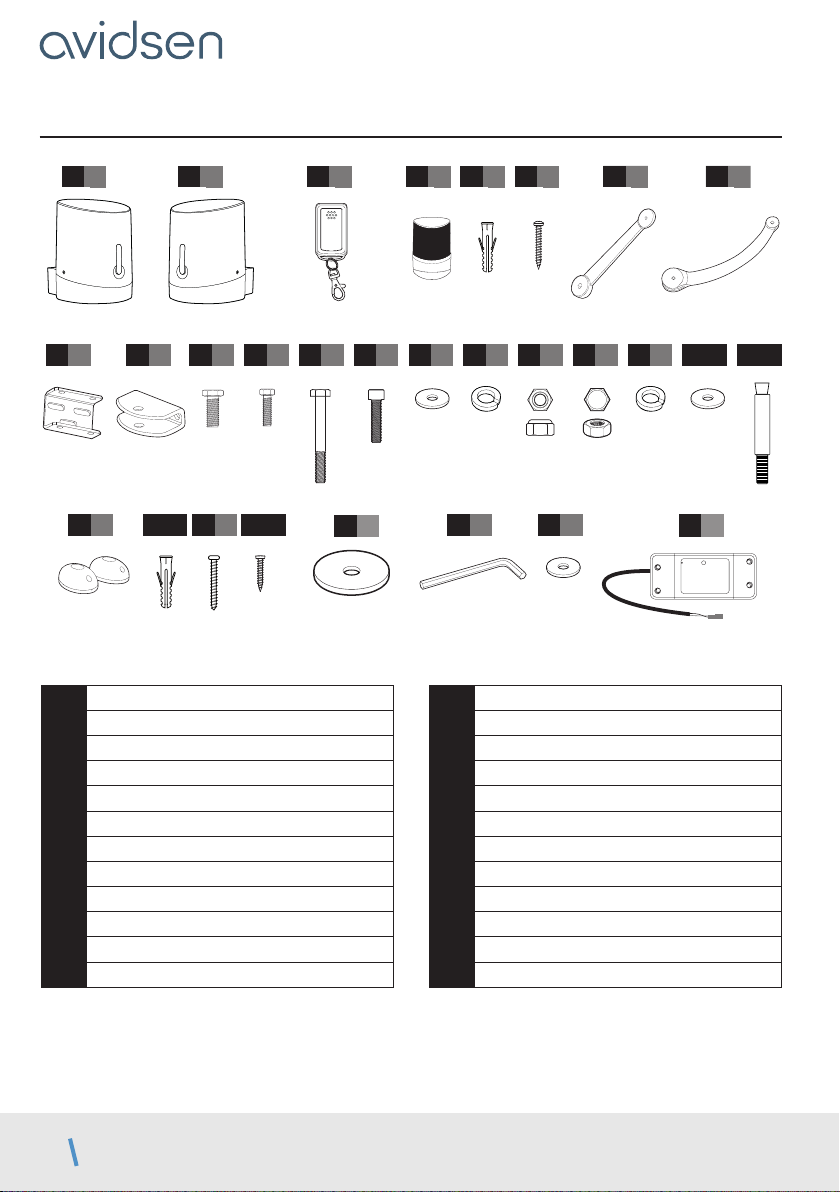

1 - KIT CONTENTS
1x 1 4x 1 4x 2 4x 2 2x 1 3x 2 5x 2 6x 2
7x 2 8x 2 9x 4 10 x2 11 x 4 12 x 4 13 x 4 14 x 6 15 x 4 16 x 4 17 x 4 18 x 4 19 x 6
20 x 1 20 x 6 20 x 6 20 x 4 22 x 1 23 x 4
1Main motor with electronic card
2Secondary motor
3Remote control
4Flashing light and screws
5Rear arm
6Front arm
7Post mounting bracket
8Gate mounting bracket
9M12 – L40 screw
10 M8 – L25 screw
11 M10 – L90 screw
12 M8 CHC – L30 screw
13 M8 washer
14 M8 spring washer
15 M12 locknut
16 M10 nut
17 M10 spring washer
18 M10 washer
19 M10 - L120 fastening pin
20 Photocells and screws
21 Oversized M8 washer
22 Allen key
23 M12 washer
24 Connected module and its accessories
24 x 1
21 x 2

EN7EN 6
B - PRODUCT DESCRIPTION

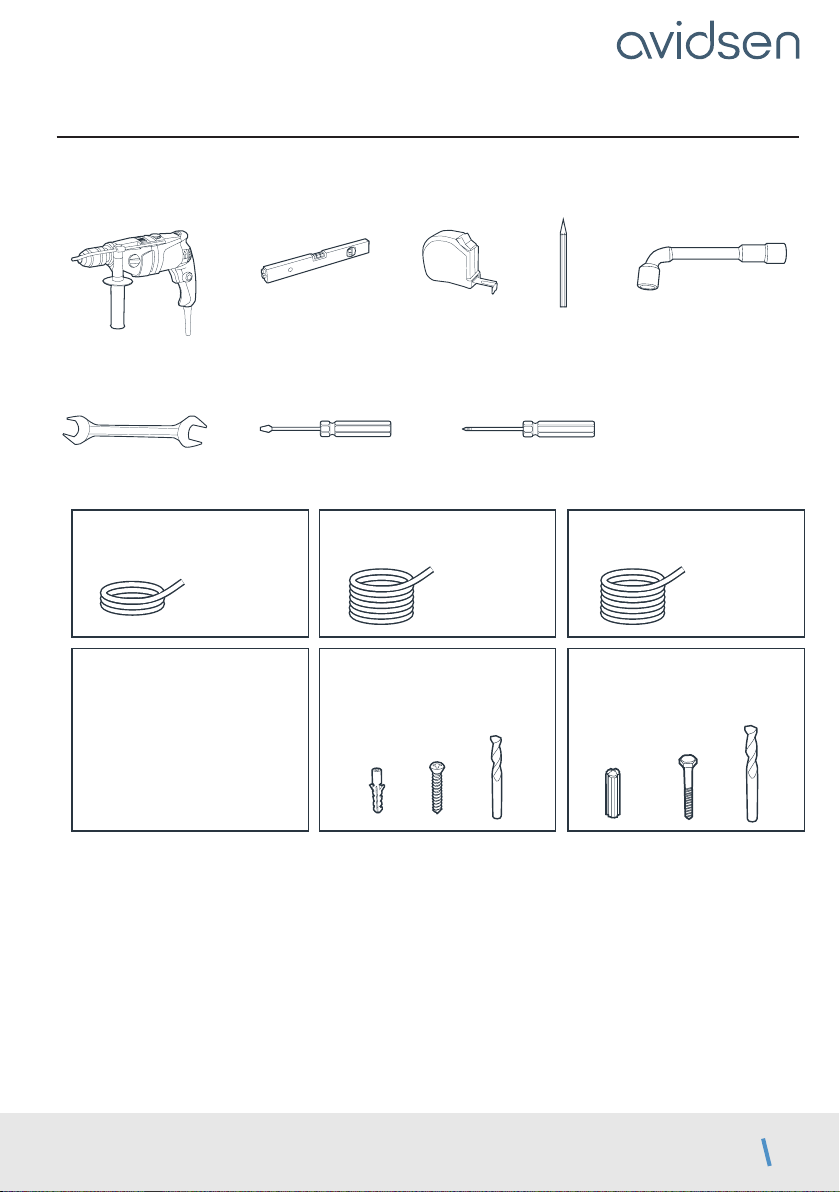

2 - EQUIPMENT REQUIRED (NOT INCLUDED)
The tools and screws required for the installation must be in good condition and compliant with applicable
safety standards.
Photocells
Attachment of the
flashing light onto the
post
MotorFlashing light
10m cable
4 x 6/10
8m cable
2 x 1.5mm2
3m cable
2 x 0.5mm2
Attaching the brackets
on the gate:
Choose a screw/nut system that
is suitable for the thickness of
the gate.
There are 4 attachment points
Ø6 Ø4
Ø6
x2 x2
Attachment of the
motors on the posts
x 6 x 6
Ø12x100 Ø8x100
Ø12
1 drill
1 spirit level 1 measuring
tape
1 pencil 1 x 19mm box spanner
and 1 x 13mm box
spanner
1 x 13mm spanner 1 flat head screwdriver 1 Phillips screwdriver

EN9EN 8
1. HAZARD ANALYSIS
1.1. Regulation
Installation of a motorised gate or a motor drive on
an existing gate within the framework of “Residential”
type use must be compliant with directive 89/106/
EEC concerning building products.
The reference standard used to check this compliance
is EN 13241-1 which refers to a framework of several
standards including EN 12445 and EN 12453 which
specify the motorised gate safety methods and
components to reduce or completely eliminate hazards
to people.
The installer must train the end user on the correct
operation of the motorised gate, and the trained
user must train the other people likely to use the
motorised gate, using this guide.
It is specified in standard EN 12453 that the minimum
protection of the gate’s primary edge depends on the
type of use and the type of control used to set the
gate in motion.
The gate motor drive is a press control system, i.e.
simply pressing one of the control parts (remote
control, key selector, etc.) sets the gate in motion.
This gate motor drive is equipped with a force
limiter which complies with appendix A of EN 12453
standard, within the framework of use with a gate
that is compliant with the specifications given in this
chapter. The specifications of EN12453 standard
therefore enable the 3 following use cases, as well
as the minimum levels of protection:
• Press activation with visible gate
- Force limiter only.
• Press activation with non-visible gate
- Force limiter and 2 pairs of photocells to protect
the gate’s opening and closing.
• Automatic control (automatic closure)
- Force limiter and 1 pair of photocells to protect
the gate’s automatic closing
The flashing light is an essential safety component.
The photocell type safety devices and their correct
operation must be checked every six months
1.2. Specifications of the gate to motorise
This motor drive can automate swing gates up to
2.50m wide and 2.80m high and weighing 250kg.
These maximum dimensions and weights are for an
openwork-type gate and for use in an area that is
not very windy. For solid gates or a use in an area
with significant wind speed, it is necessary to
reduce the maximum values indicated above
for the gate to be motorised.
1.3. Safety checks on the gate
The motorised gate is strictly for residential use. The
gate must not be installed in an explosive or corrosive
atmosphere (presence of gas, flammable smoke,
vapour or dust).
• The gate must not have locking systems (latch,
lock, bolt, etc.).
• The hinges of the gate must be on the same axis
and the axis must be vertical.
• The posts supporting the gate must be strong
and stable enough so that they do not bend (or
break) under the weight of the gate.
• Without the motor drive, the gate must be in good
mechanical conditions, correctly balanced and
open and close without friction or resistance.
• Greasing the hinges is recommended. Check that
the fastening points of the different components
are in locations that are sheltered from shock and
that the surfaces are solid enough.
• Check that the gate does not have any part
protruding from its structure. The central stop and
side stops must be appropriately fastened so as
not to give way under the force exerted by the
motorised gate.
If installation does not correspond to one of the
cases shown in the guide, contact us so that we can
provide all the components necessary for proper
installation with no risk of damage.
The motor drive cannot be used with a driven part
that has a door.
C - INSTALLATION

EN9EN 8
1.4. Safety rules
The actual opening of a gate may create dangerous situations for people, goods and vehicles in the vicinity
that by nature, cannot always be avoided by design.
The possible hazards depend on the state of the gate, the manner in which it is used and the installation site.
After having checked that the gate to be motorised complies with the requirements given in this chapter and
before beginning the installation, a hazard analysis of the installation must be conducted in order to eliminate
all dangerous situations or to indicate them if they cannot be eliminated.
2. ELIMINATION OF HAZARDS
The hazards posed by a two-panel motorised gate, as well as the adapted solutions to eliminate those
hazards, are as follows:
2.1. Subpanels
Following installation, there may be a shear zone between the panel and the corner of the post.
In this case, it is recommended to remove this zone leaving a minimum working distance of 25mm either by
positioning the side stops accordingly or by notching the corner of the posts without weakening them, or
both if necessary.
If this is not possible, the hazard must be clearly indicated.

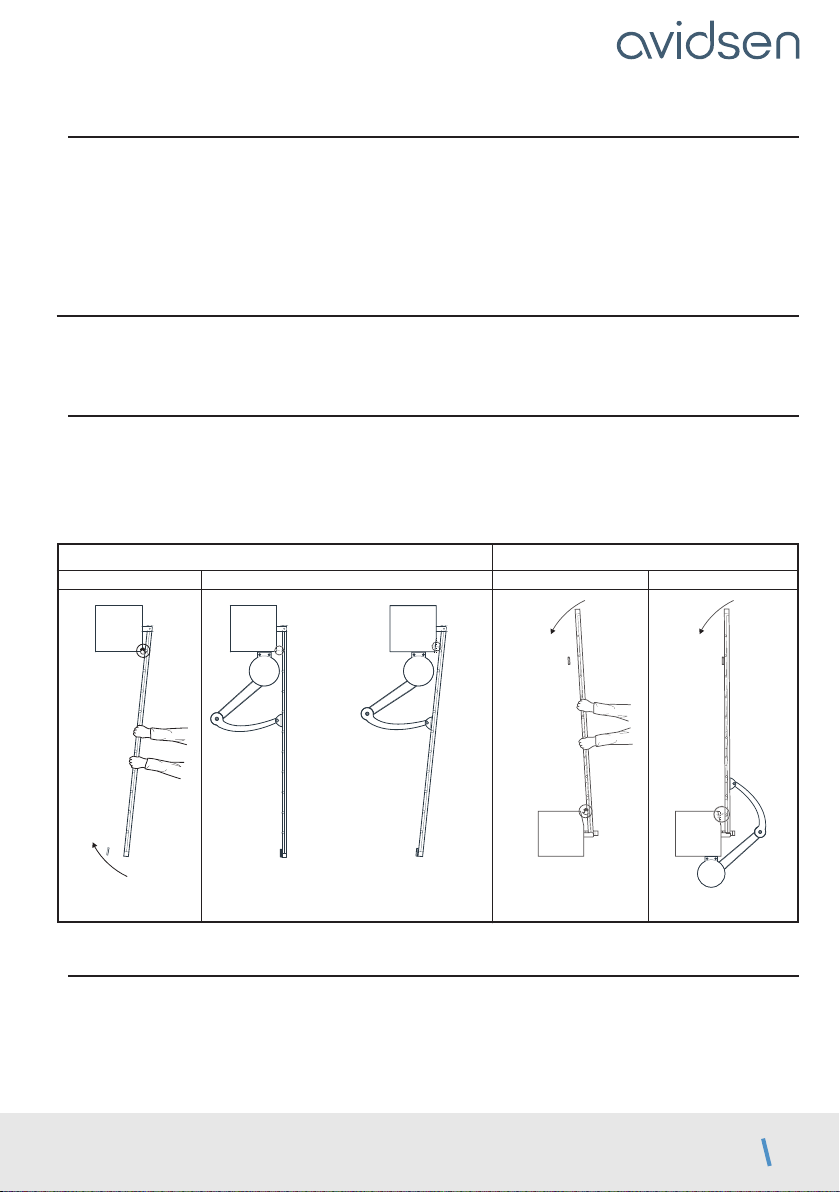

For opening towards the outsideFor opening towards the inside
side
stop
side
stop
side
stop
side
stop
side
stop
shear zone
shear zone
25mm
min
25mm
min
25mm
min
post post post
view from above view from above view from above view from above
Solution SolutionHazard Hazard
OR
post post

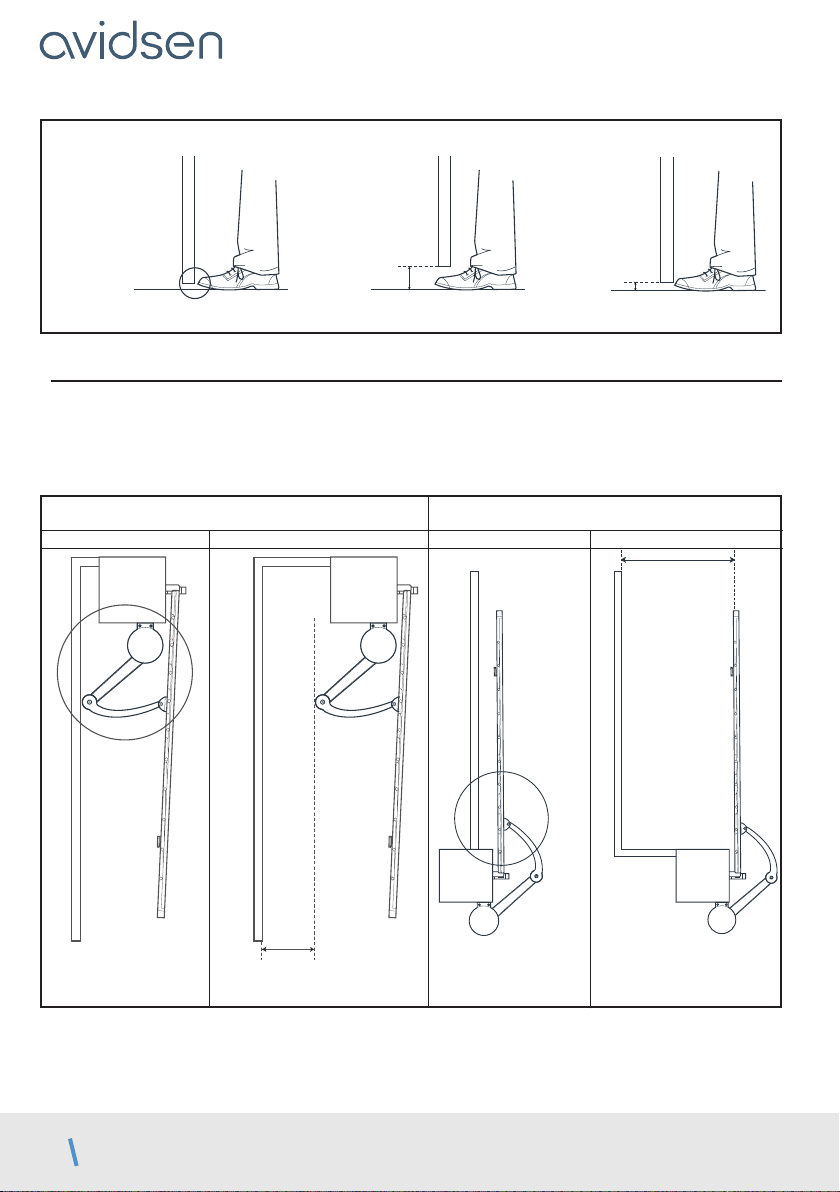

2.2. Bottom edges
Following installation, there may be a dangerous zone for toes between the bottom edge of the gate and the
ground, as indicated in the following figure.
In this case, this area must be removed leaving a working distance of minimum 50mm or maximum 5mm.
C - INSTALLATION

EN11EN 10
C - INSTALLATION
Hazard Solution
swing swing swing
view in profile
50mm
minimum
5mm
maximum
hazardous zone
2.3. Between the panels and the fixed parts close to each other
Depending on the configuration of the site where the motorised gate is installed, there may be confinement
areas between the panels in open position and the fixed parts close to them. To remove these areas, it is
mandatory to leave a safe distance of 500mm between the fixed part and the moving parts of the motorised
gate.
For opening towards the outsideFor opening towards the inside
500mm
min.
500mm min
postpost
post post
view from above view from aboveview from aboveview from above
Solution SolutionHazard Hazard
confine-
ment
area
confinement
area

EN11EN 10
C - INSTALLATION
2.4. Prevention of other hazards
The body of a switch with no lock must be located in direct view of the driven part but away from moving
parts. Unless it operates with a key, it must be installed at a minimum height of 1.5m and must not be
accessible to the public.
After installation, ensure that the components of the gate do not hang above a footpath or public access road.
3. INSTALLING THE MOTOR DRIVE
The motor drive must be installed by qualified personnel, in compliance with all the indications provided in the
“General warnings.”
Before starting installation, ensure that:
• Hazards can be minimised by following the recommendations under the Chapter “Hazard analysis.”
• The desired use has been correctly defined.
• The gate complies with the specifications provided in the Chapter “Specifications of the gate to motorise.”
The different stages of installation must be followed in order and in compliance with the indications given.

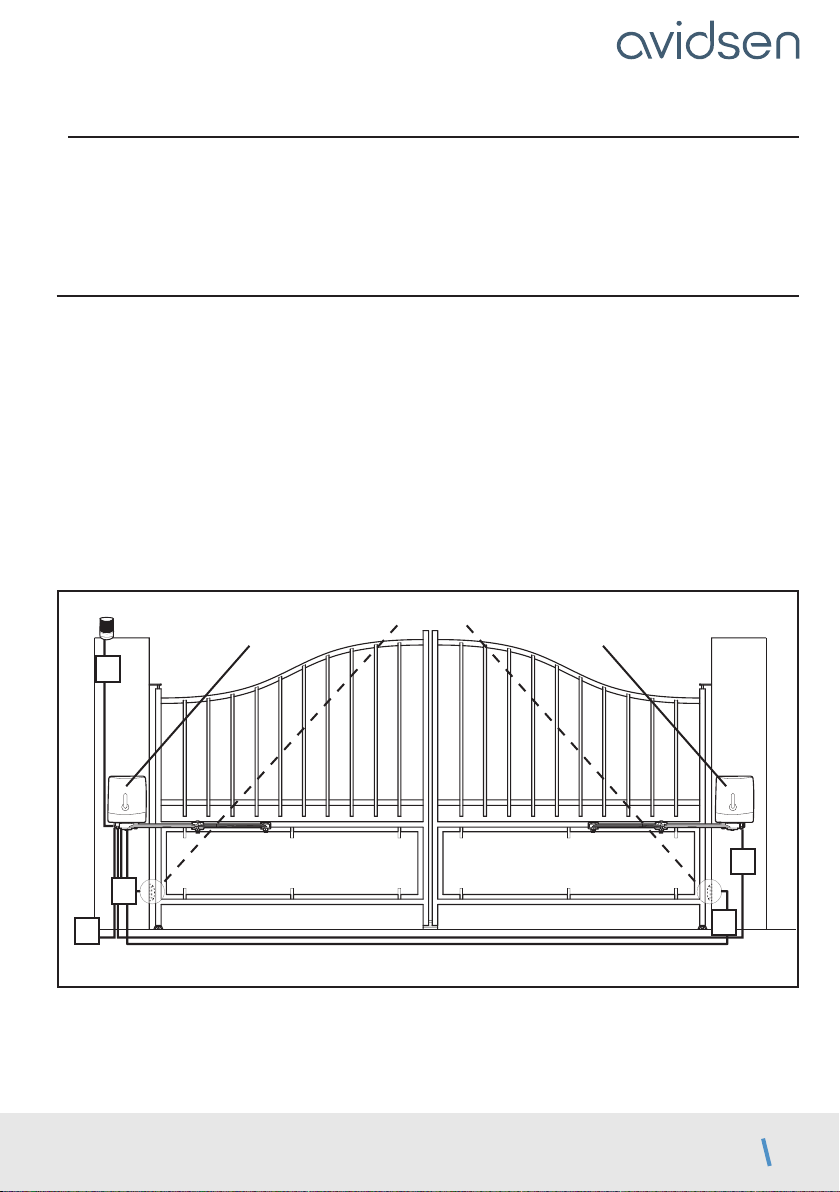

Overview
The cables used must be appropriate for outdoor use (such as H07RN-F for example).
The cable run between the two posts must comply with applicable standards (NFC 15-100).
The geared motor power cable must run 80cm deep with red warning mesh.
motor
photocells
motor
Inner side of the property
Flashing light
1
2
3
4
5

EN13EN 12
C - INSTALLATION
Tip: Position the motor containing the electronic card on the post where the 230V electrical supply is located.
If the 230V electrical supply is already located on the left post, the connections do not need to be reversed.
If the electrical supply is located on the right post, it is sufficient to reverse the motor connection polarity in
order to reverse the direction of rotation with respect to the assembly described in these instructions (normal
mounting with motor and electronic card on the left).
List of cables:
Connection Cable Max length
1 230VAC power line Cable 3 x 2.5mm2(more than 30m long)
Cable 3 x 1.5mm2(less than 30m long) Unlimited
2 Flashing light Cable 2 x 0.5mm215m
3 Secondary motor 2 x 1.5mm² cable 10m
4 Reception photocell (RX) 4 x 6/10 cable 10m
5 Transmission photocell (TX) 4 x 6/10 cable 10m
3.1. Installing the stops
This gate motor drive is a self-locking motorisation system. Your 2-panel gate must be equipped with a central
stop and side stops (not included).
The (central and side) stops must stop the gate without locking it. In other words, any mechanical lock (or
latch) and any tilting shoe base or stopper must be removed.
3.1.1. - For opening towards the inside of the property
The installation of the side stops depends on the desired opening angle which depends on distance D (the
distance between the axis of the hinge and the inner side of the post).
D
D
D
D
Positive distance D
Negative distance D
view from above
view from above
post
post
If positive distance Dis greater than 200 mm or if distance D is negative, the configuration of the posts must
be adjusted.

EN13EN 12
C - INSTALLATION
Determine the opening angle of each panel based on the data in the following table.
The opening angle may be different for each panel but must never be less than 40°.
For
opening up to
Distance D
(in mm)
90° -50 < D< 200
98° -50 < D< 150
105° -50 < D< 100
115° -50 < D< 50
125° -50 < D< 0
135° -50
central stop
Inner side of the property
view from above
opening
angle
opening
angle
stop
view
DD
3.1.2. For opening towards the outside of the property
D
D
central stop
Inner side of the property
view from above
opening
angle
opening
angle
90°90°
stop
view
max. D = 100mm
max. angle 90°
3.2. Assembling the pivoting arm
Screw 9 Screw 9
Washers 22
Washer 22
Nut 15
Nut 15
Warning: do not overtighten the parts together, the different pivoting parts must be able to turn
freely.

EN15EN 14
C - INSTALLATION
3.3 - Installing the motors - for opening towards the inside of the property

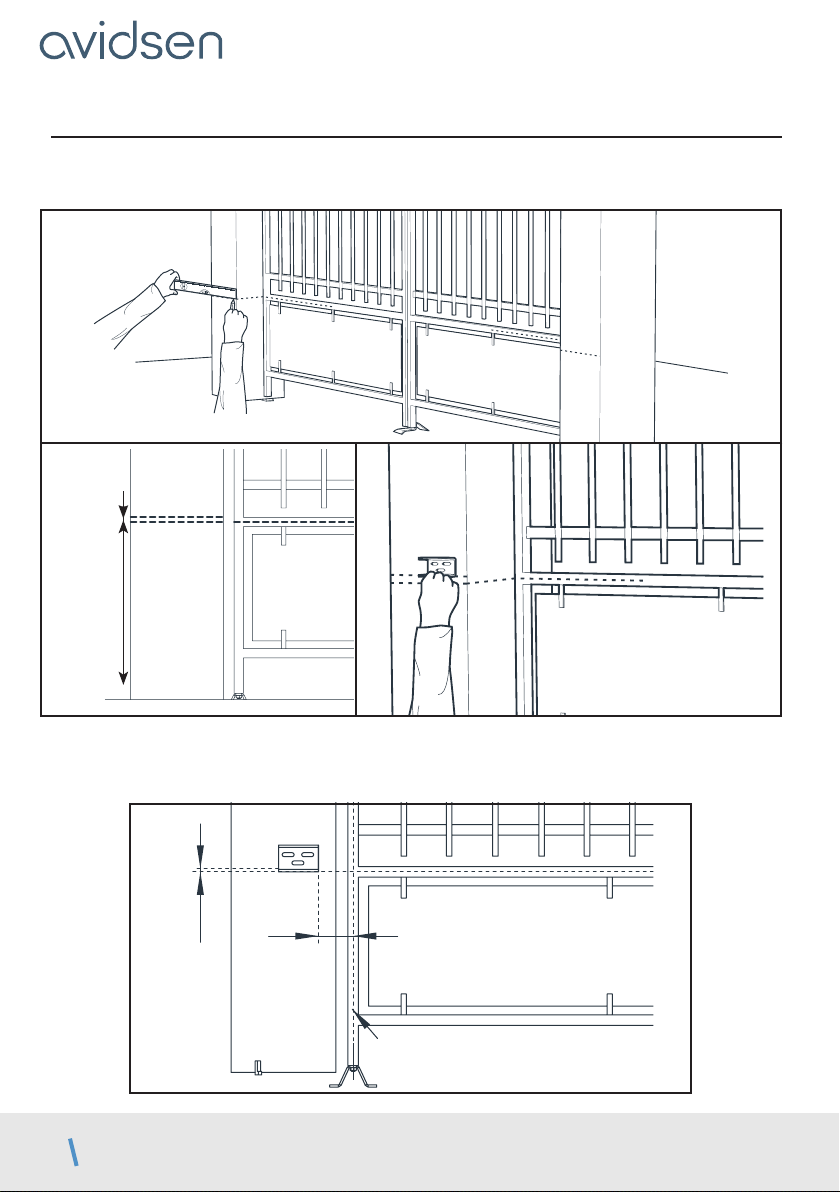

• Place the mounting brackets against the posts, 14mm above the rigid part of the gate where the ends of
the pivoting arms will be fastened.
1m maximum
recommended 14mm
• Use plugs and screws that are suitable for the post material (example: for concrete, use ø12mm plugs
and ø8mm lag screws with a length of 80mm). After tightening, the mounting bracket must be completely
horizontal and 14mm above the middle of the rigid part of the gate. Make sure not to weaken the posts.
14 mm
x
axe du gond

EN15EN 14
C - INSTALLATION

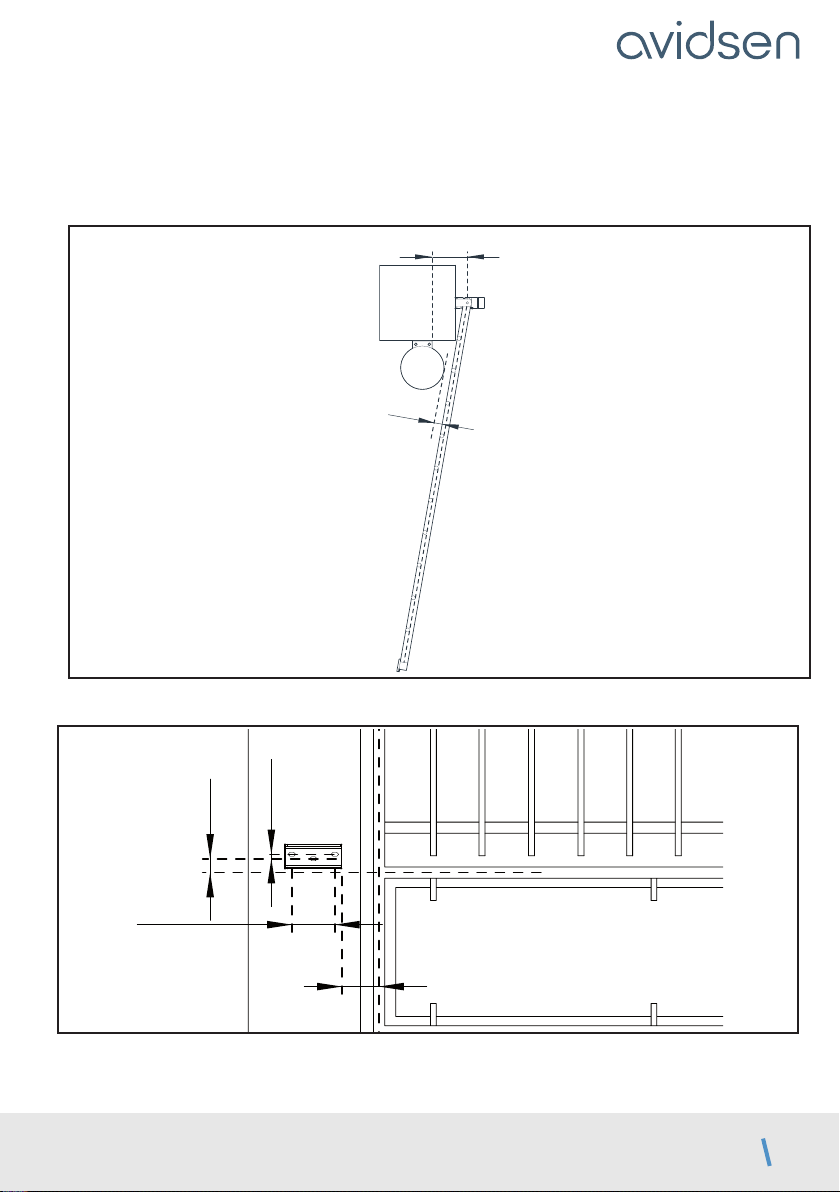

• Depending on the maximum opening angle desired for the gate, the post bracket should be placed further
from or nearer to the edge of the post (so that the motor does not prevent the gate from opening). For
optimum motor operation, the distance Xmust be as small as possible. Also remember that a 25mm safety
distance is required between the open gate and the motor (see “Hazard analysis” chapter). Temporarily
place the motor on the ground in position and search for the correct position to determine distance X.
25 mm
x
• Position the bracket on the post (using distance X) and mark the locations of the holes.
37 mm
115
mm
12 mm
x

EN17EN 16
12mm bit for
12 plugs

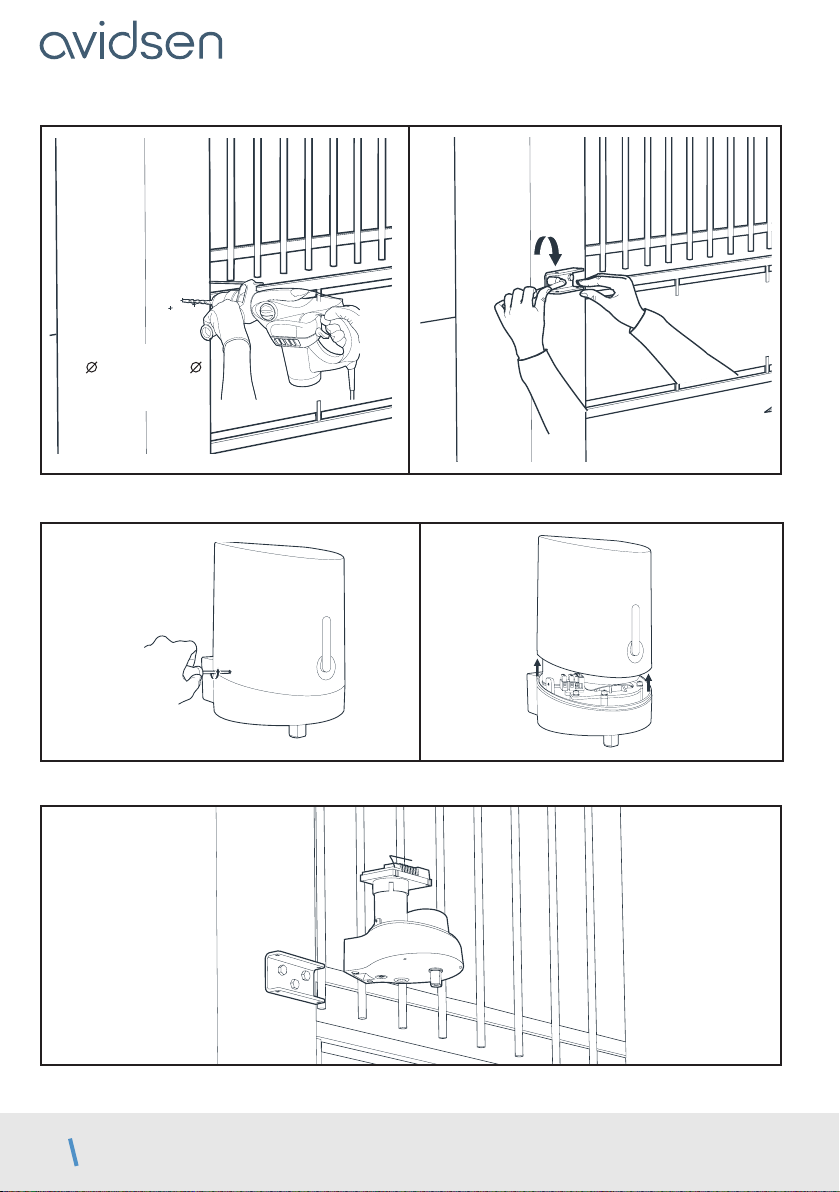

• Open the cover of the motors
• Fasten the motors on the mounting brackets
C - INSTALLATION

EN17EN 16
Screw 11
Washer 18
Spring washer 17
Nut 16

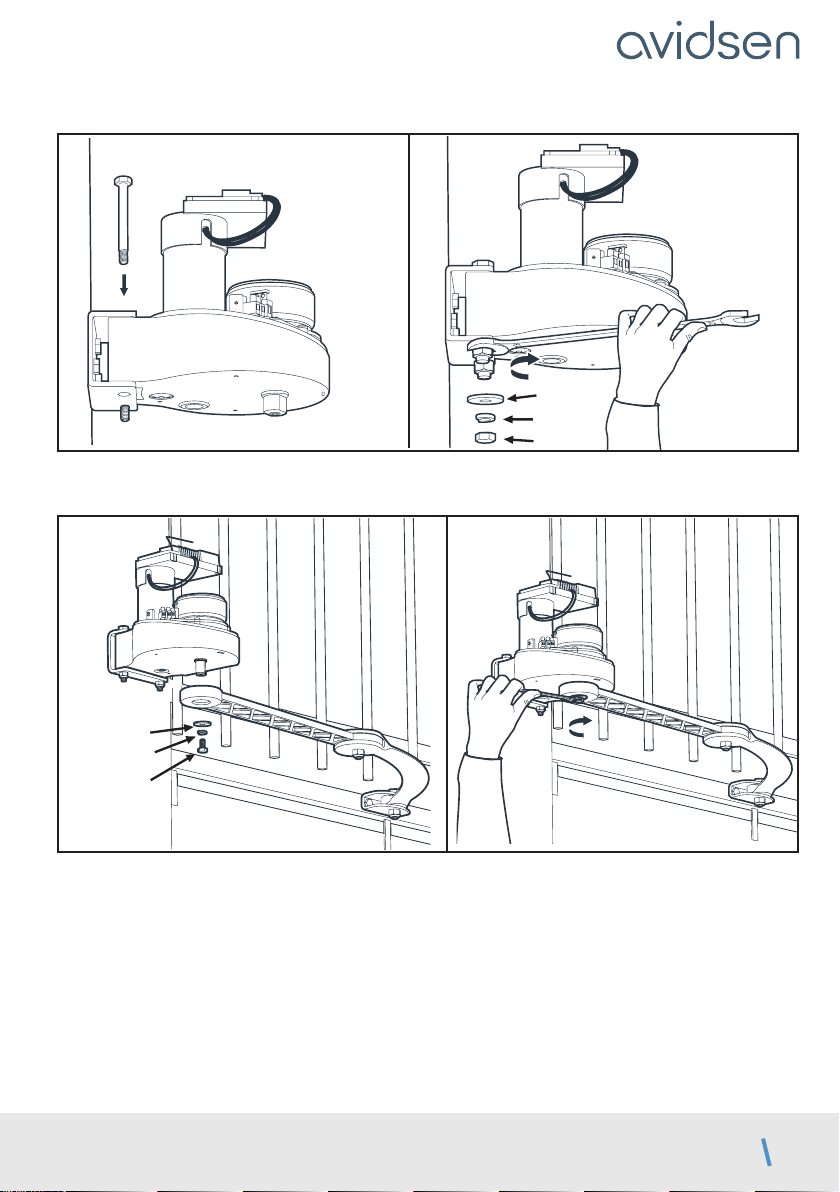

• Assemble the pivoting arms and motors
Washer 12
Washer 14
Screw 10
C - INSTALLATION

EN19EN 18

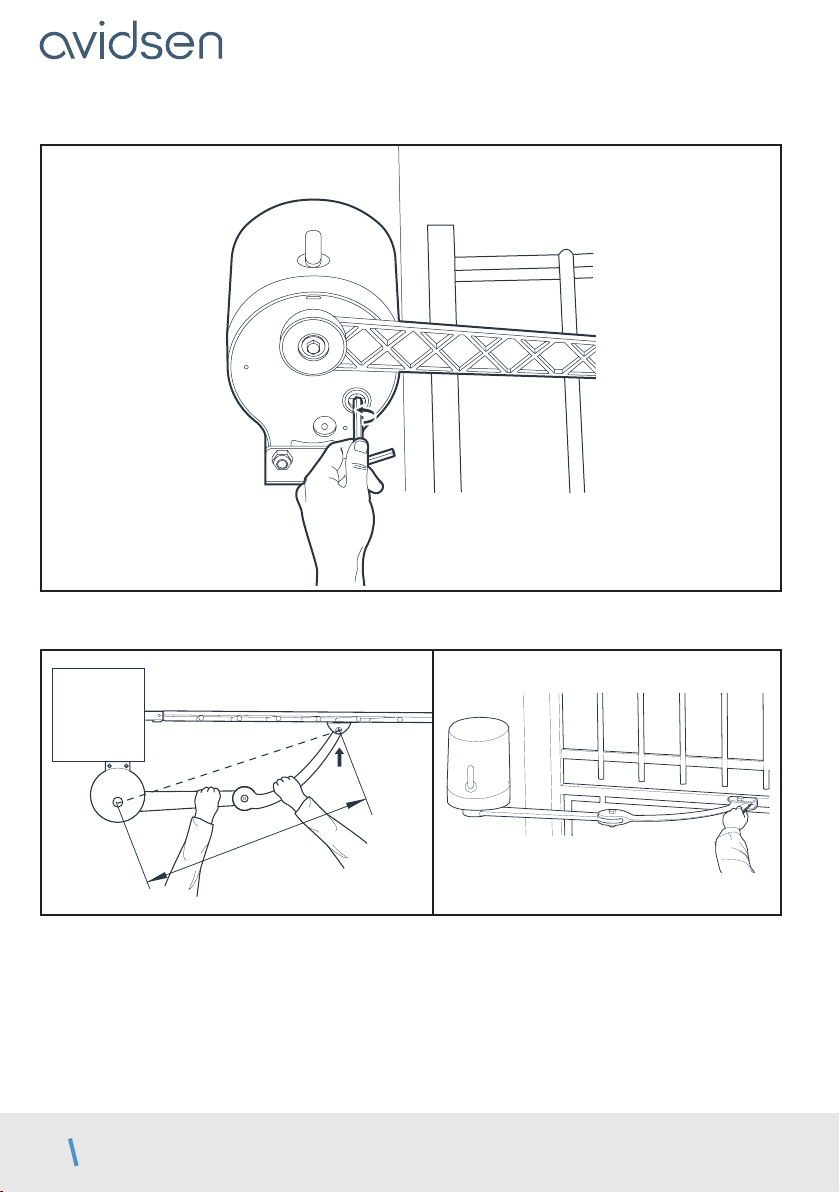

• Motor disengagement
• Disengage the motors in order to manually manoeuvre the arms.
75 cm
• Close the gate by pressing it firmly against the central stop.
• Position the pivoting arms against the gate at a distance of 75cm and mark the location of the holes on the
gate.
Important: The ends of the right arms should be at the middle of the rigid part of the gate so that
the pivoting arms are completely horizontal.
C - INSTALLATION

EN19EN 18
• Remove the gate bracket from the arm in order to fasten it to the gate.
• Use screws and nuts that are suitable for the gate material.
• Reassemble the end of the arm and the gate bracket.
Important: At this point in the installation, the motors are disengaged. The gate may be set in
motion by the wind or an external push. Be careful or block the gate to avoid any hazards during
the rest of the installation.
Or engage the motors:
C - INSTALLATION

EN21EN 20
C - INSTALLATION
3.4 - Installing the motors - for opening towards the outside of the property
• Place the mounting brackets against the posts, 14mm above the rigid part of the gate where the ends of
the pivoting arms will be fastened.
1m maximum
recommended 14mm
Inner side of the property
• Use plugs and screws that are suitable for the post material (example: for concrete, use ø12mm plugs
and ø8mm lag screws with a length of 80mm). After tightening, the mounting bracket must be completely
horizontal and 14mm above the middle of the rigid part of the gate. Make sure not to weaken the posts.
14 mm
axe du gond
view from above
