Avidsen ZENIA250 User manual

2. EQUIPMENT REQUIRED (NOT SUPPLIED)
The tools and screws required for the installation must be in good condition and compliant with applicable safety standards.
ciment sable
ø6mm
clé plate de 17
Photocells
10m cable
4 x 6/10
Thank you for purchasing an AVIDSEN automatic gate opener.
This document is a quick start guide detailing the main installation steps as well as the equipment required. To perform the installation, please
download the installation manual at the following address: www.avidsen.com
Warning: The safety instructions and installation instructions can be found in the installation manual. Follow all these instructions, as an
incorrect installation can cause serious injuries.
1. DESCRIPTION
V1
Ref. 114459
EN ZÉNIA250
MOTOR DRIVE
FOR SLIDING GATES
1x 1 3x 1 3x 2 3x 2 4x 2
6x 4
12 x 1
7x 8
13 x 2
8x 8 9x 4
5x 1
11 x 1
2x 8
10 x 1 10 x 6 10 x 6 10 x 4
124 V geared motor
250 cm rack
3Flashing light and screws
4Remote control
5Override key
6Floor fastening pin
7M10 nut
8Ø10 washer
9Ø10 spring washer
10 Photocells and their screws
11 Disengagement label
12 Installation template
13 Backup fuses

3. INSTALLATION
Safety guidelines: please refer to the installation manual for all safety instructions.
To perform the installation, please download the installation manual at the following address: www.avidsen.com

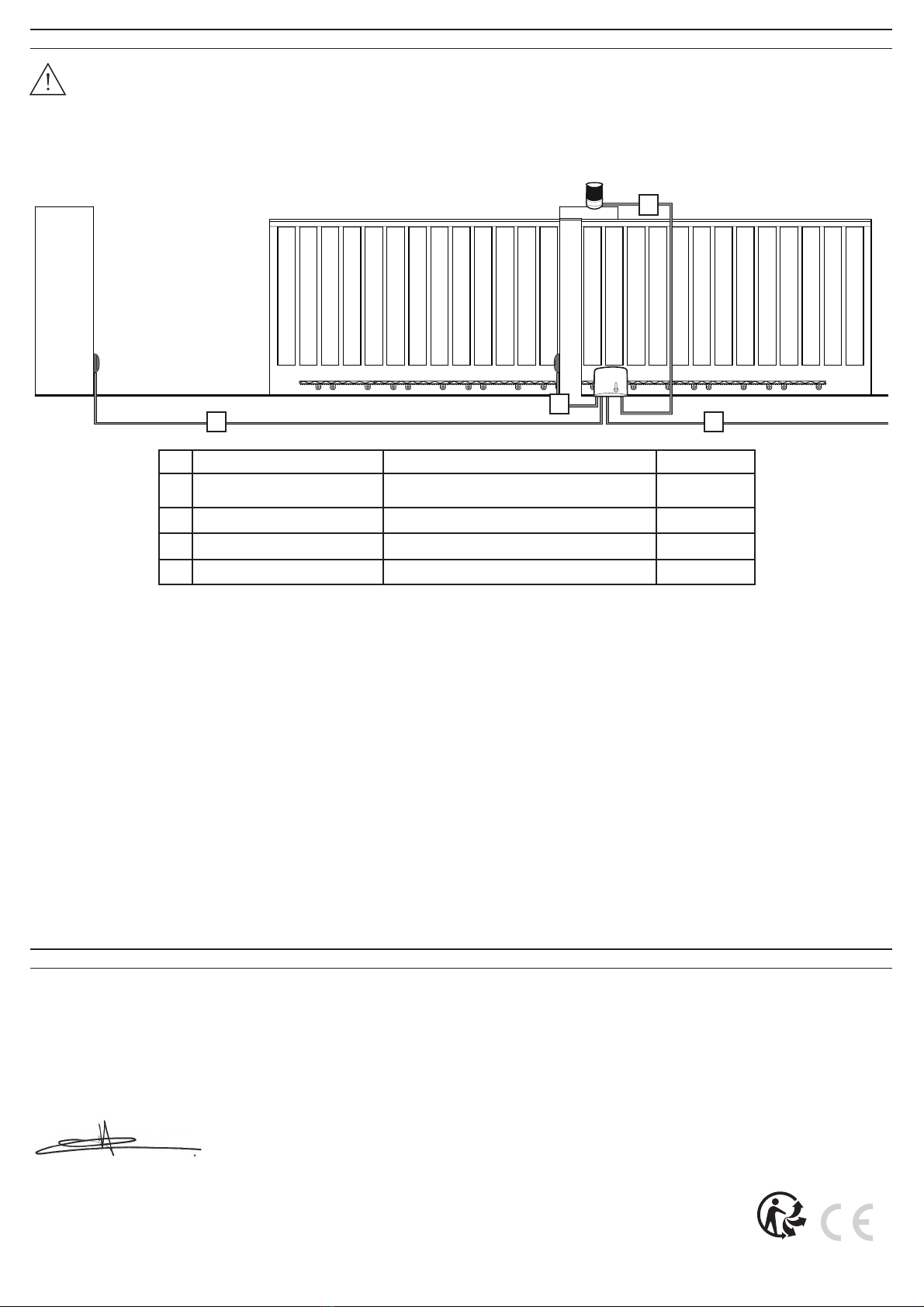

Overview:
The cables used must be appropriate for outdoor use (such as H07RN-F for example).
The cable run between the two posts must comply with applicable standards (NFC 15-100).
The geared motor power cable must run 80cm deep with red warning mesh.
1
2
3
4
List of cables:
Connection Cable Max length
1 230VAC power line Cable 3 x 2.5mm2 (more than 30m long)
Cable 3 x 1.5mm2 (less than 30m long) Unlimited
2 Flashing light Cable 2 x 0.5mm2 15m
3Transmission photocell (TX) 4-strand telephone cable 10m
4Reception photocell (RX) 4-strand telephone cable 10m
The installation is a 4-step process:
1. Geared motor installation with prior construction of a concrete base if necessary. Installation of the racks and flashing light.
2. Electrical connection:
- of the flashing light to the electronic card
- of the photocells to the electronic card
- of the transformer to the mains. This connection must be performed by qualified personnel (electrician, etc.).
3. Adjustments and operation:
Note: Only switch on the geared motor once all connections have been made.
- Read the installation manual chapter on simple adjustments
- Launch the movement self-learning programme (press "+" for 3 seconds)
- Programme the remote controls:
- press "-" for 3 seconds
- press "SET"
- press the remote control button to be memorised
- Repeat the operation for each remote control
- Choice of operating mode:
By default, automatic closing is deactivated. To activate it, you must install a pair of photocells
4. Operational testing: To familiarise yourself with the automatism and ensure it operates properly, read the chapter on usage and conduct operational tests (open/
close, initiate obstacle detection, cut the photocell beam). Upon completion of these tests, you may have to modify certain settings (e.g. motor power) and redo
the self-learning.
4. DECLARATION OF CONFORMITY
Avidsen declares that the equipment complies with the essential applicable requirements of RED Directive 2014/53/EU.
Directive 2014/35/EU: (protection of users’ health and safety)
Directive 2014/30/EU: (protection requirements relating to electromagnetic compatibility).
Directive 2014/53/EU: (efficient use of the radio spectrum, in order to avoid harmful interference).
The full declaration of compliance is available on the website www.avidsen.com
Tours, 02/11/2020
Alexandre Chaverot, CEO
