AVPro Edge AC-SC2-AUHD User manual

pg. 1
AVProEdge ~ 2222 E 52nd St N Sioux Falls, SD 57104 ~ 1.877.886.5112 ~ +1.605.274.6055 ~ [e-mail]
User Manual
Version 1.0
AC-SC2-AUHD

pg. 2
AVProEdge ~ 2222 E 52nd St N Sioux Falls, SD 57104 ~ 1.877.886.5112 ~ +1.605.274.6055 ~ [e-mail]
Introduction
The AVPro Edge's AC-SC2-AUHD is the ideal solution for integrators that are needing to distribute a
signal to a variety of displays and keep an optimal picture. Integrators will enjoy its versatility of not
only being able to control up/down scaling but handling EDID issues (including 4K HDR EDID's),
image enhancement, and being able to access audio from the stream. This scaler is ready for future
content as well as it's able to distribute 18Gbps signaling. Yet if you have 480, 720, or 1080 displays
the AC-SC2-AUHD will make sure it's getting the right picture.
Typical Applications:
• For mixed systems with SD, HD and UHD displays within a matrix. Since a matrix will typically “down-
clock” to the lowest common format, putting a scaler in will essentially “trick” the matrix into sending4K
UHD material. The scaler will downscale the content to 480 for the HD display.
• As an Audio Extractor –Stand-alone audio extractors cost about the same thing, so purchasing the
AC-SC2-AUHD which does so much more, is a no brainer.
• EDID causes about 80% of HDMI connectivity issues –The AC-SC2-AUHD can fix them all.
• EDID capture and emulation –would you like to test end points prior to hanging that 600-pound
projector 100 feet up on the ceiling? Use the AC-SC2-SUHD and your problem issolved.
What's in the Box?
•1 x AC-SC2-AUHD
•1 x 5V 3A Power Supply
•Mounting Ears
Features
•HDMI 2.0a w/HDR & HDCP 2.2
•Fixed Output Options 480P, 720P, 1080p & 4k
•Adaptive Scaling Mode
•Plug & Play Match Display Preference Mode
•16 EDID Options (Including Auto & HDR EDID Options)
•EDID Management and EDID emulate
•L/R Audio De-embedding (PCM only, does not downmix)
•Simple, easy to use. 3-Button Operation
AC-SC2-AUHD
Formatted: Bulleted + Level: 1 + Aligned at: 0.29" +
Indent at: 0.54"
Formatted: Indent: Hanging: 0.25", Bulleted + Level: 2
+ Aligned at: 0.75" + Indent at: 1"
Formatted: Indent: Left: 0.75", Bulleted + Level: 2 +
Aligned at: 0.75" + Indent at: 1"

Specifications
Video Bandwidth
HDMI - 18 GBP/sec
Video Resolutions
All SMPTE & VESA in HDMI 2.0 Specification. Max SMPTE UHD - 4096x2160P60/RGB/4:4:4 8-bit.
Color Space
RGB, YUV
Color Bit Depth
8-bit, 10-bit, 12-bit & 16-bit per pixel
Note: Resolution and video bandwidth limited –ex. 2160P60 RGB or 4:4:4 8-bit would use almost
the entire 18 GBPS of bandwidth. 2160P60 4:2:2 12-bit (new players with HDR would exceed the
previous 10.2 GBPS maximum of HDMI 1.4a and would not be able to travel over category cable
using HDBaseT.
Chroma Subsampling
4:4:4, 4:2:2, 4:2:0
See note above –chroma subsampling or color compression is related to bit depth and video
resolution settings regarding total bandwidth requirements. A 4K/60 signal at 4:4:4 chroma
subsampling can have a maximum bit depth of 8 bits.
Audio
HDMI in & Out –Up to Dolby TrueHD and DTS-HD Master
3pin phoenix Stereo - Analog 2 Channel
Distance - HDMI –Up to 11M @ 4K60 4:4:4, HDBaseT –Up to 100M at 4K/60 4:2:0 8-bit
HDCP –all up to HDCP 2.2
CEC - Pass through
pg. 3
AVProEdge ~ 2222 E 52nd St N Sioux Falls, SD 57104 ~ 1.877.886.5112 ~ +1.605.274.6055 ~ [e-mail]
AC-SC2-AUHD

pg. 4
AVProEdge ~ 2222 E 52nd St N Sioux Falls, SD 57104 ~ 1.877.886.5112 ~ +1.605.274.6055 ~ [e-mail]
Connections
1 x HDMI type A HDMI Input
1 x HDMI type A HDMI Output
1 x L/R Analog 2-Channel Audio Output
1 x Micro USB Jack for Firmware & Control
Temperature –Operating 32-122 F (0-50 C), Humidity: 20-90% non-condensing.
Dimensions - Unit
AC-SC2-AUHD –5.375" L x 3.5" W x .75" 136.5 x 88.9 x 19 (mm)
Weight -Unit
AC-SC2-AUHD - .6 pounds/.27kg
Dimensions - Package
5.375" L x 3.5" W x .75"
Weight - Package
1.2 pounds/.54 kg
AC-SC2-AUHD
Formatted: Indent: Hanging: 0.14", Outline numbered
+ Level: 1 + Numbering Style: 1, 2, 3, …+ Start at: 1 +
Alignment: Left + Aligned at: 0.5" + Indent at: 0.64"
Formatted: Indent: Hanging: 0.28", Outline numbered
+ Level: 2 + Numbering Style: 1, 2, 3, …+ Start at: 2 +
Alignment: Left + Aligned at: 0.5" + Indent at: 0.78"

pg. 5
AVProEdge ~ 2222 E 52nd St N Sioux Falls, SD 57104 ~ 1.877.886.5112 ~ +1.605.274.6055 ~ [e-mail]
General Operation
Powering the device: Use the supplied 5V 3A power adapter.
Setting the device:
The AC-SC2-AUHD uses a simple on device control method, and all the available settings are
printed on the top as pictured:
Top View
Toggle Buttons
To control the device simply press the corresponding button on the front of the device to toggle throughthe
settings (Pictured Above. To indicate what your current setting is there are lights on the top (Pictured
Belowwhereas the number “1” indicates the light is on and “0” indicates the light is off.
AC-SC2-AUHD

pg. 6
AVProEdge ~ 2222 E 52nd St N Sioux Falls, SD 57104 ~ 1.877.886.5112 ~ +1.605.274.6055 ~ [e-mail]

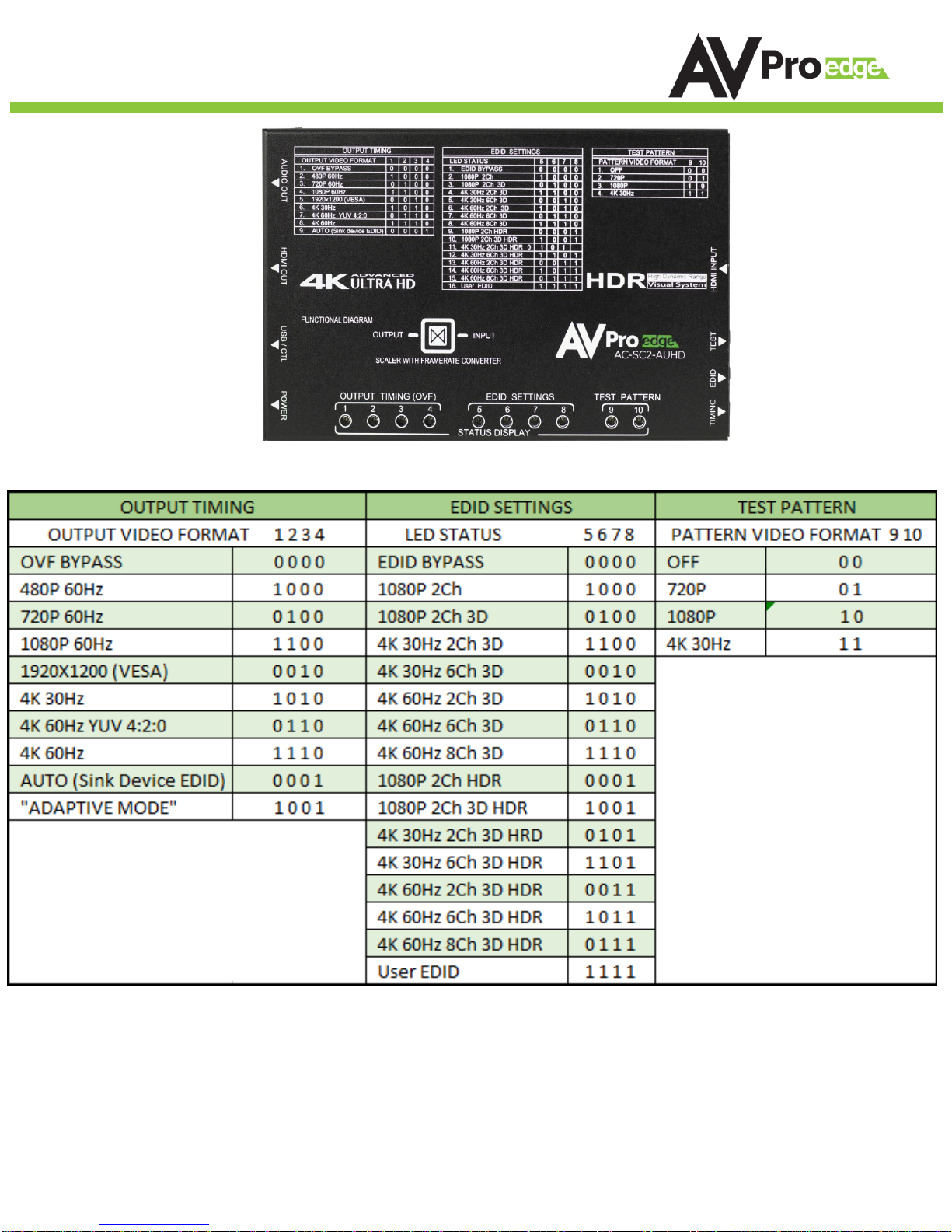

Here is a list of the available settings:
AC-SC2-AUHD

pg. 7
AVProEdge ~ 2222 E 52nd St N Sioux Falls, SD 57104 ~ 1.877.886.5112 ~ +1.605.274.6055 ~ [e-mail]
OUTPUT TIMING / SCALER SETTINGS
The AVPro Edge's AC-SC2-AUHD is the ideal solution for integrators that are needing to distribute a
signal to a variety of displays and keep an optimal picture. Integrators will enjoy its versatility of not
only being able to control up/down scaling but handling EDID issues (including 4K HDR EDID's),
image enhancement, and being able to access audio from the stream. This scaler is ready for future
content as well as it's able to distribute 18Gbps signaling. Yet if you have 480, 720, or 1080 displays
the AC-SC2-AUHD will make sure it's getting the right picture.
•OVF BYPASS –Scaler is OFF
•480P 60Hz
•720P 60Hz
•1080P 60Hz
•1920X1200 (VESA)
•4K 30Hz
•4K 60Hz YUV 4:2:0
•4K 60Hz
•AUTO (Sink device EDID)
•ADAPTIVE MODE *
*ADAPTIVE MODE* - Anything below 1080p will be automatically up converted to 1080p. 1080p
and above will be untouched.
AC-SC2-AUHD
Formatted: Outline numbered + Level: 3 + Numbering
Style: Bullet + Aligned at: 0.56" + Indent at: 0.81"

pg. 8
AVProEdge ~ 2222 E 52nd St N Sioux Falls, SD 57104 ~ 1.877.886.5112 ~ +1.605.274.6055 ~ [e-mail]

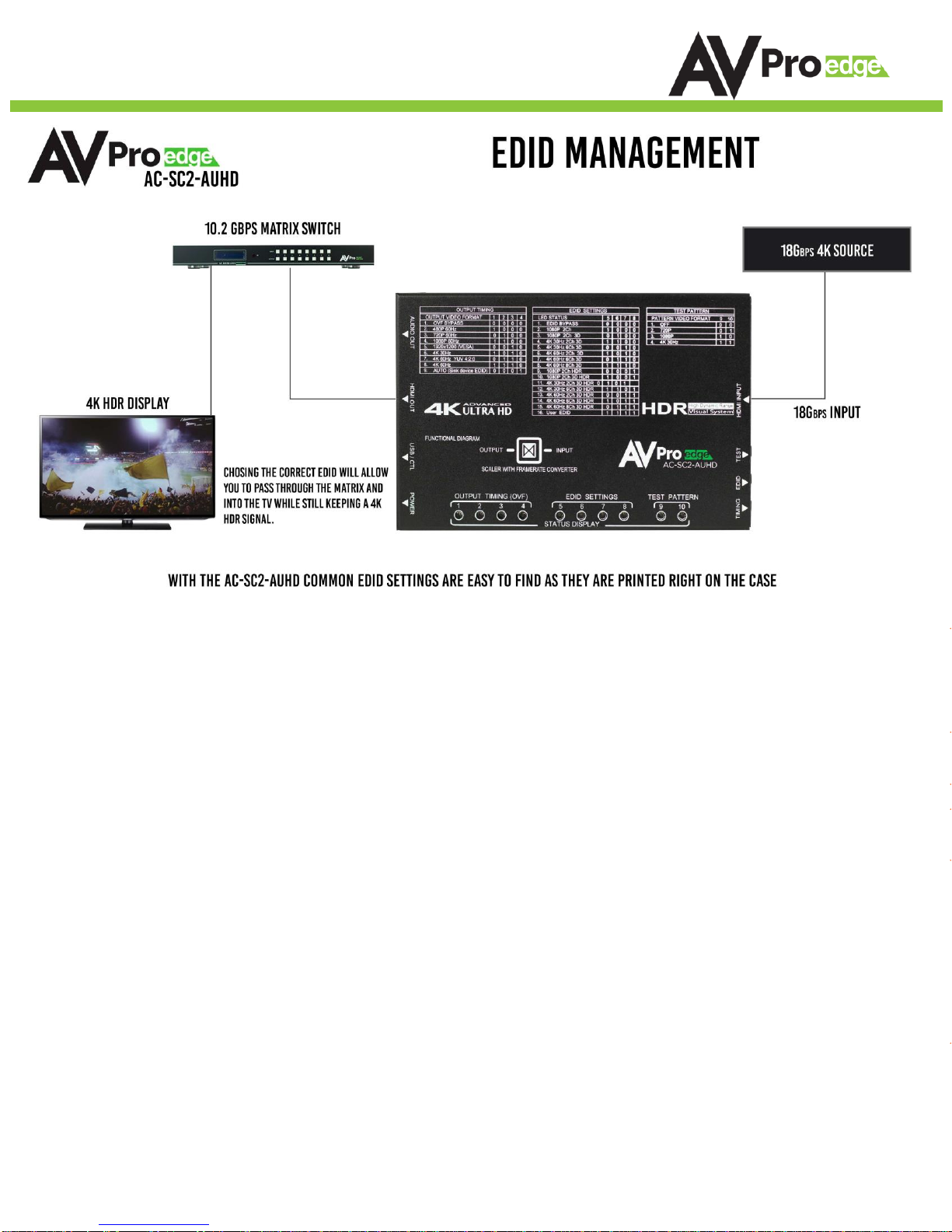

EDID Settings: With EDID Settings you can manage the sources devices and force a certain
output. This is especially important on newer sources that rely on EDID communications in
implement high bandwidth and HDR signals.
•1080 EDIDs –Legacy EDIDs, these will ask the sources (especially high bandwidth ones) to
output 1080 to function in 1080 Systems.
•4K30 EDIDs –Asks the sources to output 4K30 and/or 4K60 4:2:0 (Ideal to force source
device to work on common extension infrastructure that are less than 10G likeHDBaseT)
•4K60 EDIDs –Asks the source to output 4K60 4:4:4 or signals above 9G
•HDR EDIDs –When you see HDR in the EDID, the EDID will ask the source to sendHDR
regardless of resolution.
•USER EDID –If you press and hold the EDID button for 2 seconds while connected to a
display that's powered on the SC2 will copy and store the displays EDID.
There are three built in Test patterns available
To Enable and Disable press "TEST" button to cycle through the 3 resolutions.
•720P
You can also send the commands
•1080P •4k 30Hz
SET OUTx SGM EN/DIS : Set Output Signal Generator Enable/Disable{x=[1]}
SET OUTx SGMT y : Set Output Signal Generator Timing
x=[1],y=[0~2](0=1080p 60Hz,1=4K 30Hz,2=720P 60Hz
AC-SC2-AUHD
Formatted: Outline numbered + Level: 4 + Numbering
Style: Bullet + Aligned at: 0.75" + Indent at: 1"
Formatted: Indent: Left: 0.76", Hanging: 0.3", Outline
numbered + Level: 4 + Numbering Style: Bullet +
Aligned at: 0.75" + Indent at: 1"

pg. 9
AVProEdge ~ 2222 E 52nd St N Sioux Falls, SD 57104 ~ 1.877.886.5112 ~ +1.605.274.6055 ~ [e-mail]
CTRL/ISP
1. Micro USB Port for firmware and control.
2. Command list below.
For CTRL, use a Micro to USB cable and set the serial
communications to: 57600,n,8,1 (baud: 57600, no parity, 8
data bits and 1 stop bit) with no handshaking.
AC-SC2-AUHD ASCII Command List:
AC-SC2-AUHD
Formatted: Indent: Hanging: 0.28", Numbered + Level:
1 + Numbering Style: 1, 2, 3, …+ Start at: 1 +
Alignment: Left + Aligned at: 0.81" + Indent at: 1.09"

pg. 10
AVProEdge ~ 2222 E 52nd St N Sioux Falls, SD 57104 ~ 1.877.886.5112 ~ +1.605.274.6055 ~ [e-mail]

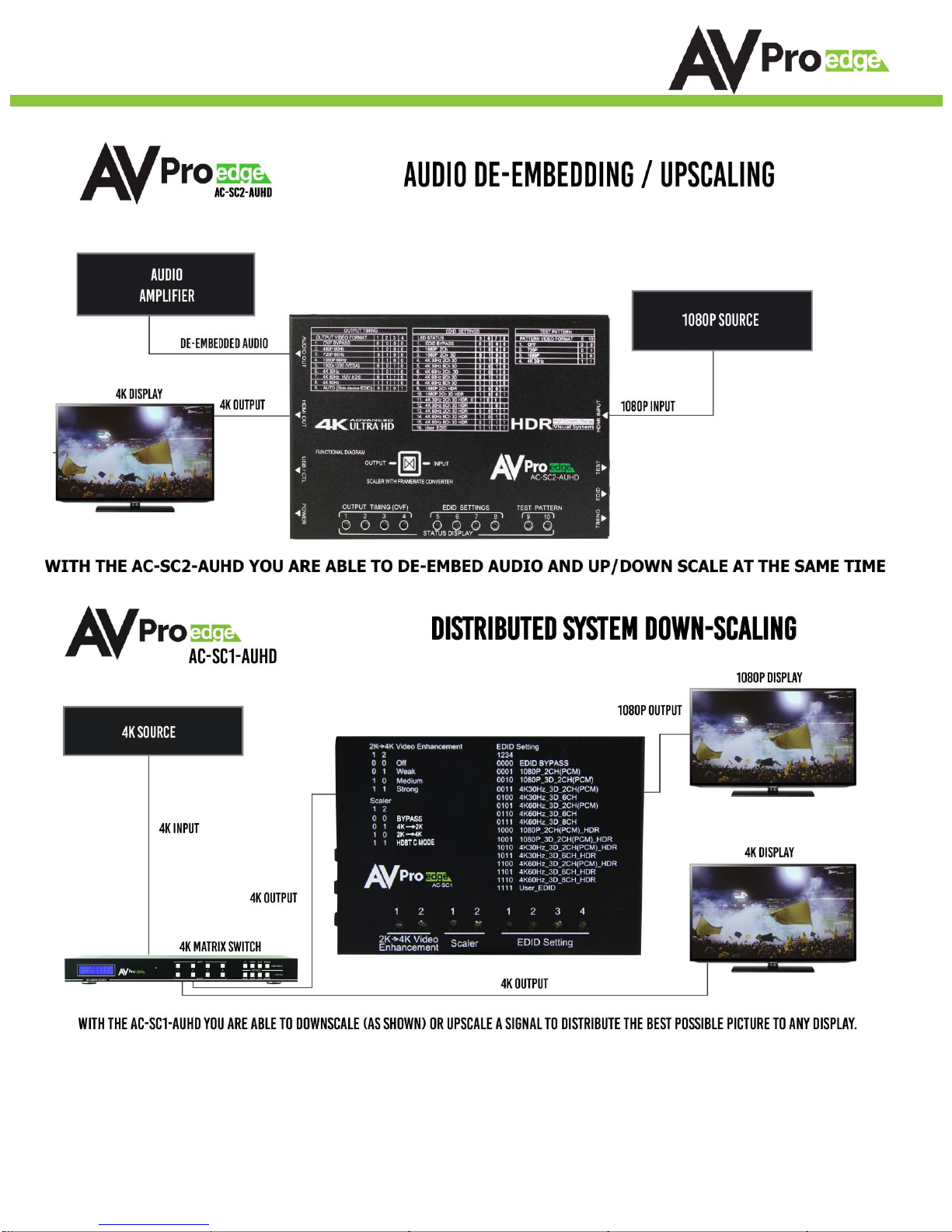

Applications:
AC-SC2-AUHD

pg. 11
AVProEdge ~ 2222 E 52nd St N Sioux Falls, SD 57104 ~ 1.877.886.5112 ~ +1.605.274.6055 ~ [e-mail]
■Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzine to
clean this unit.
■Product Service
●Provided Service
1) Damage Requiring service: The unit should be serviced by qualifiedservice
personnel if:
•The DC power supply cord or AC adaptor has been damaged;
•Objects or liquids have gotten into the unit;
•The unit has been exposed to rain;
•The unit does not operate normally or exhibits a marked change in
performance;
•The unit has been dropped or the cabinet damaged.
•
2) Servicing Personnel: Do not attempt to service the unit beyond thatdescribed
in these operating instructions. Refer all other servicing to authorized servicing
personnel.
3) Replacement parts: When parts need replacing ensure the service usesparts
AC-SC2-AUHD
Formatted: Indent: Hanging: 0.18", Bulleted + Level: 1
+ Aligned at: 0.5" + Indent at: 0.68"
Formatted: Indent: Left: 0.5", Hanging: 0.17", Bulleted
+ Level: 1 + Aligned at: 0.5" + Indent at: 0.68"
Formatted: Bulleted + Level: 2 + Aligned at: 1" +
Indent at: 1.17"
Formatted: Indent: First line: 0", Numbered + Level: 2
+ Numbering Style: 1, 2, 3, …+ Start at: 1 + Alignment:
Left + Aligned at: 0.77" + Indent at: 1"
Formatted: Bulleted + Level: 3 + Aligned at: 1.25" +
Indent at: 1.5"
Formatted: Indent: First line: 0", Numbered + Level: 2
+ Numbering Style: 1, 2, 3, …+ Start at: 1 + Alignment:
Left + Aligned at: 0.77" + Indent at: 1"

pg. 12
AVProEdge ~ 2222 E 52nd St N Sioux Falls, SD 57104 ~ 1.877.886.5112 ~ +1.605.274.6055 ~ Su[email protected]
specified by the manufacturer or parts that have the same characteristics as
the original parts. Unauthorized substitutes may result in fire, electric shock, or
other hazards.
4) Safety check: After repairs or service, ask the service to perform safetychecks
to confirm that the unit is in proper workingcondition.
● Mail-In Service
When shipping the unit, carefully pack and send it prepaid, adequately insured
and preferably in the original carton. Include a letter detailing the complaint and
provide a daytime phone and/or email address where you can be reached. If
repair is needed during the limited warranty period, the purchaser will be required
to furnish a sales receipt/proof of purchase indicating date of purchase, amount
paid and place of purchase. Customer will be charged for the repair of any unit
received without such proof of purchase.
● Warranty
If your product does not work properly because of a defect in materials or
workmanship, AVProEdge (referred to as “the warrantor”) will, for the length of
the period indicated as below, （10 Years）which starts with the date of original
purchase (“Limited Warranty period”, at its option either (a repair your product
with new or refurbished parts, or (b replace it with a new or a refurbished
product. The decision to repair or replace will be made by the warrantor.
During the “Labor” Limited Warranty period there will be no charge for labor.
During the “Parts” warranty period, there will be no charge for parts. You must
mail-in your product during the warranty period. This Limited Warranty is
extended only to the original purchaser and only covers product purchased as
new. A purchase receipt or other proof of original purchase date is required for
Limited Warranty service.
● Warranty Limits and Exclusions
1) This Limited Warranty ONLY COVERS failures due to defects in materialsor
workmanship and DOES NOT COVER normal wear and tear or cosmetic
damage. The Limited Warranty ALSO DOES NOT COVER damages which
occurred in shipment, or failures which are caused by products not supplied by
the warrantor, or failures which result from accidents, misuse, abuse, neglect,
mishandling, misapplication, alteration, faulty installation, set-up adjustments,
mis adjustment of consumer controls, improper maintenance, power line surge,
lightning damage, modification, or service by anyone other than a Factory
Service Center or other Authorized Service, or damage that is attributable to
acts of God.
AC-SC2-AUHD
Formatted: Indent: First line: 0", Numbered + Level: 2
+ Numbering Style: 1, 2, 3, …+ Start at: 1 + Alignment:
Left + Aligned at: 0.77" + Indent at: 1"
Formatted: Bulleted + Level: 1 + Aligned at: 1" +
Indent at: 1.2"
Formatted: Indent: Left: 1", Hanging: 0.2", Bulleted +
Level: 1 + Aligned at: 1" + Indent at: 1.2"
Formatted: Bulleted + Level: 1 + Aligned at: 1" +
Indent at: 1.2"
Formatted: Indent: First line: 0", Numbered + Level: 1
+ Numbering Style: 1, 2, 3, …+ Start at: 1 + Alignment:
Left + Aligned at: 0.77" + Indent at: 1"

pg. 13
AVProEdge ~ 2222 E 52nd St N Sioux Falls, SD 57104 ~ 1.877.886.5112 ~ +1.605.274.6055 ~ Su[email protected]
2) There are no express warranties except as listed under “limited warranty
coverage”. The warrantor is not liable for incidental or consequential
damages resulting from the use of this product or arising out of any breach
of this warranty. (As examples, this excludes damages for lost time, cost of
having someone remove or re-install an installed unit if applicable, travel to
and from the service location, loss of or damage to media or images, dataor
other recorded content. The items listed are not exclusive but are for
illustration only.)
Safety Instructions:
After Sale Service
To ensure reliable operation of this product as well as protecting the safety of any
person using or handling this device while powered, please observe the following
instructions.
1. Use the power supplies provided. If an alternate supply is required,
check voltage, polarity and that it has sufficient power to supply the device
it is connected to.
2. Do not operate these products outside the specified
temperature and humidity range given in the abovespecifications.
3. Ensure there is adequate ventilation to allow this product tooperate
efficiently.
4. Repair of the equipment should only be carried out by qualified
professionals as these products contain sensitive devices that may be
damaged by any mistreatment.
5. Only use this product in a dry environment. Do not allow any liquidsor
harmful chemicals to come into contact with these products.
After Sale Service
1. Should you experience any problems while using this product, firstly
refer to the Troubleshooting section in this manual before contacting Technical
Support.
2. When Calling Technical Support, the followinginformation
should be provided:
•Product name and model number
•Product serial number
•Details of the fault and any conditions under which the faultoccurs.
3. This Product has a ten-year standard warranty, beginningfrom
the date of purchase as stated on the sales invoice.
4. Product warranty is automatically void under any of thefollowing
conditions:
AC-SC2-AUHD
Formatted: Indent: First line: 0", Numbered + Level: 1
+ Numbering Style: 1, 2, 3, …+ Start at: 1 + Alignment:
Left + Aligned at: 0.77" + Indent at: 1"
Formatted: Indent: First line: 0", Numbered + Level: 2
+ Numbering Style: 1, 2, 3, …+ Start at: 1 + Alignment:
Left + Aligned at: 1.28" + Indent at: 1.5"
Formatted: Indent: First line: 0", Numbered + Level: 1
+ Numbering Style: 1, 2, 3, …+ Start at: 1 + Alignment:
Left + Aligned at: 0.78" + Indent at: 1"
Formatted: Indent: First line: 0", Numbered + Level: 1
+ Numbering Style: 1, 2, 3, …+ Start at: 1 + Alignment:
Left + Aligned at: 0.78" + Indent at: 1"
Formatted: Bulleted + Level: 2 + Aligned at: 1.25" +
Indent at: 1.5"
Formatted: Indent: First line: 0", Numbered + Level: 1
+ Numbering Style: 1, 2, 3, …+ Start at: 1 + Alignment:
Left + Aligned at: 0.78" + Indent at: 1"

pg. 14
AVProEdge ~ 2222 E 52nd St N Sioux Falls, SD 57104 ~ 1.877.886.5112 ~ +1.605.274.6055 ~ Su[email protected]
The product is already outside of its warranty period
•Damage to the product due to incorrect usage or storage
•Damage caused by unauthorized repairs
•Damage caused by mistreatment of the product
5. Only use this product in a dry environment. Do not allow any liquidsor
harmful chemicals to come into contact with these products.
AC-SC2-AUHD
Formatted: Bulleted + Level: 2 + Aligned at: 1.25" +
Indent at: 1.5"
Formatted: Indent: First line: 0", Numbered + Level: 1
+ Numbering Style: 1, 2, 3, …+ Start at: 1 + Alignment:
Left + Aligned at: 0.78" + Indent at: 1"

pg. 15
AVProEdge ~ 2222 E 52nd St N Sioux Falls, SD 57104 ~ 1.877.886.5112 ~ +1.605.274.6055 ~ Su[email protected]
Thanks for Using AVProEdge
If you have any questions just call us at 1-877-886-5112
AC-SC2-AUHD
