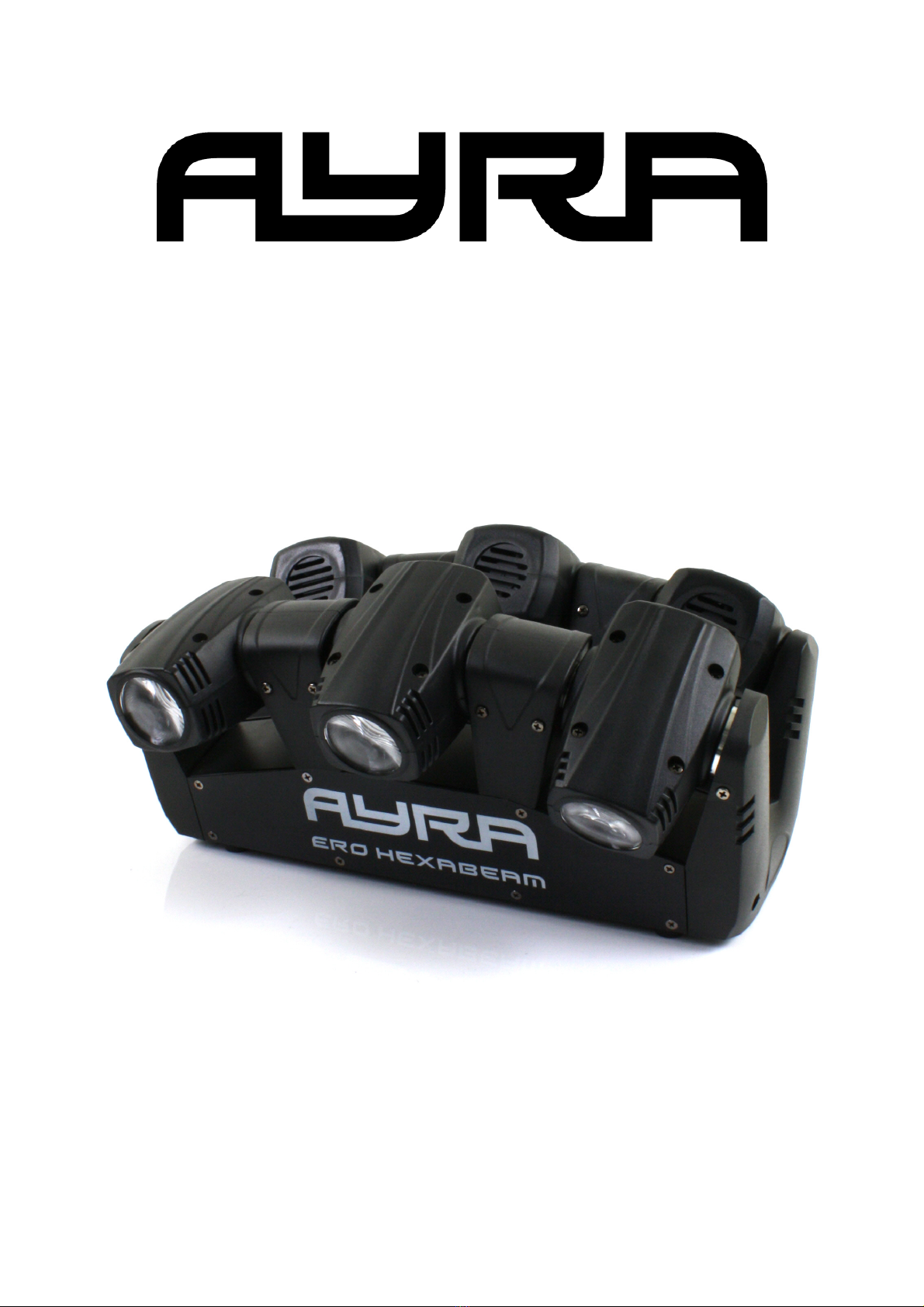

Ayra ERO Hexabeam User manual

ERO Hexabeam
Moving Head LED Light Effect
User manual
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -

Introduction
Thank you for purchasing the ERO Hexabeam. This versatile moving head LED light effect is designed to
add atmosphere to any party or event ith its brightly-coloured light beams and motorised armatures.
We advise that you read this user manual in its entirety before unpacking the contents of the box, so that you
are familiar ith all of the functionality that this product has to offer. Please be sure to check that all of the
parts and accessories listed belo under 'Box contents' are included in the package. In the event that the
ERO Hexabeam does not function properly, or if you have any issues hile operating it, please remove the
plug from the po er socket and contact your dealer for assistance.
Box contents:
- Ayra ERO Hexabeam LED light effect
- 2 mounting brackets ith quick couplers
- connection cable from IEC C13 to Schuko, 1.5 mm²
- connection cable from IEC C13 to UK plug, 1.5 mm²
lease inspect the device and the included accessories.
Should you discover that either the device or one or more of the included parts have been damaged or
rendered defective hile in transit, please contact your dealer directly.
Please note that the pictures in this user manual serve illustrative purposes only and may differ from the
actual product.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -

Safety instructions
Everyone involved ith the installation, operation and maintenance of this device must:
- Be qualified
- Be skilled
- Have read the instructions in this user manual
- Be sure that neither the device nor the included accessories are damaged. Should the device or the
included accessories be damaged, please contact your dealer for more information.
- Ensure that the device is in good orking condition and is safe to operate. Please follo the advice and
instructions as they are described in this user manual.
Damage caused by misuse and/or modifications made to the device are not covered by the arranty.
This device does not contain any parts that can be repaired or replaced by the user. Should maintenance or
repairs be necessary, they must be handled by a qualified technician.
The light source of this device is not replaceable. If the light source no longer functions, the entire device
needs to be replaced.
Important information regarding safety and health:
- Do not remove any labels or stickers from this device.
- Do not leave any cables lying around.
- The device should not be opened up, and any hard are or soft are that may be present should not be
modified.
- To achieve optimal performance, inputs on this device should not be fed ith a signal higher than
necessary.
- The device should only be used indoors; contact ith ater, rain and moisture should al ays be avoided.
Do not place any objects containing liquid on top of the device.
- Remove the device from any nearby flames or heat sources; do not place it near flammable fluids, gasses
or objects.
- Disconnect this device from a po er source if it ill not be used for a longer period of time, if maintenance
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -
WARNING!
Keep this device away from moisture, water and rain to avoid the chance of electric shocks.
WARNING!
Only connect this device to a suitable power socket. This device functions on a specific power
voltage. If it is plugged into a power socket with a different voltage, it could result in permanent
damage and even dangerous situations such as fire or electric shocks.
WARNING!
Be careful when operating this device. Touching the wires that are connected to the mains,
inside or outside the device, could result in electric shocks.

is necessary, or if it needs to be cleaned.
- Do not pull on the cable to remove a connector, as it can cause damage.
- Do not use any cables other than the ones described in this manual. Do not use defective cables. Please
contact your dealer if the included or necessary cables do not function properly ith this device.
- Only use this device ith a stable AC po er supply.
- Only use this device ith po er form a grounded po er source.
- In the event that the device is exposed to extreme temperature changes (e.g. transported through a cold
outside environment into a arm indoor environment), it should not be turned on until it has reached room
temperature. This is necessary to prevent moisture from forming in the device, hich could lead to electric
shocks.
Guidelines and operation of this device:
- This device is intended for use by professionals on stage, in theatres, in clubs, and in similar entertainment
locations.
- This device is not suitable for use by children, and should al ays be operated by an adult.
- This device is designed to create light effects for entertainment purposes. It is not suitable for household
illumination.
- This device may only be used in a suitable environment here no damage to the device can occur. Do not
use the device in moist or dusty environments such as:
- indoor s imming pools here chlorine is used
- beaches here there is sand and salt
- outdoors
- indoors in spaces here intense heat sources are present, or here it reaches temperature levels
that ould be considered uncomfortable for a person
- Avoid impact and collisions during use and transport. Do not transport the device hile it is in use. Avoid
using excessive force hen installing and operating the device.
- The user should become familiar ith the functions of this device before using it.
- Should the device not be used in the manner described in this user manual, damages or even injuries could
occur. Ayra cannot be held responsible for any injuries or damages that occur as a result of improper use of
this product.
Storage and transport:
- This product as designed for mobile use. Please only transport the device in the original packaging, or in
a flight case ith a suitable foam inlay.
- This device as not designed for permanent (24/7) use. The expected lifespan of the device ill not be
affected by occasionally turning the device off. Disconnect the device or turn off the po er hen it is not
actively in use.
- If the device ill not be used for a longer period of time, it should be disconnected and stored in a dust-free
environment.
- Do not expose the device to extreme temperature differences.
Housing
- Inspect the device's housing frequently, and al ays just before use. Avoid operating the device if there are
large dents or cracks, or if scre s are missing. Do not use the device if the housing is not in good condition.
Contact your dealer or a qualified technician if you are unsure about the state of the device.
- Check the device and the scre s for corrosion. Corrosion must not be present on this device. Contact your
dealer or a qualified technician if you find any corrosion on the scre s.
Every po er and signal connector should be securely mounted. Do not use the device if the connectors are
not secure.
- Avoid dust and dirt build-up. Clean the device once a month by disconnecting it from the po er supply and
iping it do n ith a dry or slightly moist cloth. If the device is used frequently, the cleaning intervals should
increase.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -

Symbol explanation:
WEEE: Ensure that this device is disposed of properly. This product falls under the WEEE
(Waste Electrical and Electronic Equipment) directive. The requirements of this directive apply
to all manufacturers and producers of electronic devices in the EU. Do not thro this product
a ay ith regular rubbish. Please contact your local authority for more information about ho
to recycle and dispose of these products in your region. By recycling this product in the proper
manner, e can ork together to ensure that e can continue to enjoy these kinds of
products and still protect the environment as much as possible from pollution.
CE: The CE logo indicates that this product meets the European norms and requirements to
hich it must legally conform.
Only suitable for indoor use: this product as only designed for indoor use. The maximum
environmental temperature must not exceed 40 degrees Celsius (104 degrees Fahrenheit).
Contact:
Ayra professional lighting products
Verrijn Stuart eg 18
4462 GE Goes
The Netherlands
Please do not send any products to this correspondence address.
Should you wish to send in a product for repairs or for a refund, please contact your dealer for an RMA
re uest (Return Merchandise Authorisation).
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -

Guidelines and operation of this device
1. moving head ith lens
2. po er input IEC C14 ith fuse
3. po er output IEC C13 (max. 9A)
4. LED display ith menu buttons
5. DMX output via 3-pole XLR female connector
6. DMX input via 3-pole XLR male connector
7. safety eyelet for optional safety cable
8. ventilation panel ith metal grille
9. quick-lock brackets, to be mounted on the underside hen suspending the device
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -
2
4
5 6 7
8
9
1
3

Operation and mounting
To activate the device, plug it into a mains socket. Once it's connected to an active po er source, it ill turn
on automatically.
During the start-up process, the step motors in the moving heads ill calibrate and position themselves at
absolute zero. The heads may vibrate or make a rattling noise during this process. This is normal and ill not
have a negative effect on the lifespan of the product.
During calibration, ‘AYRA’ ill be sho n on the display, hich means the device is not ready to be operated.
Once the device has fully started up, it ill jump to the last-used mode. Operation modes and other settings
sho n on the display can no be adjusted or changed by means of the menu buttons.
Should the device detect a DMX signal, it ill automatically s itch to DMX mode and ill display the last-
used address. For ne devices, this ill normally be DMX address 001. Of course, you can change the DMX
address via the display using the menu buttons.
Using the display and the menu buttons, you can adjust the functions and settings of the device. Press
'Enter' to confirm an adjustment or select a function, use ‘Up’ and ‘Do n’ to change amounts and ‘Menu’ to
go back to the menu. By holding the ‘Menu’ button do n for 2 seconds after saving a specific setting, the
device ill return to operation mode and adopt the setting. This ill also be done after any changes in the
operation mode or DMX address. This operation is not al ays necessary, considering the device
automatically does this after a ne setting is confirmed.
The menu contains the follo ing options and functions
Display Function Setting
ADDR / A001 DMX address configuration Address A001 … A512
CHND Channel mode selection 6CH/12CH/14CH/27CH
SLND Slave mode NAST = Master
SL 1 = Slave 1 – sync mode
SL 2 = Slave 2 – sync & mirrored mode
AUTO Auto sho 0-16 + speed Auto sho AU 0 – AU16
Push up/do n for speed, select SP1 - SP9
SHND Sho mode selection (music-
controlled)
Sho 0-16
SOUND Sound-controlled mode Sound-controlled mode: ON / OFF
SENS Sensitivity sound-controlled mode 000 – 100: Sensitivity in %
LED LED display ON / OFF hile
device is in use
ON / OFF
DIS Display invert Invert display , Idsp-dspI
TILT Invert tilt movement YES / NO
TEST Test mode Test mode sho s if the buttons and LEDs are
functioning.
HOUR Time registration 0000 – 9999 hours
VER Firm are version Firm are version, not to be upgraded by the
user
RSET Reset function Restart the device as if you're re-connecting it to
the po er source.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -

You'll find an explanation of the various functions belo :
ADDR: With this function, you can determine the DMX start address of the device. Set it channel 001, and
the device ill respond from DMX channel 1. Set it to channel 003, then the device ill respond from DMX
channel 3, etc.
CHND: This device is equipped ith various DMX channel modes. With this function, you can choose a
concise channel mode if your DMX circle is full and you do not require complete control over the functions. It
is also possible to use the most comprehensive channel mode, hich makes more channels available, each
ith its o n separate function.
SLND: The Master-Slave mode is designed to sync multiple devices. A copy of the internal program is sent
to the daisy-chained devices so that each one projects the same effect. The master-slave function orks by
means of standard 3-pin XLR cables. The only difference is that the first device in the chain does not receive
DMX input.
The master-slave mode can be set to Slave 1 or Slave 2. Slave 1 copies the effect of the Master device
directly, and Slave 2 toggles bet een synchronised and mirrored effects in sound-controlled mode.
PLEASE NOTE: When Slave mode is activated, the device ill ait for a signal from the Master device. In
this case, it is not possible to simply select an automatic or sound-controlled mode! To cancel this, select
'NAST' mode in the SLND menu, so the device goes to Master mode. Then, all standalone functions can be
activated.
AUTO: Select one of the built-in programs and set the speed as desired. The device ill then operate this
program at a fixed speed.
SHND: The standard sho mode reacts to music, making it slightly different than the automatic mode. Select
a program in Sho mode. The sensitivity level of the microphone function ill ensure the program operates
to the beat of the music.
SOUN: This setting sho s if the microphone function is activated or not, hich you can see in the display as
ON or OFF.
SENS: This mode allo s you to determine the sensitivity of the internal microphone. The further the device is
from the speaker, the higher the sensitivity of the microphone needs to be so it can react properly to the
music. The microphone is built to handle high sound pressure levels, but the louder the signal and the higher
the microphone sensitivity level, the more difficulty the device ill have detecting the beat of the music.
Experiment ith the level of sensitivity and distance/positioning of the device to find the best results.
LED: If the LED display is not in use, it can be de-activated by turning the LED mode OFF. The red symbols
ill no longer light up hen using the device in a dark environment. Press one of the menu buttons and the
display ill light up again and sho any relevant information. If the device registers that the menu is not
actively being used, it ill automatically turn off ithin 30 seconds.
DIS : This function determines hether the display is sho n normally or inverted. If the device is
suspended, the display may be harder to read. This function allo s you to rotate it vertically for better
legibility.
TILT: With this function, you can invert the tilt values separately so the motors move in the opposite direction.
TEST: Should the device need cleaning or maintenance, this function can be used to test one or more
devices simultaneously. The device plays a program continuously hile the step motors and LEDs are used.
This ay you can quickly detect any abnormalities or defects. The device ill run the program until it's
stopped manually (for example hen the sound-controlled mode is activated.)
HOUR: If this device is used professionally or rented, it should be regularly maintained and inspected in
bet een use. The HOUR function sho s exactly ho long the device has been in use. This amount of time
accumulates over time as long as the device is being used and cannot be manipulated by the user.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -

Operating modes
The follo ing overvie is designed to sho the differences bet een the various operation modes that are
supported by the above-mentioned menu functions.
Auto:
In automatic mode, the device is set to a fixed speed and ill function according to the preset parameters.
The device does not requite input from the built-in microphone, master-slave signals or DMX.
Sound:
When in Sound-controlled mode, the device's internal microphone detects the music and reacts to the beat.
The device ill move in sync ith the music and provide an automated light sho .
When there is no music for the device to detect or hen only high frequencies are audible, the device ill
continue its program at a slo er pace, so the light sho ill not stop abruptly. As soon as the microphone
detects music again, it ill resume the automated program and follo the beat.
Slave
In Slave mode, you can daisy-chain multiple devices of the same type so they all function a specific ay.
This ay you can coordinate your light sho by having multiple separate devices moving the same ay
instead of all different directions, hich can be chaotic. Basically, you can connect an unlimited number of
slave devices to a master device, but a DMX booster is required in bet een. Generally speaking, you can
connect up to four armatures together ithout the need for a DMX booster.
Be a are that hen you attempt to connect devices of different types and brands, they may behave
strangely and you may not get the desired effect because certain functions are linked to the rong channels.
This is true of DMX lighting of all brands and types.
DMX
The DMX mode is the most comprehensive ay to maintain ultimate control over all the functions this device
has to offer. It enables you to determine exactly ho many functions you ant to control via the DMX
controller or DMX soft are.
This device can be set to various channel modes so the channel layout, hich is sho n belo , corresponds
perfectly ith your DMX circle layout, as ell as ith the functions you ill be using.
6CH
Channel Function Values
1 Dimmer: 0 - 100% 000-255 0-100% intensity
2 Stroboscope, slo to fast 000-255 slo - fast
3 Built-in sho s 000-007 No function
008-022 Sho 1
023-037 Sho 2
038-052 Sho 3
053-067 Sho 4
068-082 Sho 5
083-097 Sho 6
098-112 Sho 7
113-127 Sho 8
128-142 Sho 9
143-157 Sho 10
158-172 Sho 11
173-187 Sho 12
188-202 Sho 13
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -

203-217 Sho 14
218-232 Sho 15
233-247 Sho 16
248-255 Sound-controlled mode
4 Speed built-in sho 000-255 slo - fast
5 LED chases 000-014 static colour-changer
015-255 colour chases
6 LED chase speed 000-255 slo - fast
12CH
Channel Function Values
1 Pan movement head 1 000-255
2 Colour selection head 1 000-007 Blackout
008-024 R
025-041 G
042-057 B
058-074: W
075-090: R+G
091-107: R+B
108-123: R+W
124-140: G+B
141-156 G+W
157-173 B+W
174-189 R+G+B
190-206 R+G+W
207-222 R+B+W
223-239 G+B+W
240-255 R+G+B+W
3 Pan movement head 2 000-255
4 Colour selection head 2 See channel 2
5 Pan movement head 3 000-255
6 Colour selection head 3 See channel 2
7 Pan movement head 4 000-255
8 Colour selection head 4 See channel 2
9 Pan movement head 5 000-255
10 Colour selection head 5 See channel 2
11 Pan movement head 6 000-255
12 Colour selection head 6 See channel 2
14CH
Channel Function Values
1 Master dimmer 0-100% 000-255 0-100% intensity
2 Stroboscope, fast to slo 000-255 slo - fast
3 Pan movement head 1 000-255
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -

4 Colour selection head 1 000-007 Blackout
008-024 R
025-041 G
042-057 B
058-074: W
075-090: R+G
091-107: R+B
108-123: R+W
124-140: G+B
141-156 G+W
157-173 B+W
174-189 R+G+B
190-206 R+G+W
207-222 R+B+W
223-239 G+B+W
240-255 R+G+B+W
5 Pan movement head 2 000-255
6 Colour selection head 2 See channel 4
7 Pan movement head 3 000-255
8 Colour selection head 3 See channel 4
9 Pan movement head 4 000-255
10 Colour selection head 4 See channel 4
11 Pan movement head 5 000-255
12 Colour selection head 5 See channel 4
13 Pan movement head 6 000-255
14 Colour selection head 6 See channel 4
27CH
Channel Function Values
1 Master dimmer 0-100% 000-255 0-100% intensity
2 Stroboscope, slo to fast 000-255 slo - fast
3 Tilt movement head 1 000-255
4 Fine tilt movement head 1 000-255
5 Maximum movement speed head 1 000-255 fast - slo
6 Colour selection head 1 000-007 Blackout
008-024 R
025-041 G
042-057 B
058-074: W
075-090: R+G
091-107: R+B
108-123: R+W
124-140: G+B
141-156 G+W
157-173 B+W
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -

174-189 R+G+B
190-206 R+G+W
207-222 R+B+W
223-239 G+B+W
240-255 R+G+B+W
7 Tilt movement head 2 000-255
8 Fine tilt movement head 2 000-255
9 Maximum movement speed head 2 000-255 fast - slo
10 Colour selection head 2 See channel 6
11 Tilt movement head 3 000-255
12 Fine tilt movement head 3 000-255
13 Maximum movement speed head 3 000-255 fast - slo
14 Colour selection head 3 See channel 6
15 Tilt movement head 4 000-255
16 Fine tilt movement head 4 000-255
17 Maximum movement speed head 4 000-255 fast - slo
18 Colour selection head 4 See channel 6
19 Tilt movement head 5 000-255
20 Fine tilt movement head 5 000-255
21 Maximum movement speed head 5 000-255 fast - slo
22 Colour selection head 5 See channel 6
23 Tilt movement head 6 000-255
24 Fine tilt movement head 6 000-255
25 Maximum movement speed head 6 000-255 fast - slo
26 Colour selection head 6 See channel 6
27 Operating modes 000-199 No function
200-209 Reset
210-240 No function
241-255 Sound-controlled mode
ower supply
The ERO Hexabeam is equipped ith a po er input to supply the device ith po er, but also an output to
supply po er to other devices, hich means you on't need po er strips or other po er distributors.
The po er connectors for the ERO Hexabeam have a po er capacity of 10A, subtracted by the maximum
po er consumption of the device. With a small built-in safety margin, the output on the ERO Hexabeam
should be fed ith a maximum of 9 A.
This is more than enough to supply po er to multiple devices of the same type via a single po er line.
Bear in mind that the installed fuse in the ERO Hexabeam is designed to only protect the device itself. The
po er output is not protected.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -

Installation and connection requirements
No that you kno ho the ERO Hexabeam orks, it's important to kno ho to use it correctly and safely,
according to the installation and connection requirements.
Make sure the device and connection cables are out of reach of children, and that if children are present,
they are under adult supervision at all times. Because this device can be used upright or suspended, children
could pull on the cables, causing the device to fall on top of them. To avoid injury, it is important to pay close
attention to the position and/or installation of this device.
Upright use
Should you ant to use the ERO Hexabeam in an upright position, make sure it's on a flat, stable surface
like a table, DJ booth or bar. The ERO Hexabeam is equipped ith rubber feet that grip the surface
underneath it. Despite the fact that this device is designed to move, it is heavy enough to remain stable hile
standing upright as long as the surface it's on is stable enough.
Suspended use (brackets)
Should you ant to suspend the ERO Hexabeam, you'll need the special mounting brackets ith quick
couplers that are included. These fit in the gold-coloured dishes located on the rear of the device. Place the
brackets and the coupler over the dishes and allo the pins to fall into the corresponding holes. You may
need to rotate the couplers if necessary. Once the coupler pins have successfully fallen into the holes, rotate
them a quarter turn to the right to lock them into place. You'll need to apply some pressure to do this, so
pushing the tightening knob do n can help.
If you ant to mount a half coupler or a G-hook to the brackets, it is advised to do this before mounting the
brackets to the armature. You can find standard hooks and/or brackets for 35 or 50mm tubes (truss or light
stand) at your local dealer.
Hard are for mounting the ERO Hexabeam to the all, ceiling, or beam is not included. Contact a specialist
if you're not sure hich hard are is required for your situation. A ooden beam and stone all require
different mounting methods.
Should you ant to suspend the ERO Hexabeam, you ill need to attach a safety cable to the armature. This
is not included, but is available at your local dealer. The ERO Hexabeam is equipped ith an eyelet for
hooking safety cable. Once it's hooked on, you can rap the cable around the truss or light stand and attach
it again by means of the same hook. This ensures the device is secured and prevents it from falling, even if
one or both of the brackets should come loose.
Ensure that the safety cable has a load capacity of 10x the eight of the armature and that the device can
not fall farther than 30 cm. You can rap the safety cable around the truss or light stand several times to
ensure the fall is as short as possible. The shorter the fall, the less chance of damage or injury.
Light source
The ERO Hexabeam contains po erful LED modules that create an even more po erful effect thanks to a
special lens that bundles the beams together. Never look directly into the lens from at close range, as the
human eye can't adjust to the sudden intensity of the beam of light this device produces. It on't result in
permanent injury, but it can cause temporary blind spots, hich may cause disorientation and discomfort.
Cooling
The ERO Hexabeam is cooled by means of various fans that are located in the main housing per moving
head. These are activated hen the device is turned on. Prevent the fans from getting blocked and check
them regularly to ensure they're functioning properly. Any dust or smoke that is dra n in can have a negative
effect on ho the device functions.
arts and repair
This product does not include spare parts and can not be repaired by the user. All inspections and overall
maintenance should be done by a specialist.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -

Cleaning and maintenance
Clean the exterior of this device monthly ith a dry, or slightly damp microfibre cloth. Ensure that the device
is unplugged before cleaning it.
Check if all the scre s are intact and secured and tighten or replace them here needed. Check all metal
parts of the device for any signs of corrosion. If corrosion is found, the device needs to be checked
thoroughly.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -

DMX lighting troubleshooting
If you have a problem ith your DMX light effect, please consult the troubleshooting section for possible
solutions. If, after consulting this section, the problem remains unresolved, please contact your dealer for
more information and/or help.
This troubleshooting section contains information on ho to solve the most common DMX light effect
problems, but it does not and cannot cover every eventuality. It is possible that you on't find your problem,
cause and solution in this section due to differences bet een various connecting devices.
roblem ossible cause Solution
The device can not be turned on. A fuse is blo n Check the fuse to rule out if it is
blo n or not. If it is blo n, replace
it ith a ne fuse of the same type
and class.
Po er cable not plugged in Check if the po er cable is
properly connected to the device
andplugged into an active po er
socket.
The device is not reacting to DMX
signals
Incorrect DMX start address Check if the device has been set
to the correct DMX start address
DMX controller is on ‘Blackout’ Make sure the ‘Blackout’ function
on the DMX controller is not
activated
Make sure the polarity s itch on
the DMX controller is set correctly
Try to reverse the DMX polarity
s itch on the DMX controller.
The device is not reacting, there is
no DMX signal indication
Make sure the XLR cables are
connected properly and are not
defective. Replace if necessary.
The device does not react to
sound/music
Incorrect operation mode Make sure the sound-activated
mode has been selected
The internal microphone sensitivity
is too lo
Check the microphone sensitivity
level and increase it if necessary.
The speaker is too far a ay, or is
not producing enough lo tones
Place the light effect closer to a
speaker (or vice versa) and/or
increase the lo -frequency level.
The built-in microphone is not
triggered by high tones.
The amount of projected light is
minimal
Dirty or dusty optics Clean the lens and/or other optics
Dimmer is not completely open Check if the dimmers on the spot
lights themselves or if the master
dimmer is completely open.
The DMX signal appears to be
interrupted and some devices are
flashing or behaving strangely
Damaged/defective cables Check and replace the DMX
cables if necessary.
Po er interference on the DMX
signal
Avoid connecting signal cables
parallel to po er cables
DMX terminator missing Close the DMX circle ith a DMX
terminator
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -

Signal loss or interference in the
DMX circle
Close the DMX circle ith a
terminator or connect a booster
after maximum 32 fixtures.
The device is not reacting to DMX
commands
Incorrect DMX channel mode Check if the device is set to the
correct DMX channel mode
The pan and tilt values do not
react to DMX commands
Pan/tilt inversion is activated Check if pan/tilt inversion is
activated in the menu
The operation mode can not be
changed
The device is in Slave mode If the device is in Slave mode, it
ill ait for a master signal unless
there is a DMX signal present. Set
the device to Master to activate the
sound-controlled or automated
operation modes.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -

Technical specifications
- LED light effect ith 6 vertically-moving heads
- each moving head is equipped ith a 10 W CREE RGBW LED
- equipped ith projector lens for narro dispersion angle
- comes ith quick coupler mounting brackets
- various operation modes
- LED display ith menu buttons
- automatic mode ith 16 programs that are adjustable in speed in 9 steps
- Sound-controlled mode ith adjustable sensitivity
- Master/Slave mode (2 slave modes)
- DMX control via 6, 12, 14 or 27 channels
- built-in macros for movement and chases ith individually adjustable speeds in 6-channel mode
- DMX control via 3-pole XLR
- dispersion angle: 6 degrees per head
- po er supply ith IEC C13 / 14 inputs and outputs, max. 9A
- fuse: 7AL, 250V (for device only)
- 400Hz constant current LED driver
- to be used in environmental temperature: 0 - 40 degrees Celsius
- maximum environmental temperature during regular use: 32.9 degrees Celsius
- maximum po er consumption: 97.8W
- po er consumption: 0.8A
- po er factor: 0.531
- po er supply: 90-240V AC, 50/60 Hz
Light yield:
- R: 9570 lux @ 1 m
- G: 7809 lux @ 1 m
- B: 4400 lux @ 1 m
- W: 6100 lux @ 1 m
Menu functions:
- Blackout function hen display is not in use
- Display Invert option
- pan/tilt invert option for all heads
- Test function (to check movement and colour)
- Reset function (restart the device)
- Time register readable
- Firm are Version readable
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -
