Introduction
Thank you for purchasing the ERO Motion Heads 4W. This versatile moving head LE light effect is
designed to add atmosphere to any party or event with its brightl light beams and motorised armatures.
We advise that you read this user manual in its entirety before unpacking the contents of the box, so that you
are familiar with all of the functionality that this product has to offer. Please be sure to check that all of the
parts and accessories listed below under 'box contents' are included in the package. In the event that the
ERO Motion Heads 4W does not function properly, or if you have any issues while operating it, please
remove the plug from the power socket and contact your dealer for assistance.
Box contents
- Ayra ERO Motion Heads 4W LE light effect
- 2 mounting brackets with quick couplers
- connection cable from IEC C13 to Schuko, 1.5 mm²
- connection cable from IEC C13 to UK plug, 1.5 mm²
Please inspect the device and the included accessories.
Should you discover that either the device or one or more of the included parts have been damaged or
rendered defective while in transit, please contact your dealer directly.
Please note that the pictures in this user manual serve illustrative purposes only and may differ from the
actual product.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -

Safety instructions
Everyone involved with the installation, operation and maintenance of this device must:
- Be qualified
- Be skilled
- Have read the instructions in this user manual
- Be sure that neither the device nor the included accessories are damaged. Should the device or the
included accessories be damaged, please contact your dealer for more information.
- Ensure that the device is in good working condition and is safe to operate. Please follow the advice and
instructions as they are described in this user manual.
amage caused by misuse and/or modifications made to the device are not covered by the warranty.
This device does not contain any parts that can be repaired or replaced by the user. Should maintenance or
repairs be necessary, they must be handled by a qualified technician.
The light source of this device is not replaceable. If the light source no longer functions, the entire device
needs to be replaced.
Important information regarding safety and health
- o not remove any labels or stickers from this device.
- o not leave any cables lying around.
- The device should not be opened up, and any hardware or software that may be present should not be
modified.
- To achieve optimal performance, inputs on this device should not be fed with a signal higher than
necessary.
- The device should only be used indoors; contact with water, rain and moisture should always be avoided.
o not place any objects containing liquid on top of the device.
- Remove the device from any nearby flames or heat sources; do not place it near flammable fluids, gasses
or objects.
- isconnect this device from a power source if it will not be used for a longer period of time, if maintenance
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -
WARNING!
Keep this device away from moisture, water and rain to avoid the chance of electric shocks.
WARNING!
Only connect this device to a suitable power socket. This device functions on a specific power
voltage. If it is plugged into a power socket with a different voltage, it could result in permanent
damage and even dangerous situations such as fire or electric shocks.
WARNING!
Be careful when operating this device. Touching the wires that are connected to the mains,
inside or outside the device, could result in electric shocks.

is necessary, or if it needs to be cleaned.
- o not pull on the cable to remove a connector, as it can cause damage.
- o not use any cables other than the ones described in this manual. o not use defective cables. Please
contact your dealer if the included or necessary cables do not function properly with this device.
- Only use this device with a stable AC power supply.
- Only use this device with power form a grounded power source.
- In the event that the device is exposed to extreme temperature changes (e.g. transported through a cold
outside environment into a warm indoor environment), it should not be turned on until it has reached room
temperature. This is necessary to prevent moisture from forming in the device, which could lead to electric
shocks.
Guidelines and operation of this device
- This device is intended for use by professionals on stage, in theatres, in clubs, and in similar entertainment
locations.
- This device is not suitable for use by children, and should always be operated by an adult.
- This device is designed to create light effects for entertainment purposes. It is not suitable for household
illumination.
- This device may only be used in a suitable environment where no damage to the device can occur. o not
use the device in moist or dusty environments such as:
- indoor swimming pools where chlorine is used
- beaches where there is sand and salt
- outdoors
- indoors in spaces where intense heat sources are present, or where it reaches temperature levels
that would be considered uncomfortable for a person
- Avoid impact and collisions during use and transport. o not transport the device while it is in use. Avoid
using excessive force when installing and operating the device.
- The user should become familiar with the functions of this device before using it.
- Should the device not be used in the manner described in this user manual, damages or even injuries could
occur. Ayra cannot be held responsible for any injuries or damages that occur as a result of improper use of
this product.
Storage and transport
- This product was designed for mobile use. Please only transport the device in the original packaging, or in
a flight case with a suitable foam inlay.
- This device was not designed for permanent (24/7) use. The expected lifespan of the device will not be
affected by occasionally turning the device off. isconnect the device or turn off the power when it is not
actively in use.
- If the device will not be used for a longer period of time, it should be disconnected and stored in a dust-free
environment.
- o not expose the device to extreme temperature differences.
Housing
- Inspect the device's housing frequently, and always just before use. Avoid operating the device if there are
large dents or cracks, or if screws are missing. o not use the device if the housing is not in good condition.
Contact your dealer or a qualified technician if you are unsure about the state of the device.
- Check the device and the screws for corrosion. Corrosion must not be present on this device. Contact your
dealer or a qualified technician if you find any corrosion on the screws.
Every power and signal connector should be securely mounted. o not use the device if the connectors are
not secure.
- Avoid dust and dirt build-up. Clean the device once a month by disconnecting it from the power supply and
wiping it down with a dry or slightly moist cloth. If the device is used frequently, the cleaning intervals should
increase.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -

Symbol explanation
WEEE Ensure that this device is disposed of properly. This product falls under the WEEE
(Waste Electrical and Electronic Equipment) directive. The requirements of this directive apply
to all manufacturers and producers of electronic devices in the EU. o not throw this product
away with regular rubbish. Please contact your local authority for more information about how
to recycle and dispose of these products in your region. By recycling this product in the proper
manner, we can work together to ensure that we can continue to enjoy these kinds of
products and still protect the environment as much as possible from pollution.
CE The CE logo indicates that this product meets the European norms and requirements to
which it must legally conform.
Only suitable for indoor use: this product was only designed for indoor use. The maximum
environmental temperature must not exceed 40 degrees Celsius (104 degrees Fahrenheit).
Contact
Ayra professional lighting products
Verrijn Stuartweg 18
4462 GE Goes
The Netherlands
Please do not send any products to this correspondence address.
Should you wish to send in a product for repairs or for a refund, please contact your dealer for an RMA
re uest (Return Merchandise Authorisation).
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -

Guidelines and operation of this device

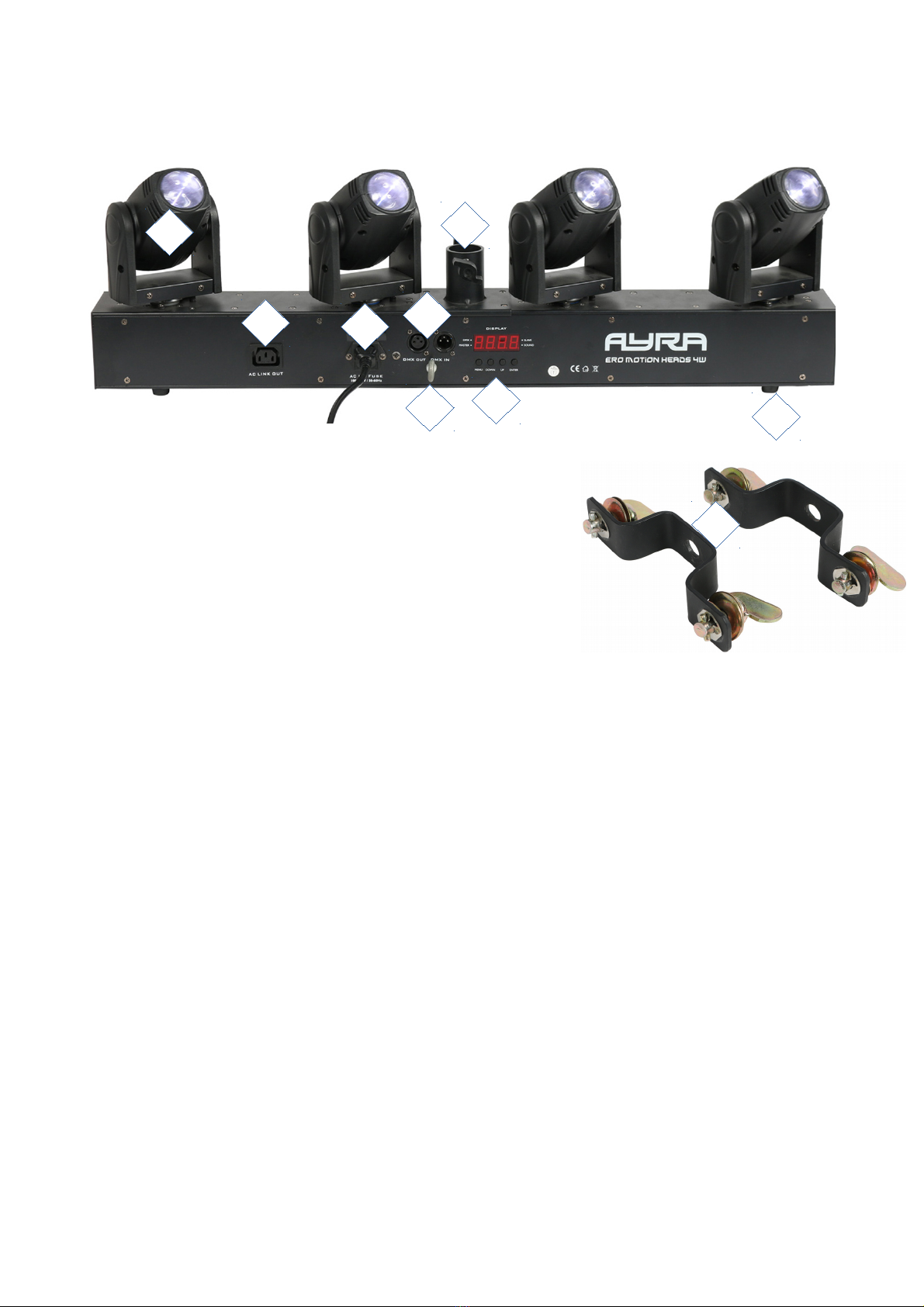

1. moving head with lens
2. power output IEC C13 (max. 9A)
3. power input IEC C14 with fuse holder
4. MX input and output via 3-pin XLR male + female
5. safety eyelet for optional safety cable
6. LE display with menu buttons
7. rubber feet
8. 35mm stand adapter with 2 tightening knobs
9. quick-lock brackets, to be mounted on the bottom when suspending the device
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -
24
56
7
8
9
1
3

Operation and mounting
To activate the device, plug it into a mains socket. Once it's connected to an active power source, it will turn
on automatically.
uring the start-up process, the step motors in the moving heads will calibrate and position themselves at
absolute zero. The heads may vibrate or make a rattling noise during this process. This is normal and will not
have a negative effect on the lifespan of the product.
uring calibration, ‘AYRA’ will be shown on the display, which means the device is not ready to be operated.
Once the device has fully started up, it will jump to the last-used mode. Operation modes and other settings
shown on the display can now be adjusted or changed by means of the menu buttons.
Should the device detect a MX signal, it will automatically switch to MX mode and will display the last-
used address. For new devices, this will normally be MX address 001. Of course, you can change the MX
address via the display using the menu buttons.
Using the display and the menu buttons, you can adjust the functions and settings of the device. Press
'Enter' to confirm an adjustment or select a function, use ‘Up’ and ‘ own’ to change amounts and ‘Menu’ to
go back to the menu. By holding the ‘Menu’ button down for 2 seconds after saving a specific setting, the
device will return to operation mode and adopt the setting. This will also be done after any changes in the
operation mode or MX address. This operation is not always necessary, considering the device
automatically does this after a new setting is confirmed.
The menu contains the following options and functions
Display Function Setting
ADDR / A001 MX address configuration Address A001 … A512
CHND Channel mode selection 6CH/12CH/14CH/27CH
SLND Slave mode NAST = Master
SL 1 = Slave 1 – sync mode
SL 2 = Slave 2 – sync & mirrored mode
AUTO Auto show 0-16 + speed Auto show AU 0 – AU16
Push up/down for speed, select SP1 - SP9
SHND Show mode selection (music-
controlled)
Show 0-16
SOUND Sound-controlled mode Sound-controlled mode: ON / OFF
SENS Sensitivity sound-controlled mode 000 – 100: Sensitivity in %
LED LE display ON / OFF while
device is in use
ON / OFF
DISP isplay invert Invert display , disp - dslp
PAN Invert pan movement YES / NO
TILT Invert tilt movement YES / NO
TEST Test mode Test mode shows if the buttons and LE s are
functioning.
HOUR Time registration 0000 – 9999 hours
VER Firmware version Firmware version, not to be upgraded by the
user
RSET Reset function Restart the device as if you're re-connecting it to
the power source.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -

You'll find an explanation of the various functions below:
ADDR With this function, you can determine the MX start address of the device. Set it channel 001, and
the device will respond from MX channel 1. Set it to channel 003, then the device will respond from MX
channel 3, etc.
CHND This device is equipped with various MX channel modes. With this function, you can choose a
concise channel mode if your MX circle is full and you do not require complete control over the functions. It
is also possible to use the most comprehensive channel mode, which makes more channels available, each
with its own separate function.
SLND The Master-Slave mode is designed to sync multiple devices. A copy of the internal program is sent
to the daisy-chained devices so that each one projects the same effect. The master-slave function works by
means of standard 3-pin XLR cables. The only difference is that the first device in the chain does not receive
MX input.
The master-slave mode can be set to Slave 1 or Slave 2. Slave 1 copies the effect of the Master device
directly, and Slave 2 toggles between synchronised and mirrored effects in sound-controlled mode.
PLEASE NOTE: When Slave mode is activated, the device will wait for a signal from the Master device. In
that case, it is not possible to simply select an automatic or sound-controlled mode! To cancel this, select
'NAST' mode in the SLN menu, so the device goes to Master mode. Then, all standalone functions can be
activated.
AUTO Select one of the built-in programs and set the speed as desired. The device will then operate this
program at a fixed speed.
SHND The standard show mode reacts to music, making it slightly different than the automatic mode. Select
a program in Show mode. The sensitivity level of the microphone function will ensure the program operates
to the beat of the music.
SOUN This setting shows if the microphone function is activated or not, which you can see in the display as
ON or OFF.
SENS This mode allows you to determine the sensitivity of the internal microphone. The further the device is
from the speaker, the higher the sensitivity of the microphone needs to be so it can react properly to the
music. The microphone is built to handle high sound pressure levels, but the louder the signal and the higher
the microphone sensitivity level, the more difficulty the device will have detecting the beat of the music.
Experiment with the level of sensitivity and distance/positioning of the device to find the best results.
LED If the LE display is not in use, it can be de-activated by turning the LE mode OFF. The red symbols
will no longer light up when using the device in a dark environment. Press one of the menu buttons and the
display will light up again and show any relevant information. If the device registers that the menu is not
actively being used, it will automatically turn off within 30 seconds.
DISP This function determines whether the display is shown normally or inverted. If the device is
suspended, the display may be harder to read. This function allows you to rotate it vertically for better
legibility.
PAN/TILT Invert the pan and/or tilt values separately so the motors turn in the opposite directions.
TEST Should the device need cleaning or maintenance, this function can be used to test one or more
devices simultaneously. The device plays a program continuously while the step motors and LE s are used.
This way you can quickly detect any abnormalities or defects. The device will run the program until it's
stopped manually (for example when the sound-controlled mode is activated.)
HOUR If this device is used professionally or rented, it should be regularly maintained and inspected in
between use. The HOUR function shows exactly how long the device has been in use. This amount of time
accumulates over time as long as the device is being used and cannot be manipulated by the user.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -

Operating modes
The following overview is designed to show the differences between the various operation modes that are
supported by the above-mentioned menu functions.
Auto
In automatic mode, the device is set to a fixed speed and will function according to the preset parameters.
The device does not requite input from the built-in microphone, master-slave signals or MX.
Sound
When in Sound-controlled mode, the device's internal microphone detects the music and reacts to the beat.
The device will move in sync with the music and provide an automated light show.
When there is no music for the device to detect or when only high frequencies are audible, the device will
continue its program at a slower pace, so the light show will not stop abruptly. As soon as the microphone
detects music again, it will resume the automated program and follow the beat.
Slave
In Slave mode, you can daisy-chain multiple devices of the same type so they all function a specific way.
This way you can coordinate your light show by having multiple separate devices moving the same way
instead of all different directions, which can be chaotic. Basically, you can connect an unlimited number of
slave devices to a master device, but a MX booster is required in between. Generally speaking, you can
connect up to four armatures together without the need for a MX booster.
Be aware that when you attempt to connect devices of different types and brands, they may behave
strangely and you may not get the desired effect because certain functions are linked to the wrong channels.
This is true of MX lighting of all brands and types.
DMX
The MX mode is the most comprehensive way to maintain ultimate control over all the functions this device
has to offer. It enables you to determine exactly how many functions you want to control via the MX
controller or MX software.
This device can be set to various channel modes so the channel layout, which is shown below, corresponds
perfectly with your MX circle layout, as well as with the functions you will be using.
6CH
Channel Function Values
1 immer: 0 - 100% 000-255 0-100% intensity
2 Stroboscope, slow to fast 000-255 slow - fast
3 Built-in shows 000-007 No function
008-022 Show 1
023-037 Show 2
038-052 Show 3
053-067 Show 4
068-082 Show 5
083-097 Show 6
098-112 Show 7
113-127 Show 8
128-142 Show 9
143-157 Show 10
158-172 Show 11
173-187 Show 12
188-202 Show 13
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -

203-217 Show 14
218-232 Show 15
233-247 Show 16
248-255 Sound-controlled mode
4 Speed built-in show 000-255 slow - fast
5 LE chases 000-014 no function
015-035 LE show 1
036-056 LE show 2
057-076 LE show 3
077-097 LE show 4
098-117 LE show 5
118-138 LE show 6
139-159 LE show 7
160-179 LE show 8
180-255 open white
6 LE chase speed 000-255 slow - fast
12CH
Channel Function Values
1 Pan movement head 1 000-255
2 Tilt movement head 1 000-255
3 immer 0-100% head 1 000-255 0-100%
4 Pan movement head 2 000-255
5 Tilt movement head 2 000-255
6 immer 0-100% head 2 000-255 0-100%
7 Pan movement head 3 000-255
8 Tilt movement head 3 000-255
9 immer 0-100% head 3 000-255 0-100%
10 Pan movement head 4 000-255
11 Tilt movement head 4 000-255
12 immer 0-100% head 4 000-255 0-100%
14CH
Channel Function Values
1 Master dimmer 0-100% 000-255 0-100% intensity
2 Stroboscope, fast to slow 000-255 slow - fast
3 Pan movement head 1 000-255
4 Tilt movement head 1 000-255
5 immer 0-100% head 1 000-255 0-100% intensity
6 Pan movement head 2 000-255
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -

7 Tilt movement head 2 000-255
8 immer 0-100% head 2 000-255 0-100% intensity
9 Pan movement head 3 000-255
10 Tilt movement head 3 000-255
11 immer 0-100% head 3 000-255 0-100% intensity
12 Pan movement head 4 000-255
13 Tilt movement head 4 000-255
14 immer 0-100% head 4 000-255 0-100% intensity
27CH
Channel Function Values
1 Master dimmer 0-100% 000-255 0-100% intensity
2 Stroboscope, slow to fast 000-255 slow - fast
3 Pan movement head 1 000-255
4 Fine pan movement head 1 000-255
5 Tilt movement head 1 000-255
6 Fine tilt movement head 1 000-255
7 Maximum movement speed head 1 000-255 fast - slow
8 immer 0-100% head 1 000-255 0-100% intensity
9 Pan movement head 2 000-255
10 Fine pan movement head 2 000-255
11 Tilt movement head 2 000-255
12 Fine tilt movement head 2 000-255
13 Maximum movement speed head 2 000-255 fast - slow
14 immer 0-100% head 2 000-255 0-100% intensity
15 Pan movement head 3 000-255
16 Fine pan movement head 3 000-255
17 Tilt movement head 3 000-255
18 Fine tilt movement head 3 000-255
19 Maximum movement speed head 3 000-255 fast - slow
20 immer 0-100% head 3 000-255 0-100% intensity
21 Pan movement head 4 000-255
22 Fine pan movement head 4 000-255
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -

23 Tilt movement head 4 000-255
24 Fine tilt movement head 4 000-255
25 Maximum movement speed head 4 000-255 fast - slow
26 immer 0-100% head 4 000-255 0-100% intensity
27 Operating modes 000-199 No function
200-209 Reset
210-240 No function
241-255 Sound-controlled mode
Power supply
The ERO Motion Heads 4W is equipped with a power input to supply the device with power, but also an
output to supply power to other devices, which means you won't need power strips or other power
distributors.
The power connectors for the ERO Motion Heads 4W have a power capacity of 4A, subtracted by the
maximum power consumption of the device. With a small built-in safety margin the output on the ERO
Motion heads 4W should be fed with a maximum of 9A.
This is more than enough to supply power to multiple devices of the same type via a single power line.
Bear in mind that the installed fuse in the ERO Motion Heads 4W is designed to only protect the device itself.
The power output is not protected.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -

Installation and connection requirements
Now that you know how the ERO Motion Heads 4W works, it's important to know how to use it correctly and
safely, according to the installation and connection requirements.
Make sure the device and connection cables are out of reach of children, and that if children are present,
they are under adult supervision at all times. Because this device can be used upright or suspended, children
could pull on the cables, causing the device to fall on top of them. To avoid injury, it is important to pay close
attention to the position and/or installation of this device.
Upright use
Should you want to use the ERO Motion Heads 4W in an upright position, make sure it's on a flat, stable
surface like a table, J booth or bar. The ERO Motion Heads 4W is equipped with rubber feet that grip the
surface underneath it. espite the fact that this device is designed to move, it is heavy enough to remain
stable while standing upright as long as the surface it's on is stable enough.
For use on a stand (35mm adapter)
The ERO Motion Heads 4W is equipped with a centrally-located stand adapter. With it, you can mount the
device to a suitable light or audio stand. Ensure that the knobs are tightened so the device is mounted
securely and in the correct position.
Also, make sure that the feet of the stand are extended to create a stable foundation for the device to
operate on. Keep an eye on the height of the stand. The higher the stand, the higher the point of gravity,
which means the risk of the device falling is greater, should anything collide with the stand.
Suspended use (brackets)
Should you want to suspend the ERO Motion Heads 4W, you'll need the special mounting brackets with
quick couplers that are included. These fit in the gold-coloured dishes located on the rear of the device.
Place the brackets and the coupler over the dishes and allow the pins to fall into the corresponding holes.
You may need to rotate the couplers if necessary. Once the coupler pins have successfully fallen into the
holes, rotate them a quarter turn to the right to lock them into place. You'll need to apply some pressure to do
this, so pushing the tightening knob down can help.
If you want to mount a half coupler or a G-hook to the brackets, it is advised to do this before mounting the
brackets to the armature. You can find standard hooks and/or brackets for 35 or 50mm tubes (truss or light
stand) at your local dealer.
Hardware for mounting the ERO Motion Heads 4W to the wall, ceiling, or beam is not included. Contact a
specialist if you're not surewhich hardware is required for your situation. A wooden beam and stone wall
require different mounting methods.
Should you want to suspend the ERO Motion Heads 4W, you will need to attach a safety cable to the
armature. This is not included, but is available at your local dealer. The ERO Motion Heads 4W is equipped
with an eyelet for hooking safety cable. Once it's hooked on, you can wrap the cable around the truss or light
stand and attach it again by means of the same hook. This ensures the device is secured and prevents it
from falling, even if one or both of the brackets should come loose.
Ensure that the safety cable has a load capacity of 10x the weight of the armature and that the device can
not fall farther than 30 cm. You can wrap the safety cable around the truss or light stand several times to
ensure the fall is as short as possible. The shorter the fall, the less chance of damage or injury.
Light source
The ERO Motion Heads 4W has powerful LE modules that create an even more powerful effect thanks to a
special lens that bundles the beams together. Never look directly into the lens from at close range, as the
human eye can't adjust to the sudden intensity of the beam of light this device produces. It won't result in
permanent injury, but it can cause temporary blind spots, which may cause disorientation and discomfort.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -

Cooling
The ERO Motion Heads 4W is cooled by means of various fans that are located in the main housing per
moving head. These are activated when the device is turned on. Prevent the fans from getting blocked and
check them regularly to ensure they're functioning properly. Any dust or smoke that is drawn in can have a
negative effect on how the device functions.
Parts and repair
This product does not include spare parts and can not be repaired by the user. All inspections and overall
maintenance should be done by a specialist.
Cleaning and maintenance
Clean the exterior of this device monthly with a dry, or slightly damp microfibre cloth. Ensure that the device
is unplugged before cleaning it.
Check if all the screws are intact and secured and tighten or replace them where needed. Check all metal
parts of the device for any signs of corrosion. If corrosion is found, the device needs to be checked
thoroughly.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -

DMX lighting troubleshooting
If you have a problem with your MX light effect, please consult the troubleshooting section for possible
solutions. If, after consulting this section, the problem remains unresolved, please contact your dealer for
more information and/or help.
This troubleshooting section contains information on how to solve the most common MX light effect
problems, but it does not and cannot cover every eventuality. It is possible that you won't find your problem,
cause and solution in this section due to differences between various connecting devices.
Problem Possible cause Solution
The device can not be turned on. A fuse is blown Check the fuse to rule out if it is
blown or not. If it is blown, replace
it with a new fuse of the same type
and class.
Power cable not plugged in Check if the power cable is
properly connected to the device
andplugged into an active power
socket.
The device is not reacting to MX
signals
Incorrect MX start address Check if the device has been set
to the correct MX start address
MX controller is on ‘Blackout’ Make sure the ‘Blackout’ function
on the MX controller is not
activated
Make sure the polarity switch on
the MX controller is set correctly
Try to reverse the MX polarity
switch on the MX controller.
The device is not reacting, there is
no MX signal indication
Make sure the XLR cables are
connected properly and are not
defective. Replace if necessary.
The device does not react to
sound/music
Incorrect operation mode Make sure the sound-activated
mode has been selected
The internal microphone sensitivity
is too low
Check the microphone sensitivity
level and increase it if necessary.
The speaker is too far away, or is
not producing enough low tones
Place the light effect closer to a
speaker (or vice versa) and/or
increase the low-frequency level.
The built-in microphone is not
triggered by high tones.
The amount of projected light is
minimal
irty or dusty optics Clean the lens and/or other optics
immer is not completely open Check if the dimmers on the spot
lights themselves or if the master
dimmer is completely open.
The MX signal appears to be
interrupted and some devices are
flashing or behaving strangely
amaged/defective cables Check and replace the MX
cables if necessary.
Power interference on the MX
signal
Avoid connecting signal cables
parallel to power cables
MX terminator missing Close the MX circle with a MX
terminator
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -

Signal loss or interference in the
MX circle
Close the MX circle with a
terminator or connect a booster
after maximum 32 fixtures.
The device is not reacting to MX
commands
Incorrect MX channel mode Check if the device is set to the
correct MX channel mode
The pan and tilt values do not
react to MX commands
Pan/tilt inversion is activated Check if pan/tilt inversion is
activated in the menu
The operation mode can not be
changed
The device is in Slave mode If the device is in Slave mode, it
will wait for a master signal unless
there is a MX signal present. Set
the device to Master to activate the
sound-controlled or automated
operation modes.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -

Technical specifications
- LE moving head system on an electronic beam
- light source: 4x 10 W bright white LE s
- equipped with projector lens for narrow dispersion angle
- metal housing with plastic moving heads
- LE display with menu buttons
- various operation modes
- automatic mode with 16 programs that are adjustable in speed in 9 steps
- Sound-controlled mode with adjustable sensitivity
- Master/Slave mode (2 slave modes)
- Pan/Tilt inverse option
- MX control via 6, 12, 14 or 27 channels
- built-in macros for movement and chases with individually adjustable speeds in 6-channel mode
- MX control via 3-pole XLR
- dispersion angle: 4 degrees per head
- light yield: 83700 lux at 1-metre distance
- separate mounting brackets, including quick couplers
- built-in 35mm stand adapter
- rubber feet on underside for grip during upright operation
- equipped with eyelet for optional safety cable
- fuse: 7AL, 250V (for device only)
- power supply with IEC C13 / 14 inputs and outputs, max. 9A
- 400Hz constant current LE driver
- to be used in environmental temperature: 0 - 40 degrees Celsius
- maximum environmental temperature during regular use: 24 degrees Celsius
- maximum power consumption: 64.1W
- power factor: 0.517
- power consumption: 0.54A
- power supply: 90-240V AC, 50/60 Hz
- dimensions: 800 x 90 x 230 mm
weight: 12.5 kg
Menu functions
- Blackout function when display is not in use
- isplay Invert option
- pan/tilt invert option for all heads
- Test function (to check movement and colour)
- Reset function (restart the device)
- Time register readable
- Firmware Version readable
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials:24-01-2017 RV Revision date and author's initials: -
