Ayra OSO SCENE 48 User manual

OSO SCENE 48
DMX controller
User manual
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 2.0 Creation date + author initials: 29-03-2014 RV Revision date + author initials: 29-03-2014 RV

Safety instructions
This unit must be operated by, or under the supervision of an adult. This device is not suitable for children.
Every person involved with the installation, operation and maintenance of this device has to:
- Be qualified
- Follow the instructions of this manual
- Ma e sure there is no damage caused by transport. If the device seems damaged from the outside, do not
use it and contact your dealer for more information and consultation.
- To ma e sure the device maintains in perfect condition and for safe operation, it is necessary for the user to
follow the instructions and warning notes of this user manual.
- Damage caused by improper use or modifications to the device are not covered by warranty.
- This device does not have any user-serviceable parts inside. Servicing of this device needs to be done by
qualified technicians.
Important notes regarding safety and health
- Never let the power cord come in contact with other cables. Handle the power cord and all connectors with
the mains with caution.
- Never remove any warning or informative labels from the unit
- The ground contact always needs to be connected. Do not cover or remove the ground contact.
- Never leave cables lying around
- Do not open the device and do not modify any hard- or software of this unit.
- Do not insert this object into air vents.
- Do not connect this device to a dimmerpac .
- Do not switch the system on and off frequently as this will reduce the lifespan of the device.
- Do not drive the inputs of the fixture with a signal larger than required to wor at full performance.
- Only use this device indoor, avoid contact with water, moist or other liquids. Do not place items filled with
liquids on top of the unit.
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 2.0 Creation date + author initials: 29-03-2014 RV Revision date + author initials: 29-03-2014 RV
WARNING!
Always keep this device away from moisture and rain! Hazardous electrical shocks may occur!
WARNING!
Only connect this device to a matching power outlet. This device is intended to work on a
specified AC currency. Connecting this device to power outlets with other voltages may result in
permanent damage and possible hazardous situations, such as fire or electrical shocks!
WARNING!
Be careful with every operation of this device. Touching live wires inside and outside the unit
may cause hazardous electrical shocks!

- Avoid nearby flames or heat sources, do not place this device near flammable liquids, gas or flammable
items.
- Always disconnect the device when it is not in use for a longer period or time, when servicing is needed or
when the device needs cleaning.
- Only handle the power cord by its connectors. Never pull the cable to remove a connector from its soc et,
as this could lead to damage and electrical shoc s.
- Always operate this device with a stable AC current.
- Always operate this device with the AC ground wire connected to the electrical system's ground.
- Never use other types of cables than specified in the manual, do not use defective or bad functioning
cables. Contact your dealer when the included or required cables do not wor properly with this device.
- When the device has been exposed to large temperature differences (for example, transport from outdoor
to indoor), do not connect the device immediately. Do not activate the unit until it has reached room
temperature, as moist might build up inside the unit, which may cause shortcuts and/or electrical shoc s.
Guidelines and types of use
- This device is intended to be used by professionals on stage, in theaters, clubs and other equal venues.
- This device is not suitable for children and always needs to be operated by an adult.
- Only use the device when the environment is suitable and will not cause any damage. Do not use the
product in moist or dusty environments, or where long-term damage may occur such as:
- indoor swimming pools where chlorine is used.
- Beaches, where sand and salt are present.
- Outdoor, without roof protection
- Indoor areas where intense heat sources are present or where the temperature exceeds levels
which are comfortable for humans.
- Only use the included power adapter and only connect the device to a suitable power outlet with the correct
output voltage. Connecting the device to a power outlet with the wrong type of voltage or using the product
with a wrong type of power supply may cause permanent damage to the device.
- Avoid shoc s and collision during use and transport. Do not transport the device while in use. Avoid brute
force during the installation and operation of this device.
- Familiarize yourself with the functions of the device before use. Do not allow operation of the device by
uns illed or unqualified people.
- Use of the device in other ways than described in this user manual may cause damage and injury. Ayra
does not ta e responsibility for any damage or injury caused by improper use.
Storage and transport
- This device is intended for mobile use. When transported, use the original pac aging of the product, or a
fitting flightcase, preferably filled with foam.
- This device is not intended for permanent use. Operation brea s will ensure that the lifespan of the device
remains unchanged.
- If the device is not used for a longer period of time, disconnect it from its power source and store it in its
original pac aging, or in a fitting flightcase.
- Store the device indoor, dry and do not expose the device to extreme temperature differences.
Housing
- Inspect the housing of the device frequently. Severe dents, crac s and missing screws should be avoided
at all costs. Do not use the device when the housing is not in optimal condition. Contact your dealer or a
s illed technician when in doubt about the state of the device
- Chec the fixture and screws for corrosion. Corrosion should not be present on the fixture. Contact your
dealer or a s illed technician when corrosion is found on the fixture
- Every power or signal chassis/connector should be mounted tightly. Do not use the device when connectors
are loose.
- Do not use the power cord when the cores are visible. Contact your dealer for a replacement if needed.
- Avoid the buildup of dust and dirt. Clean the exterior of the fixture every month with a dry or damp cloth.
When using the device intensively, the cleaning frequency needs to be increased.
Fuses
- The main fuse of this device is to be found on the rear of the device. In most cases, directly next to the
power inlet.
- Only replace a fuse for a new one with the same type and rating! Do not use a fuse with a higher or lower
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 2.0 Creation date + author initials: 29-03-2014 RV Revision date + author initials: 29-03-2014 RV

rating.
- Do not bridge the fuse with electrical wires, aluminum foil, as the fuse is used for protection against
electrical shoc s and short circuit.
- Always mount the fuse cover bac to the fuse compartment.
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 2.0 Creation date + author initials: 29-03-2014 RV Revision date + author initials: 29-03-2014 RV

Box contents
Box contents
1x OSO Scene 48 DMX controller
1x power supply
Unit and accessory inspection
- Always chec the unit, box and accessories for possible damage before use. If you suspect that something
is wrong with the unit, do not connect it to a power source! When you suspect that your unit is bro en or
damaged, contact your local dealer or a certified technician to inspect the unit.
- If any of the parts that should be included is missing, contact your local dealer for help.
- If the box appears severely damaged, soa ed with liquid or ripped apart, do not unpac the product and
contact your local dealer for help and more information.
- Always preserve the original box and pac aging materials as long as the warranty period is active. This
way, the device can be transported for repair and inspection safely.
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 2.0 Creation date + author initials: 29-03-2014 RV Revision date + author initials: 29-03-2014 RV

Device overview
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 2.0 Creation date + author initials: 29-03-2014 RV Revision date + author initials: 29-03-2014 RV

Product overview
NUMBE
R
TYPE FUNCTION
1 Channel fader 1-12 (25-
36)
Changes the value of channels 1-12 (25-36) from 0
to 255
2 Channel flash button 1-12
(25-36)
Changes the value of channels 1-12 (25-36) to
100% while holding
3 Channel fader 13-24 (37-
48)
Changes the value of channels 13-24 (37-48) from
0 to 256
4 Scene playbac LED
indicators
Indicates the activation of a certain scene or chase
5 Channel flash button 13-
24 (37-48)
Changes the value of channels 13-24 (37-48) to
100% while holding
6 Down/Beat Rev Down function: to modify a scene in EDIT mode
Beat Rev: Used to reverse the chasing direction
during playbac of a chase (music controlled)
7 Up/Chase Rev Up function: to modify a scene in EDIT mode
Chase Rev: Used to reverse the chasing direction
during playbac of a chase (speed fader controlled)
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 2.0 Creation date + author initials: 29-03-2014 RV Revision date + author initials: 29-03-2014 RV

8 LCD display Shows information about actual values, activity or
programming mode
9 Delete/Rev One Delete: Delete a step in a chase
Rev One: Reverse the chasing direction of any
specific program
10 AUX 1 Patchable nob, used to change the value of a
certain (changeable) channel directly
11 Insert/% or 255 Insert: Add 1 step or multiple steps to a chase
% or 255: Change the display value cycle between
0-255 or 0-100%
12 AUX 2 Patchable nob, used to change the value of a
certain (changeable) channel directly
13 Edit/All Rev Edit: Activate EDIT mode
All Rev: Reverse playbac of all programs/chases
14 Record/Shift Record: Activate Record mode or program a step
Shift: Activates the alternative (second) function of a
certain button
15 Audio/Page A-B Audio: Activates music-controlled playbac
Page A-B: switches the channel faders in live mode
between 1-24 and 25-48. Hold Record + Page A-B
to switch between the channel pages
16 Blind Ta e a channel out of a program temporarily in the
Chase <> Scene mode
17 Dar Temporarily blac out for the overall output (all
values 0)
18 Home Deactivates the Blind on a given channel
19 Par Used to select Single/Mix chase
Used to bring channel 13-24(37-48) to full of current
setting
Used to program a scene into the Master B slider,
depending on the current mode
20 Mode Select/Rec Speed Mode Select: Used to change the operating mode
Rec Speed: Sets the speed of any programs
chasing in Mix Mode
21 Tap Sync Repeatedly tap this button to the beat of the music,
to establish a manual music speed setting
22 Hold Hold a momentarily created scene
23 Page Tap to switch between pages of both A and B (1-4)
24 Full On Bring all 48 channels to 100% intensity
25 Step Used to go to the next step when the Speed fader is
set to Show or Edit mode
26 Add/Kill/Rec Exit Add mode: multiple scenes or flash buttons will be
on simultaneously
Kill mode: Press any flash button to ill running
scenes or chases
Rec Exit: Quit the Program or Edit mode
27 Blac out Kill all output, Full On function is enabled
28 Audio Level Fader Adjust the audio sensitivity when in Audio Trigger
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 2.0 Creation date + author initials: 29-03-2014 RV Revision date + author initials: 29-03-2014 RV

mode
29 Speed Fader Adjust the speed of running chases
30 Fade Fader Adjust the fade-in, fade-out and cross-fade time
31 Master A/B Adjusts the overall intensity of group A and B

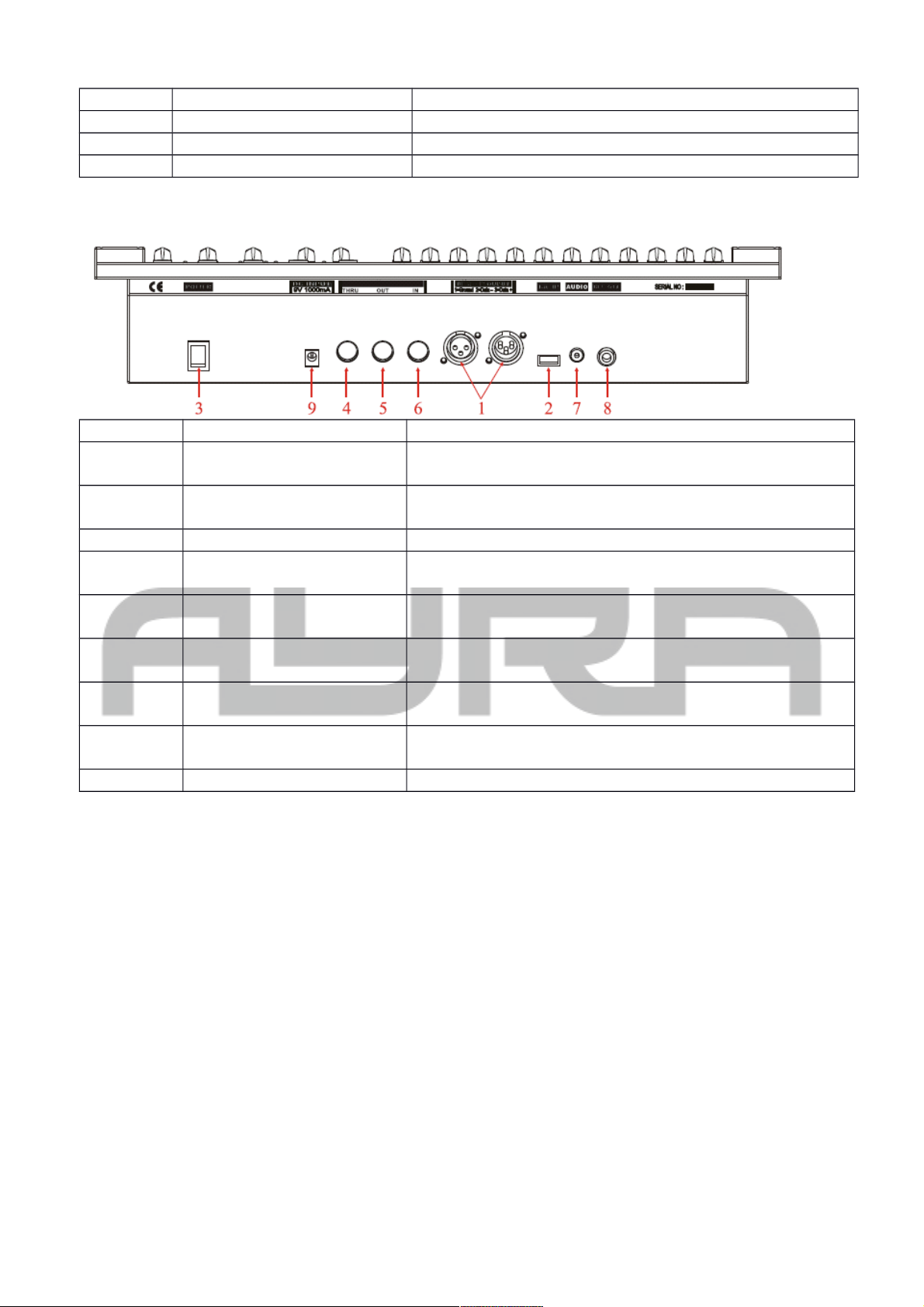

NUMBER TYPE FUNCTION
1 3-pin DMX OUT
connector
DMX output to lighting fixtures
2 USB lamp soc et Power supply for the included USB goosenec LED
light
3 ON/OFF power switch Turn the power on or off
4 MIDI THRU MIDI port to send received or created MIDI data
trough
5 MIDI IN MIDI port to receive MIDI information from an
external device
6 MIDI OUT MIDI port to send MIDI information to an external
device
7 AUDIO IN RCA mono connector, capable of receiving line level
audiosignals for the music controlled mode
8 Remote input Blac out and Full On, controlled by a footswitch with
6.35mm jac
9 DC input 9V DC 1000mA input for the included power supply
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 2.0 Creation date + author initials: 29-03-2014 RV Revision date + author initials: 29-03-2014 RV

USED TERMS
Blackout: A state where the overall DMX output is set to 0, commonly extinguishes any activity from any
connected DMX-controlled lighting fixture
DMX-512: A term which states the name of the used protocol to control intelligent stage lighting
Fixture Refers to the device that projects light (such as a DMX LED Parcan, DMX dimmer, movinghead,
scanner or lighting effect)
Programs Also named Chase. A chase consists of a set of scenes, arranged in a specific order,
continuously looping with a variable speed.
Scene Static lighting situations with certain values/positions
Sliders Also called Faders. A nob that can slide from one position to another, variable
Chases See: Programs
Scanner Refers to a lighting fixture, equipped with a mirror, capable of moving up and down by using
stepping motors. Most DMX-controllers use this term to describe an intelligent DMX-controlled lighting fixture
(such as movingheads, lighting effects or LED Parcans)
MIDI A standard of presenting musical information in digital format. Also capable of sending certain control
signals from one device to another and vice versa.
Stand Alone The function of a fixture/lighting device to run one or several internal programs without using a
DMX lighting controller
Fade slider Determines the amount of time it ta es to change the values between the switch from one
scene to another (functional with movement and RGB color mixing) in a chase
Speed slider Determines the time between one scene and another in a chase
Shutter A mechanical device inside a lighting fixture, used to temporarily bloc any output from the device
Patching The process of re-assigning certain DMX-channels to certain channels on your DMX console for
your convenience. (E.g. when you have different fixtures with the same options on different channels)
Playback Scenes or chases, activated by the user in live mode.
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 2.0 Creation date + author initials: 29-03-2014 RV Revision date + author initials: 29-03-2014 RV

Setting up the device
- Place the device on a flat surface, or mount it in a 19 inch flightcase or rac .
- Plug the AC/DC power converter (supplied) into the rear panel of the unit and plug the other end into a wall
outlet or power distribution system.
- Connect your DMX-lighting by using XLR-XLR cables (Ayra recommends using special DMX 110 Ohm
cables, such as Procab REF953). Daisy-chain all your DMX lighting until every fixture is connected. Set the
correct DMX addresses (see the manuals of every individual product).
- Turn on the unit
Physical fader assignment (OPTIONAL)
IT is possible to collect certain fixture attributes and control them by using just a few of your faders. This
might come in useful when you use different fixtures with similar functions, on different channels. This way
you are able to patch certain DMX-channels (functions) to a certain control channel of your DMX console.
This function is useful for movement (pan/tilt), gobo change, color change, color mix, dimming and strobe
features of your DMX fixtures.
1. Press and hold the RECORD button.
2. While holding the RECORD button, press flash button 6 three times
3. While in this mode, press the Flash button that you wish to assign the DMX channel output to.
4. While holding RECORD, press the Flash button corresponding to the DMX output that you wish to assign
the fader to.
5. Repeat steps 2-3 as often as necessary.
6. Press and hold RECORD + Exit to exit this mode
1. Press and hold the RECORD button, ress fader 6 three times
2. Press flash button 1
3. While holding the RECORD button, ress Flash button 5
4. You assigned fader 1 to DMX channel 5
5. Press and hold RECORD + Exit to exit the mode
NOTE All physical faders can be assigned to output on a different DMX-channel. For optimal control, you
are able to place a different label on the controller.
You can chec what the assignment of a certain channel is, by pressing the Fader button of the
corresponding channel while in this mode
There is no limit to the amount of channels that can be assign to a single fader. You are able to assign all 48
DMX-channels to one fader.
CHNO corresponds to the physical channel fader. SLDNO corresponds to the DMX output channel
Switching between Page A and Page B (1-24, 25-48)
Press and hold the RECORD button. While doing that, press the PAGE A-B button. If you are on page A, you
will go to page B and vice versa.
Page A: 1-24
Page B: 25-48
There is an additional set of 4 pages on page B, for playbac control
NOTE When the controller turns on, it will display the last used page
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 2.0 Creation date + author initials: 29-03-2014 RV Revision date + author initials: 29-03-2014 RV

Programming and editing
Record enable
To enter the PROGRAM mode of this device, follow the described steps:
1. Hold the RECORD button and press Flash buttons 1-5-6-8 in this order.
2. Release the RECORD button. The RECORD LED will light up.
Create a program
A program in this lighting controller can be a static program (one scene) or a combination of several scenes,
looped in a particular order (chase). Both scenes and chases can be activated by using the corresponding
faders in playbac mode.
1. Enable the RECORD mode (see above)
2. Select the 1-24 Single mode by tapping the Mode Select button. This will give control over channel 1-24.
3. Compose a certain scene by moving the faders in the proper position until you are satisfied
4. Press RECORD to save this scene into the temporary memory
While creating a chase:
5. Repeat steps 2-4 until you have your desired scene(s)
6. Adjust the Speed and Fade time, to determine the step speed and value changing speed. This can
optionally be overridden during playbac mode.
7. Select a Scene Master to store your scene. Tap the Page button to select a page 1-4
8. Press and hold the RECORD button and tap the Flash button for the scene you wish to save your program
to. All LEDs will flash, indicating that the scene has been programmed to the permanent memory.
9. You are able to continu programming, or exit the Record mode. To exit, press and hold the RECORD
button and tap the Exit button. Release the Record button.
Edit enable
1. Enable the RECORD mode (see above)
2. Use the Page button to select the page where the program that you wish to edit, is located
3. Tap the Mode Select button to select Chase..Scenes.
4. Press and hold the Edit button and tap the Flash button (13-24) of the Scene you wish to edit
5. Release the Edit button. The relevant Scene LED should light, indication that you are in Edit mode.
Note When the EDIT mode is entered properly, the display will show a ‘EDITING’ message.
Erase a program
1. Enable the RECORD mode (see above)
2. Use the Page button to select the page where the program you wish to delete,, is located
3. Press and hold Record button and tap the Flash button (13-24) twice, of the scene you wish to erase
4. Release the Record button and all LEDs should be lit to indicate that the program is erased
Erase all scenes/programs
1. Enable the RECORD mode (see above)
2. Press and hold Record button
3. While holding the Record button, tap the following Flash buttons in this order: 1-3-2-3.
4. Release the Record button.
5. All LEDs should be lit, indicating that all programs have been deleted.
WARNING This function will reset the controller to its factory default settings!
Note You must be in the Record mode to reset the controller. Check the Record LED indicator.
Record Clear
This function is used to clear the temporary memory, which contains recent made scenes/positions.
1. Enable the RECORD mode (see above).
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 2.0 Creation date + author initials: 29-03-2014 RV Revision date + author initials: 29-03-2014 RV

2. Record a scene with 1 or more steps (see above)
3. If you are not satisfied with the scene(s), you may press and hold the Record button and tap the
Page/REC CLR button. All LEDs will flash, indicating that the scenes have been cleared.
NOTE This function will erase all data stored in the temporary memory. This process will not affect any
stored scenes or programs, which have a position on the controller.
Delete a step or multiple steps
1. Enter the EDIT mode (see above)
2. Tap the Step button to scroll to the step you wish to delete
3. Tap the Delete button when you have reached the step.
4. Repeat steps 2 and 3 until you are satisfied with the result
5. Press and hold the REC Exit button. The Scene Button LED will turn off, indicating that you are out of the
Edit mode.
Insert a step or multiple steps
1. Record a scene or multiple scenes you wish to insert, into the temporary memory
2. Be sure you are in the Chase <> Scene function and enter the EDIT mode
3. Tap the Step button to scroll to the step you wish to insert the steps BEFORE. You can use the display to
determine at which step you currently are.
4. Tap the Insert button to insert the step(s) you just created before
5. Exit the EDIT mode.
NOTE See above for more information about entering the EDIT mode
Modify a step or multiple steps
1. Enter the EDIT mode (see above)
2. Tap the Step button to scroll to the step where you wish to edit.
3. While holding the UP or DOWN button, tap the Flash button corresponding to the DMX channel of the
scene you wish to modify until you reach the desired intensity. Chec the value of the channel on the display.
Tap the Flash buttons until every channel has the proper new value.
4. Repeat step 2 and 3 until you are satisfied with the result
5. Exit EDIT mode
NOTE All LEDs will flash, to indicate a successful insert of the new values
Practical information about playback
This controller uses the Channel Faders and Flash Buttons for multiple purposes. Channel faders 13-24 (37-
48) are used to playbac scenes that are already recorded, only in Chase<>Scene mode! In this mode,
Master Fader A will control the manual fader controls of the first 12 channels, while Master Fader B will
control the scenes which are played bac .
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 2.0 Creation date + author initials: 29-03-2014 RV Revision date + author initials: 29-03-2014 RV

Playback
Playing a scene
1. Tap the Mode Select button to select the Chase<>Scene mode
2. Tap the Page button to go to the page where your Scene is stored
3. Push Master Fader B to its maximum position (NOTE 100% intensity = full down!)
4. Move the desired Channel fader (13-24) to its maximum position, the Scene will fade in smoothly,
depending on the selected fade time.
5. Move the Channel fader to adjust the intensity of the current program
NOTE The current mode is indicated by 3 LEDs. Red is the Chase <> Scene LED. Yellow is the A/B
selection, green is the 1-24 single mode LED.
Playing a scene to audio triggering
1. Select your Scene as described above
2. Tap the Audio button until the LED lights up, indicating that the AUDIO mode is active.
3. Use the Audio Level fader to adjust the sensitivity. Pay close attention to the behavior of your connected
light and the change in values on the controller.
4. To return to the normal mode, tap the Audio button a second time, causing the LED to turn off and to close
the mode.
NOTE You are free to choose one of the audio-activated options. Use the built-in microphone, or use
a line-signal from a music signal source, such as a PA- or DJ-mixer.
Playing a scene with the speed slider
1. Select your scene as described above
2. Move the Speed slider to SHOW MODE position (full down)
3. Press and hold the REC Speed button and tap the corresponding Flash button (13-24). The scene tapped
will no longer run on the standard programmed speed. Move the Speed Fader to correct the playbac speed.
Playing a scene with the standard beat
1. Tap the MODE Select button to select Chase<>Scene mode
2. Tap the Par button to select Mix Chase mode. The LED will activate, indicating that the mode is selected.
3. Select your Scene as described above.
4. Move the Speed fader until the display reads the selected value
5. Press and hold the REC Speed button and tap the Flash button (13-24) you wish to apply the speed
setting on
6. The Scene will now run with the new selected time/beat when activated
7. Repeat steps 4 and 5 to set a new beat time.
NOTE Chec if the Audio mode is disengaged. As an alternative to the Speed slider, you may also use the
Tap Sync function to determine the time between steps
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 2.0 Creation date + author initials: 29-03-2014 RV Revision date + author initials: 29-03-2014 RV

Practical options and information
Change the speed mode between 5 and 10 minutes
1. Press and hold the Record button
2. Tap the Flash Button 5 or 10 three times
3. The 5min or 10min button should activate, indicated the Speed fader is set to this certain value
Auxilary controls
The unit is equipped with two auxiliary nobs, with infinite turning capability. The AUX nobs can determine a
value between 0 and 255, just li e the regular channel faders.
1. Press and hold the Record button and tap Flash button 7 or 8 three times. The display should notify you
about the activation of this mode
2. There are three options;
- FUNC1: States that the selected auxiliary control is not assigned to any channel
- FUNC2: States that the auxiliary control wor s li e the channel fader, along with flash function
- FUNC3: States that the rotary nob acts to set the total output of the flash button below it
3. While holding the Record button, select the function you wish to activate for the auxiliary. Press Flash
button 1, 2 or 3, corresponding to the above described features
4. To assign the auxiliary to a channel, press the Flash setup button for the channel you wish to assign the
auxiliary to. This sets the channel assignment. The corresponding LED above the channel will light up,
indicating that the auxiliary has been assigned.
5. Exit the RECORD mode (see above)
Note Refer to the display, to see the functions that are currently being edited
Note Press 7 three times for AUX 1, press 8 three times for AUX 2
Note While assigning an auxiliary for FUNC2, the fader for that channel will be de-activated
Note While assigning an auxiliary for FUNC3, the channel fader and auxiliary control both wor for the
channel. It has HTP (Highest Ta es Priority) value settings.
DMX
DMX is a protocol with 512 channels. Each channel may contain a value between 0 and 255 (256 values).
A lighting fixture ‘listens’ to certain channels by setting the correct DMX starting address. From that position,
the unit will listen to that particular channel and if needed, also the following channels.
For example, a 6-channel device, with a starting address of 22, will ‘listen’ to channel 22 – 27. Starting
addresses can be chosen in any particular order of connected fixtures. Also the order of the connected
fixtures is not important.
DMX-controlled devices can be daisy-chained using XLR-XLR cables. AYRA recommends the use of 110
Ohm DMX cables and a DMX terminator (110 Ohm, see below) at the end of a DMX chain.
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 2.0 Creation date + author initials: 29-03-2014 RV Revision date + author initials: 29-03-2014 RV

MIDI operation
MIDI IN operation
The controller will only respond to MIDI signals that are sent to the MIDI channel it responds to. All MIDI
control is performed by using MIDI Notes on commands. All other MIDI instructions are ignored. To stop a
chase, you need to send a blac out on note.
1. While holding the Record button, tap Flash button 1 three times. The display will show “MIDI CHANNEL
IN” to activate channel setup.
2. Select the MIDI control channel (1-16) by tapping Flash button 1-16. The relevant LED will light up and
confirm the setting.
3. While holding down Record, tap the REC Exit button to leave the MIDI setting.
NOTE By selecting the MIDI channel, the DMX controller will receive MIDI notes on that specific channel.
NOTE When wor ing with MIDI notes 27-93, you may simulate a fader level increase by changing the
velocity of the note.
MIDI OUT operation
1. While holding the Record button, tap Flash button 2 three times. The display will show “ MIDI CHANNEL
OUT” to activate channel setup
2. Select the MIDI control channel (1-16) by tapping Flash button 1-16. The relevant LED will light up and
confirm the setting.
3. While holding down Record, tap the REC Exit button to leave the MIDI setting.
NOTE This is the channel that the controller will send out to external devices.
Receiving MIDI File Dump
1. While holding the Record button, tap Flash button 3 three times. This display will show “ MIDI FILEDUMP
RECEIVING 000%” when the device is in the correct mode.
2. While holding down Record, tap the REC Exit button to leave the MIDI setting.
NOTE This function will only wor with this device, not with any different brands/types.
NOTE It may ta e some time before the transfer is completed.
NOTE Once the right mode on both devices is selected, the FILE DUMP process will start automatically
NOTE During FILE DUMP, all other functions are disabled and will not function properly.
NOTE When the power of one or both devices fails or when there is an error, the FILE DUMP process will
be eliminated and stopped.
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 2.0 Creation date + author initials: 29-03-2014 RV Revision date + author initials: 29-03-2014 RV

Sending MIDI File Dump
1. While holding the Record button, tap Flash button 4 three times. This display will show “ MIDI FILEDUMP
SENDING 000%” when the device is in the correct mode.
2. While holding down Record, tap the REC Exit button to leave the MIDI setting.
NOTE This function will only wor with this device, not with any different brands/types.
NOTE It may ta e some time before the transfer is completed.
NOTE Once the right mode on both devices is selected, the FILE DUMP process will start automatically
NOTE During FILE DUMP, all other functions are disabled and will not function properly.
NOTE When the power of one or both devices fails or when there is an error, the FILE DUMP process will
be eliminated and stopped.
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 2.0 Creation date + author initials: 29-03-2014 RV Revision date + author initials: 29-03-2014 RV

DMX lighting troubleshooting
If you have any problems with DMX lighting, consult this troubleshooting section to solve any difficulties with
your product. If this troubleshooting section does not solve your problem, contact your dealer for more
information and help.
This troubleshooting section contains the most frequent problems and is not a complete collection of possible
faults, defects and solutions. The troubleshooting section applies for DMX controllers, DMX cabling and DMX
lighting fixtures. It is possible that not all described problems, causes and solutions apply to your situation as
product details may vary from product to product.
Problem Possible Cause Solution
The fixture does not activate itself Blown fuse Chec the fuse compartiment for
blown fuses and replace it if
necessary.
No power cable plugged in Plug in the power supply to a
matching power outlet
Power switch is not in the ON
position
Turn on the device by switching
the ON/OFF switch to the ON
position, if available
The fixture does not respond to
DMX signals
Wrong DMX address Set the DMX address to the right
value
DMX controller blac out function
activated
Deactivate the blac out function of
your DMX controller
Faulty positioning of the DMX
polarity switch on the controller
flip the polarity switch on your
DMX controller
No response or DMX activity
signal LEDs active
Chec your DMX cables for
possible connection brea s and
replace them if necessary.
The fixture does not respond to
sound
Wrong wor ing mode selected. Chec if the sound activated mode
of the fixture is activated.
Microphone sensitivity level is set
too low
Increase the microphone
sensitivity of the built-in
microphone
Spea er placed too far away or
lac of bass
Place your lighting effect closer to
your spea ers (or vice versa)
and/or increase low frequency
volumes. The microphone will not
be triggered with high pitched
sounds.
The beam output is very low Dirty/dusty optics Clean the lens and/or other optics
with a dry or damp cloth
Dimmer is not set to full output Set all dimmer levels to 100% on
your DMX console
Sometimes the DMX signal is lost
and/or some fixtures are
flic ering / behaving odd
sometimes
Faulty/bro en DMX cables Chec your DMX cables for
possible connection brea s and
replace them if necessary.
Power cable interference on your Avoid installing the DMX and
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 2.0 Creation date + author initials: 29-03-2014 RV Revision date + author initials: 29-03-2014 RV

DMX signal (high) power cables parallel to
each other.
No DMX terminator Apply a DMX terminator at the end
of your DMX-chain
Signal loss or distortion in DMX
values
Apply a DMX booster in your DMX
chain after 32 fixtures or less. After
a maximum of 32 fixtures the DMX
signal needs to be refreshed.
Moving parts are not functioning
well, values do not match and/or
rattling sounds are noticed
Faulty stepping motor positioning Possible value loss of stepping
motors. Activate the reset function,
or unplug the power supply and
plug it bac in to activate the reset
program. This will reset all values
to the original 0-point.
The fixture does not respond fast
enough to the set speed on my
DMX controller
Moving parts can not eep up with
the set speed
Decrease the chase speed of your
DMX controller, as the stepping
motors of your fixture need some
time to move from one point to
another.
The fixture does not respond to all
DMX-channels
Wrong DMX channel mode Chec the DMX channel mode of
the fixture. If the wrong value is
set, change the channel mode to a
different setting and try again.
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 2.0 Creation date + author initials: 29-03-2014 RV Revision date + author initials: 29-03-2014 RV

Technical specifications
- 48-channel DMX-512 dimming console
- 4 pages, each equipped with 12 playbac scenes/chases, 48 in total
- simultaneous playbac for all 48 scenes/chases possible
- 48.000 programmable steps (total)
- each chase may contain up to 1000 steps
- 2 programmable aux nobs
- adjustable chase and fade time
- re-assignable channels
- 3-pin and 5-pin DMX output
- built-in crossfader (A/B), dar and ill buttons
- MIDI IN, OUT and THRU (with file dump)
- direct audio input (line source)
- sequential lin ing or simultaneous playbac of chases
- override chases on the fly
- beat-activation (music controlled), tap sync, autorun, MIDI IN/OUT
- 19 inch mounting brac ets, hidden behind covers on both sides. 6U height
- DMX polarity selector (data pin inversion)
Weight and dimensions:
- dimensions: 485 x 290 x 98 mm
- 19 inch rac mountable, 6U (brac et covers pre-mounted, removable)
- weight: 5 g
Power:
- operating voltage: 9V DC, 1000mA
- adapter plug: 2-pin Edison plug
- wall outlet voltage: 100-240V AC, 50/60 Hz (auto-switch)
Thermal:
- maximum ambient temperature: 40 degrees Celsius
DMX connection:
- DMX-protocol: DMX-512 USITT
- data output: loc ing 3-pin XLR female soc et
- data pin configuration:
- pin 1: shield
- pin 2: -
- pin 3: +
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 2.0 Creation date + author initials: 29-03-2014 RV Revision date + author initials: 29-03-2014 RV
