Ayra ALO 019 User manual

ALO 019
Dual LED scanner
User manual
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 3.0 Creation date + author initials: 21-11-2013 RV Revision date + author initials: 25-11-2014 RV

Safety instructions
This unit must be operated by, or under the supervision of an adult. This device is not suitable for children.
Every person involved with the installation, operation and maintenance of this device has to:
- Be qualified
- Follow the instructions of this manual
- Ma e sure there is no damage caused by transport. If the device seems damaged from the outside, do not
use it and contact your dealer for more information and consultation.
- To ma e sure the device maintains in perfect condition and for safe operation, it is necessary for the user to
follow the instructions and warning notes of this user manual.
- Damage caused by improper use or modifications to the device are not covered by warranty.
- This device does not have any user-serviceable parts inside. Servicing of this device needs to be done by
qualified technicians.
Important notes regarding safety and health:
- Never let the power cord come in contact with other cables. Handle the power cord and all connectors with
the mains with caution.
- Never remove any warning or informative labels from the unit
- The ground contact always needs to be connected. Do not cover or remove the ground contact.
- Never leave cables lying around
- Do not open the device and do not modify any hard- or software of this unit.
- Do not insert this object into air vents.
- Do not connect this device to a dimmerpac .
- Do not switch the system on and off frequently as this will reduce the lifespan of the device.
- Do not drive the inputs of the fixture with a signal larger than required to wor at full performance.
- Only use this device indoor, avoid contact with water, moist or other liquids. Do not place items filled with
liquids on top of the unit.
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 3.0 Creation date + author initials: 21-11-2013 RV Revision date + author initials: 25-11-2014 RV
ARNING!
Always keep this device away from moisture and rain! Hazardous electrical shocks may occur!
ARNING!
Only connect this device to a matching power outlet. This device is intended to work on a
specified AC currency. Connecting this device to power outlets with other voltages may result in
permanent damage and possible hazardous situations, such as fire or electrical shocks!
ARNING!
Be careful with every operation of this device. Touching live wires inside and outside the unit
may cause hazardous electrical shocks!

- Avoid nearby flames or heat sources, do not place this device near flammable liquids, gas or flammable
items.
- Always disconnect the device when it is not in use for a longer period or time, when servicing is needed or
when the device needs cleaning.
- Only handle the power cord by its connectors. Never pull the cable to remove a connector from its soc et,
as this could lead to damage and electrical shoc s.
- Always operate this device with a stable AC current.
- Always operate this device with the AC ground wire connected to the electrical system's ground.
- Never use other types of cables than specified in the manual, do not use defective or bad functioning
cables. Contact your dealer when the included or required cables do not wor properly with this device.
- When the device has been exposed to large temperature differences (for example, transport from outdoor
to indoor), do not connect the device immediately. Do not activate the unit until it has reached room
temperature, as moist might build up inside the unit, which may cause shortcuts and/or electrical shoc s.
Guidelines and types of use:
- This device is intended to be used by professionals on stage, in theaters, clubs and other equal venues.
- This device is not suitable for children and always needs to be operated by an adult.
- Only use the device when the environment is suitable and will not cause any damage. Do not use the
product in moist or dusty environments, or where long-term damage may occur such as:
- indoor swimming pools where chlorine is used.
- Beaches, where sand and salt are present.
- Outdoor, without roof protection
- Indoor areas where intense heat sources are present or where the temperature exceeds levels
which are comfortable for humans.
- Only use the included power adapter and only connect the device to a suitable power outlet with the correct
output voltage. Connecting the device to a power outlet with the wrong type of voltage or using the product
with a wrong type of power supply may cause permanent damage to the device.
- Avoid shoc s and collision during use and transport. Do not transport the device while in use. Avoid brute
force during the installation and operation of this device.
- Familiarize yourself with the functions of the device before use. Do not allow operation of the device by
uns illed or unqualified people.
- Use of the device in other ways than described in this user manual may cause damage and injury. Ayra can
not be held responsible for any damage or injury caused by improper use.
Storage and transport:
- This device is intended for mobile use. When transported, use the original pac aging of the product, or a
fitting flightcase, preferably filled with foam.
- This device is not intended for permanent use. Operation brea s will ensure that the lifespan of the device
remains unchanged.
- If the device is not used for a longer period of time, disconnect it from its power source and store it in its
original pac aging, or in a fitting flightcase.
- Store the device indoor, dry and do not expose the device to extreme temperature differences.
Housing:
- Inspect the housing of the device frequently. Severe dents, crac s and missing screws should be avoided
at all costs. Do not use the device when the housing is not in optimal condition. Contact your dealer or a
s illed technician when in doubt about the state of the device
- Chec the fixture and screws for corrosion. Corrosion should not be present on the fixture. Contact your
dealer or a s illed technician when corrosion is found on the fixture
- Every power or signal chassis/connector should be mounted tightly. Do not use the device when connectors
are loose.
- Do not use the power cord when the cores are visible. Contact your dealer for a replacement if needed.
- Avoid the buildup of dust and dirt. Clean the exterior of the fixture every month with a dry or damp cloth.
When using the device intensively, the cleaning frequency needs to be increased.
Fuses:
- The main fuse of this device is to be found on the rear of the device. In most cases, directly next to the
power inlet.
- Only replace a fuse for a new one with the same type and rating! Do not use a fuse with a higher or lower
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 3.0 Creation date + author initials: 21-11-2013 RV Revision date + author initials: 25-11-2014 RV

rating.
- Do not bridge the fuse with electrical wires, aluminum foil, as the fuse is used for protection against
electrical shoc s and short circuit.
- Always mount the fuse cover bac to the fuse compartment.
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 3.0 Creation date + author initials: 21-11-2013 RV Revision date + author initials: 25-11-2014 RV

Box contents
Box contents
1x ALO 019 fixture
1x power cable IEC C13 to Schu o
1x power cable IEC C13 to UK plug
Unit and accessory inspection
- Always use the supplied power cable to connect the unit to a power supply. If the cable appears bro en or
has visible damage, do not use it.
- If the unit is not going to be used for a longer period of time, disconnect it from the power supply and store it
in a dust-free environment.
- Always chec the unit for possible damage before use. If you suspect that something is wrong with the unit,
do not connect it to a power source! When you suspect that your unit is bro en or damaged, contact your
local dealer or a certified technician to inspect the unit.
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 3.0 Creation date + author initials: 21-11-2013 RV Revision date + author initials: 25-11-2014 RV

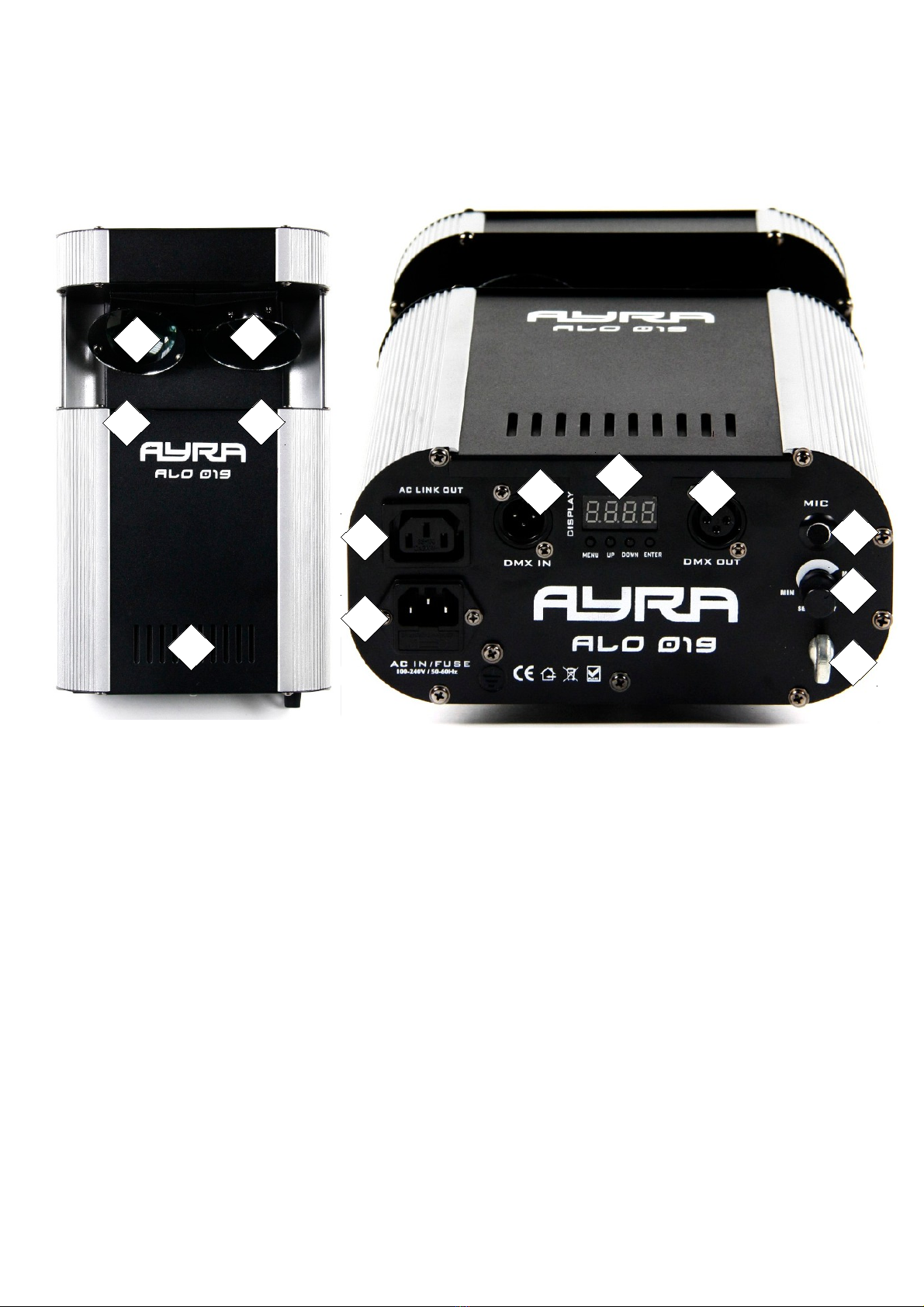

Device overview
1. Moving mirror
2. Beam output
3. Ventilation slot
4. IEC output (Power link)
5. IEC Power input with fuse
6. DMX input (3P XLR)
7. Menu display with buttons
8. DMX output (3P XLR)
9. Built-in microphone
10. Microphone sensitivity
11. Safety eye
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 3.0 Creation date + author initials: 21-11-2013 RV Revision date + author initials: 25-11-2014 RV
1
2
3
4
5
6
7
8
9
2
1
10
11

Setting up the unit
To activate the unit, connect the included power supply with the unit and a suitable 230V, 50 Hz power outlet.
The unit will activate directly after it is plugged in to a wall outlet or other power source.
The ALO 019 is equipped with a digital display, showing current wor ing modes, but is also used to change
certain settings on the fixture. Use the Menu, Up, Down and Enter buttons to cancel, change and confirm
certain settings.
The display will show the following statuses:
display Menu Function
Addr DMX address setting A001-A512
Slau Slave mode Slave function
Soud Sound mode Sound effect
Auto Auto mode Auto running effect
ADDR: DMX address setting, used to determine the DMX starting channel. From this channel on, the fixture
will respond to values, corresponding with the amount of channels that the fixture is occupying. (For
example, when you set the starting address to value 003, the fixture will respond to channels 3, 4, 5, etc.)
SLAU: When using the master/slave function, you need to connect 2 or more fixtures using a XLR 3p male
-XLR 3p female cable. The first fixture in line needs to be set as master, the others as Slave. This way, the
slaves will mimic the behavior of the master fixture for wonderful synchronized lighting shows.
SOUD: Activate or disable the built-in sound controlled mode. This way, the fixture will respond to the beat of
the music.
AUTO: The fixture will perform its own light show, with built-in programs, which change automatically, on a
certain (non-editable) speed.
The ALO 019 is equipped with several wor ing modes, a short explanation for each mode is displayed below
for your convenience:
Auto run mode:
The fixture will run its automatic internal program on a predefined speed.
Sound active mode:
The fixture will run its automatic internal program on the beat of the music, with the built-in microphone. The
microphone sensitivity is adjustable with a potentiometer, located at the bottom of the fixture, below the
microphone.
Please note that the fixture will not (properly) respond to high frequencies. It is also possible that spea ers
are placed too far away from the fixture, which may cause non-responsive behavior in relation to the music.
Master/slave mode:
It is possible to connect several ALO 019 fixtures with standard XLR 3p male – XLR 3p female cables,
without the use of a DMX-controller. In this mode, the first fixture in the chain will perform as master (in the
automatic or music controlled mode). The other fixtures in the chain, set to slave-mode, will mimic the
performance of the first fixture, for synchronized lightshows.
DMX:
The ALO 019 can be connected to a DMX-controller with standard XLR 3p male – XLR 3p female cable.
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 3.0 Creation date + author initials: 21-11-2013 RV Revision date + author initials: 25-11-2014 RV

While doing so, a DMX-terminator must be connected to the last fixture, at the end of the DMX-chain. This
prevents reflections in the DMX-signal, which could cause flic ering and unwanted behavior from your
intelligent fixtures.
A DMX terminator is a XLR connector with a resistor of 120 Ohm, placed between pin 2 and 3 as a bridge.
In DMX-mode you are able to control every feature of this fixture by using the following channel settings:
DMX Channels Channel Value Function
CH1
0 The right motor move cloc wise
1-200 Motor (0º-360º)
201-255 The right motor move counter-cloc wise
CH2
0 The left motor move cloc wise
1-200 Motor (0º-360º)
201-255 The left motor move counter-cloc wise
CH3 0-----255 speed of motor(from fast to slow)
CH4 0-----255 Gobo change of the right scan head
CH5 0-----255 Gobo change of the left scan head
CH6 0-----255 Gobo rotation speed
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 3.0 Creation date + author initials: 21-11-2013 RV Revision date + author initials: 25-11-2014 RV

Installation and maintenance
Installing the fixture in a hanging position
When installing the system in a hanging position (for example, on a truss construction), install proper G-
clamps or half couplers (not included).
NOTE: When installing the system in a hanging position, the following list of safety precautions must be met:
- Use at least one regular clamp, for optimal stability and safety.
- Use at least one safety cable, capable of holding 3x the weight of the system. Safety cables must be
installed in such a way that it is impossible for the system to fall down when one of the mounting points
suddenly brea s
- It is prohibited to install the system by using only safety cables or chains!
Warranty is void when any of the above safety precautions are not met. Ayra can not be held responsible if
any damage or injury occurs due to improper use of the system.
Transport
When using this fixture in mobile setups, provide sufficient protection during transport. Always use the
provided transport box or a protecting flightcase to protect the system.
Replacing the internal fuses
First chec whether a failing power supply may be the cause of malfunction. When you suspect that one of
the internal fuses is bro en, the fuse can be replaced by removing the fuse cover, located on the rear of the
fixture, near the power inputs, outputs and control menu.
ARNING: Before chec ing the fuse, always disconnect the fixture from your wall outlet or any other power
supply to prevent electric shoc s.
Always replace a bro en fuse with a fuse that has the same type and rating. After the fuse has been
replaced, always close the fuse-cover. Reconnect the fixture to your power supply and chec whether the
problem is solved. When this does not solve your problem, contact your local dealer for help.
Spare parts
This unit has no user serviceable parts inside. When any damage to internal components occurs, contact
your local dealer or a specialized technician in order to repair the fixture.
Cleaning:
Clean the housing of the fixture frequently with a damp cloth, to remove dust and/or dirt.
ARNING: Always disconnect the fixture from your wall outlet or other power supply and let the fixture dry
before reconnecting it. This prevents possible electrical shoc s.
The lenses can be cleaned with a non-aggressive glass cleaning solution, but is not recommended. Ayra
recommends to clean the mirror and lens with a fine brush, while removing dust and/or dirt with a vacuum
cleaner. Avoid touching the lenses with your bare fingers, to prevent fingerprints on the optics.
Checkup
To prevent dangerous situations, ma e sure your fixture is in optimal condition before using it. Chec your
fixture frequently by using the following chec list:
- All screws must be mounted tightly.
- Chec all screws and metal parts for corrosion. No visible corrosion may be present.
- The exterior of your fixture must be in optimal condition. Chec your fixture for dents, crac s or missing
parts.
- Your installation spot must be in optimal condition. Chec your installation spot for corrosion, crac s, dents
and strength.
- Electrical components (connectors and cables) must be in optimal condition. Any form of damage (cuts,
exposed wire cores or any other visual deformities should not be present.
If any visual or mechanical damage is detected, contact your local dealer or a specialized technician. Do not
use a damaged or failing fixture.
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 3.0 Creation date + author initials: 21-11-2013 RV Revision date + author initials: 25-11-2014 RV

DMX lighting troubleshooting
If you have any problems with DMX lighting, consult this troubleshooting section to solve any difficulties with
your product. If this troubleshooting section does not solve your problem, contact your dealer for more
information and help.
This troubleshooting section contains the most frequent problems and is not a complete collection of possible
faults, defects and solutions. The troubleshooting section applies for DMX controllers, DMX cabling and DMX
lighting fixtures. It is possible that not all described problems, causes and solutions apply to your situation as
product details may vary from product to product.
Problem Possible Cause Solution
The fixture can not be activated Blown fuse Chec the fuse compartiment for
blown fuses and replace it if
necessary.
No power cable plugged in Plug in the power supply to a
matching power outlet
Power switch is not in the ON
position
Turn on the device by switching
the ON/OFF switch to the ON
position, if available
The fixture does not respond to
DMX signals
Wrong DMX address Set the DMX address to the right
value
DMX controller blac out function
activated
Deactivate the blac out function of
your DMX controller
Faulty positioning of the DMX
polarity switch on the controller
flip the polarity switch on your
DMX controller
No response or DMX activity
signal LEDs active
Chec your DMX cables for
possible connection brea s and
replace them if necessary.
The fixture does not respond to
sound
Wrong wor ing mode selected. Chec if the sound activated mode
of the fixture is activated.
Microphone sensitivity level is set
too low
Increase the microphone
sensitivity of the built-in
microphone
Spea er placed too far away or
lac of bass
Place your lighting effect closer to
your spea ers (or vice versa)
and/or increase low frequency
volumes. The microphone will not
be triggered with high pitched
sounds.
The beam output is very low Dirty/dusty optics Clean the lens and/or other optics
with a dry or damp cloth
Dimmer is not set to full output Set all dimmer levels to 100% on
your DMX console
Sometimes the DMX signal is lost
and/or some fixtures are
flic ering / behaving odd
sometimes
Faulty/bro en DMX cables Chec your DMX cables for
possible connection brea s and
replace them if necessary.
Power cable interference on your Avoid installing the DMX and
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 3.0 Creation date + author initials: 21-11-2013 RV Revision date + author initials: 25-11-2014 RV

DMX signal (high) power cables parallel to
each other.
No DMX terminator Apply a DMX terminator at the end
of your DMX-chain
Signal loss or distortion in DMX
values
Apply a DMX booster in your DMX
chain after 32 fixtures or less. After
a maximum of 32 fixtures the DMX
signal needs to be refreshed.
Moving parts are not functioning
well, values do not match and/or
rattling sounds are noticed
Faulty stepping motor positioning Possible value loss of stepping
motors. Activate the reset function,
or unplug the power supply and
plug it bac in to activate the reset
program. This will reset all values
to the original 0-point.
The fixture does not respond fast
enough to the set speed on my
DMX controller
Moving parts can not eep up with
the set speed
Decrease the chase speed of your
DMX controller, as the stepping
motors of your fixture need some
time to move from one point to
another.
The fixture does not respond to all
DMX-channels
Wrong DMX channel mode Chec the DMX channel mode of
the fixture. If the wrong value is
set, change the channel mode to a
different setting and try again.
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 3.0 Creation date + author initials: 21-11-2013 RV Revision date + author initials: 25-11-2014 RV

Technical specifications
- compact dual LED scanner
- 128 x 5mm LEDs
- 64 red, 40 green, 24 blue LEDs, spread over 2 clusters
- each lens/mirror combination has its own LED cluster
- high power output than s to lens optics
- sound-activated wor ing mode, built-in microphone with adjustable sensitivity
- patterns adjustable for each lens
- mirror movement adjustable for each lens
- expected lifespan LEDs: 100.000h
- several LED patterns with adjustable speed
- complete alphabet included in the pattern selection for each cluster
- DMX-512, stand-alone, sound-control or master/slave mode
- DMX control: 6 channels
- DMX-connection with standard 3p XLR connectors
- Power consumption: 30W max
- Fuse: F3A
- operation voltage: 100-240V AC, 50/60 Hz
- dimensions: 375 x 220 x 160 mm
- weight: 4.5 g
Connectors:
- DMX: 3p XLR male and female
- Power: IEC C14 power input, IEC C13 Power lin output
Included accessories:
- Power cable IEC C13 to Schu o
- Power cable IEC C13 to UK plug
Connectors and wiring schematics:
DMX-connections: Electrical wiring:
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 3.0 Creation date + author initials: 21-11-2013 RV Revision date + author initials: 25-11-2014 RV
