OWNER’S MANUAL

HEATED CARPET SPOTTER

MODEL: S2H-200

BEFORE YOU START:

• SAFETY

• OPERATION

• SERVICE

• PARTS

• TROUBLESHOOTING

• RETURN GOODS POLICY

You have just purchased one of the

finest and most desirable devices for

carpet spot extractions.

Read the following information to obtain maximum

performance and to acquaint you with your new Aztec

Products Carpet Extractor features.

READ and UNDERSTAND this material before operating or servicing this

equipment. Failure to understand how to safely operate this tool could

result in an accident causing serious injury or death.

FOR ASSISTANCE –

CALL 800-331-1423

EASTERN TIME

AZTEC PRODUCTS, INC.

FORM S2-S2H200-1 AZTEC CARPET/HARD FLOOR EXTRACTOR (10-25-02) - 2

Introduction

This manual is designed to make your job easier. However,

there is nothing more important than the safety aids and

instructions that are found throughout this document. The

Safety Alert Symbol is used to identify topics of primary

safety concern wherever they appear. Further, a separate

section has been included, “Important Safety Instructions,”

which deals mainly with accident prevention concepts.

User experience provides the best feedback. We, at Aztek

Products, Inc., welcome your comments and

suggestions.

Purpose of this Manual

This instruction manual is intended to familiarize operators

with safety and maintenance procedures of Aztek Products,

Inc. products.

This manual should be kept available to all operating and

maintenance personnel.

The symbol above is used to call your

attention to instructions concerning your

personal safety. Watch for this symbol. It

points out important safety precautions. It

means “ATTENTION! Become alert! Your

personal safety is involved!” Read the

message that follows and be alert to the

possibility of personal injury or death.

Safety is a critical factor in the design of Aztek Products, Inc. equipment. The best program starts with a safety conscious

operator. The information highlighted in this bulletin describes operating practices for the benefit of the workers who will use

our equipment in their daily jobs. Comments from users are appreciated.

SAFETY

ALERT

SYMBOL

DANGER

Immediate hazards which, if not avoided, WILL

result in severe personal injury or death.

Hazards or unsafe practices which, if not avoided,

COULD result in severe personal injury or death.

Hazards or unsafe practices which, if not avoided,

COULD result in minor personal injury or property

damage.

WARNING

CAUTION

INDEX

Specifications ..................................................................... 2

Safety Alert Symbols .......................................................... 2

Grounding Instructions ...................................................... 3

Return Goods Policy .......................................................... 3

Important Safety Instructions ............................................ 4

Preparing For Use and Operating the Machine .................. 5

Know Your Machine ........................................................... 6

Troubleshooting ............................................................... 11

Warranty........................................................................... 12

SPECIFICATIONS

200°F Heated Solution Tank (110°F water heats to 200°F

in 8 minutes)

Ready to use when dwell time on pre-spray is completed.

1-1/2 Gallon Solution Tank Capacity

2 Gallon Recovery Tank Capacity

Vacuum Lift 102"

Piston Pump delivers 60 PSI

1600 Watt Heating Element

Lights indicate when heating is in process and operating

temperature reached.

Automatic thermostat maintains maximum temperature

during standby periods.

Power Requirement less than 15 Amps

Single Power Cord

10 ft. 1-1/4" ID Flexible Vacuum Hose

10 ft. 3/16" ID Spray Hose

Weight of Spotter w/o solution 18 lbs.

Maneuvers easily on 2" Casters

Easily accessible to fill, empty, clean

Dimensions of Spotter: H-17"L-18" W-13"

Spotter furnished with transparent 3" Upholstery Detail Tool

10 Year Limited Warranty

Applications include auto detailing, commercial and

household carpet and upholstery cleaning

FORM S2-S2H200-1 AZTEC CARPET/HARD FLOOR EXTRACTOR (10-25-02) - 3

GROUNDING INSTRUCTIONS

This appliance must be grounded. If it should electrically malfunction, grounding provides a path of least resistance for

electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment grounding

conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and

grounded in accordance with all local codes and ordinances.

DANGER!

Improper connection of the equipment grounding conductor can result in a risk of electric shock. Check with a qualified

electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug

provided with the appliance. If it will not fit the outlet, have a proper Outlet installed by a qualified electrician.

This appliance is for use on a nominal 120volt circuit, and has a grounding plug that looks like the plug illustrated in Figure 1

below. A temporary adapter illustrated in Figures 2 and 3 may be used to connect this plug to a 2 pole receptacle as shown in

Figure 2 if a properly grounded outlet is not available. The temporary adapter should be used only until a properly grounded

outlet (Figure 1) can be installed by a qualified electrician. The green colored rigid ear, tab, or the like extending from the

adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is

used, it must be held in place by a metal screw. Grounding adapters are not approved for use in Canada. Replace the plug if the

grounding pin is damaged or broken. The Green (or Green/Yellow) wire in the cord is the grounding wire. When replacing a

plug, this wire must be attached to the grounding pin only. Extension cords connected to this machine should be 12 gauge,

three wire cords with three prong plugs and outlets. DO NOT use extension cords more than 50 feet (15 m) long.

PLEASE NOTE: FOR NORTH AMERICA ONLY

RETURN GOODS POLICY

As a Aztec Products, Inc. customer, you are aware that the equipment we design and build is both innovative and unique.

Since this is true, in order to troubleshoot our equipment, we rely heavily on returned defective or failed parts so that we can

examine firsthand the causes of failure While this may at first be an inconvenience, ultimately you benefit from safer and

better designed machine components. Please give us the opportunity to serve you better by following these RGA (Returned

Goods Authorization) rules.

1. We maintain the serial number, date of shipment or sale, and customer name on each piece of equipment sold. If you

were the purchaser, please reference that information on your request for replacement or repair. If you purchased the

equipment through a distributor, please contact them first. If you are not satisfied, contact Aztec Products, Inc. and give

us the Distributor name, purchase date, and the serial number of the product.

2. Order the replacement part from your distributor or Aztec Products, Inc. by calling 800.331.1423 during normal business

hours (8:30-5:00 Eastern Time). We will ship warranted parts at our expense.

3. When dealing with Aztec Products, Inc., ask for an RGA number when you are ordering the replacement part. Return the

failed part to us within 30 days, freight prepaid, exactly as it was at the time of failure. Our inspection and evaluation will

attempt to determine the probable cause of failure.

4. If our inspection reveals that the failed part was defective, we will credit your account for the entire amount of the part

including your cost of return freight. When incomplete parts are returned for credit, their condition or state of in

completion will be assessed against the credit claim at the sole discretion of Aztec Products, Inc.

5. We also offer to do warranty related repairs free of charge at our facility. Arrangements must be made in advance as

outlined above. We will not accept freight collect returns or returns that do not indicate the RGA # on the packing list.

Your satisfaction in all of your dealings with Aztec Products, Inc. is extremely important to us. We intend to be reasonable on

any matter that is related to our warranted service or other wear-related problems which our customers feel need attention.

Please help us to help you. Before assuming that a part is defective, check the repair manual to see if the problem might be

something that you or one of your employees might be capable of correcting. If it is not, follow the above policy and depend

on us to respond quickly and responsibly.

FORM S2-S2H200-1 AZTEC CARPET/HARD FLOOR EXTRACTOR (10-25-02) - 4

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

Read all instructions before using this appliance.

WARNING!

To reduce the risk of fire, electric shock, or injury:

•Do not leave the appliance when it is plugged in. Unplug the unit from the outlet when not in use and before servicing.

•To avoid electric shock, do not expose to rain. Store indoors.

•Do not allow to be used as a toy. Close attention is necessary when used near children.

•Use only as described in this manual. Use only the manufacturer’s recommended attachments.

•Do not use with damaged cord or plug. If the appliance is not working as it should be, has been dropped, damaged, left

outdoors or dropped into water, return it to a service center.

•Do not pull or carry by the cord, use the cord as a handle, close a door on the cord, or pull the cord around sharp

edges or corners.

•Do not run the appliance over the cord. Keep the cord away from heated surfaces.

•Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.

•Do not handle the plug, cord or appliance with wet hands.

•Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything

that may reduce air flow.

•Keep loose clothing, hair, fingers, and all parts of body away from openings and moving parts.

•Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes, or any health

endangering dusts.

•Turn off all controls before unplugging.

•Use extra care when cleaning on stairs.

•Do not use to pick up flammable or combustible liquids such as petrol or use in areas where they may be present.

•Anyone designated to operate this equipment must, without fail, read and understand these instructions before

attempting to operate the equipment.

•Always disconnect electrical cable from outlet before attempting adjustments or repairs.

•Always use a grounded electrical outlet.

•Never use out of doors or in the rain!

•Never put flammable or explosive materials in this equipment. Never operate equipment in an environment where these

materials are present.

•Never use equipment as a toy.

•Do not allow the unit to freeze.

•Do not operate in standing water.

•Do not operate if power cords, hoses, etc. are cracked, frayed, leaking or otherwise in need of repairs.

•Do not operate under any unsafe conditions.

WARNING

A person who has not read and does not understand all

operating instructions is not qualified to operate this tool.

Failure to read and understand safety instructions may

result in injury or death.

WARNING

Disconnect power before working.

Electric shock may occur.

SAVE THESE

INSTRUCTIONS

Additional copies of this manual

are available upon request at:

AZTEC PRODUCTS, INC.

4304 Bethlehem Pike

Telford, PA 18969

FORM S2-S2H200-1 AZTEC CARPET/HARD FLOOR EXTRACTOR (10-25-02) - 5

PREPARING FOR USE AND OPERATING THE MACHINE

SPOTTING PROCEDURES PRIOR TO OPERATING MACHINE

1 Soak up excess liquids with a towel.

2 Test cleaner on a small inconspicuous area to make sure it will not damage the carpet fibers.

3 Apply appropriate spotter, follow directions on bottle.

4 Start at outside edges of stain and work toward the center. Use a dabbing, not a rubbing action.

5 Repeat steps 3-4 if needed.

OPERATING THE MACHINE

WARNING!

Use only nonflammable commercial chemicals intended for machine application.

1 UNPLUG machine before attempting to fill with water and position switch to the middle "OFF" position.

2 Pour 1-1/2 gallons of the warmest water possible to shorten heating time.

BE SURE TO FILL WATER TO THE LID EDGE! It will not heat unless entirely full.

3 Toggle the power switch to "HEAT". The amber light will come on indicating the heating cycle has begun.

4 When water temperature reaches maximum degree of heat, the green light will indicate machine is ready for use.

5 Toggle the power switch to "Vacuum".

6 Release water from nozzle until hot water transfers through the length of vacuum hose. Remember, the remaining

water in the hose will be cold.

CAUTION!

Do not continue to use the machine after the Recovery Tank is FULL. This will damage the vacuum motor and is NOT

COVERED UNDER WARRANTY.

HOT WATER

AFTER USE

WARNING!

To reduce the risk electric shock or injury, unplug the power cord before servicing.

1 Toggle the Power Switch to the MIDDLE position to turn both the vacuum motor and the solution pump OFF.

2 DISCONNECT THE POWER CORD.

3 Move the machine to a designated waste water “DISPOSAL SITE”.

4 Disconnect the Hose Assembly from the machine.

5 Tip the Recovery Tank and drain through hose connection port.

6 Tip the Solution Tank and drain unused water or solution. Rinse the tank thoroughly if any cleaning chemical was used.

BE AWARE / WATER TEMPERATURE

MAY EXCEED 200°F.

USE CAUTION WHEN USING THIS MACHINE.

FORM S2-S2H200-1 AZTEC CARPET/HARD FLOOR EXTRACTOR (10-25-02) - 6

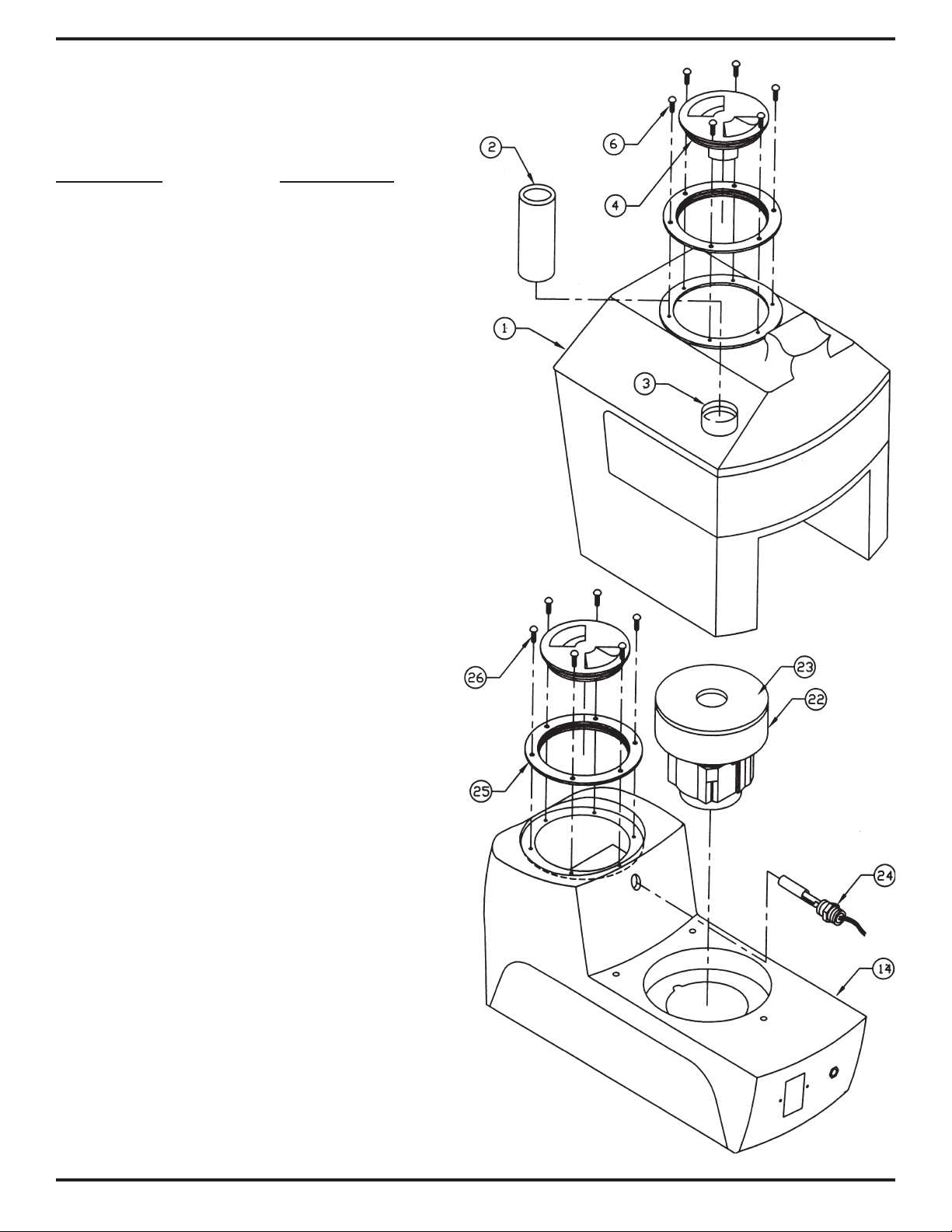

KNOW YOUR MACHINE

DESCRIPTION PART NUMBER

1. Recovery Tank S2-001

2. Stack Tube S2-002

3. Adaptor S2-003

4. Lid S2-004

6. Screw S2-007

14. Solution Tank S2-001

22. Vacuum Motor S2-019

23. Gasket S2-020

24. Float Switch S2H-021

25. Lid S2-004

26. Screw S2-007

FORM S2-S2H200-1 AZTEC CARPET/HARD FLOOR EXTRACTOR (10-25-02) - 7

DESCRIPTION PART NUMBER

7. Stud S2-008

8. Nut S2-009

10. Screw S2-011

15. Plug S2-012

16. Close Nipple S2-013

17. Spacer S2-014

29. Close Nipple s2-013

DESCRIPTION PART NUMBER

30. Barb S2-024

31. Hose S2-025

32. Clamp S2-026

39. Relay S2H-032

40. Screw S2-028

41. Terminal Block S2H-033

42. Screw S2-030

DESCRIPTION PART NUMBER

43. Control Panel S2H-031

44. Screw S2-032

45. Pilot Light, Amber S2H-033

46. Pilot Light, Green S2H-034

47. Switch S2H-035

48. Power Cord S2-036

49. Strain Relief S2-037

FORM S2-S2H200-1 AZTEC CARPET/HARD FLOOR EXTRACTOR (10-25-02) - 8

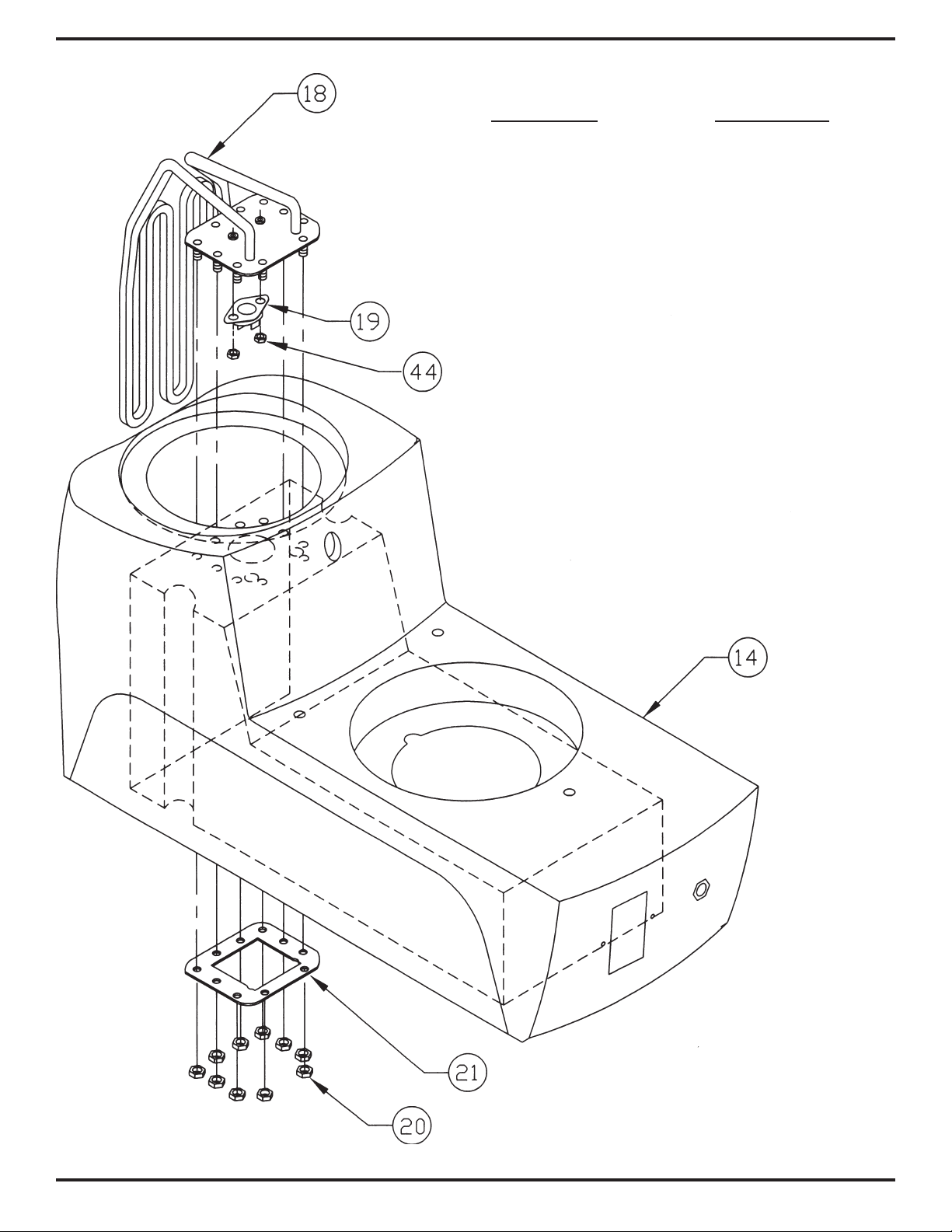

DESCRIPTION PART NUMBER

14. Solution Tank S2-001

18. Heating Element S2H-015

19. Thermostat S2H-016

20. Nut S2-017

21. Gasket S2H-018

44. Nut S2-032

FORM S2-S2H200-1 AZTEC CARPET/HARD FLOOR EXTRACTOR (10-25-02) - 9

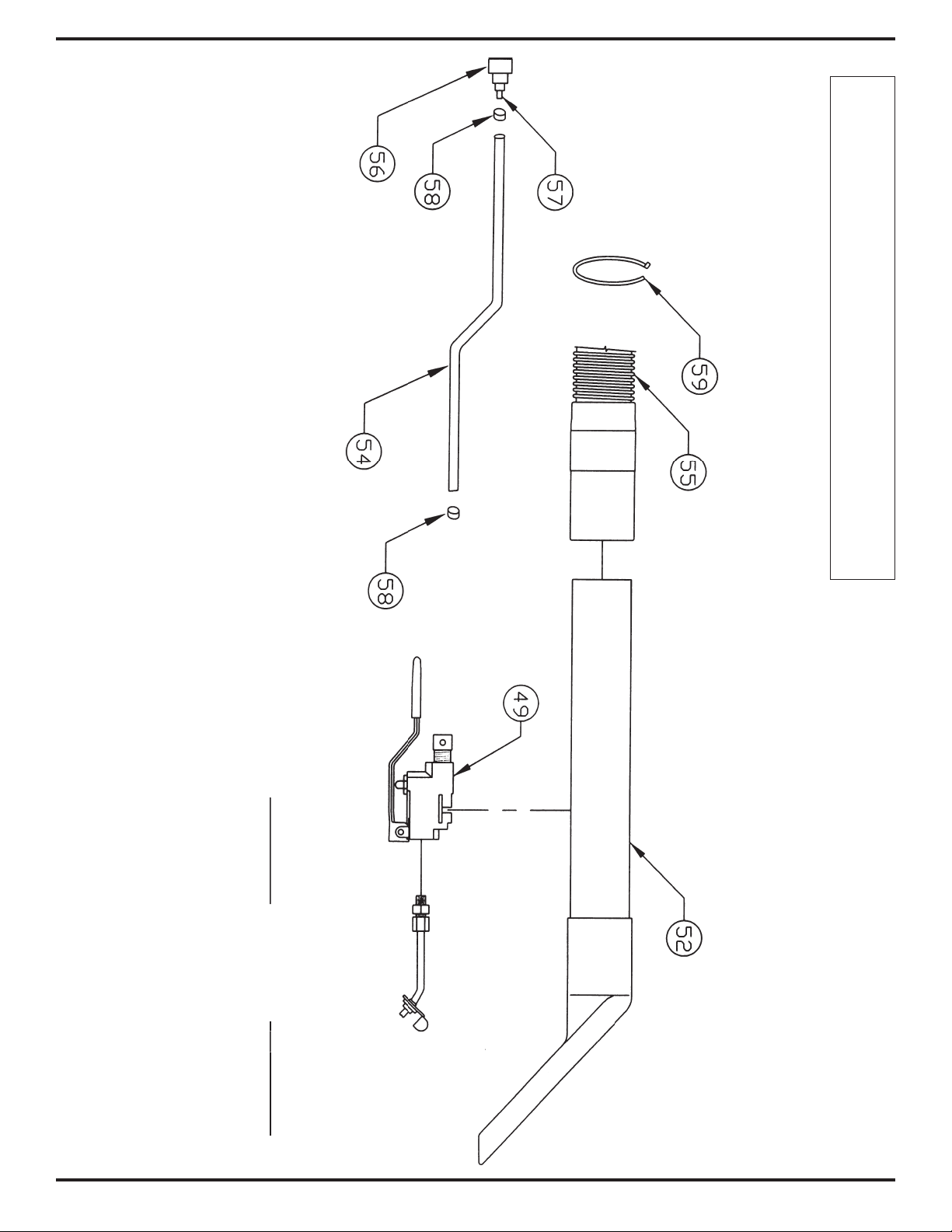

HOSE AND WAND ASSEMBLY

DESCRIPTION PART NUMBER

52. Detail Tool S2-038

54. Hose, Solution S2-046

55. Hose, Vacuum S2-047

56. Socket S2-048

57. 1/4" Close Nipple S2-024

58. Hose Clamp S2-026

59. Cable Tie S2-049

FORM S2-S2H200-1 AZTEC CARPET/HARD FLOOR EXTRACTOR (10-25-02) - 10

DESCRIPTION PART NUMBER

33. Bottom Cover S2-027

34. Screw S2-028

35. Caster-Fixed S2-029

36. Screw S2-030

FORM S2-S2H200-1 AZTEC CARPET/HARD FLOOR EXTRACTOR (10-25-02) - 11

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE REMEDY

Will not heat Water level too low. Fill water to top edge of lid ring.

(but vacuum comes on).

No solution from Nozzle tip plugged. Disassemble and clean.

spray nozzle tip.

Check quick-disconnect fitting. Reconnect fitting onto machine.

Solution tank empty. Refill to absolute top of lid ring.

Pump failed. Replacement required.

Kinked solution hose. Straighten hose.

Poor water pickup. Vacuum hose cuff is not Push hose cuff onto fitting.

firmly pushed onto Check for cracks in hose.

recovery tank fitting.

Vacuum motor intake Remove and clean filter.

filter is clogged.

Vacuum gasket between tanks Replace gasket.

is worn or damaged.

Recovery tank lid not sealing. Replace or tighten lid.

DEFECTIVE MACHINE! Unplug immediately and call factory

DO NOT ATTEMPT TO REPAIR! Service Center or the point of purchase.

Left exposed in freezing conditions. Refer to Service Center.

Defective pump seal. Replace pump.

Overheats and Float level switch in solution tank Replace float switch.

and boils water. may be damaged.

Thermostat Failure. Replace thermostat.

Plugged into outlet, Overloaded circuit breaker. Circuit breaker reset.

nothing comes on. Unplug other electrical items

on same circuit.

FORM S2-S2H200-1 AZTEC CARPET/HARD FLOOR EXTRACTOR (10-25-02) - 12

AZTEC PRODUCTS, INC. WARRANTY

Aztec Products, Inc., warrants its products to be free from defects in material and workmanship. The warranty is limited as follows:

Component Term of Warranty

Rotational molded parts 10 years

Pump 1 year

Vacuum motor 1 year

Heating element 1 year

The warranty does not apply to certain consumable or wear parts such as:

Motor Carbon brushes Bearings

Hoses & hose fittings Filters & gaskets

The warranty does not apply to damage or failure caused by abuse, misuse, neglect, disassembly, alteration, unauthorized modification or repair, lack of

proper maintenance, theft or damage by freight carriers. The warranty applies to parts only. Labor and shipping charges are not covered under this

warranty.

In order to obtain parts warranty, the following procedures must be followed:

1. All machines are shipped from Aztec Products, Inc. with a warranty activation card. This card must be completed and returned before your

warranty can be activated. The customer is responsible to make sure the card is returned.

2. The defective part must be returned freight prepaid to Aztec Products, Inc. with a Warranty Request Form completely filled out and accompanied

by a copy of the original purchase invoice.

3. Upon completion of the warranty repair, labor, freight or delivery charges will be the responsibility of the claimant.

4. Only Aztec Products, Inc. or it’s authorized dealers may make warranty repairs on Aztec Products, Inc. products. Others do so at their own risk

and expense.

This warranty limits Aztec Products, Inc.’s liability for defects in workmanship or materials to replacement of defective parts only. Aztec Products, Inc.

will not be liable for incidental or consequential damages arising from the use of any of its products, whether defective or not.

The need for proper maintenance and care for this product cannot be overstated. Poor maintenance, neglect or abuse can prove to be very expensive.

Never leave your machine in a truck or other outside storage, area where there is a potential for freezing.

1. Pumps carry a 1 year warranty. However coverage may be denied if there is evidence of the use of chemicals in the solution tank, fiber/hair

build-up in the pump chamber, or water damage to the electrical portion of the pump.

2. Vacuum motors carry a 1 year warranty. Motors showing any of the following signs of abuse will be excluded from coverage:

a. Signs of moisture in or on the fan/motor chamber area. (This means that if water or foam has been sucked through the motor the

warranty is voided.)

b. Dirty motors, where failure has been caused by inadequate filtration.

c. Motors where excessive wear indicates that the motor has been used to the full extent of it’s normal life expectancy, regardless of the

date code stamp.

You have purchased a quality product. Each of it’s components has been tested and approved for use by the Aztec Products, Inc. engineering staff. It is
