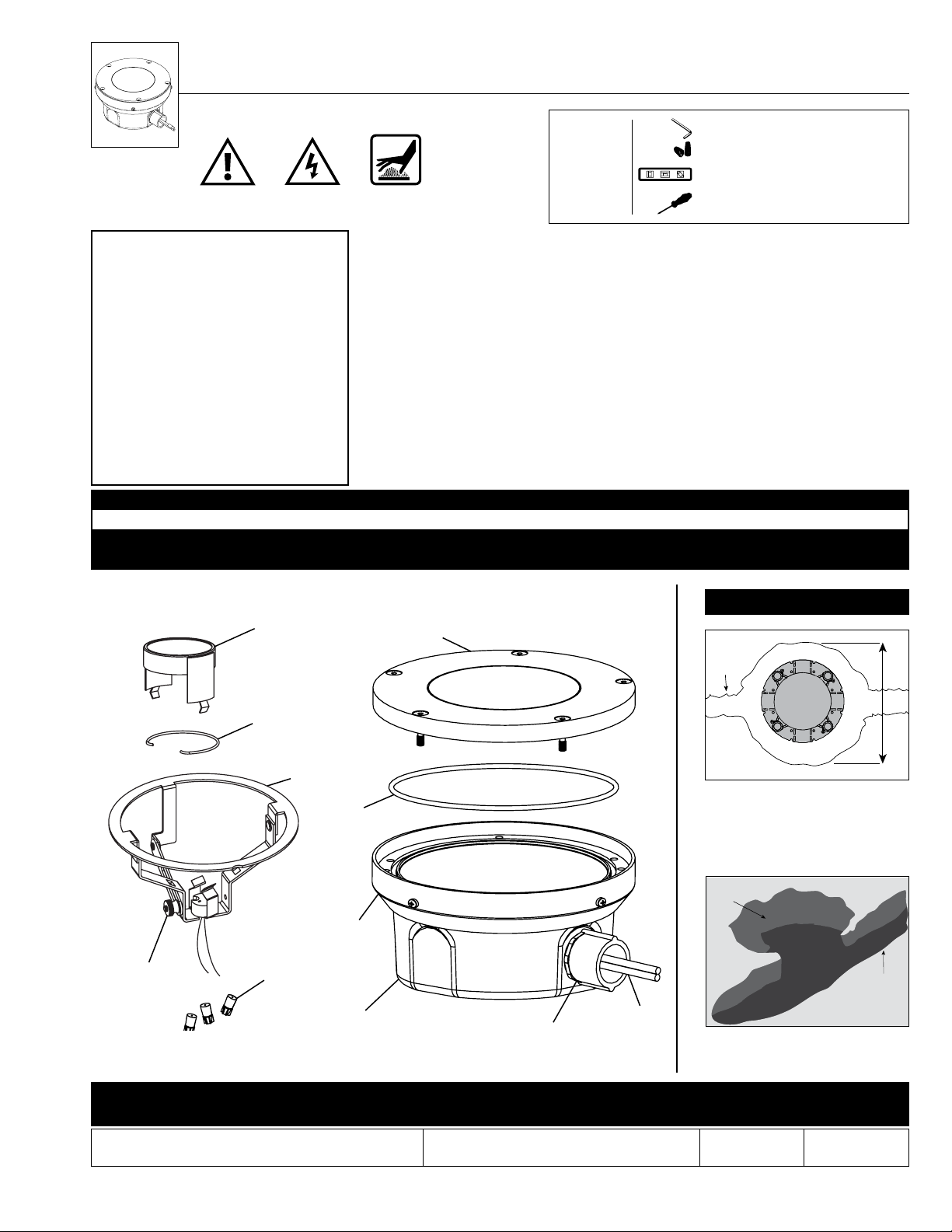

B-K lighting HP2 SERIES User manual

1/8” Allen Wrench
Wire Connectors
Level
Phillips Screwdriver
Warning Low Voltage Hot Surface
NEEDED
FOR
INSTALLATION:
O-Ring
Housing
Concrete Pour
Collar (CPC)
Faceplate
HP2
Shallow Housing - Standard MR16 & PAR36/AR111
OptiLock Assembly
(Vary by Product)
Thumbscrew
Optional Accessory Holder
(Vary by Product)
Retaining
Clip
Remote Transformer Installation
RELEASE DATE
10/13/2021
REFERENCE NUMBER
INS-2856-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR
SELL ANYTHING IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
Soil Prep
Conduit
trench 18”
Dia.
A. Determine Soil Type by referencing
DIG-IT Guide.
B. Dig hole 18” wide and 20” deep.
Conduit
Trench
Excavated
for Housing
C. Prep soil according to DIG-IT Guide.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION
INSTRUCTIONS
· Suitable for wet locations · Suitable for recessed in ground locations
IMPORTANT LISTINGS AND CERTIFICATIONS
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local
and Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel with appropriate personal protective
equipment must perform all servicing of this product.
• Before wiring to power supply and during servicing, turn off and
lock out power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause
an unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL
SAFETY AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part,
as this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body.
• Replace LED assembly only with correct wattage and type
of power supply appropriate for LED assembly.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause
an unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY
TO PERSONS IMPORTANT
SAFETY INSTRUCTIONS
Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing LED.
Fixture gets HOT quickly! Contact only switch/plug when
turning on. Do not touch hot lens, guard, or enclosure.
Keep fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time.
Use a soft cloth or gloves. Oil from skin may cause
damage.
SAVE THESE INSTRUCTIONS
Proper soil preparation is recommended before installation. See the DIG-IT guide at
www.bklighting.com/collaterals/install/digit.pdf for more information.
Waterproof
Wire Connectors
Cable
Anti-Wicking
Connector

HP2
Shallow Housing - Standard MR16 & PAR36/AR111
Remote Transformer Installation

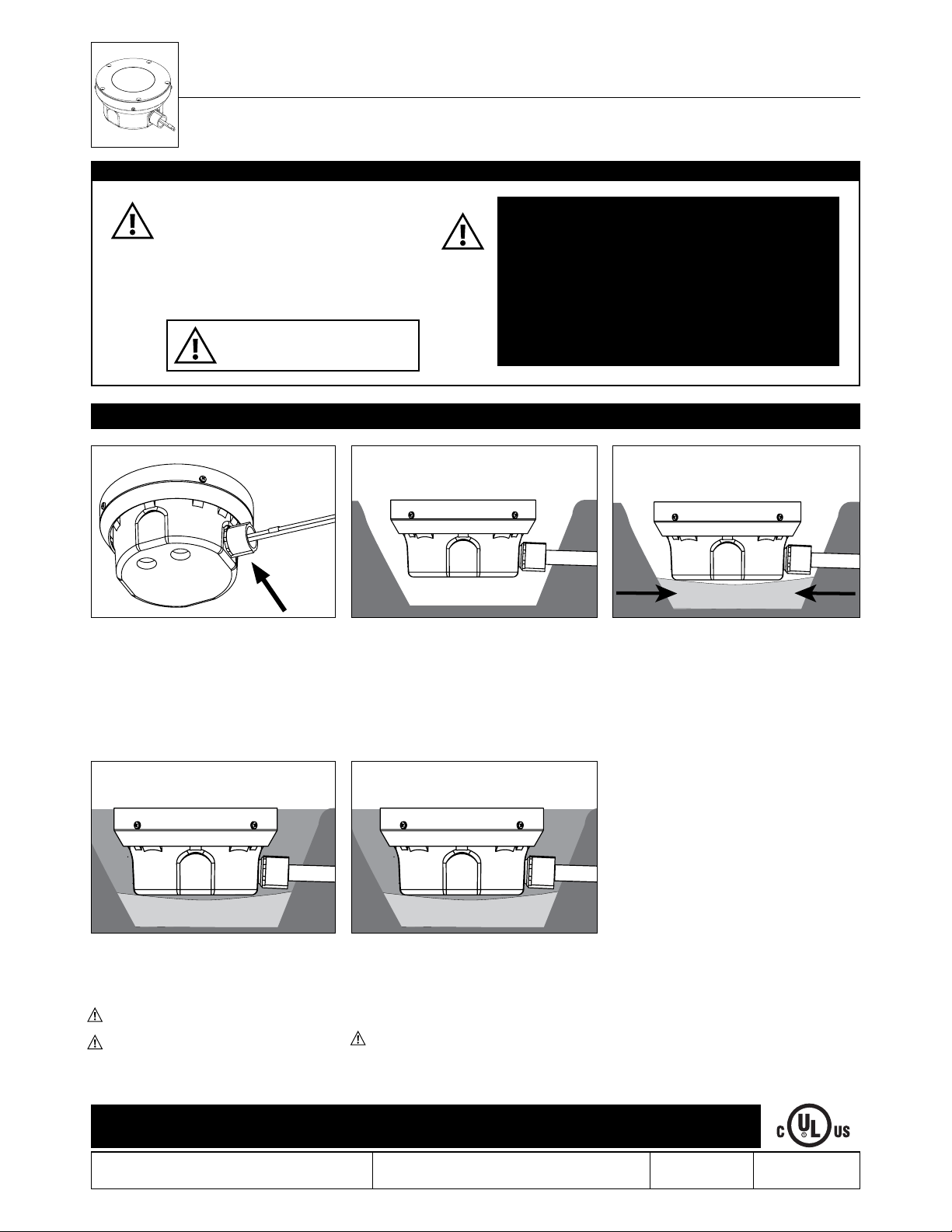

Housing Installation
This product is intended for use
ONLY in areas of restricted depth.
Designer should detail the
following warning in all
specifications documents:
WARNING
MANDATORY: Installer MUST
use water-tight fittings and ensure
a sealed conduit/wiring system or
this fixture will leak. Failure to do
so will VOID WARRANTY.
Installer To Provide DRY
CONDUIT SYSTEM
5. For concrete installation: Fill the hole around
the fixture housing to 12” below the finished
grade with clean fill dirt and tamp carefully to
prevent settling of fixture. Pour concrete and
finish as required flush with the top surface of
the temporary cover.
Under no circumstances should the
faceplate be below grade after installation.
3. Per DIG-IT Guide, backfill the gap between
the bottom of housing and bottom of hole with
sand for drainage.
4. For soil installation: Fill and tamp soil to
the appropriate height leaving room for sod,
pavers, etc. to be level with the top of the
faceplate.
Under no circumstances should the
faceplate be below grade after installation.
Soil installation is not drive-over rated.
2. Place housing in excavated hole. Align power
cord with leads in the path of the conduit
trench(es).
1. Secondary wiring is pre-wired with 5’ leads.
Pull 5’ secondary leads from shallow HP2
housing though 3/4” conduit. Make watertight
connections to secondary side of remote
transformer using waterproof wire connectors
in a waterproof splice compartment (not
included) as per NEC.
RELEASE DATE
10/13/2021
REFERENCE NUMBER
INS-2856-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

Installation
WIRING DIAGRAM FOR USE WITH:
- MR16
- PAR36/AR111
HOT 12V
12V
Fixture
NEUTRAL
Remote
Transformer

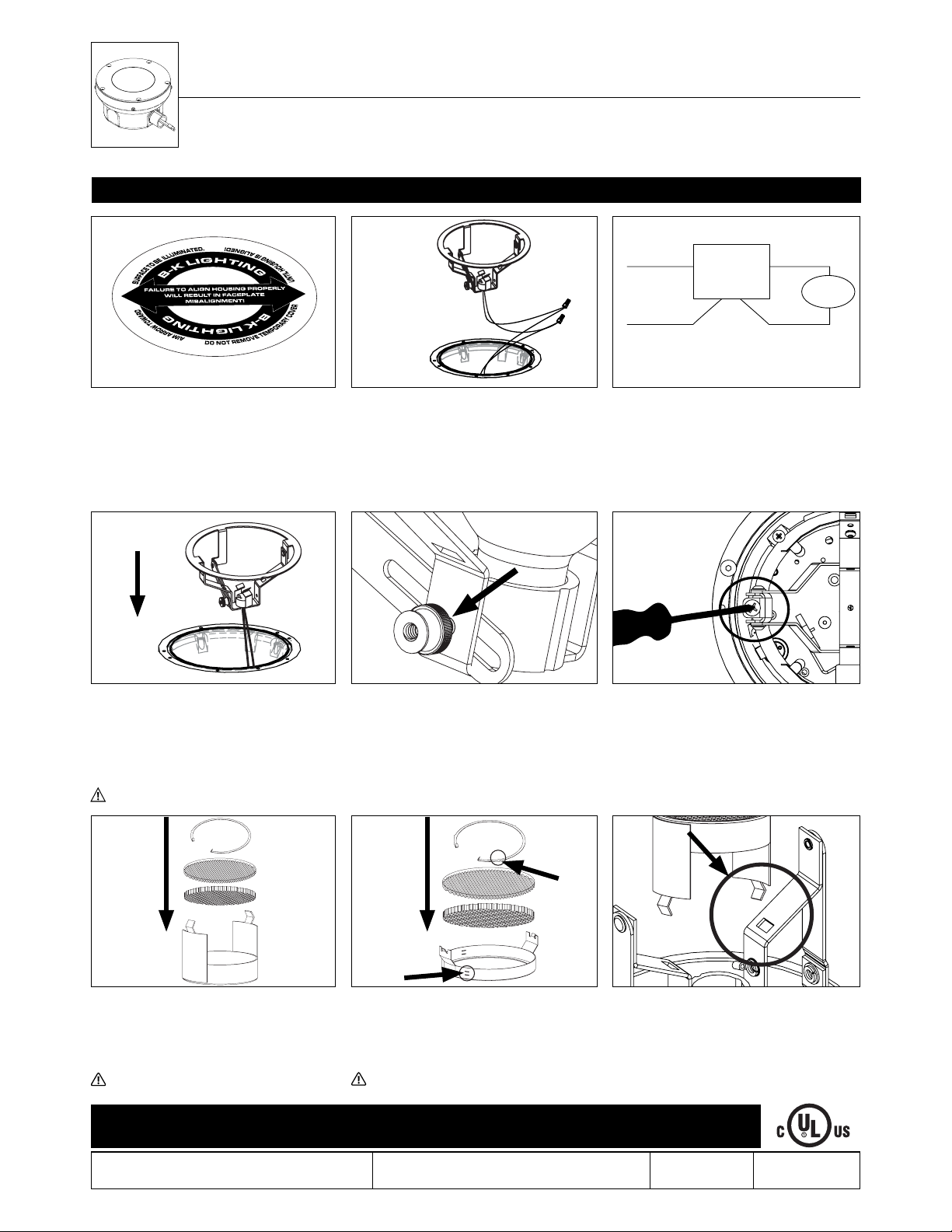

1. Remove temporary cover. 2. Make connections using silicone filled wire nuts
(provided) from OptiLock to secondary wiring.
See wiring diagram.
FOR USE WITH MR16
6a. For Optional Accessory Holder: Insert accessory
holder tabs into slots on OptiLock.
HP2
Shallow Housing - Standard MR16 & PAR36/AR111
Remote Transformer Installation
RELEASE DATE
10/13/2021
REFERENCE NUMBER
INS-2856-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
FOR USE WITH PAR36/AR111
5b. Turn accessory holder upside down and
remove retainer clip. Insert up to two (2)
accessories. Insert the retainer clip back on.
Insert any accessory lens with the smooth
side towards the lamp. If using a honeycomb
baffle, position it farthest from the lamp.
FOR USE WITH MR16
4a. Aim vertically by turning the thumbscrew on
OptiLock assembly.
FOR USE WITH PAR36/AR111
4b. Aim vertically by turning the #10 Phillips head
screw on OptiLock assembly with Phillips
screwdriver.
FOR USE WITH MR16
5a. Turn accessory holder upside down and remove
retainer clip. Insert up to two (2) accessories.
Insert the retainer clip back on.
Insert any accessory lens with the smooth side
towards the lamp. If using a honeycomb baffle,
position it farthest from the lamp.
3. Place OptiLock in HP2 housing and align keyhole
notch under one of three (3) #8 screw heads.
Rotate horizontally to desired aiming position,
then tighten two (2) #8 Phillips screws using
Phillips screwdriver. Install proper MR16 halogen
or PAR36/AR111 lamp according to instructions
on Lamp Installation Or Re-Lamping page.
OptiLock vary by product.

HP2
Shallow Housing - Standard MR16 & PAR36/AR111
Remote Transformer Installation
RELEASE DATE
10/13/2021
REFERENCE NUMBER
INS-2856-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

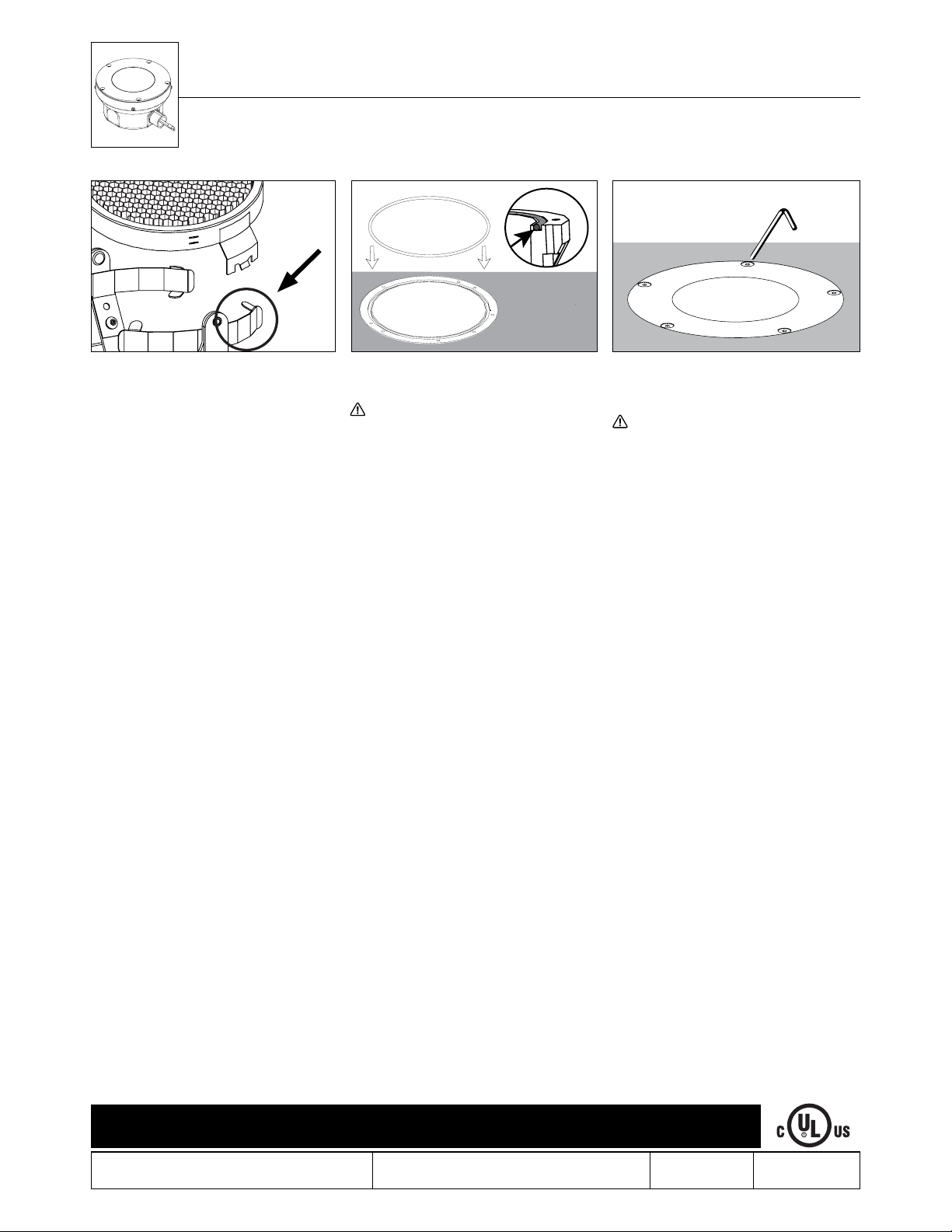

7. Remove any dirt or debris in o-ring groove near
top of housing. Place o-ring inside of groove.
Failure to clean groove of debris will cause
fixture to fail and void product warranty.
8. Install faceplate using a 1/8” allen wrench and
hand-tighten the faceplate screws in a star
pattern to 30 in-lbs. min.
Do not use a power tool to install screws. Do not
exceed 40 in-lbs.
FOR USE WITH PAR36/AR111
6b. For Optional Accessory Holder: Insert
accessory holder tabs onto arms on OptiLock.

Warning Hot Surface
TOOLS
NEEDED:
1/8” Allen Wrench

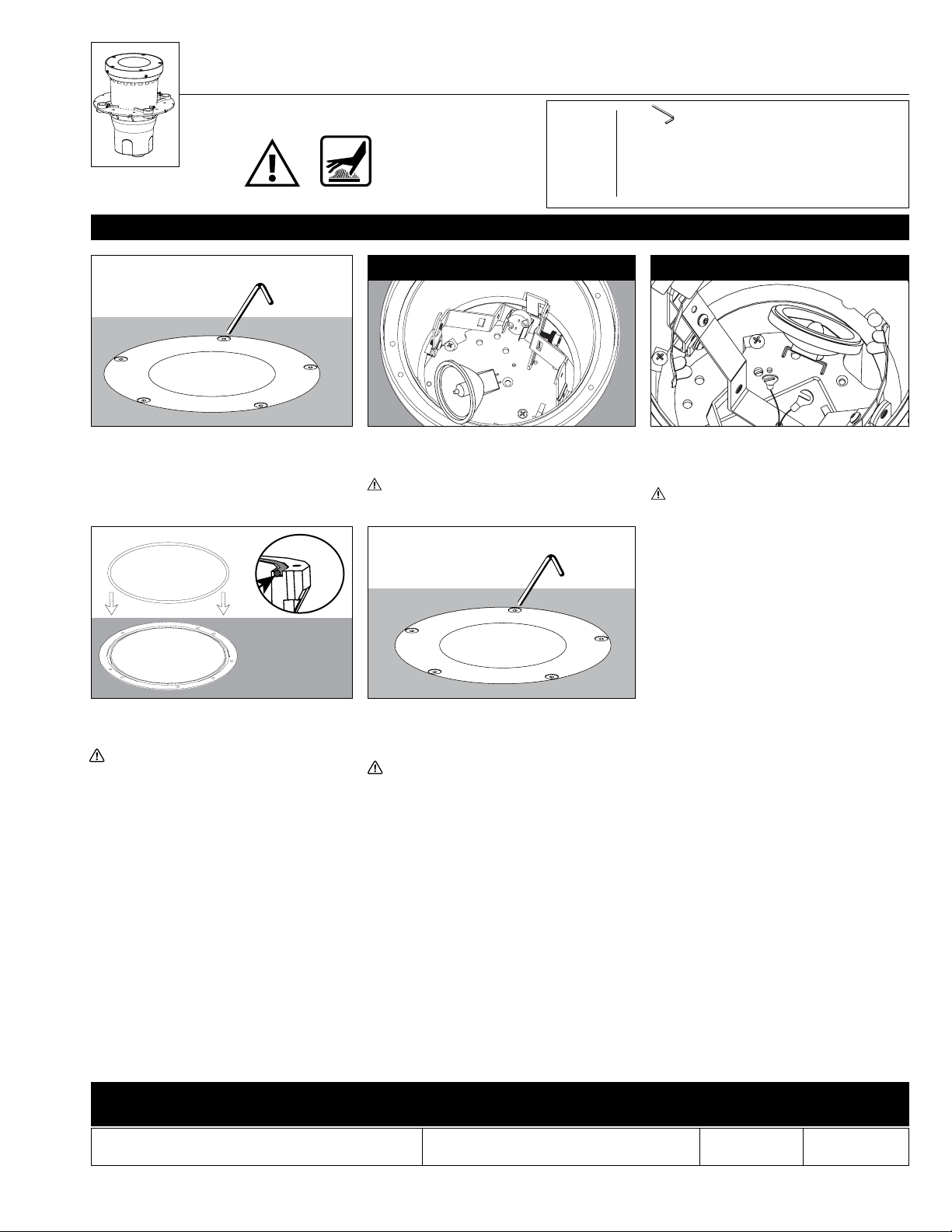

1. Remove faceplate using a 1/8” allen wrench. If
there is an optional accessory holder, carefully
squeeze tabs on sides and gently pull from slots
on OptiLock.
2a. Firmly insert proper MR16 lamp into socket to
make connection.
Do not exceed the maximum wattage listed on
the fixture label before installing.
Lamp Installation Or Re-Lamping
MR16 Lamp Installation
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION
INSTRUCTIONS
RELEASE DATE
10/13/2021
REFERENCE NUMBER
INS-2856-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR
SELL ANYTHING IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
HP2
Shallow Housing - Standard MR16 & PAR36/AR111
Lamp and Accessory Holder Installation
2b. Install proper PAR36/AR111 lamp by placing
connectors around loosened terminal screws,
then gently tightening screw to make connection.
Do not exceed the maximum wattage listed on
the fixture label before installing.
PAR36/AR111 Lamp Installation
3. Remove any dirt or debris in o-ring groove near
top of housing. Place o-ring inside of groove.
Failure to clean groove of debris will cause
fixture to fail and void product warranty.
4. Install faceplate using a 1/8” allen wrench and
hand-tighten the faceplate screws in a star pattern
to 30 in-lbs. min.
Do not use a power tool to install screws. Do not
exceed 40 in-lbs.

RELEASE DATE
10/13/2021
REFERENCE NUMBER
INS-1344-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR
SELL ANYTHING IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
1/8” & 7/64” Allen Wrench
Warning Hot Surface
NEEDED
FOR
INSTALLATION:
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all
Local and Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel must perform all servicing or relamping
of this product.
• Before wiring to power supply and during servicing or
relamping, turn off power at fuse or circuit breaker before
service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause
an unsafe condition. The use of damaged components may
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL
SAFETY AND INSTALLATION INSTRUCTIONS
cause an unsafe condition and void product warranty.
• Do not block light emanating from product in whole or part,
as this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body. Do not touch the lamp at any time. Use
a clean, dry, soft cloth to handle the lamp. Oil from skin
may damage the lamp and cause it to rupture.
• Replace lamp only with correct wattage and type of lamp
marked on fixture label.
• All gaskets, o-rings and sealing surfaces must be kept
clean during installation and service; failure to do this may
cause an unsafe condition and void product warranty.
· Suitable for wet locations · Suitable for recessed in ground locations
IMPORTANT LISTINGS AND CERTIFICATIONS
Rock Guard with Optical Opening Rock Guard
Glare Shield B
Half Dome B
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION
INSTRUCTIONS
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY
TO PERSONS IMPORTANT
SAFETY INSTRUCTIONS
Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing
lamp/LED. Lamp/ Fixture gets HOT quickly! Contact
only switch/plug when turning on. Do not touch
hot lens, guard, or enclosure (see diagram/picture).
Keep lamp/fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time.
Use a soft cloth or gloves. Oil from skin may cause
damage.
SAVE THESE INSTRUCTIONS
HP2
Faceplate Accessories
Accessories Installation Instructions

RELEASE DATE
10/13/2021
REFERENCE NUMBER
INS-1344-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
Faceplate Accessories
HP2

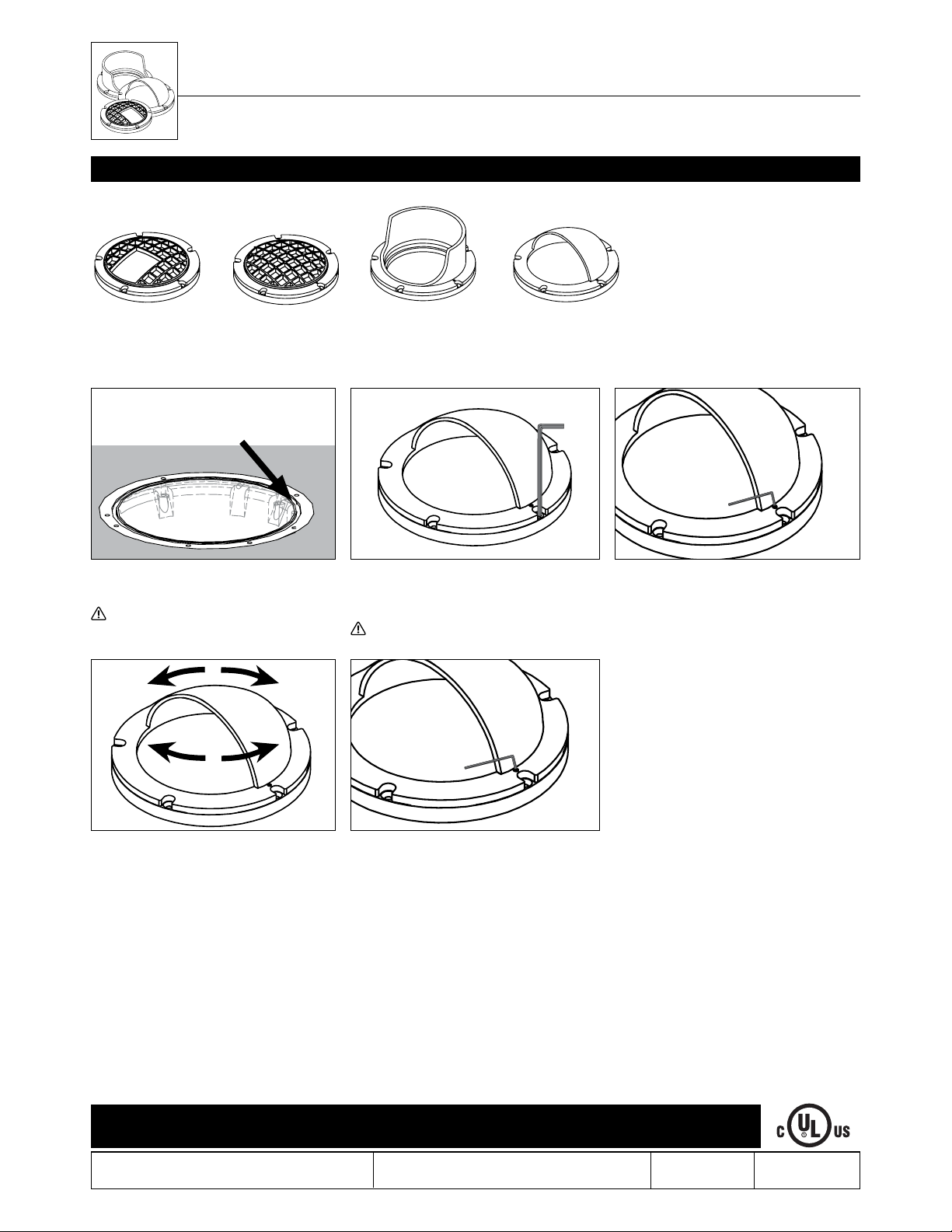

Faceplate Accessories
3. Using a 7/64” allen wrench, loosen the two
(2) #6-32 set screws on the faceplate to allow
accessory to rotate freely.
4. Accessory can rotate 360° independently of
faceplate.
5. When set in final position, tighten two (2)
#6-32 set screws using a 7/64” allen wrench.
2. Install faceplate using a 1/8” allen wrench
and hand-tighten the five (5) #10-24 faceplate
screws in a star pattern to 30 in-lbs. min.
Do not use a power tool to install screws. Do
not exceed 40 in-lbs.
1. Before installation of faceplate, clean o-ring
groove and collar of debris for a proper seal.
Failure to clean groove of debris will cause
fixture to fail and void product warranty.
Instructions Apply To...
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
Rock Guard
with Optical
Opening
Rock Guard Glare Shield B Half Dome B
Accessories Installation Instructions
