B-K lighting SARATOGA Series User manual

RELEASED
2-26-19
REFERENCE NUMBER
INS-2784-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
TOOLS
NEEDED:
By Others
Waterproof Wire Connectors
5/64”, 5/32” 7/64” & 0.050” Allen Wrench

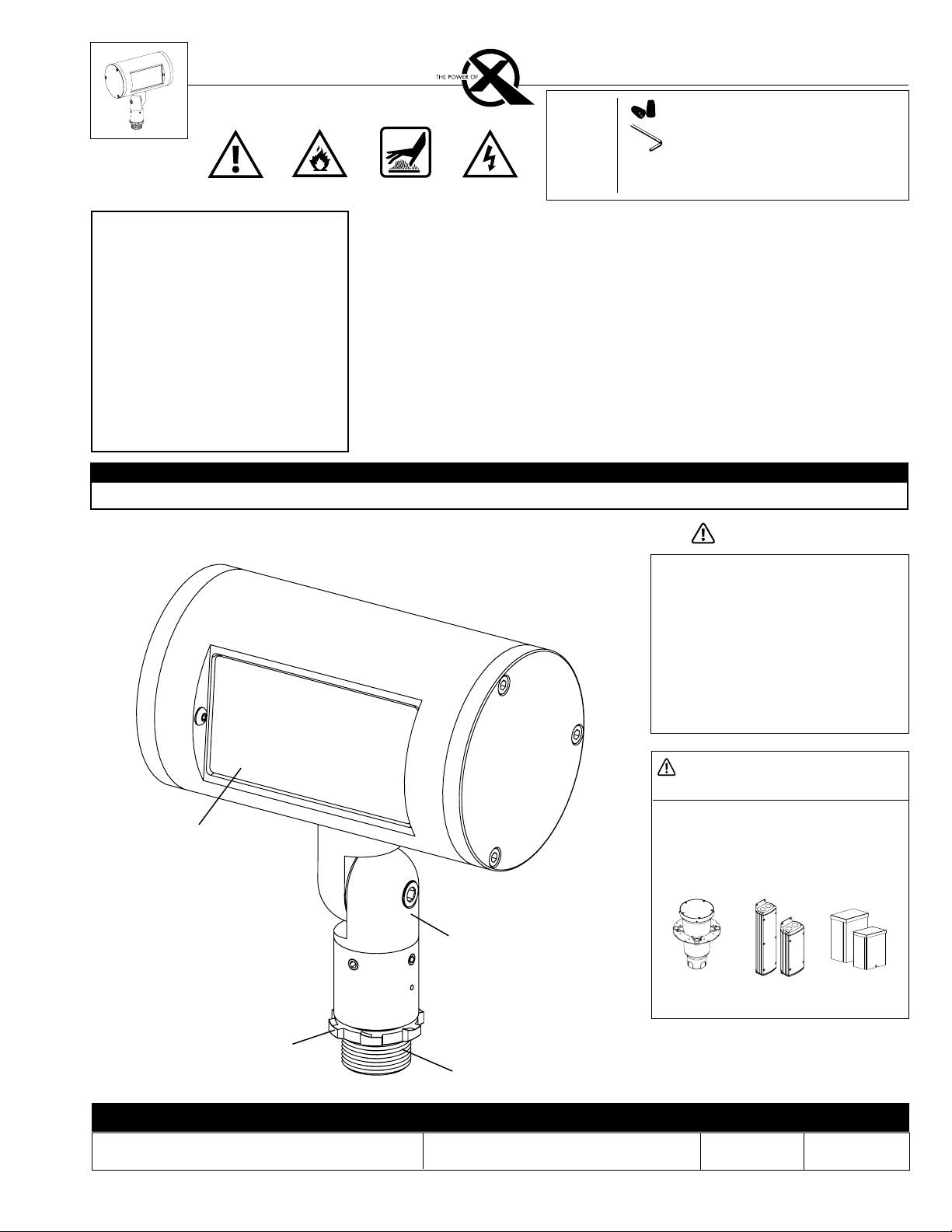

SARATOGA SERIES™
Remote - Solid State LED
Standard Installation
SA - Saratoga Series™
· Suitable for wet locations · Additionally suitable for mounting within 4 ft. of the ground
IMPORTANT LISTINGS AND CERTIFICATIONS
1/2” NPS
Threaded Nipple
360SL™
Knuckle
Warning Flammable Hot Surface Low Voltage
REMOTE WIRING
LED Driver
Remote driver installations require inter-connected
wiring between the LED and driver (By Others). Drivers
have specific wiring requirements between these
components. Driver manufacturers regularly recommend
the following wiring details for such installations:
• Do not exceed 50 foot overall wiring distance
using 12 gauge copper wire.
Failure to comply with specific wiring
requirements will void product warranty.
DRIVER HOUSING REQUIRED
Please refer to specified remote driver housing
documentation for detailed installation instructions.

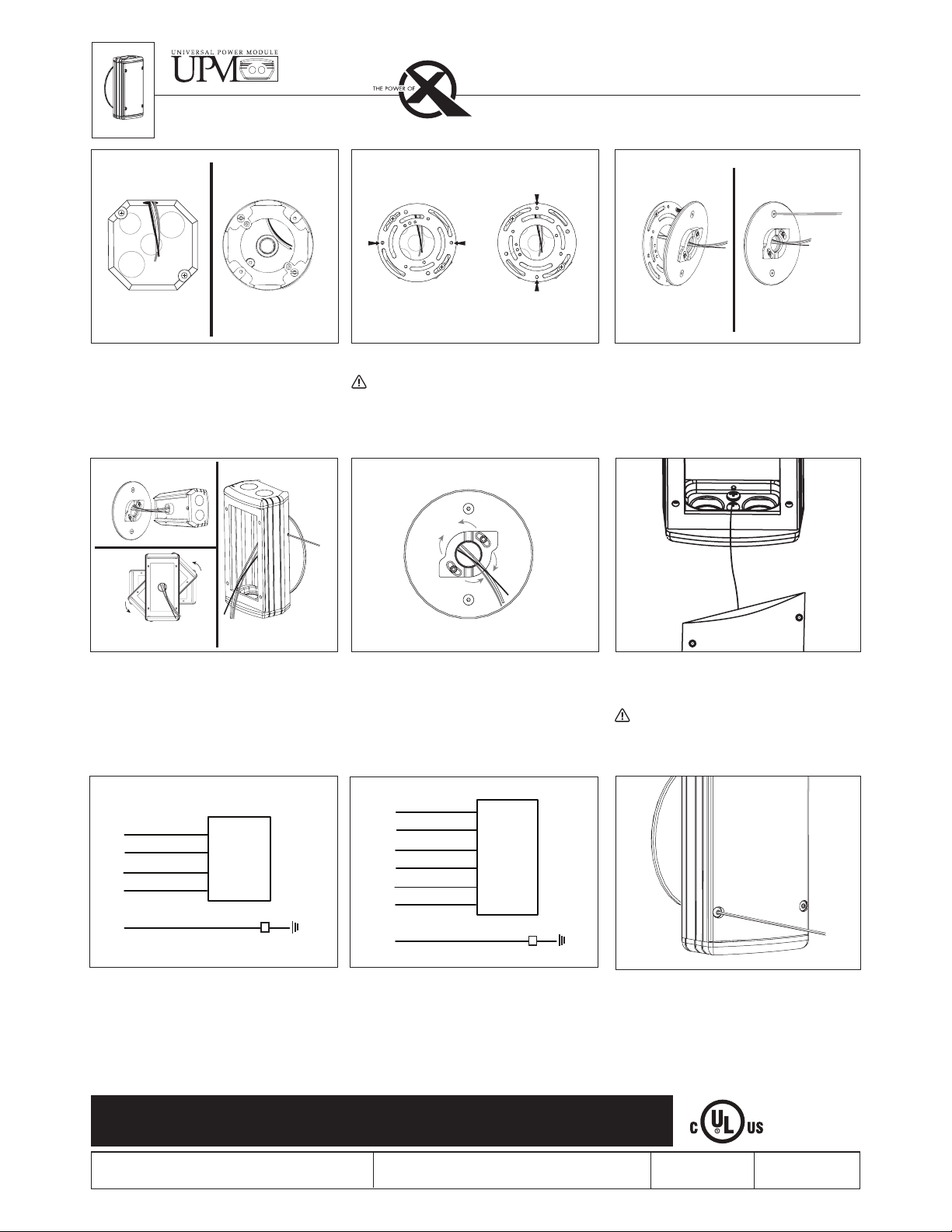

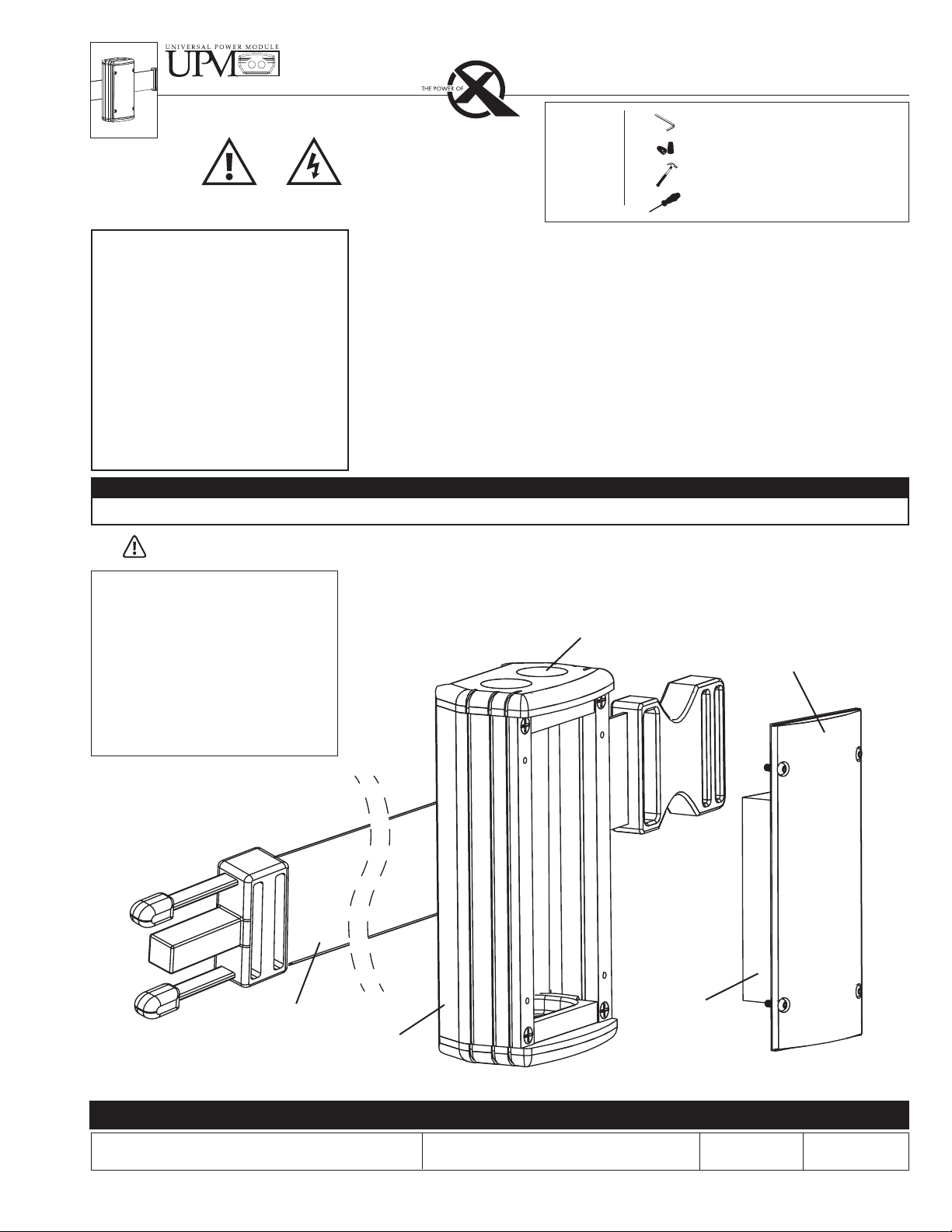

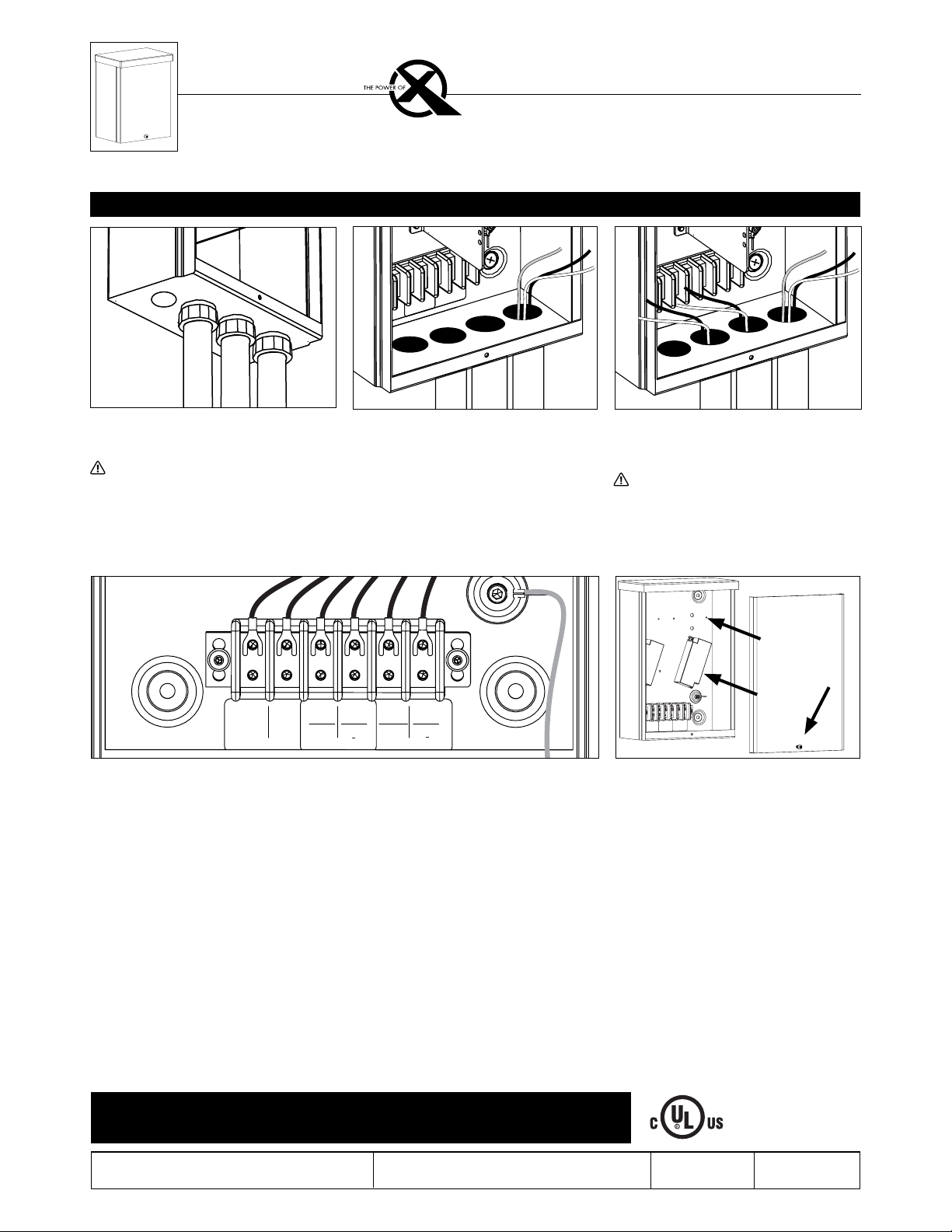

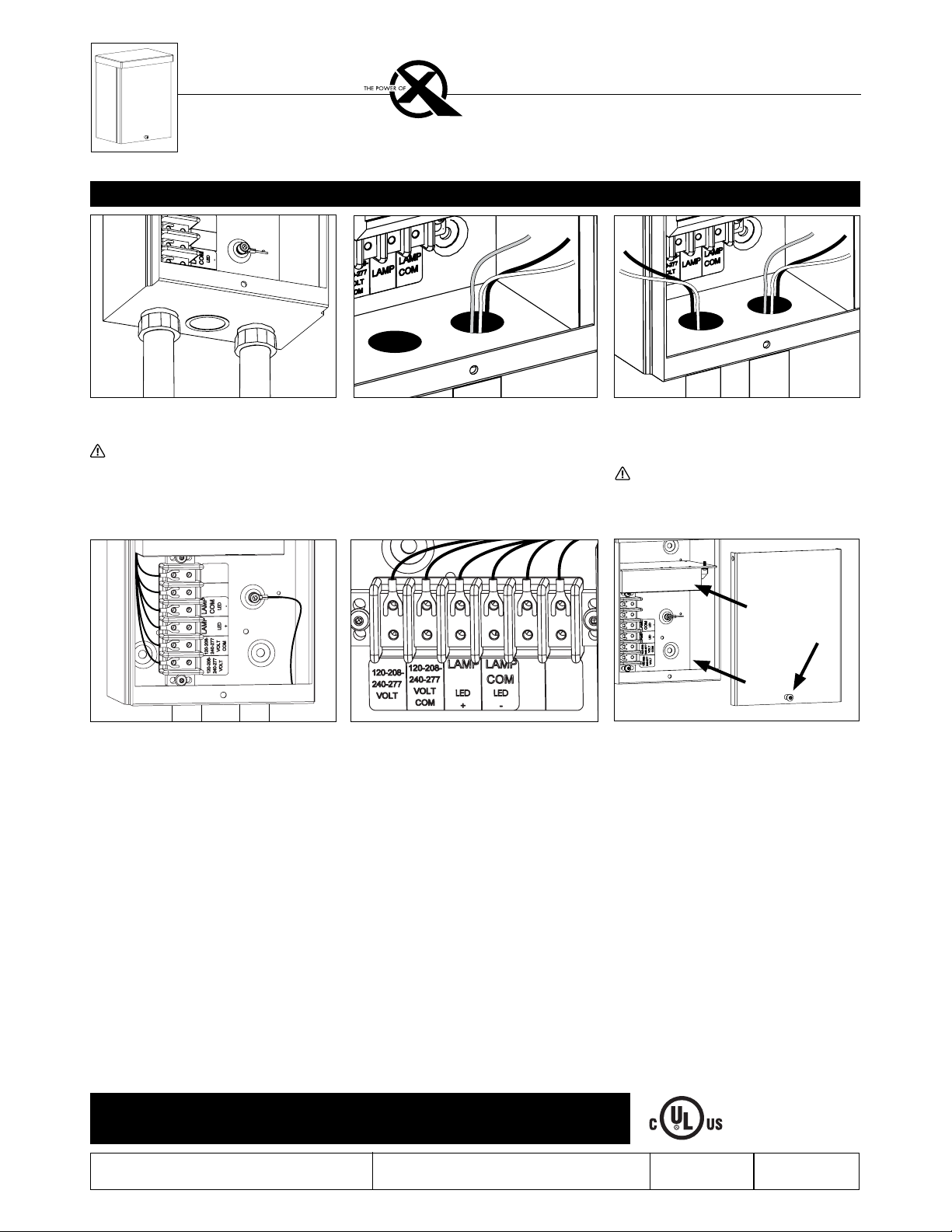

REMOTE DRIVER HOUSINGS:
HP2RM - HP2 Remote Housing

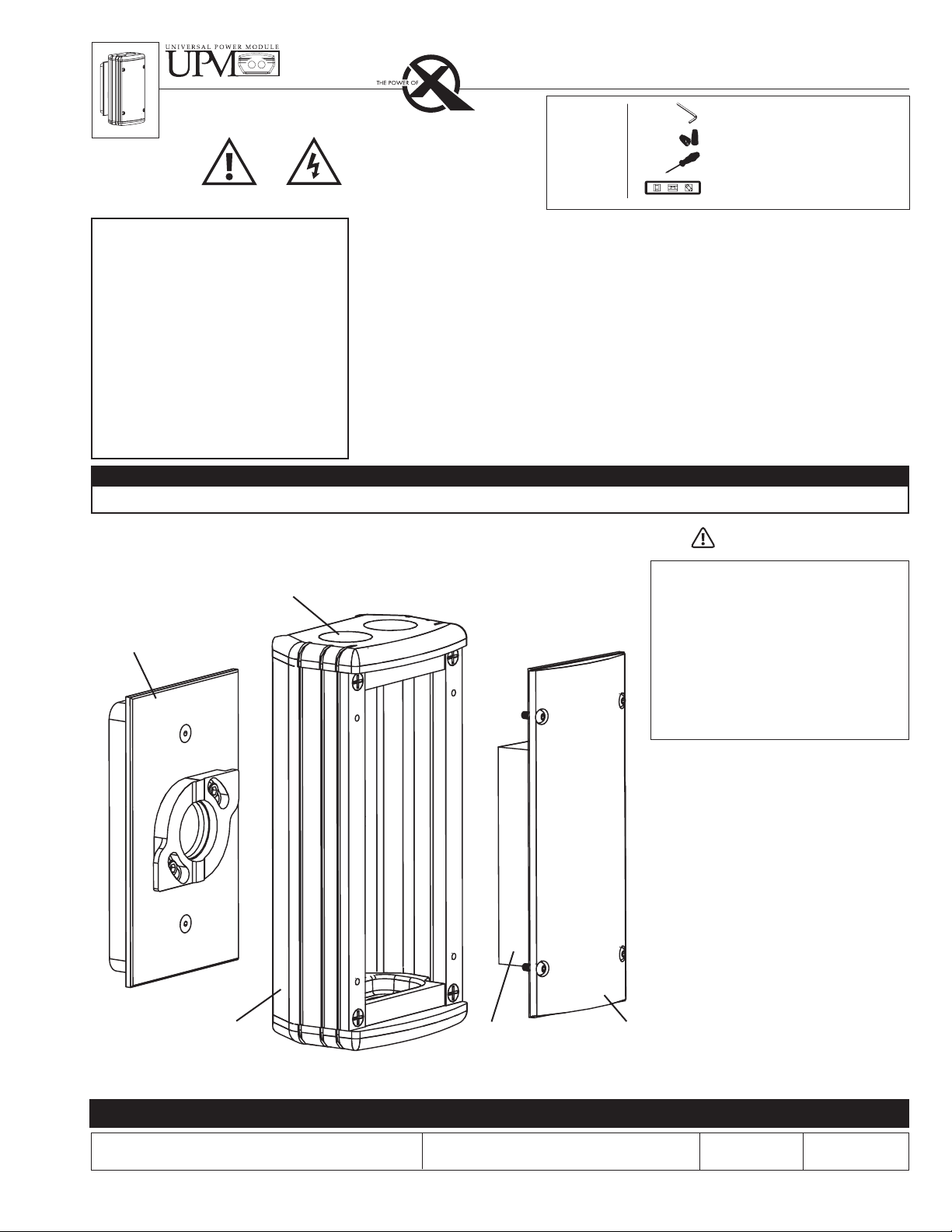

PM2RM - Universal Power Module 2 Remote
PM2DRM - Universal Power Module 2 Dual Remote

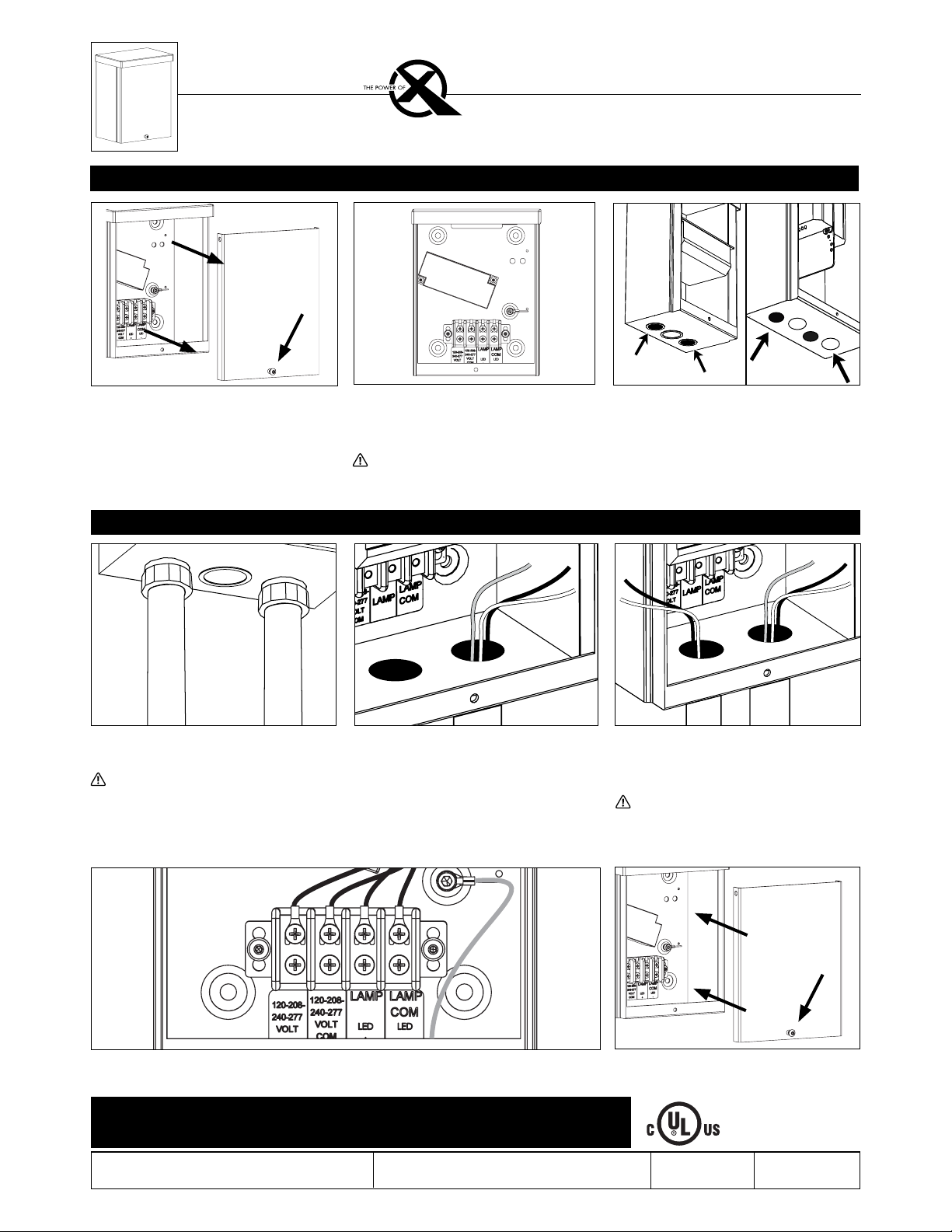

RM - Remote Wall Mount

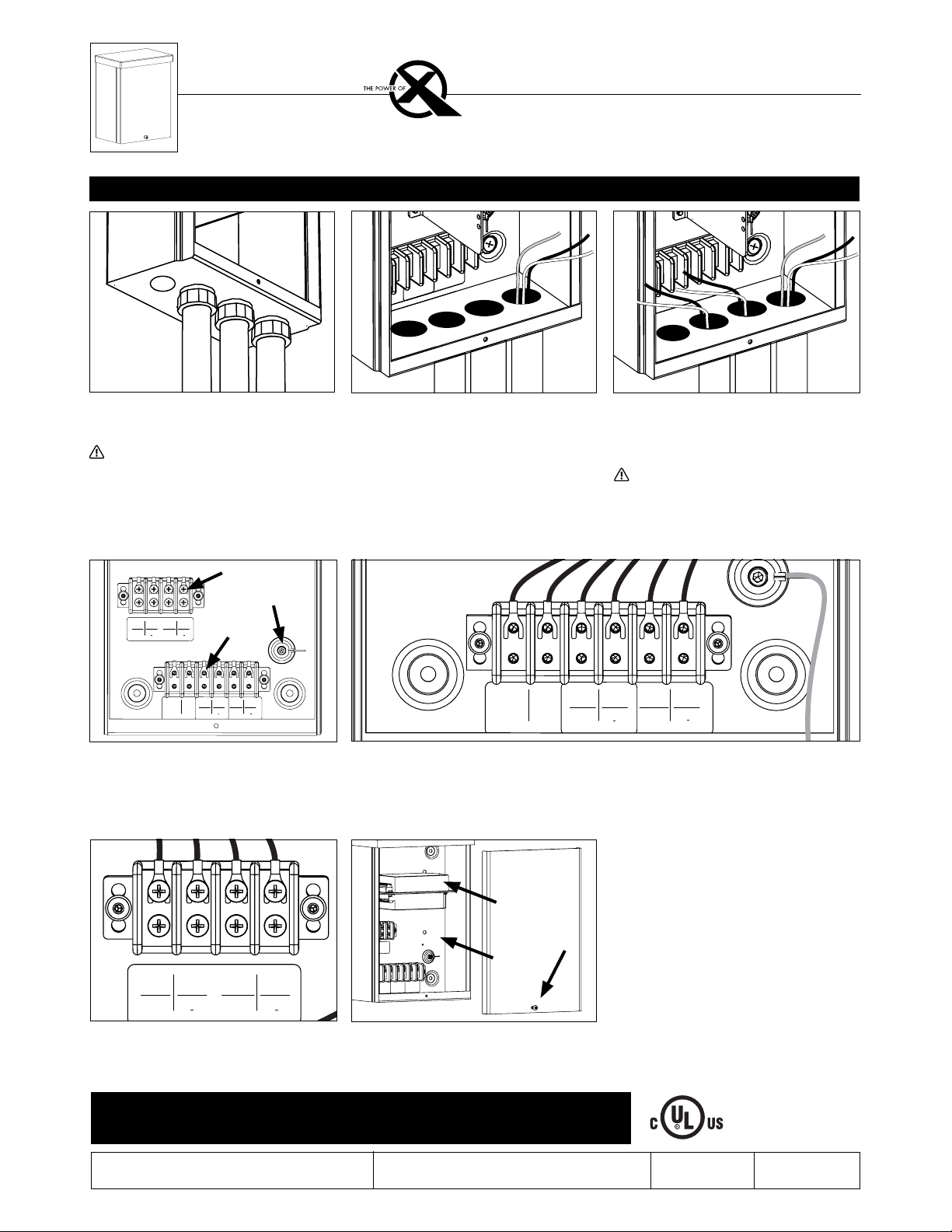

DRM - Dual Remote Wall Mount
PM2RM PM2DRM PM3RM PM3DRM
HP2RM
PM2RM PM2DRM PM3RM PM3DRM
PM2RM &
PM2DRM
PM2RM PM2DRM PM3RM PM3DRM
RM &
DRM
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local and
Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel with appropriate personal protective
equipment must perform all servicing of this product.
• Before wiring to power supply and during servicing, turn off and
lock out power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause an
unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part, as
this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body.
• Replace LED assembly only with correct wattage and type of
power supply appropriate for LED assembly.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing LED.
Fixture gets HOT quickly! Contact only switch/plug when
turning on. Do not touch hot lens, guard, or enclosure.
Keep fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time. Use
a soft cloth or gloves. Oil from skin may cause damage.
SAVE THESE INSTRUCTIONS
Locknut
Lens

40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
RELEASED
2-26-19
REFERENCE NUMBER
INS-2784-00
10"
(254mm)
"A/D" CAP
3" Dia.
(76mm)
2 11/16"
(68mm)
"B"/"E" CAP
(203mm)
8"
(76mm)
3" Dia.
2 11/16"
(68mm)
"C" CAP
(178mm)
7" (76mm)
3" Dia.
Patented 360HD™
Mounting System
"B"/"E" CAP
3"
(76mm) 1"
(25mm)
"A"/"D" CAP
3"
(76mm)
5"
(127mm)
"C" CAP
2"
(51mm)
2 11/16"
(68mm)

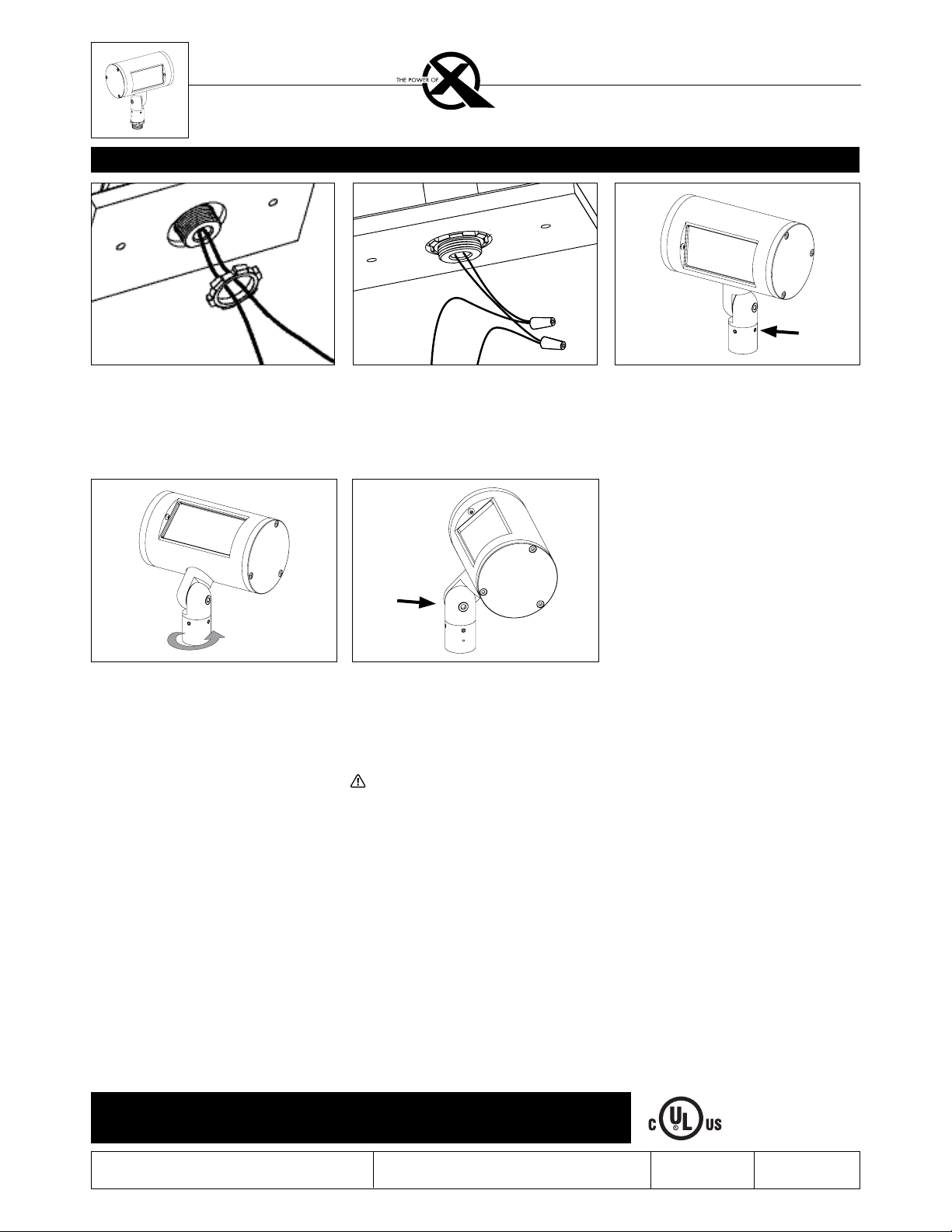

1. Mount fixture onto suitable enclosure according
to designed lighting plan and NEC.
2. Secure ½” NPS stem to mounting option. Secure
with provided locknut if applicable.
3. Make watertight connections from remote
driver to fixture leads using waterproof wire
connectors (By Others) in splice location as per
NEC.
Fixture Installation
SARATOGA SERIES™
Remote - Solid State LED
Standard Installation
5. Rotate fixture at base and aim fixture to desired
horizontal location.
6. Tighten two (2) #8-32 stainless steel set screws
on stem to secure horizontal aiming position
4. Use 5/64” Allen wrench to slightly loosen two (2)
#8-32 stainless steel set screws on the stem for
360° aiming purpose.
7. Use 5/32” Allen wrench to loosen #10-32
stainless steel black oxide socket head cap screw
at the knuckle for vertical aiming purpose.
Tighten #10-32 stainless steel black oxide socket
head cap screw to 15 in-lbs minimum to 30 in-lbs
maximum to secure vertical aiming position.
Warning: Do not over tighten set screw.
Doing so will compromise O-ring seal and will
void warranty.

1. Loosen three (3) captive #6-32 screws securing
cap/socket assembly with 7/64” Allen wrench.
NOTE: Only one end cap is removable.
10"
(254mm)
"A/D" CAP
3" Dia.
(76mm)
2 11/16"
(68mm)
"B"/"E" CAP
(203mm)
8"
(76mm)
3" Dia.
2 11/16"
(68mm)
"C" CAP
(178mm)
7" (76mm)
3" Dia.
Patented 360HD™
Mounting System
"B"/"E" CAP
3"
(76mm) 1"
(25mm)
"A"/"D" CAP
3"
(76mm)
5"
(127mm)
"C" CAP
2"
(51mm)
2 11/16"
(68mm)
SARATOGA SERIES™
Remote - Solid State LED
Standard Installation
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
RELEASED
2-26-19
REFERENCE NUMBER
INS-2784-00
3. Loosen, then remove two (2) #4-40 screws from
optic holder and module using .050” Allen
wrench.
4. Carefully remove LED module from heatsink.
Do not pull on connector or wiring. Handle
with care.
2. Carefully pull out end cap assembly. LED is still
attached to leads. Detach heatsink from fixture
body via quick disconnect. Twist and gently pull
away optic from optic holder.
Do not pull on connector or wiring. Handle
with care.

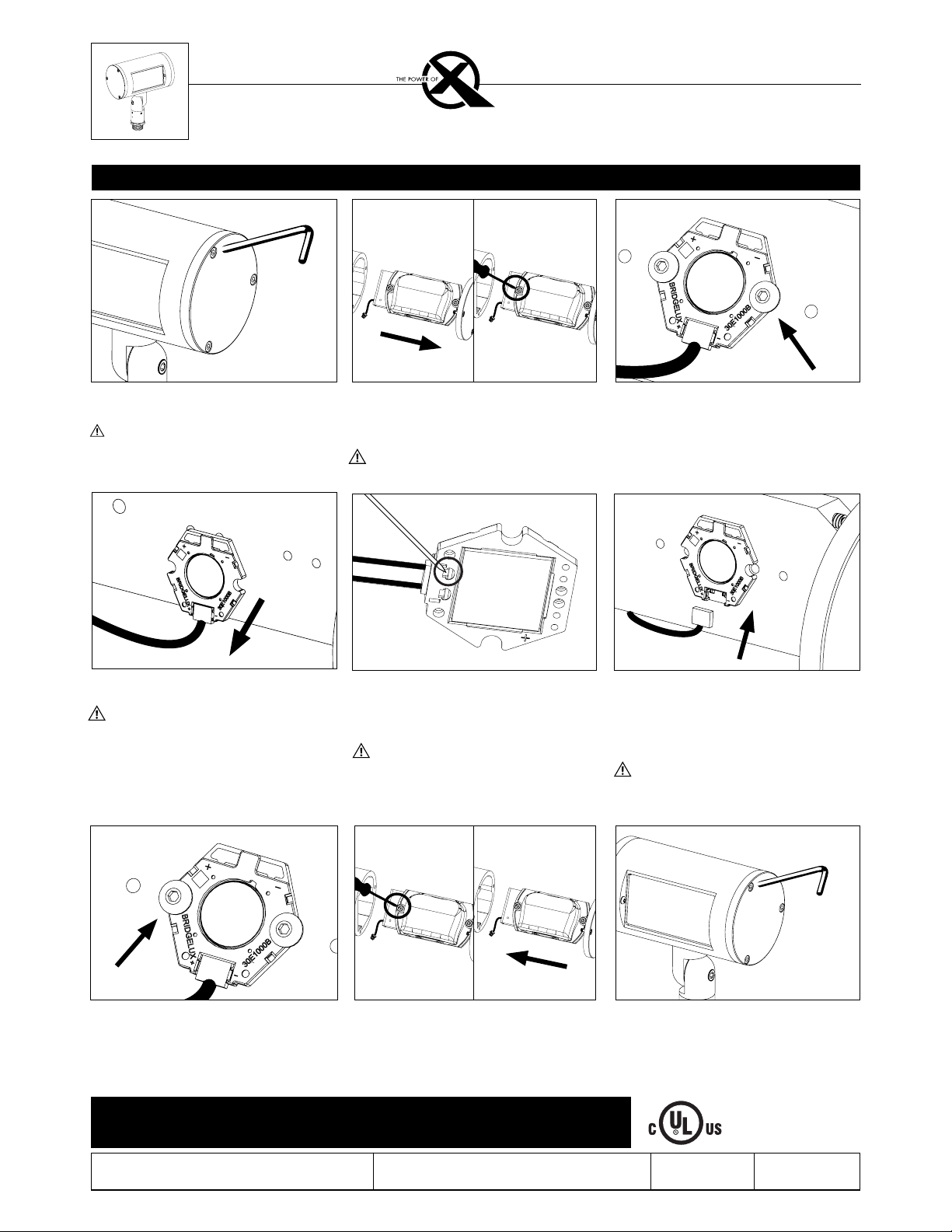

LED and Optic Replacement
Fragile! Do not pull on connector or wiring.
Handle with care.
5. Use small pick tool to push connector off
LED board through two small slots behind
connector. Once loose, lift connector upwards
and off board.
6. Spread thin, even layer of thermal paste on
back of new LED module (Provided). Place new
LED module onto heatsink, lining up module
with holes for screws. Press connector straight
downwards into slot on module to snap into
place.
Connector will only fit in one direction.
7. Tighten two (2) #4-40 screws using .050” Allen
wrench to secure module and optic holder to
heatsink. Ensure that connector leads are in
wireway of optic holder.
8. Twist to secure optic to optic holder. Attach
heatsink to fixture via quick disconnect.
10. Tighten three (3) captive #6-32 screws with 7/64”
Allen wrench to secure cap assembly.
9. Re-install end cap assembly.

40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
RELEASED
2-26-19
REFERENCE NUMBER
INS-2784-00
10"
(254mm)
"A/D" CAP
3" Dia.
(76mm)
2 11/16"
(68mm)
"B"/"E" CAP
(203mm)
8"
(76mm)
3" Dia.
2 11/16"
(68mm)
"C" CAP
(178mm)
7" (76mm)
3" Dia.
Patented 360HD™
Mounting System
"B"/"E" CAP
3"
(76mm) 1"
(25mm)
"A"/"D" CAP
3"
(76mm)
5"
(127mm)
"C" CAP
2"
(51mm)
2 11/16"
(68mm)
SARATOGA SERIES™
Remote - Solid State LED
Standard Installation
LED and Optic Replacement - Wall Wash
1. Loosen three (3) captive #6-32 screws securing
cap/socket assembly with 7/64” Allen wrench.
NOTE: Only one end cap is removable.
3. Remove two (2) #4-40 screws holding LED
module to heatsink using 0.050” Allen wrench.
4. Carefully remove LED module from heatsink.
Do not pull on connector or wiring. Handle
with care.
2. Carefully pull out end cap assembly. LED is still
attached to leads. Detach heatsink from fixture
body via quick disconnect. Loosen, then remove
two (2) #8-32 screws from optic holder using
5/64” Allen wrench.
Do not pull on connector or wiring. Handle
with care.
Fragile! Do not pull on connector or wiring.
Handle with care.
5. Use small pick tool to push connector off
LED board through two small slots behind
connector. Once loose, lift connector upwards
and off board.
6. Spread thin, even layer of thermal paste on
back of new LED module (Provided). Place new
LED module onto heatsink, lining up module
with holes for screws. Press connector straight
downwards into slot on module to snap into
place.
Connector will only fit in one direction.
7. Tighten two (2) #4-40 screws using 0.050” Allen
wrench to secure LED module to heatsink.
8. Line up wall wash optic with mounting screw
holes on heatsink, then secure with two (2) #8-32
screws using 5/64” Allen wrench.
Attach heatsink to fixture via quick disconnect.
10. Tighten three (3) captive #6-32 screws with 7/64”
Allen wrench to secure cap assembly.
9. Re-install end cap assembly.

RELEASED
1-31-14
REFERENCE NUMBER
INS-2096-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
Warning Hot Surface
TOOLS
NEEDED:
By Others
3/16” Allen wrench
360HD™ Knuckle Mounting System
Standard Adjustment
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local
and Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel must perform all servicing or relamping of
this product.
• Before wiring to power supply and during servicing or relamping,
turn off power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause
an unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part,
as this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body. Do not touch the lamp at any time. Use
a clean, dry, soft cloth to handle the lamp. Oil from skin may
damage the lamp and cause it to rupture.
• Replace lamp only with correct wattage and type of lamp
marked on fixture label.
• All gaskets, O-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted lamp is HOT!
WARNING - To reduce the risk of FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing lamp.
Lamp gets HOT quickly! Contact only switch/plug when
turning on.
Do not touch hot lens, guard, or enclosure (see diagram/
picture).
Keep lamp away from materials that may burn.
Do no touch the lamp at any time. Use a soft cloth. Oil
from skin may damage lamp.
Do not operate the luminaire fitting with a missing or
damaged shield.
SAVE THESE INSTRUCTIONS
· Suitable for wet locations · Additionally suitable for mounting within 4 ft. of the ground
IMPORTANT LISTINGS AND CERTIFICATIONS
3. Use 3/16” Allen wrench to loosen (1) 1/4”-28 x 1-1/4”
stainless steel black oxide socket head cap screw at
the knuckle for vertical aiming purpose.
4. Tighten (1) 3/8”-16 x 3/8” stainless steel black oxide
set screw on the stem to secure horizontal aiming
position.
Tighten (1) 1/4”-28 x 1-1/4” stainless steel black
oxide socket head cap screw to 24” minimum to 48”
maximum pounds to secure vertical aiming position
2. Rotate fixture at base and aim fixture to desired
horizontal location.
1. Use 3/16” Allen wrench to slightly loosen
(1) 3/8”-16 x 3/8” stainless steel black oxide set screw
on the stem for 360° aiming purpose.
360HD™ Knuckle Mounting System
Warning: Do not over tighten set screw. Doing
so will compromise O-ring seal and will void
warranty.

Warning High Voltage Hot Surface
NEMA 3R Remote Driver
10W Solid State LED
Installation Instructions
REMOTE WIRING
LED Driver
Remote driver installations require inter-connected
wiring between the LED and driver (by others). Drivers
have specific wiring requirements between these
components. Driver manufacturers regularly recommend
the following wiring details for such installations:
• Do not exceed 50 foot overall wiring distance
using 12 gauge copper wire.
Failure to comply with specific wiring
requirements will void product warranty.
· Suitable for wet locations
IMPORTANT LISTINGS AND CERTIFICATIONS
RELEASE DATE
2-26-19
REFERENCE NUMBER
INS-2791-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
1/8” Allen Wrench
Phillips Screwdriver
Level
Hammer
Mounting Hardware
NEEDED
FOR
INSTALLATION:
By Others
Driver
Dual Drivers
RM - Single Remote Housing
DRM - Dual Remote Housing
Cover
Cover
Terminal
Block
Terminal
Block
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local and
Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel with appropriate personal protective
equipment must perform all servicing of this product.
• Before wiring to power supply and during servicing, turn off and
lock out power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause an
unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part, as
this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body.
• Replace LED assembly only with correct wattage and type of
power supply appropriate for LED assembly.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing LED.
Fixture gets HOT quickly! Contact only switch/plug when
turning on. Do not touch hot lens, guard, or enclosure.
Keep fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time. Use
a soft cloth or gloves. Oil from skin may cause damage.
SAVE THESE INSTRUCTIONS

RELEASE DATE
2-26-19
REFERENCE NUMBER
INS-2791-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
NEMA 3R Remote Driver
10W Solid State LED
Installation Instructions
4. Connect conduit connector through female
threaded conduit entry.
NOTE: Surface conduit is a common entrance
for water if not properly sealed. Seal
connector threads and conduit with a suitable
sealant (Teflon tape, adhesive, etc.). Sealing
the conduit after knockouts are removed is
required to maintain warranty.
8. Re-attach cover. Tighten cover screw.
5. Pull branch circuit wiring necessary for
installation (By Others).
Single Remote Driver
7. Connect branch circuit to terminal block. Connect incoming ground to ground wire provided on NEMA 3R
housing. Connect secondary leads to terminal. See labels on terminal block for additional information.
6. Pull secondary lamp leads necessary for
installation though dedicated conduit. (By
Others).
NOTE: Failure to comply with specific wiring
requirements will void product warranty.
2. Attach the NEMA 3R housing at mounting holes
with ¼” fasteners (By Others). Use suitable
mounting hardware for surface. Use level to
ensure a level install.
NOTE: Many methods exist to bolt to a
flat surface. The housing is provided with
mounting brackets with ¼” holes.
Housing Installation
3. Remove Knockout(s) with hammer as needed
from the NEMA 3R housing. Leave remaining
unused knockouts in place to maintain seal.
1. Remove cover by removing #10-24 cover screw
using a 1/8” Allen wrench.

NEMA 3R Remote Driver
10W Solid State LED
Installation Instructions
RELEASE DATE
2-26-19
REFERENCE NUMBER
INS-2791-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
4. Connect conduit connector through female
threaded conduit entry.
NOTE: Surface conduit is a common entrance
for water if not properly sealed. Seal
connector threads and conduit with a suitable
sealant (Teflon tape, adhesive, etc.). Sealing
the conduit after knockouts are removed is
required to maintain warranty.
8. Re-attach cover. Tighten cover screw.
5. Pull branch circuit wiring necessary for
installation (By Others). Pull dimming control
wiring necessary for installation (By Others).
Single Remote Driver with Dimming Controls
7. Connect branch circuit to terminal block. Connect incoming ground to ground wire provided on NEMA 3R
housing. Connect secondary lamp leads to terminal. See labels on terminal block for additional information..
6. Pull secondary lamp leads necessary for
installation though dedicated conduit. (By
Others).
NOTE: Failure to comply with specific wiring
requirements will void product warranty.
DIM
COM
LED
-
DIM
LED
+
DIM
COM
LED
-
DIM
LED
+

RELEASE DATE
2-26-19
REFERENCE NUMBER
INS-2791-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
NEMA 3R Remote Driver
10W Solid State LED
Installation Instructions
120-208-
240-277
VOLT
120-208-
240-277
VOLT
COM
LAMP
1
LAMP
COM
1
LED
+
1
LED
1
LAMP
2
LAMP
COM
2
LED
+
2
LED
2
DIM
1
DIM
COM
1
DIM
+
1
DIM
1
DIM
2
DIM
COM
2
DIM
+
2
DIM
2
7. Terminal Block Wiring - Connect branch circuit to terminal block. Connect incoming ground to ground wire
provided on NEMA 3R housing. Connect secondary lamp leads to terminal block. See labels on terminal block
for additional information.
4. Connect conduit connector through female
threaded conduit entry.
NOTE: Surface conduit is a common entrance
for water if not properly sealed. Seal
connector threads and conduit with a suitable
sealant (Teflon tape, adhesive, etc.). Sealing
the conduit after knockouts are removed is
required to maintain warranty.
5. Pull branch circuit wiring necessary for
installation (By Others).
Dual Remote Driver
6. Pull secondary lamp leads necessary for
installation though dedicated conduit. (By
Others).
NOTE: Failure to comply with specific wiring
requirements will void product warranty.
8. Re-attach cover. Tighten cover screw.

RELEASE DATE
2-26-19
REFERENCE NUMBER
INS-2791-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
NEMA 3R Remote Driver
10W Solid State LED
Installation Instructions
120-208-
240-277
VOLT
120-208-
240-277
VOLT
COM
LAMP
1
LAMP
COM
1
LED
+
1
LED
1
LAMP
2
LAMP
COM
2
LED
+
2
LED
2
DIM
1
DIM
COM
1
DIM
+
1
DIM
1
DIM
2
DIM
COM
2
DIM
+
2
DIM
2
7. Terminal A is for circuit branch wiring and fixture
leads. Terminal B is for dimming controls. The
grounding screw is located to the upper right of
terminal A.
120-208-
240-277
VOLT
120-208-
240-277
VOLT
COM
LAMP
1
LAMP
COM
1
LED
+
1
LED
1
LAMP
2
LAMP
COM
2
LED
+
2
LED
2
DIM
1
DIM
COM
1
DIM
+
1
DIM
1
DIM
2
DIM
COM
2
DIM
+
2
DIM
2
8. Terminal Block A - Connect branch circuit to terminal block. Connect incoming ground to ground wire
provided on NEMA 3R housing. Connect secondary lamp leads to terminal A. See labels on terminal block for
additional information.
4. Connect conduit connector through female
threaded conduit entry.
NOTE: Surface conduit is a common entrance
for water if not properly sealed. Seal
connector threads and conduit with a suitable
sealant (Teflon tape, adhesive, etc.). Sealing
the conduit after knockouts are removed is
required to maintain warranty.
5. Pull branch circuit wiring necessary for
installation (By Others). Pull dimming control
wiring necessary for installation (By Others).
Dual Remote Driver with Dimming Controls
6. Pull secondary lamp leads necessary for
installation though dedicated conduit. (By
Others).
NOTE: Failure to comply with specific wiring
requirements will void product warranty.
10. Re-attach cover. Tighten cover screw.
120-208-
240-277
VOLT
120-208-
240-277
VOLT
COM
LAMP
1
LAMP
COM
1
LED
+
1
LED
1
LAMP
2
LAMP
COM
2
LED
+
2
LED
2
DIM
1
DIM
COM
1
DIM
+
1
DIM
1
DIM
2
DIM
COM
2
DIM
+
2
DIM
2
9. Terminal Block B - Connect incoming dimming
controls to terminal block. See labels on terminal
block for additional information.
A
B
Ground

RELEASE DATE
2-4-19
REFERENCE NUMBER
INS-2793-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.

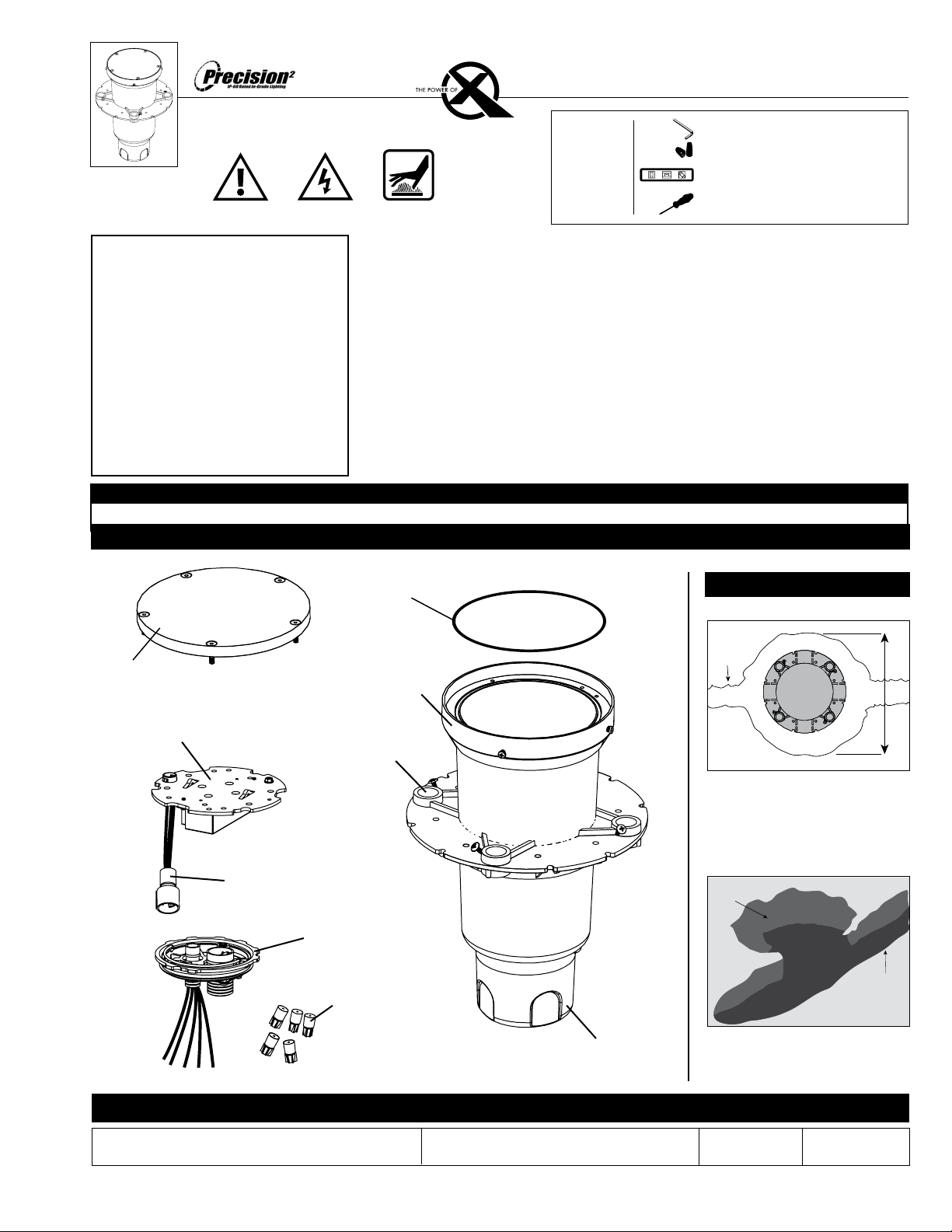

Warning High Voltage Hot Surface
Waterproof Wire
Connectors
Silicone ‘O’ Ring
Patented
Stability
Flange™
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
Quick
Disconnects
Patented
Hydro-Lock™
Plate
Driver
Assembly
Fixture Housing
HP2RM SERIES™
10W Remote Driver - Solid State LED
Faceplate
Soil Prep
Conduit
trench 18”
Dia.
A. Determine Soil Type by referencing
DIG-IT Guide.
B. Dig hole 18” wide and 20” deep.
Conduit
Trench
Excavated
for Housing
C. Prep soil according to DIG-IT Guide.
1/8” Allen Wrench
Waterproof Wire Connectors
Level
Phillips Screwdriver
NEEDED
FOR
INSTALLATION:
By Others
Proper soil preparation is recommended before installation. See the DIG-IT guide at www.bklighting.com/dig-it for more information.
· Suitable for wet locations · Suitable for recessed in ground locations
IMPORTANT LISTINGS AND CERTIFICATIONS
Installation Instructions
Concrete Pour Collar
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local and
Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel with appropriate personal protective
equipment must perform all servicing of this product.
• Before wiring to power supply and during servicing, turn off and
lock out power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause an
unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part, as
this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body.
• Replace LED assembly only with correct wattage and type of
power supply appropriate for LED assembly.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing LED.
Fixture gets HOT quickly! Contact only switch/plug when
turning on. Do not touch hot lens, guard, or enclosure.
Keep fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time. Use
a soft cloth or gloves. Oil from skin may cause damage.
SAVE THESE INSTRUCTIONS

RELEASE DATE
2-4-19
REFERENCE NUMBER
INS-2793-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
HP2RM SERIES™
10W Remote Driver - Solid State LED
Installation Instructions PROJECT:
TYPE:

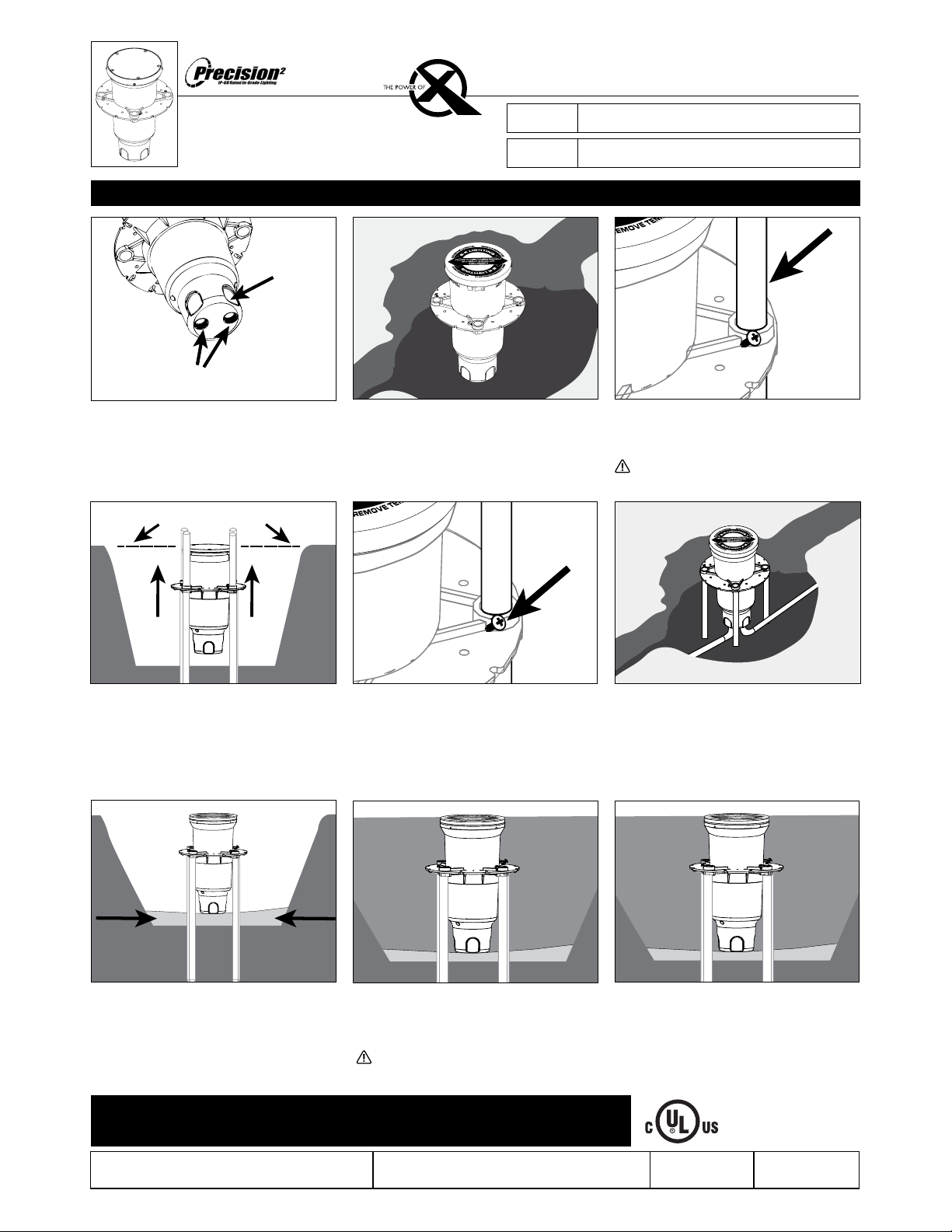

2. Place housing in hole. Align junction box in the
path of the conduit trench.
3. Insert (4) pieces of ½” EMT conduit through the
Stability Flange™. Hammer into substrate until
secure.
Leave sufficient clearance to elevate housing
to finished grade.
4. Raise housing on EMT so concrete pour collar is
flush with finished grade. Use a level to aid in
housing installation.
5. When housing is level, tighten screws on Stability
Flange™ to secure housing to EMT. Remove
excess EMT as needed.
7. Per DIG-IT Guide, backfill the gap between the
bottom of housing and bottom of hole with sand
for drainage.
Housing Installation
Threaded Entry
Side Flats
1. Connect branch conduit connectors (By Others)
to the junction box using either the threaded
conduit entries on the bottom of the junction
box or through holes drilled into the sides of the
junction box.
Flush with finished grade
6. Connect the conduit to the conduit connectors.
8. For soil installation: Fill and tamp soil to the
appropriate height leaving room for sod, pavers,
etc. to be level with the top of the temporary
cover.
Soil installation is not drive-over rated.
9. For concrete installation: Fill the hole around
the fixture housing to 12” below the finished
grade with clean fill dirt and tamp carefully to
prevent settling of fixture. Pour concrete and
finish as required flush with the top surface of the
temporary cover.

RELEASE DATE
2-4-19
REFERENCE NUMBER
INS-2793-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
HP2RM SERIES™
10W Remote Driver - Solid State LED
Installation Instructions PROJECT:
TYPE:

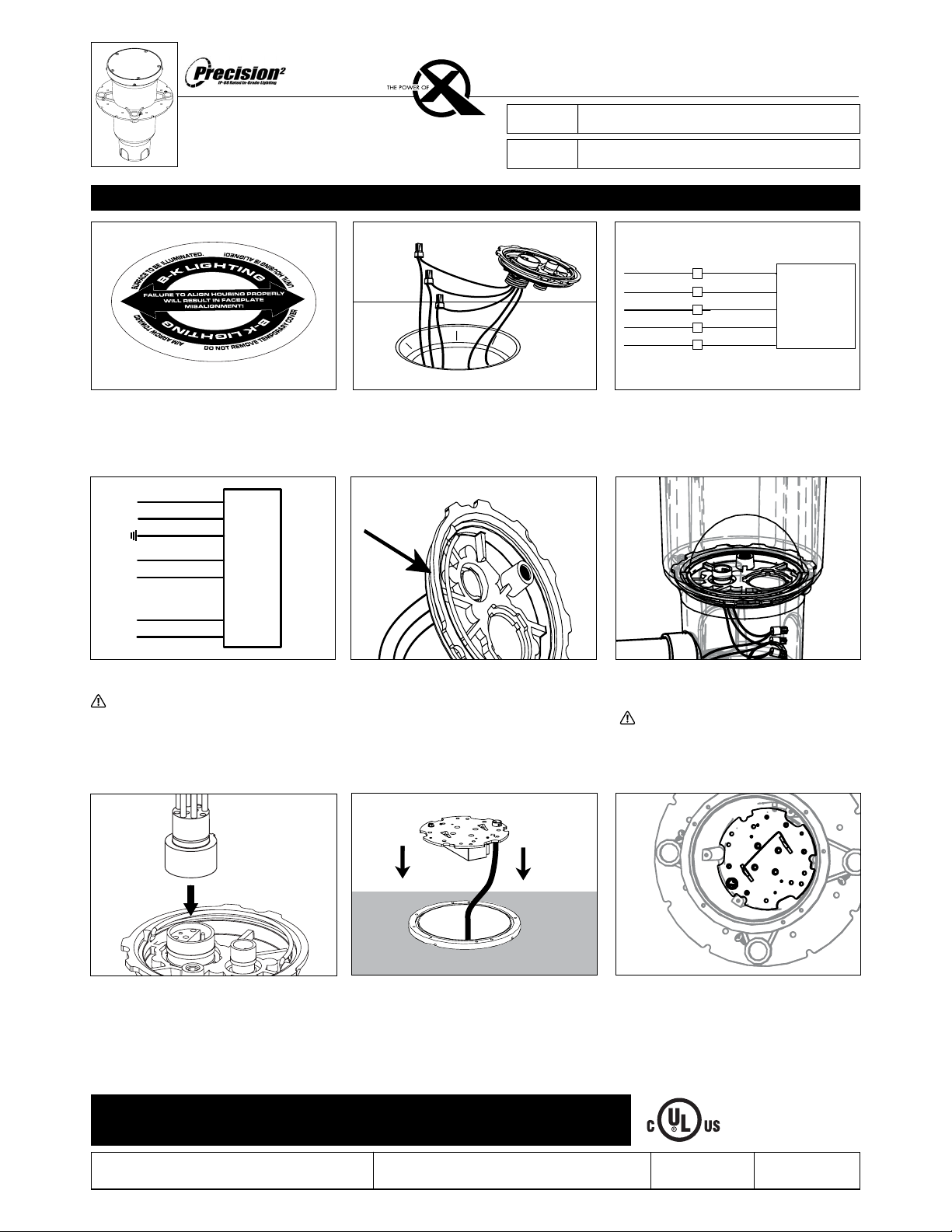

4. Wipe inside of housing where HydroLock® plate
will sit clean of debris before inserting patented
HydroLock® plate on to junction box. Align
HydroLock® plate with pins in housing and seat it
firmly in place.
Installation
6. Connect driver assembly to Patented
HydroLock®Barrier plate with quick disconnects.
WIRING DIAGRAM - INC Control Type
LINE
HYDRO-LOCK®
PLATE
COM
GROUND
LINE
COM
GROUND
FIXTURE + FIXTURE +
FIXTURE -FIXTURE -
1. Remove temporary cover.
2. Pull primary branch circuit wiring into junction
box.
3. Make watertight connections using waterproof
wire connectors (provided) to leads on the
bottom of Patented HydroLock® Barrier Plate
Assembly. See wiring diagram(s).
5. Turn HydroLock® Barrier Plate clockwise ¼” to
lock.
Patented HydroLock® Barrier Plate must be
completely seated to ensure proper seal or
water may intrude. This step must be done as
stated or you will void your warranty.
7. Lower driver assembly into HP2 housing. 8. Attach driver assembly to housing by aligning
keyhole notch under one (1) of three (3) #8
screw heads.
WIRING DIAGRAM - 010 Control Type
Hydrolock
Plate
Hydrolock
Plate
LINE (BLACK)
COM (WHITE)
GROUND (GREEN)
DIM + (GREEN)
DIM - (BLACK)
GROUND IN HOUSING (GREEN)
LINE (BLACK)
+ (Red)
FIXTURE
COM (WHITE)
Driver
- (Black)
DIM + (VIOLET)
DIM - (GRAY)
GROUND ON PLATE (GREEN)
FIXTURE
Driver
HP2RM
HP2 TR
Generic TR
GROUND IN HOUSING (GREEN)
LINE (BLACK)
Quick
Connect
COM (WHITE)
Driver FIXTURE
DIM + (VIOLET)
DIM - (GRAY)
PM3
GROUND IN HOUSING (GREEN)
LINE (BLACK)
Quick
Connect
COM (WHITE)
Driver FIXTURE
DIM + (VIOLET)
DIM - (GRAY)
Quick
Connect
Driver FIXTURE
DIM + (VIOLET)
DIM - (GRAY)
PM3D
Driver
Quick
Connect
FIXTURE
MA/AP
GROUND IN HOUSING
LINE
COM
Remote
Driver
DIM +
DIM -
DIM +
DIM -
Fixture
Fixture
Remote
Driver
Fixture
Fixture
LINE (BLACK) + (Red)
FIXTURE
COM (WHITE Remote
Driver
- (Black)
GROUND (GREEN)
Generic RM NO DIM
Generic TR NO DIM
LINE (BLACK)
+ (Red)
FIXTURE
COM (WHITE
Driver
- (Black)
GROUND (GREEN)
DIM + (VIOLET)
DIM - (GRAY)
LINE (BLACK) + (Red)
FIXTURE
COM (WHITE Driver
- (Black)
GROUND (GREEN)
LINE (BLACK)
COM (WHITE)
DIM + (VIOLET)
DIM - (GRAY) + (Red)
- (Black)
FIXTURE + (RED)
FIXTURE - (BLACK)
GROUND IN HOUSING (GREEN)
LINE (BLACK)
COM (WHITE)
DIM + (VIOLET)
DIM - (GRAY)
LINE (BLACK)
COM (WHITE)
GROUND (GREEN)
DIM + (WHITE)
DIM - (BLUE)
LINE (BLACK)
+ (Red)
FIXTURE
COM (WHITE
Remote
Driver
- (Black)
GROUND (GREEN)
DIM + (VIOLET)
DIM - (GRAY)
LINE (BLACK)
+ (Red)
FIXTURE
COM (WHITE
Remote
Driver
- (Black)
GROUND (GREEN)
DIM + (VIOLET)
DIM - (GRAY)
LINE (BLACK)
COM (WHITE Driver
GROUND (GREEN) Quick
Connect
FIXTURE
GROUND IN HOUSING (GREEN)
LINE (BLACK)
Quick
Connect
COM (WHITE)
Driver FIXTURE
Quick
Connect
Driver FIXTURE
Dimming leads are labeled.

HP2RM SERIES™
10W Remote Driver - Solid State LED
Installation Instructions PROJECT:
TYPE:
RELEASE DATE
2-4-19
REFERENCE NUMBER
INS-2793-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

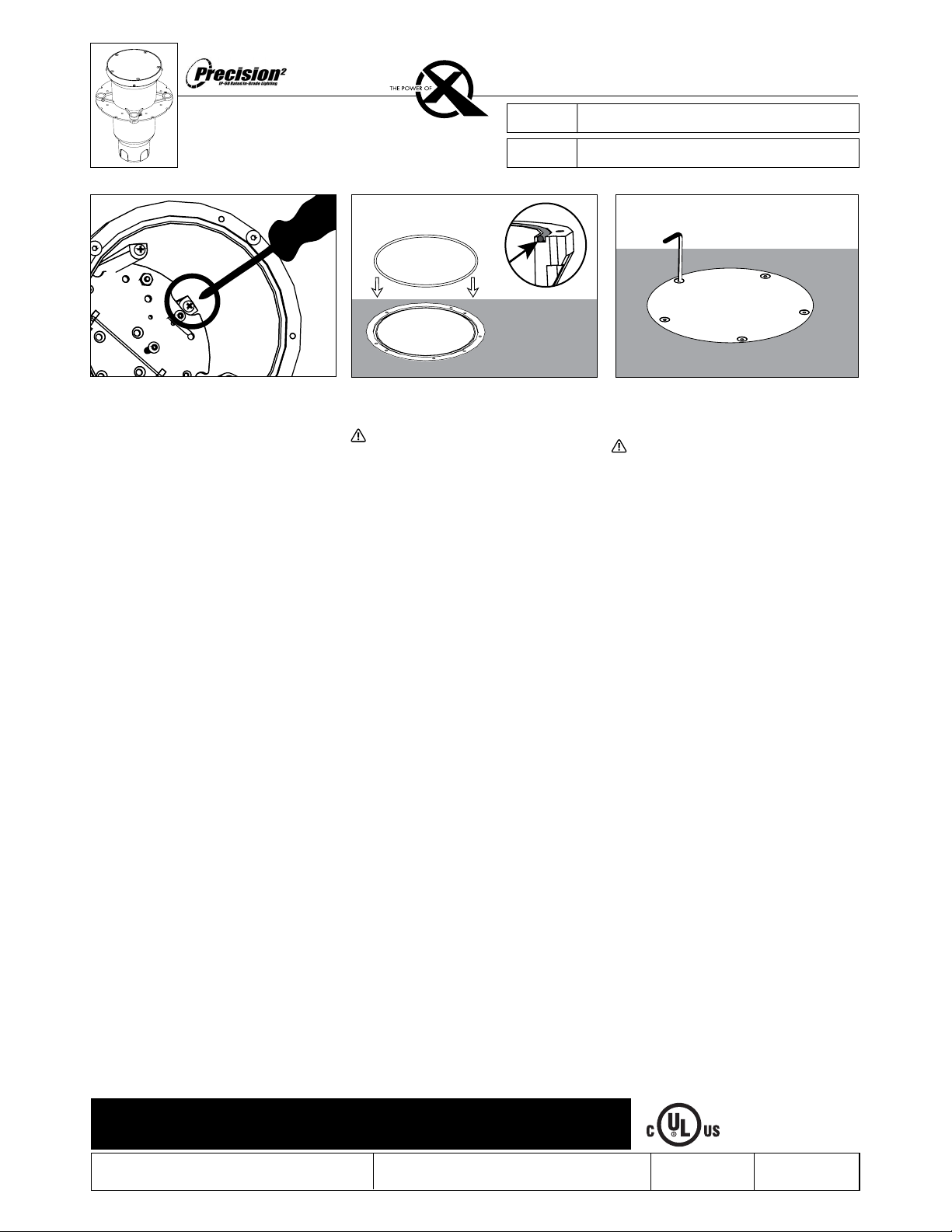

10. Remove any dirt or debris in O-ring groove near
top of housing. Place O-Ring inside of groove.
Failure to clean groove of debris will cause
fixture to fail and void product warranty.
11. Install faceplate using 1/8” Allen wrench and
hand-tighten the faceplate screws in a star
pattern to 30 in-lbs. min.
Do not use a power tool to install screws. Do
not exceed 40 in-lbs.
9. Tighten the Phillips screws to secure driver plate
to housing.

RELEASE DATE
2-26-19
REFERENCE NUMBER
INS-2794-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
NEEDED
FOR
INSTALLATION:
By Others
* UPM is covered in whole or in part by US patent #6,940,012
Warning High Voltage
· Suitable for wet locations
IMPORTANT LISTINGS AND CERTIFICATIONS
5/64” Allen Wrench
Waterproof Wire Connectors
Hammer
Phillips Screwdriver
REMOTE WIRING
LED Driver
Remote driver installations require inter-connected
wiring between the LED and driver (By Others).
Drivers have specific wiring requirements between
these components. Driver manufacturers regularly
recommend the following wiring details for such
installations:
• Do not exceed 50 foot overall wiring distance
using 12 gauge copper wire.
Failure to comply with specific wiring
requirements will void product warranty.
Adjustable
Tree Strap PM2RM
Housing
Knockouts
Faceplate
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
Installation Instructions
PM2RM TREE STRAP™
10W Driver Housing
Driver
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local and
Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel with appropriate personal protective
equipment must perform all servicing of this product.
• Before wiring to power supply and during servicing, turn off and
lock out power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause an
unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part, as
this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body.
• Replace LED assembly only with correct wattage and type of
power supply appropriate for LED assembly.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing LED.
Fixture gets HOT quickly! Contact only switch/plug when
turning on. Do not touch hot lens, guard, or enclosure.
Keep fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time. Use
a soft cloth or gloves. Oil from skin may cause damage.
SAVE THESE INSTRUCTIONS

RELEASE DATE
2-26-19
REFERENCE NUMBER
INS-2794-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
GroundHotNeutral
5. Pull branch circuit wiring and additional wiring
necessary for installation (By Others). 6. Attach tether wire under screw head at the base
of the UPM housing and tighten. Slowly lower
the faceplate until tether is taut.
NOTE: Faceplate tether supplied with UPM
is designed as an installation aid and NOT a
safety cable. Do not add weight to, or drop
faceplate.
GroundHotNeutral
9. Make sure UPM housing gasket is free of
any dirt or debris. Attach the faceplate by
tightening the (4) #6-32 captive screws evenly
using a 5/64” Allen wrench.
GroundHotNeutral
4. Connect 1/2” conduit connector through female
threaded conduit entry.
NOTE: Surface conduit is a common entrance
for water if not properly sealed. Seal connector
threads and conduit pipe with a suitable sealant
(Teflon tape, adhesive, etc). Sealing the conduit
after knockouts are removed is required to
maintain warranty
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
GroundHotNeutral
GroundHotNeutral
1. Remove faceplate, then remove Patented
Knockout(s) as necessary from the inside of
the UPM housing for branch circuit wiring and
remote fixture leads. Leave remaining unused
knockouts in place to maintain seal.
NOTE: Patented design featuring a silicone ‘O’
Ring allowing knockout to be tapped back into
place to renew seal integrity.
2. Use adjustable strap provided to attach UPM
housing to tree. Tighten by pulling on the
adjustable strap until secure.
GroundHotNeutral
3. Optional Step on PM2: Thread safety cable
through hole on the back of the UPM housing.
Feed safety cable through opposing ends of the
connector. Pull on wires to assure the connection
is secure. Leave enough slack in safety cable
for tree growth. Adjustments can be made by
pressing release spring with a pin or 3/64” Allen
tool.
Installation Instructions
PM2RM TREE STRAP™
10W Driver Housing
LINE
Red
FIXTURE
COM
Hydrolock
Plate
Black
GROUND
Driver
White
Black
Green
DIM +
DIM -
Black
White
Hydrolock
Plate
Green
Driver
White
Black
White
Blue
Green
LINE
COM
GROUND
Orange
Orange
Brown
Blue
Black
Gray
FIXTURE
FIXTURE
Green
Green
LINE
Red
FIXTURE
COM
Driver
Black
GROUND
DIM +
DIM -
GROUND IN HOUSING
LINE
Red
FIXTURE
COM
Driver
Black
DIM +
DIM -
GROUND ON PLATE
LINE
Red
FIXTURE
COM
Driver
Black
DIM +
DIM -
HP2RM
HP2 TR
TMB
PCIII
Generic TR
GROUND IN HOUSING
LINE
Quick
Connect
COM
Driver FIXTURE
DIM +
DIM -
PM3
GROUND IN HOUSING
LINE
Quick
Connect
COM
Driver FIXTURE
DIM +
DIM -
Quick
Connect
Driver FIXTURE
DIM +
DIM -
PM3D
GROUND IN HOUSING
LINE
COM
Remote
Driver
DIM +
DIM -
Fixture
Fixture
GROUND ON PLATE
LINE
COM
Driver
DIM +
DIM -
PCIII
Quick
Connect
FIXTURE
LINE
Red
FIXTURE
COM
Remote
Driver
Black
DIM +
DIM -
MA/APGROUND
GROUND IN HOUSING
LINE
COM
Remote
Driver
DIM +
DIM -
DIM +
DIM -
Fixture
Fixture
Remote
Driver
Fixture
Fixture
LINE
COM
Remote
Driver
GROUND
Fixture +
Fixture -
GROUND IN HOUSING
LINE
COM
Remote
Driver
Fixture +
Fixture -
Remote
Driver
Fixture +
Fixture -
GROUND IN HOUSING
LINE
COMRemote
Driver
Fixture +
Fixture -
WIRING DIAGRAM - 010 Control Type
8. Use waterproof wire connectors (By Others) to
connect driver primary leads to branch circuit
wires. Connect incoming ground to ground
wire provided in UPM housing. Connect
incoming dimming control wires to driver
dimming controls. Connect secondary leads
to fixture leads. See wiring diagram.
LINE
Red
FIXTURE
COM
Hydrolock
Plate
Black
GROUND
Driver
White
Black
Green
DIM +
DIM -
Black
White
Hydrolock
Plate
Green
Driver
White
Black
White
Blue
Green
LINE
COM
GROUND
Orange
Orange
Brown
Blue
Black
Gray
FIXTURE
FIXTURE
Green
Green
LINE
Red
FIXTURE
COM
Driver
Black
GROUND
DIM +
DIM -
GROUND IN HOUSING
LINE
Red
FIXTURE
COM
Driver
Black
DIM +
DIM -
GROUND ON PLATE
LINE
Red
FIXTURE
COM
Driver
Black
DIM +
DIM -
HP2RM
HP2 TR
TMB
PCIII
Generic TR
GROUND IN HOUSING
LINE
Quick
Connect
COM
Driver FIXTURE
DIM +
DIM -
PM3
GROUND IN HOUSING
LINE
Quick
Connect
COM
Driver FIXTURE
DIM +
DIM -
Quick
Connect
Driver FIXTURE
DIM +
DIM -
PM3D
GROUND IN HOUSING
LINE
COM
Remote
Driver
DIM +
DIM -
Fixture
Fixture
GROUND ON PLATE
LINE
COM
Driver
DIM +
DIM -
PCIII
Quick
Connect
FIXTURE
LINE
Red
FIXTURE
COM
Remote
Driver
Black
DIM +
DIM -
MA/APGROUND
GROUND IN HOUSING
LINE
COM
Remote
Driver
DIM +
DIM -
DIM +
DIM -
Fixture
Fixture
Remote
Driver
Fixture
Fixture
LINE
COM
Remote
Driver
GROUND
Fixture +
Fixture -
GROUND IN HOUSING
LINE
COM
Remote
Driver
Fixture +
Fixture -
Remote
Driver
Fixture +
Fixture -
GROUND IN HOUSING
LINE
COMRemote
Driver
Fixture +
Fixture -
WIRING DIAGRAM - INC Control Type
7. Use waterproof wire connectors (By Others) to
connect driver primary leads to branch circuit
wires. Connect incoming ground to ground
wire provided in UPM housing. Connect
secondary leads to fixture leads. See wiring
diagram.

RELEASE DATE
2-26-19
REFERENCE NUMBER
INS-2794-01
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
1/8”, 5/64” & 9/64” Allen Wrench
Waterproof Wire Connectors
Phillips Screwdriver
Level
* UPM is covered in whole or in part by US patent #6,940,012
NEEDED
FOR
INSTALLATION:
By Others
Warning High Voltage
· Suitable for wet locations · Additionally suitable for mounting within 4 ft. of the ground
IMPORTANT LISTINGS AND CERTIFICATIONS
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
REMOTE WIRING
LED Driver
Remote driver installations require inter-connected
wiring between the LED and driver (By Others).
Drivers have specific wiring requirements between
these components. Driver manufacturers regularly
recommend the following wiring details for such
installations:
• Do not exceed 50 foot overall wiring distance
using 12 gauge copper wire.
Failure to comply with specific wiring
requirements will void product warranty.
Round CamLock™
PM2RM
Housing
Knockouts Faceplate
Universal
Mounting
Ring™
Driver
Installation Instructions
PM2RM ROUND CAMLOCK™
10W Driver Housing
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local and
Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel with appropriate personal protective
equipment must perform all servicing of this product.
• Before wiring to power supply and during servicing, turn off and
lock out power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause an
unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part, as
this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body.
• Replace LED assembly only with correct wattage and type of
power supply appropriate for LED assembly.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing LED.
Fixture gets HOT quickly! Contact only switch/plug when
turning on. Do not touch hot lens, guard, or enclosure.
Keep fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time. Use
a soft cloth or gloves. Oil from skin may cause damage.
SAVE THESE INSTRUCTIONS

RELEASE DATE
2-26-19
REFERENCE NUMBER
INS-2794-01
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
GroundHotNeutral
A
Horizontal
Vertical
BC
GroundHotNeutral
A
Horizontal
Vertical
BC
GroundHotNeutral
A
Horizontal
Vertical
BC
5. Feed branch circuit wiring into UPM housing.
Install housing on CamLock™ at 90° to finished
orientation as shown. (Figure A)
6. Rotate housing 90° counter-clockwise (Figure
B). Tighten set screw with 5/64” Allen wrench
on outside of UPM housing to lock in place.
(Figure C)
7. If UPM housing is not level, remove UPM housing;
loosen but DO NOT REMOVE (2) #8-32 screws
with 9/64” Allen wrench on CamLock™ assembly.
Adjust CamLock™ assembly up to 30° as needed
to level. Tighten the screws and reattach UPM
housing.
11. Make sure UPM housing gasket is free of any
dirt or debris. Attach the faceplate by tightening
the (4) #6-32 captive screws evenly using a 5/64”
Allen wrench.
8. Attach tether wire under screw head at the base
of the UPM housing. Slowly lower the faceplate
until tether is taut.
NOTE: Faceplate tether supplied with UPM
is designed as an installation aid and NOT a
safety cable. Do not add weight to, or drop
faceplate.
GroundHotNeutral
A
Horizontal
Vertical
BC
4. Feed branch circuit wiring and lamp leads to
remote mounted fixture through mounting plate
with CamLock™ assembly. Attach mounting
plate with supplied (2) #10-24 stainless steel hex
drive fasteners to universal ring using 1/8” Allen
wrench.
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
GroundHotNeutral
A
Horizontal
Vertical
BC
1. Install standard 4” octagonal/round recessed
junction box in the final fixture location according
to designed lighting plan.
2. Pull branch circuit wiring necessary for installation
(By Others.)
3. Install universal mounting ring.
IMPORTANT! Orientation of universal ring
will affect orientation of UPM! Take note of
mounting plate holes (indicated with arrows)
on the universal ring holes to mount UPM in
correct orientation.
GroundHotNeutral
A
Horizontal
Vertical
BC
Installation Instructions
PM2RM ROUND CAMLOCK™
10W Driver Housing
LINE
Red
FIXTURE
COM
Hydrolock
Plate
Black
GROUND
Driver
White
Black
Green
DIM +
DIM -
Black
White
Hydrolock
Plate
Green
Driver
White
Black
White
Blue
Green
LINE
COM
GROUND
Orange
Orange
Brown
Blue
Black
Gray
FIXTURE
FIXTURE
Green
Green
LINE
Red
FIXTURE
COM
Driver
Black
GROUND
DIM +
DIM -
GROUND IN HOUSING
LINE
Red
FIXTURE
COM
Driver
Black
DIM +
DIM -
GROUND ON PLATE
LINE
Red
FIXTURE
COM
Driver
Black
DIM +
DIM -
HP2RM
HP2 TR
TMB
PCIII
Generic TR
GROUND IN HOUSING
LINE
Quick
Connect
COM
Driver FIXTURE
DIM +
DIM -
PM3
GROUND IN HOUSING
LINE
Quick
Connect
COM
Driver FIXTURE
DIM +
DIM -
Quick
Connect
Driver FIXTURE
DIM +
DIM -
PM3D
GROUND IN HOUSING
LINE
COM
Remote
Driver
DIM +
DIM -
Fixture
Fixture
GROUND ON PLATE
LINE
COM
Driver
DIM +
DIM -
PCIII
Quick
Connect
FIXTURE
LINE
Red
FIXTURE
COM
Remote
Driver
Black
DIM +
DIM -
MA/APGROUND
GROUND IN HOUSING
LINE
COM
Remote
Driver
DIM +
DIM -
DIM +
DIM -
Fixture
Fixture
Remote
Driver
Fixture
Fixture
LINE
COM
Remote
Driver
GROUND
Fixture +
Fixture -
GROUND IN HOUSING
LINE
COM
Remote
Driver
Fixture +
Fixture -
Remote
Driver
Fixture +
Fixture -
GROUND IN HOUSING
LINE
COMRemote
Driver
Fixture +
Fixture -
WIRING DIAGRAM - 010 Control Type
10. Use waterproof wire connectors (By Others) to
connect driver primary leads to branch circuit
wires. Connect incoming ground to ground wire
provided in UPM housing. Connect incoming
dimming control wires to driver dimming
controls. Connect secondary leads to fixture
leads. See wiring diagram.
LINE
Red
FIXTURE
COM
Hydrolock
Plate
Black
GROUND
Driver
White
Black
Green
DIM +
DIM -
Black
White
Hydrolock
Plate
Green
Driver
White
Black
White
Blue
Green
LINE
COM
GROUND
Orange
Orange
Brown
Blue
Black
Gray
FIXTURE
FIXTURE
Green
Green
LINE
Red
FIXTURE
COM
Driver
Black
GROUND
DIM +
DIM -
GROUND IN HOUSING
LINE
Red
FIXTURE
COM
Driver
Black
DIM +
DIM -
GROUND ON PLATE
LINE
Red
FIXTURE
COM
Driver
Black
DIM +
DIM -
HP2RM
HP2 TR
TMB
PCIII
Generic TR
GROUND IN HOUSING
LINE
Quick
Connect
COM
Driver FIXTURE
DIM +
DIM -
PM3
GROUND IN HOUSING
LINE
Quick
Connect
COM
Driver FIXTURE
DIM +
DIM -
Quick
Connect
Driver FIXTURE
DIM +
DIM -
PM3D
GROUND IN HOUSING
LINE
COM
Remote
Driver
DIM +
DIM -
Fixture
Fixture
GROUND ON PLATE
LINE
COM
Driver
DIM +
DIM -
PCIII
Quick
Connect
FIXTURE
LINE
Red
FIXTURE
COM
Remote
Driver
Black
DIM +
DIM -
MA/APGROUND
GROUND IN HOUSING
LINE
COM
Remote
Driver
DIM +
DIM -
DIM +
DIM -
Fixture
Fixture
Remote
Driver
Fixture
Fixture
LINE
COM
Remote
Driver
GROUND
Fixture +
Fixture -
GROUND IN HOUSING
LINE
COM
Remote
Driver
Fixture +
Fixture -
Remote
Driver
Fixture +
Fixture -
GROUND IN HOUSING
LINE
COMRemote
Driver
Fixture +
Fixture -
WIRING DIAGRAM - INC Control Type
9. Use waterproof wire connectors (By Others) to
connect driver primary leads to branch circuit
wires. Connect incoming ground to ground wire
provided in UPM housing. Connect secondary
leads to fixture leads. See wiring diagram.

RELEASE DATE
2-26-19
REFERENCE NUMBER
INS-2794-02
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
* UPM is covered in whole or in part by US patent #6,940,012
NEEDED
FOR
INSTALLATION:
By Others
Warning High Voltage
5/64” & 9/64” Allen Wrench
Waterproof Wire Connectors
Phillips Screwdriver
Level
· Suitable for wet locations
IMPORTANT LISTINGS AND CERTIFICATIONS
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
REMOTE WIRING
LED Driver
Remote driver installations require inter-connected
wiring between the LED and driver (By Others). Drivers
have specific wiring requirements between these
components. Driver manufacturers regularly recommend
the following wiring details for such installations:
• Do not exceed 50 foot overall wiring distance
using 12 gauge copper wire.
Failure to comply with specific wiring
requirements will void product warranty.
Rectangular CamLock™
PM2RM
Housing
Knockouts
Faceplate
Driver
Installation Instructions
PM2RM RECTANGULAR CAMLOCK™
10W Driver Housing
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local and
Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel with appropriate personal protective
equipment must perform all servicing of this product.
• Before wiring to power supply and during servicing, turn off and
lock out power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause an
unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part, as
this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body.
• Replace LED assembly only with correct wattage and type of
power supply appropriate for LED assembly.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing LED.
Fixture gets HOT quickly! Contact only switch/plug when
turning on. Do not touch hot lens, guard, or enclosure.
Keep fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time. Use
a soft cloth or gloves. Oil from skin may cause damage.
SAVE THESE INSTRUCTIONS

7. Attach tether wire under screw head at the base
of the UPM housing and tighten. Slowly lower
the faceplate until tether is taut.
NOTE: Faceplate tether supplied with UPM
is designed as an installation aid and NOT a
safety cable. Do not add weight to, or drop
faceplate.
RELEASE DATE
2-26-19
REFERENCE NUMBER
INS-2794-02
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
GroundHotNeutral
A
BC
GroundHotNeutral
A
BC
6. If UPM housing is not level, remove UPM housing;
loosen but DO NOT REMOVE (2) #8-32 screws
with 9/64” Allen wrench on CamLock™ assembly.
Adjust CamLock™ assembly up to 30° as needed
to level. Tighten the screws and reattach UPM
housing.
10. Make sure UPM housing gasket is free of any dirt
or debris. Attach the faceplate by tightening the
(4) #6-32 captive screws evenly using a 5/64”
Allen wrench.
GroundHotNeutral
A
BC
GroundHotNeutral
A
BC
GroundHotNeutral
A
BC
1. Install standard 4.5” x 2.85” recessed junction box
(By Others) in the final fixture location according
to designed lighting plan.
NOTE: Vertical or horizontal installation of
recessed junction box determines orientation
of UPM.
2. Pull branch circuit wiring necessary for installation
(By Others.)
3. Feed branch circuit wiring and lamp leads to
remote mounted fixture through mounting plate
with CamLock™ assembly. Attach mounting plate
with supplied (2) #6-32 stainless steel hex drive
fasteners to recessed junction box using a 5/64”
Allen wrench.
4. Feed wire into UPM housing. Install housing
on CamLock™ at 90° to finished orientation as
shown. (Figure A)
5. Rotate housing 90° counter-clockwise (Figure
B). Tighten set screw with 5/64” Allen wrench
on outside of UPM housing to lock in place.
(Figure C)
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
Installation Instructions
PM2RM RECTANGULAR CAMLOCK™
10W Driver Housing
LINE
Red
FIXTURE
COM
Hydrolock
Plate
Black
GROUND
Driver
White
Black
Green
DIM +
DIM -
Black
White
Hydrolock
Plate
Green
Driver
White
Black
White
Blue
Green
LINE
COM
GROUND
Orange
Orange
Brown
Blue
Black
Gray
FIXTURE
FIXTURE
Green
Green
LINE
Red
FIXTURE
COM
Driver
Black
GROUND
DIM +
DIM -
GROUND IN HOUSING
LINE
Red
FIXTURE
COM
Driver
Black
DIM +
DIM -
GROUND ON PLATE
LINE
Red
FIXTURE
COM
Driver
Black
DIM +
DIM -
HP2RM
HP2 TR
TMB
PCIII
Generic TR
GROUND IN HOUSING
LINE
Quick
Connect
COM
Driver FIXTURE
DIM +
DIM -
PM3
GROUND IN HOUSING
LINE
Quick
Connect
COM
Driver FIXTURE
DIM +
DIM -
Quick
Connect
Driver FIXTURE
DIM +
DIM -
PM3D
GROUND IN HOUSING
LINE
COM
Remote
Driver
DIM +
DIM -
Fixture
Fixture
GROUND ON PLATE
LINE
COM
Driver
DIM +
DIM -
PCIII
Quick
Connect
FIXTURE
LINE
Red
FIXTURE
COM
Remote
Driver
Black
DIM +
DIM -
MA/APGROUND
GROUND IN HOUSING
LINE
COM
Remote
Driver
DIM +
DIM -
DIM +
DIM -
Fixture
Fixture
Remote
Driver
Fixture
Fixture
LINE
COM
Remote
Driver
GROUND
Fixture +
Fixture -
GROUND IN HOUSING
LINE
COM
Remote
Driver
Fixture +
Fixture -
Remote
Driver
Fixture +
Fixture -
GROUND IN HOUSING
LINE
COMRemote
Driver
Fixture +
Fixture -
WIRING DIAGRAM - 010 Control Type
9. Use waterproof wire connectors (By Others) to
connect driver primary leads to branch circuit
wires. Connect incoming ground to ground wire
provided in UPM housing. Connect incoming
dimming control wires to driver dimming
controls. Connect secondary leads to fixture
leads. See wiring diagram.
LINE
Red
FIXTURE
COM
Hydrolock
Plate
Black
GROUND
Driver
White
Black
Green
DIM +
DIM -
Black
White
Hydrolock
Plate
Green
Driver
White
Black
White
Blue
Green
LINE
COM
GROUND
Orange
Orange
Brown
Blue
Black
Gray
FIXTURE
FIXTURE
Green
Green
LINE
Red
FIXTURE
COM
Driver
Black
GROUND
DIM +
DIM -
GROUND IN HOUSING
LINE
Red
FIXTURE
COM
Driver
Black
DIM +
DIM -
GROUND ON PLATE
LINE
Red
FIXTURE
COM
Driver
Black
DIM +
DIM -
HP2RM
HP2 TR
TMB
PCIII
Generic TR
GROUND IN HOUSING
LINE
Quick
Connect
COM
Driver FIXTURE
DIM +
DIM -
PM3
GROUND IN HOUSING
LINE
Quick
Connect
COM
Driver FIXTURE
DIM +
DIM -
Quick
Connect
Driver FIXTURE
DIM +
DIM -
PM3D
GROUND IN HOUSING
LINE
COM
Remote
Driver
DIM +
DIM -
Fixture
Fixture
GROUND ON PLATE
LINE
COM
Driver
DIM +
DIM -
PCIII
Quick
Connect
FIXTURE
LINE
Red
FIXTURE
COM
Remote
Driver
Black
DIM +
DIM -
MA/APGROUND
GROUND IN HOUSING
LINE
COM
Remote
Driver
DIM +
DIM -
DIM +
DIM -
Fixture
Fixture
Remote
Driver
Fixture
Fixture
LINE
COM
Remote
Driver
GROUND
Fixture +
Fixture -
GROUND IN HOUSING
LINE
COM
Remote
Driver
Fixture +
Fixture -
Remote
Driver
Fixture +
Fixture -
GROUND IN HOUSING
LINE
COMRemote
Driver
Fixture +
Fixture -
WIRING DIAGRAM - INC Control Type
8. Use waterproof wire connectors (By Others) to
connect driver primary leads to branch circuit
wires. Connect incoming ground to ground
wire provided in UPM housing. Connect
secondary leads to fixture leads. See wiring
diagram.
