B-K lighting HP2RM User manual

RELEASED
11-9-17
REFERENCE NUMBER
INS-2573-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
TOOLS
NEEDED:
By Others
Waterproof Wire Connectors
7/64” & 0.050” Allen Wrench

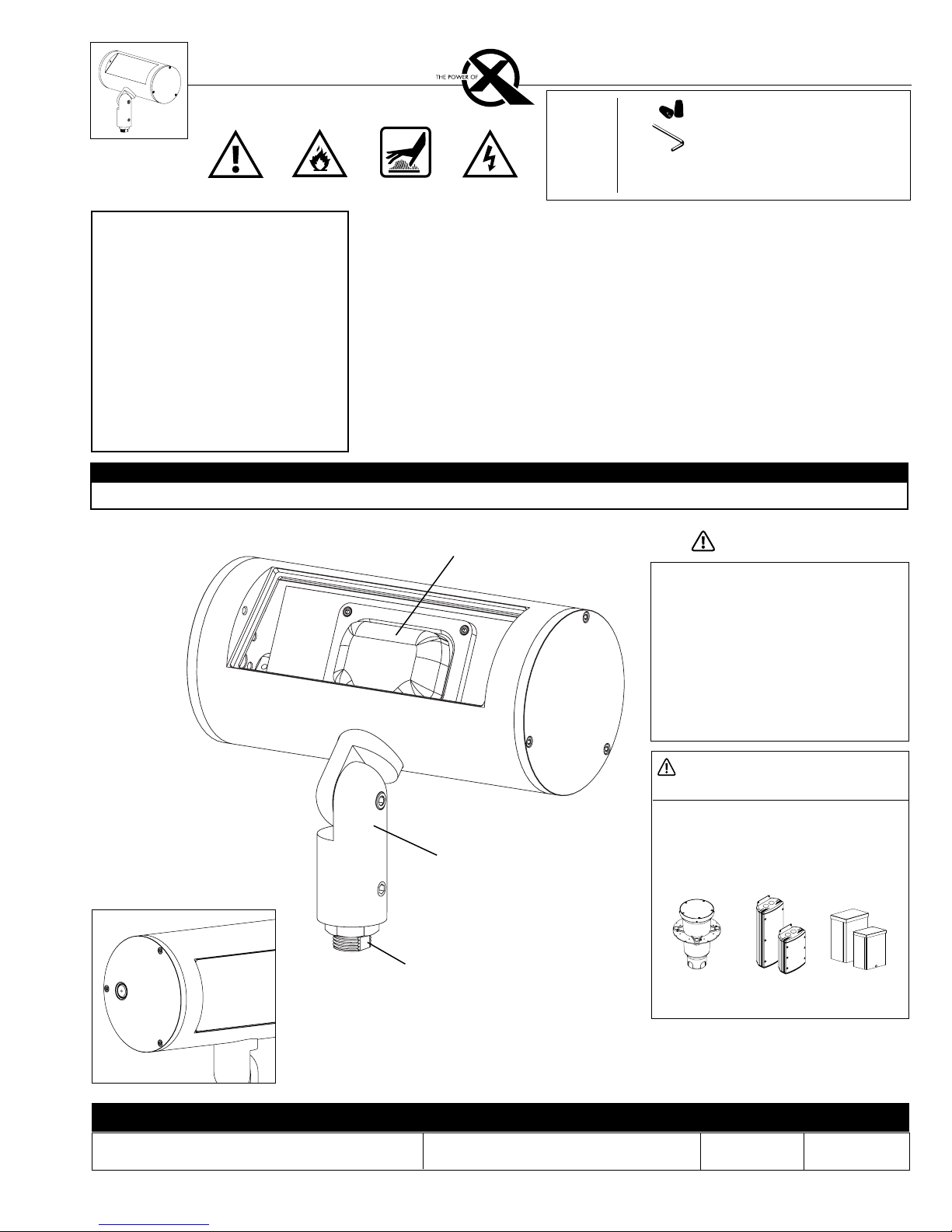

YOSEMITE SERIES™
Remote - Solid State LED
Standard Installation
YO - Yosemite Series™
· Suitable for wet locations · Additionally suitable for mounting within 4 ft. of the ground
IMPORTANT LISTINGS AND CERTIFICATIONS
1/2” NPS
Threaded Nipple
360HD™
Mounting
System
Warning Flammable Hot Surface Low Voltage
REMOTE WIRING
LED Driver
Remote driver installations require inter-connected
wiring between the LED and driver (By Others). Drivers
have specific wiring requirements between these
components. Driver manufacturers regularly recommend
the following wiring details for such installations:
• Do not exceed 50 foot overall wiring distance
using 12 gauge copper wire.
Failure to comply with specific wiring
requirements will void product warranty.
DRIVER HOUSING REQUIRED
Please refer to specified remote driver housing
documentation for detailed installation instructions.
REMOTE DRIVER HOUSINGS:
HP2RM - HP2 Remote Housing
PM3RM - Universal Power Module 3 Remote
PM3DRM - Universal Power Module 3 Dual Remote
RM - Remote Wall Mount
DRM - Dual Remote Wall Mount
PM2RM PM2DRM PM3RM PM3DRM
HP2RM
PM2RM PM2DRM PM3RM PM3DRM
PM3RM &
PM3DRM
PM2RM PM2DRM PM3RM PM3DRM
RM &
DRM
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local and
Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel with appropriate personal protective
equipment must perform all servicing of this product.
• Before wiring to power supply and during servicing, turn off and
lock out power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause an
unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part, as
this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body.
• Replace LED assembly only with correct wattage and type of
power supply appropriate for LED assembly.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing LED.
Fixture gets HOT quickly! Contact only switch/plug when
turning on. Do not touch hot lens, guard, or enclosure.
Keep fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time. Use
a soft cloth or gloves. Oil from skin may cause damage.
SAVE THESE INSTRUCTIONS
Wall Wash
Optic
ACV™ Valve (Detail)

40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
RELEASED
11-9-17
REFERENCE NUMBER
INS-2573-00
10"
(254mm)
"A/D" CAP
3" Dia.
(76mm)
2 11/16"
(68mm)
"B"/"E" CAP
(203mm)
8"
(76mm)
3" Dia.
2 11/16"
(68mm)
"C" CAP
(178mm)
7" (76mm)
3" Dia.
Patented 360HD™
Mounting System
"B"/"E" CAP
3"
(76mm) 1"
(25mm)
"A"/"D" CAP
3"
(76mm)
5"
(127mm)
"C" CAP
2"
(51mm)
2 11/16"
(68mm)
1. Mount fixture onto suitable enclosure according
to designed lighting plan.
2. Secure ½” NPS stem to mounting option. Secure
with provided locknut if applicable.
3. Make watertight connections from remote
driver to fixture leads using waterproof wire
connectors (By Others). See wiring diagram.
Fixture Installation
WIRING DIAGRAM
YOSEMITE SERIES™
Remote - Solid State LED
Standard Installation
LINE
Red
FIXTURE
COM
Hydrolock
Plate
Black
GROUND
Driver
White
Black
Green
DIM +
DIM -
Black
White
Hydrolock
Plate
Green
Driver
White
Black
White
Blue
Green
LINE
COM
GROUND
Orange
Orange
Brown
Blue
Black
Gray
FIXTURE
FIXTURE
Green
Green
LINE
Red
FIXTURE
COM
Driver
Black
GROUND
DIM +
DIM -
GROUND IN HOUSING
LINE
Red
FIXTURE
COM
Driver
Black
DIM +
DIM -
GROUND ON PLATE
LINE
Red
FIXTURE
COM
Driver
Black
DIM +
DIM -
HP2RM
HP2 TR
TMB
PCIII
Generic TR
GROUND IN HOUSING
LINE
Quick
Connect
COM
Driver FIXTURE
DIM +
DIM -
PM3
GROUND IN HOUSING
LINE
Quick
Connect
COM
Driver FIXTURE
DIM +
DIM -
Quick
Connect
Driver FIXTURE
DIM +
DIM -
PM3D
GROUND IN HOUSING
LINE
COM
Remote
Driver
DIM +
DIM -
Fixture
Fixture
PM3RM
GROUND ON PLATE
LINE
COM
Driver
DIM +
DIM -
PCIII
Quick
Connect
FIXTURE
LINE
Red
FIXTURE
COM
Remote
Driver
Black
DIM +
DIM -
MA/AP
GROUND
GROUND IN HOUSING
LINE
COM
Remote
Driver
DIM +
DIM -
DIM +
DIM -
PM3DRM
Fixture
Fixture
Remote
Driver
Fixture
Fixture

1. Loosen three (3) captive #6-32 screws securing
cap/socket assembly with 7/64” Allen wrench.
NOTE: Only one end cap (without ACV™) is
removable.
2. Depress patented Anti-Condensation Valve™
(ACV™) to release vacuum and pull cap/socket
assembly to access. Screws will be retained in
cap.
10"
(254mm)
"A/D" CAP
3" Dia.
(76mm)
2 11/16"
(68mm)
"B"/"E" CAP
(203mm)
8"
(76mm)
3" Dia.
2 11/16"
(68mm)
"C" CAP
(178mm)
7" (76mm)
3" Dia.
Patented 360HD™
Mounting System
"B"/"E" CAP
3"
(76mm) 1"
(25mm)
"A"/"D" CAP
3"
(76mm)
5"
(127mm)
"C" CAP
2"
(51mm)
2 11/16"
(68mm)
YOSEMITE SERIES™
Remote - Solid State LED
Standard Installation
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
RELEASED
11-9-17
REFERENCE NUMBER
INS-2573-00
6. Loosen, then remove two (2) #4-40 screws from
LED module using .050” Allen wrench.
7. Carefully remove LED module from heatsink.
Do not pull on connector or wiring. Handle
with care.
5. Loosen four (4) #6-32 screws on wall wash optic
holder using 7/64” Allen wrench, then gently
pull away to remove from heatsink.
3. Carefully pull out end cap assembly. LED is still
attached to leads.
Do not pull on connector or wiring. Handle
with care.
LED and Optic Replacement
4. Detach heatsink from fixture body via quick
disconnect.
Do not pull on connector or wiring. Handle
with care.
Fragile! Do not pull on connector or wiring.
Handle with care.
8. Use small pick tool to push connector off
LED board through two small slots behind
connector. Once loose, lift connector upwards
and off board.
9. Spread thin, even layer of thermal paste on back
of new LED module. Place new LED module onto
heatsink, lining up module with holes for screws.
Tighten two (2) #4-40 screws using .050” Allen
wrench to secure LED module to heatsink.

11. Place wall wash optic over LED module, lining
up screw locations with holes in heatsink. Secure
wall wash optic to heatsink with four (4) #6-32
screws using 7/64” Allen wrench.
10"
(254mm)
"A/D" CAP
3" Dia.
(76mm)
2 11/16"
(68mm)
"B"/"E" CAP
(203mm)
8"
(76mm)
3" Dia.
2 11/16"
(68mm)
"C" CAP
(178mm)
7" (76mm)
3" Dia.
Patented 360HD™
Mounting System
"B"/"E" CAP
3"
(76mm) 1"
(25mm)
"A"/"D" CAP
3"
(76mm)
5"
(127mm)
"C" CAP
2"
(51mm)
2 11/16"
(68mm)
YOSEMITE SERIES™
Remote - Solid State LED
Standard Installation
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
RELEASED
11-9-17
REFERENCE NUMBER
INS-2573-00
14. Tighten three (3) captive #6-32 screws with 7/64”
Allen wrench to secure cap assembly.
13. Re-install end cap assembly.
12. Attach heatsink to fixture via quick disconnect.
10. Press connector straight downwards into slot on
module to snap into place.
Connector will only fit in one direction.

RELEASED
1-31-14
REFERENCE NUMBER
INS-2096-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
Warning Hot Surface
TOOLS
NEEDED:
By Others
3/16” Allen wrench
360HD™ Mounting System
Standard Adjustment
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local
and Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel must perform all servicing or relamping of
this product.
• Before wiring to power supply and during servicing or relamping,
turn off power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause
an unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part,
as this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body. Do not touch the lamp at any time. Use
a clean, dry, soft cloth to handle the lamp. Oil from skin may
damage the lamp and cause it to rupture.
• Replace lamp only with correct wattage and type of lamp
marked on fixture label.
• All gaskets, O-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted lamp is HOT!
WARNING - To reduce the risk of FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing lamp.
Lamp gets HOT quickly! Contact only switch/plug when
turning on.
Do not touch hot lens, guard, or enclosure (see diagram/
picture).
Keep lamp away from materials that may burn.
Do no touch the lamp at any time. Use a soft cloth. Oil
from skin may damage lamp.
Do not operate the luminaire fitting with a missing or
damaged shield.
SAVE THESE INSTRUCTIONS
· Suitable for wet locations · Additionally suitable for mounting within 4 ft. of the ground
IMPORTANT LISTINGS AND CERTIFICATIONS
3. Use 3/16” Allen wrench to loosen (1) 1/4”-28 x 1-1/4”
stainless steel black oxide socket head cap screw at
the knuckle for vertical aiming purpose.
4. Tighten (1) 3/8”-16 x 3/8” stainless steel black oxide
set screw on the stem to secure horizontal aiming
position.
Tighten (1) 1/4”-28 x 1-1/4” stainless steel black
oxide socket head cap screw to 24” minimum to 48”
maximum pounds to secure vertical aiming position
2. Rotate fixture at base and aim fixture to desired
horizontal location.
1. Use 3/16” Allen wrench to slightly loosen
(1) 3/8”-16 x 3/8” stainless steel black oxide set screw
on the stem for 360° aiming purpose.
360HD™ Knuckle
Warning: Do not over tighten set screw. Doing
so will compromise O-ring seal and will void
warranty.

Warning High Voltage Hot Surface
NEMA 3R Remote Power Supply
23W-34W Solid State LED
Installation Instructions
REMOTE WIRING
LED Driver
Remote driver installations require inter-connected
wiring between the LED and driver (by others). Drivers
have specific wiring requirements between these
components. Driver manufacturers regularly recommend
the following wiring details for such installations:
• Do not exceed 50 foot overall wiring distance
using 12 gauge copper wire.
Failure to comply with specific wiring
requirements will void product warranty.
· Suitable for wet locations
IMPORTANT LISTINGS AND CERTIFICATIONS
RELEASE DATE
11-17-17
REFERENCE NUMBER
INS-2679-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
NEEDED
FOR
INSTALLATION:
By Others
Driver
Dual Drivers
RM - Single Remote Housing
DRM - Dual Remote Housing
Cover
Cover
Terminal
Block
Terminal
Block
(A)
Terminal Block (B)
(Dimming Controls)
1/8” Allen Wrench
Phillips Screwdriver
Level
Hammer
Mounting Hardware
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local and
Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel with appropriate personal protective
equipment must perform all servicing of this product.
• Before wiring to power supply and during servicing, turn off and
lock out power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause an
unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part, as
this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body.
• Replace LED assembly only with correct wattage and type of
power supply appropriate for LED assembly.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing LED.
Fixture gets HOT quickly! Contact only switch/plug when
turning on. Do not touch hot lens, guard, or enclosure.
Keep fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time. Use
a soft cloth or gloves. Oil from skin may cause damage.
SAVE THESE INSTRUCTIONS

RELEASE DATE
11-17-17
REFERENCE NUMBER
INS-2679-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
NEMA 3R Remote Power Supply
23W-34W Solid State LED
Installation Instructions
4. Connect conduit connector through female
threaded conduit entry.
NOTE: Surface conduit is a common entrance
for water if not properly sealed. Seal
connector threads and conduit with a suitable
sealant (Teflon tape, adhesive, etc.). Sealing
the conduit after knockouts are removed is
required to maintain warranty.
8. Re-attach cover. Tighten cover screw.
5. Pull branch circuit wiring necessary for
installation (By Others). Pull dimming control
wiring necessary for installation (By Others).
Single Remote Driver with Dimming Controls
7. Connect branch circuit to terminal block. Connect incoming ground to ground wire provided on NEMA 3R
housing. Connect secondary lamp leads to terminal. See labels on terminal block for additional information..
6. Pull secondary lamp leads necessary for
installation though dedicated conduit. (By
Others).
NOTE: Failure to comply with specific wiring
requirements will void product warranty.
2. Attach the NEMA 3R housing at mounting holes
with ¼” fasteners (By Others). Use suitable
mounting hardware for surface. Use level to
ensure a level install.
NOTE: Many methods exist to bolt to a
flat surface. The housing is provided with
mounting brackets with ¼” holes.
Housing Installation
3. Remove Knockout(s) with hammer as needed
from the NEMA 3R housing. Leave remaining
unused knockouts in place to maintain seal.
1. Remove cover by removing #10-24 cover screw
using a 1/8” Allen wrench.
DIM
COM
LED
-
DIM
LED
+
DIM
COM
LED
-
DIM
LED
+

120-208-
240-277
VOLT
120-208-
240-277
VOLT
COM
LAMP
1
LAMP
COM
1
LED
+
1
LED
1
LAMP
2
LAMP
COM
2
LED
+
2
LED
2
DIM
1
DIM
COM
1
DIM
+
1
DIM
1
DIM
2
DIM
COM
2
DIM
+
2
DIM
2
7. Terminal A is for circuit branch wiring and fixture
leads. Terminal B is for dimming controls. The
grounding screw is located to the upper right of
terminal A.
120-208-
240-277
VOLT
120-208-
240-277
VOLT
COM
LAMP
1
LAMP
COM
1
LED
+
1
LED
1
LAMP
2
LAMP
COM
2
LED
+
2
LED
2
DIM
1
DIM
COM
1
DIM
+
1
DIM
1
DIM
2
DIM
COM
2
DIM
+
2
DIM
2
8. Terminal Block A - Connect branch circuit to terminal block. Connect incoming ground to ground wire
provided on NEMA 3R housing. Connect secondary lamp leads to terminal A. See labels on terminal block for
additional information.
4. Connect conduit connector through female
threaded conduit entry.
NOTE: Surface conduit is a common entrance
for water if not properly sealed. Seal
connector threads and conduit with a suitable
sealant (Teflon tape, adhesive, etc.). Sealing
the conduit after knockouts are removed is
required to maintain warranty.
5. Pull branch circuit wiring necessary for
installation (By Others). Pull dimming control
wiring necessary for installation (By Others).
Dual Remote Driver with Dimming Controls
6. Pull secondary lamp leads necessary for
installation though dedicated conduit. (By
Others).
NOTE: Failure to comply with specific wiring
requirements will void product warranty.
NEMA 3R Remote Power Supply
23W-34W Solid State LED
Installation Instructions
10. Re-attach cover. Tighten cover screw.
RELEASE DATE
11-17-17
REFERENCE NUMBER
INS-2679-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
120-208-
240-277
VOLT
120-208-
240-277
VOLT
COM
LAMP
1
LAMP
COM
1
LED
+
1
LED
1
LAMP
2
LAMP
COM
2
LED
+
2
LED
2
DIM
1
DIM
COM
1
DIM
+
1
DIM
1
DIM
2
DIM
COM
2
DIM
+
2
DIM
2
9. Terminal Block B - Connect incoming dimming
controls to terminal block. See labels on terminal
block for additional information.
A
B
Ground
For use with 23-34 watt dimming driver.

RELEASE DATE
11-17-17
REFERENCE NUMBER
INS-2681-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
Warning High Voltage Hot Surface
Waterproof Wire
Connectors
Silicone ‘O’ Ring
Patented
Stability
Flange
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
Quick
Disconnects
Patented
Hydro-Lock™
Plate
Driver
Assembly
HP2RM Housing
HP2RM SERIES
23W-34W Remote - Solid State LED
Faceplate Soil Prep
Conduit
trench 18”
Dia.
A. Determine Soil Type by referencing
DIG-IT Guide.
B. Dig hole 18” wide and 20” deep.
Conduit
Trench
Excavated
for Housing
C. Prep soil according to DIG-IT Guide.
1/8” Allen Wrench
Waterproof Wire Connectors
Level
Phillips Screwdriver
NEEDED
FOR
INSTALLATION:
By Others
Proper soil preparation is recommended before installation. See the DIG-IT guide at www.bklighting.com/dig-it for more information.
· Suitable for wet locations · Suitable for recessed in ground locations
IMPORTANT LISTINGS AND CERTIFICATIONS
Installation Instructions
Concrete Pour Collar
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local and
Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel with appropriate personal protective
equipment must perform all servicing of this product.
• Before wiring to power supply and during servicing, turn off and
lock out power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause an
unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part, as
this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body.
• Replace LED assembly only with correct wattage and type of
power supply appropriate for LED assembly.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing LED.
Fixture gets HOT quickly! Contact only switch/plug when
turning on. Do not touch hot lens, guard, or enclosure.
Keep fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time. Use
a soft cloth or gloves. Oil from skin may cause damage.
SAVE THESE INSTRUCTIONS

RELEASE DATE
11-17-17
REFERENCE NUMBER
INS-2681-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
HP2RM SERIES
23W-34W Remote - Solid State LED
Installation Instructions PROJECT:
TYPE:
2. Place housing in hole. Align junction box in the
path of the conduit trench.
3. Insert (4) pieces of ½” EMT conduit through the
Stability Flange™. Hammer into substrate until
secure.
Leave sufficient clearance to elevate housing
to finished grade.
4. Raise housing on EMT so concrete pour collar is
flush with finished grade. Use a level to aid in
housing installation.
5. When housing is level, tighten screws on
Stability Flange™ to secure housing to EMT.
Remove excess EMT as needed.
7. Per DIG-IT Guide, backfill the gap between the
bottom of housing and bottom of hole with
sand for drainage.
Housing Installation
Threaded Entry
Side Flats
1. Connect branch conduit connectors (By Others)
to the junction box using either the threaded
conduit entries on the bottom of the junction
box or through holes drilled into the sides of the
junction box.
Flush with finished grade
6. Connect the conduit to the conduit connectors.
8. For soil installation: Fill and tamp soil to
the appropriate height leaving room for sod,
pavers, etc. to be level with the top of the
temporary cover.
Soil installation is not drive-over rated.
9. For concrete installation: Fill the hole around
the fixture housing to 12” below the finished
grade with clean fill dirt and tamp carefully to
prevent settling of fixture. Pour concrete and
finish as required flush with the top surface of
the temporary cover.

RELEASE DATE
11-17-17
REFERENCE NUMBER
INS-2681-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
HP2RM SERIES
23W-34W Remote - Solid State LED
Installation Instructions PROJECT:
TYPE:
4. Wipe inside of housing where HydroLock® plate
will sit clean of debris before inserting patented
HydroLock® plate on to junction box. Align
HydroLock® plate with pins in housing and seat
it firmly in place.
Installation
6. Connect driver assembly to Patented
HydroLock®Barrier plate with quick disconnects.
WIRING DIAGRAM
LINE
Red
FIXTURE
COM
Hydrolock
Plate
Black
GROUND
Driver
White
Black
Black
White
Hydrolock
Plate
Green
Driver
White
Black
White
Blue
Green
LINE
COM
GROUND
Orange
Orange
Brown
Blue
Black
Gray
FIXTURE
FIXTURE
Green
Green
Green
DIM +
DIM -
DIM +
DIM -
DIM +
DIM -
Hydrolock
Plate
LINE
COM
GROUND
FIXTURE
FIXTURE
DIM +
DIM -
1. Remove temporary cover.
2. Pull primary branch circuit wiring into junction
box.
3. Make watertight connections using waterproof
wire connectors (provided) to leads on the
bottom of Patented HydroLock® Barrier Plate
Assembly. See wiring diagram(s).
5. Turn HydroLock® Barrier Plate clockwise ¼” to
lock.
Patented HydroLock® Barrier Plate must be
completely seated to ensure proper seal or
water may intrude. This step must be done as
stated or you will void your warranty.
7. Lower driver assembly into HP2 housing. 8. Attach driver assembly to housing by aligning
keyhole notch under one (1) of three (3) #8
screw heads.
For use with 23-34 watt dimming driver.
9. Tighten the Phillips screws to secure driver
plate to housing.

HP2RM SERIES
23W-34W Remote - Solid State LED
Driver Installation Instructions PROJECT:
TYPE:
RELEASE DATE
11-17-17
REFERENCE NUMBER
INS-2681-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
10. Remove any dirt or debris in O-ring groove near
top of housing. Place O-Ring inside of groove.
Failure to clean groove of debris will cause
fixture to fail and void product warranty.
11. Install faceplate using 1/8” Allen wrench and
hand-tighten the faceplate screws in a star
pattern to 30 in-lbs. min.
Do not use a power tool to install screws. Do
not exceed 40 in-lbs.

RELEASED
12-8-17
REFERENCE NUMBER
INS-2187-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
TOOLS
NEEDED:
By Others
· Suitable for wet locations
IMPORTANT LISTINGS AND CERTIFICATIONS
Warning High Voltage
Adjustable
Tree Strap
Hot Surface
Installation Instructions1/8” Allen Wrench
Waterproof Wire Connectors
Hammer
Phillips Screwdriver
* UPM is covered in whole or in part by US patent #6,940,012
PM3RM
Housing
Knockouts
Faceplate
REMOTE WIRING
LED Driver
Remote driver installations require inter-connected
wiring between the LED and driver (by others). Drivers
have specific wiring requirements between these
components. Driver manufacturers regularly recommend
the following wiring details for such installations:
• Do not exceed 50 foot overall wiring distance
using 12 gauge copper wire.
Failure to comply with specific wiring
requirements will void product warranty.
Driver
PM3RM TREE STRAP™
Driver Housing
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local and
Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel with appropriate personal protective
equipment must perform all servicing of this product.
• Before wiring to power supply and during servicing, turn off and
lock out power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause an
unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part, as
this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body.
• Replace LED assembly only with correct wattage and type of
power supply appropriate for LED assembly.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing LED.
Fixture gets HOT quickly! Contact only switch/plug when
turning on. Do not touch hot lens, guard, or enclosure.
Keep fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time. Use
a soft cloth or gloves. Oil from skin may cause damage.
SAVE THESE INSTRUCTIONS

40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
PROJECT:
TYPE:
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
RELEASED
12-8-17
REFERENCE NUMBER
INS-2187-00
Installation Instructions
LAMP
BLUE
WHITE
GROUND
QUICK DISCONNECT
LINE (BLACK)
NEUTRAL (WHITE)
GROUND (GREEN)
BARE WIRE
IN UPM
RED
BLACK
BLUE
WHITE
GREEN
BALLAST
GroundHotNeutral
LAMP
BLUE
WHITE
GROUND
QUICK DISCONNECT
LINE (BLACK)
NEUTRAL (WHITE)
GROUND (GREEN)
BARE WIRE
IN UPM
RED
BLACK
BLUE
WHITE
GREEN
BALLAST
GroundHotNeutral
2. Remove Patented Knockout(s) as necessary
from the inside of the UPM housing. Leave
remaining unused knockouts in place to
maintain seal.
NOTE: Patented design featuring a silicone
‘O’ Ring allowing knockout to be tapped
back into place to renew seal integrity.
3. Use adjustable strap provided to attach UPM
housing to tree. Tighten by pulling on the
adjustable strap until secure.
LAMP
BLUE
WHITE
GROUND
QUICK DISCONNECT
LINE (BLACK)
NEUTRAL (WHITE)
GROUND (GREEN)
BARE WIRE
IN UPM
RED
BLACK
BLUE
WHITE
GREEN
BALLAST
GroundHotNeutral
4. Thread safety cable through hole on the back of the
UPM housing. Feed safety cable through opposing
ends of the connector. Pull on wires to assure the
connection is secure. Leave enough slack in safety
cable for tree growth. Adjustments can be made
by pressing release spring with a pin or 3/64” Allen
tool.
LAMP
BLUE
WHITE
GROUND
QUICK DISCONNECT
LINE (BLACK)
NEUTRAL (WHITE)
GROUND (GREEN)
BARE WIRE
IN UPM
RED
BLACK
BLUE
WHITE
GREEN
BALLAST
GroundHotNeutral
LAMP
BLUE
WHITE
GROUND
QUICK DISCONNECT
LINE (BLACK)
NEUTRAL (WHITE)
GROUND (GREEN)
BARE WIRE
IN UPM
RED
BLACK
BLUE
WHITE
GREEN
BALLAST
GroundHotNeutral
6. Pull branch circuit wiring and dimming control
wiring necessary for installation (By Others).
7. Attach tether wire under screw head at the base
of the UPM housing and tighten. Slowly lower the
faceplate until tether is taut.
NOTE: Faceplate tether supplied with UPM is
designed as an installation aid and NOT a safety
cable. Do not add weight to, or drop faceplate.
LAMP
BLUE
WHITE
GROUND
QUICK DISCONNECT
LINE (BLACK)
NEUTRAL (WHITE)
GROUND (GREEN)
BARE WIRE
IN UPM
RED
BLACK
BLUE
WHITE
GREEN
BALLAST
GroundHotNeutral
5. Connect 3/4” conduit connector through
female threaded conduit entry.
NOTE: Surface conduit is a common entrance
for water if not properly sealed. Seal
connector threads and conduit pipe with
a suitable sealant (Teflon tape, adhesive,
etc). Sealing the conduit after knockouts are
removed is required to maintain warranty.
1. Loosen (6) #10-24 captive screws using a 1/8” Allen
wrench to remove faceplate of UPM housing.
PM3RM TREE STRAP™
Driver Housing
LINE
Red
FIXTURE
COM
Hydrolock
Plate
Black
GROUND
Driver
White
Black
Green
DIM +
DIM -
Black
White
Hydrolock
Plate
Green
Driver
White
Black
White
Blue
Green
LINE
COM
GROUND
Orange
Orange
Brown
Blue
Black
Gray
FIXTURE
FIXTURE
Green
Green
LINE
Red
FIXTURE
COM
Driver
Black
GROUND
DIM +
DIM -
GROUND IN HOUSING
LINE
Red
FIXTURE
COM
Driver
Black
DIM +
DIM -
GROUND ON PLATE
LINE
Red
FIXTURE
COM
Driver
Black
DIM +
DIM -
HP2RM
HP2 TR
TMB
PCIII
Generic TR
GROUND IN HOUSING
LINE
Quick
Connect
COM
Driver FIXTURE
DIM +
DIM -
PM3
GROUND IN HOUSING
LINE
Quick
Connect
COM
Driver FIXTURE
DIM +
DIM -
Quick
Connect
Driver FIXTURE
DIM +
DIM -
PM3D
GROUND IN HOUSING
LINE
COM
Remote
Driver
DIM +
DIM -
Fixture
Fixture
PM3RM
GROUND ON PLATE
LINE
COM
Driver
DIM +
DIM -
PCIII
Quick
Connect
FIXTURE
LINE
Red
FIXTURE
COM
Remote
Driver
Black
DIM +
DIM -
MA/APGROUND
GROUND IN HOUSING
LINE
COM
Remote
Driver
DIM +
DIM -
DIM +
DIM -
PM3DRM
Fixture
Fixture
Remote
Driver
Fixture
Fixture
WIRING DIAGRAM
8. Use waterproof wire connectors (By Others) to
connect driver primary leads to branch circuit
wires. Connect incoming ground to ground
wire provided in UPM housing. Connect
incoming dimming control wires to driver
dimming controls. See wiring diagram.
9. Remove two (2) #8-32 screws in UPM housing
using Phillips screwdriver.

LAMP
BLUE
WHITE
GROUND
QUICK DISCONNECT
LINE (BLACK)
NEUTRAL (WHITE)
GROUND (GREEN)
BARE WIRE
IN UPM
RED
BLACK
BLUE
WHITE
GREEN
BALLAST
GroundHotNeutral
LAMP
BLUE
WHITE
GROUND
QUICK DISCONNECT
LINE (BLACK)
NEUTRAL (WHITE)
GROUND (GREEN)
BARE WIRE
IN UPM
RED
BLACK
BLUE
WHITE
GREEN
BALLAST
GroundHotNeutral
12. Make sure UPM housing gasket is free of
any dirt or debris. Attach the faceplate by
tightening the (6) #10-24 captive screws
evenly using a 1/8” Allen wrench.
PROJECT:
TYPE:
Installation Instructions
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
RELEASED
12-8-17
REFERENCE NUMBER
INS-2187-00
PM3RM TREE STRAP™
Driver Housing
10. Slide driver feet under two screws in UPM housing
and tighten screws using Phillips screwdriver.
11. Reinstall #8-32 screws on other side of driver and
tighten to secure driver to UPM housing.

RELEASED
12-8-17
REFERENCE NUMBER
INS-2187-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
· Suitable for wet locations
IMPORTANT LISTINGS AND CERTIFICATIONS
Warning High Voltage
Surface Mount
Hot Surface
Installation Instructions
* UPM is covered in whole or in part by US patent #6,940,012
PM3RM
Housing
Knockouts
Faceplate
1/8” Allen Wrench
Waterproof Wire Connectors
Hammer
Phillips Screwdriver
1/4” Drill Bit and Drill
Mounting Hardware
NEEDED
FOR
INSTALLATION:
By others
REMOTE WIRING
LED Driver
Remote driver installations require inter-connected
wiring between the LED and driver (by others). Drivers
have specific wiring requirements between these
components. Driver manufacturers regularly recommend
the following wiring details for such installations:
• Do not exceed 50 foot overall wiring distance
using 12 gauge copper wire.
Failure to comply with specific wiring
requirements will void product warranty.
Driver
PM3RM SURFACE MOUNT™
Driver Housing
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local and
Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel with appropriate personal protective
equipment must perform all servicing of this product.
• Before wiring to power supply and during servicing, turn off and
lock out power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause an
unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part, as
this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body.
• Replace LED assembly only with correct wattage and type of
power supply appropriate for LED assembly.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing LED.
Fixture gets HOT quickly! Contact only switch/plug when
turning on. Do not touch hot lens, guard, or enclosure.
Keep fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time. Use
a soft cloth or gloves. Oil from skin may cause damage.
SAVE THESE INSTRUCTIONS

PROJECT:
TYPE:
Installation Instructions
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
RELEASED
12-8-17
REFERENCE NUMBER
INS-2187-00
GroundHotNeutral
LAMP
BLUE
WHITE
GROUND
QUICK DISCONNECT
LINE (BLACK)
NEUTRAL (WHITE)
GROUND (GREEN)
BARE WIRE
IN UPM
RED
BLACK
BLUE
WHITE
GREEN
BALLAST
GroundHotNeutral
LAMP
BLUE
WHITE
GROUND
QUICK DISCONNECT
LINE (BLACK)
NEUTRAL (WHITE)
GROUND (GREEN)
BARE WIRE
IN UPM
RED
BLACK
BLUE
WHITE
GREEN
BALLAST
GroundHotNeutral
LAMP
BLUE
WHITE
GROUND
QUICK DISCONNECT
LINE (BLACK)
NEUTRAL (WHITE)
GROUND (GREEN)
BARE WIRE
IN UPM
RED
BLACK
BLUE
WHITE
GREEN
BALLAST
1. Prepare final mounting position according to
designed lighting plan. 2. Drill holes into surface for ¼” fasteners (By
Others) on locations required for mounting via
tabs.
4. Remove Patented Knockout(s) as necessary
from the inside of the UPM housing. Leave
remaining unused knockouts in place to
maintain seal.
NOTE: Patented design featuring a silicone
‘O’ Ring allowing knockout to be tapped back
GroundHotNeutral
LAMP
BLUE
WHITE
GROUND
QUICK DISCONNECT
LINE (BLACK)
NEUTRAL (WHITE)
GROUND (GREEN)
BARE WIRE
IN UPM
RED
BLACK
BLUE
WHITE
GREEN
BALLAST
5. Attach the UPM housing at mounting brackets
with ¼” fasteners (By Others). Use suitable
mounting hardware for surface.
NOTE: Many methods exist to bolt to a flat
surface. The fixture is provided with mounting
brackets with ¼” holes.
6. Connect 3/4” conduit connector through female
threaded conduit entry.
NOTE: Surface conduit is a common entrance
for water if not properly sealed. Seal
connector threads and conduit with a suitable
sealant (Teflon tape, adhesive, etc.). Sealing
the conduit after knockouts are removed is
required to maintain warranty.
GroundHotNeutral
LAMP
BLUE
WHITE
GROUND
QUICK DISCONNECT
LINE (BLACK)
NEUTRAL (WHITE)
GROUND (GREEN)
BARE WIRE
IN UPM
RED
BLACK
BLUE
WHITE
GREEN
BALLAST
7. Pull branch circuit wiring and dimming control
wiring necessary for installation (By Others.)
GroundHotNeutral
LAMP
BLUE
WHITE
GROUND
QUICK DISCONNECT
LINE (BLACK)
NEUTRAL (WHITE)
GROUND (GREEN)
BARE WIRE
IN UPM
RED
BLACK
BLUE
WHITE
GREEN
BALLAST
8. Attach tether wire under screw head at the base
of the UPM housing and tighten. Slowly lower
the faceplate until tether is taut.
NOTE: Faceplate tether supplied with UPM
is designed as an installation aid and NOT a
safety cable. Do not add weight to, or drop
faceplate.
9. Use waterproof wire connectors (By Others) to
connect driver primary leads to branch circuit
wires. Connect incoming ground to ground wire
provided in UPM housing. Connect incoming
dimming control wires to driver dimming
controls. See wiring diagram.
GroundHotNeutral
LAMP
BLUE
WHITE
GROUND
QUICK DISCONNECT
LINE (BLACK)
NEUTRAL (WHITE)
GROUND (GREEN)
BARE WIRE
IN UPM
RED
BLACK
BLUE
WHITE
GREEN
BALLAST
3. Loosen (6) #10-24 captive screws using a 1/8”
Allen wrench to remove faceplate of UPM
housing.
WIRING DIAGRAM
PM3RM SURFACE MOUNT™
Driver Housing
LINE
Red
FIXTURE
COM
Hydrolock
Plate
Black
GROUND
Driver
White
Black
Green
DIM +
DIM -
Black
White
Hydrolock
Plate
Green
Driver
White
Black
White
Blue
Green
LINE
COM
GROUND
Orange
Orange
Brown
Blue
Black
Gray
FIXTURE
FIXTURE
Green
Green
LINE
Red
FIXTURE
COM
Driver
Black
GROUND
DIM +
DIM -
GROUND IN HOUSING
LINE
Red
FIXTURE
COM
Driver
Black
DIM +
DIM -
GROUND ON PLATE
LINE
Red
FIXTURE
COM
Driver
Black
DIM +
DIM -
HP2RM
HP2 TR
TMB
PCIII
Generic TR
GROUND IN HOUSING
LINE
Quick
Connect
COM
Driver FIXTURE
DIM +
DIM -
PM3
GROUND IN HOUSING
LINE
Quick
Connect
COM
Driver FIXTURE
DIM +
DIM -
Quick
Connect
Driver FIXTURE
DIM +
DIM -
PM3D
GROUND IN HOUSING
LINE
COM
Remote
Driver
DIM +
DIM -
Fixture
Fixture
PM3RM
GROUND ON PLATE
LINE
COM
Driver
DIM +
DIM -
PCIII
Quick
Connect
FIXTURE
LINE
Red
FIXTURE
COM
Remote
Driver
Black
DIM +
DIM -
MA/APGROUND
GROUND IN HOUSING
LINE
COM
Remote
Driver
DIM +
DIM -
DIM +
DIM -
PM3DRM
Fixture
Fixture
Remote
Driver
Fixture
Fixture

PROJECT:
TYPE:
Installation Instructions
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
RELEASED
12-8-17
REFERENCE NUMBER
INS-2187-00
GroundHotNeutral
LAMP
BLUE
WHITE
GROUND
QUICK DISCONNECT
LINE (BLACK)
NEUTRAL (WHITE)
GROUND (GREEN)
BARE WIRE
IN UPM
RED
BLACK
BLUE
WHITE
GREEN
BALLAST
GroundHotNeutral
LAMP
BLUE
WHITE
GROUND
QUICK DISCONNECT
LINE (BLACK)
NEUTRAL (WHITE)
GROUND (GREEN)
BARE WIRE
IN UPM
RED
BLACK
BLUE
WHITE
GREEN
BALLAST
13. Make sure UPM housing gasket is free of any
dirt or debris. Attach the faceplate by tightening
the (6) #10-24 captive screws evenly using a 1/8”
Allen wrench.
11. Slide driver feet under two screws in UPM
housing and tighten screws using Phillips
screwdriver.
12. Reinstall two (2) #8-32 screws on other side
of driver and tighten to secure driver to UPM
housing.
PM3RM SURFACE MOUNT™
Driver Housing
10. Remove two (2) #8-32 screws in UPM housing
using Phillips screwdriver.

RELEASED
12-8-17
REFERENCE NUMBER
INS-2187-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
· Suitable for wet locations
IMPORTANT LISTINGS AND CERTIFICATIONS
Warning High Voltage
CamLock™
Hot Surface
Installation Instructions
* UPM is covered in whole or in part by US patent #6,940,012
PM3RM
Housing
Knockouts
Faceplate
1/8” & 9/64” Allen Wrench
Waterproof Wire Connectors
Phillips Screwdriver
Level
NEEDED
FOR
INSTALLATION:
By others
Universal
Mounting
Ring™
REMOTE WIRING
LED Driver
Remote driver installations require inter-connected
wiring between the LED and driver (by others). Drivers
have specific wiring requirements between these
components. Driver manufacturers regularly recommend
the following wiring details for such installations:
• Do not exceed 50 foot overall wiring distance
using 12 gauge copper wire.
Failure to comply with specific wiring
requirements will void product warranty.
Driver
PM3RM ROUND CAMLOCK™
Driver Housing
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local and
Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel with appropriate personal protective
equipment must perform all servicing of this product.
• Before wiring to power supply and during servicing, turn off and
lock out power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause an
unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part, as
this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body.
• Replace LED assembly only with correct wattage and type of
power supply appropriate for LED assembly.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing LED.
Fixture gets HOT quickly! Contact only switch/plug when
turning on. Do not touch hot lens, guard, or enclosure.
Keep fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time. Use
a soft cloth or gloves. Oil from skin may cause damage.
SAVE THESE INSTRUCTIONS

PROJECT:
TYPE:
Installation Instructions
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
RELEASED
12-8-17
REFERENCE NUMBER
INS-2187-00
GroundHotNeutral
A
BC
Horizontal
Vertical
1. Install standard 4” octagonal/round recessed
junction box in the final fixture location according
to designed lighting plan.
2. Pull branch circuit wiring and dimming control
wiring necessary for installation (By Others.)
GroundHotNeutral
A
BC
Horizontal
Vertical
3. Install universal mounting ring.
IMPORTANT!! Orientation of universal ring will affect orientation of UPM! Take note of
mounting plate holes (indicated with arrows) on the universal ring holes to mount UPM in
correct orientation.
GroundHotNeutral
A
BC
Horizontal
Vertical
GroundHotNeutral
A
BC
Horizontal
Vertical
5. Feed branch circuit wiring and dimming control
wiring into UPM housing. Install housing on
CamLock™ at 90° to finished orientation as
shown. (Figure A)
6. Rotate housing 90° counter-clockwise (Figure
B). Tighten set screw with 5/64” Allen wrench on
outside of UPM housing to lock in place.
(Figure C)
7. If UPM housing is not level, remove UPM housing;
loosen but DO NOT REMOVE (2) #8-32 screws
with 9/64” Allen wrench on CamLock™ assembly.
Adjust CamLock™ assembly up to 30° as needed
to level. Tighten the screws and reattach UPM
housing.
GroundHotNeutral
A
BC
Horizontal
Vertical
4. Feed branch circuit wiring and dimming control
wiring through mounting plate with CamLock™
assembly. Attach mounting plate with supplied
(2) #10-24 stainless steel hex drive fasteners to
universal ring using 1/8” Allen wrench.
8. Attach tether wire under screw head at the base
of the UPM housing. Slowly lower the faceplate
until tether is taut.
NOTE: Faceplate tether supplied with UPM
is designed as an installation aid and NOT a
safety cable. Do not add weight to, or drop
faceplate.
WIRING DIAGRAM
9. Use waterproof wire connectors (By Others) to
connect driver primary leads to branch circuit
wires. Connect incoming ground to ground wire
provided in UPM housing. Connect incoming
dimming control wires to driver dimming
controls See wiring diagram.
GroundHotNeutral
A
BC
Horizontal
Vertical
10. Make sure UPM housing gasket is free of any
dirt or debris. Attach the faceplate by tightening
the (6) #10-24 captive screws evenly using a 1/8”
Allen wrench.
PM3RM ROUND CAMLOCK™
Driver Housing
LINE
Red
FIXTURE
COM
Hydrolock
Plate
Black
GROUND
Driver
White
Black
Green
DIM +
DIM -
Black
White
Hydrolock
Plate
Green
Driver
White
Black
White
Blue
Green
LINE
COM
GROUND
Orange
Orange
Brown
Blue
Black
Gray
FIXTURE
FIXTURE
Green
Green
LINE
Red
FIXTURE
COM
Driver
Black
GROUND
DIM +
DIM -
GROUND IN HOUSING
LINE
Red
FIXTURE
COM
Driver
Black
DIM +
DIM -
GROUND ON PLATE
LINE
Red
FIXTURE
COM
Driver
Black
DIM +
DIM -
HP2RM
HP2 TR
TMB
PCIII
Generic TR
GROUND IN HOUSING
LINE
Quick
Connect
COM
Driver FIXTURE
DIM +
DIM -
PM3
GROUND IN HOUSING
LINE
Quick
Connect
COM
Driver FIXTURE
DIM +
DIM -
Quick
Connect
Driver FIXTURE
DIM +
DIM -
PM3D
GROUND IN HOUSING
LINE
COM
Remote
Driver
DIM +
DIM -
Fixture
Fixture
PM3RM
GROUND ON PLATE
LINE
COM
Driver
DIM +
DIM -
PCIII
Quick
Connect
FIXTURE
LINE
Red
FIXTURE
COM
Remote
Driver
Black
DIM +
DIM -
MA/APGROUND
GROUND IN HOUSING
LINE
COM
Remote
Driver
DIM +
DIM -
DIM +
DIM -
PM3DRM
Fixture
Fixture
Remote
Driver
Fixture
Fixture
