B-K lighting TENAYA2 Series User manual

RELEASE DATE
7-11-14
REFERENCE NUMBER
INS-1330.1
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.

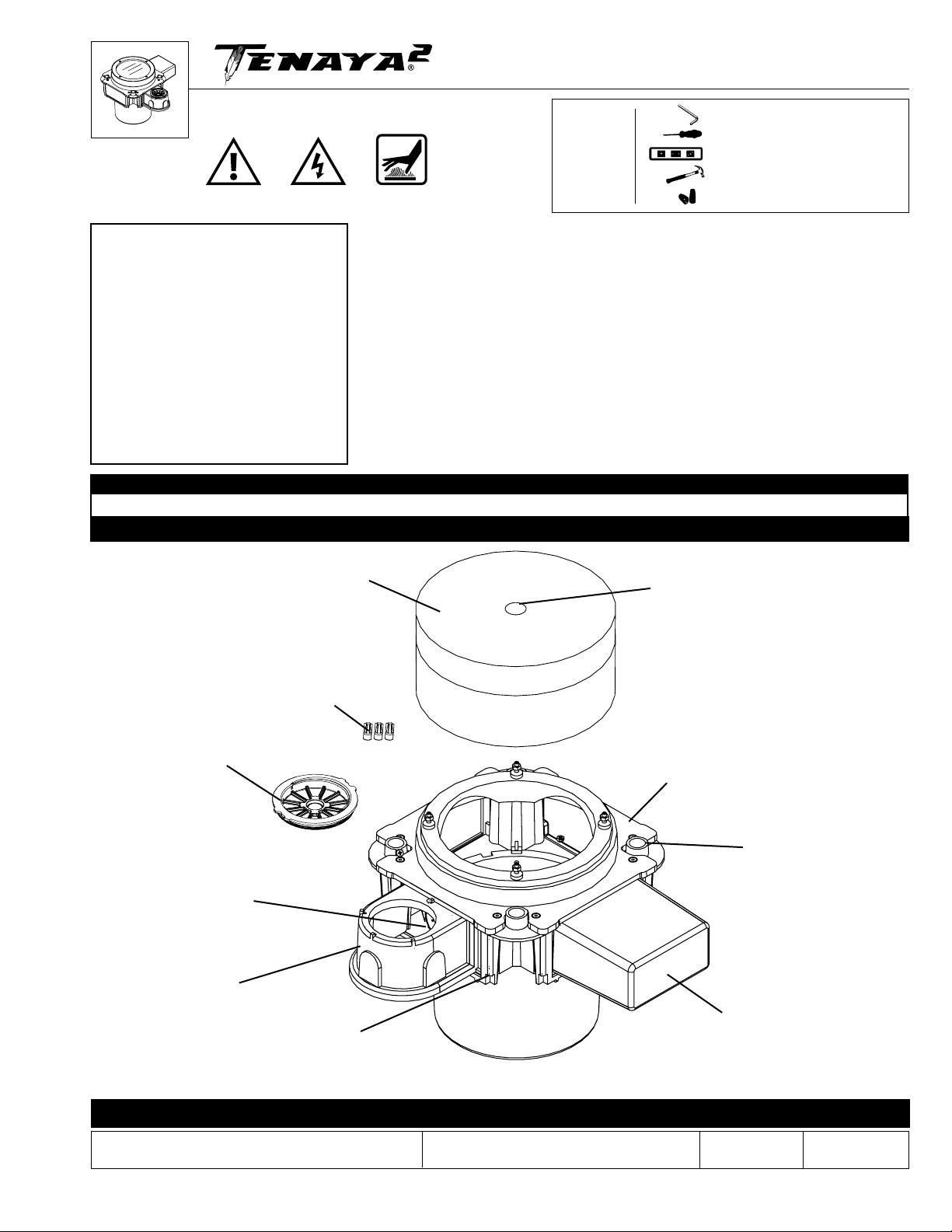

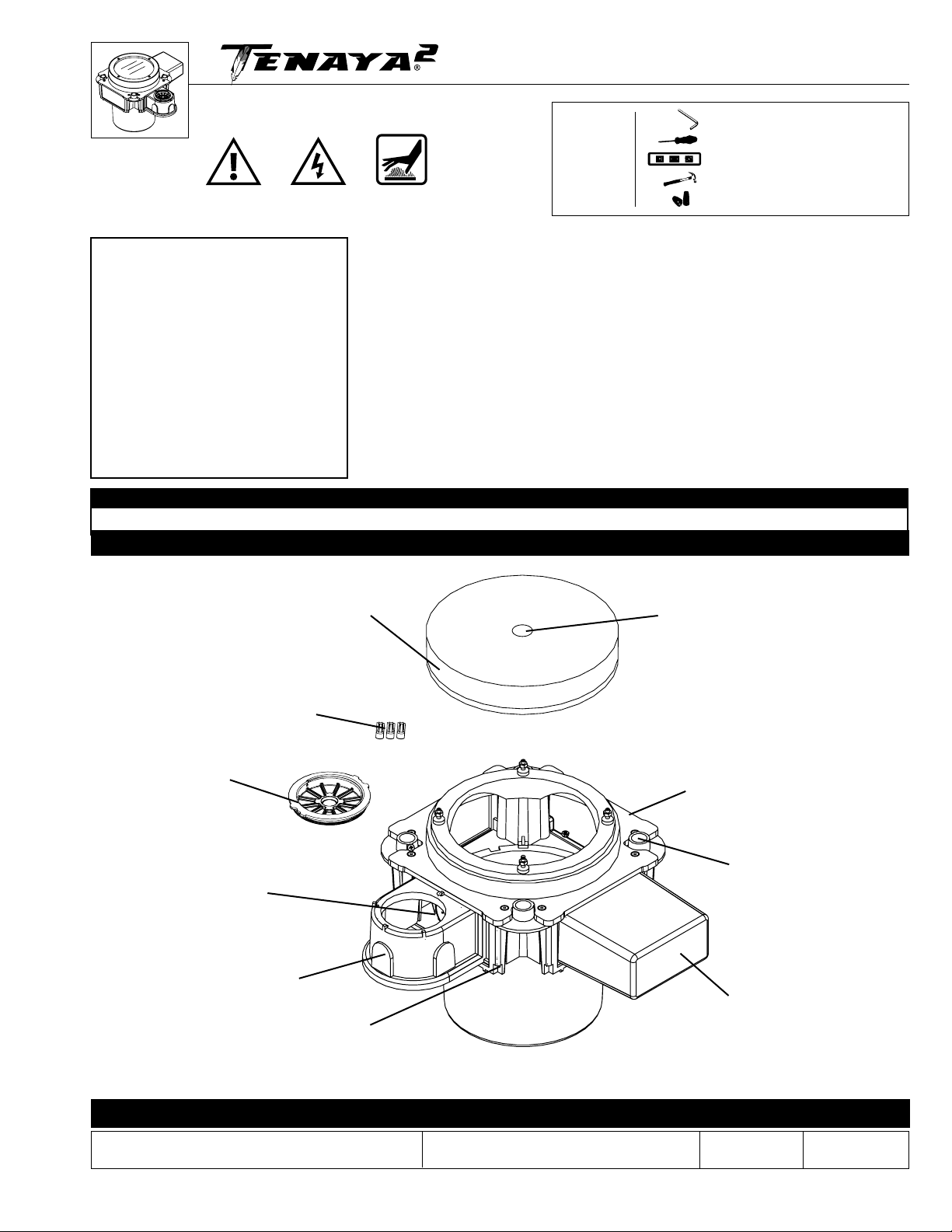

3/16” Allen Wrench
Phillips Screwdriver
Level
Hammer
Waterproof Wire Nuts
Warning High Voltage Hot Surface
NEEDED
FOR
INSTALLATION:
By Others
Waterproof Wire
Connectors
Junction Box
Power Supply
Compartment
Rebar Saddles
Exterior
Patented HydroLock™
Plate w/ Silicone
O-Ring
Interior
Patented HydroLock™
Plate w/ Silicone
O-Ring (not shown)
Temporary Cover Bubble Level
Stability Flange
Adjustment Posts
Tenaya2® and its features are covered in whole or in part by U.S. Patent No. 7,175,297; U.S. Patent No. 7,033,038;
U.S. Patent No. 6,254,258 B1; U.S. Patent No. 7,553,042; and U.S. Patent No. 7,560,148.
TENAYA2® SERIES
Housing Installation
Proper soil preparation is recommended before installation. See the DIG-IT guide at www.bklighting.com/dig-it for more information.
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local
and Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel must perform all servicing or relamping of
this product.
• Before wiring to power supply and during servicing or relamping,
turn off power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause
an unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part,
as this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body. Do not touch the lamp at any time. Use
a clean, dry, soft cloth to handle the lamp. Oil from skin may
damage the lamp and cause it to rupture.
• Replace lamp only with correct wattage and type of lamp
marked on fixture label.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted lamp is HOT!
WARNING - To reduce the risk of FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing lamp.
Lamp gets HOT quickly! Contact only switch/plug when
turning on.
Do not touch hot lens, guard, or enclosure (see diagram/
picture).
Keep lamp away from materials that may burn.
Do no touch the lamp at any time. Use a soft cloth. Oil
from skin may damage lamp.
Do not operate the luminaire fitting with a missing or
damaged shield.
SAVE THESE INSTRUCTIONS
· Suitable for wet locations · Suitable for recessed in ground locations
IMPORTANT LISTINGS AND CERTIFICATIONS
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS

RELEASE DATE
7-11-14
REFERENCE NUMBER
INS-1330.1
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
TENAYA2® SERIES
Housing Installation

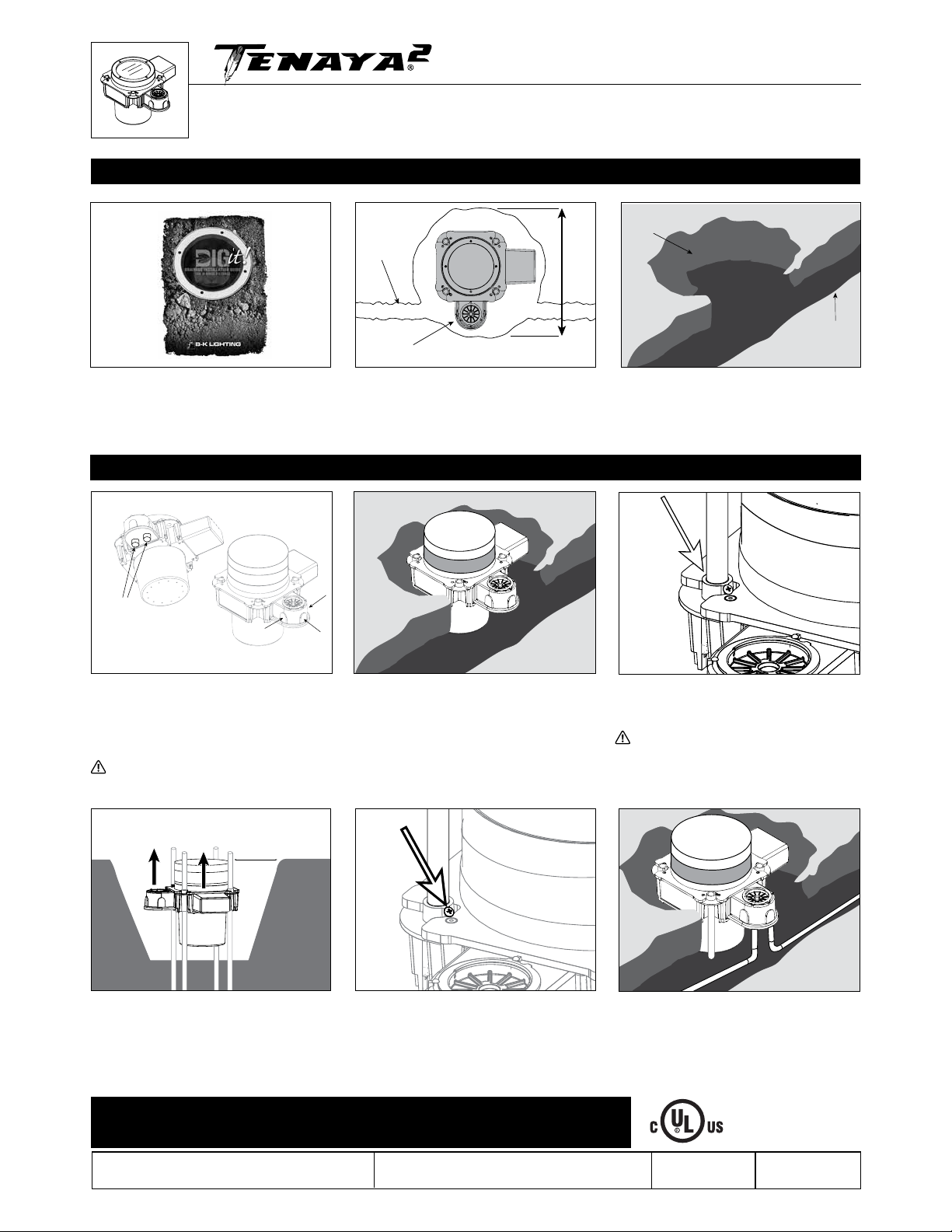

Housing Rough-In
On bottom
Drill through sides
1. Connect branch conduit connectors (By Others)
to the junction box using either the threaded
conduit entries on the bottom of the junction
box or through holes drilled into the sides of the
junction box.
Do not remove the yellow temporary cover
during rough-in.
2. Place housing in hole. Align junction box in the
path of the conduit trench.
3. Insert (4) pieces of ½” EMT conduit through the
Stability Flange™. Hammer into substrate until
secure.
Leave sufficient clearance to elevate housing
to finished grade.
Top of yellow temporary
cover level to
finished grade.
4. Raise housing on EMT to finished grade (top of
yellow temp cover). Use bubble level on yellow
temporary cover to aid in leveling housing.
5. When top of yellow temporary cover is level
with finished grade, tighten screws on Stability
Flange™ to secure housing to EMT. Remove
excess EMT as needed.
6. Connect the conduit to the conduit connectors.
Soil Prep
A. Determine Soil Type by referencing DIG-IT
Guide. Prep soil according to DIG-IT Guide.
See www.bklighting.com/dig-it for more
information.
J-Box
Conduit
Trench 24”
Dia.
B. Determine Soil Type by referencing DIG-IT
Guide.
C. Dig hole 24” wide and 27-33” deep.
Conduit
Trench
Excavated
for Housing
D. Prep soil according to DIG-IT Guide.
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

RELEASE DATE
7-11-14
REFERENCE NUMBER
INS-1330.1
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
10. Wipe O-ring clean of debris before re-inserting
patented HydroLock™ plate on to junction box.
Turn HydroLock™ plate clockwise to lock in place
under pins.
B. For a drive-over installation, fill the hole around
the fixture housing to 12” below the finished
grade with clean fill dirt and tamp carefully to
prevent settling of fixture. Pour concrete and
finish as required flush with the top surface of
the Yellow Installation Cover.
Note: Drive-over rated for 55,000 lbs. GVW
(Standard flat lens rated for 35,000 lbs.
GVW)
A. For soil installation, fill and tamp soil to the
appropriate height leaving room for sod,
pavers, etc. to be level with the top of the
Yellow Installation Cover.
Soil installation is NOT Drive-over rated!
Concrete/Drive-over
Soil
7. Per DIG-IT Guide, backfill the gap between the
bottom of housing and bottom of hole with
sand for drainage.
8. Rotate patented HydroLock™ plate counter
clockwise to allow notch in HydroLock™ plate
to clear pins on junction box. Pull to remove.
9. Pull branch circuit wiring into junction box.
Make watertight connections using waterproof
wire connectors (provided) to leads on the
interior patented HydroLock™ plate.
TENAYA2® SERIES
Housing Installation
Housing Rough-In (Continued)
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

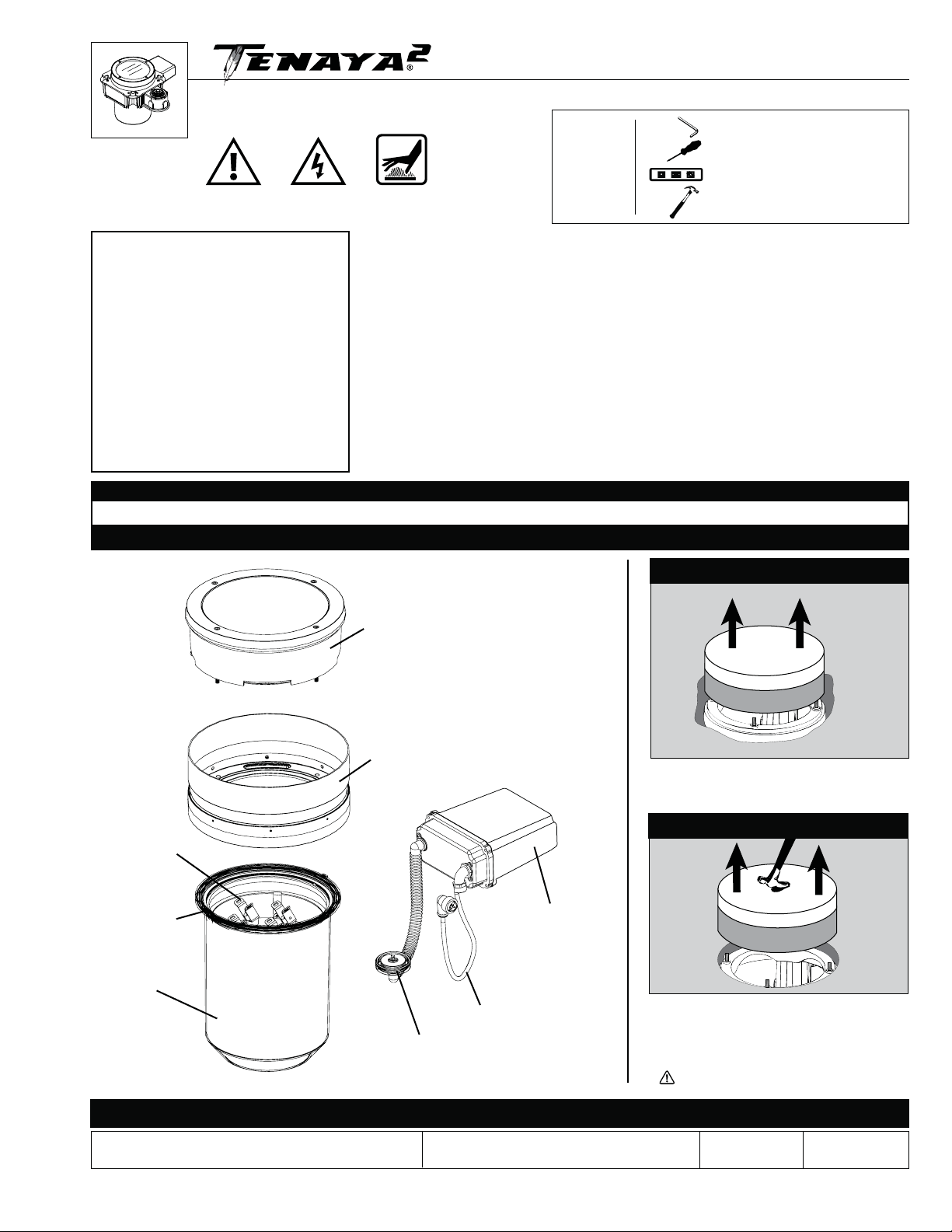

Transformer
Enclosure
Solid Silicone
Faceplate Gasket
OptiLock™
Transformer Input
Transformer Output
Faceplate
Patented Leveling Collar
Optical Chamber
TENAYA2® SERIES
MR16 Halogen Component Installation
RELEASE DATE
7-11-14
REFERENCE NUMBER
INS-1324.1
%ULFN\DUG'ULYH0DGHUD&$86$
)$;
ZZZENOLJKWLQJFRPLQIR#ENOLJKWLQJFRP
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
3/16” Allen Wrench
Phillips Screwdriver
Level
Hammer
Warning High Voltage Hot Surface
NEEDED
FOR
INSTALLATION:
By Others
Proper soil preparation is recommended before installation. See the DIG-IT guide at www.bklighting.com/dig-it for more information.
t 1SPEVDU NVTU CF JOTUBMMFE CZ B RVBMJGJFE QFSTPO JO B NBOOFS
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local
and Provincial Codes.
t 'PMMPXQSPEVDUMBCFMJOGPSNBUJPOBOEJOTUSVDUJPOT
t 2VBMJGJFE1FSTPOOFMNVTU QFSGPSNBMMTFSWJDJOHPSSFMBNQJOH PG
this product.
t #FGPSFXJSJOHUPQPXFSTVQQMZBOEEVSJOHTFSWJDJOHPSSFMBNQJOH
turn off power at fuse or circuit breaker before service.
t 5IF VTF PG BDDFTTPSZ FRVJQNFOU OPU SFDPNNFOEFE CZ UIF
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause
an unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
t %POPUCMPDLMJHIUFNBOBUJOHGSPNQSPEVDUJOXIPMFPSQBSU
as this may cause an unsafe condition.
t /FWFS PQFSBUF UIF GJYUVSF XJUI NJTTJOH PS EBNBHFE MFOT
Lens must be cleaned on regular basis.
t &OUJSF GJYUVSF NBZ CFDPNF FYUSFNFMZ IPU %P OPU UPVDI IPU
MFOTPSGJYUVSFCPEZ%POPUUPVDIUIFMBNQBUBOZUJNF6TF
a clean, dry, soft cloth to handle the lamp. Oil from skin may
damage the lamp and cause it to rupture.
t 3FQMBDF MBNQ POMZ XJUI DPSSFDU XBUUBHF BOE UZQF PG MBNQ
NBSLFEPOGJYUVSFMBCFM
t "MM HBTLFUT PSJOHT BOE TFBMJOH TVSGBDFT NVTU CF LFQU DMFBO
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted lamp is HOT!
WARNING - To reduce the risk of FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing lamp.
-BNQHFUT)05RVJDLMZ$POUBDUPOMZTXJUDIQMVHXIFO
turning on.
Do not touch hot lens, guard, or enclosure (see diagram/
picture).
Keep lamp away from materials that may burn.
Do no touch the lamp at any time. Use a soft cloth. Oil
from skin may damage lamp.
Do not operate the luminaire fitting with a missing or
damaged shield.
SAVE THESE INSTRUCTIONS
· Suitable for wet locations · Suitable for recessed in ground locations
IMPORTANT LISTINGS AND CERTIFICATIONS
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
1A. For soil installation, clear soil around temporary
cover to prevent debris falling into the housing.
Remove temporary cover.
1B. For a concrete installation, break through the
disposable Yellow Installation Cover with a claw-
hammer or pry-bar, then grasp the cover and pull
straight up to leave a smooth, finished edge.
NOTE: Temporary Cover is recyclable.
For Soil
For Concrete

IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
RELEASE DATE
7-11-14
REFERENCE NUMBER
INS-1324.1
%ULFN\DUG'ULYH0DGHUD&$86$
)$;
ZZZENOLJKWLQJFRPLQIR#ENOLJKWLQJFRP
B-K LIGHTING
TENAYA2® SERIES
MR16 Halogen Component Installation

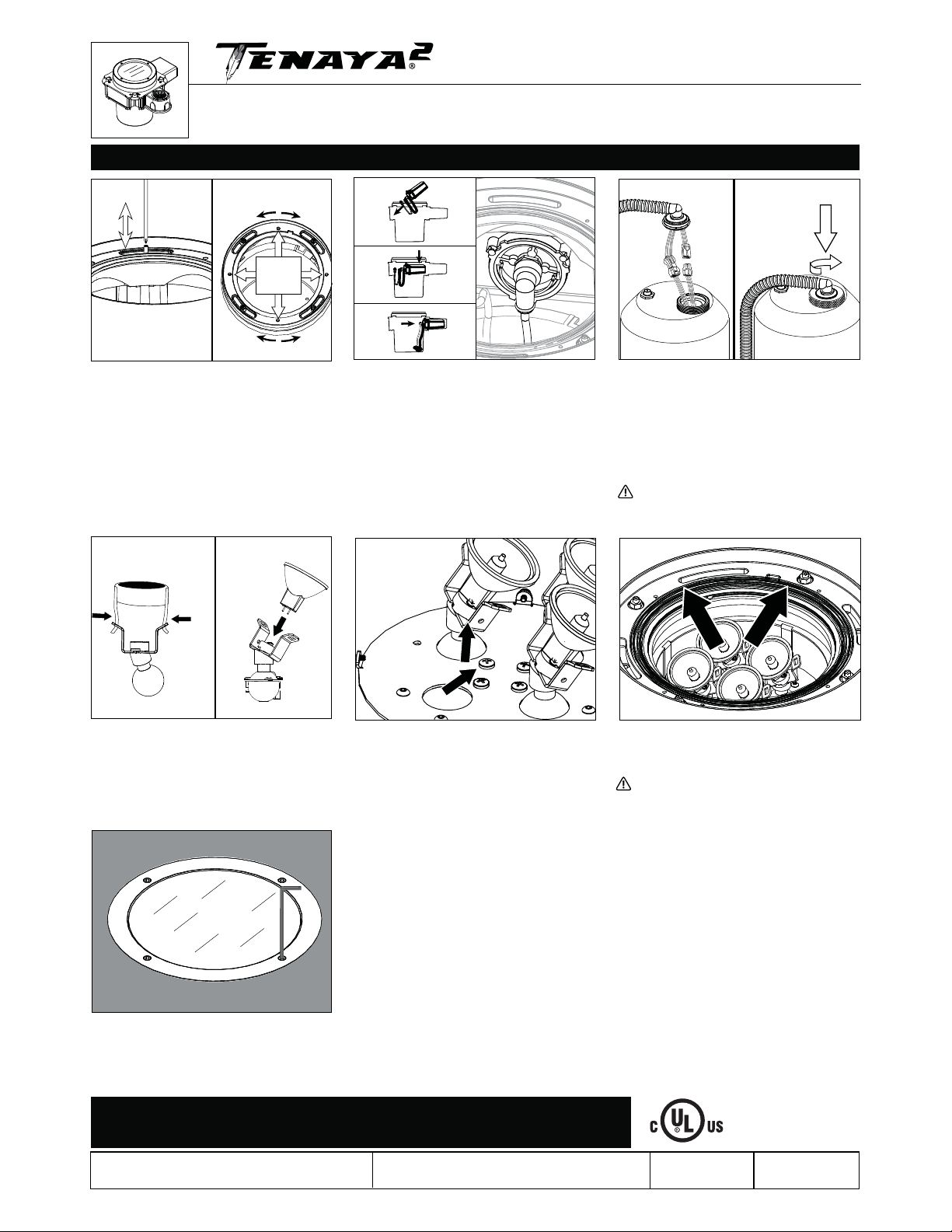

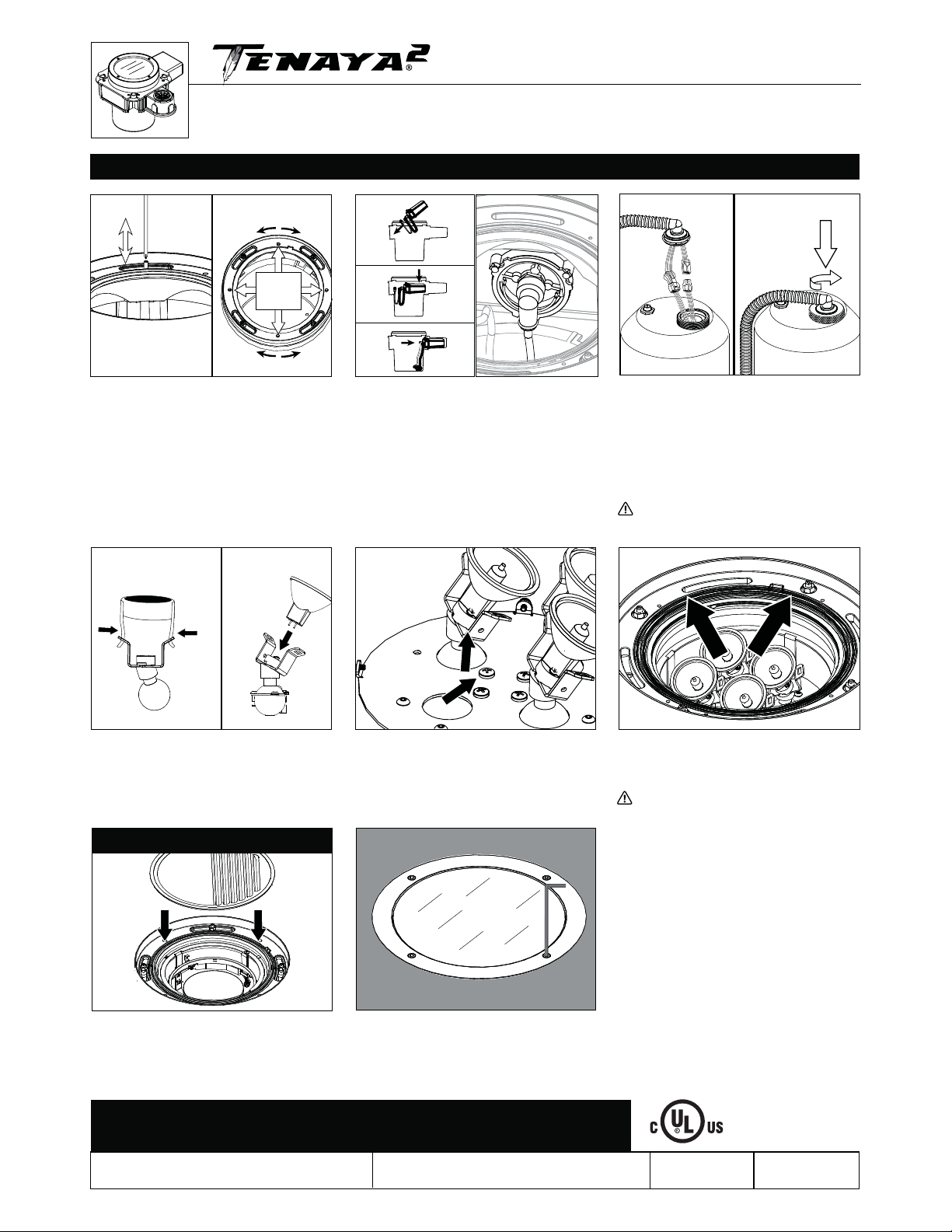

3. Place the transformer enclosure in the side
compartment. Connect the primary/input cable
from the transformer to the interior patented
HydroLock™ plate located in the housing as
shown.
4. Connect both high temperature connectors
from the transformer enclosure to the mating
connectors located on the bottom of the optical
chamber. Install the brass insert at the end of
the transformer enclosure umbilical into the
receptacle located on the bottom of the optical
chamber. Thread the brass retaining ring onto
the brass receptacle located on the bottom of
the optical chamber.
FAILURE TO SEAT AND TIGHTEN BRASS
RETAINING RING WILL CAUSE FIXTURE TO
FAIL AND VOID WARRANTY.
up to 30° of rotation
Faceplate
screw
locations
2. Place the Patented Leveling Collar on the four
adjustable posts. Each adjustable post can be
raised or lowered using a Phillips screwdriver.
Leveling collar also allows for 30° of rotation to
align faceplate screws with one another. When
collar is level, and faceplate screw holes are
aligned to final position, secure the collar with
UIFGPVSIFYOVUTQSPWJEFE
 *GMBNQIPMEFSIBTBOBDDFTTPSZIPMEFSTRVFF[F
the accessory holder from the sides to free it
from the lamp holder. Install MR16 lamp.
Re attach accessory holder to lamp holder.
6. To aim , loosen the Phillip screw closest to
the lamp holder being aimed, rotate and tilt
UIFMBNQIPMEFSBTSFRVJSFE UJHIUFOUPMPDL JO
position.
9. If your Tenaya2® comes with a faceplate option (Rock Guard, Half Dome
or Glare Shield), see the Faceplate Option Installation instructions.
*OTUBMMUIFGBDFQMBUFVTJOHw"MMFOXSFODIBOEUPSRVFUIFGBDFQMBUF
screws in a cross pattern to 25 in-lbs.
7. Before Installation of faceplate, clean solid
silicone faceplate gasket (see arrows) and collar
of debris for a proper seal.
FAILURE TO DO THIS STEP WILL CAUSE
FIXTURE TO FAIL AND VOID PRODUCT
WARRANTY.
If your Tenaya2® came with optional Internal
Cuttoff Louver, please see the accessory holder
installation instructions.
Fixture Installation
8. For Optional Internal Cutoff: Place internal
cutoff louver in the top of the optical chamber
in the desired direction of cutoff and install
faceplate as normal.
Optional Internal Cutoff

RELEASE DATE
7-11-14
REFERENCE NUMBER
INS-1324.1
%ULFN\DUG'ULYH0DGHUD&$86$
)$;
ZZZENOLJKWLQJFRPLQIR#ENOLJKWLQJFRP
B-K LIGHTING
TENAYA2® SERIES
Optional Faceplates Component Installation
3. Using a 3/32 Allen wrench, loosen the two sets
screws on the faceplate to allow accessory to
rotate freely.
4. Accessory can rotate 360° independently of
faceplate.
5. When set in final position, tighten two set
screws.
2. Install the faceplate using 3/16” Allen wrench
BOE UPSRVF UIF GBDFQMBUF TDSFXT JO B DSPTT
pattern to 25 in-lbs.
Rock Guard w/
Optical Opening
Rock Guard Half Dome Glare Shield
1. Before Installation of faceplate, clean solid
silicone faceplate gasket (see arrows) and collar
of debris for a proper seal.
FAILURE TO DO THIS STEP WILL CAUSE
FIXTURE TO FAIL AND VOID PRODUCT
WARRANTY.
Faceplates with Accessories
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

RELEASE DATE
7-11-14
REFERENCE NUMBER
INS-1330.2
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
3/16” Allen Wrench
Phillips Screwdriver
Level
Hammer
Waterproof Wire Connectors
Warning High Voltage Hot Surface
NEEDED
FOR
INSTALLATION:
By Others
Waterproof Wire
Connectors
Junction Box
Power Supply
Compartment
Rebar Saddles
Exterior
Patented HydroLock™
Plate w/ Silicone
O-Ring
Interior
Patented
HydroLock™ Plate
w/ Silicone
O-Ring (not shown)
Temporary
Cover
With ICEE
Foam Spacer Bubble Level
Stability Flange
Adjustment Posts
TENAYA2® ICEE™ SERIES
Housing Installation
Proper soil preparation is recommended before installation. See the DIG-IT guide at www.bklighting.com/dig-it for more information.
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local
and Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel must perform all servicing or relamping of
this product.
• Before wiring to power supply and during servicing or relamping,
turn off power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause
an unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part,
as this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body. Do not touch the lamp at any time. Use
a clean, dry, soft cloth to handle the lamp. Oil from skin may
damage the lamp and cause it to rupture.
• Replace lamp only with correct wattage and type of lamp
marked on fixture label.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted lamp is HOT!
WARNING - To reduce the risk of FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing lamp.
Lamp gets HOT quickly! Contact only switch/plug when
turning on.
Do not touch hot lens, guard, or enclosure (see diagram/
picture).
Keep lamp away from materials that may burn.
Do no touch the lamp at any time. Use a soft cloth. Oil
from skin may damage lamp.
Do not operate the luminaire fitting with a missing or
damaged shield.
SAVE THESE INSTRUCTIONS
· Suitable for wet locations · Suitable for recessed in ground locations
IMPORTANT LISTINGS AND CERTIFICATIONS
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
Tenaya2® and its features are covered in whole or in part by U.S. Patent No. 7,175,297; U.S. Patent No. 7,033,038;
U.S. Patent No. 6,254,258 B1; U.S. Patent No. 7,553,042; and U.S. Patent No. 7,560,148.

RELEASE DATE
7-11-14
REFERENCE NUMBER
INS-1330.2
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
on bottom
drill through sides
1. Connect branch conduit connectors (By Others)
to the junction box using either the threaded
conduit entries on the bottom of the junction
box or through holes drilled into the sides of
the junction box.
Do not remove the yellow temporary cover
or foam spacer during rough-in.
2. Place housing in hole. Align junction box in the
path of the conduit trench.
3. Insert (4) pieces of ½” EMT conduit through the
Stability Flange™. Hammer into substrate until
secure.
Leave sufficient clearance to elevate housing
to finished grade.
Top of yellow temporary
cover level to
finished grade.
4. Raise housing on EMT to finished grade (top of
yellow temp cover). Use bubble level on yellow
temporary cover to aid in leveling housing.
5. When top of yellow temporary cover is level
with finished grade, tighten screws on Stability
Flange™ to secure housing to EMT. Remove
excess EMT as needed.
6. Connect the conduit to the conduit connectors.
Housing
TENAYA2® ICEE™ SERIES
Housing Installation
Soil Prep
A. Determine Soil Type by referencing DIG-IT
Guide. Prep soil according to DIG-IT Guide.
J-Box
Conduit
Trench 24”
Dia.
B. Determine Soil Type by referencing DIG-IT
Guide.
C. Dig hole 24” wide and 30-36” deep.
Conduit
Trench
Excavated
for Housing
D. Prep soil according to DIG-IT Guide.
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

RELEASE DATE
7-11-14
REFERENCE NUMBER
INS-1330.2
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.bklighting.com • [email protected]
B-K LIGHTING
TENAYA2® ICEE™ SERIES
Housing Installation
10. Wipe O-ring clean of debris before re-inserting
patented HydroLock™ plate on to junction box.
Turn HydroLock™ plate clockwise to lock in place
under pins.
B. For a drive-over installation, fill the hole around
the fixture housing to 15” below the finished
grade with clean fill dirt and tamp carefully to
prevent settling of fixture. Pour concrete and
finish as required flush with the top surface of
the Yellow Installation Cover.
Note: Drive-over rated for 35,000 lbs. GVW
A. For soil installation, fill and tamp soil to the
appropriate height leaving room for sod,
pavers, etc. to be level with the top of the
Yellow Installation Cover.
Soil installation is NOT Drive-over rated!
7. Per DIG-IT Guide, backfill the gap between the
bottom of housing and bottom of hole with
sand for drainage.
8. Rotate patented HydroLock™ plate counter
clockwise to allow notch in HydroLock™ plate
to clear pins on junction box. Pull to remove.
9. Pull branch circuit wiring into junction box.
Make watertight connections using waterproof
wire connectors (provided) to leads on the
interior patented HydroLock™ plate.
Concrete/Drive-over
Soil
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

RELEASE DATE
7-11-14
REFERENCE NUMBER
INS-1324.2
%ULFN\DUG'ULYH0DGHUD&$86$
)$;
ZZZENOLJKWLQJFRPLQIR#ENOLJKWLQJFRP
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
3/16” Allen Wrench
Phillips Screwdriver
Level
Hammer
Warning High Voltage Hot Surface
NEEDED
FOR
INSTALLATION:
By Others
Transformer
Enclosure
Solid Silicone
Faceplate Gasket
OptiLock™
Transformer Input
Transformer Output
Optical Chamber
Patented ICEE™ Lens
Patented Leveling Collar
Concrete Pour Collar
TENAYA2® ICEE™ SERIES
MR16 Halogen Component Installation
Proper soil preparation is recommended before installation. See the DIG-IT guide at www.bklighting.com/dig-it for more information.
t 1SPEVDU NVTU CF JOTUBMMFE CZ B RVBMJGJFE QFSTPO JO B NBOOFS
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local
and Provincial Codes.
t 'PMMPXQSPEVDUMBCFMJOGPSNBUJPOBOEJOTUSVDUJPOT
t 2VBMJGJFE1FSTPOOFMNVTU QFSGPSNBMM TFSWJDJOH PSSFMBNQJOH PG
this product.
t #FGPSFXJSJOHUPQPXFSTVQQMZBOEEVSJOHTFSWJDJOHPSSFMBNQJOH
turn off power at fuse or circuit breaker before service.
t 5IF VTF PG BDDFTTPSZ FRVJQNFOU OPU SFDPNNFOEFE CZ UIF
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause
an unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
t %POPUCMPDLMJHIUFNBOBUJOHGSPNQSPEVDUJOXIPMFPSQBSU
as this may cause an unsafe condition.
t /FWFS PQFSBUF UIF GJYUVSF XJUI NJTTJOH PS EBNBHFE MFOT
Lens must be cleaned on regular basis.
t &OUJSF GJYUVSF NBZ CFDPNF FYUSFNFMZ IPU %P OPU UPVDI IPU
MFOTPSGJYUVSFCPEZ%POPUUPVDIUIFMBNQBUBOZUJNF6TF
a clean, dry, soft cloth to handle the lamp. Oil from skin may
damage the lamp and cause it to rupture.
t 3FQMBDF MBNQ POMZ XJUI DPSSFDU XBUUBHF BOE UZQF PG MBNQ
NBSLFEPOGJYUVSFMBCFM
t "MM HBTLFUT PSJOHT BOE TFBMJOH TVSGBDFT NVTU CF LFQU DMFBO
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted lamp is HOT!
WARNING - To reduce the risk of FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing lamp.
-BNQHFUT)05RVJDLMZ$POUBDUPOMZTXJUDIQMVHXIFO
turning on.
Do not touch hot lens, guard, or enclosure (see diagram/
picture).
Keep lamp away from materials that may burn.
Do no touch the lamp at any time. Use a soft cloth. Oil
from skin may damage lamp.
Do not operate the luminaire fitting with a missing or
damaged shield.
SAVE THESE INSTRUCTIONS
· Suitable for wet locations · Suitable for recessed in ground locations
IMPORTANT LISTINGS AND CERTIFICATIONS
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
1A. For soil installation, clear soil around temporary
cover to prevent debris falling into the housing.
Remove temporary cover and foam spacer.
For Soil
1B. For a concrete installation, break through the
disposable Yellow Installation Cover and foam
spacer with a claw-hammer or pry-bar, then
grasp the cover and pull straight up to leave a
smooth, finished edge.
NOTE: Temporary Cover is recyclable.
For Concrete

IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
RELEASE DATE
7-11-14
REFERENCE NUMBER
INS-1324.2
%ULFN\DUG'ULYH0DGHUD&$86$
)$;
ZZZENOLJKWLQJFRPLQIR#ENOLJKWLQJFRP
B-K LIGHTING
3. Place the transformer enclosure in the side
compartment. Connect the primary/input cable
from the transformer to the interior patented
HydroLock™ plate located in the housing as
shown.
 *GMBNQIPMEFSIBTBOBDDFTTPSZIPMEFSTRVFF[F
the accessory holder from the sides to free it
from the lamp holder. Install MR16 lamp.
Re attach accessory holder to lamp holder.
6. To aim , loosen the Phillip screw closest to
the lamp holder being aimed, rotate and tilt
UIFMBNQIPMEFSBTSFRVJSFEUJHIUFOUPMPDLJO
position.
up to 30° of rotation
Faceplate
screw
locations
2. Place the Patented Leveling Collar on the four
adjustable posts. Each adjustable post can be
raised or lowered using a Phillips screwdriver.
Leveling collar also allows for 30° of rotation to
align faceplate screws with one another. When
collar is level, and faceplate screw holes are
aligned to final position, secure the collar with
UIFGPVSIFYOVUTQSPWJEFE
8. Install the faceplate using 3/16” Allen wrench
BOE UPSRVF UIF GBDFQMBUF TDSFXT JO B DSPTT
pattern to 25 in-lbs.
7. Before Installation of faceplate, clean solid
silicone faceplate gasket (see arrows) and collar
of debris for a proper seal.
FAILURE TO DO THIS STEP WILL CAUSE
FIXTURE TO FAIL AND VOID PRODUCT
WARRANTY.
If your Tenaya2® came with optional Internal
Cuttoff Louver, please see the accessory holder
installation instructions.
4. Connect both high temperature connectors
from the transformer enclosure to the mating
connectors located on the bottom of the optical
chamber. Install the brass insert at the end of
the transformer enclosure umbilical into the
receptacle located on the bottom of the optical
chamber. Thread the brass retaining ring onto
the brass receptacle located on the bottom of
the optical chamber.
FAILURE TO SEAT AND TIGHTEN BRASS
RETAINING RING WILL CAUSE FIXTURE TO
FAIL AND VOID WARRANTY.
TENAYA2® ICEE™ SERIES
MR16 Halogen Component Installation
Fixture Installation
