Installation, Operation
+ Maintenance Manual
Lume-A-Lite™ OBSTACLE STRIPS AND TAPE
Model(s): BEM-DTO1-100/BEM-DSO1-60
GENERAL DESCRIPTION
Photoluminescent egress path marking systems are an
important life safety requirement in current building
codes. These systems allow for the safe and quick
evacuation of buildings in the case of an emergency.
They provide a routing system that is not dependent
on electrical power that can easily be followed in dark
and smoke-filled exit pathways.
Introduction + Safety
Please read the complete instructions carefully before beginning any work. To ensure proper
installation and performance of the product, the following actions must be completed by the
installing contractor. Failure to do so will affect product warranty.
Transportation + Storage
oInspect all shipments and materials for missing or damaged components and hardware.
oMaterial must be stored in a clean, dry location.
Preparation
Please read the complete instructions carefully before beginning any work.
oThe temperature of the product being installed and the surface it is being installed on must
be at least 60 degrees.
oSurfaces must be clean, smooth, and non-porous. Install a sample piece of the strip material
for 24 hours on the application surface to ensure that the strip adheres properly before
doing a complete project installation.
oGloves should be used when handling and installing the strip to prevent injury.
GENERAL SAFETY PRECAUTIONS Improper selection, installation, or use can cause personal injury or property damage. It
is solely the responsibility of the user, through its own analysis to select products suitable for their specific application
requirements, ensure they are properly maintained, and limit their use to its intended purpose. Follow proper local,
state and federal regulations for proper installation and operation requirements.

2
©2020 Babcock-Davis, Inc
.
Rev 8/2020
Installation, Operation & Maintenance
Lume-A-Lite™ OBSTACLE STRIPS AND TAPE
BEM-DTO1-100/BEM-DSO1-60
INSTALLATION

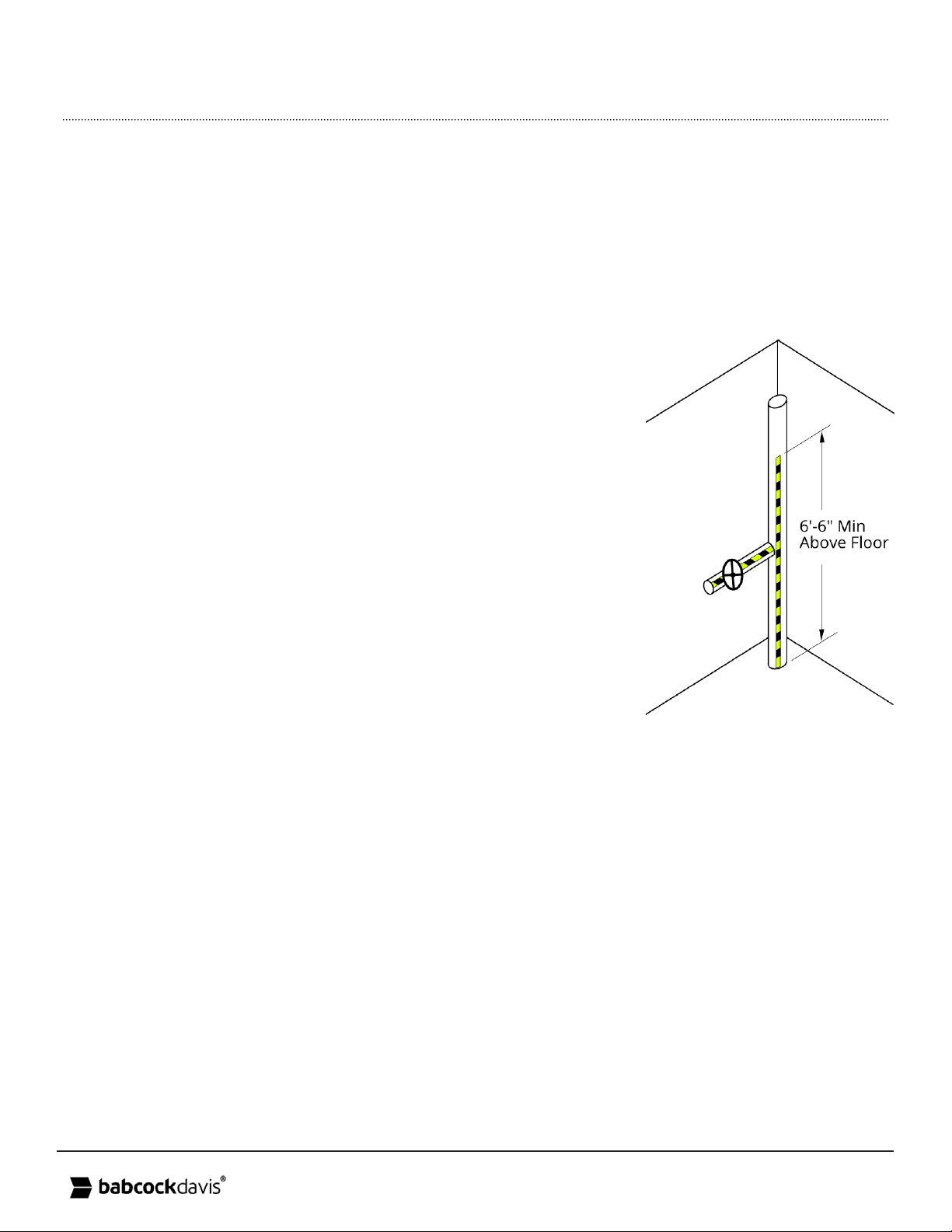

Obstacles at or below 6 feet 6 inches in height and projecting more than 4 inches into the
egress path shall be outlined with marking tape, comprised of a pattern of alternating equal
bands, of photoluminescent material and black. Obstacles shall include, but are not limited to,
standpipes, hose cabinets, wall projections, and restricted height areas. However, such
markings shall not conceal any required information or indicators including but not limited to
instructions to occupants for the use of standpipes (figure 1).
1. Thoroughly clean the surface area where the tape will be installed
with a dry cloth and a non-residue cleaning compound to remove
and loose particles and dirt. For oily surfaces, isopropyl alcohol
works well for surface preparation. Porous surfaces may need to be
sealed. Surfaces must be dry and dust free.
2. Measure to determine the proper length of the tape needed and
then cut with scissors.
3. Peel a portion of the backing from the tape without touching the
adhesive.
4. Place the tape and starting from one end to the other, firmly press
the tape onto the obstruction. Make sure the tape is straight and
aligned correctly, it must be readily visible from the egress path. Be
sure that the tape is in full contact with the obstruction, this may
involve using a rubber roller to ensure proper adhesion.
OPERATION
oExposure Requirements: The minimum amount of exposure to artificial ambient
illumination is 60 minutes from the following:
•One-foot candle (11 Lux) of florescent, incandescent, or LED light
oThe control of the ambient illumination necessary to charge the luminous egress-path-
marking system should be restricted to authorized personnel only.
oFailure to supply the above minimum exposure can prevent the luminous egress-path-
marking from performing as intended.
oNo specific building surface treatment is required for the luminous egress-path-marking
system to function properly.
Figure 1

3
©2020 Babcock-Davis, Inc
.
Rev 8/2020
Installation, Operation & Maintenance
Lume-A-Lite™ OBSTACLE STRIPS AND TAPE
BEM-DTO1-100/BEM-DSO1-60
oReliable external illumination is always required during building occupancy.
MAINTENANCE
oMaintain by cleaning as needed to prevent dirt, etc. from inhibiting the performance of the
photoluminescent properties.
oThe strip may be cleaned by using a damp cloth with mild, non-abrasive cleaners. Do not
use highly alkaline or acidic cleaners. Rinse after applying cleaners and wipe with a clean
cotton cloth to dry.
Questions?
For more information on installation, repair, or replacement, please visit
www.babcockdavis.com or call [phone].
