Babyauto multimax savile V8A User manual

Multimax
Savile V8A
0-36 kg.
Manual de uso
Instruction for use
Notice d’instruction
Instruções de utilização
Manuale d’istruzioni
Apto para
Suitable for
Approprié à
Adequado para
Adeguato per bimbi da
ES
EN
FR
PO
IT
2 310+

2MULTIMAX

3www.babyauto.com
Instrucciones de uso - Sistema de retención infantil
Grupo 0+/1/2/3 de 0 a 36 kg. (de 0 meses a 12 años aprox.)ES
Instruction for use - Child safety seat
Group 0+/1/2/3 from 0 kgs to 36 kgs (from 0 months to 12 Years aprox) EN
Mode d’emploi – Siège de sécurité pour enfants
Groupe 0+/1/2/3 de 0 à 36 kg (environ 0 mois à 12 ans) FR
Instruções de utilização - Dispositivo de retenção para crianças
Grupo 0+/1/2/3 entre 0 e 36 kg. (0 meses aos 12 anos, aprox.)PO
Istruzioni d’uso – Seggiolino di sicurezza per bimbi
Gruppo 0+/1/2/3, da 0 a 36 kg (da 0 a 12 anni circa) IT

4MULTIMAX
1
2
A
D
E
H
K
IJ
L
F
G
O
MR
Q
R
T
N
C
P
SS
B

5www.babyauto.com
3.1 3.2
3.3 3.4
3.5 3.6 R
M

6MULTIMAX
3.11
3.7 3.8
3.12
3.9 3.10
10 mm
R
K

7www.babyauto.com

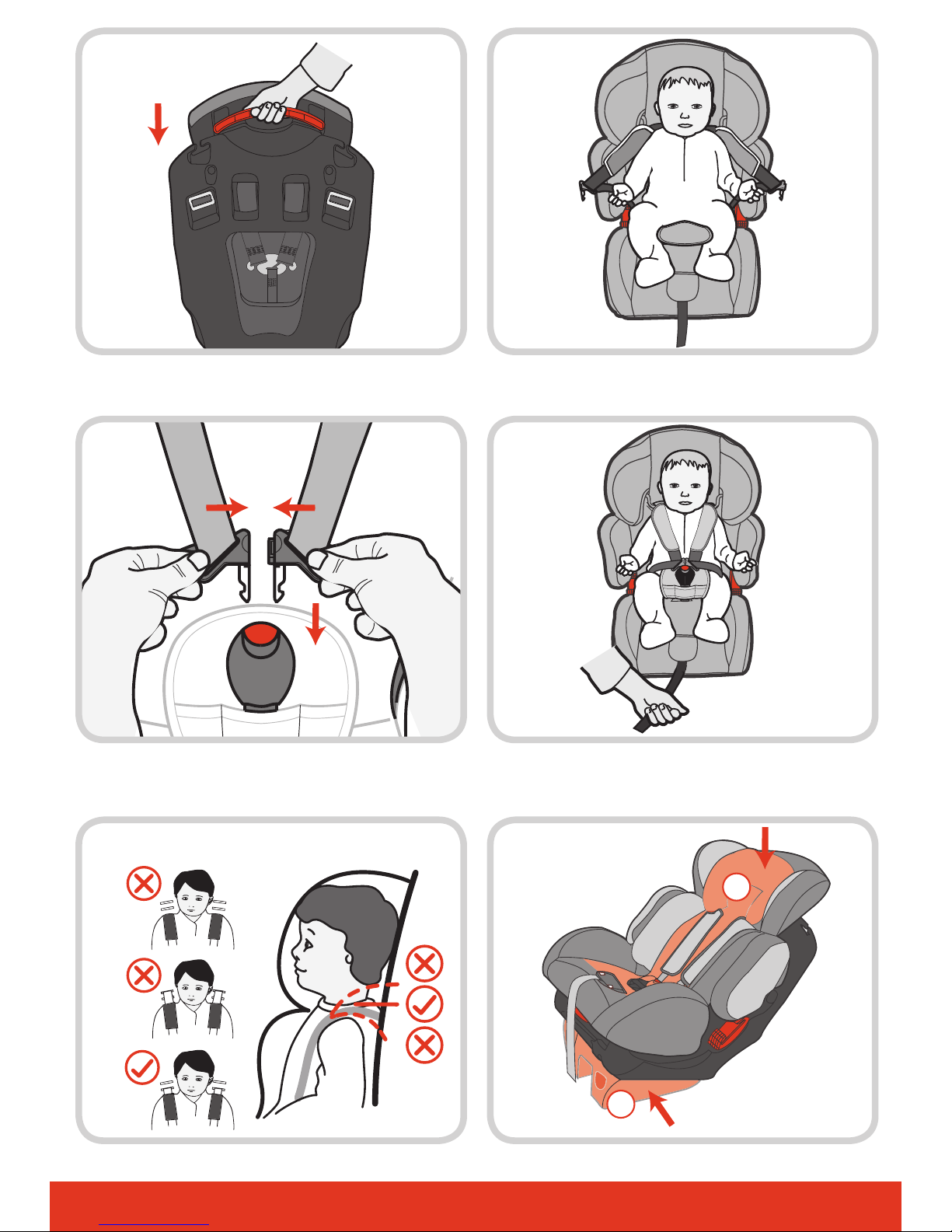

3.13 3.14
3.15 3.16
3.17 3.18
A
B
C
1
2

8MULTIMAX
4.1 4.2
4.3
L
B
L
4.4
4.5 4.6
10 mm

9www.babyauto.com
4.8
4.11
4.7
4.12
Q
D
4.104.9

10 MULTIMAX
4.144.13
4.15 4.16
A
B
C

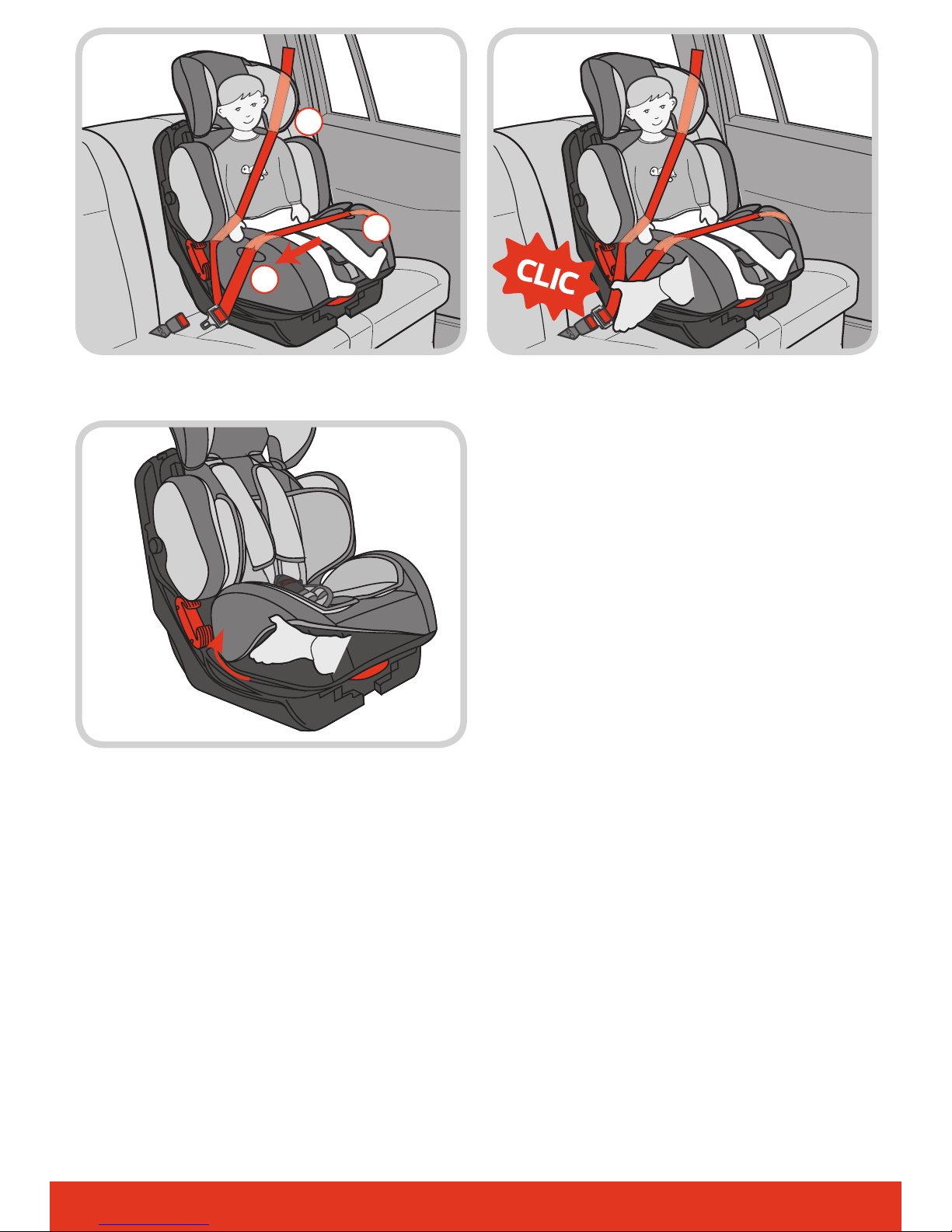

5.1 5.2

11www.babyauto.com
5.3 5.4
5.5 6.3
5.8
5.7
5.6

12 MULTIMAX
5.9 5.10
T
B
T
6.1

21www.babyauto.com
1. This child seat must be used with a harness system suitable for
children of 0kg to 18kg in weight. Group 0+ & 1 (approx. 0 months
to 4 years of age).
2. This child seat can be used without harness for children of 15kg to
36 kg. Group 2 & 3 (approx. 4 years to 12 years of age).
3. Please read these instructions carefully for proper installation;
incorrect installation could cause serious injuries. In this case, the
manufacturer shall not be held liable.
4. This child safety seat is only suitable for vehicles fitted with a
3-point safety belt, approved under European standards (UN/
ECE 16 or equivalent regulation). Under no circumstances shall this
seat be fitted only with a 2-point lap belt.
5. In no event shall this seat be fitted in the front seat rearwards
(opposite to direction of travel) whenever an airbag is active.
6. Do not use this seat without its cover and harness pads.
7. Fitting the child with warm clothing into this safety seat may
reduce the effectiveness of the restraint system.
8. Protect this seat from direct sunlight, since it may become hot and
injure the child.
9. When damaged or improperly used, replace the seat or the
harness components.
10. Do not leave heavy objects within the vehicle since these may
injure the child in the event of an accident.
WARNING
Please read this Instructions Manual BEFORE fitting the child seat
and keep it for future reference.
IMPORTANT INFORMATION
Please read the following
instructions carefully before
installing the product.
Group 0+/1/2/3
EN

22 MULTIMAX
Correct installation /
proper
Incorrect installation /
improper
3-point lap and
diagonal seat belt
2-point lap seat belt
Only suitable for this
particular seat WHEN having
a lap and diagonal seat belt
(3 anchor points)
Optional installation
1. USE IN VEHICLES
11. Check that the buckle is properly fastened. It is important that
in the event of an emergency the child can be released quickly.
12. Make sure the seat does not become caught by the vehicle´s
door or reclining seat. Likewise, check that the seat is properly
and sufficiently fitted.
13. Never try to remove, change or add pieces to the seat or harness
since their basic and security functions may be seriously
affected.
14. Always fasten this safety seat into the vehicle with the seat belt,
even when not in use. Never leave your child unattended when
seated or not.
15. Contact our Customer Service for any question about installing
this child safety seat: [phone].
16. Please keep this safety seat away from corrosive products.
17.The manufacturer guarantees the quality of its products but not
the quality of second-hand products or those registered under
other trademarks.
Only suitable for this
particular seat WHEN an
airbag is NOT active. Optional installation
Child restraint system

23www.babyauto.com

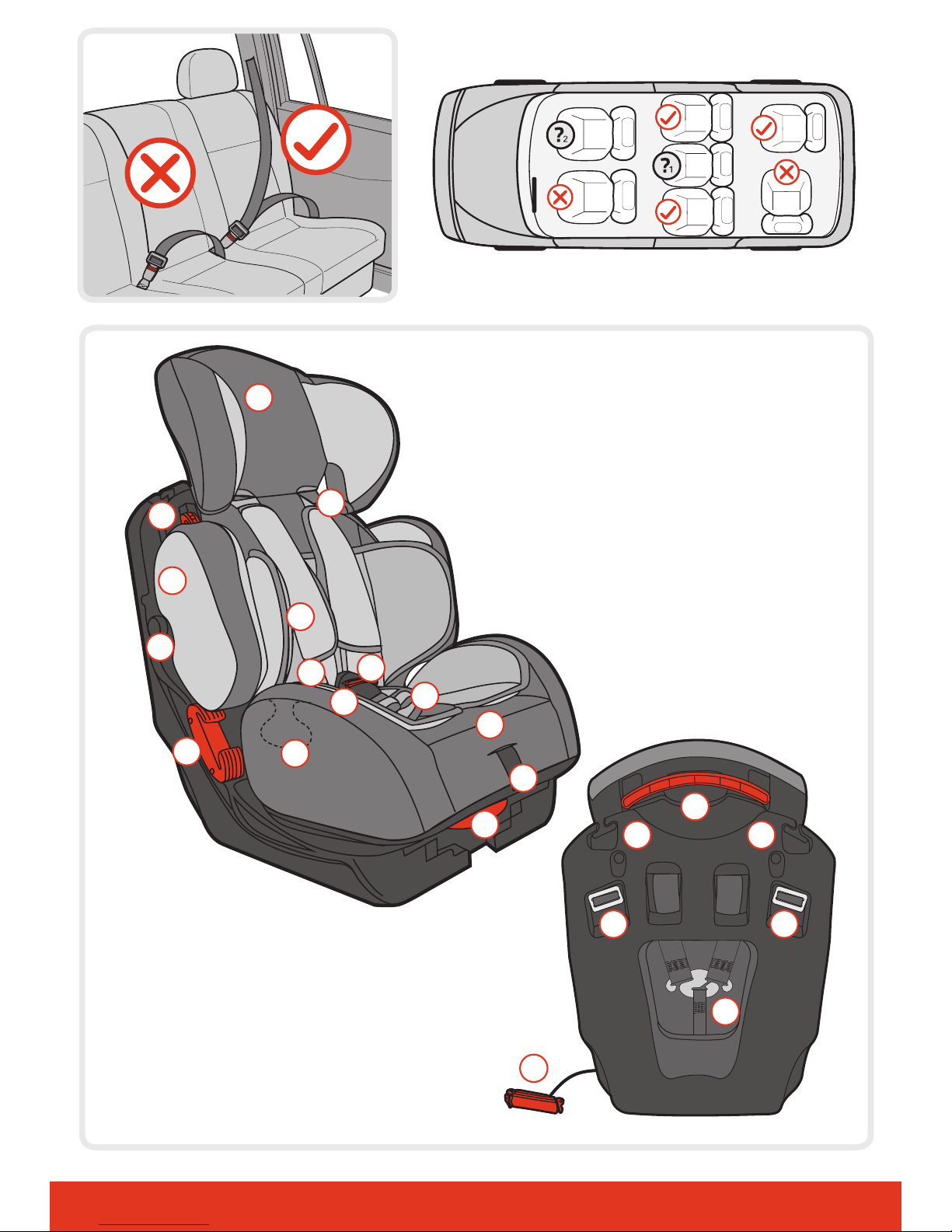

A. Headrest.
B. Group 1 vertical belt hook. (Instalation without IsoFix)
C. Group 2 & 3 vertical belt hook
D. Lateral.
E. Harness pads.
F. Harness straps.
G. Lateral adjustment button.
H. Locking buckle.
I. Buckle release-button.
J. Buckle pad.
K. Harness adjustment button.
L. Group 1 abdominal belt hook. (Instalation without IsoFix)
M.Child seat gradient adjuster.
N. Harness adjuster strap.
O. Red locking clip.
P. Group 2 & 3 abdominal belt hook.
Q. Headrest height adjustment.
R. Top Tether guides for ISOFIX based installation.
S. Top Tether fixing points.
T. Metal harness connector.
2. SEAT PARTS AND FITTINGS
3. INSTALLING CHILD SEAT. GROUP 0+.
Only suitable for Group 0+, approx.
0 to 15 months (0-13 Kg.)
WARNING
Do not use the child seat on a passenger seat fitted with an active
airbag.

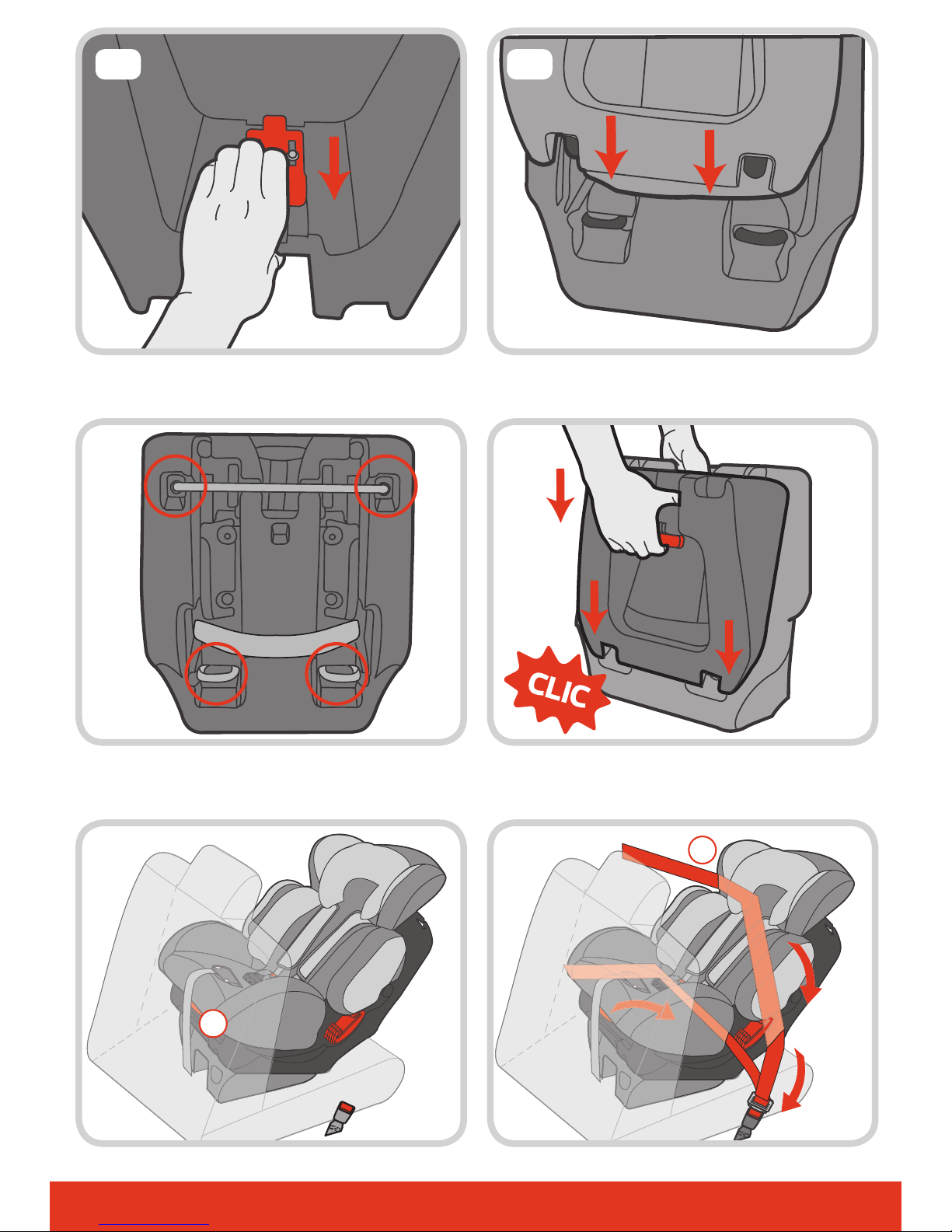

1. Pull the base safety clamp downwards (3.1), align the base with
the metal bar and hooks on the base of the seat (3.2 and 3.3).
2. Slide the base until it is in the position sought, and then release the
base safety clamp when it has reached the correct position and
you hear a “click” (3.4).
3. Move the rear of the base forward and backward. Make sure that
the 4 hooks are secured to the base and metal anchors.
4. Place the child seat in its most reclined position using the red
recliner handle M(3.5).
Group 0+/1/2/3
EN

24 MULTIMAX

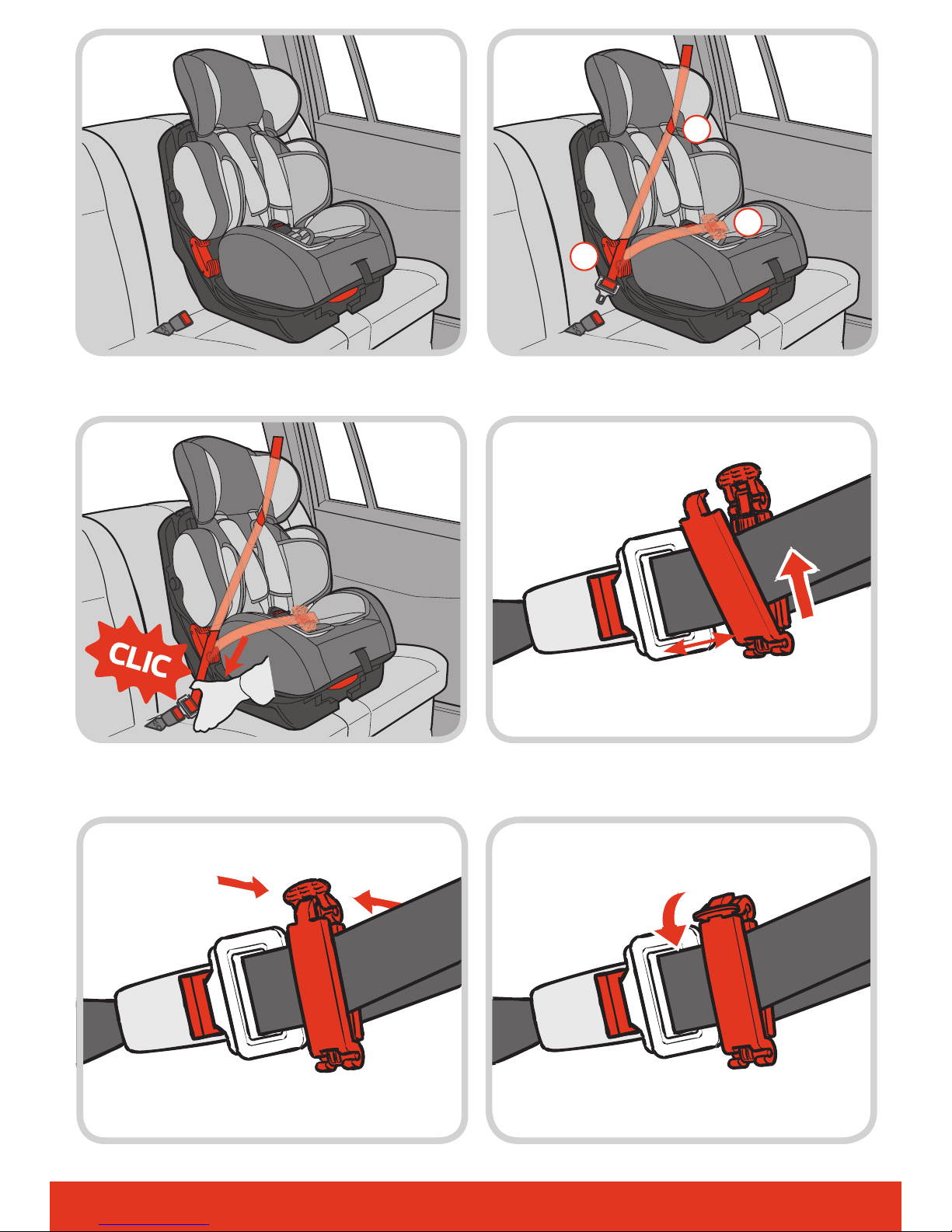

4. INSTALLING CHILD SEAT. GROUP 1.
Only suitable for Group 1, approx.
9 months to 4 years (9-18 Kg.)
WARNING
Installing the child seat forward facing can only be maid if the child
is more than 9 kg.
1. Fit this child seat into the vehicle´s seat, making sure it is firmly
pressed against the vehicle seat backrest (4.1).
2. Raise the backrest cover and insert the safety belt through red
waist belt guides B. Pass the waist belt through both red guides at
the base of the seat (4.2).
5. Loosen the harness buckle, lift the covers of both the base and
the back of the seat and pass the waist belt under both covers,
and install the vehicle vertical safety belt passing it through guide
R(3.6 and 3.7).
6. Tighten the lap belt and diagonal shoulder belt, then place the red
safety clip on the diagonal shoulder belt tongue as near to the
vehicle anchor point as possible without touching it! (3.8, 3.9 y
3.10).
7. To unfasten the harness press the red button on the buckle
downwards (3.11).
8. For greater space and to loosen the harness, it is necessary to
press the harness adjustment button, while simultaneously
pulling the harness straps down with your other hand (do not pull
the harness protector) (3.12). Place the head support in its lowest
position (3.13).
9. Place the child in the child car safety seat (3.14)

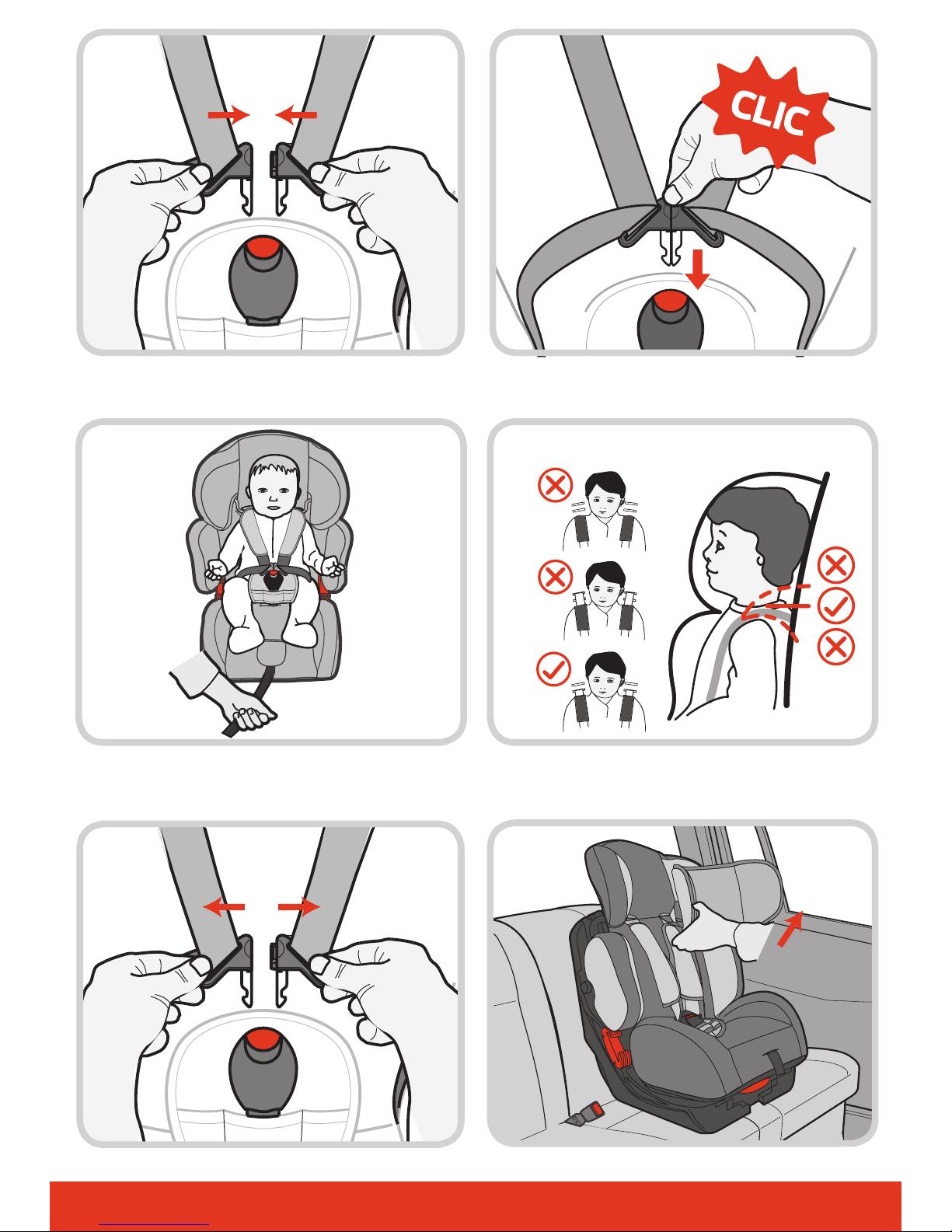

10. Join the 2 buckle metal connectors, pass both connectors through
theslotintheupperpartofthebuckleuntilyou hear a “click”(3.15).
11. Check that the harness straps lie firmly on the child’s chest; the
harness must be adjusted by pressing the harness adjustment
button. e harness should not be twisted. Press the metal button
that is located between the child’s legs and then pull the straps
until the child is properly secured and a correct height (3.16 and
3.17).
12. Remove cushion 1and Group 0+ 2base to use the seat with groups
I, II and III. (3:18).
Child restraint system

25www.babyauto.com
Always check that the harness straps are suitable for the height of
your child. The shoulders of the child should always be just below the
back slots at a suitable height (4.16).
3. Check that the seat belt of the vehicle is passed through the
safety guides and that the belts are not twisted. Insert the safety
seat belt in the vehicle anchor point and press until you hear a
“click” so that the child seat is properly installed (4.3).
4. Tighten the lap belt and diagonal shoulder belt, then place the red
safety clip on the diagonal shoulder belt tongue as near to the
vehicle anchor point as possible without touching it! (3.8, 3.9 y
3.10).

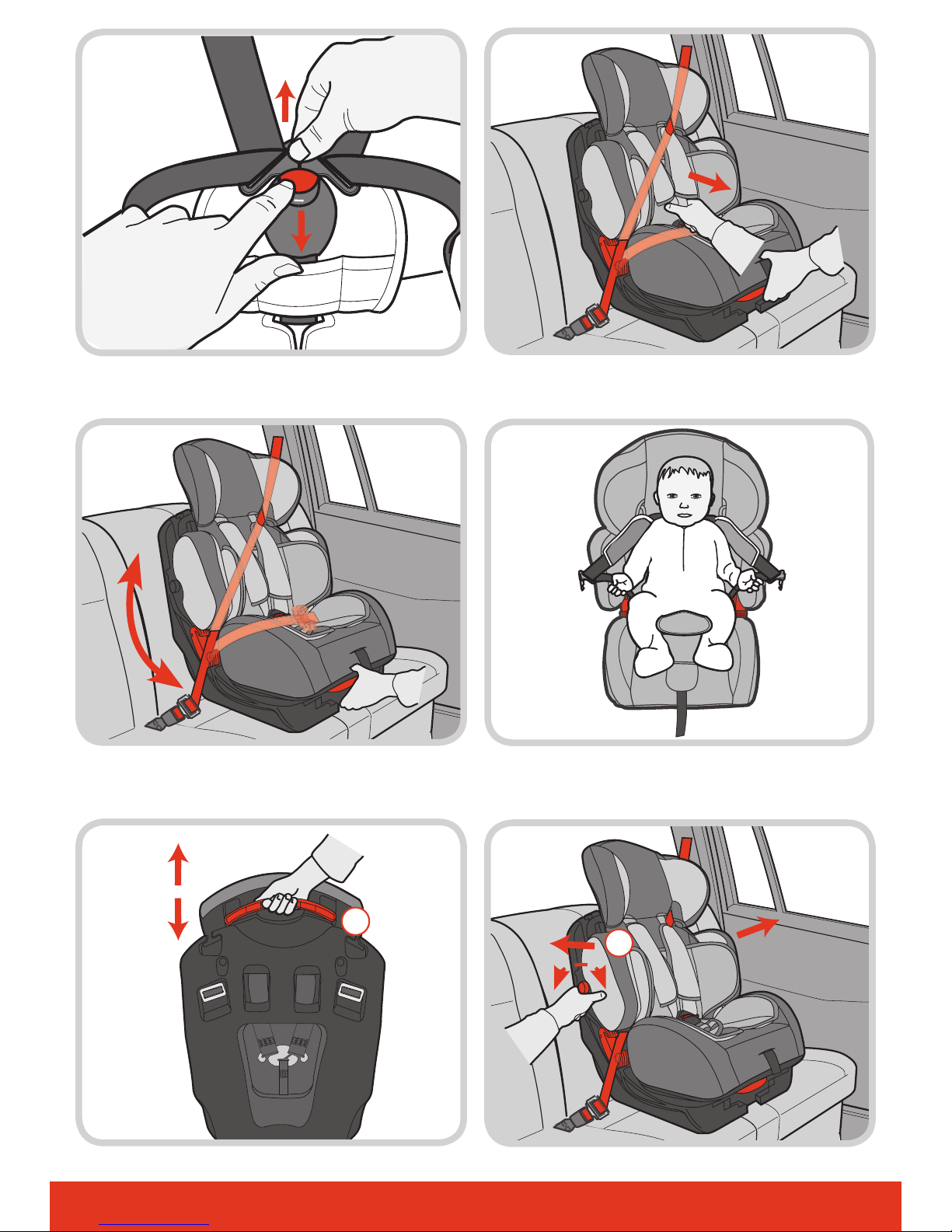

5. To unfasten the harness press the red button on the buckle
downwards (4.7).
6. For greater space and to loosen the harness, it is necessary to
press Kharness adjustment button, while simultaneously pulling
the harness straps towards you with your other hand (do not pull
the harness protector) (4.8).
7. To recline the seat, pull red seat reclining handle Mand pull the base
towards you until the desired position is obtained (4.9).
8. Place the child in the child car safety seat(4.10).
9. Adjust the head support, press headrest adjustment handle Qand
move it up and down until the desired position is obtained (4.11).
10. Adjust the width of the child seat by turning the adjustment knob
of the Glaterals and adapt the width of the seat according to the
size of your child by turning the knob (4.12).
11. Join harness tape buckles in buckle-holder, insert both buckles in
child seat buckle-holder and press until you hear a “click” (4.11).
12. Pull harness straps down to ensure both the vehicle belts properly
secure the child seat (4.15).
13. e harness straps should lie comfortably on the child, without
too much slack. It should lie gently on the child without exerting
pressure or causing damage and the child should not be obliged to
assume a bad posture.
IMPORTANT
Group 0+/1/2/3
EN

26 MULTIMAX

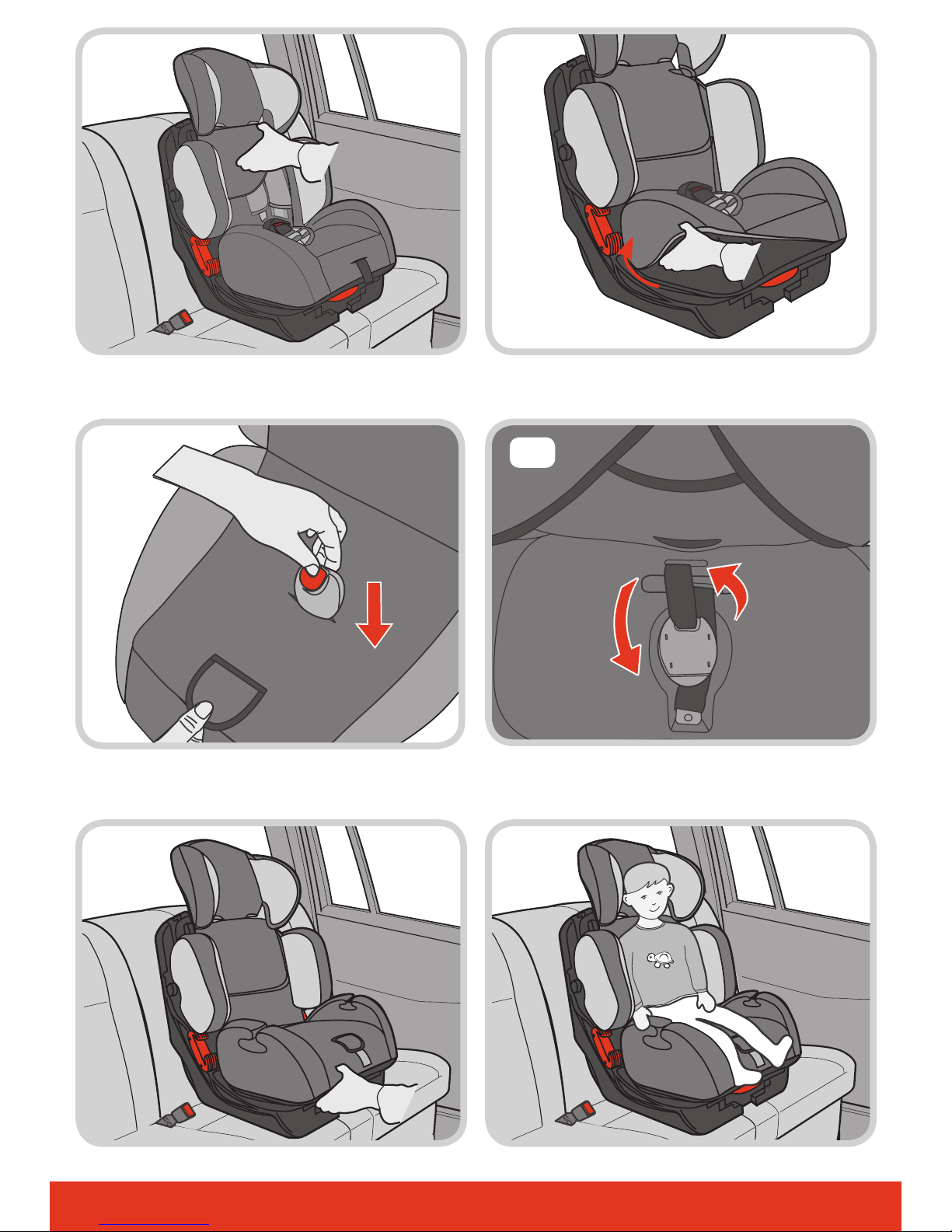

5. INSTALLING CHILD SEAT. GROUP 2 & 3.
Only suitable for Group 2 & 3, approx.
4-12 years(15-36 Kg.)
WARNING
1. Unfast the harness pressing the red button (5.1).
2. Remove padded covers for Group 0+ and 1 (5.2).
3. Raise the backrest cover and hide the harnesses behind it (5.3).
4. Lift and remove the base cover (5.4).
5. Pass the buckle of the harness system through the slot in the base
(5.5).
6. Turn the harness adjuster button towards the front of the seat
base; you must store the buckle in the hole in the base specially
designed for this purpose (5.6)
7. Fit this child seat into the vehicle´s seat, making sure it is firmly
pressed against the vehicle seat backrest (5.7)
8. Place the child in the child car safety seat(5.8).
9. Pass the vehicle seat belt through the Cred guides and Pwaist
guides; ensure that the belt is not twisted (5.9).
10.Insert the vehicle safety belt in the vehicle anchor point. You will
hear a “click” when properly installed (5.10).
11.Make sure the vehicle’s safety belt is not twisted, also check that
the seat cover does not impede the movement of the vehicle’s
safety belt or prevent the installation of the seat in any way. To
release your child unbuckle the vehicle safety belt as described in
the instructions.
IMPORTANT
Ensure that the belt has no slack.
Child restraint system

27www.babyauto.com

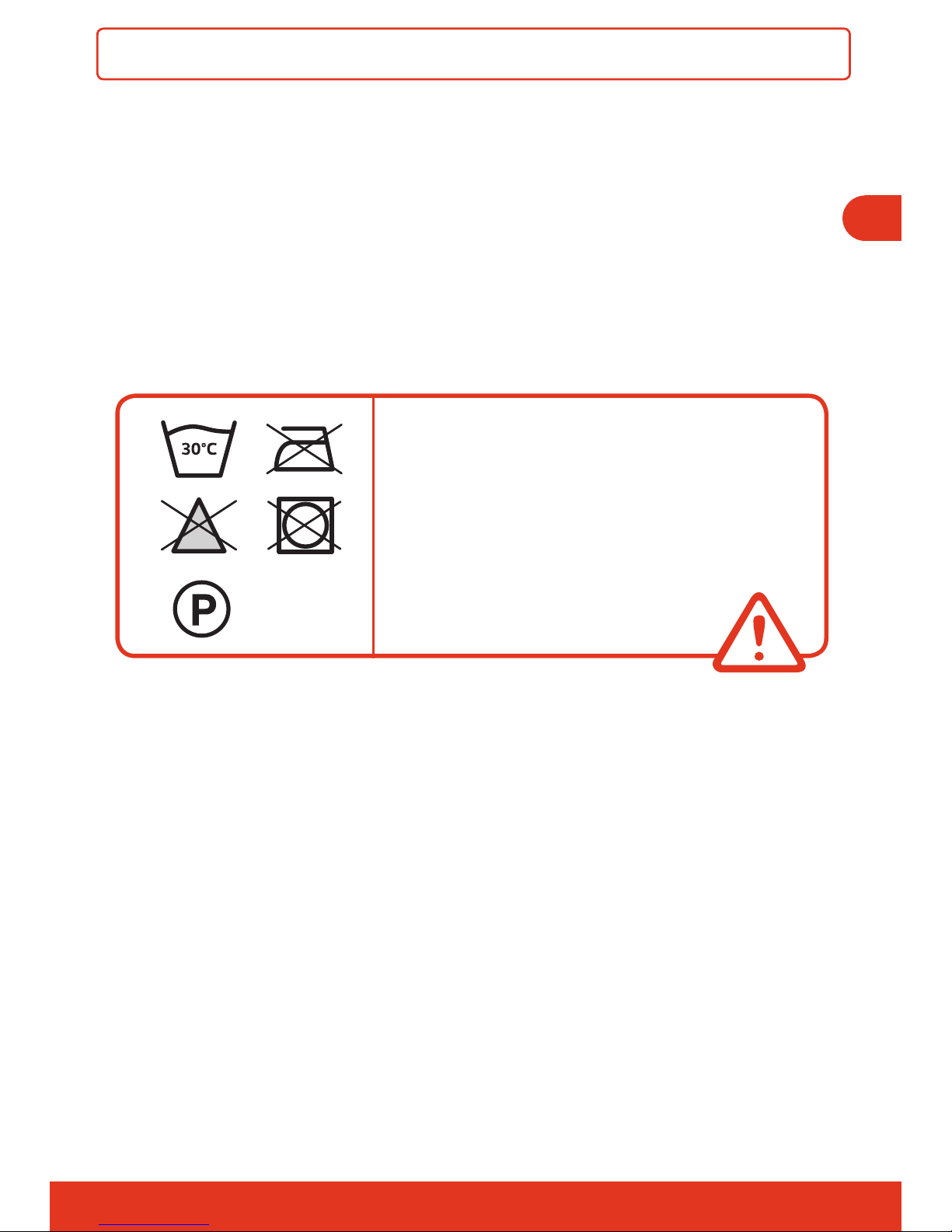

6. CLEANING AND MAINTENANCE
WASHING INSTRUCTIONS:
· e cover is removable and washable at 30º.
Dry in the fresh air only.
· Wash in washing machine (cold).
· Do not use bleach.
· Dry clean, with any solvent except
trichloroethylene.
· Do not use dryer.
· Do not iron.
1. Wash the straps and plastic parts with neutral detergent and
warm water.
2. Ensure that no soap enters the buckle or metal parts.
3. Do not use chemicals or bleach on any part of the chair.
4. Dry thoroughly before use.
If you have any question about using or installing this product, or if you
need a spare part contact our Customer Service.
Cleaning the seat
Group 0+/1/2/3
EN

28 MULTIMAX
BABYAUTO guarantees its products against all manufacturing faults for
a period of 2 years as of the date of purchas, in accordance with Law
23/2003, of 10 July 2003, relating to Consumer Goods Sale Guarantees.
1.e guarantee does not include defects or disorders produced by
inappropriate use or non-compliance with the installation and
maintenance safety norms described on the instruction leaflets come
with the products.
2.Repairs free of charge for any original defects and for the damages
caused by them.
3.In the event that the repair carried out is not satisfactory and the object
is not in optimum condition to fulfill the use to which it was destined,
the holder of the guarantee will have the right to a substitution of the
article for another of similar characteristics, or to the full refund of the
price paid.
4.e guarantee is considered automatically cancelled if the article
purchased has been repaired, or tried to be repaired, by any person not
authorised by our company.
7. GUARANTEE
Child restraint system
