Masoneilan™
SVI™II AP
Advanced Performance
Digital Positioner
Quick Start Guide (Rev. AB)
Baker Hughes Data Classication: Public

2 | © 2021 Baker Hughes Company. All rights reserved.
About this Guide
This Quick Start Guide applies to the following instruments and supported software: SVI II AP and
SVI II AP / AD with:
• Firmware version 3.1.1, 3.1.2, 3.2.1, 3.2.3/4.1.1, 3.2.5/5.1.1 and 3.2.7/5.1.3.
• ValVue™ suite version 2.40.0 or greater (including PRM Plug-In & AMS SNAP-ON)
• DTM version 1.01.0 or greater
• A handheld communicator with DD published for SVI II AP
The information contained in this manual, in whole or part, shall not be transcribed or copied without
Baker Hughes’ written permission.
In no case does this manual guarantee the merchantability of the positioner or the software or its
adaptability to a specic client needs.
Please report any errors or questions about the information in this manual to your local supplier or
visit valves.bakerhughes.com.
DISCLAIMER
THESE INSTRUCTIONS PROVIDE THE CUSTOMER/OPERATOR WITH IMPORTANT PROJECT-
SPECIFIC REFERENCE INFORMATION IN ADDITION TO THE CUSTOMER/
OPERATOR’S NORMAL OPERATION AND MAINTENANCE PROCEDURES. SINCE OPERATION
AND MAINTENANCE PHILOSOPHIES VARY, BAKER HUGHES COMPANY (AND ITS
SUBSIDIARIES AND AFFILIATES) DOES NOT ATTEMPT TO DICTATE SPECIFIC PROCEDURES,
BUT TO PROVIDE BASIC LIMITATIONS AND REQUIREMENTS CREATED BY THE TYPE OF
EQUIPMENT PROVIDED.
THESE INSTRUCTIONS ASSUME THAT OPERATORS ALREADY HAVE A GENERAL
UNDERSTANDING OF THE REQUIREMENTS FOR SAFE OPERATION OF MECHANICAL AND
ELECTRICAL EQUIPMENT IN POTENTIALLY HAZARDOUS ENVIRONMENTS. THEREFORE,
THESE INSTRUCTIONS SHOULD BE INTERPRETED AND APPLIED IN CONJUNCTION WITH
THE SAFETY RULES AND REGULATIONS APPLICABLE AT THE SITE AND THE PARTICULAR
REQUIREMENTS FOR OPERATION OF OTHER EQUIPMENT AT THE SITE.
THESE INSTRUCTIONS DO NOT PURPORT TO COVER ALL DETAILS OR VARIATIONS IN
EQUIPMENT NOR TO PROVIDE FOR EVERY POSSIBLE CONTINGENCY TO BE MET IN
CONNECTION WITH INSTALLATION, OPERATION OR MAINTENANCE. SHOULD FURTHER
INFORMATION BE DESIRED OR SHOULD PARTICULAR PROBLEMS ARISE WHICH ARE NOT
COVERED SUFFICIENTLY FOR THE CUSTOMER/OPERATOR’S PURPOSES THE MATTER
SHOULD BE REFERRED TO BAKER HUGHES.
THE RIGHTS, OBLIGATIONS AND LIABILITIES OF BAKER HUGHES AND THE CUSTOMER/
OPERATOR ARE STRICTLY LIMITED TO THOSE EXPRESSLY PROVIDED IN THE CONTRACT
RELATING TO THE SUPPLY OF THE EQUIPMENT. NO ADDITIONAL REPRESENTATIONS OR
WARRANTIES BY BAKER HUGHES REGARDING THE EQUIPMENT OR ITS USE ARE GIVEN
OR IMPLIED BY THE ISSUE OF THESE INSTRUCTIONS.
THESE INSTRUCTIONS ARE FURNISHED TO THE CUSTOMER/OPERATOR SOLELY TO ASSIST
IN THE INSTALLATION, TESTING, OPERATION, AND/OR MAINTENANCE OF THE EQUIPMENT
DESCRIBED. THIS DOCUMENT SHALL NOT BE REPRODUCED IN WHOLE OR IN PART
WITHOUT THE WRITTEN APPROVAL OF BAKER HUGHES.
Copyright
All information contained herein is believed to be accurate at the time of publication and is subject to
change without notice.
Copyright 2021 by Baker Hughes Company. All rights reserved. PN 055201-167 REV AB.

© 2021 Baker Hughes Company. All rights reserved. Masoneilan SVI II AP Digital Positioner Quick Start Guide | 3
Contents
About this Guide...................................................................................... 2
Safety Information................................................................................... 8
Safety Symbols.............................................................................................. 8
SVI II AP Product Safety.......................................................................... 9
General installation, maintenance or replacement ........................................................ 9
Intrinsically Safe Installation.......................................................................................... 9
Masoneilan Help Contacts.................................................................... 10
Installation and Set Up...........................................................................11
Introduction.................................................................................................. 11
Cover (I/P Module)....................................................................................... 12

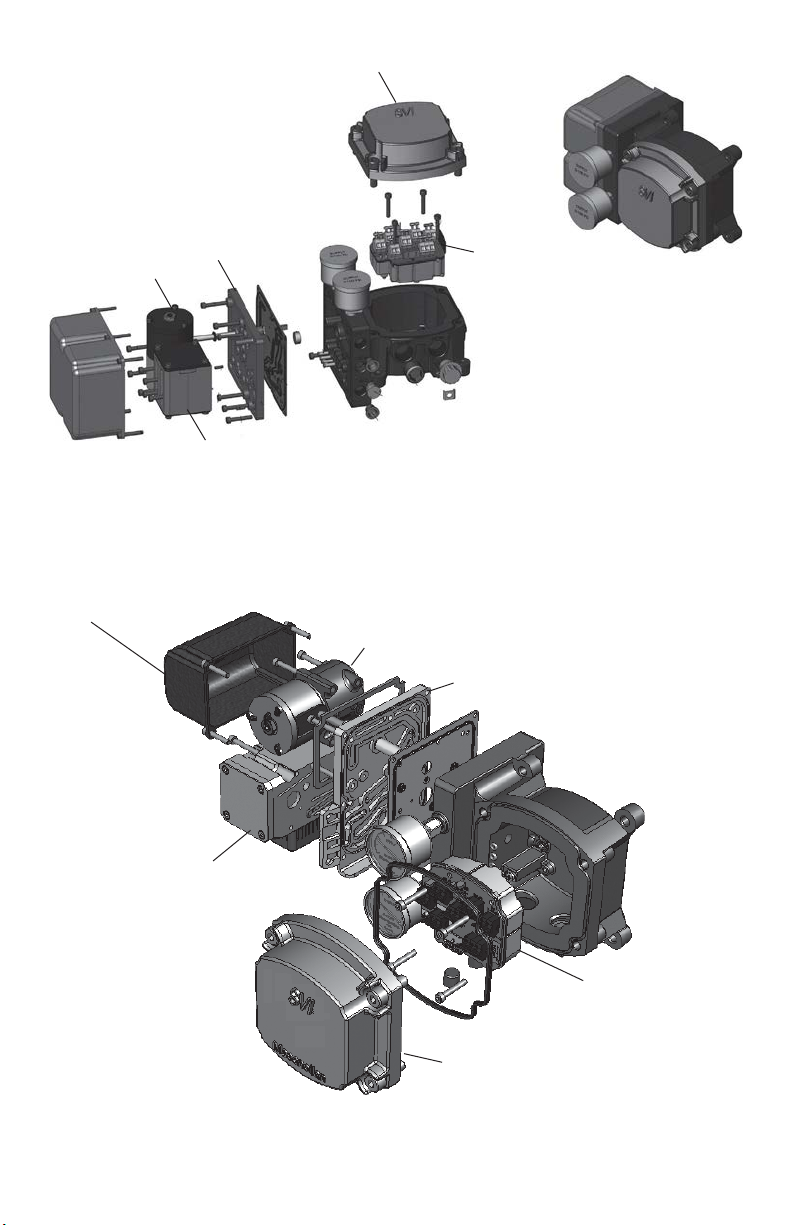

Pneumatic Train and Cover (I/P Module, Relay) ......................................... 12
I/P ................................................................................................................ 12
Relay............................................................................................................ 12
Manifold ....................................................................................................... 12
Pneumatic Relay.......................................................................................... 12
SVI II AP Cover............................................................................................ 12
I/P ................................................................................................................ 12
Manifold ....................................................................................................... 12
SVI II AP Cover............................................................................................ 12
Electronics Module ...................................................................................... 12
SVI II AP Assembled.................................................................................... 12
Electronics Module ...................................................................................... 12
Using the Quick Start Guide................................................................. 13
Single Acting Positioner ....................................................................... 14
Double Acting Positioner...................................................................... 15
Pushbuttons and Local Display........................................................... 16
Pushbuttons................................................................................................. 17
Pushbutton Locks and Conguration-Lock Jumper ....................................................18
Hardware Conguration Lock......................................................................................19
ValVue Software..................................................................................... 20
System Requirements.................................................................................. 20
ValVue and SV II AP DTM Trial Version....................................................... 20
Masoneilan Software Download........................................................... 21
Download and Install the SVI II AP DTM ..................................................... 23
Mounting the SVI II AP .......................................................................... 25
Mounting the SVI II AP on Rotary Valves............................................. 26
Mounting the SVI II AP on a Rotary Actuator...................................... 26

4 | © 2021 Baker Hughes Company. All rights reserved.
Travel Sensor Alignment ........................................................................28
Dismantling the SVI II AP from Rotary Valves .................................... 29
Mounting the SVI II AP on Reciprocating Valves................................ 29
Mounting the SVI II AP on a Reciprocating Actuator ......................... 29
MS Flat head screw..................................................................................... 29
Pin................................................................................................................ 29
Dismantling the SVI II AP from Reciprocating Valves.................................. 32
Checking the Magnet................................................................................... 33
Performing a Visual Inspection.................................................................... 33
Installing the SVI II AP for Double- Acting Operation ........................ 34
Connecting the Tubing and Air Supply ............................................... 37
Natural Gas Supply Considerations............................................................. 37
Installation Procedure.................................................................................. 39
Connecting the Air Supply ........................................................................... 40
Wiring the SVI II AP ............................................................................... 41
Connecting to the Control Loop................................................................... 41
Wiring a Position Retransmit ....................................................................... 42
To connect:.................................................................................................................. 42
To troubleshoot retransmit connections: ..................................................................... 42
Wiring Guidelines......................................................................................... 42
When wiring a position retransmit: .............................................................................. 43
SVI II AP Setups ..................................................................................... 44
Grounding Practices ............................................................................. 44
Compliance Voltage in Single Drop Current Mode ...................................... 45
Verify Wiring and Connections..................................................................... 45
Check Out, Conguration and Calibration.......................................... 47
Overview...................................................................................................... 47
Inspecting Actuator, Linkages, or Rotary Adapter........................................ 47
Verifying Mounting and Linkage Adjustment................................................ 48
Checking the Magnet................................................................................... 48
Performing a Visual Inspection.................................................................... 48
Using ValVue to Check Magnet Position...................................................... 49
Checking the Air Supply............................................................................... 50
Checking the Electronic Module Connections ............................................. 50
Operational Checkout ........................................................................... 52
Connecting to the Current Source ............................................................... 52
Powering Up the SVI II AP........................................................................... 52

© 2021 Baker Hughes Company. All rights reserved. Masoneilan SVI II AP Digital Positioner Quick Start Guide | 5
Conguration......................................................................................... 54
Notes on Aggressiveness ............................................................................ 54
Setting Aggressiveness...............................................................................................54
Aggressiveness Dynamic............................................................................................ 54
Conguration with Pushbuttons.......................................................... 55
Viewing Conguration Data ......................................................................... 55
Conguration Menu............................................................................... 56
Viewing Status Messages..................................................................... 57
VIEW DATA Settings.............................................................................. 57
Calibration.............................................................................................. 58
To calibrate the SVI II AP:............................................................................................58
Calibration Menu ................................................................................... 59
Auto Tune .................................................................................................... 60
To auto tune the SVI II AP:.......................................................................................... 60
Proceed with the following steps:................................................................................ 63
Maintenance........................................................................................... 65
Repair .......................................................................................................... 65
Tools Needed for Cover Replacement ........................................................................ 65
Display Cover Removal and Installation .....................................................................65
Removing the SVI II AP Display Cover .......................................................................66
Installing the SVI II AP Display Cover .........................................................................66
Appendix A: Specications and References ..................................... 69
Physical and Operational Specications...................................................... 69
Hazardous Location Installation................................................................... 75
Spare Parts.................................................................................................. 75
Appendix B: Optional Switch Load Limits......................................... 80
General Conguration Notes ....................................................................... 80
Appendix C: Burst Mode...................................................................... 83
The Burst mode can send the following commands:................................... 83
Appendix D: Determining an SVI Positioner Compliance Voltage in a
Control........................................................................................................
Compliance Test Set-Up..........................................................................87-88

6 | © 2021 Baker Hughes Company. All rights reserved.
Document Changes
Version/Date Changes
H/12-2010 Changes ES-699 doc to Rev N. See Appendix A
J/03-2011 Changes ES-699 doc to Rev P. See Appendix A
K/12-2011 Added description and procedures relevant to introduction of the high throughput version.
ES-699 updated.
L/10-2012 Changed the specications to reect single acting supply pressure of up to 100 and double-
acting up to 150 psi.
M/09-2013 Added the Load Limits sections and a cross reference to it from the wiring installation.
Updated ES-699 to Rev. Y.
N/10-2015 Updated the Load Limits section.
Updated ES-699 to Rev. AA.
Updated Disclaimer statement.
Added information on position retransmit switches.
Removed Remote Positioner Installation.
P/12-2015 Added section and Warning on installation in a natural gas environment.
Update the ES-699 to Rev. AB.
Added instructions for wiring Position Retransmit.
Changed references to ValVue software to reect ValVue 3.
Added Device Identication information.
R/04-2016 Made changes to indicate upgrades for HART® 7 (Squawk command and rmware areas).
T/09-2016 Note: Rev S skipped.
Changed rmware references for 3.2.7/5.1.3.
Changed download site throughout.
U/03-2017 Added section on compliance voltage testing.
Changed references to HART® Foundation to Field Comm.
Changed software download section.
Added Notes on Aggressiveness.
Added note on DI and PV switch use.
Updated ES-699 to Rev AC.
V/12-2017 Updated Optional Switches section.
Updated Intrinsic Safety images.
Added notes for PV and DI to card interface drawing.
Change ES-699 to Rev AD.
W/01-2018 Updated Optional Switches section.
Y/06-2018 Note: Rev X skipped Updated
Optional Switches section. Added
help contacts.
Amended Burst mode sections and added Tri-loop conguration.
AA/01-2020 Note: Rev Z was skipped.
Updated ES-699 to Rev AE.
Rebranded to Baker Hughes standards.
Changed torque for cover from 50 to 55.
AB/08-2021 ES-699 instructions removed.

© 2021 Baker Hughes Company. All rights reserved. Masoneilan SVI II AP Digital Positioner Quick Start Guide | 7

8 | © 2021 Baker Hughes Company. All rights reserved.
Safety Information
This section provides safety information and denes the documentation symbols.
Safety Symbols
Indicates a potentially hazardous situation,
which if not avoided could result in serious
injury or death.
WARNING
NOTE
Indicates important facts and conditions.
CAUTION Indicates a potentially hazardous situation,
which if not avoided could result in
instrument or property damage, or data loss.

© 2021 Baker Hughes Company. All rights reserved. Masoneilan SVI II AP Digital Positioner Quick Start Guide | 9
SVI II AP Product Safety
The SVI II AP digital valve positioner is intended for use with industrial compressed air or,
natural gas systems only.
See Hazardous Location Installation on page 75 for natural gas safety
information.
Ensure that an adequate pressure relief provision is installed when the application of system
supply pressure could cause peripheral equipment to malfunction. Installation must be in
accordance with local and national compressed air and instrumentation codes.
General installation, maintenance or replacement
• Products must be installed in compliance with all local and national codes and standards
by qualied personnel using safe site work practices. Personal Protective Equipment (PPE)
must be used per safe site work practices.
• Ensure proper use of fall protection when working at heights, per safe site work practices.
Use appropriate safety equipment and practices to prevent the dropping of tools or
equipment during installation.
• Under normal operation, compressed supply gas is vented from the SVI II AP to the
surrounding area, and may require additional precautions or specialized installations.
Intrinsically Safe Installation
Products certied as explosion proof or ame proof equipment or for use in intrinsically
safe installations MUST BE:
• Installed, put into service, used and maintained in compliance with national and local
regulations and in accordance with the recommendations contained in the relevant
standards concerning potentially explosive atmospheres.
• Used only in situations that comply with the certication conditions shown in this document
and after verication of their compatibility with the zone of intended use and the permitted
maximum ambient temperature
• Installed, put into service and maintained by qualied and competent professionals who
have undergone suitable training for instrumentation used in areas with potentially explosive
atmospheres.
NOTE

10 | © 2021 Baker Hughes Company. All rights reserved.
WARNING Before using these products with uids/compressed gases other than
air or for non-industrial applications,consult the factory. This product
is not intended for use in life support systems.
WARNING Under certain operating conditions, the use of damaged instruments
could cause a degradation of the performance of the system which
may lead to personal injury or death.
Under certain operating conditions the SVI II AP High Flow unit
can produce noise levels greater than 85 dBA. Perform proper
site monitoring and testing to verify the need for engineering or
administrative controls to eliminate or reduce hazardous noise
levels.
Installation in poorly ventilated conned areas, with any potential
of gases other than oxygen being present, can lead to a risk of
personnel asphyxiation.
Use only genuine replacement parts which are provided by the manufacturer, to guarantee
that the products comply with the essential safety requirements of the European Directives.
Changes to specications, structure, and components used may not lead to the revision
of this manual unless such changes a󰀨ect the function and performance of the product.
Masoneilan Help Contacts
o Email: [email protected]
o Phone: 888-SVI-LINE (888-784-5463)

© 2021 Baker Hughes Company. All rights reserved. Masoneilan SVI II AP Digital Positioner Quick Start Guide | 11
Installation and Set Up
Introduction
The SVI II AP provides for reliable operations of control valves with utmost simplicity in setup
and commissioning. It is uniquely equipped with a non-contact travel sensor allowing for
accurate positioning and maintenance free operations. The pneumatic train of the SVI II AP is a
dual-stage amplication system with stainless steel wetted parts for durability.
Intrinsically Safe, Flameproof and Explosion proof designs are o󰀨ered as standard. The
High Flow version is capable of 2.2 Cv air throughput. Some of the SVI II AP options include
marine grade construction, local indicating LCD with push buttons for local calibration, position
transmitter, discrete outputs, double-acting (not available for the High Flow version) and a
remote mount position-sensing mechanism. Using HART® eDDL and FDT-DTM technologies,
the Masoneilan SVI II AP digital valve positioner provides interoperability with leading control
systems suppliers.
Figure 1 SVI II AP Digital Positioner

12 | © 2021 Baker Hughes Company. All rights reserved.
Figure 2 - SVI II AP Components
Figure 3 - SVI II AP High Flow Components
SVI II AP Cover SVI II AP Assembled
Pneumatic Train and Cover
(I/P Module, Relay)
Manifold
I/P
Pneumatic Relay
Electronics
Module
Cover (I/P Module)
Relay
I/P
Manifold
Electronics
Module
SVI II AP Cover

© 2021 Baker Hughes Company. All rights reserved. Masoneilan SVI II AP Digital Positioner Quick Start Guide | 13
Using the Quick Start Guide
The SVI II AP Quick Start Guide is intended to help experienced eld personnel install, setup,
and calibrate an SVI II AP in an e󰀩cient manner. This document provides basic installation and
setup instructions and is not intended to replace the in-depth information contained in the SVI II
AP Instruction Manual, downloadable at valves.bakerhughes.com/resource-center.
If you experience problems that are not documented in this guide refer to the SVI II AP
Instruction Manual, or call your local Baker Hughes representative. Sales o󰀩ces are listed on
the last page of this document.
Compliance voltage testing is best done before installation. See Determining an SVI
Positioner Compliance Voltage in a Control System on page 87.
The steps necessary to complete the SVI II AP installation and software setup are outlined in
Table 1.
Table 1 - SVI II AP Installation Steps
Step
No. Procedure Reference
1Attach mounting bracket to the actuator. See page 29 for rotary valve and
reciprocating valve instructions.
2Install the SVI II AP magnetic assembly
(rotary valves only). See page 29 for instructions.
3
Assemble the SVI II AP on the bracket
that is mounted to the valve actuator.
See page 29 for rotary valve and
reciprocating valve instructions.
4Install the Remote Position Sensor, if
necessary.
See Masoneilan Valve Solutions
Remote Position Sensor Quick Start
Guide for instructions.
5Connect the pneumatic tubing to the SVI
II AP.
See page 37 for instructions.
See Natural Gas Supply
Considerations on page 37 for
notes on naturals gas installation.
6 Connect the air supply to the SVI II AP. See page 37 for instructions.
7
Connect the positioner to the HART®
Control Loop segment by installing the
SVI II AP wiring.
See page 41 for instructions.
8
Congure/calibrate using ValVueTM.See page 54 and page 58 for
instructions.
Congure/calibrate using a HART® Hand
Held Communicator. See page 59 for instructions.
WARNING Failure to adhere to the requirements listed in thismanual
may cause loss of life and property.
Before installing, using, or carrying out any maintenance tasks
associated with this instrument, READ THE INSTRUCTIONS
CAREFULLY. Refer to Hazardous Location Installation on
page 75 of this guidefor detailed instructions.

14 | © 2021 Baker Hughes Company. All rights reserved.
Single Acting Positioner
The supply and output connections for the SVI II AP, located on bottom of the pneumatic block,
are tapped 1⁄4” NPT. The output port 1 is toward the front while the supply is toward the back.
Two pressure gauges, output on top, supply port on bottom, are located on the front of the
pneumatic block.
The supply and output connections for the SVI II AP High Flow (Figure 5 on page 16), located
on bottom and leftside of the pneumatic block, are tapped 1⁄2” NPT.
Maximum allowable air supply pressure to the SVI II AP varies according to actuator, valve size,
and valve type. Refer to the serial plate of the valve to know the specied supply pressure; it
must never be less than the maximum spring pressure +5 psi.
Figure 4 - Air Ports on Single Acting Positioner
Figure 5 - SVI II AP High Flow Air Ports on Single Acting Positioner
Output
Supply
Supply
Output

© 2021 Baker Hughes Company. All rights reserved. Masoneilan SVI II AP Digital Positioner Quick Start Guide | 15
Double Acting Positioner
Connect Output 1, labeled (←I) to the inlet port of the actuator and Output 2, labeled (←II) to
the opposing actuator port (see Figure 6).
Figure 6 - Air Ports on Double Acting Positioner
Output I
Output II
Supply

16 | © 2021 Baker Hughes Company. All rights reserved.
Pushbuttons and Local Display
This section covers the optional local interface consisting of the LCD alphanumeric display and
pushbuttons. Operation of the SVI II AP Digital Valve Positioner as a local device is controlled
through the optional device-mounted pushbuttons and digital display, shown in Figure 7 on
page 17. Using the display you can read the input signal, valve position, and actuator pressure.
The display sequences from one variable to the next every 1.5 seconds.
Using the pushbuttons you can exit from operating mode at any time and step through a
menu structure to perform a wide range of manual operation, calibration, conguration, and
monitoring functions that are described later in this section.
ValVue is used to perform all diagnostics functions. The pushbuttons do not support diagnostics
functions.
The SVI II AP has two operational modes: Normal Operating mode and Manual mode and two
setup modes, Conguration and Calibration. The SVI II AP also has two modes for handling of
faults and power-up: Reset and Failsafe. When commissioning or checking a control valve with
SVI II AP fully installed the following steps are recommended:
• Change mode to Manual mode
• Examine and adjust all CONFIGuration items
• Enter Calibration mode
• Run STOPS to automatically calibrate stroke
• Run autoTUNE to set dynamic response
• Examine the device STATUS
• Introduce manual set point changes to verify dynamic performance

© 2021 Baker Hughes Company. All rights reserved. Masoneilan SVI II AP Digital Positioner Quick Start Guide | 17
Pushbuttons
The local pushbuttons are located behind a hinged cover, directly below the display window. To
open the cover loosen the screw and swing the cover down. Always re-fasten the cover after
use to protect the pushbuttons from environmental contamination.
The three pushbuttons perform the following functions:
• Left Button - Marked with *, permits you to select or accept the value or parameter option
currently displayed.
• Middle Button - Marked –, permits you to move back through the menu structure to the
previous item in the menu or decrement the value currently shown in the digital display. When
used to decrease a displayed value, holding the button down causes the value to decrease
at a faster rate.
• Right Button - Marked +, permits you to move forward through the menu structure to the
next item in the menu, or to increment the value currently shown in the digital display. When
used to increase a displayed value holding this button down causes the value to increase at
a faster rate.
NOTE When an exclamation point (!) appears in the SVI II AP
display window, it indicates that there is instrument status
available.
Figure 7 - SVI II AP Display Pushbuttons
-
*+
(Forward)
(Back)
(Select)

18 | © 2021 Baker Hughes Company. All rights reserved.
Pushbutton Locks and Conguration-Lock Jumper
Before performing any of these functions with the local display you must rst ensure that the
pushbuttons are placed in the unlocked mode using ValVue. The positioner is provided in the
unlocked mode. See ValVue documentation for more details.
The SVI II AP o󰀨ers several levels of accessibility. It may be desirable, after initial setup, to
lock the pushbuttons so that the SVI II AP parameters cannot be inadvertently changed by the
buttons. Several levels of pushbutton locks are provided.
Table 2 - Pushbutton Lock Security Level
Level Access
Security Level 3 Allow Local Buttons: Buttons on the SVI II AP are fully enabled.
Security Level 2 Lock Out Local Calibration and Conguration: Use the buttons to perform operations in normal operating mode and manual mode. Do
not go to congure or calibrate mode.
Security Level 1 Lock Out Local Manual: Examine variables in normal operating mode but do not put the valve in manual operating mode. Access to calibrate
or congure modes is not available.
Security Level 0 Lock Out All Buttons: The buttons are disabled (level 0).

© 2021 Baker Hughes Company. All rights reserved. Masoneilan SVI II AP Digital Positioner Quick Start Guide | 19
Hardware Conguration Lock
Additional security is achieved using the hardware conguration-lock jumper shown in Figure
8. When set to the secure position, shorting the two-pin header, conguration and calibration
are not permitted by the local interface or by remote communications. Pushbuttons, ValVue
and handheld are locked out, except to examine conguration, calibration, and position. This is
similar to Security Level 1 shown in the Pushbutton Lock Security Level table.
Figure 8- Connections to Electronics Module (via Terminal Board)
NOTE The PV (Process Variable is not used for the SVI II AP. The
Digital Input (DI) is activated using SMARTsAssistant, which
is downloaded at:
https://valves.bakerhughes.com/resource-center
The DI switch is a dry contact switch. As an example,the
switch may be utilized as a mechanical limit switchbackup. The
most common way to read the switch status is via the DTM
or DD. The input to the switch can be automated by sending
Device Variable 8 (DI) via CMD 9 or CMD 33 from a DCS.
Position Retransmit
Solid State Switch
SW #2
Process Variable
(not used)
Remote Position
Sensor Input
Display
Digital Input
(enabled
using SMARTs
Assistant)
Conguration Lock
Jumper
Solid State
Switch SW#1
4-20 mA Input
Signal

20 | © 2021 Baker Hughes Company. All rights reserved.
ValVue Software
Not only does ValVue provide the ability to quickly and easily set up the SVI II AP you can also
monitor operation and diagnose problems with ValVue’s advanced diagnostic capabilities.
NOTE You must use the ValVue3 software and the SVI II AP DTM
software to support HART®7. ValVue 2.x will not work.
System Requirements
Minimum requirements for all versions of ValVue software are Windows® 2003 Server (SP3),
Windows® 2008 Server (SP2), XP, Windows® 7, Windows® 8, Windows® Server 2012, 64 MB
RAM, and a serial or USB port connected to a HART® modem. For software installation, a
connection to the internet to download ValVue and the SVII AP DTM.
ValVue and SV II AP DTM Trial Version
You must download the ValVue software and the SVII AP DTM software and install to congure
and use the SVI II AP. For the most recent software visit our SVI II AP web site at:
https://valves.bakerhughes.com/resource-center
The SVI II AP DTM software and the Valve software comes with a trial version of ValVue. For
60 days after the initial installation, The ValVue software provides the FDT frame capability in
which the SVI II AP DTM software operates. The SVI II AP DTM software provides the capability
of conguring, calibrating, diagnosing, trending and much more. After the 60 trial period ValVue
must be registered for use. ValVue functionality includes:
• Setup Wizard • Remote display of valve position,
actuator pressure(s)
• Set calibration parameters • Set conguration parameters
• Monitor status⁄error indicators • Input/Output conguration
• Remote calibration of the SVI II AP • Remote conguration of the SVI II AP
• Remote operation of the SVI II AP • Backup and restore conguration
(clone device)
• Trend setpoint, valve position, actuator pressure • Display comparative test results
(full version only)
• Perform diagnostic test procedures
(full version only)
Advanced and Online Diagnostics
The SVI II AP o󰀨ers various levels of control valve diagnostics. Up to ve pressure sensors
that detect circuit board temperature, loop current, and reference voltage, are available for
diagnostics.
For more details on the use of ValVue software, refer to the ValVue User’s Guide. Contact the
factory or your local representative to obtain licensing information.
