47xxP/E
Electropneumatic Positioner
Customs Union (CU TR)
Instruction Manual (Rev.A)

2 | Baker Hughes © 2023 Baker Hughes Company. All rights reserved.
THESE INSTRUCTIONS PROVIDE THE CUSTOMER/OPERATOR WITH IMPORTANT
PROJECT-SPECIFIC REFERENCE INFORMATION IN ADDITION TO THE
CUSTOMER/OPERATOR’S NORMAL OPERATION AND MAINTENANCE PROCEDURES.
SINCE OPERATION AND MAINTENANCE PHILOSOPHIES VARY, BAKER HUGHES (AND ITS
SUBSIDIARIES AND AFFILIATES) DOES NOT ATTEMPT TO DICTATE SPECIFIC
PROCEDURES, BUT TO PROVIDE BASIC LIMITATIONS AND REQUIREMENTS CREATED
BY THE TYPE OF EQUIPMENT PROVIDED.
THESE INSTRUCTIONS ASSUME THAT OPERATORS ALREADY HAVE A GENERAL
UNDERSTANDING OF THE REQUIREMENTS FOR SAFE OPERATION OF MECHANICAL
AND ELECTRICAL EQUIPMENT IN POTENTIALLY HAZARDOUS ENVIRONMENTS.
THEREFORE, THESE INSTRUCTIONS SHOULD BE INTERPRETED AND APPLIED IN
CONJUNCTION WITH THE SAFETY RULES AND REGULATIONS APPLICABLE AT THE SITE
AND THE PARTICULAR REQUIREMENTS FOR OPERATION OF OTHER EQUIPMENT AT
THE SITE.
THESE INSTRUCTIONS DO NOT PURPORT TO COVER ALL DETAILS OR VARIATIONS IN
EQUIPMENT NOR TO PROVIDE FOR EVERY POSSIBLE CONTINGENCY TO BE MET IN
CONNECTION WITH INSTALLATION, OPERATION OR MAINTENANCE. SHOULD FURTHER
INFORMATION BE DESIRED OR SHOULD PARTICULAR PROBLEMS ARISE WHICH ARE
NOT COVERED SUFFICIENTLY FOR THE CUSTOMER/OPERATOR'S PURPOSES THE
MATTER SHOULD BE REFERRED TO BAKER HUGHES.
THE RIGHTS, OBLIGATIONS AND LIABILITIES OF BAKER HUGHES AND THE
CUSTOMER/OPERATOR ARE STRICTLY LIMITED TO THOSE EXPRESSLY PROVIDED IN
THE CONTRACT RELATING TO THE SUPPLY OF THE EQUIPMENT. NO ADDITIONAL
REPRESENTATIONS OR WARRANTIES BY BAKER HUGHES REGARDING THE
EQUIPMENT OR ITS USE ARE GIVEN OR IMPLIED BY THE ISSUE OF THESE
INSTRUCTIONS.
THESE INSTRUCTIONS ARE FURNISHED TO THE CUSTOMER/OPERATOR SOLELY TO
ASSIST IN THE INSTALLATION, TESTING, OPERATION, AND/OR MAINTENANCE OF THE
EQUIPMENT DESCRIBED. THIS DOCUMENT SHALL NOT BE REPRODUCED IN WHOLE OR
IN PART WITHOUT THE WRITTEN APPROVAL OF BAKER HUGHES.

© 2023 Baker Hughes Company. All rights reserved. Masoneilan 47xxP/E Positioner CU TR Instruction Manual | 3
Table of Content
WARNING ................................................................................................................................................................................................... 4
INSTRUMENT OPERATION............................................................................................................................................................................. 4
1. NUMBERING SYSTEM............................................................................................................................................................................................ 5
2. TECHNICAL DATA .............................................................................................................................. 5
2.1. Performances........................................................................................................................ 5
2.2. Schematic ............................................................................................................................. 5
3. Ex MARKINGS ................................................................................................................................... 6
4. ELECTRICAL CONNECTIONS and CONDUIT ENTRY.............................................................................7
4.1. Current signal...............................................................................................................................7
4.2. Maximum Power...........................................................................................................................7
4.3. Intrinsic Safety entity parameters .....................................................................................................7
4.4. Conduit entry in flameproof application...........................................................................................7
5. ASSEMBLY OF A 47xxE POSITIONER ON A VALVE ...................................................................................8
6. PNEUMATIC CONNECTION OF POSITIONER 47xxE...............................................................................8
7. INSTALLATION and START UP ......................................................................................................................8
7.1. Installation............................................................................................................................................8
7.2. Start-up ............................................................................................................... 11
8. CALIBRATION OF THE 47xxE POSITIONER.......................................................................................... 11
9. MAINTENANCE SERVICE....................................................................................................................... 11
9.1. General rules.............................................................................................................................. 11
9.2. Before maintenance activity......................................................................................................11
9.3. During maintenance activity......................................................................................................12
9.4. After maintenance activity ............................................................................................................... 12
10. SAFE INSTALLATION .................................................................................................................................... 12
10.1. For Intrinsic Safety ...............................................................................................................12
10.2. For Flameproof..........................................................................................................................13
Appendix A : 47xxP/E Customs Union Information......................................................................................14

4 | Baker Hughes © 2023 Baker Hughes Company. All rights reserved.
WA RN I NG
BEFORE installing, using or carrying out any maintenance tasks associated with this
instrument, READ THE INSTRUCTIONS CAREFULLY.
This instrument complies with the essential safety requirements of Ex,it is certified to be used in Gas or Dust
explosive atmospheres, groups IIC or IIIC:
•Category II 1GD –zones 0, 1, 2, 20, 21 and 22 for the protection mode "ia"
•Category II 2GD –zones 1, 2, 21 and 22 for the protection mode "db" and “tb”.
This also complies with the essential safety requirements of EMC, for use within an industrial environment.
Limit State Parameter - do not exceed maximum air pressure indicated on the nameplate, because
personal injury and equipment malfunction could result.
It is the end user's responsibility to:
•Verify material compatibility with the application
•Ensure proper use of fall protection when working at heights, per Safe Site Work Practices
•Ensure use of proper Personal Protective Equipment
•Take the appropriate actions to ensure that site personnel who are performing installation,
commissioning and maintenance have been trained in proper site procedures for working with and
around equipment, per Safe Site Work Practices
Products certified as explosion proof equipment MUST BE:
a) Installed, put into service, used and maintained in compliance with European and/or national and local
regulations and in accordance with the recommendations contained in the relevant standards concerning
potentially explosive atmospheres.
b) Used only in situations those comply with the certification conditions shown in this document and after
verification of their compatibility with the zone of intended use and the permitted maximum ambient
temperature.
c) Installed, put into service and maintained by qualified and competent professionals who have been
trained in proper site procedures for instrumentation used in areas with potentially explosive atmosphere
and for working with and around equipment, per Safe Site Work Practices.
Under certain operating conditions, the use of damaged instruments could cause a degradation of the
performances of the system which may lead to personal injury or death.
Use only genuine replacement parts, which are provided by the manufacturer, to guarantee that the products
comply with the essential safety requirements.
INSTRUMENT OPERATION
The 47xxP/E positioners function is to make a valve stroke proportional to a pneumatic or electrical control signal
from a controller, or to modify the natural flow characteristic of the valve itself through the use of a characterized
cam.
The 47xxP/E pneumatic positioner design is based on the force-balance principle: the signal pressure exerted on a
diaphragm is opposed by a feedback spring. In the balanced state, when the pneumatic signal varies, the diaphragm
assembly moves. This movement is followed by the pilot plug which is opposed by the pilot spring.

© 2023 Baker Hughes Company. All rights reserved. Masoneilan 47xxP/E Positioner CU TR Instruction Manual | 5
1. NUMBERING SYSTEM
4
Capacity of pilot Signal span Mounting Type
7. standard
0. 4–20 mA
1. 20.7 to 103.5 KPa (3 to 15 psi)
2. 41.4 to 206.8 KPa (6 to 30 psi)
0. Rotary
1. Linear
P - Pneumatic
E - Electropneumatic
2. TECHNICAL D ATA
2.1. Performance
Performance (% of the signal range)
47xxE
Dead Zone
Hysteresis
Repeatability
Sensitivity
Conformity
Input impedance
< 0.5
< 0.5
0.5
0.3
± 1
170 ohms
Maximum service temperature range: (refer to the marking on the apparatus).
Standard Instrument: - 40 °C to + 85 °C (-40°F to +185°F)
Storage temperature: - 55°C to + 90°C (-67°F to + 194°F)
The components of the I/P Module are protected by a metallic housing. Housing electrical protection index:
IP 66.

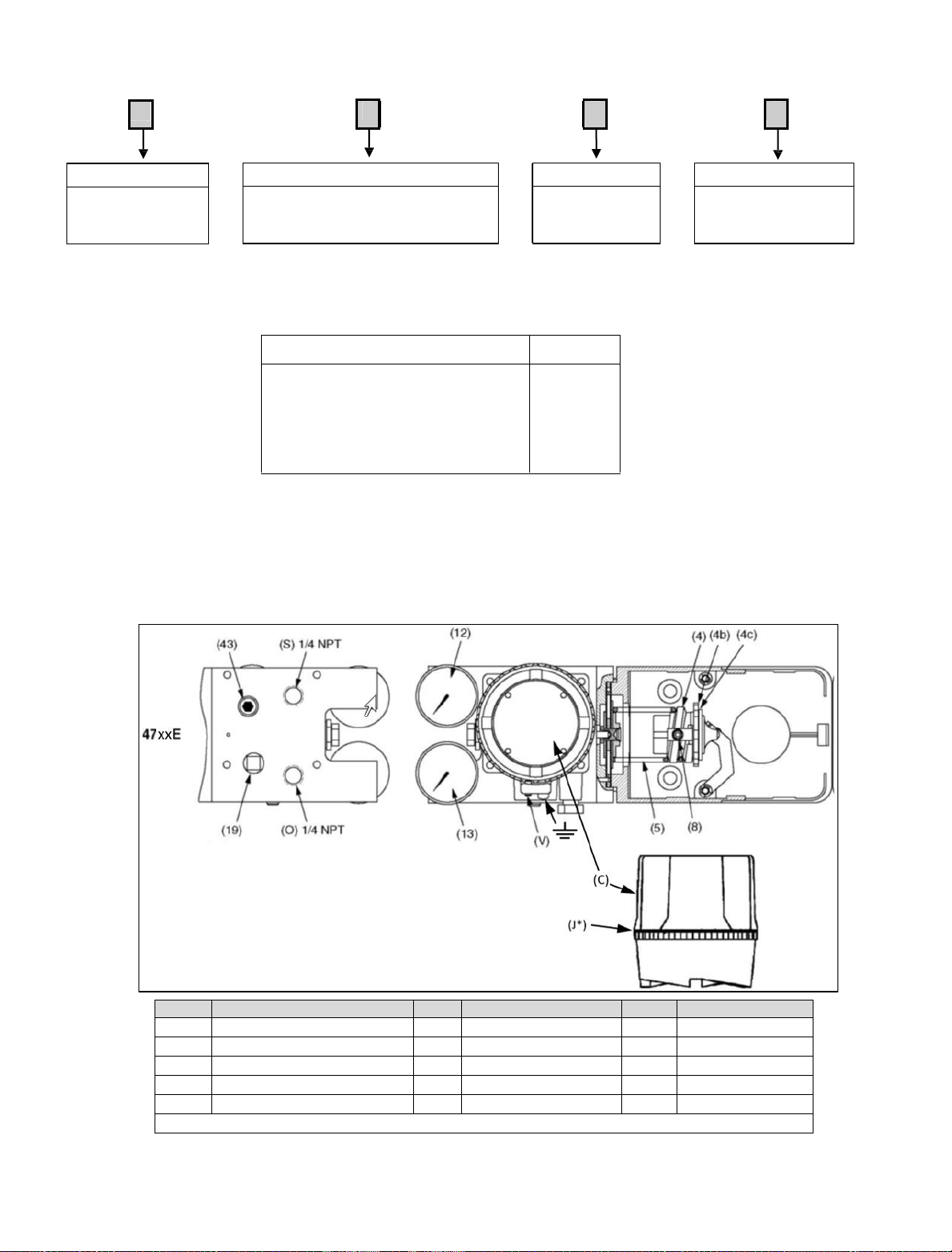

2.2. Schematic
REP.
Designation
REP.
Designation
REP.
Designation
4
Spring end
12
Supply gauge
C
Cover
4b
Zero nut
13
Output gauge
J (*)
O-Ring seal
4c
Zero lock nut
19
Vent plug
O
Output
5
Feedback spring
43
Plug
S
Supply
8
Socket head screw
V
Safety screw
* O-Ring seal is not visible.

6 | Baker Hughes © 2023 Baker Hughes Company. All rights reserved.

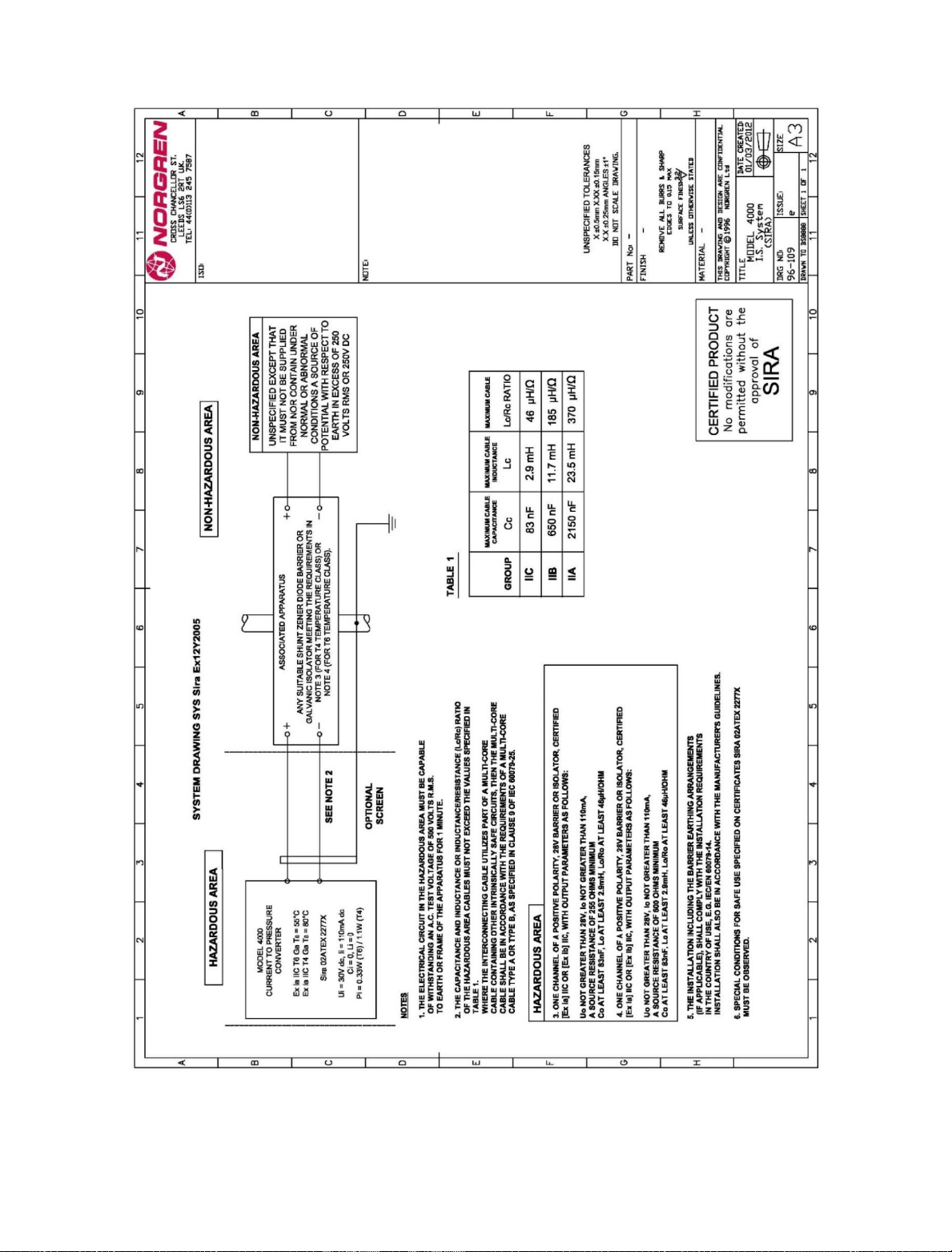

3. Ex MARKINGS
Intrinsic Safety: II 1GD:
•Ex ia h IIC T6 Ga (Tamb.= -40°C to +55°C, Pi= 0.33 W)
•Ex ia h IIC T4 Ga (Tamb.= -40°C to +80°C, Pi= 1.1 W)
•Ex ia IIIC T90°C Da X (-40°C ≤ Ta ≤ +55°C) (Tamb.= -40°C to +80°C, Pi= 1.1 W)
Flameproof: II 2GD:
•Ex db h IIC T6 Gb (Tamb.= -40°C to +55°C)
•Ex db h IIC T5 Gb (Tamb.= -40°C to +70°C)
•Ex db h IIC T4 Gb (Tamb.= -40°C to +85°C)
•Ex tb IIIC T90°C Db (Tamb.= -40°C to +55°C)
IP 66 / Type 4X
WARNING:
•Do not open when energized.
•Do not open when an explosive gas atmosphere is present.
•“X” Marking on label - Potential electrostatic charging hazard. See instructions for safe use.
•Use cables rated to ≥5°C above ambient.

© 2023 Baker Hughes Company. All rights reserved. Masoneilan 47xxP/E Positioner CU TR Instruction Manual | 7
4. ELECTRICAL CONNECTIONS and CONDUIT ENTRY
▪Comply with current national and local regulations for electrical installation work.
▪Comply with national and local explosive atmosphere regulations.
▪Before carrying out any work on the device, power off the instrument or make sure that the
local conditions in the potentially explosive atmosphere permit the safe opening of the cover.
▪Before switching on or after doing any work on the device, always tighten the cover (C) with a
seal (J) in good condition and put back the safety screw (V).
The Positioner must be installed and put into service in conformance with national and local regulations
applicable for explosive atmospheres.

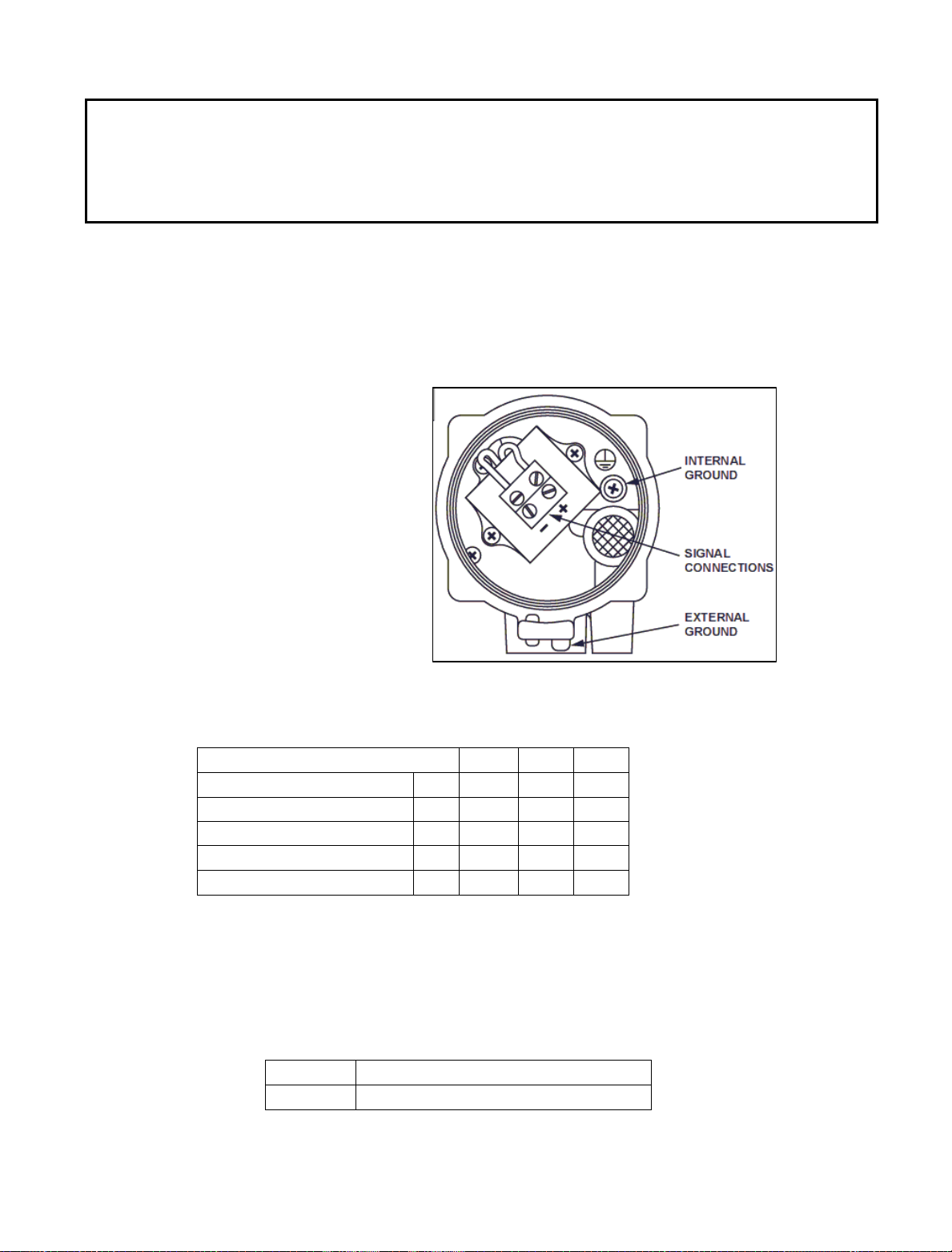

4.1. Current signal
The Positioner is self-powered 4-20mA current receiver. Connect the wires to the instrument's terminals,
taking care of complying with polarities + and -, the terminals will accept wire sizes up to AWG 14."
Make the earth connections with the internal and external ground terminals.
▪Input signal: 4-20 mA,
▪Input impedance: 170 ohms.
4.2. Maximum Power
▪1.1W or 0.33W for Intrinsic Safety atmosphere
▪0.8 W for Flameproof atmosphere

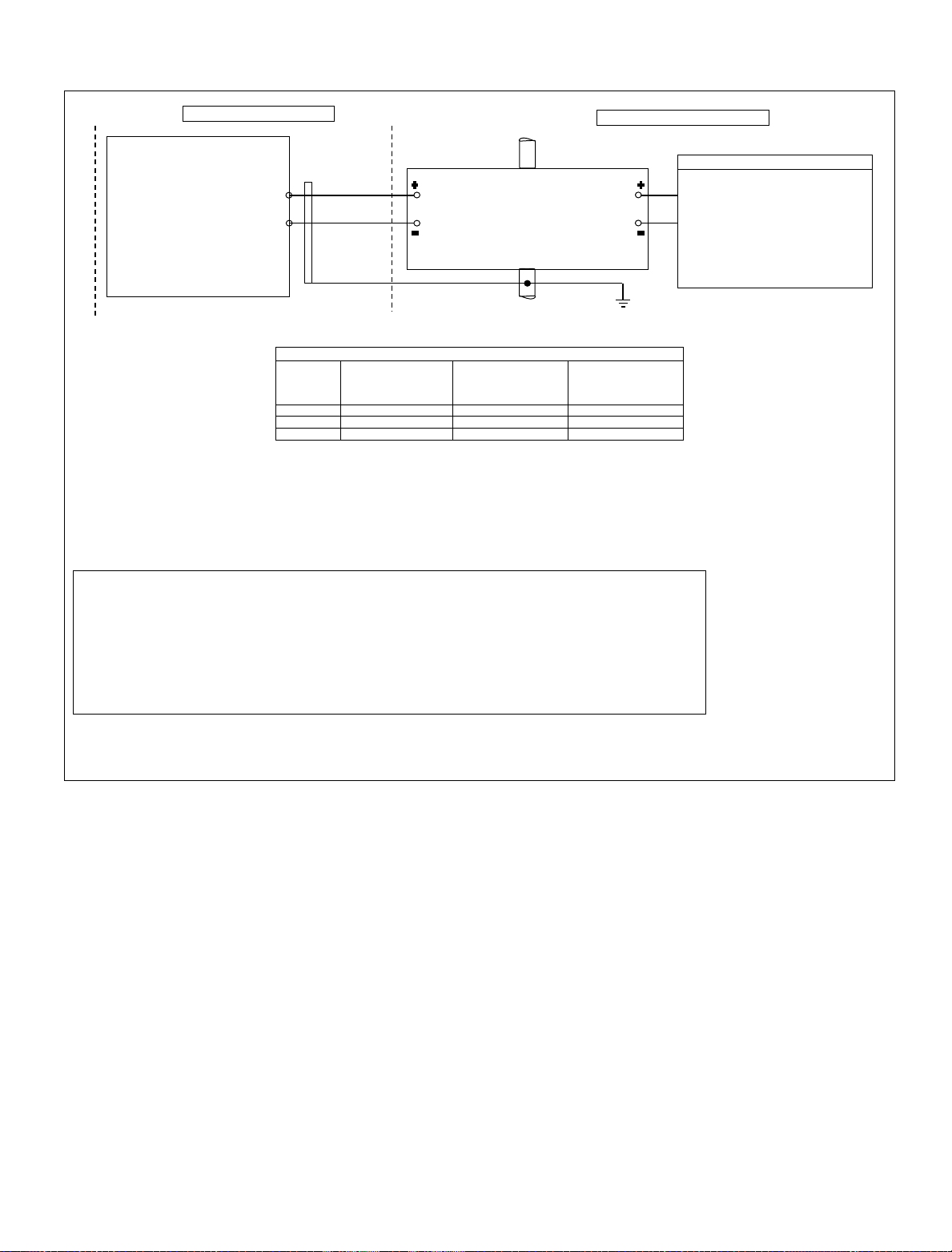

4.3. Intrinsic Safety entity parameters
Entity parameters
T4
T6
Unit
Max. Input Voltage
Ui
30
30
V
Max. Input Current
Ii
110
110
mA
Max. Input Power
Pi
1100
0.33
mW
Max. Internal Capacitance
Ci
0
0
nF
Max. Internal Inductivity
Li
0
0
µH
4.4. Conduit entry in flameproof application
The connections can be done with different variations taking into account approved manufacturer and
requested approvals:
▪A cable entry of a certified type Ex d IIC / Ex tD A21 or Ex t IIIC Db can be mounted directly on the
single ½" NPT (ANSI/ASME B1.20.1) housing conduit connection or M20 (ISO965-1 & ISO965-3)
▪For identification machining thread, check the part number sticker on the Model 4000 I/P Converter
body:
M20
00-055100106-888
½ NPT
00-055100212-888
▪Adaptors or reducers if apparatus certified ATEX or IECEx.

8 | Baker Hughes © 2023 Baker Hughes Company. All rights reserved.
5. ASSEMBLY OF A 47xxP/E POSITIONER ON A VALVE
▪Comply with current national and local regulations for electrical installation work.
▪Comply with national and local explosive atmosphere regulations.
▪Before carrying out any work on the device, power off the instrument or make sure that the
local conditions in the potentially explosive atmosphere permit the safe opening of the
cover.
▪Before switching on or after doing any work on the device, always tighten the cover (C) with
a seal (J) in good condition and put back the safety screw (V).
Note: Before installation, check that the device is undamaged. In the event of damage, inform the
manufacturer whose address is shown on the serial plate.
If the positioner is supplied mounted on a valve, Dresser LLC installs it, make the pneumatic
connection and configure and calibrate it.
When the positioner is shipped alone, the user is responsible for its installation, electrical and
pneumatic connections and its calibration.
Please refer to operating instruction manual BHMN-4700-4800-P-E-IOM-19515 for more detail.
6. PNEUMATIC CONNECTION OF POSITIONER 47xxP/E
▪Make sure that the air supply pressure is suitable for the installation and for the instrument.
▪When using a positioner make sure that the air supply pressure matches the one specified
on the serial plate without exceeding 700 kPa (100 psi).
▪The positioners are intended for use with industrial compressed air or natural gas systems
only; natural gas systems are Zone 0 or Div 1 installations.
If the instrument has been shipped alone, make pneumatic connections as per § 2.2:
air supply pressure to input (S) and output (O) to the actuator.
Minimum diameter of tubing:
▪47xxP/E: 4 x 6 mm
7. INSTALLATION and START UP
These operations must be put into service in conformance with national and local regulations applicable for
explosive atmospheres.
Before carrying out any work on the device, check that the local conditions in the potentially explosive atmosphere
zone permit the safe opening of the covers.
7.1. Installation
Intrinsically safe instrument can be installed in flammable gas explosive atmospheres groups IIC for the
zones 0, 1 and 2orinflammabledustexplosiveatmospheregroupIIICzones20,21and22. Explosionproof
instrument can be installed in flammable dust explosive atmosphere group IIIC zones 21 and 22.

9 | Baker Hughes © 2023 Baker Hughes Company. All rights reserved.

10 | Baker Hughes © 2023 Baker Hughes Company. All rights reserved.
TRANSLATION OF ENGLISH I.S. SYSTEM DRAWING:
SEE NOTE 2
OPTIONAL
SCREEN
NOTES:
1. THE ELECTRICAL CIRCUIT IN THE HAZARDOUS AREA MST BE CAPABLE OF WITHSTANDING AN A.C. TEST VOLTAGE OF 500 VOLTS R.M.S. TO EARTH OR FRAME OF THE
APPARATUS FOR 1 MINUTE.
2. THE CAPACITANCE AND INDUCTANCE OR INDUCTANCE/RESISTANCE (Lc/Rc) RATIO OF THE HAZARDOUS AREA CABLES MUST NOT EXCEED THE VALUES SPECIFIED IN
TABLE 1.
WHERE THE INTERCONNECTING CABLE UTILIZES PART OF A MULTI-CORE CABLE CONTAINING OTHER INTRINSICALLY SAFE CIRCUITS, THEN THE MULTI-CORE CABLE
SHALL BE IN ACCORDANCE WITH THE REQUIREMENTS OF A MULTI-CORE CABLE TYPE A OR TYPE B, AS SPECIFIED IN CLAUSE 9 OF IEC 60079-25.
HAZARDOUS AREA
3. ONE CHANNEL OF A POSITIVE POLARITY, 28V BARRIER OR ISOLATOR, CERTIFIED [Ex ia] IIC OR [Ex ib] IIC, WITH
OUTPUT PARAMETERS AS FOLLOWS:
Uo NOT GREATER THAN 28V, Io NOT GREATER THAN 110mA,
A SOURCE RESISTANCE OF 255 OHMS MINIMUM
Co AT LEAST 83nF, Lo AT LEAST 2.9mH, Lo/Ro AT LEAST 46µH/OHM
4. ONE CHANNEL OF A POSITIVE POLARITY, 28V BARRIER OR ISOLATOR, CERTIFIED [Ex ia] IIC OR [Ex ib] IIC, WITH
OUTPUT PARAMETERS AS FOLLOWS:
Uo NOT GREATER THAN 28V, Io NOT GREATER THAN 110mA,
A SOURCE RESISTANCE OF 600 OHMS MINIMUM
Co AT LEAST 83nF, Lo AT LEAST 2.9mH, Lo/Ro AT LEAST 46µH/OHM
5. THE INSTALLATION INCLUDING THE BARRIER EARTHING ARRANGEMENTS (IF APPLICABLE), SHALL COMPLY WITH THE INSTALLATION REQUIREMENTS IN THE COUNTRY
OF USE, E.G. IEC/EN 60079-14. INSTALLATION SHALL ALSO BE IN ACCORDANCE WITH THE MANUFACTURER'S GUIDELINES.
6. SPECIAL CONDITIONS FOR SAFE USE SPECIFIED ON CERTIFICATES SIRA 02ATEX 2277X MUST BE OBSERVED.
HAZARDOUS AREA
NON-HAZARDOUS AREA
ASSOCIATED APPARATUS
ANY SUITABLE SHUNT DIODE BARRIER OR
GALVANIC ISOLATOR MEETING THE
REQUIREMENTS IN NOTE 3 (FOR T4 TEMP
CLASS) OR NOTE 4 (FOR T6 TEMP CLASS)
MODEL 4000
CURRENT TO PRESSURE
CONVERTER
Ex ia IIC T6 Ga Ta = -40°C to 55°C *
Ex ia IIC T4 Ga Ta = -40°C to 80°C *
Sira 02ATEX2277X
Ui = 30V dc, Ii = 110mA dc
Ci = 0, Li = 0
* Pi = 0.33W (T6) / 1.1W (T4)
NON-HAZARDOUS AREA
UNSPECIFIED EXCEPT THAT IT MUST
NOT BE SUPPLIED FROM NOR
CONTAIN UNDER NORMAL OR
ABNORMAL CONDITIONS A SOURCE
OF POTENTIAL WITH RESPECT TO
EARTH IN EXCESS OF 250 VOLTS
RMS OR 250V DC
TABLE 1
GROUP
MAXIMUM CABLE
CAPACITANCE
Cc
MAXIMUM CABLE
INDUCTANCE
Lc
MAXIMUM CABLE
Lc/Rc RATIO
IIC
83 nF
2.9 mH
46 µH/Ω
IIB
650 nF
11.7 mH
185 µH/Ω
IIA
2150 nF
23.5 mH
370 µH/Ω

© 2023 Baker Hughes Company. All rights reserved. Masoneilan 47xxP/E Positioner CU TR Instruction Manual | 11
7.2. Start-up
Note:Before start-up, proceed, if required, with instrument calibration as per § 8 and/or ensure that all the
safety instructions in the preceding paragraphs have been strictly followed.
▪Before switching on or after doing any work on the device, always tighten the cover (C) with
a seal (J) in good condition and put back the safety screw (V).
▪Check that the cable gland is certified for the intended use and that the electrical data are
suitable for the operating zone.
8. CALIBRATION OF THE 47xxE POSITIONER
▪Comply with current national and local regulations for electrical installation work.
▪Comply with national and local explosive atmosphere regulations.
▪Before carrying out any work on the device, power off the instrument or make sure that the
local conditions in the potentially explosive atmosphere permit the safe opening of the
cover.
▪Before switching on or after doing any work on the device, always tighten the cover (C) with
a seal (J) in good condition and put back the safety screw (V).
The positioner mounted on the valve is factory calibrated. If it is supplied alone, calibration will be carried
out by the customer, as follows:
▪Make the electrical and pneumatic connections, see § 4 and § 6.
▪The zero is set using the nut (4b). Adjust the nut (4b) so that the valve is close for the signal value that
corresponds to the closure of the valve.
▪The span is adjusted using the spring (5). Turn the spring (5) on the spring end (4), to increase or reduce
the number of active coils, thus reducing or increasing the stiffness of the spring. These operations are
carried out to adjust the span so as that the valve describes its entire stroke for the full range of the
control signal.
▪These two operations are repeated until the correct settings are obtained.
▪Lock the zero lock nut (4c) and the socket head screw (8)
Note: the Model 4000 I/P Converter does not require any adjustment.
9. MAINTENANCE SERVICE
▪Comply with current national and local regulations for electrical installation work.
▪Comply with national and local explosive atmosphere regulations.
▪Before carrying out any work on the device, power off the instrument or make sure that the
local conditions in the potentially explosive atmosphere permit the safe opening of the cover.
▪Before switching on or after doing any work on the device, always tighten the cover (C) with
a seal (J) in good condition and put back the safety screw (V).
9.1. General rules
These operations must be put into service in conformance with national and local regulations applicable for
explosive atmospheres.
9.2. Before maintenance activity
Before carrying out any work on the device, check that the local conditions in the potentially explosive
atmosphere zone permit the safe opening of the cover (C).

© 2023 Baker Hughes Company. All rights reserved. Masoneilan 47xxP/E Positioner CU TR Instruction Manual |12
9.3. During maintenance activity
Take into account all special conditions of use points listed § 10. Pay particular attention to the following
points:
•Check that no part is damaged. In the event of damage, replace the defective parts with genuine
manufacturer's replacement parts only.
•Check the general condition of the main cover seal (C) and the housing.
•Check the gland and the electrical connections.
•Check the pilot:
▪Disconnect the air supply and remove the pilot from the pneumatic block
▪After disassembly of the pilot (see picture below) clean parts and blow air through the ports and
tubing. The reassembly of the pilot is done in accordance with the figure below by using three new O
rings. Screw the assembly in the pneumatic block.
▪When replacing the I/P module, check the condition of the three 'O' ring (22, 23 24) and replace them
if necessary.
▪To proceed to a cleaning of the different sides of the enclosure to avoid the deposits of dusts for
instruments working in zones 21 and 22.
▪Avoid contact of the apparatus with aggressive substances which could damage
the metallic or plastic parts.
9.4. After maintenance activity
After doing any work on the device, check the cover (C) is fully screwed and the security cover screw is well
locked (V).
10. SAFE INSTALLATION
10.1. For Intrinsic Safety
▪FieldWiring: Intrinsically safe wiringmustbemadewithgroundedshieldedcableorinstalledingroundedmetal
conduit.The electricalcircuitinthe hazardousaremustbecapableofwithstanding anACtestvoltageof500volts
RMStoearth orframeoftheapparatusfor 1minute.Installation mustbeinaccordancewithMasoneilanguidelines.
Theinstallation including thebarrier earthingrequirementsmustcomply withthenationalorlocalinstallation
requirements. Equipment connectiontakingintoaccountGOST31610.11-2014 (IEC60079-11:2011)andGOST
IEC60079-14-2013
▪It is under the user responsibility to check once a year the gasket and in the event of damage to replace
the defective parts with manufacturer's replacement parts only.
▪For use in dusty hazardous areas, the user will have to proceed to a cleaning regularly the different
sides of the enclosure to avoid the deposits of dusts, the maximum thickness must be <5 mm. For safe
operation, this can be done only if the local conditions around the device are free of potentially
explosive atmosphere.
▪The user will have to check the temperature increase on the positioner coming from the mechanical part
in contact with or through the process thermal radiation be less or equal than the temperature
classification allowed. This must be done in conformance with national and local regulations applicable
for explosive atmospheres.
▪The user to only wipe/clean with a damp cloth or when in a non-hazardous area when cleaning the
device and non-metallic parts/label to avoid any electrostatic spark. For safe operation, this can be
done only if the local conditions around the device are free of potentially explosive atmosphere.
▪The cable entry must have a protection level at least equal to IP54 according to IEC 60529 standards.
▪For the housing with aluminum material, the user will have to determine the use of the device for group II
category 1 (zone 0) against potential inflammable source causing by sparks in the event of impact or
friction.
▪The current source supply connected on the Model 4000 connectors must be certified for use in group IIC

© 2023 Baker Hughes Company. All rights reserved. Masoneilan 47xxP/E Positioner CU TR Instruction Manual |13
and intrinsic safety loop approved. The entity parameters of the current source supply must be compatible
with the entity parameters of the Model 4000 I/P Converter described § 4.3.
▪The enclosure is made from light metal which could cause ignition due to impact. This shall be taken into
consideration when the apparatus is installed in locations that specifically require Equipment Protection
Levels Ga or Da.
▪If the Model 4000 I/P Converter is mounted with the axis of the plastic baffle in the vertical position with the
baffle uppermost, the required ingress protection against water is invalidated; therefore, it shall only be
installed in this orientation if its location provides protection against falling water.
10.2. For Flameproof
▪It is under the user responsibility to check once a year the gasket and in the event of damage to replace
the defective parts with manufacturer's replacement parts only.
▪For use in dusty hazardous areas, the user will have to proceed to a cleaning regularly the different
sides of the enclosure to avoid the deposits of dusts, the maximum thickness must be <5 mm. For safe
operation, this can be done only if the local conditions around the device are free of potentially
explosive atmosphere.
▪The user will have to check the temperature increase on the positioner coming from the mechanical part
in contact with or through the process thermal radiation be less or equal than the temperature
classification allowed. This must be done in conformance with national and local regulations applicable
for explosive atmospheres.
▪For ambient temperature greater than 70°C, the user must choice a cable entry and a cable compatible
with:
Ambient Temperature
Cable and Cable Entry Temperature
70 °C
75 °C
85 °C
90 °C
▪The cable entry and the cable must be compatible with the minimum temperature of -40°C indicated
on the marking plate.
▪The cable entry must have a protection level at least equal to IP66/67.

14 | Baker Hughes © 2023 Baker Hughes Company. All rights reserved.
Appendix A : 47xxP/E Customs Union Information
MARKING
Dresser LLC.
12970 Normandy Boulevard
Jacksonville FL 32221 United States (Соединенные Штаты)
Made in Italy
Model 47xxP:
II Gb c IIC T6...T4 (-40°C<Ta< +85°C; T4/T5)
III Db c IIIC T80°C...T130°C (-40°C<Ta< +75°C)
Model 47xxE:
0Ex ia h IIC T6 Ga X (-40°C ≤ Ta ≤ +55°C, Pi = 0.33 W)
0Ex ia h IIC T4 Ga X (-40°C ≤ Ta ≤ +80°C, Pi = 1.1 W)
Ex ia h IIIC T90°C Da X (-40°C ≤ Ta ≤ +80°C, Pi = 1.1 W)
Ui=30V dc, Ii=110mA dc, Ci=0, Li=0
1Ex db h IIC T6 Gb X (-40°C ≤ Ta ≤ +55°C)
1Ex db h IIC T5 Gb X (-40°C ≤ Ta ≤ +70°C)
1Ex db h IIC T4 Gb X (-40°C ≤ Ta ≤ +85°C)
Ex tb IIIC T90°C Db X (-40°C ≤ Ta ≤ +55°C, Pi = 0.8 W)
PROTECTION, STORAGE, HANDLING, DISPOSAL
Valves have been tested and adjusted at the factory prior to shipment. The period between leaving the manufacturing plant to installation may involve
substantial exposure to degradation due to impact, impingement or corrosion. Such degradation can adversely affect the performance of valves when
in service and can easily be avoided if simple guidelines are followed.
Protection
As a minimum,all positionersare dried, coated and fitted with protective measures,such as positional air connection protection and boxed for protection
during shipment when shipped as individual positioner, or waterproof wrapping if installed on valve package, prior to shipment. This protection should
be left in place until immediately before the positioner is to be fitted onto an assembly.
Storage and Preservation
If the 47xxP/E is stored for a long duration, you must keep the housing sealed against weather, fluids, particles, and insects. To prevent damage to the
47xxP/E:
•Use the plugs provided with shipment to plug the ¼ NPT air connections, on the positioner and on the air filter regulator set.
•Do not allow standing water to accumulate.
•Observe storage temperature requirements
Transportation and Handling
Appropriate care when handling the 47xxP/E should be given, roughness in handling may damage air filter and NPT connection. Care should be taken
to avoid damage to any protection. Exercise care when unpacking the control valve and its mounted accessories.
Disposal
Follow instructions carefully on product labels for use and storage to prevent any accidents.
Be sure to read product labels for disposal instructions to reduce the risk of products exploding, igniting, leaking, mixing with other chemicals or posing
other hazards on the way to a disposal facility.
Never store hazardous products in food containers; keep them in their original containers and never remove labels. Corroding containers, however,
require special handling. Call your local hazardous materials official or fire department for instructions.
Check with your local environmental, health or solid waste agency for more information on waste management options.
AUTHORIZED CONTACTS:
Baker Hughes Services Kazakhstan LLP“Q2” business centre, 2nd fl, 15/1 Kabanbay Batyr Avenue,010000, Nur-Sultan, Kazakhstan. +7 7172
476020/476670. [e-mail]
MANUFACTURED BY:
Dresser LLC.
12970 Normandy Boulevard
Jacksonville FL 32221 United States (Соединенные Штаты)
Made in Italy

Find the nearest local Channel Partner in your area:
valves.bakerhughes.com/contact-us
Tech Field Support & Warranty:
Phone: [phone]
[e-mail]
valves.bakerhughes.com
Copyright 2023 Baker Hughes Company. All rights reserved. Baker Hughes provides this
information on an “as is” basis for general information purposes. Baker Hughes does not make any
representation as to the accuracy or completeness of the information and makes no warranties of
any kind, specific, implied or oral, to the fullest extent permissible by law, including those of
merchantability and fitness for a particular purpose or use. Baker Hughes hereby disclaims any
and all liability for any direct, indirect, consequential or special damages, claims for lost profits, or
third party claims arising from the use of the information, whether a claim is asserted in contract,
tort, or otherwise. Baker Hughes reserves the right to make changes in specifications and features
shown herein, or discontinue the product described at any time without notice or obligation.
Contact your Baker Hughes representative for the most current information. The Baker Hughes
logo and Masoneilan are trademarks of Baker Hughes Company.
Other company names and product names used in this document are the registered trademarks or
trademarks of their respective owners.
BHMN-47xxP-E-CUTR-IOM-34619A-X-0323 03/2023
bakerhughes.com
