Balluff BNI IOL-302-S02-Z012-C11 User manual

BNI IOL-302-S02-Z012-C11
IO-Link 1.1 Sensor/Actuator Hub
with Extension Port
User's Guide

Contents
1Notes to the user 4
About this manual 4
Structure of the manual 4
Typographical conventions 4
Enumerations 4
Actions 4
Syntax 4
Cross-references 4
Symbols 4
Abbreviations 4
Differing representations 4
2Safety 5
Intended use 5
Installation and startup 5
General safety instructions 5
Resistance to aggressive substances 5
Dangerous voltage 5
3First steps 6
Connection overview 6
Power supply 7
Mechanical connection 8
Electrical connection 8
Function ground 8
IO-Link connection 8
Connecting the sensor hub 8
Digital sensors / actuators 9
Extension port 9
Device version 10
Extension port 10
4Configuration overview 11
Introduction 11
Input process data 11
Output process data 11
Configuration of the extension port 12
Data handling with extension port 13
5Configuration: Device alone, extension port inactive 14
Device version 14
Configuration of the extension port 14
IO-Link Data 14
Process Data/Input Data 15
Process Data/ Output Data 16
Parameter data/ identification data and device parameters 16
Parameter data –device configuration –overview 17
Parameter data –details 17
Inversion of the inputs 40hex 17
Safe state of the outputs 42hex, 43hex 18
Safe state of the outputs on pin 4 42hex 18
Safe state of the outputs on pin 2 43hex\ 18
Voltage monitoring 44hex 19
Output monitoring 45hex 19
Setting the serial number 54hex 19
Configuration of the extension port 55hex 19
6Configuration: BNI IOL-302-S02-Z012-C11 extended with the same device 20
Configuration of the extension port 20
IO-Link Data 20

Balluff Network Interface / IO-Link
www.balluff.com
3
Process Data/Input Data 21
Process Data/ Output Data 23
Parameter data/ identification data and device parameters 24
Parameter data/ device configuration 24
Inversion of the inputs 40hex 25
Safe state of the outputs on pin 4 42hex 26
Safe state of the outputs on pin 2 43hex 27
Voltage monitoring 44hex 28
Output monitoring 45hex 28
Setting the serial number 54hex 29
Configuration of the extension port 55hex 29
7Configuration: BNI IOL-302-S02-Z012-C11 extended with 22/24 valve terminal 30
Configuration of the extension port 30
IO-Link Data 30
Process Data/Input Data 31
Process Data/ Output Data 32
Parameter data/ identification data and device parameters 33
Parameter data/ Device configuration 34
Inversion of the inputs 40hex 34
Safe state of the outputs 42hex 35
Safe state of the outputs on pin 2 43hex 37
Voltage monitoring 44hex 37
Output monitoring 45hex 38
Setting the serial number 54hex 39
Configuration of the extension port 55hex 39
8Error codes and events 40
Error codes/ errors 40
Events 40
9IO-Link functions 41
IO-Link Version 1.0/ 1.1 41
Data storage 41
Block configuration 41
Resetting to factory settings 41
10 Technical data 42
Dimensions 42
Mechanical data 42
Electrical data 42
Operating conditions 42
11 Function indicators 43
Function indicators 43
LED indicator module status 43
Digital LED indicators for inputs/outputs 43
Extension port 43
12 Appendix 44
Type code 44
Ordering Information 44
Notes 45

Balluff Network Interface / IO-Link
www.balluff.com
4
1Notes to the user
About this
manual
This manual describes the Balluff IO-Link I/O module, also called a sensor/actuator hub.
The IO-Link protocol is used to link to the higher-level master module.
Functionally this compact, cost-effective module is similar to a passive splitter box; it records
digital sensor signals and transmits them over the IO-Link interface. It passes control signals
coming over IO-Link to the connected actuators.
Structure of the
manual
This guide is arranged so that one chapter builds upon the other.
Chapter 2: Basic safety instructions
……..
Typographical
conventions
The following typographical conventions are used in this manual.
Enumerations
Enumerations are shown as a list with an en-dash.
−Entry 1,
−Entry 2.
Actions
Action instructions are indicated by a preceding triangle. The result of an action is indicated
by an arrow.
➢Action instruction 1.
Action result.
➢Action instruction 2.
Syntax
Numbers:
Decimal numbers are shown without additional indicators (e.g. 123), hexadecimal numbers
are shown with the additional indicator hex (e. g. 00hex).
Cross-references
Cross-references indicate where additional information on the topic can be found.
Symbols
Attention!
This symbol represents a safety instruction which must absolutely be followed.
Note
This symbol indicates general notes.
Abbreviations
BNI
DPP
GND
I/O port
IOL
ISDU
EMC
FE
LSB
MSB
SC
UA
US
Balluff Network Interface
Direct Parameter Page
Ground
Digital input/output port
IO-Link
Indexed Service Data Unit (formerly SPDU)
Electromagnetic compatibility
Function earth
Least Significant Bit
Most Significant Bit
Short-circuit
Actuator supply
Sensor supply
Differing
representations
Product views and illustrations in this guide may differ from the actual product. These serve
for illustration only.

Balluff Network Interface / IO-Link
www.balluff.com
5
2Safety
Intended use
The BNI IOL-… acts as a decentralized input/output sensor module, which is connected to a
higher-level IO-Link master module through an IO-Link interface.
Installation and
startup
Attention!
Installation and startup must only be carried out by trained technical personnel.
Qualified personnel are persons who are familiar with installation and operation
of the product and have the necessary qualifications for these tasks.
Any damage resulting from unauthorized tampering or improper use voids the
manufacturer's guarantee and warranty. The operator must ensure that
appropriate safety and accident prevention regulations are observed.
General safety
instructions
Commissioning and inspection
Before commissioning, carefully read the User's Guide.
The system must not be used in applications in which the safety of persons is dependent
upon proper functioning of the device.
Authorized personnel
Installation and startup must only be carried out by trained technical personnel.
Intended use
Warranty and liability claims against the manufacturer are rendered void by:
−Unauthorized tampering
−Improper use
−Use, installation or handling contrary to the instructions provided in this User's
Guide.
Obligations of the operating company
This device meets the specifications for EMC, Category A. It may cause HF noise.
The owner/operator must take appropriate precautionary measures against this for its use.
The device may only be used with an approved power supply. Use only approved cables.
Malfunctions
In the event of defects and device malfunctions that cannot be rectified, the device must be
taken out of operation and protected against unauthorized use.
Intended use is ensured only when the housing is fully installed.
Resistance to
aggressive
substances
Attention!
The BNI modules always have good chemical and oil resistance. When using an
aggressive medium (e.g. chemicals, oils, lubricants and coolants in high
concentration (such as with low water content)), the compatibility of the material
with the respective medium must first be tested. No warranty claims will be
honored for faults or damage to the BNI modules caused by the use of
aggressive media.
Dangerous
voltage
Attention!
Before maintenance, disconnect the device from the power supply.
Note
In the interests of product improvement, Balluff GmbH reserves the right to
change the technical data of the product and the content of this manual at any
time without notice.

Balluff Network Interface / IO-Link
www.balluff.com
6
3First steps
Connection
overview

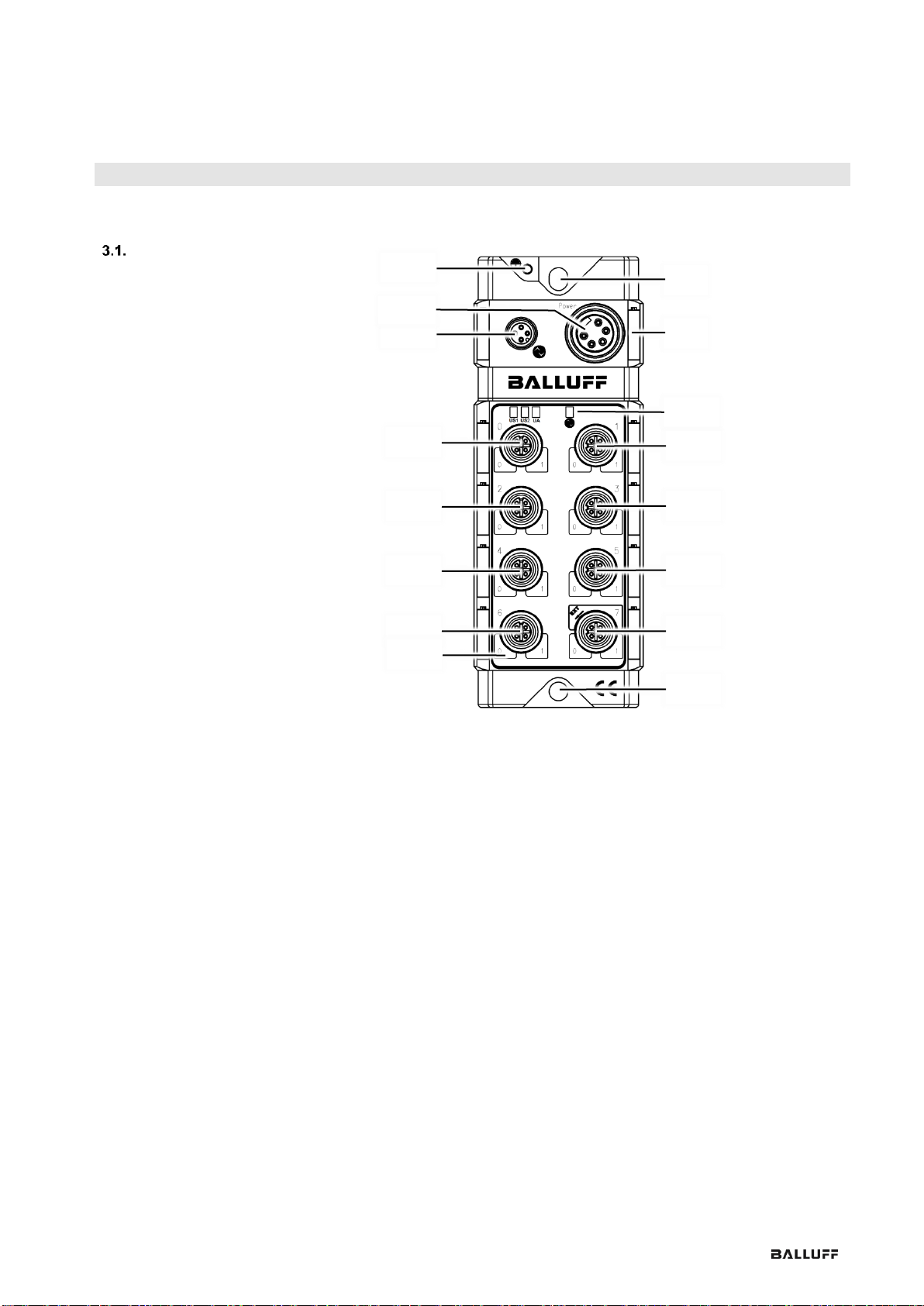

Fig. 3.1: Connections
1 Mounting hole
2 Label
3 Communication status
4 Port 1
5 Port 3
6 Port 5
7 Port 7 / extension port
8 Pin/port LED: signal status
9 Port 6
10 Port 4
11 Port 2
12 Port 0
13 IO-Link interface
14* Additional power connection
(Depends on device version,
see "Power Supply“)
15 FE connection
1
3
2
4
5
6
7
1
9
10
11
12
13
15
14*
8

Balluff Network Interface / IO-Link
www.balluff.com
7
3First steps

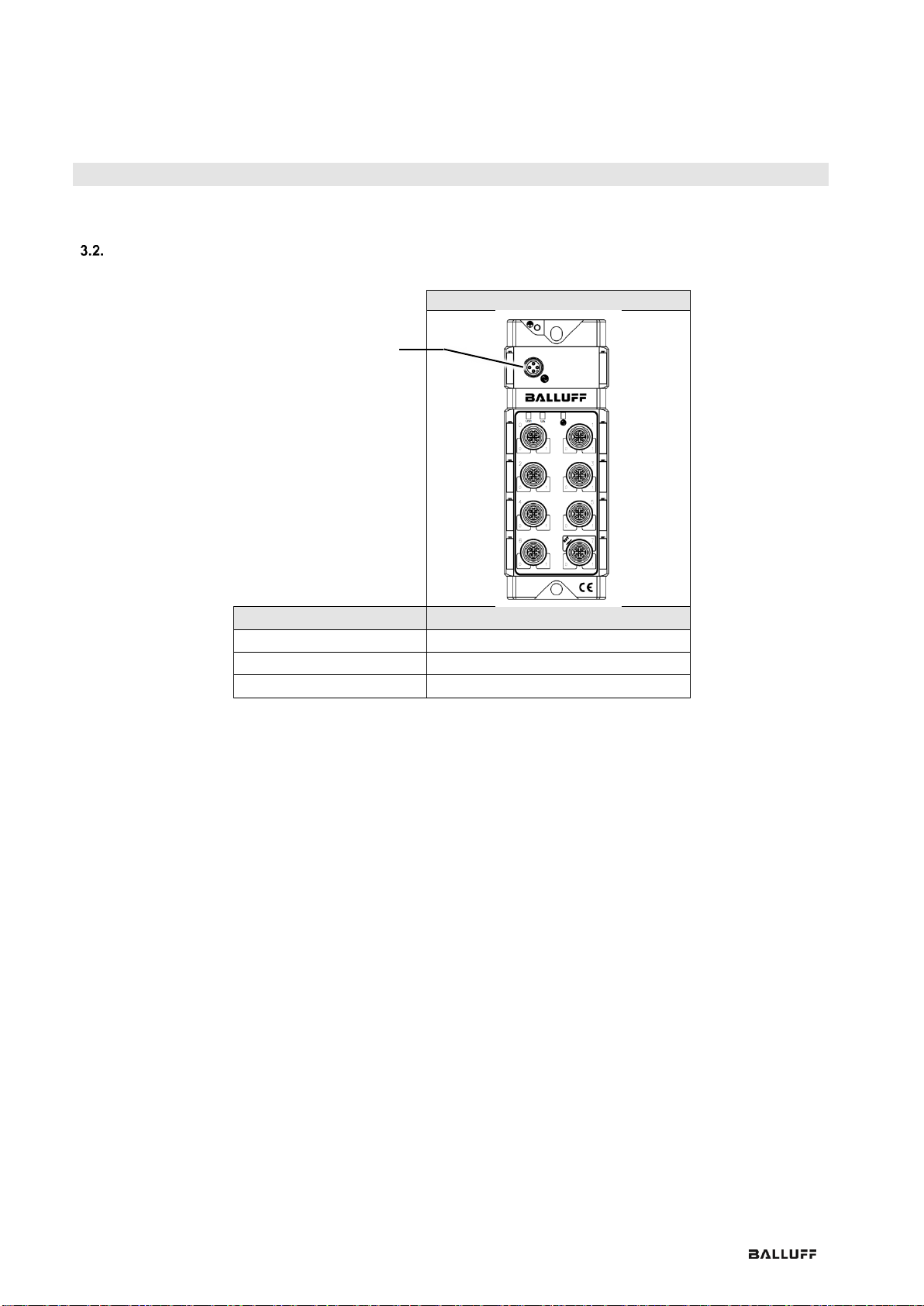

Power supply
Three different types of connection are used for supplying the module (US1), the sensors (US2)
and the actuators (UA). The following connections are available depending on the device type:
BNI IOL-302-S02-Z012-C11
M12
Type
Connection used
US1 (module and sensors)
M12
US2 (sensors)
-
UA (actuators)
M12

Balluff Network Interface / IO-Link
www.balluff.com
8
3First steps
Mechanical
connection
The BNI IOL modules are attached using 2 M6 screws and 2 washers.
Electrical
connection
The BNI IOL-... modules do not require their own supply voltage. Supply voltage is provided
via the IO-Link interface and the higher-level IO-Link master module. You can however use
an additional AUX terminal for supplying the sensors and actuators connected to the module.
The connections are described in the previous section.
Function ground
The modules are equipped with a ground connection (FE).
Fig. 3.2: FE connection
➢Connect the sensor hub module to the ground connection.
Note
The FE-connection from the housing to the machine must have low impedance
and be as short as possible.
IO-Link
connection
The IO-Link connection is established via an M12 connector (A-coded, male).
This connection is used for supplying the module. For some devices this terminal is also
used for powering the sensors and/or actuators connected to the module.
IO-Link (M12, A-coded, male)
Pin
Requirements
1
Supply voltage for module (US1), +24 V, max. 4 A
2
Supply voltage for actuators (UA), +24 V, max. 4 A
3
GND, reference potential
4
C/Q, IO-Link data transmission channel
Attention!
Overcurrent. Defective or missing fuses in the voltage supply for the sensor and
actuator will result in damage to them. Use a fuse or an intelligent power supply
(current monitoring designed for maximum 4 A) which turns off power when
overcurrent is present.
Connecting the
sensor hub
➢Connect ground conductor to the function ground connection, if available.
➢Connect the incoming IO-Link cable to the sensor hub.
Note
A standardized sensor cable is used to connect to the higher-level IO-Link master
module. Maximum length of 20 m.

Balluff Network Interface / IO-Link
www.balluff.com
9
3First steps
Digital sensors /
actuators

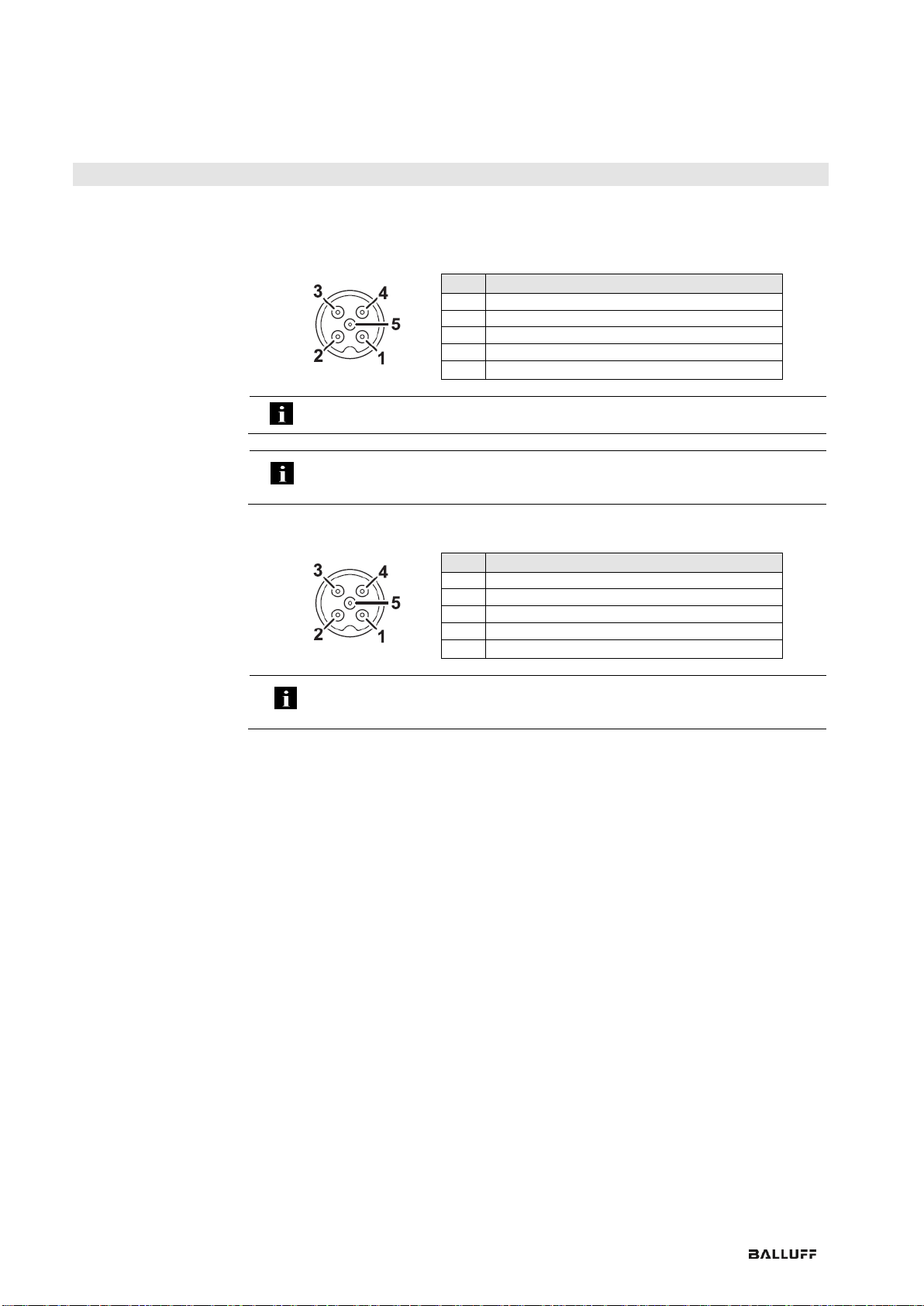

Digital input/output port (M12, A-coded, female)
Pin
Requirements
1
+24 V, 200 mA
2
PNP-Input 2 / PNP-Output 2
3
0 V, GND
4
PNP-Input 1 / PNP-Output 1
5
FE
Note
For the digital inputs, the input guideline specified in EN 61131-2, Type 3 applies.
Note
Unused input port sockets must be fitted with blind caps to ensure the IP67
degree of protection.

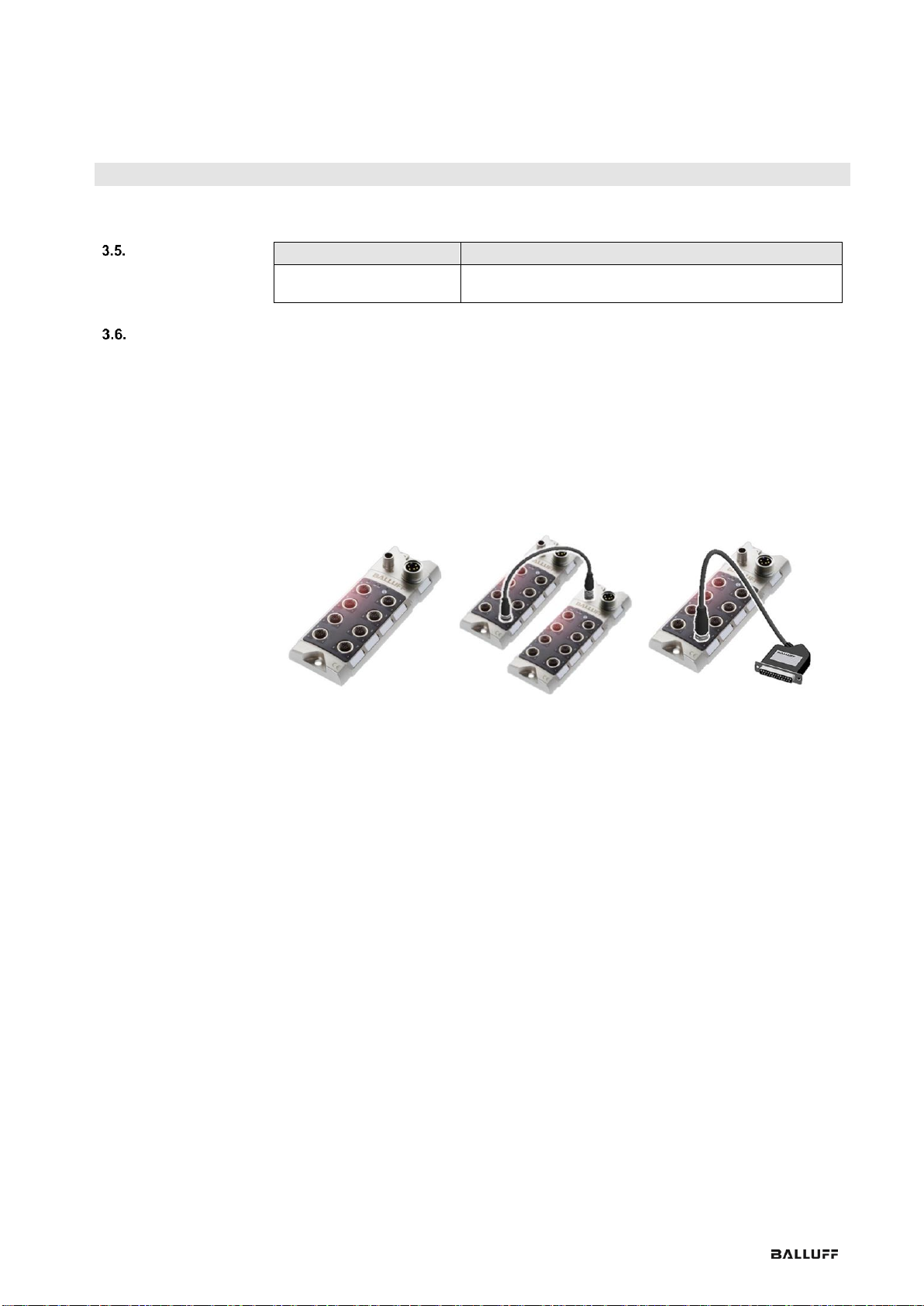

Extension port
Port 7 (M12, A-coded, female) when extension port function is enabled
Pin
Requirements
1
+24 V, 2 A (power supply for sensor/module)
2
+24 V, 2 A (power supply for actuator)
3
0 V, GND
4
Communication
5
FE
Note
A standardized sensor cable is used to connect to the device to be extended.
Maximum length of 20 m.

Balluff Network Interface / IO-Link
www.balluff.com
10
3First steps

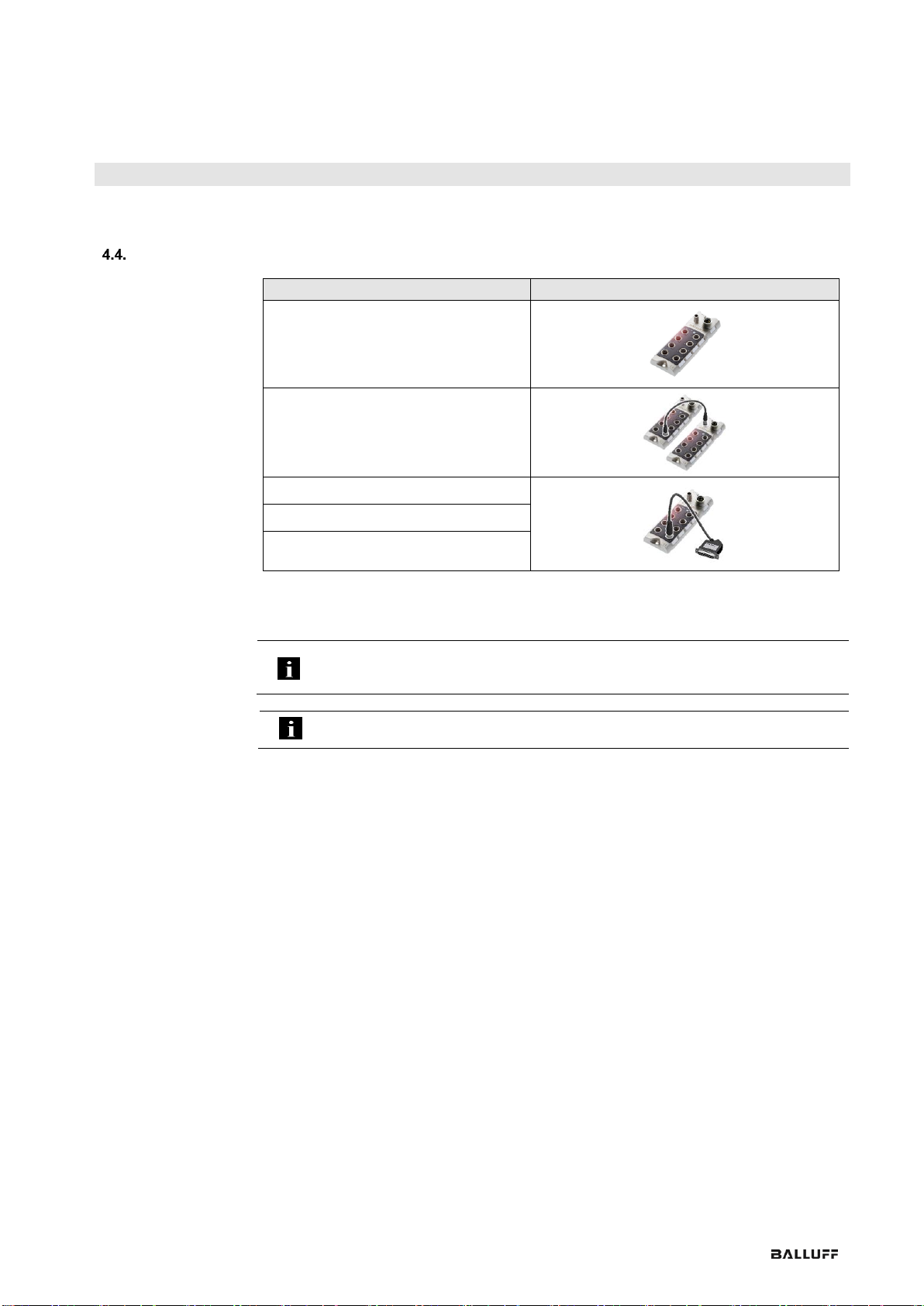

Device version
Device versions
Functionality
BNI IOL-302-S02-Z012-C11
16 digital inputs/outputs with single-channel monitoring, IO-
Link V1.1 with extension port
Extension port
These modules use port 7 in various ways. By default, it is used as a digital I/O slot, where
both pin 2 and pin 4 can be used as a digital input or output.
This slot can be used as an extension port by making a corresponding entry in the
parameter with an index of 55hex. This makes it possible to use port 7 for one of the
following connected modules:
-Device only
-With identical device version
-With 22/24 valve interface

Balluff Network Interface / IO-Link
www.balluff.com
11
4Configuration overview
Introduction
The module can be configured using the extension port in one of five modes, resulting in 20
different configuration possibilities. The following provides detailed technical data preceded by
a summary of the essential functions and properties.
Input
process data
The following table shows the contents and structure of the incoming process data.
A detailed description can be found in the next sections.
Digital
input
status
Diagnostics info
Pin4
Pin2
Voltage
monitoring
Output port
monitoring
Short-
circuit
Device version
Byte 0
Byte 1
Byte 2
Byte 3
Byte 4
Byte 5
BNI IOL-302-S02-Z012-C11
⚫
⚫
⚫
⚫
⚫
⚫
⚫= available
Output
process data
The following table shows the contents and structure of the outgoing process data.
Availability and contents depend on which device version is used.
A detailed description can be found in the next sections.
Status
digital output
Pin4
Pin2
Device version
Byte 0
Byte 1
BNI IOL-302-S02-Z012-C11
⚫
⚫
⚫= available

Balluff Network Interface / IO-Link
www.balluff.com
12
4Configuration overview
Configuration
of the
extension port
The following devices may be connected to the extension port:
Configuration
Application
Device only
(extension port not active)
Device with identical device
Device with BNI IOL-751-V08-K007
Device with BNI IOL-751-V10-K007
Device with BNI IOL-751-V13-K007
The device connected to the extension port is referred to in the user's guide as the "second
device".
Note
The command for resetting to factory defaults (Factory reset) has no effect on the
configuration of the extension port.
Note
The process data length depends on the configuration.
The extension port can be configured using parameter 0x55. If data storage or validation is
used, configuration for validation must follow (compatible). Depending on the system the
device code may need to be entered (parameter data table) or the device code read from the
IODD.

Balluff Network Interface / IO-Link
www.balluff.com
13
4Configuration overview
Data handling
with extension
port
If the extension port is enabled, the contents and length of the process data (or ISDU) are
calculated as a unification of the process data (or ISDU) provided by both parties.
PD result = PD of the first device + PD of the second device
ISDU result = ISDU of the first device + ISDU of the second device
The + operation adds the second device.

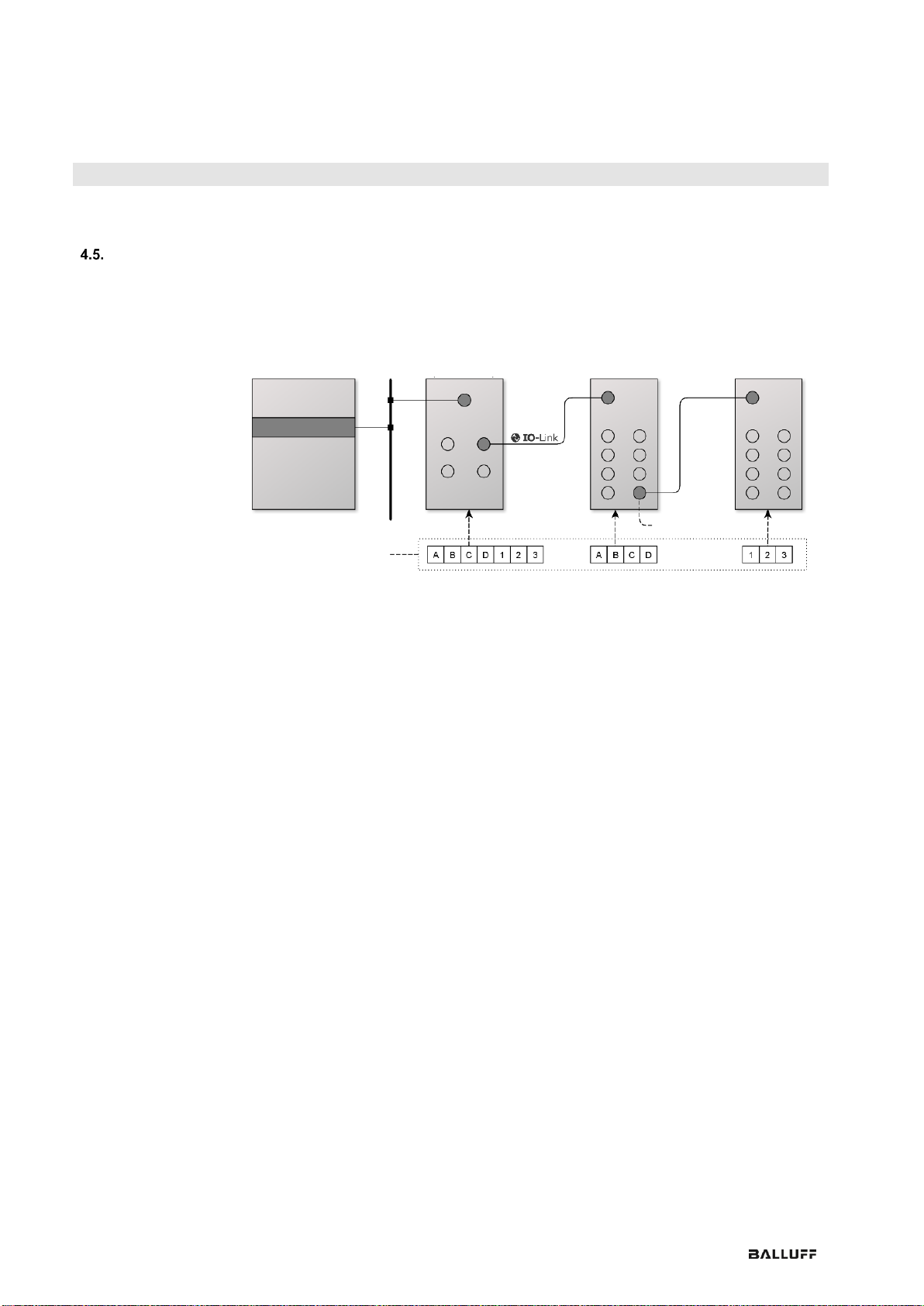

PLC
Fieldbus / IO-Link gateway
(IO-Link Master)
Fieldbus
First IO-Link
device
Second IO-Link
device
Extension port
Process data or ISDU

Balluff Network Interface / IO-Link
www.balluff.com
14
5Configuration: Device alone, extension port inactive
Device version
This section describes the following device versions.
The extension port is not activated.
BNI IOL-302-S02-Z012-C11
Configuration
of the
extension port
The factory default is extension port inactive.
Configuration
Value of IDSU-Index
55hex (85)
Device alone (extension port not active)
0
Device with identical device
1
Device with BNI IOL-751-V08-K007
2
Device with BNI IOL-751-V10-K007
3
Device with BNI IOL-751-V13-K007
4
IO-Link Data
Device version
Length (bytes)
Minimum
cycle time
Transmission rate
PD ON
PD OFF
BNI IOL-302-S02-Z012-C11
6
2
5.6 ms
COM2
COM2 = 38.4 kBaud

Balluff Network Interface / IO-Link
www.balluff.com
15
5Configuration: Device alone, extension port inactive
Process
Data/Input Data
The following table shows which types of data are available:
-The first two bytes always indicate the input status for all device versions.
-The following bytes contain the diagnostic information. The order of these bytes is
determined, but availability is optional.
BNI IOL-302-S02-Z012-C11
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
⚫
Input status of …
Port 7 pin 4
Port 6 pin 4
Port 5 pin 4
Port 4 pin 4
Port 3 pin 4
Port 2 pin 4
Port 1 pin 4
Port 0 pin 4
Port 7 pin 2
Port 6 pin 2
Port 5 pin 2
Port 4 pin 2
Port 3 pin 2
Port 2 pin 2
Port 1 pin 2
Port 0 pin 2
Byte
2
3
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
⚫
Volt. monitoring
SC-Port 7 Pin 1
SC-Port 6 Pin 1
SC-Port 5 Pin 1
SC-Port 4 Pin 1
SC-Port 3 Pin 1
SC-Port 2 Pin 1
SC-Port 1 Pin 1
SC-Port 0 Pin 1
-
-
-
-
Outputs off (UA too low)
Undervoltage UA
-
Undervoltage US1
Byte
4
5
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
⚫
Short
circuit on …
Port 7 pin 4
Port 6 pin 4
Port 5 pin 4
Port 4 pin 4
Port 3 pin 4
Port 2 pin 4
Port 1 pin 4
Port 0 pin 4
Port 7 pin 2
Port 6 pin 2
Port 5 pin 2
Port 4 pin 2
Port 3 pin 2
Port 2 pin 2
Port 1 pin 2
Port 0 pin 2
⚫= available

Balluff Network Interface / IO-Link
www.balluff.com
16
5Configuration: Device alone, extension port inactive
Process Data/
Output Data
Outgoing process data are the output status for the device version.
BNI IOL-302-S02-Z012-C11
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
⚫
Output
status of …
Port 7 pin 4
Port 6 pin 4
Port 5 pin 4
Port 4 pin 4
Port 3 pin 4
Port 2 pin 4
Port 1 pin 4
Port 0 pin 4
Port 7 pin 2
Port 6 pin 2
Port 5 pin 2
Port 4 pin 2
Port 3 pin 2
Port 2 pin 2
Port 1 pin 2
Port 0 pin 2
⚫= available
Parameter data/
identification
data and
device
parameters
DPP
ISDU
Parameter
Data
width
Access
rights
Default Value
Index
Index
Sub-
index
Identification data
07hex
Vendor ID
2 bytes
Read-only
0378hex
08hex
09hex
Device ID
3 bytes
05 0E 70hex
0Ahex
0Bhex
10hex
16
0
Manufacturer
name
7 bytes
BALLUFF
11hex
17
0
Manufacturer
text
15 bytes
www.balluff.com
12hex
18
0
Product name
BNI IOL-302-S02-Z012-C11
13hex
19
0
Product ID
7 bytes
BNI00F4
14hex
20
0
Product text
Sensor Hub / Actuator Hub
M12
15hex
21
0
Serial number
16 bytes
various
16hex
22
0
Hardware
Revision
17hex
23
0
Firmware
Revision
18hex
24
0
Application-
specific tag
32 bytes
Reading/
writing
0hex
Device
param.
0Chex
12
0
Access blocks
Data block
2 bytes
Reading/
writing
0hex

Balluff Network Interface / IO-Link
www.balluff.com
17
5Configuration: Device alone, extension port inactive
Parameter data
–device
configuration –
overview
BNI IOL-302-S02-Z012-C11
ISDU
Parameter
Data
width
Access rights
Standard
Value
Index
Subindex
⚫
40hex
64
0
1-16
Inversion of the inputs
2 bytes
Reading/writing
0hex
⚫
42hex
66
0
1-8
Safe state on Pin 4
2 bytes
Reading/writing
0hex
⚫
43hex
67
0
1-8
Safe state on Pin 2
2 bytes
Reading/writing
0hex
⚫
44hex
68
0
1-16
Voltage monitoring
2 bytes
Read
-
⚫
45hex
69
0
1-16
Output monitoring
2 bytes
Read
-
⚫
54hex
84
0
Serial number
16 bytes
Reading/writing
16x00hex
⚫
55hex
85
0
Extension port
1 byte
Reading/writing
0hex
⚫= Parameter available
Parameter data
–details
Inversion of the
inputs 40hex
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Sub-
index
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
Inversion of…
Port 7 pin 4
Port 6 pin 4
Port 5 pin 4
Port 4 pin 4
Port 3 pin 4
Port 2 pin 4
Port 1 pin 4
Port 0 pin 4
Port 7 pin 2
Port 6 pin 2
Port 5 pin 2
Port 4 pin 2
Port 3 pin 2
Port 2 pin 2
Port 1 pin 2
Port 0 pin 2
Inversion of port (x):
0 –Normal
1 - Inverted

Balluff Network Interface / IO-Link
www.balluff.com
18
5Configuration: Device alone, extension port inactive
Safe
state of the
outputs
42hex, 43hex
The safe state parameter makes it possible to configure the outputs in case of a fault. If no IO-
Link communication is possible or the "valid flag" of the output process data has not been set
by the master, then each output adopts the configured status.
The following states can be configured for each output pin.
Value
Output status (Safe State)
bin
dec
00
0
Output is 0 V
01
1
Output is 24 V
10
2
Current status is maintained
11
3
Not defined
Safe
state of the
outputs on pin
4
42hex
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Sub-
index
4
3
2
1
8
7
6
5
Safe state of …
Port 3 pin 4
Port 2 pin 4
Port 1 pin 4
Port 0 pin 4
Port 7 pin 4
Port 6 pin 4
Port 5 pin 4
Port 4 pin 4
Safe
state of the
outputs on pin
2
43hex\
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Sub-
index
4
3
2
1
8
7
6
5
Safe state of …
Port 3 pin 2
Port 2 pin 2
Port 1 pin 2
Port 0 pin 2
Port 7 pin 2
Port 6 pin 2
Port 5 pin 2
Port 4 pin 2

Balluff Network Interface / IO-Link
www.balluff.com
19
5Configuration: Device alone, extension port inactive
Voltage
monitoring
44hex
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Sub-
index
8
7
6
5
4
3
2
1
12
11
10
9
Volt. monitoring
SC-Port 7 Pin 1
SC-Port 6 Pin 1
SC-Port 5 Pin 1
SC-Port 4 Pin 1
SC-Port 3 Pin 1
SC-Port 2 Pin 1
SC-Port 1 Pin 1
SC-Port 0 Pin 1
-
-
-
-
Outputs off (UA too low)
Undervoltage UA
-
Undervoltage US1
Output
monitoring
45hex
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Sub-
index
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
Short circuit on…
Port 7 pin 4
Port 6 pin 4
Port 5 pin 4
Port 4 pin 4
Port 3 pin 4
Port 2 pin 4
Port 1 pin 4
Port 0 pin 4
Port 7 pin 2
Port 6 pin 2
Port 5 pin 2
Port 4 pin 2
Port 3 pin 2
Port 2 pin 2
Port 1 pin 2
Port 0 pin 2
Setting the
serial number
54hex
The serial number has a factory set value consisting of 16 ASCII characters, e.g. 0E-G550389-
1D-26. The serial number of the unit cannot be changed. For reasons of compatibility this
parameter can be used to assign a custom serial number.
Note
The command for resetting to factory defaults (Factory reset) resets the serial number
to the factory set value.
Configuration
of the
extension
port
55hex
Configuration
Value of IDSU-Index
55hex
Device alone (extension port not active)
0
Device with identical device
1
Device with BNI IOL-751-V08-K007
2
Device with BNI IOL-751-V10-K007
3
Device with BNI IOL-751-V13-K007
4
Note
The command for resetting to factory defaults (Factory reset) has no effect on the
configuration of the extension port.

Balluff Network Interface / IO-Link
www.balluff.com
20
6Configuration: BNI IOL-302-S02-Z012-C11 extended with the same device
BNI IOL-302-S02-Z012-C11 with
- BNI IOL-302-S02-Z012-C11
Configuration
of the
extension port
Configuration
Value of IDSU-Index
55hex
Device alone (extension port not active)
0
Device with identical device
1
Device with BNI IOL-751-V08-K007
2
Device with BNI IOL-751-V10-K007
3
Device with BNI IOL-751-V13-K007
4
IO-Link Data
BNI IOL-302-S02-Z012-C11 with identical device
Transmission rate
COM2 (38.4 kBaud)
Minimum cycle time
8.0 ms
Process data length
12 bytes input / 4 bytes output
