Assembly Instructions
#22601 LB-PR
Heavy Duty Multi-Use Utility Stand

A ShortScrew 12 EA
B InteriorThreadedPost 12 EA
C LongScrew 4 EA
D LevelingGlides 4 EA
E 3”LockingCaster 2 EA
F 3”Non-LockingCaster 2 EA
G AllenWrench 2 EA
H Caster Wrench 1 EA

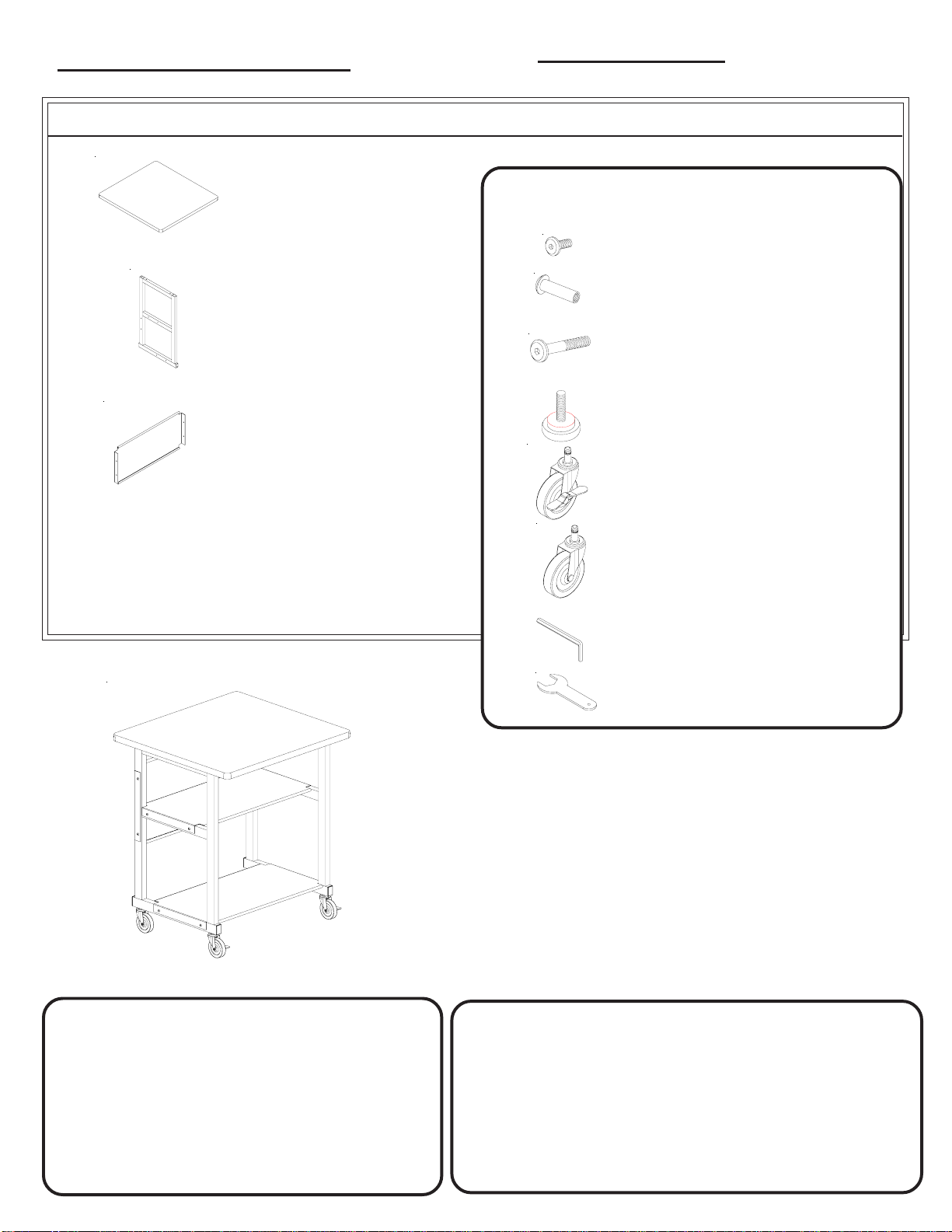

Part Drawing Description Qty
Utility Stand
Assembly Instructions
#22601 LB-PR
We recommend that you assemble this
unit on a table.
Should you require assistance during assembly,
please call our Customer Service Department
Monday - Friday 8 a.m. - 5 p.m.
CentralStandardTime
Toll-Free Customer Service
1-800-749-2258
Do not use unless all screws are tight.
At least every six months, check all screws
to be sure they are tight.
If parts are missing, broken, damaged, or
worn, stop use of the product until repairs
are made by your dealer using factory
authorized parts.
P-1 Top Platform 1 EA
P-2 LegAssembly 2 EA
P-3 Stability Panel 3 EA
Hardware List

#22601 LB-PR
AssemblyDiagram
1. Separate and identify parts and
hardware.
2. PlacetheTop Panel (P-1)withthe insert
nuts facing up.Attach 2 Leg Assemblies (P-2)
to the Top Panel (P-1) using 4 Long Screws
(C)as showninillustration #1.Finger tighten
only. Attach 1 Stability Panel (P-3) to the 2
LegAssemblies (P-2) using 4 Short Screws
(A) and 4 Interior Threaded Posts (B) as
shownin illustration #1.
3. Attach 2 Locking Casters (E) and 2 Non-
Locking Casters (F),(or 4 Leveling Glides D)
to 2 LegAssemblies (P-2) as shown
inIllustration#1. Tighten Casters using Caster
Wrench (H).
4. Attach 2 Stability Panels (P-3) to 2 Leg
Assemblies (P-2) using 8 Short Screws (A)
and 8 Interior Threaded Posts (B) as shown in
illustration #2.
Illustration #1
Illustration #3
Illustration #2
A
P-3
P-2
E
P-1 C
B
P-2
A
B
P-3
#22601-03/10/10
F
Tighten screws usingAllen Wrench (G).
