Balt 89759 User manual

1234567890123456789012345678901212345678901234567890123456789012123456789012345

Assembly Instructions

AV Cart w/Adjustable Height Shelves

Presentation Cart

P1 Leg Assembly Right 1 EA

P2 Leg Assembly Left1 EA

P3 LCD Platform 1 EA

P4 Laptop Shelf 1 EA

P5 Lower Shelf 1 EA

P6 Middle Shelf 1 EA

P7 Stability Panel 1 EA

P8 Angle Bracket 4 EA

WOW

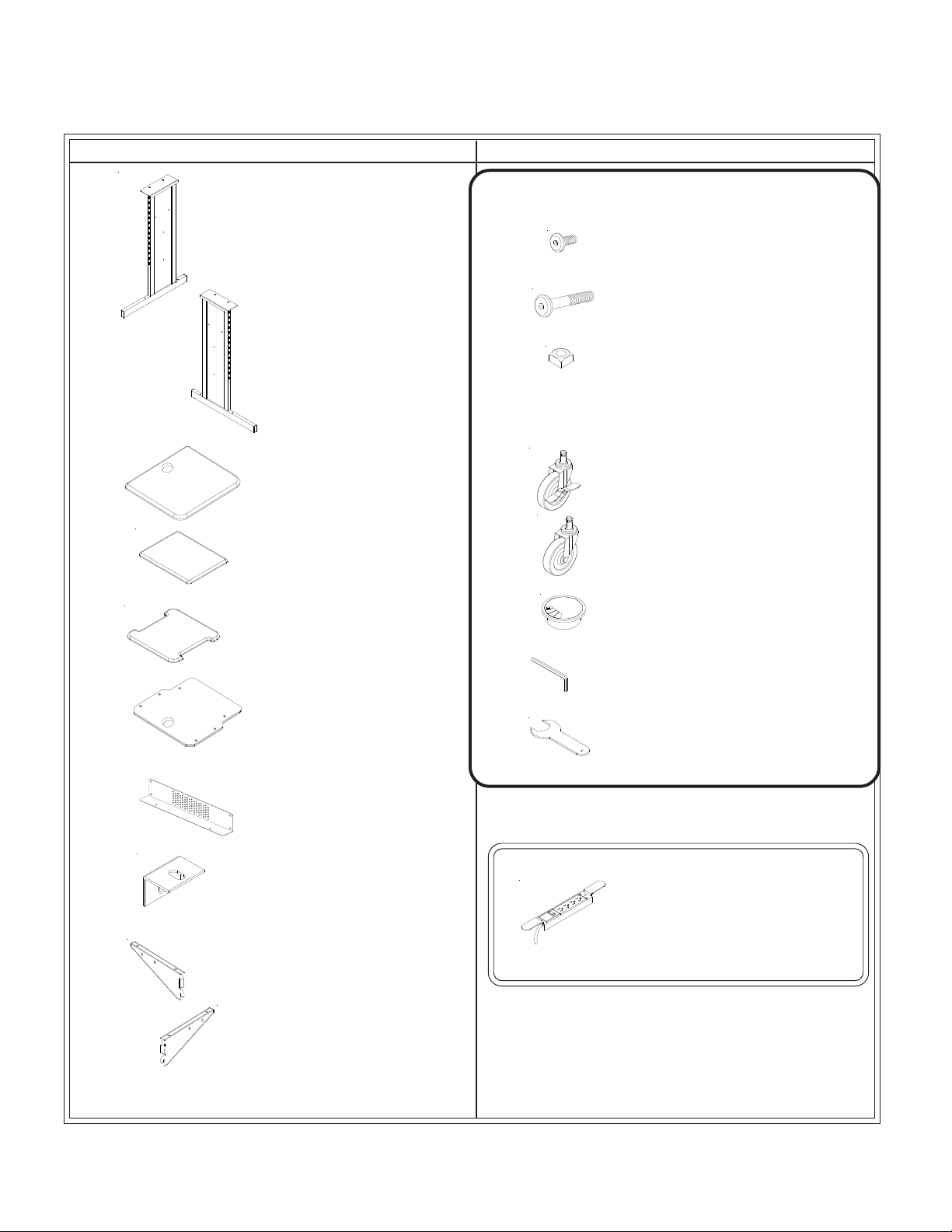

Hardware List

A9/16”Socket Screw 22 EA

B2-1/2” Socket Screw 4 EA

CSquare Nut 4 EA

D1 3” Locking Caster 2 EA

D2 3” Caster 2 EA

EPlastic Grommet 2 EA

FAllen Wrench 1 EA

GCaster Wrench 1 EA

P-9 Right Shelf Bracket 1 EA

P-10 Left Shelf Bracket 1 EA

Optional Electrical Outlet 1 EA

W/Cord Winder

Part

Part Drawing Description Qty Part Drawing Description Qty

(NOT INCLUDED)

Assembly Diagram

Identify and Separate all the Parts and Hardware.

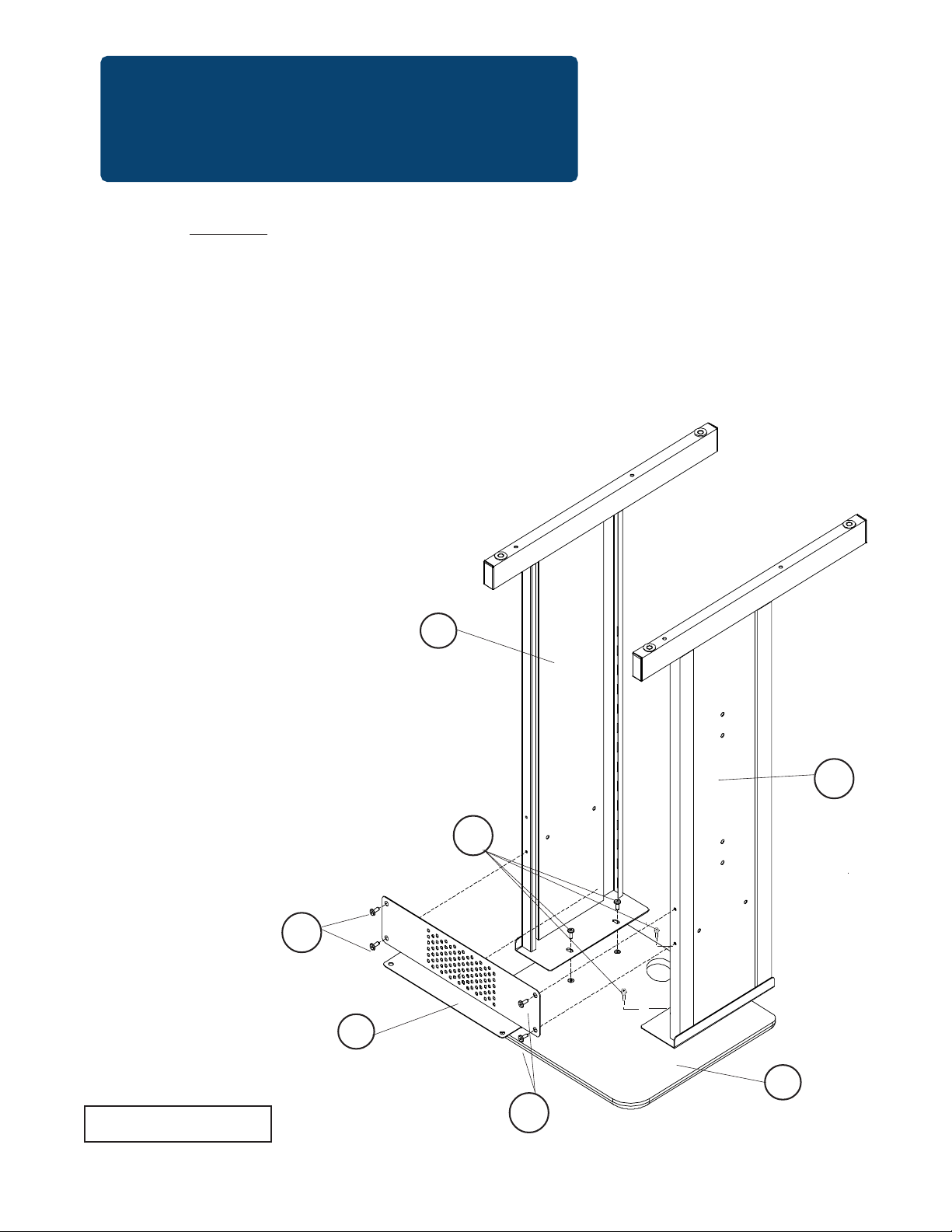

Place the LCD Platform (P-3) with the insert nuts facing up. Attach 1 Right

Leg Assembly (P-1) and 1 Left Leg Assembly (P-2) using 4 each (A)

screws.

(Finger tighten only)

Illustration # 1

1.)

2.)

3.)

EAD

HROUGH

NSTRUCTIONS

FROM

BEGINNING

END

BEFORE

STARTING

ASSEMBLE

UNIT

Attach Stability Panel (P-7) to

Right & Left Leg Assemblies

(P-1 & P-2) using 4 (A) Screws

as shown in illustration #1.

(Finger tighten only)

P-1

P-2

P-3

P-7

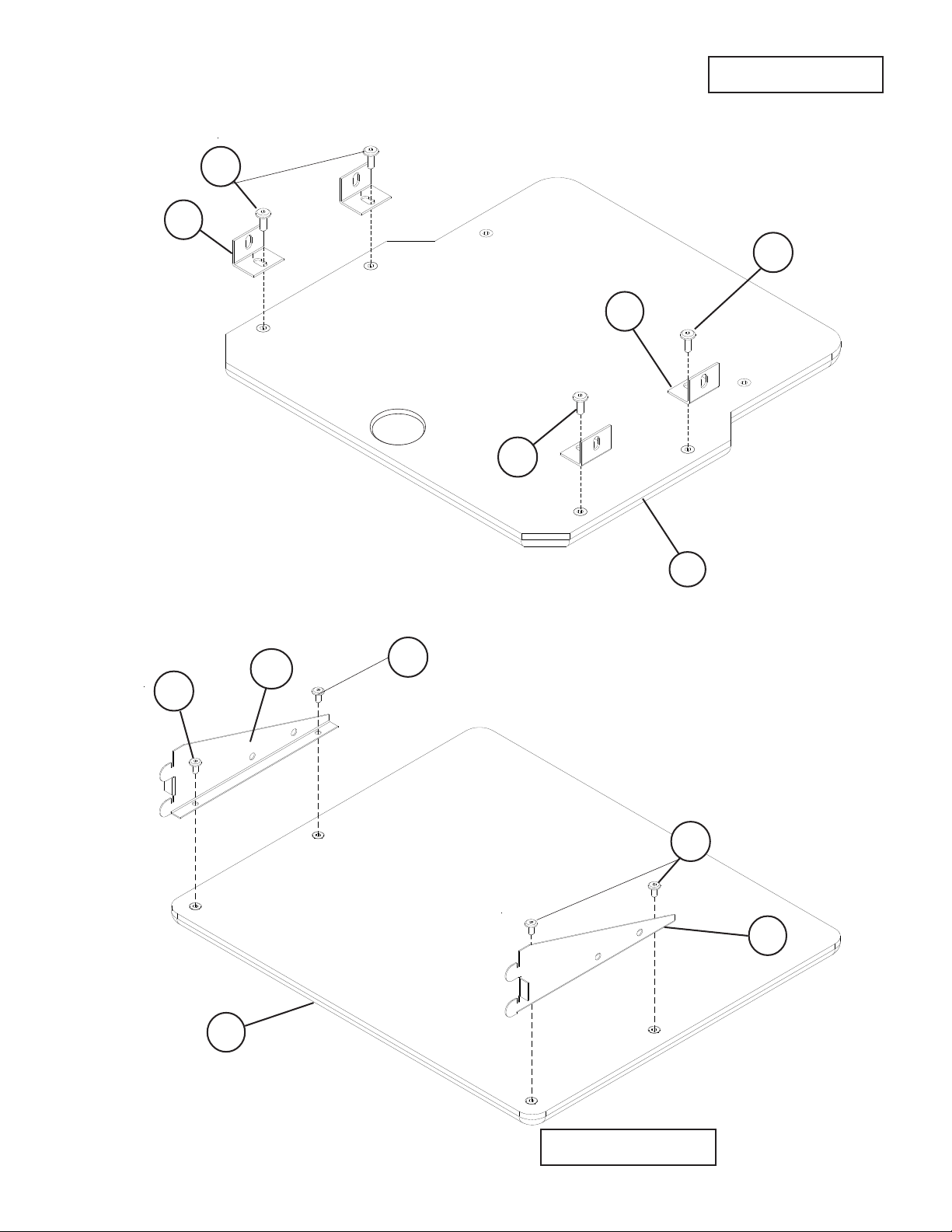

Align 4 each Angle Brackets (P-8) with the edge of the Middle

Shelf (P-6) and attach using 4 each (A) Screws as shown in

illustration #2. (Finger tighten only)

Illustration # 2

Illustration # 3

4.)

5.)

P-8

P-6

P-8

Attach Right Shelf Bracket (P-9) and

Left Shelf Bracket (P-10) to Laptop Shelf (P-4)

using 4 Flat Head screws (A) as shown in illustration # 4.

(Finger tighten only)

P-4

P-10

P-9

(Tighten all the screws at this time

using Allen Wrench (F)).

Slide Middle Shelf (P-6) Between Right &

Left Leg Assemblies (P-1 & P-2) and

attach Middle Shelf (P-6) using 4 each (A)

screws and 4 each (C) Square Nuts as

shown in illustration # 4. Secure Middle

Shelf (P-6) to Stability Panel (P-7) using

two screws (A).

Illustration # 4

Attach Lower Shelf (P-5) to the Right & Left

Leg Assemblies (P1 & P2) using 4 each (B)

screws as shown in illustration # 4.

(Finger tighten only)

6.)

7.)

8.)

9.)

Attach 2 Locking Casters

(D-1) to the front of the unit.

Attach 2 Casters (D-2) to

the back of the unit.

Tighten all Casters using

Caster Wrench (G).

P-6

CP-5

P-1

D-2

P-7

P-2 D1

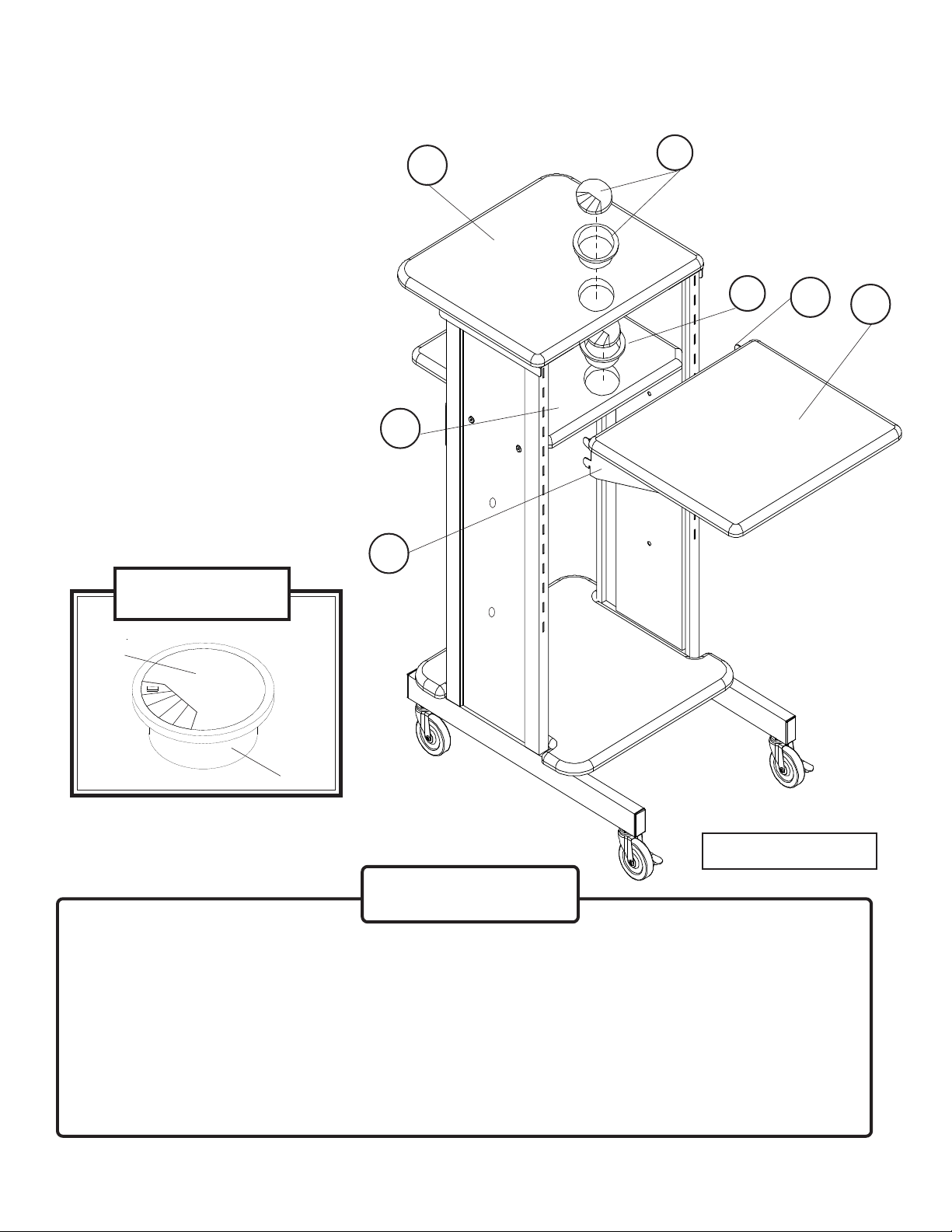

To install Grommets (E) in LCD Platform (P-3) and Middle Shelf (P-6), separate parts and

press Grommet Sleeve in opening as shown in illustration # 5.

Snap a plastic Cap into the top of

each Sleeve as shown in

illustration # 5.

Grommet (E)

Sleeve

Cap

10.)

11.)

The product you have purchased is guaranteed against material and workmanship defects. This

guarantee extends 1 year from date of purchase. Should this product fail to function satisfactorily under

normal use due to defect or imperfection, the defective part or product will be replaced. Damage caused

by common carriers during shipment is not included in this guarantee.

This guarantee sets forth all applicable guarantees and remedies. No other warranty, expressed

or implied shall apply. Failure to follow instructions found in Important Information Section of

Owner Sheet shall void the guarantee. Consequential or incidental damages and or costs are not

refundable.

Important

27519,89759-03-24-14

12.)Hook the Right Shelf

Bracket (P-9) and Left

Shelf Bracket (P-10) into

the Right & Left Leg

Assemblies at the

desired height as shown

in illustration # 5.

P-3

P-6

P-4

P10

Illustration # 5

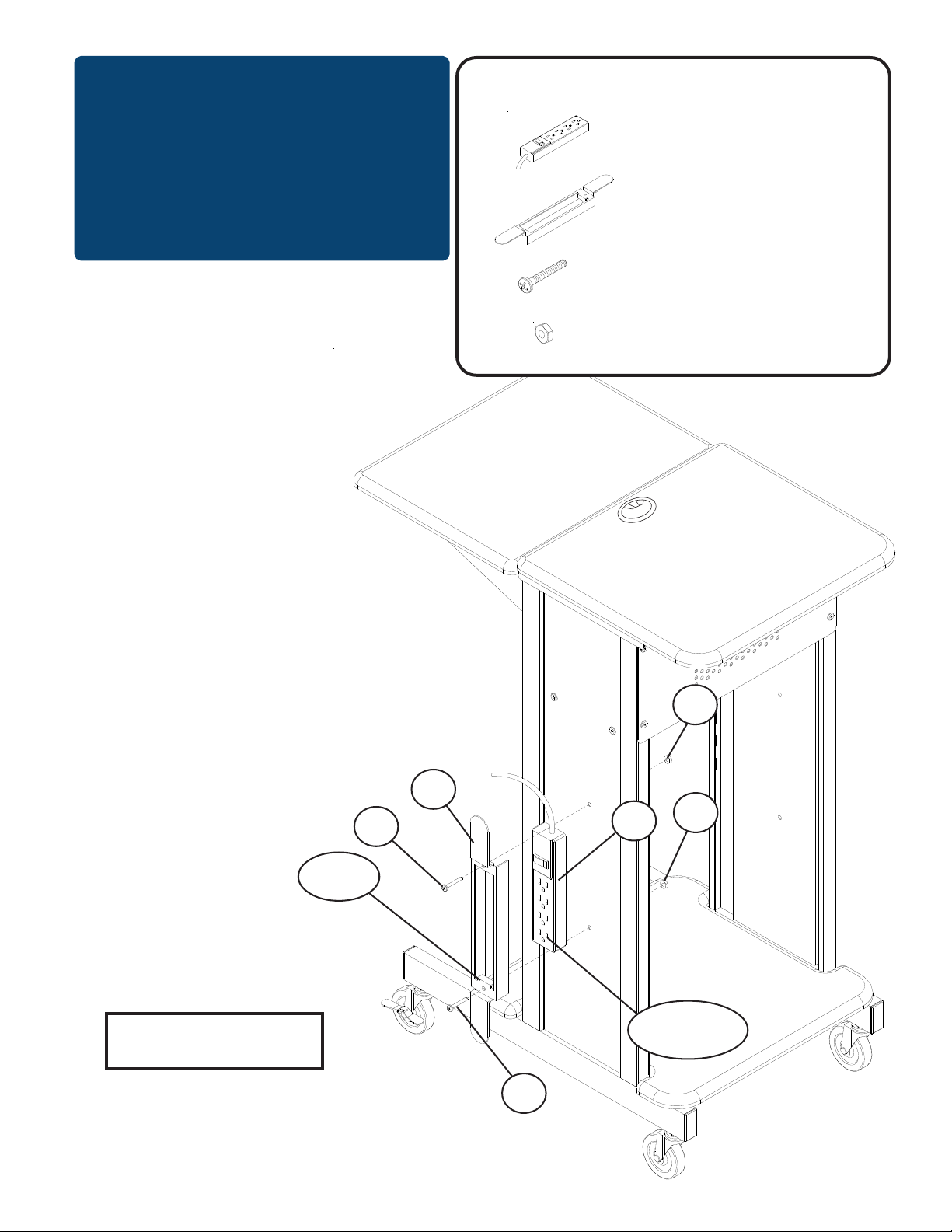

Optional

Electric Outlet

Assembly Diagram

Parts/Hardware List

EL-1 Electric Outlet 1 EA

EL-2 Metal Bracket w/Cord Winder 1 EA

EL-3 Phillips Head Screw 2 EA

EL-4 Hex Nut 2 EA

Slide Metal Bracket over the Electrical

Outlet (EL-1) as shown. (note that Metal

Stop is at the end with the electrical Plug-

in.)

Attach Metal Bracket (EL-2) to the Right or

Left Leg Assembly (P-1 or P-2) using

2 Phillips Head Screws (EL-3) and 2 Hex

Nuts (EL-4) as shown in Optional

Electrical illustration.

Metal

Stop

Electrical

Plug-in

EL-1 EL-4

EL-4

EL-2

EL-3

Identify and Separate all the Parts

and Hardware.

1.)

2.)

3.)

Optional Electrical

Illustration

(NOT INCLUDED)

Presentation Cart

39 1/2”

27 1/2”

4 1/2”

#89759

Presentation

Cart

Shipping Information

2.86 Cubic Feet

49 lbs.

Adjustable Height

19” - 39-½”

18” X 14”

18” X 16”

18”

Shipping Information

0.2 Cubic Feet

4.0 lbs.

17”

6”

3”

#66450

electric

Outlet

27519, 89759_3-24-14

18 “X 18”

40”

24” 17”

Middle Shelf

15 3/4” X 15 1/2”

#66450

Optional

Electrical

Outlet

#27519
