Makerspace 3D Printer

Cart 91413

Assembly Instructions

2

ALocking Caster 2 EA

BNon-Locking Caster 2 EA

CLarge Handle 2 EA

D

EAllen Wrench 2 EA

F Wood Dowels 12 EA

G Cam Lock 12 EA

H Cam Post 12 EA

I Keys Set

Part Drawing Description Qty Part Drawing Description Qty

P-1 Base 1 EA

P-2 Left Side Panel 1 EA

P-3 Right Side Panel 1 EA

P-4 Back Panel 1 EA

P-5 Top Panel 1 EA

P6 Door Assembly 1 EA

P7 Shelves 4 EA

P8 Vertical Support 2 EA

P9 Side Shelf 1 EA

P10 Wire Holder 6 EA

Hardware List

Small Handle 1 EA

J Shelf Pins 16 EA

K Tapped Rivet 10 EA

L Screws M6*18mm 36 EA

M Screws M6*25mm 4 EA

N Screws M6*30mm 4 EA

(Large Handle)

O Screws M3*20mm 4 EA

P Bumper 2 EA

Q Screw 30mm(Bumper) 2 EA

91413 Makerspace 3D Printer Cart

O1 Washer 4 EA

P9L Left Bracket 1 EA

P9R Right Bracket 1 EA

3

AssemblyDiagram

IdentifyandSeparateallthePartsandHardware.

Illustration # 1

R

EAD

T

HROUGH

I

NSTRUCTIONS

FROM

BEGINNING

TO

END

BEFORE

STARTING

TO

ASSEMBLE

UNIT

.

1.)

2.)Screw on two Locking Casters (A)

intothefrontembeddedthreadedinserts

inthebottom of the Base(P-1)using

threeScrews (L ) as shown in Illustration # 1.

Tighten ScrewswithAllen Wrench(E).

Screwontwo Non-Locking Casters (B)

intotherear embedded threaded inserts

inthebottom of the Base(P-1)using

threeScrews (L ) as shown in Illustration # 1.

Tighten ScrewswithAllen Wrench(E).

3.)

4.) Push in six Wood Dowels (F) into the predrilled

holes in the top of the Base (P1) as shown in

Illustration #2. Screw six Cam Posts (H) into the

embedded threaded inserts in the top of the Base. Illustration # 2

P1

F

Front

Set the completed Base to the side at this time.

A

B

P1

Front

L L

B

H

4

Illustration # 3

P5

FH

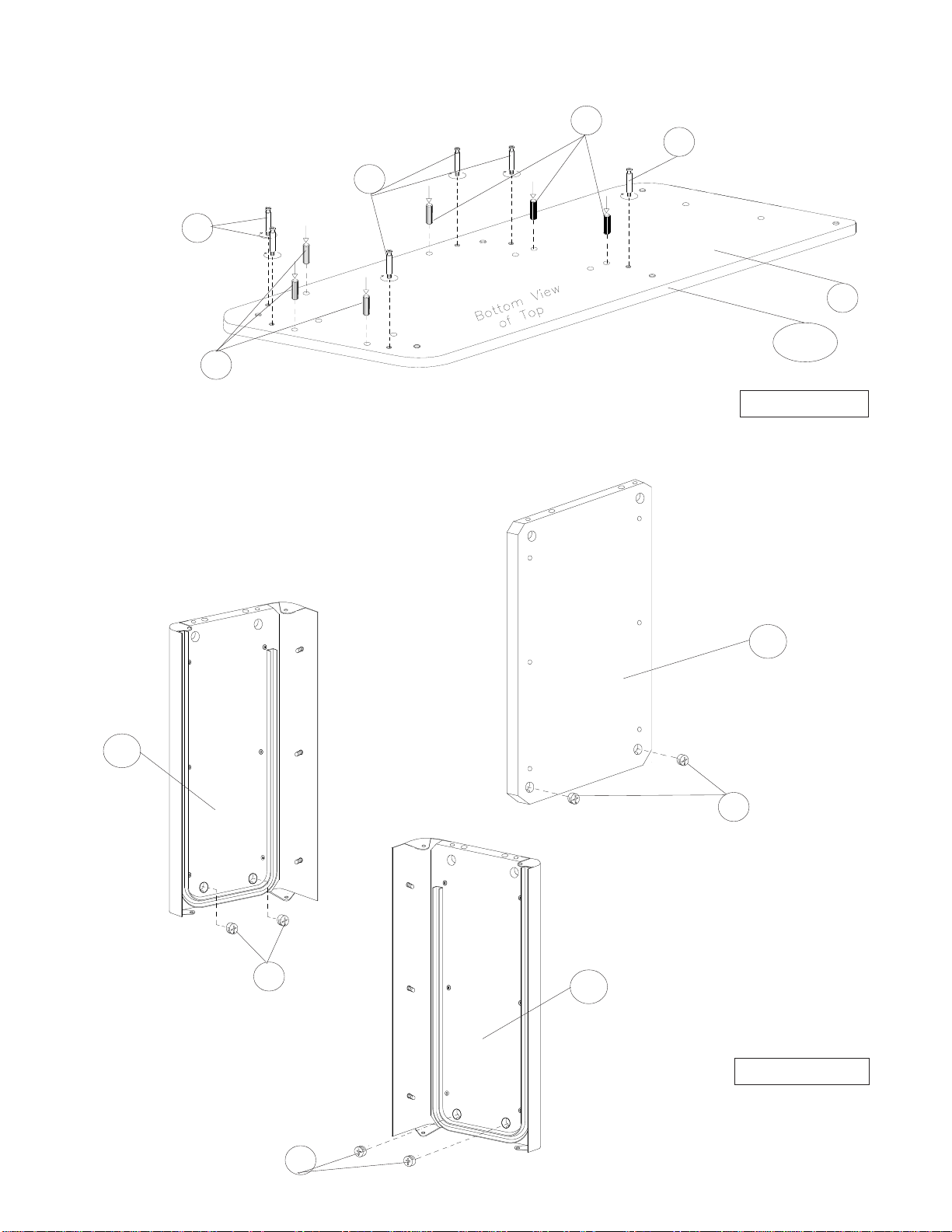

Push in six Wood Dowels (F) into the predrilled

holes in the bottom of the Top Panel (P5) as shown

in Illustration #3. Screw six Cam Posts (H)

into the embedded threaded inserts in the

bottom of the Top.

Front

5.)

Illustration # 4

6.) PushintwoCams (G) into the large holesin

the Back Panel (P4), the Left Side Panel

(P2) and the Right Side Panel (P3) as

shownin Illustration #4. Makesurethe

Arrowsonthe face of theCamsare showing

andpointeddown.

P4

P3

G

P2

G

H

F

5

Illustration # 5

7.) Getthe threeThreaded Studson the LeftSide Panel (P2)

linedupwith the three holes intheBackPanel(P4). Guide

the Left Side Panel in from the Back.

Illustration # 6

G

Secure the Back Panel to the Left Side

Panel’sthreadedstuds using threeTapped

Rivets(K) as shown inIllustration#5.

Threaded

Stud

8.) RepeatStep #7 to install the Right

Side Panel (P3) to the Back Panel.

UsethreeTapped Rivets (K) to

securetheBackPanel to the Right

Side Panel.

K

P2

P4

9.) Lower the Back and Side Panel assembly

downonto the rear Dowels and Cam Posts of

theTop Panel assembly from Step#5.

TurntheCams(G)aquarterturnclockwiseto

lock the Back, Right Side and Left Side

PanelstotheTop.

P5

Front

6

L

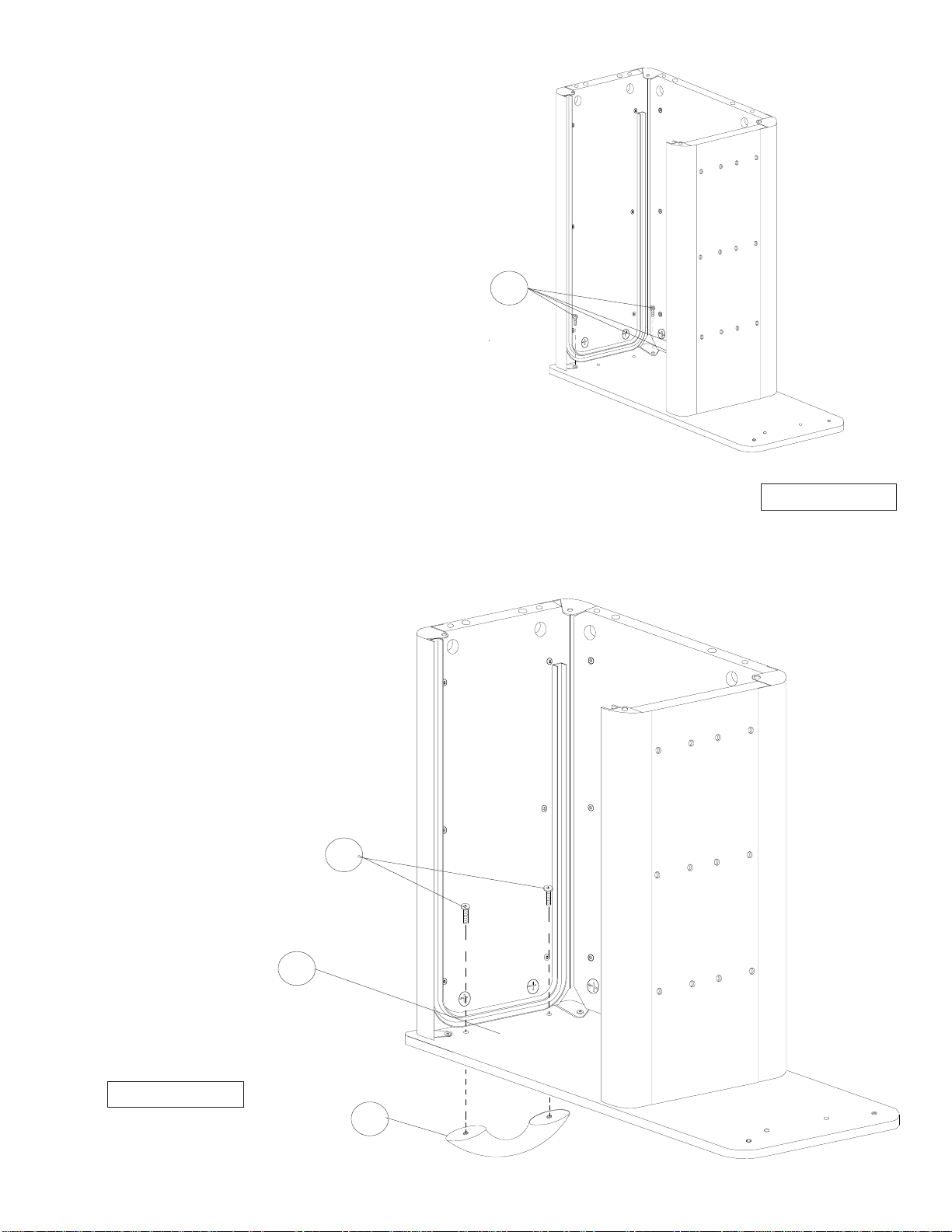

10.)

Illustration # 7

Attachthe CornerTabs on the Left Side Panel

andtheRight Side Panel to thebottomof the

TopPanelusingoneScrew(L)throughtheTabs

andintotheembeddedThreadedInsertsinthe

Top. SeeIllustration#7.

11.) Attach the Large Handle (C) tothe

TopPanel(P5),either to the right ortothe

left,using two Screws (N).

C

N

P5

Illustration # 8

7

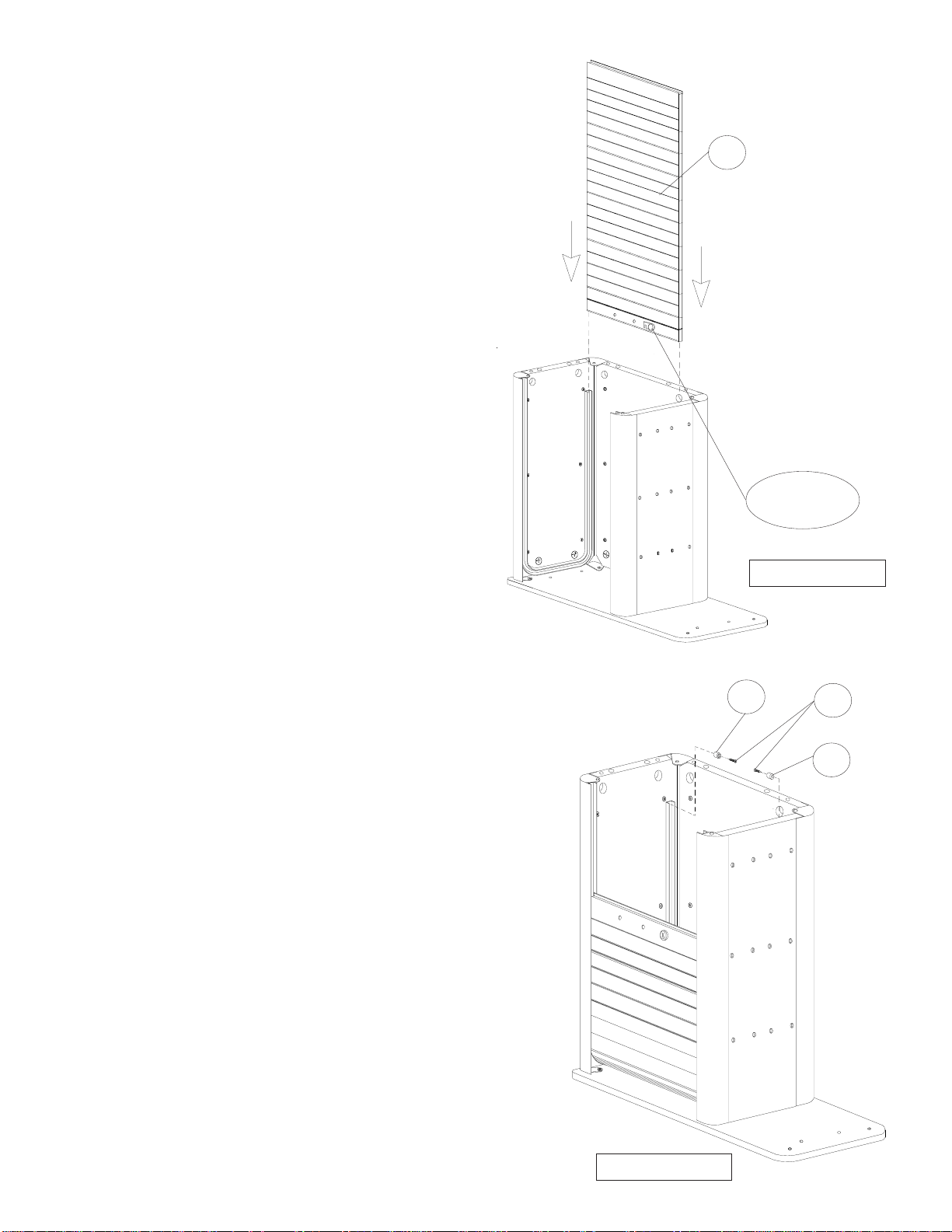

12.)

Illustration # 9

P6

Slidethe DoorAssembly (P6)down into

thethereartracksinthe Right and Left

SidePanels. TheDoorAssembly should

beinserted as shown so theKey slot in

thelockisat the front and bottom ofthe

unit. SeeIllustration #9.

Back Side

of Lock

Illustration # 10

PQ

13.) Useone Phillips Wood Screw (Q)to attach one

Bumper(P) to the bottomofeach door track on

theRightand Left Side Panels. These

BumperspreventtheDoorAssemblyfrom

comingoutof the tracks. See illustration #10.

P

8

14.)

Illustration # 11

Installsix Cams (G) into the large

holesin the Back, Right and Left Side

Panelsas shown inIllustration#11.

MakesuretheArrows on the Cams

areallpointing UP.

15.)

Illustration # 12

G

P8

L

P5

Attachtwo VerticalSupports(P8) to the

cornersoftheTopPanel(P5)usingone

Screw(L) through each mount tab and into

theembeddedthreaded insert in the bottom

ofthetop. See illustration #12.

9

16.)

Illustration # 13

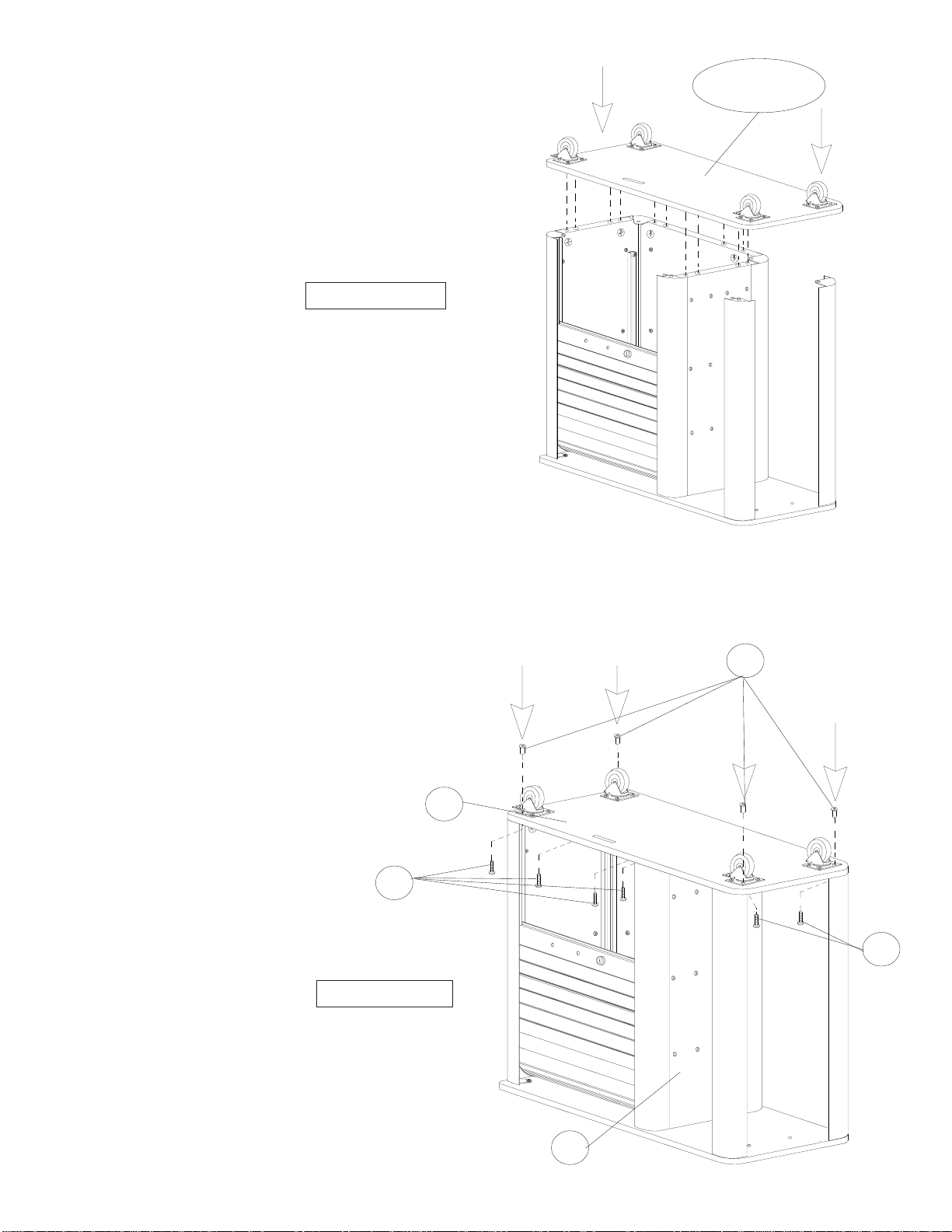

Line up the Wood Dowels and Cam Posts in the

BaseAssemblyfrom Step #4 with the holes

in the ends of the Back, Right and Left Side

panels. LowertheBasein place and turn the

Camsa quarter turn clockwiseto lock the Basein

Placeas shown in Illustration #11.

Illustration # 14

17.) UsefourScrews(M)throughthebrackets in

thecornersoftheSidesand Back, through the

BaseandthroughtheCasterplateand into four

TappedRivets(K). Usetwo Screws (M) toattach

the Left Side Panel (P2) to the Base (P1). See

Illustration#12.

Base

Assembly

K

M

P2

P1

M

10

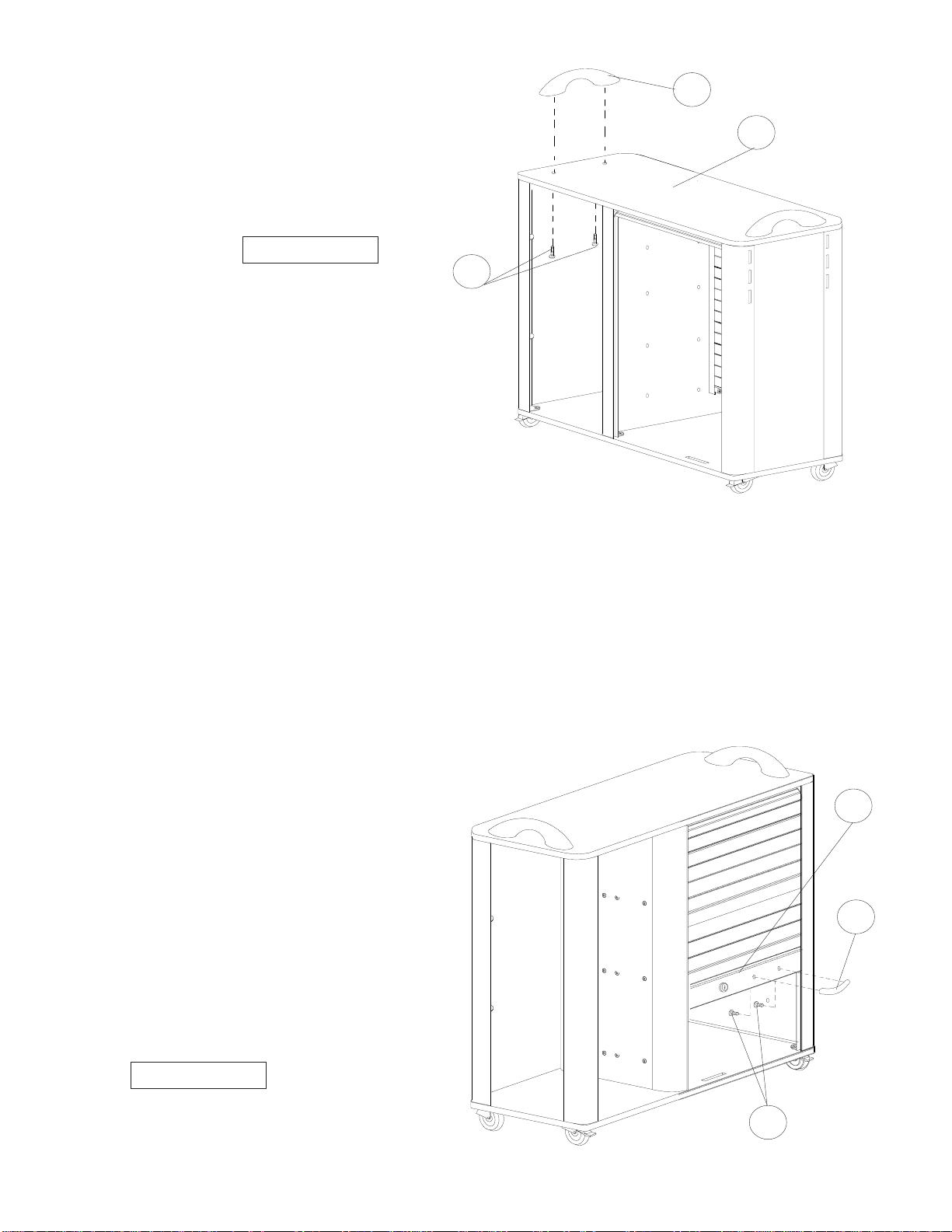

18.) Turntheunituprightand attachthesecondLarge

Handle(C)to theTopPanel(P5)using to

Screws(N)asshownin illustration #15. P5

C

N

Illustration # 15

19.)

Illustration # 16

AttachtheSmallHandle(D)tothe

bottomofthe DoorAssembly (P6)

usingtwoScrews(O)asshownin

Illustration#16. P6

D

O

11

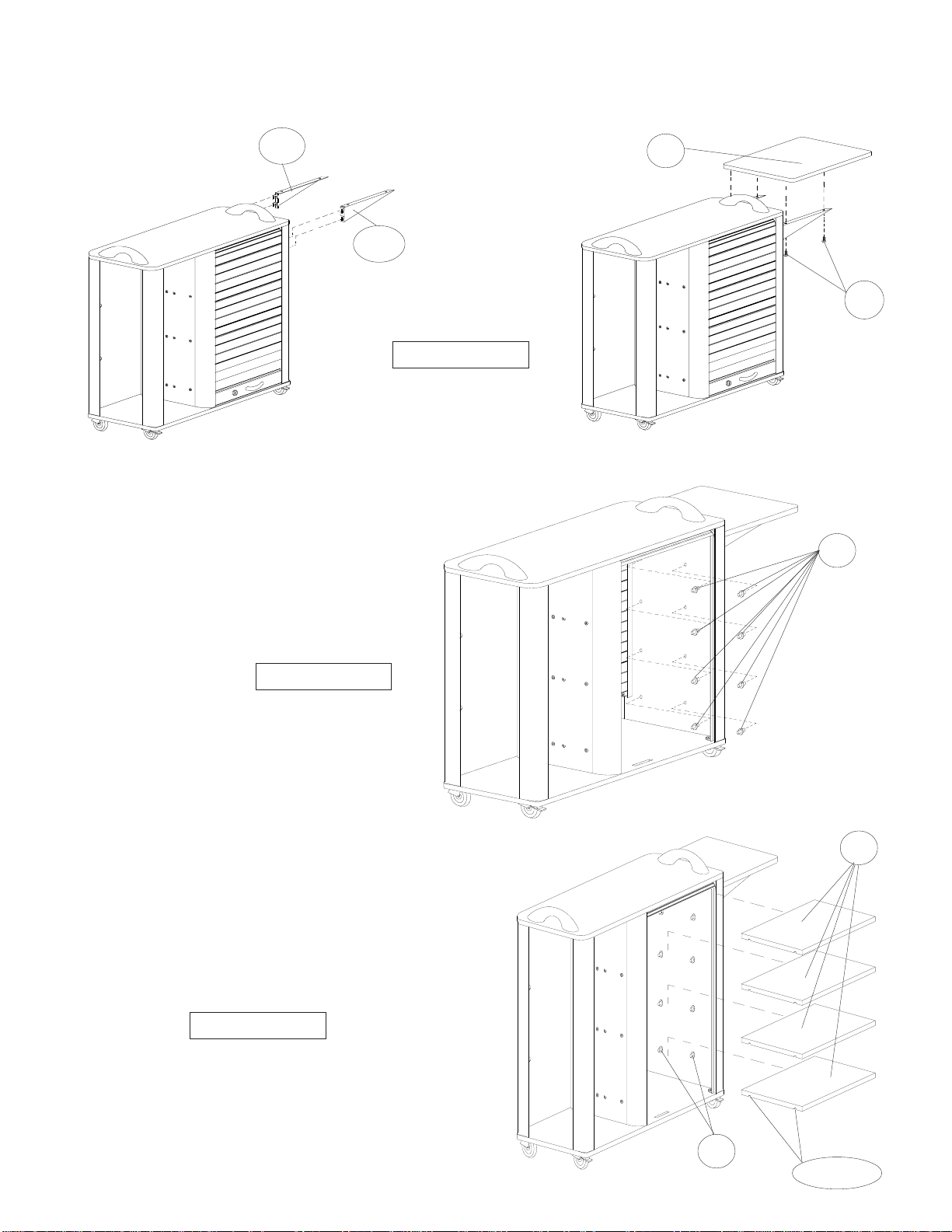

20.)

Illustration # 17

P9

P9L

21.) PushineightShelf Pins (J) in the

predrilledholesintheLeft and

eightShelf Pins in theRight Side

Panelsas shown. J

Illustration # 18

22.) SlideinfourShelves (P7) over the topofthe

ShelfPins(J). Lower each Shelf down so

thepinsfit in the cut outsinthe sides of the

Shelves.

J

P7

Illustration # 19

Cut out

AttachtheLeft Bracket (P9L) and the RightBracket(P9R) in the slots on therightsideof the unit.

AttachtheSide Shelf (P9) to theRightand Left Brackets using fourScrews(L).

P9R

L

12

UseKeys(I)tolock and unlock the DoorAssembly (P6).

I

P6

Illustration # 20

P2

P10

Illustration # 21

L

24.)

23.) Attachsix of the WireHolders (P10) to

theLeft Side Panel (P2) usingtwo Screws (L)

tosecureeach Wire Holder.

Seeillustration #20.

13

Makerspace 3D Printer

Cart 91413

18”X18”

34 5/8”

31 1/2”

30”

21”

91413_04-24-17
