Balt Blt-27530 User manual

123456789012345678901234567890121234567890123456789012345678901212345678901234

BLT-27530 Adj Ht LCD TV Cart

with 2 Pull-out Shelves & Locking Cabinet

Assembly Instructions

P1 BaseCabinet 1 EA

P2 TopShelf 1 EA

P3 Pull-outShelf 2 EA

P4 Left Support Tubes 1 EA

P5 Right Support Tubes 1 EA

P6 LCD Bracket Top 1 EA

P7 LCD Bracket Bottom 1 EA

P8 Cord Winder 1 EA

P9 Electrical Outlet 1 EA

Part Drawing Description Qty Part Drawing Description Qty

BLT-27530 Adjustable Ht LCD Cart

Hardware List

Screw M6X12mm Pan Hd 8 EA

ScrewM3.5X12mmCS 16 EA

Screw M5X45mm Pan Hd 2 EA

Screw M8X20mm SocketHd 2 EA

Screw M8X25mm Dog Point 2 EA

Screw M8X25mm Cone Point 2 EA

Hex nut M6 8 EA

Hex nut M3.5 16 EA

Hex nut M5 w/Flange 2 EA

Lock Washer Ext Tooth 8 EA

4” Locking Caster 2 EA

4” Caster 2 EA

Do not use unless all screws are tight. At least every six months, check all screws to be sure

they are tight. If parts are missing, broken, damaged, or worn, stop use of the product

until repairs are made by your dealer using factory authorized parts.

w/Verticle Slots

Right Top Support 2 EA

Left Top Support 2 EA

P10

P11

INBOX2

INBOX1

INBOX2

8 EA

8 EAHexNut M6 w/Flange

ScrewM6X18mm

INBOX1 I-1

I-2

I-3

J-1

J-2

E-1

K-1

K-2

E-2

A-3

A-4

A-5

Installedin P-6

Installed in P-4 and P-5

Installedin P-7

BLT-27530 Adjustable Ht LCD Cart

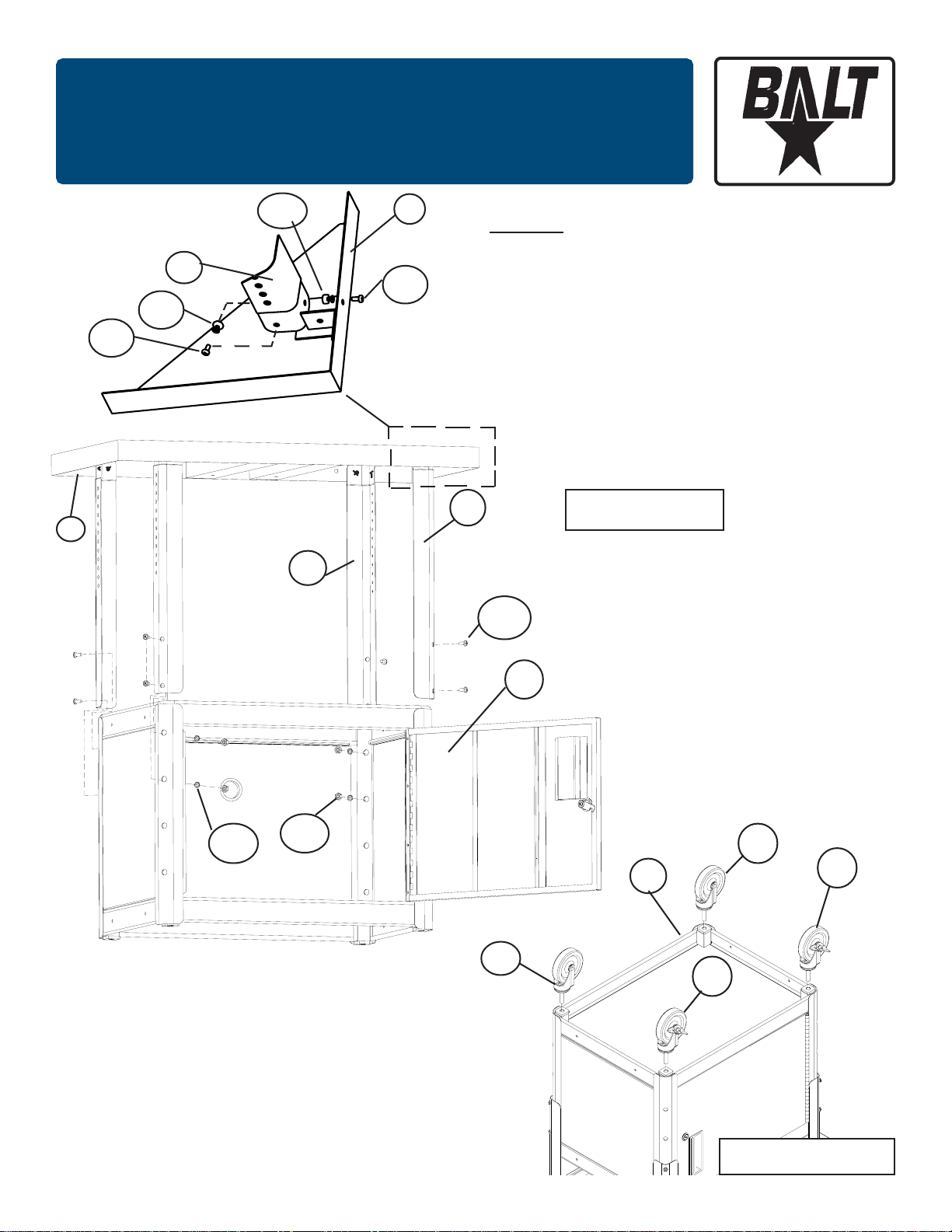

Assembly Diagram

2.) SlideTopShelf(P-2) assembly

over the Base Cabinet (P-1) and

secure at desiredheight using 8

screws(I-1), 8ExternalTooth

LockWashers (I-3),and8 Hex

Nuts(I-2).

Illustration # 2

Press 2 Locking Casters (D) and 2

non-lockingcasters(F) intothefactory

installednyloninserts intheBase

Cabinet(P-1) asshownin illustration#2.

3.)

1.) Attach two RightTopSupports(P-10)

andtwo LeftTop Supports(P-11) to

TopShelf (P-2)using 8screws (K-1)and 8

nuts(K-2). Makesure theRightand LeftTop

Support’sholes arethe samedirection

asIllustration#1.

Illustration # 1

P10

P11

EAD

HROUGH

NSTRUCTIONS

FROM

BEGINNING

END

BEFORE

STARTING

ASSEMBLE

UNIT

IdentifyandSeparate alltheParts andHardware.

P11

P10

Detail of

Illustration #1

Corner

K-1K-1

K-1

K-2K-2

K-2

I-2I-2

I-2

I-3I-3

I-3

I-1I-1

I-1

K-1K-1

K-1

K-2K-2

K-2

AttachCord Winder(P-8) andElectrical

Strip (P-9) toTop Shelf (P-2), or Base

Cabinet (P-1) using 2 screws (E-1) and

2Hex NutsM5w/Flange (E-2).

Tightenallscrewsusing

Phillip’shead screwdriverand

Wrench(NotProvided).

RemoveScrews (A-3)from bottomofLeft and

RightSupportTubes(P-4 & P-5). Insertthe

tubesintotheTopShelf (P-2)andattachwith the

twoScrews (A-3)removed earlierasshown in

Illustration#3.

Illustration # 4

Illustration # 3

TheBaltproductyouhavepurchasedisguaranteed against material andworkmanshipdefects. Thisguarantee

extends1yearfromdate of purchase. Should thisproductfailtofunctionsatisfactorily under normal usedueto

defectorimperfection, the defective partorproduct will be replaced. Damagecausedby common carriers during

shipmentisnotincludedinthisguarantee.

This guarantee sets forth all applicable guarantees and remedies. No other warranty, expressed or

impliedshallapply. FailuretofollowinstructionsfoundinImportantInformationSectionofOwnerSheet

shallvoid the guarantee. Consequentialor incidentaldamagesand orcostsare notrefundable.

Important

P-9

P-2

P-8

P-4

P-5

A-3

P-2

A-5

A-4 P-6

P-7

P-4

P-5

4.)

5.)

6.)

7.)

8.)

P-2

Looseninstalled Screws

A-4 andA-5 from LCD

Brackets P-6 and P-7.

Attach Bottom LCD

Bracket (P-7) to Left and

RightSupportTubes

(P-4 & P-5) at desired

heightusing 2Screws(A-5).

A-4 and A-5

Screws come

preinstalled in

P-6 and P-7

Brackets.

Screws A-3

come preinstalled

in P-4 and P-5

Tubes

E-1E-1

E-1

E-1E-1

E-1

E-2E-2

E-2

AttachTop LCD Bracket

(P-6)to Leftand Right

SupportTubes(P-4 &P-5)

at desired height using 2

Screws(A-4) asshown in

Illustration#4.

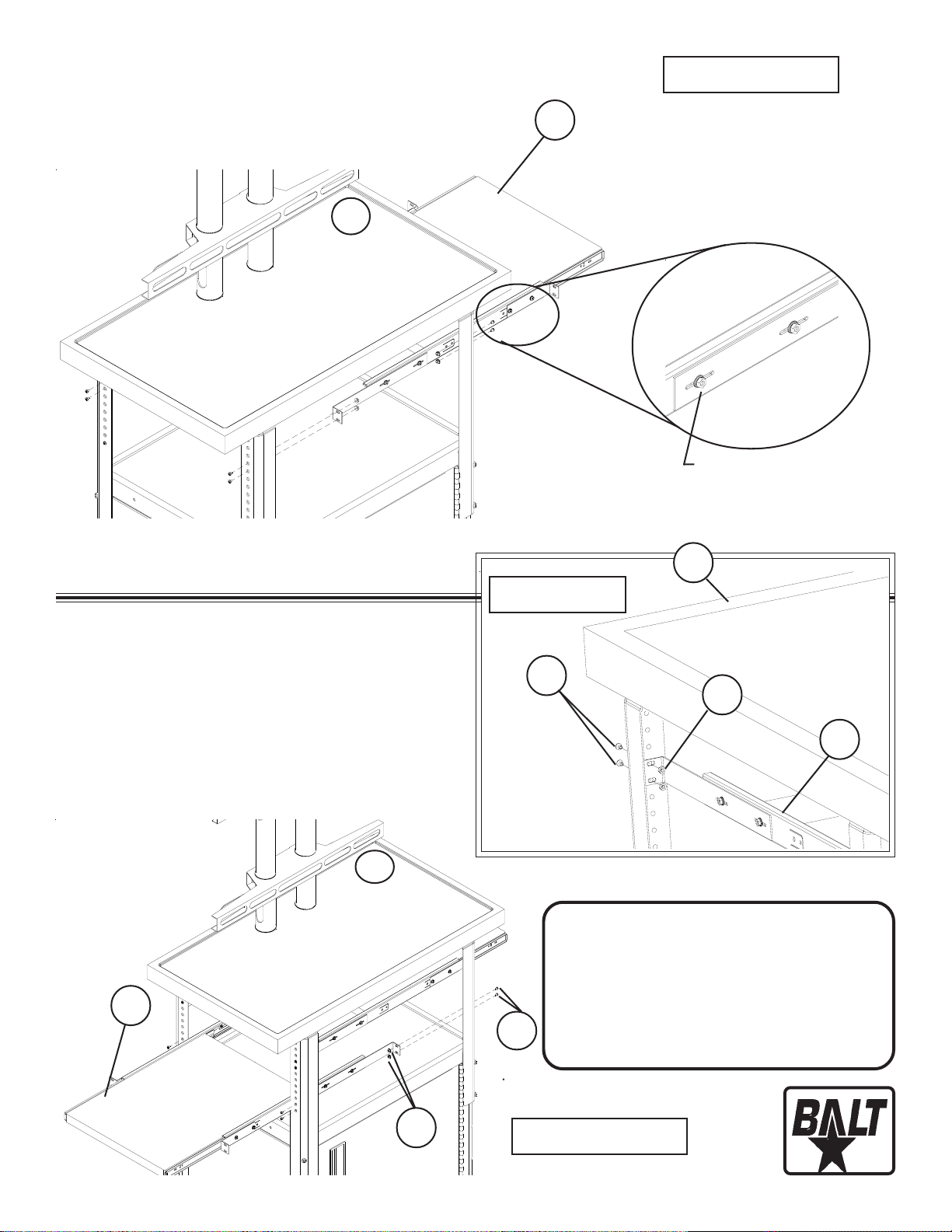

Tilt1Pullout Shelf(P-3)and slidein fromthe

RightSide ofcart. AttachPulloutShelf (P-3)to

TopShelf (P-2)at desiredheight using 8

screws(J-1) and8 Hex Nuts(J-2) as shown

in illustration # 5 & 5A.

Shouldyourequireassistanceduring

assembly,

please call our Customer Service

Department Monday - Friday

8 a.m. - 5 p.m.

CentralStandardTime

1-800-749-2258

9.)

LoosenHexnuts before

attachingPullOutShelf.

RetightenHexnuts

aftershelfis installed.

P-2

P-3

Tilt1Pullout Shelf(P-3)and slideinfrom

theLeftSide ofcart. AttachPullout Shelf

(P-3)toTop Shelf(P-2) atdesired height

using8 screws(J-1) and8Hex Nuts

(J-2)as shownin illustration #6.

P-3

10.)

Detail 5A

P-3

Illustration # 6

Illustration # 5

27530B -03/11/09

P-2

J-2J-2

J-2

J-1J-1

J-1

J-1J-1

J-1

J-2J-2

J-2
