banks six-gun User manual

Banks Six-Gun®
Diesel Tuner
For use with Palm®Tungsten™E2 only
Compatible with Optional Banks PowerPDA®
Vehicle Command Center
2006-07 Chevy/GMC 6.6L LBZ Duramax
Turbo-Diesel Pickups
THIS MANUAL IS FOR USE WITH KITS 63867 & 63872

296505 v.6.0
THIS IS A HIGH PERFORMANCE
PRODUCT. USE AT YOUR OWN RISK.
Do not use this product until
you have carefully read the
following agreement.
This sets forth the terms and
conditions for the use of this
product. The installation of
this product indicates that
the BUYER has read and
understands this agreement
and accepts its terms and
conditions.
Disclaimer of Liability
Gale Banks Engineering Inc., and its
distributors, employees, and dealers
(hereafter “SELLER”) shall in no way be
responsible for the product’s proper use
and service. The BUYER hereby waives
all liability claims.
The BUYER acknowledges that he/
she is not relying on the SELLER’s skill
or judgment to select or furnish goods
suitable for any particular purpose
and that there are no liabilities which
extended beyond the description
on the face hereof and the BUYER
hereby waives all remedies or liabilities,
expressed or implied, arising by law
or otherwise, (including without
any obligations of the SELLER with
respect to fitness, merchantability, and
consequential damages) whether or not
occasioned by the SELLER’s negligence.
The BUYER is responsible to fully
understand the capability and
limitations of his/her vehicle according
to manufacturer specifications and
agrees to hold the SELLER harmless
from any damage resulting from the
failure to adhere to such specifications.
The SELLER disclaims any warranty
and expressly disclaims any liability
for personal injury or damages. The
BUYER acknowledges and agrees
that the disclaimer of any liability for
personal injury is a material term for
this agreement and the BUYER agrees
to indemnify the SELLER and to hold
the SELLER harmless from any claim
related to the item of the equipment
purchased. Under no circumstances will
the SELLER be liable for any damages
or expenses by reason of the use or sale
of any such equipment. The BUYER
is responsible to obey all applicable
federal, state, and local laws, statutes,
and ordinances when operating his/her
vehicle, and the BUYER agrees to hold
SELLER harmless from any violation
thereof. The SELLER assumes no liability
regarding the improper installation
or misapplication of its products. It is
the installer’s responsibility to check
for proper installation and if in doubt,
contact the manufacturer. The BUYER is
solely responsible for all warranty issues
from the automotive manufacturer.
Limitation of Warranty
Gale Banks Engineering Inc. (hereafter
“SELLER”), gives Limited Warranty as
to description, quality, merchantability,
fitness for any particular purpose,
productiveness, or any other matter of
SELLER’s product sold herewith. The
SELLER shall be in no way responsible
for the product’s open use and service
and the BUYER hereby waives all rights
except those expressly written herein.
This Warranty shall not be extended
or varied except by written instrument
signed by SELLER and BUYER.
Please see enclosed warranty
information card, for warranty
information regarding your product.
Parts or devises outside the products
kit, such as the Palm®Tungsten™ E2,
are not covered under Gale Banks
Engineering warranty. The warranty for
the Palm Tungsten E2
is determined by the manufacturer’s
warranty terms and conditions, and

96505 v.6.0 3
limited to a period of 90 days from
purchase. All products that are in
question of Warranty must be returned
shipping prepaid to the SELLER and
must be accompanied by a dated proof
of purchase receipt. All Warranty claims
are subject to approval by Gale Banks
Engineering Inc.
Warning: The PDA may be
susceptible to damage as a
result of extended exposure
to sunlight, heat or extreme
cold. It is highly recommended
that the PDA be removed from
its mounting location if the
vehicle will be subjected to high
concentrations of sunlight, heat
or cold for an extended period
of time. Gale Banks Engineering
is not responsible for damage to
PDAs resulting from exposure
conditions.
Under no circumstance shall the SELLER
be liable for any labor charged or travel
time incurred in diagnosis for defects,
removal, or reinstallation of this product,
or any other contingent expense.
Under no circumstances will the SELLER
be liable for any damage or expenses
incurred by reason of the use or sale of
any such equipment.
In the event that the buyer does
not agree with this agreement:
The buyer may promptly return
this product, in a new and unused
condition, with a dated proof-of-
purchase, to the place-of-purchase
within thirty (30) days from date-
of-purchase for a full refund. less
shipping and/or restocking fee.
The installation of this product
indicates that the buyer has read
and understands this agreement
and accepts its terms and
conditions.
Table of Contents
Section 1 ......................7

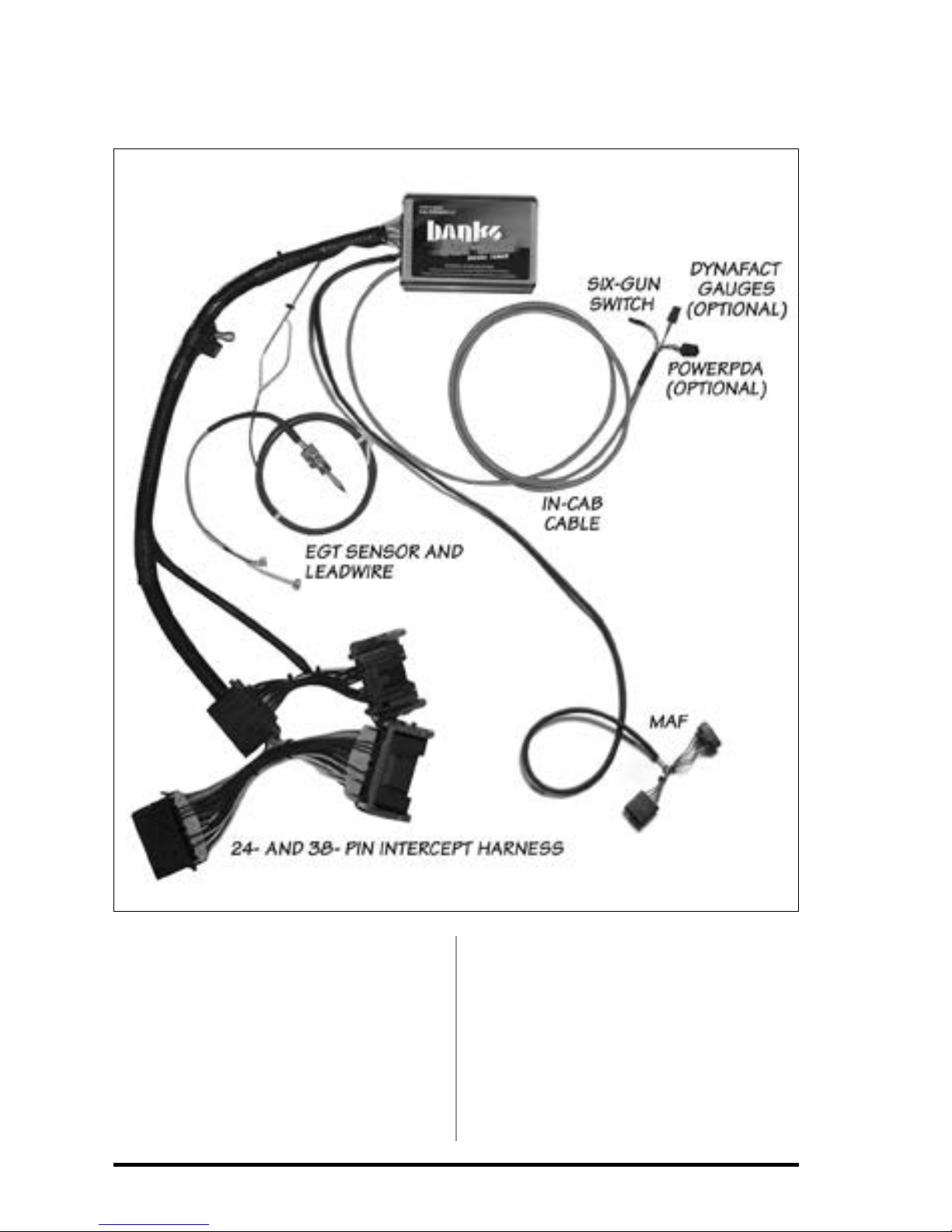

Installation of Wiring Harness,
Connections and Six-Gun Diesel Tuner
Section 2 .....................12
Mounting the Docking Station and
Connecting the Banks PowerPDA
Vehicle Command Center
Section 3 .....................15

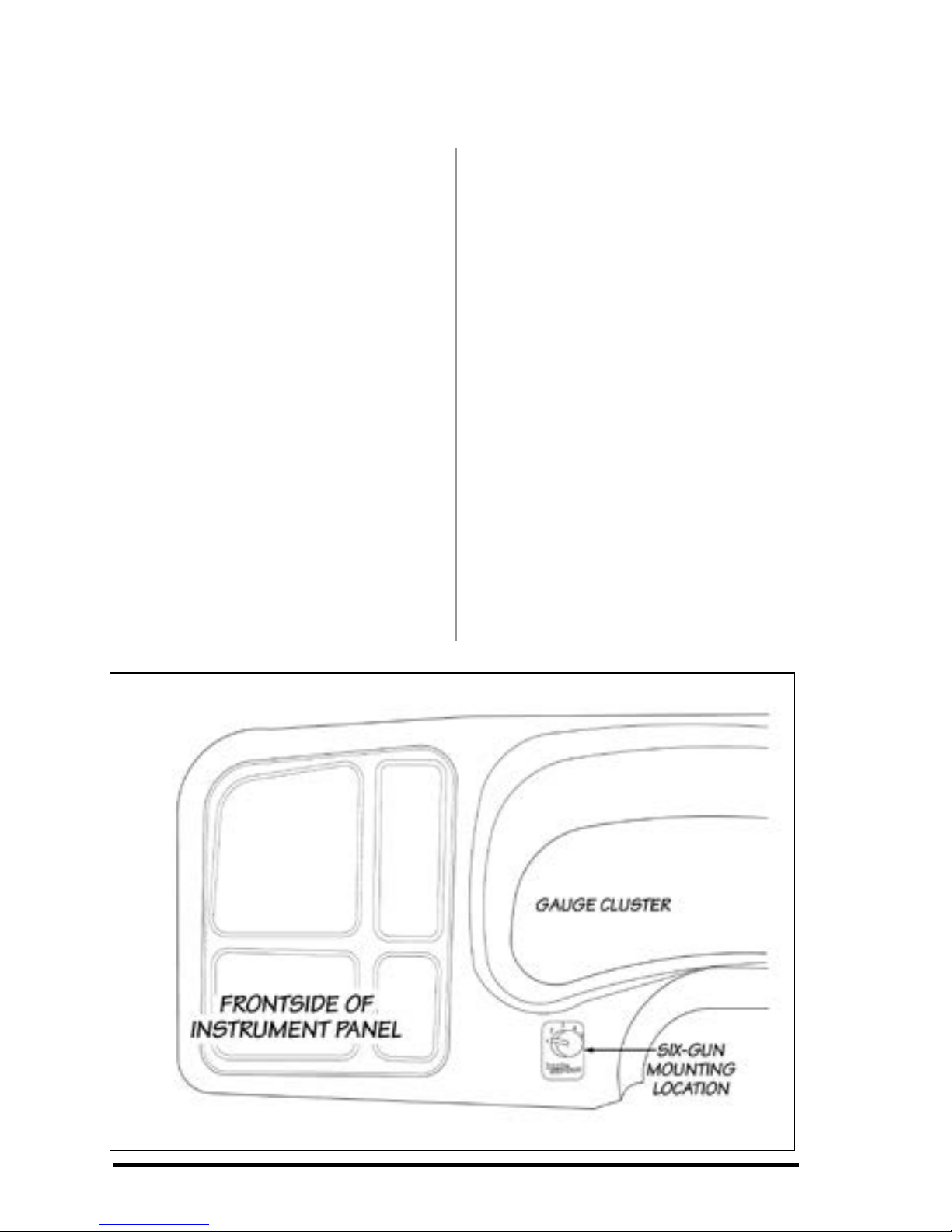

Installation of the Six-Gun Selector
Switch
Section 4 .....................18

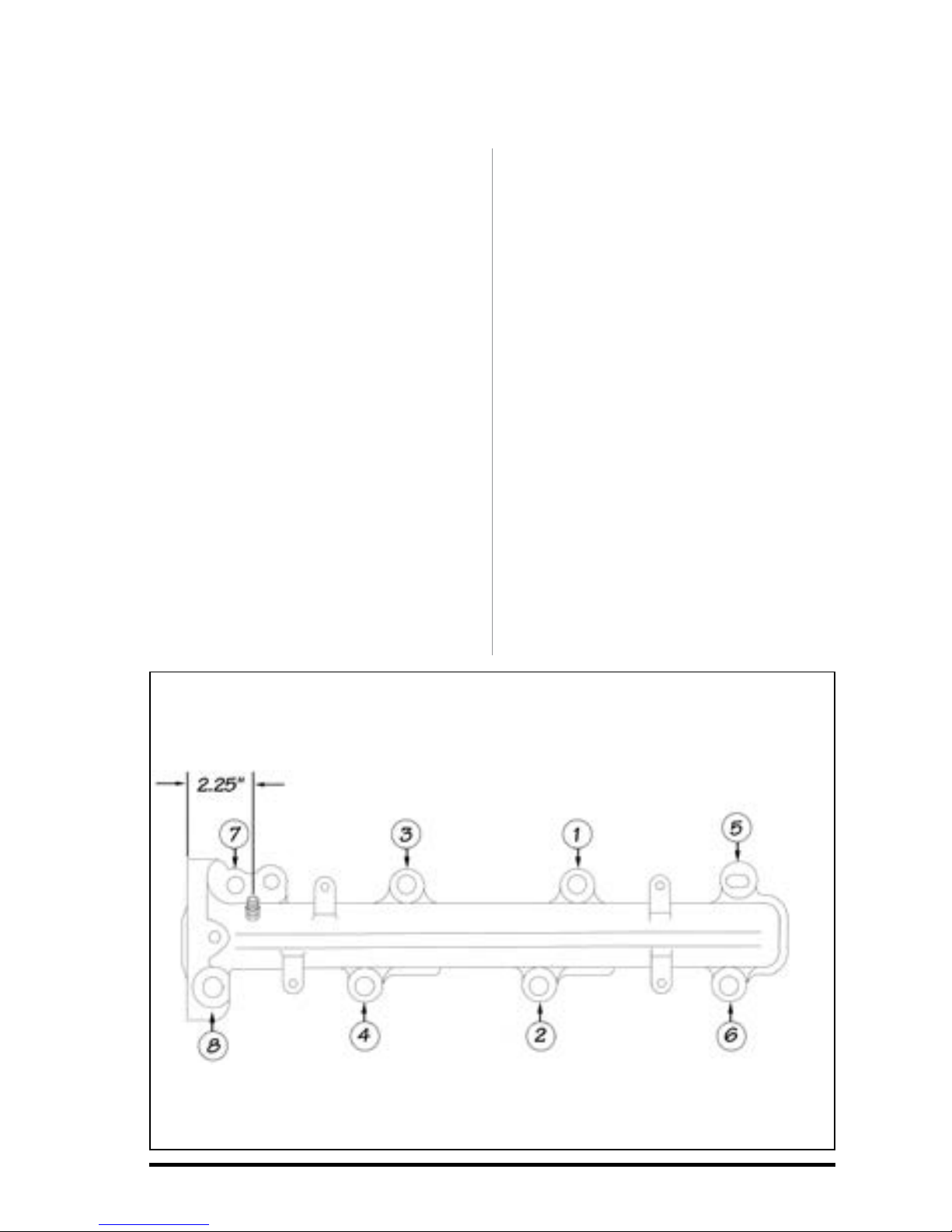

Optional Thermocouple Installation
(Required for Optional Banks PowerPDA)
Section 5 .....................19
Automatic Transmission Learning
Section 6 .....................20
Checking Engine Performance
Section 7 .....................21
Trouble shooting
Section 8 .....................24
Clearing Learned Information
Section 9 .....................24
Updating Your Banks PowerPDA
Software & Banks Six-Gun Diesel Tuner
Firmware
Section 10 ....................25
Removal of the Six-Gun Diesel Tuner
Section 11 ....................26
Placement of the Banks Power Decals

496505 v.6.0
The Banks Six-Gun Diesel Tuner has six
power levels adjustable by the supplied
Six-Gun switch or the optional Banks
PowerPDA.
The optional Banks PowerPDA is a
versatile touch-screen interface to the
Six-Gun tuner and your truck that also
increases the Six-Gun’s power output.
With the push of a button, you can
change power levels on-the-fly just one
of the numerous Six-Gun parameters
Banks PowerPDA lets you custom-tune.
It displays four engine functions at a
time, two of which are user-selectable
(over a dozen to choose from). It will
clock your 0-60 mph, 1⁄8-mile and 1⁄4-
mile performance runs, recording peak
boost and EGT values. Performance
runs are automatically stored for later
retrieval with a time-and-date stamp.
With the Banks PowerPDA, you can also
scan and clear OBD II diagnostic codes.
It gives you the endless functionality of
a Palm®Tungsten™ E2 PDA, and fits in a
custom dash-mounted docking station
using infrared wireless connectivity.
The Six-Gun Diesel Tuner comes with a
Six-Gun switch that has six selectable
power levels. The Six-Gun switch is
included in the Six-Gun Diesel Tuner.
Level 1 is stock. Each additional higher
level adds approximately 20% of the
available power increase.
To prevent damage to the factory
transmission, Banks recommends
that both automatic and manual
transmission vehicles do not exceed
Level 4 while the vehicle is experiencing
load (towing, climbing a steep grade,
carrying a load, etc.).
To use the higher levels of the Six-Gun
Diesel Tuner while towing or climbing,
airflow improvements must be made
to lower the exhaust gas temperature
(EGT) entering the turbo. The EGT should
not exceed 1400º F for more than a few
seconds. Elevated EGT can damage the
turbocharger and the engine.
ATTENTION! Before proceeding with
these instructions, please carefully
read the DISCLAIMER OF LIABILITY
and LIMITATION OF WARRANTY
statement located on page 2 of this
manual.
WARNING: The PDA may be
susceptible to damage as a result
of extended exposure to sunlight,
heat or extreme cold. It is highly
recommended that the PDA
be removed from its mounting
location if the vehicle will be
subjected to high concentrations
of sunlight, heat or cold for
an extended period of time.
Gale Banks Engineering is not
responsible for damage to PDAs
resulting from exposure conditions

96505 v.6.0 5
TOOLS REQUIRED:
• Inch and metric sockets
• Inch and metric combination and
open-end wrenches
• Pliers
• Wire cutters
• Scissors
• Drill motor
•1⁄8” drill bit
•13⁄32” drill bit
•7⁄16” drill bit
• Tap handle
•1⁄4” NPT tap
• Foot-pound torque wrenches
• Penetrating oil or light lubricant
spray
• Anti-seize compound
• Heat gun
1. Before starting work, familiarize
yourself with the installation procedure
by reading all of the instructions.
2. The exploded views provide only
general guidance. Refer to each step
and section diagram in this manual for
proper instruction.
3. Throughout this manual, the
left side of the vehicle refers to the
driver side, and the right side to the
passenger side.
4. Disconnect the negative (ground)
cable from the battery (or batteries, if
there are two) before beginning work.
5. Route and tie wires and hoses a
minimum of 6” away from exhaust
heat, moving parts and sharp
edges. Clearance of 8” or more is
recommended where possible.
6. When raising the vehicle, support
it on properly weight-rated safety
stands, ramps or a commercial hoist.
Follow the manufacturer’s safety
precautions. Take care to balance the
vehicle to prevent it from slipping or
falling. When using ramps, be sure the
front wheels are centered squarely on
the topsides. When raising the front
of the vehicle, put the transmission in
park (automatic) or reverse (manual),
set the parking brake, and block the
rear wheels. When raising the back of
the vehicle, be sure the vehicle is on
level ground and the front wheels are
blocked securely.
CAUTION: Do not use floor jacks to
support the vehicle while working
under it. Do not raise the vehicle
onto concrete blocks, masonry
or any other item not intended
specifically for this use.
7. During installation, keep the work
area clean. Do not allow anything to
be dropped into intake, exhaust, or
lubrication system components while
performing the installation, as foreign
objects will cause immediate engine
damage upon start-up.
8. Save this Owner’s Manual as a
reference for system maintenance and
service.
9. Banks recommends either a Banks
PowerPDA or a Pyrometer (EGT)
gauge and Boost gauge be installed
with the Six-Gun Diesel Tuner to help
monitor performance and exhaust
gas temperature of the vehicle (see
part numbers next page). To further
increase engine life by lower EGT’s,
Banks also recommends installing a
Monster Exhaust® system (see next
page).
General Installation Practices
Notice: A Pyrometer (EGT) probe must be installed in conjunction with
the Six-Gun Diesel Tuner in order to enable the Six-Guns EGT limiting
function. Using the Six-Gun Tuner without a pyrometer probe can lead to
detrimental damage to the engine due to excessive EGT temperatures.

696505 v.6.0
Banks Power-PDA System
Banks PowerPDA
Docking Station Kit .............61028
Palm Tungsten E2 PDA .........61004
Banks Monster® Exhaust System
Std. Cab Long Bed .............48937
Ext Cab Short Bed..............48938
Crew Cab Short Bed............48939
Ext Cab Long Bed ..............48940
Crew Cab Long Bed ............48941
Additional Equipment
Ram-Air Intake Sys. ............42142
Ram-Air®Filter.................41518
Ram-Air®Service Kit ...........90094
Gauges Assembly
Boost and Pyro ................64507
Thermocouple.................63042
Leadwire .....................63062

96505 v.6.0 7
1. Disconnect the battery ground
cables from each of the batteries.
Secure the cables so that they do not
come in contact with the battery posts
during the installation.
2. Clean the top of the fuse box
cover located on the drivers’ side of
the engine compartment. Make sure
the outside of the fuse box is free of
oil, grease and dirt. Place the Banks
Six-Gun Tuner on top of the fuse box
cover. Direct the wire harness towards
the front of the vehicle as shown in
Figure 2.
NOTE: The Six-Gun Tuner will be
affixed to the top of the fuse box in a
later step.
Section 1
INSTALLATION OF WIRING HARNESS, CONNECTIONS AND SIX-GUN
DIESEL TUNER
Figure 1 Six-Gun and supplied wiring harness

896505 v.6.0
3.Locate the two black wire harness
locking connectors between the
brake fluid reservoir and the air
conditioning compressor. Lift the gray
connector locks and disconnect the
38-pin connector pair and the 24-pin
connector pair. See Figure 3.
NOTE: Remove the wire harness
retainer to facilitate in connecting the
38 and 24-pin connectors.
4.Insert the male 38-pin connector on
the Six-Gun harness into the female
38-pin connector on the factory
harness. Insert the female 38-pin
connector on the Six-Gun harness
onto the male 38-pin connector of the
factory harness. Repeat this process
with the 24-pin connectors. See
Figure 3.
5. Go to the air box and remove the
stock Mass Air Flow (MAF) connector
located on the elbow of the air box
cover and set aside. Loosen both hose
clamps on the air intake tube and
remove the air intake tube and set
aside.
6.Locate the MAF connector from
the Six-Gun Tuner harness and route
as shown in Figure 4. Follow the
factory harness located on top of the
engine that runs in front of the intake
manifold and behind the alternator.
Feed the connector under the
compressor outlet and under where
the air intake hose normally rest. See
Figure 5.
7. Connect the Six-Gun tuner’s
(female) MAF connector to the factory
(male) MAF sensor and connect the
factory (female) MAF connector to the
Six-Gun’s (male) MAF connector.
8. Reinstall the previously removed
air intake hose and tighten the hose
clamps.
Figure 2

96505 v.6.0 9
Figure 3
Figure 4

10 96505 v.6.0

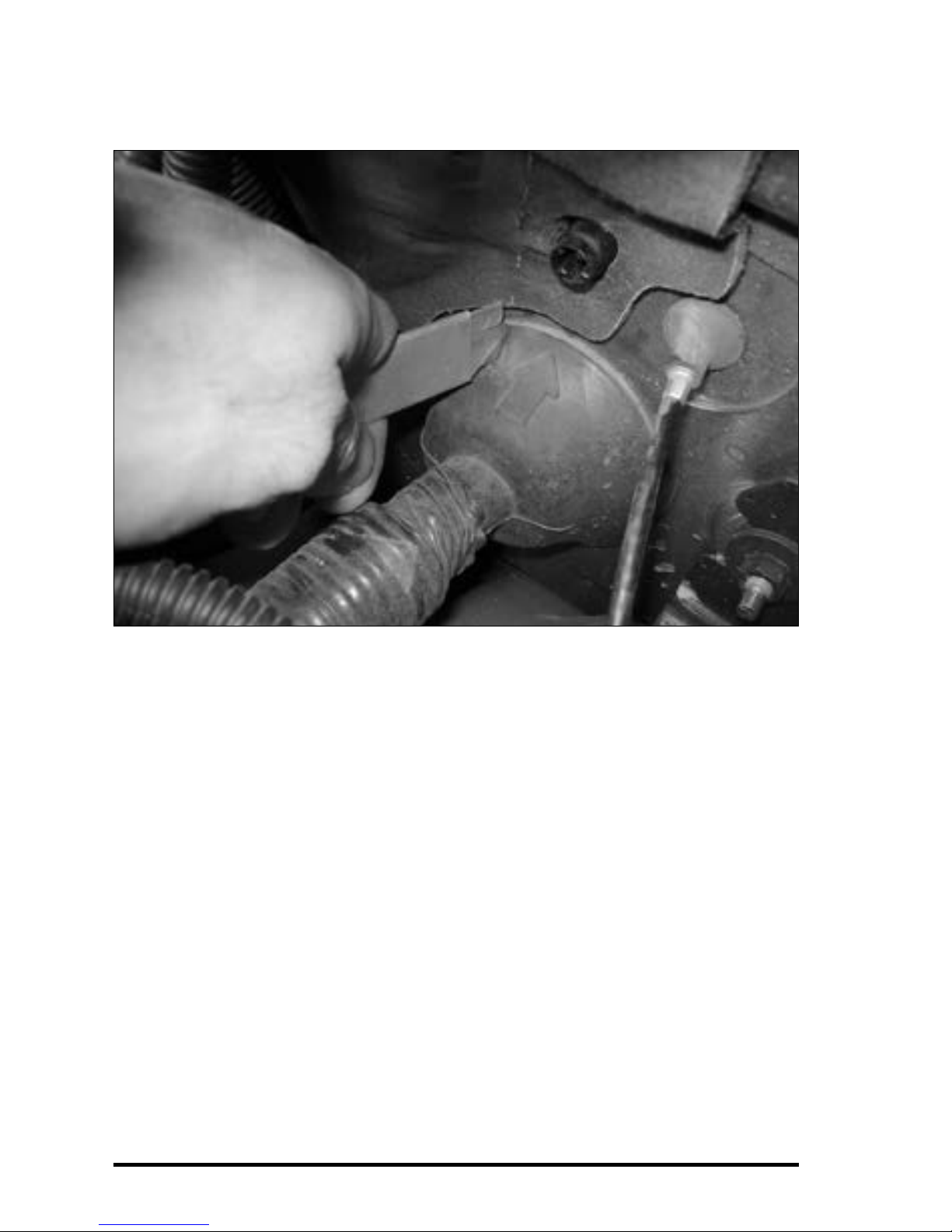

9. Locate the rubber grommet on the
driver’s side of the vehicle firewall.
The grommet is about 3” in diameter.
Make a 1” x 1” cross-shaped incision
in the grommet (see Figure 6).
10. Now from inside the cab locate
the grommet on the firewall and make
another 1” x 1” cross-shaped incision
on the grommet. Feed the three-
connector cable through the incision
made in the firewall grommet and into
the cab.
11. With the Six-Gun Diesel Tuner
positioned on top of the fuse box,
peel the protective backing from the
hook and loop interlocking fasteners
attached to the Six-Gun Diesel Tuner.
Position the side edge of the Six-Gun
Diesel Tuner to the edge closest to the
engine of the fuse cover, then press
the adhesive onto the outside of the
fuse box cover. Apply light pressure to
the Six-Gun Diesel Tuner by hand for
60-seconds to create a strong bond
between the fuse box and hook &
loop interlocking fasteners. Using the
supplied cable ties, secure the wire
harness away from any heat sources
or moving components.
NOTE: Make sure the fuse box cover
is clean and free of any oil residue and
contaminates. Clean fuse box cover
with a non-oil based solvent such as
Acetone, Mineral Spirits, Denatured
Alcohol or Lacquer Thinner. Read and
follow the manufactures operation
instruction for non-oil based solvent
cleaner.
WARNING: Make sure to place the
tuner as shown in Figure 2 to avoid
a clearance issue when closing the
hood. Mount the Six-Gun Tuner as
close to the inside edge of the fuse
cover as possible.
-END, SECTION 1-
Figure 5

96505 v.6.0 11
Figure 6

12 96505 v.6.0
If not installing the optional Banks
PowerPDA, skip to Section 3.
NOTE: This system has been
designed for use with the Palm
Tungsten E2 PDA.
WARNING: The PDA may be
susceptible to damage as a result
of extended exposure to sunlight,
heat or extreme cold. It is highly
recommended that the PDA
be removed from its mounting
location if the vehicle will be
subjected to high concentrations
of sunlight, heat or cold for
an extended period of time.
Gale Banks Engineering is not
responsible for damage to PDAs
resulting from exposure conditions.
1. Locate the universal mount and
docking station in your kit. Interlock
the docking station to the universal
mount by inserting and sliding the
universal mount tabs into the docking
station grooves. See Figure 7.
2. Find a smooth, flat surface suitable
for ease of access and viewing
of the PowerPDA. Loosen both knobs
and move the swivel suction plate and
docking station to achieve desired
viewing angle of the PowerPDA
screen. Do a test fit and note the
angle necessary to achieve the correct
viewing angle.
NOTE: There may be a snug fit when
installing the PowerPDA into the
docking station. Take care not to force
this process.
3. Tighten both knobs to lock in the
position (Figure 7).
NOTE: If the universal mount swivel
does not move or is tight after
loosening the hold down knob, then
remove the previously inserted
docking station and slightly loosen the
tension screw. See Figure 9.
Section 2
MOUNTING THE DOCKING STATION AND CONNECTING THE BANKS
POWERPDA VEHICLE COMMAND CENTER
Figure 7

96505 v.6.0 13
4. Locate the alcohol swab in the
kit. Clean the suction cup and the
mounting area and let dry. With the
suction lever in the up position ensure
the suction cup is flat against the
windshield or smooth, flat surface.
Then, push the suction lever down to
secure in place.
5. Connect the Cab Harness
connector to the PDA Cable. Plug the
RJ12 connector (phone like connector
at one end of the PDA Cable) into one
of the receptacles in the base of the
PDA docking station.
6. Install the Banks PowerPDA
into the docking station. Be sure the
PowerPDA is completely seated in
the docking station against the lower
support bracket.
NOTE: There may be a snug fit when
installing the PowerPDA into the
docking station. Take care not to force
this process.
7. Plug the docking station’s
charging cable (seen in Figure 7)
into the charging receptacle on the
lower edge of the PowerPDA. Attach
the PDA hub to a smooth, flat surface
suitable for ease of access and
viewing.
WARNING: The charging cable on
the docking station is designed
to supply a constant low-voltage
power source (+5vdc) to the
Banks PowerPDA and is “live” as
long as the system’s Diagnostic
Port Cable is completely installed
and the RJ12 connector is
plugged into the docking station.
Although this charging cable is
short and its circuitry is fuse
protected, the user is expected
to take appropriate measures
to prevent small children and/or
pets from contact with any part
of this system.
Figure 8

14 96505 v.6.0
8. Route all wiring away from any
pedals or other moving components.
Using the cable ties supplied, secure
the wiring under the dash.
9. Double check everything to make
sure it is securely fastened and it
is not near any hot or moving parts
before starting engine.
10. Set up the Banks PowerPDA
according to it’s instructions.
11. Locate the Banks OBD II Interface
Cable in your kit. This cable has
three connection points. Connect the
RED OBD II connector on the Banks
interface cable to the vehicle OBD II
connector. Use a cable tie as shown in
Figure 8 to secure the Banks interface
cable to the vehicle OBD II connector.
Next, connect the 6-pin connector on
the Banks OBD II interface cable to the
6-pin connector on the Six-Gun Tuner
harness.
WARNING: The PDA may be
susceptible to damage as a
result of extended exposure
to sunlight, heat or extreme
cold. It is highly recommended
that the PDA be removed from
its mounting location if the
vehicle will be subjected to high
concentrations of sunlight, heat
or cold for an extended period
of time. Gale Banks Engineering
is not responsible for damage to
PDA’s resulting from exposure
conditions.
-END, SECTION 2-
Figure 9

96505 v.6.0 15
Section 3
INSTALLATION OF THE SIX-GUN SELECTOR SWITCH
Not needed if optional Banks
PowerPDA is installed.
CAUTION: Do not use force
when working on plastic parts.
Permanent damage to the part
might result.
1. The Six-Gun switch will be installed
on the driver’s side of the instrument
panel (IP) next to the steering column
(see Figure 10). Carefully remove
the IP from the dashboard by slowly
pulling outwards from the dashboard
around the edges of the IP, allowing
the mounting pins to pull free from
their dashboard sockets. Automatic
transmission equipped vehicles will
need to set the parking brake and
move the shift lever down to the
lowest gear to allow clearance for
instrument panel removal.
2. Cut out the supplied template
(see Figure 19 on page 31) and align
the template onto the rear of the IP,
squarely seating it on the top of the IP
mounting pin (see Figure 11).
3. Using a 3⁄8” Uni-drill bit, center the
bit onto the 3⁄8” drill location on the
template and slowly drill through the
IP. Using a 1⁄8” drill bit, center and
drill through the 1⁄8” location on the
template. Remove and discard the
template and any plastic shavings.
4. On the front side of the IP, align
the Banks Six-Gun label onto the
previously drilled hole (see Figure 12).
5. Remove the nut and internal tooth
washer from the Six-Gun Switch.
Rotate the shaft counter clockwise
until the shaft stops. Verify the locating
washer tab is inserted into the #6
position on the switch (see Figure 13).
NOTE: If the washer is in any position
other then the #6, your Six-Gun Diesel
Tuner will not select power levels
properly.
Figure 10

16 96505 v.6.0
6. After confirming the locating
washer is in the #6 location, install the
switch through the 3⁄8” hole on the
backside of the instrument panel. The
alignment pin should rest in the 1⁄8”
hole and with the switch fully rotated
counter clockwise; the shaft’s flat side
should be facing the steering column.
Secure switch with internal tooth
washer and nut. Snug the washer; be
careful not to over torque the nut and
damage the plastic threads.
7. Install the knob onto the shaft
facing the #1 Level on the Six-Gun
label. On the knob, snug the two (2)
set screws with the supplied 0.050”
hex key wrench.
8. Route the Six-Gun Switch cable
down to the Six-Gun Diesel Tuner’s
three-connector cable underneath the
dashboard, and reinstall the IP to the
dashboard.
9. Connect the Six-Gun Switch Cable’s
2-pin receptacle to the 2-pin plug on
the Six-Gun Diesel Tuner’s grey three
connector cable.
WARNING: if excessive torque
converter slip is detected then
a Limp Home Mode override will
be set by the ECU. This LHM will
be active until torque slippage is
no longer detected or is reset by
Diagnostic Tool.
-END, SECTION 3-
Figure 11

96505 v.6.0 17
Figure 12
Figure 13

18 96505 v.6.0
1. The thermocouple monitors
the temperature of the exhaust
gases entering the turbocharger
at the turbine housing. Installation
requires that the exhaust manifold
be drilled near the manifold outlet.
It is recommended that the manifold
be removed from the engine to
thoroughly clean out all metal chips
from drilling. If manifold is not
removed from the vehicle, all chips
must be removed from the manifold.
This may be accomplished by using
a magnet to extract the chips after
drilling. The tap should be greased
before use and the chips again
removed with a magnet. All metal
shavings must be cleaned from the
manifold to avoid turbine damage.
2. To access the exhaust manifold,
remove front passenger wheel well by
removal of plastic retainers.
3. On the passenger side, remove the
hardware retaining the turbine inlet
exhaust pipe to the exhaust manifold
using a 12mm, 12pt socket along with
a 12mm, 12pt wrench, then remove
the exhaust manifold from vehicle. Pay
special attention to the orientation of
the manifold outlet gasket. Retain the
hardware and gaskets for re-assembly.
4. Center punch and drill through
the passenger side exhaust manifold
into the rear passage at the location
shown (see Figure 18). Use a 7⁄16” drill,
keeping the drill perpendicular to the
manifold surface.
5. Tap the drilled hole with a 1⁄4” NPT
pipe tap. Check the thread depth as
you tap by periodically removing the
tap and screwing the thermo-couple
insert into the tapped hole.
6. Install the thermocouple insert
into the manifold using anti-seize
compound on the threads. Install the
probe in the thermocouple insert.
7. Make sure to remove all shavings
Section 4
OPTIONAL THERMOCOUPLE INSTALLATION (REQUIRED FOR
OPTIONAL BANKS POWERPDA)
Figure 14

96505 v.6.0 19
NOTE: Please refer to the Banks
PowerPDA Software & Installation
Kit, Owners Manual for software
installation and operation instruction
before beginning Section 6, Automatic
Transmission Learning
The 6.6L Chevy Duramax Trucks
equipped with the Allison 1000 6-speed
automatic overdrive transmission use
an adaptive shift control logic. This will
require the transmission to adapt to
the additional power created by the
Banks Power products before it will
shift properly. Failure to follow the
sequence can result in damage to the
transmission.
Perform the following sequence at a
location where it is safe to accelerate
without exceeding the posted speed
limit.
1. Set Six-Gun to level one power
setting, start the truck and allow the
engine to reach normal operating
temperature.
2. Adjust Six-Gun to level two, power
setting.
3. Drive vehicle for 5 to 10 miles ensuring
a complete shift cycle though
each gear.
(The transmission shift adaptation learning
process requires 15 to 30 complete shift
cycles to learn new shift program.)
4. Increase power level by one and
repeat Step 3 until the desired power
level is achieved.
WARNING: Take particular care not
from inside the exhaust manifold.
Reinstall the exhaust manifold. Torque
to 28 ft-lb in the sequence shown
Figure 14.
8. Attach the thermocouple to the
supplied thermocouple leadwire
extension with the supplied nuts
and bolts. Cover this joint with the
supplied heat shrink tubing and heat
until the tubing conforms to the joint.
Make sure the entire joint is insulated.
9. Route the thermocouple leadwire
extension along the factory harness to
the driver’s side and connect it to the
Six-Gun harness with the supplied nuts
and bolts. Cover this joint with the
supplied heat shrink tubing and heat
until the tubing conforms to the joint.
Make sure the entire joint is insulated.
10. Reconnect the ground cables to
the vehicles batteries.
NOTE: Once the Six-Gun Diesel Tuner
is powered up at key-on, it will ‘learn’
that a thermocouple is installed and
automatically enable the EGT limiting
function.
If the thermocouple is removed
after being installed and run on the
vehicle, the Six-Gun Diesel Tuner will
assume that the sensor or connection
has gone bad, and cease adding
power while triggering the [2,3]
diagnostic code (see Trouble Shooting
Section 8). To ensure that the Six-
Gun Diesel Tuner operates properly
after removing a previously installed
thermocouple, see the ‘Clearing
Learned Information’ Section 9. EGT
limiting will not be operational and
excessive EGTs may develop at higher
power levels.
-END, SECTION 4-
Section 5
AUTOMATIC TRANSMISSION LEARNING

20 96505 v.6.0
Section 6
CHECKING ENGINE PERFORMANCE
to do wide open runs in 5th gear
when in Automatic transmission
Learning Mode, especially if speed
loader is installed.
The Allison 1000 6-speed automatic
transmission will continually adapt
to the power output of the engine to
optimize shift quality. The transmission
will quickly adapt to the power setting
if the driving cycle includes regular
gear changes at high loads. The
transmission learning procedure will
need to be repeated when switching
back to the higher power settings
once the transmission adapts to
the lower power settings. It will be
apparent when the transmission
adapts to the lower settings by
monitoring the feel of the gearshift.
Gear changes will be noticeably harder
when initially switching from a higher
to lower power setting. This will soften
as the transmission adapts to the new
setting.
-END, SECTION 5-
The Six-Gun Diesel Tuner requires the
engine coolant temperature (ECT) to be
above 110º before it will add fuel. If the
optional Banks PowerPDA or DynaFact®
gauges are installed, observe the
operation of the boost and pyrometer
(EGT) gauge values while driving under
varying conditions. Turbocharger boost
pressure will increase as a function of
load and engine RPM, thus the engine
will produce little boost while cruising
at light throttle, with maximum boost
while climbing hills heavily loaded during
acceleration. Note the boost level seen
during hard acceleration with a given
load. If performance seems to have
deteriorated sometime in the future,
the maximum boost figures may be
compared to see if boost has dropped
off. Lower boost may be caused by
turbo ducting leaks, a malfunctioning
wastegate or fuel injection pump, or
dirty air filter. Typical maximum boost
pressure settings will vary considerably
with stick or automatic transmission
options, year model of vehicle and
altitude.
NOTE: Before key-off, check tuner for
error codes. Use your Banks PowerPDA
or EGT gauge to monitor exhaust gas
temperature (EGT) in the engine. At
idle, exhaust gas temperature will be
very low, perhaps only 300°F. As the
engine is accelerated for higher speeds
with greater loads, the EGT will rise.
The highest EGT will be seen under
maximum load at full throttle, such as
climbing a steep grade with a heavily
laden vehicle. To avoid heat damage
to various engine components it is
recommended that the exhaust gases
cool below 400º before the engine is
shut down. Your Six-Gun Diesel Tuner
is calibrated to maintain a maximum
EGT of 1350°F. You may experience
brief excursions slightly above 1350°F
under acceleration. This is normal and
EGT should return to 1350°F or below
within a few seconds. If you find that
EGT remains high for any length of time,
check for boost leaks or a dirty air filter.
-END, SECTION 6-
