Banner Q5X User manual

Quick Start Guide
Laser sensor with dual outputs and IO-Link
This guide is designed to help you set up and install the Q5X Laser Measurement Sensor. For complete information on
programming, performance, troubleshooting, dimensions, and accessories, please refer to the Instruction Manual at
www.bannerengineering.com. Search for p/n 208794 to view the Instruction Manual. Use of this document assumes familiarity with
pertinent industry standards and practices.
WARNING:
•Do not use this device for personnel protection
• Using this device for personnel protection could result in serious injury or death.
• This device does not include the self-checking redundant circuitry necessary to allow its use in
personnel safety applications. A device failure or malfunction can cause either an energized (on) or de-
energized (off) output condition.
Features
The Q5X has three major features.

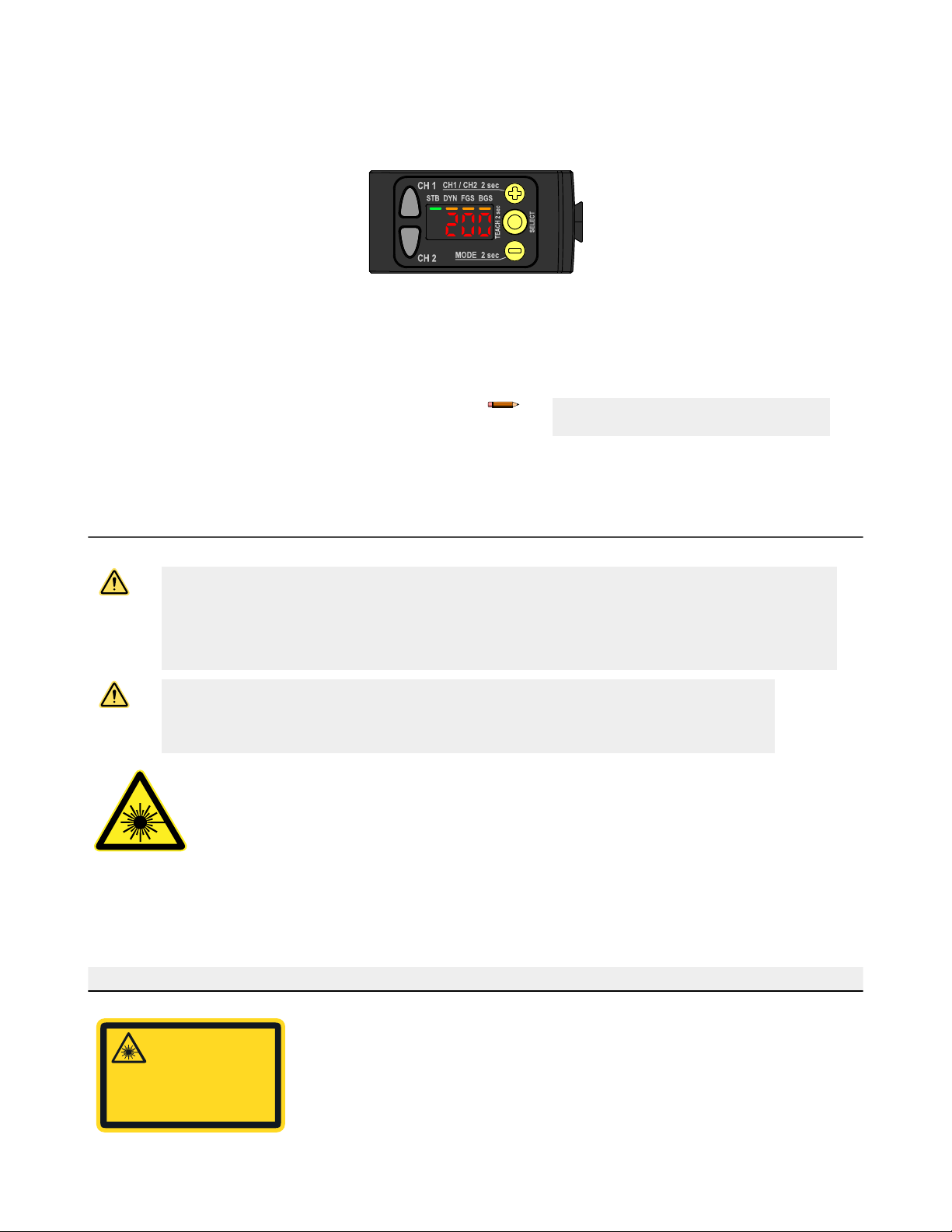

Figure 1. Q5X Features
1
23
1. Two output indicators (amber)
2. Display
3. Buttons
Display and Indicators
The display is a 4-digit, 7-segment LED. Run mode is the primary view displayed.
For 2-pt, BGS, FGS, and DYN TEACH modes, the display shows the current distance to the target in centimeters. For Dual TEACH
mode, the display shows the percentage matched to the taught reference surface. A display value of indicates the sensor
has not been taught.
Figure 2. Display in Run Mode
STB DYN FGS BGS
12
1. Stability Indicator (STB—Green)
2. Active TEACH Indicators
• DYN—Dynamic (Amber)
• FGS—Foreground Suppression (Amber)
• BGS—Background Suppression (Amber)
Output Indicator
• On—Output is on
• Off—Output is off
Stability Indicator (STB)
• On—Stable signal within the specified sensing range
• Flashing—Marginal signal (low excess gain), the target
is outside the limits of the specified sensing range, or a
multiple peak condition exists
• Off—No target detected within the specified sensing
range
Active TEACH Indicators (DYN, FGS, and BGS)
• DYN, FGS, and BGS all off—Two-point TEACH mode
selected (default)
• DYN on—Dynamic TEACH mode selected
• FGS on—Foreground suppression TEACH mode
selected
• BGS on—Background suppression TEACH mode
selected
• DYN, FGS, and BGS all on—Dual TEACH mode
selected
Q5X Laser Measurement Sensor with Dual
Discrete Outputs and IO-Link
Original Document
208795 Rev. G
10 January 2023
208795

Buttons
Use the sensor buttons (SELECT)(TEACH), (+)(CH1/CH2), and (-)(MODE) to program the sensor.
Figure 3. Button Layout
(SELECT)(TEACH)
• Press to select menu items in Setup mode
• Press and hold for longer than 2 seconds to start the
currently selected TEACH mode (the default is two-point
TEACH)
(+)(CH1/CH2)
• Press to navigate the sensor menu in Setup mode
• Press to change setting values; press and hold to
increase numeric values
• Press and hold for longer than 2 seconds to switch
between Channel 1 and Channel 2
(-)(MODE)
• Press to navigate the sensor menu in Setup mode
• Press to change setting values; press and hold to
decrease numeric values
• Press and hold for longer than 2 seconds to enter Setup
mode
Note: When navigating the menu, the menu
items loop.
Class 2 Laser Description and Safety Information
Read the following safety information for proper use of a Class 2 laser.
CAUTION:
•Return defective units to the manufacturer.
• Use of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
• Do not attempt to disassemble this sensor for repair. A defective unit must be returned to the
manufacturer.
CAUTION:
•Never stare directly into the sensor lens.
• Laser light can damage your eyes.
• Avoid placing any mirror-like object in the beam. Never use a mirror as a retroreflective target.
For Safe Laser Use - Class 2 Lasers
• Do not stare at the laser.
• Do not point the laser at a person’s eye.
• Mount open laser beam paths either above or below eye level, where practical.
• Terminate the beam emitted by the laser product at the end of its useful path.
Class 2 lasers are lasers that emit visible radiation in the wavelength range from 400 nm to 700 nm, where eye protection is normally
afforded by aversion responses, including the blink reflex. This reaction may be expected to provide adequate protection under
reasonably foreseeable conditions of operation, including the use of optical instruments for intrabeam viewing.
Low-power lasers are, by definition, incapable of causing eye injury within the duration of a blink (aversion response) of 0.25
seconds. They also must emit only visible wavelengths (400 to 700 nm). Therefore, an ocular hazard may exist only if individuals
overcome their natural aversion to bright light and stare directly into the laser beam.
Class 2 Red Laser models with maximum range of 2000 mm: Reference IEC 60825-1:2007
Figure 4. FDA (CDRH) warning label (Class 2)
LASER LIGHT
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
IEC 60825-1:2007. Wavelength
640-670nm; 1.0mW max. Complies with
21 CFR 1040.10 and 1040.11 except for deviations
pursuant to Laser Notice
No. 50, dated June 24, 2007.
Output: < 1.0 mW
Laser wavelength: 640 to 670 nm
Pulse Duration: 20 µs to 2 ms
Q5X Laser Measurement Sensor with Dual Discrete Outputs and IO-Link
2 www.bannerengineering.com - Tel: + 1 888 373 6767 P/N 208795 Rev. G

Class 2 Red Laser models with maximum range > 2000 mm: Reference IEC 60825-1:2014
Figure 5. FDA (CDRH) warning label (Class 2)
LASER LIGHT
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
IEC 60825-1:2014. Wavelength
640-670nm; 1.0mW max. Complies with
21 CFR 1040.10 and 1040.11 except for
conformance with IEC 60825-1: 2014
as described in Laser Notice
No. 56, dated May 8, 2019.
Output: < 1.0 mW
Laser wavelength: 640 to 670 nm
Pulse Duration for <5 m Models: 20 µs to 2 ms
Pulse Duration for ≥ 5 m Models: 3 µs
Installation
Sensor Orientation for the Triangulation Models
Optimize detection reliability and minimum object separation performance with correct sensor-to-target orientation.
To ensure reliable detection, orient the sensor as shown in relation to the target to be detected.

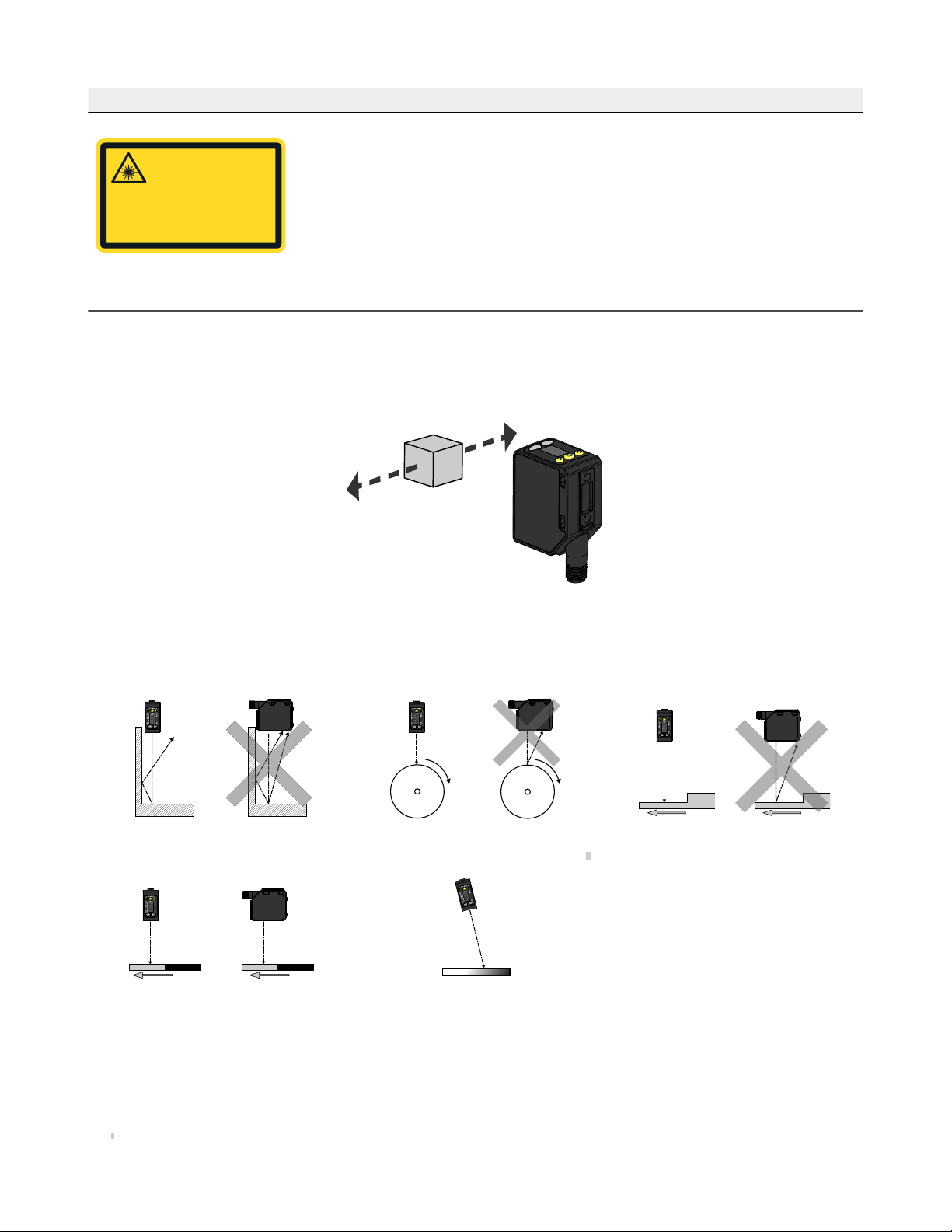

Figure 6. Optimal Orientation of Target to Sensor
See the following figures for examples of correct and incorrect sensor-to-target orientation as certain placements may pose
problems for sensing some targets. The Q5X can be used in the less preferred orientation and at steep angles of incidence and still
provide reliable detection performance due to its high excess gain. For the minimum object separation distance required for each
case, refer to .
Figure 7. Orientation by a wall
Incorrect
Correct
CC
Figure 8. Orientation for a moving object
CC
Incorrect
Correct
Figure 9. Orientation for a height difference
CC
Incorrect
Correct
Figure 10. Orientation for a color or luster difference
Horizontal
Orientation
Vertical
Orientation
(Optimal)
CC
Figure 11. Orientation for highly reflective target 1
Reflective
Surface
(optional)
Mount the Device
1. If a bracket is needed, mount the device onto the bracket.
2. Mount the device (or the device and the bracket) to the machine or equipment at the desired location. Do not tighten the
mounting screws at this time.
1Applying tilt to sensor may improve performance on reflective targets. The direction and magnitude of the tilt depends on the application, but a 15° tilt is often sufficient.
Q5X Laser Measurement Sensor with Dual Discrete Outputs and IO-Link
P/N 208795 Rev. G www.bannerengineering.com - Tel: + 1 888 373 6767 3

3. Check the device alignment.
4. Tighten the mounting screws to secure the device (or the device and the bracket) in the aligned position.
Wiring Diagram
Figure 12. Channel 2 as PNP Discrete or PFM Output
bk (4)
bn (1)
bu (3)
wh (2)
10-30 V DC
CH1
CH2
+
–
PUSH-PULL
Load
Load
Figure 13. Channel 2 as Remote Input
bk (4)
bn (1)
bu (3)
wh (2)
10–30 V DC
CH1
CH2
+
–
PUSH-PULL
Load
Remote
Input
1
4
3
2
Note: Open lead wires must be connected to a terminal block.
Note: The Channel 2 wire function and polarity is user-selectable. The default for the wire is PNP output. Refer
to the Instruction Manual (p/n 208794) for details regarding use as a remote input or pulse frequency
modulation (PFM) output.
NPN Discrete Outputs
Figure 14. Channel 1 = NPN Output, Channel 2 = NPN Output
bk (4)
bn (1)
bu (3)
wh (2)
10–30 V DC
CH1
CH2
+
–
Load
Load
PNP Discrete Outputs
Figure 15. Channel 1 = PNP Output, Channel 2 = PNP Output
bk (4)
bn (1)
bu (3)
wh (2)
10–30 V DC
CH1
CH2
+
–
Load
Load
NPN Output and Remote Input
Figure 16. Channel 1 = NPN Output, Channel 2 = NPN Remote Input
bk (4)
bn (1)
bu (3)
wh (2)
10–30 V DC
CH1
CH2
+
–
Load
Remote
Input
PNP Output and Remote Input
Figure 17. Channel 1 = PNP Output, Channel 2 = PNP Remote Input
bk (4)
bn (1)
bu (3)
wh (2)
10–30 V DC
CH1
CH2
+
–
Load
Remote
Input
Cleaning and Maintenance
Clean the sensor when soiled and use with care.
Handle the sensor with care during installation and operation. Sensor windows soiled by fingerprints, dust, water, oil, etc. may create
stray light that may degrade the peak performance of the sensor. Blow the window clear using filtered, compressed air, then clean
as necessary using only water and a lint-free cloth.
Q5X Laser Measurement Sensor with Dual Discrete Outputs and IO-Link
4 www.bannerengineering.com - Tel: + 1 888 373 6767 P/N 208795 Rev. G

Connecting to RSD1

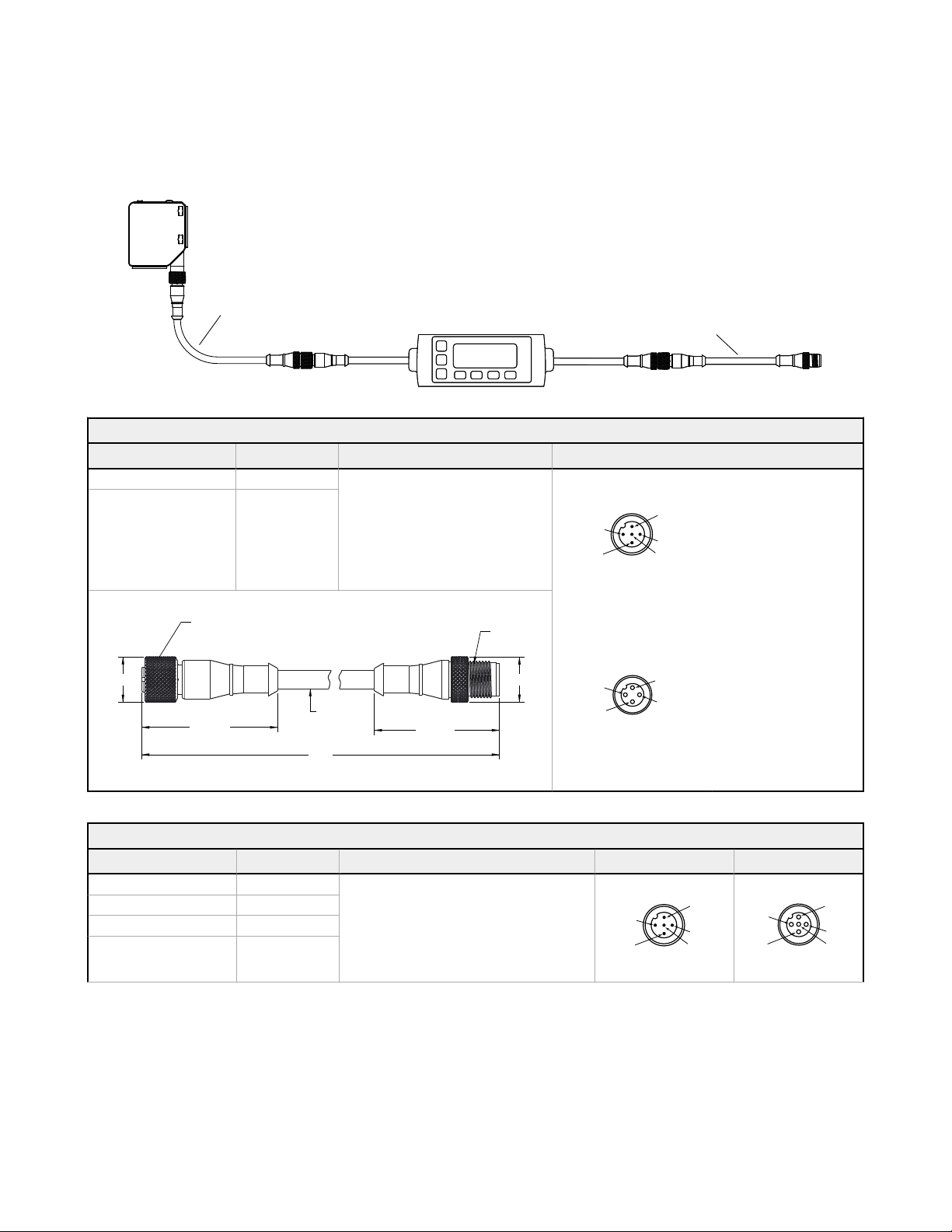

The following diagram depicts the connection of the Q5X to the optional RSD1 accessory.
Figure 18. Q5X to RSD1
MQDC-4501SS
Double Ended Sensor Pin 2 to Pin 5
MQDC-4506SS
MQDEC3-503SS
Double Ended Shielded
MQDEC3-506SS
MQDEC3-515SS
MQDEC3-530SS
MQDEC2-506
Flying Lead Shielded
MQDEC2-515
MQDEC2-530
RSD1
Q5X
Use these cordsets to connect the RSD1 to the Q5X sensor.
4-Pin Female and 5-Pin Male Threaded M12 Cordset—Double Ended
Model Length "L1" Style Pinout
MQDC-4501SS 0.30 m (0.98 ft)
Female Straight/ Male Straight
Male
1
4
5
3
2
1 = Brown
2 = Not Used
3 = Blue
4 = Black
5 = White
MQDC-4506SS 1.83 m (6.00 ft)
M12 X 1.0
43.5 ± 0.5
“L1”
ø 5.9
M12 X 1.0
ø 14.5 ø 14.5
40 ± 0.5
Female
2
3
4
1
1 = Brown
2 = White
3 = Blue
4 = Black
Use these cordsets to connect the RSD1 to any PLC or IO block.
5-Pin Male Threaded and 5-Pin Female Quick Disconnect M12 Cordset with Shield—Double Ended
Model Length "L1" Style Pinout (Male) Pinout (Female)
MQDEC3-503SS 0.91 m (2.99 ft)
Female Straight/Male Straight
1
4
5
3
2
2
3
4
1
5
MQDEC3-506SS 1.83 m (6 ft)
MQDEC3-515SS 4.58 m (15 ft)
MQDEC3-530SS 9.2 m (30.2 ft)
Q5X Laser Measurement Sensor with Dual Discrete Outputs and IO-Link
P/N 208795 Rev. G www.bannerengineering.com - Tel: + 1 888 373 6767 5

5-Pin Male Threaded and 5-Pin Female Quick Disconnect M12 Cordset with Shield—Double Ended
Model Length "L1" Style Pinout (Male) Pinout (Female)
M12 x 1
14.5
ø 5.9
14.5
“L1”
47.4 47.4
M12 x 1
1 = Brown
2 = White
3 = Blue
4 = Black
5 = Gray

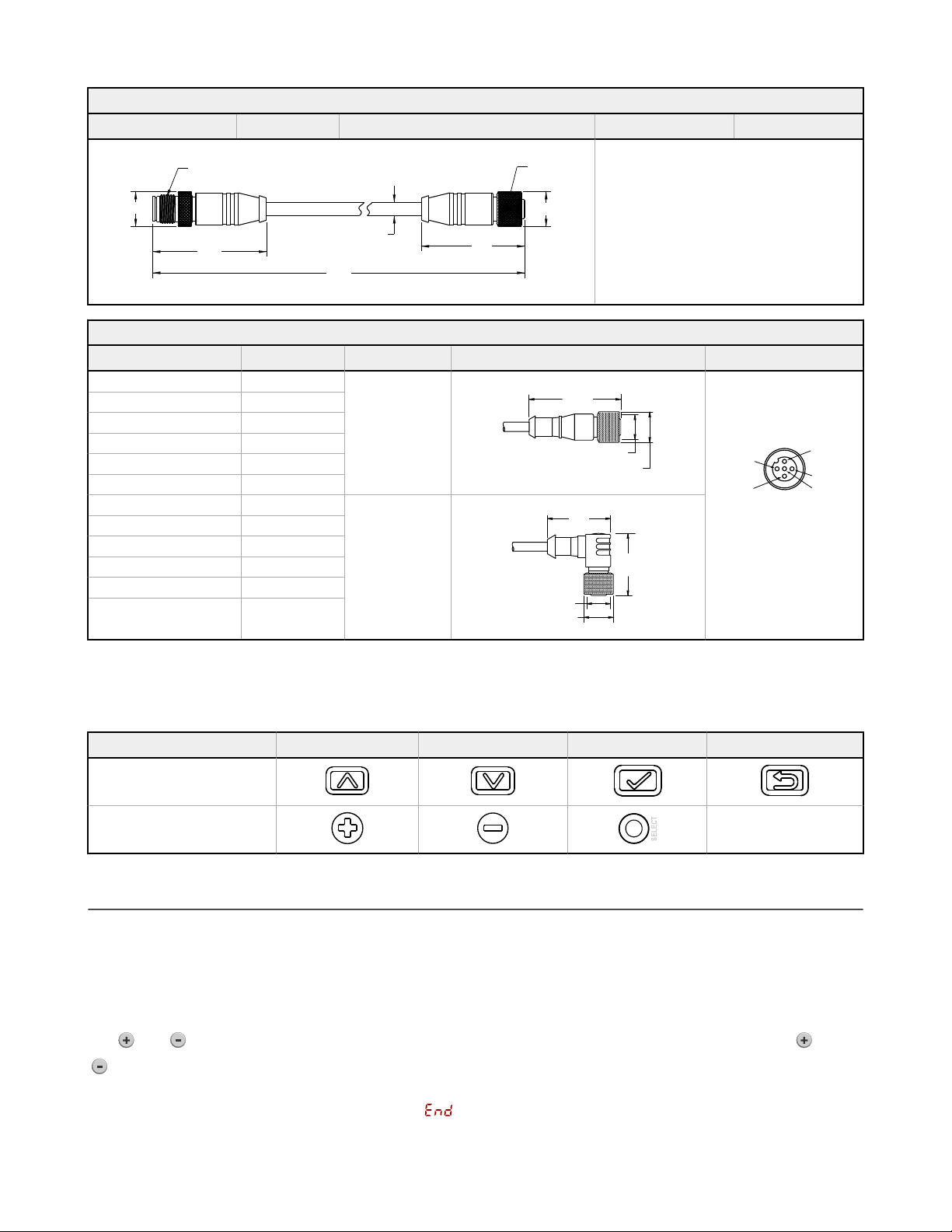

5-Pin Threaded M12 Cordsets with Shield—Single Ended
Model Length Style Dimensions Pinout (Female)
MQDEC2-506 2 m (6.56 ft)
Straight
44 Typ.
ø 14.5
M12 x 1
2
3
4
1
5
1 = Brown
2 = White
3 = Blue
4 = Black
5 = Gray
MQDEC2-515 5 m (16.4 ft)
MQDEC2-530 9 m (29.5 ft)
MQDEC2-550 15 m (49.2 ft)
MQDEC2-575 23 m (75.44 ft)
MQDEC2-5100 30.5 m (100 ft)
MQDEC2-506RA 2 m (6.56 ft)
Right-Angle
32 Typ.
[1.26"]
30 Typ.
[1.18"]
ø 14.5 [0.57"]
M12 x 1
MQDEC2-515RA 5 m (16.4 ft)
MQDEC2-530RA 9 m (29.5 ft)
MQDEC2-550RA 15 m (49.2 ft)
MQDEC2-575RA 23 m (75.44 ft)
MQDEC2-5100RA 31 m (101.68 ft)
Button Map from RSD1 to Sensor
The sensor may be optionally connected to the Banner RSD1 remote display accessory. Refer to this table for the RSD1 button
association with your sensor.
Table 1: Button association between the RSD1 and the Q4X/Q5X sensors
Device Up Button Down Button Enter Button Escape Button
RSD1
Q4X and Q5X N/A
Sensor Programming
Program the sensor using the buttons on the sensor or the remote input (limited programming options).
In addition to programming the sensor, use the remote input to disable the buttons for security, preventing unauthorized or
accidental programming changes. See the Instruction Manual, p/n 208794 for more information.

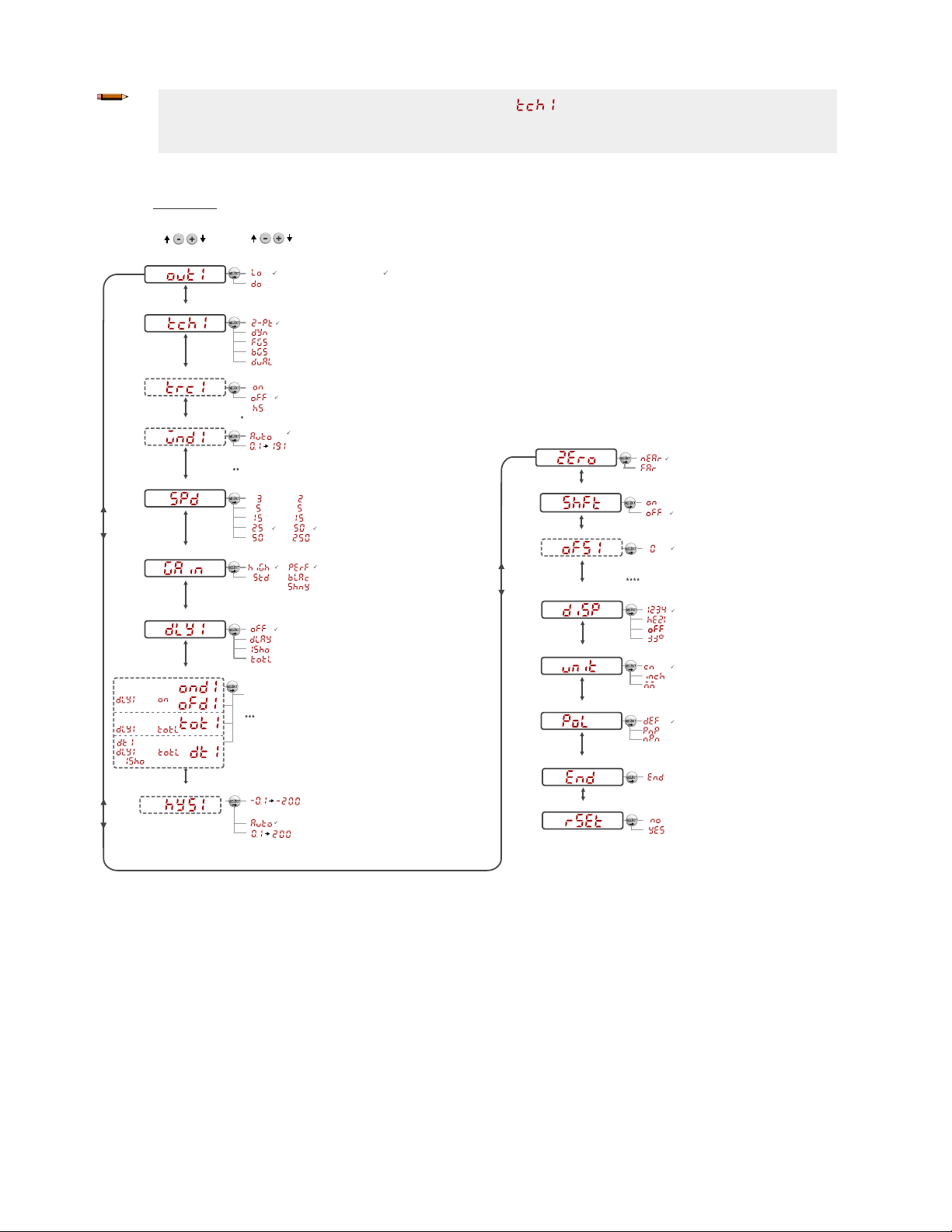

Setup Mode
Access Setup mode and the sensor menu from Run mode by pressing and holding MODE for longer than 2 seconds.
Use and to navigate through the menu. Press SELECT to select a menu option and access the submenus. Use and
to navigate through the submenus. Press SELECT to select a submenu option and return to the top menu, or press and hold
SELECT for longer than 2 seconds to select a submenu option and return immediately to Run mode.
To exit Setup mode and return to Run mode, navigate to and press SELECT.
Q5X Laser Measurement Sensor with Dual Discrete Outputs and IO-Link
6 www.bannerengineering.com - Tel: + 1 888 373 6767 P/N 208795 Rev. G

Note: The number that follows a menu option, for example , indicates the channel that is selected. For
menu items without a number (excluding submenu items), these menu options are only available from Channel 1
and the settings apply to both channels.
Figure 19. Sensor Menu Map—Channel 1
no: do not reset to factory defaults
yes: reset to factory defaults
Two-Point Static Teach
Dynamic Teach
Background Suppression
Foreground Suppression
Top Menu Sub Menu
off: no delays enabled
on: enable on and/or off delay (set value in Delay Timer menu)
1 Shot, fixed output pulse duration
Totalizer
0 ms to 90.0 sec range, set Delay Timer value (seconds have decimal)
display on
display on, inverted
display off (enters sleep mode after 60 seconds)
display off, inverted (enters sleep mode after 60 seconds)
end: exit setup
Teach Selection CH1
Output CH1
Window Size CH1 **
Response Speed CH1 & CH2
Output Timing Delays CH1
Delay Timer CH1 ***
Offset CH1 ****
Display Read CH1 & CH2
Exit Setup
Reset to Factory Defaults CH1 & CH2
Available when
set to
Available when
set to
default setting
Light Operate
Dark Operate
Dual Mode
0.1 cm to 191 cm for 2000 mm models
2 cm to 497 cm for 5000 mm models
Auto
Adaptive Tracking CH1 *
Menu not present when dLY1 is set to off
(ond1 and ofd1 default to 0, dt1 defaults to 10)
Set Value:
off: Adaptive Tracking off
High-Speed Adaptive Tracking on
on: Adaptive Tracking on
Channel 1
Window Size menu is available when Teach CH1 is set to FGS
Adaptive Tracking menu is available when Teach CH1 is set to Dual Mode
Gain and Sensitivity CH1 & CH2
near: set zero displayed value to the housing face
far: set zero displayed value to maximum detection range
Select Zero Reference Location CH1 & CH2
on: move the zero point after each teach
off: zero point is either at the housing face or maximum
detection range
Shift Zero Reference after Teach CH1 & CH2
available when
set to
or
Offset menu is available when Teach CH1 is set to FGS or BGS
2000 mm
-191 cm to 191 cm for 2000 mm models
-497 cm to 497 cm for the 5000 mm models
0.1 to 200 cm (2000 mm); 0.1 to 500 cm (5000 mm);
Sensor controls hysteresis dependent on distance value
-0.1 to -200 cm (2000 mm); -0.1 to -500 cm (5000 mm);
-0.1 to 1000 cm (10000 mm)
Hysteresis CH1
centimeter (with decimal point at < 60 cm)
inch (with decimal point at < 24 inches)
Distance Unit CH1 & CH2
IO-Link on Pin 4, PNP on Pin 2
Fixed PNP on Pins 2, 4
Output Type Polarity
Fixed NPN on Pins 2, 4
dt1 Range: 1 ms to 90 s or 10 ms to 90 s,
depending on response speed setting
Hysteresis menu is available when Teach CH1
is set to Two-Point Static, Dynamic, or BGS
Response Speeds (ms)
5000 and 10000 mm
2000 mm 5000 and 10000 mm
millimeter (only available in 5000 and 10000 mm models)
2 cm to 997 cm for 10000 mm models
-997 cm to 997 cm for the 10000 mm models
0.1 to 1000 cm (10000 mm)
Q5X Laser Measurement Sensor with Dual Discrete Outputs and IO-Link
P/N 208795 Rev. G www.bannerengineering.com - Tel: + 1 888 373 6767 7

Figure 20. Sensor Menu Map—Channel 2
Two-Point Static Teach
Dynamic Teach
Background Suppression
Foreground Suppression
Top Menu Sub Menu
off: no delays enabled
on: enable on and/or off delay (set value in Delay Timer menu)
1 Shot, fixed output pulse duration
Total
end: exit setup
Teach Selection CH2
Output CH2
Window Size CH2 **
Output Timing Delays CH2
Offset CH2 ****
Exit Setup
default setting
Light Operate
Dark Operate
Complimentary to Output 1
Dual Mode
Adaptive Tracking CH2 *
off: Adaptive Tracking off
High-Speed Adaptive Tracking on
on: Adaptive Tracking on
Channel 2
Adaptive Tracking menu is available when Teach CH2 is set to Dual Mode
laser off when pulled high
laser on when pulled high
set: Remote Teach input
master
slave
pulse
0 ms to 90.0 sec range, set Delay Timer value (seconds have decimal)
Menu not present when dLY2 is set to off
(ond2 and oFd2 defaults to 0, dt2 defaults to 10)
Delay Timer CH2 ***
Available when
set to
Available when
set to
available when
set to
or
Menu items only available when
out2 is set to LO or DO
=
Auto
Set Value:
Offset menu is available when Teach CH2 is set to FGS or BGS
-191 to 191 cm (2000 mm models); -497 to 497 cm (5000 mm models);
-997 to 997 cm (10000 mm models)
0.1 to 191 cm (2000 mm models); 2 to 497 cm (5000 mm models);
2 to 997 cm (10000 mm models)
Window Size menu is available when Teach CH2 is set to FGS
Set to 0.1 to 200 cm (2000 mm models); 0.1 to 500 cm (5000 mm models);
0.1 to 1000 cm (10000 mm models)
Sensor controls hysteresis dependent on distance value
Set to -0.1 to -200 cm (2000 mm models); -0.1 to -500 cm (5000 mm models);
-0.1 to 1000 cm (10000 mm models)
Hysteresis CH2
dt1 range: 1 ms to 90 s or 10 ms to 90 s, depending on response speed setting
Hysteresis menu is available when Teach CH2 is set to Two-Point Static, Dynamic, or BGS
Q5X Laser Measurement Sensor with Dual Discrete Outputs and IO-Link
8 www.bannerengineering.com - Tel: + 1 888 373 6767 P/N 208795 Rev. G

Basic TEACH Instructions
Use the following instructions to teach the Q5X sensor. The instructions provided on the sensor display vary depending on the type
of TEACH mode selected. Two-point TEACH is the default TEACH mode.
1. Press and hold TEACH for longer than 2 seconds to start the selected TEACH mode.
2. Present the target.
3. Press TEACH to teach the target. The target is taught and the sensor waits for the second target, if required by the selected
TEACH mode, or returns to Run mode.
4. Complete these steps only if it is required for the selected TEACH mode.
a) Present the second target.
b) Press TEACH to teach the target. The target is taught and the sensor returns to Run mode.
See the Instruction Manual for detailed instructions and other available TEACH modes. The TEACH modes include:
• Two-point static background suppression —Two-point TEACH sets a single switch point. The sensor sets the switch
point between two taught target distances, relative to the shifted origin location.
• Dynamic background suppression —Dynamic TEACH sets a single switch point during machine run conditions. The
sensor takes multiple samples and the switch point is set between the minimum and the maximum sampled distances.
• One-point window (foreground suppression) —One-point window sets a window (two switch points) centered around
the taught target distance.
• One-point background suppression —One-point background suppression sets a single switch point in front of the
taught target distance. Objects beyond the taught switch point are ignored.
• Dual intensity + distance —Dual mode records the distance and amount of light received from the reference surface.
See Dual Mode Reference Surface Considerations on page 14 for more information about selecting a reference surface.
The output switches when an object passing between the sensor and the reference surface changes the perceived distance
or amount of returned light.
Manual Adjustments
Manually adjust the sensor switch point using the and buttons.
1. From Run mode, press either or one time. The selected channel displays briefly, then the current switch point value
flashes slowly.
2. Press to move the switch point up or to move the switch point down. After 1 second of inactivity, the new switch
point value flashes rapidly, the new setting is accepted, and the sensor returns to Run mode.
Note: When FGS mode is selected (FGS indicator is on), manual adjustment moves both sides of the
symmetrical threshold window simultaneously, expanding and collapsing the window size. Manual adjustment
does not move the center point of the window.
Note: When dual mode is selected (DYN, FGS, and BGS indicators are on), after the TEACH process is
completed, use the manual adjustment to adjust the sensitivity of the thresholds around the taught reference
point. The taught reference point is a combination of the measured distance and returned signal intensity from
the reference target. Manual adjustment does not move the taught reference point, but pressing increases
the sensitivity, and pressing decreases the sensitivity. When re-positioning the sensor or changing the
reference target, re-teach the sensor.
Locking and Unlocking the Sensor Buttons
Use the lock and unlock feature to prevent unauthorized or accidental programming changes.
Three settings are available:
• —The sensor is unlocked and all settings can be modified (default).
•— The sensor is locked and no changes can be made.
• —The switch point value can be changed by teaching or manual adjustment, but no sensor settings can be changed
through the menu.
Note: When the sensor is in either or mode, the active channel can be changed using (+)(CH1/
CH2).
When in mode, displays when the (SELECT)(TEACH) button is pressed. The switch point displays when (+)(CH1/
CH2) or (-)(MODE) are pressed, but displays if the buttons are pressed and held.
Q5X Laser Measurement Sensor with Dual Discrete Outputs and IO-Link
P/N 208795 Rev. G www.bannerengineering.com - Tel: + 1 888 373 6767 9

When in mode, displays when (-)(MODE) is pressed and held. To access the manual adjust options, briefly press
and release (+)(CH1/CH2) or (-)(MODE). To enter TEACH mode, press the (SELECT)(TEACH) button and hold for longer than 2
seconds.
To enter mode, hold and press four times. To enter mode, hold and press seven times. Holding
and pressing four times unlocks the sensor from either lock mode and the sensor displays .
Specifications
Sensing Beam
Visible red Class 2 laser models, 650 nm
Supply Voltage (Vcc)
10 to 30 V DC (Class 2 supply) (10% max ripple within limits)
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Power and Current Consumption, exclusive of load
2000 mm model: < 1 W
5000 mm model: < 1.4 W
Sensing Range
2000 mm model: 95 mm to 2000 mm (3.74 in to 78.74 in)
5000 mm model: 50 mm to 5000 mm (2 in to 16.4 ft)
10000 mm model: 50 to 10000 mm (2 in to 32.8 ft)
Output Configuration
Channel 1: IO-Link, Push/pull output, configurable PNP or NPN output
Channel 2: Multi-function remote input/output, configurable PNP or NPN, or
pulse frequency modulated output
Construction
Housing: ABS
Lens cover: PMMA acrylic
Lightpipe: polycarbonate
Connector
Integral 4-pin M12 male quick-disconnect connector
Boresighting
2000 mm model: ± 43 mm at 2000 mm
5000 mm model: ± 86 mm at 5000 mm
10000 mm model: ± 172 mm at 10000 mm
Response Speed
2000 mm model: User selectable 3, 5, 15, 25, or 50 ms
5000 mm model: User selectable 2, 5, 15, 50, or 250 ms
10000 mm model: User selectable 2, 5, 15, 50, or 250 ms
Delay at Power Up
< 2.5 s
Maximum Torque
Side mounting: 1 N·m (9 in·lbs)
Ambient Light Immunity
2000 mm model:
5000 lux at 1 m
2000 lux at 2 m
5000 and 10000 mm models: 5000 lux
Temperature Effect (Typical) for 2000 mm Models
< 0.5 mm/°C at < 500 mm
< 1.0 mm/°C at < 1000 mm
< 2.0 mm/°C at < 2000 mm
Temperature Effect (Typical) for 5000 and 10000 mm Models
< 0.5mm/°C for up to 3000 mm
< 0.75mm/°C for up to 5000 mm
< 2.0 mm/C for up to 7500 mm
< 6.0 mm/C for up to 10000 mm
Remote Input
Allowable Input Voltage Range: 0 to Vsupply
Active High (internal weak pull-down): High state > (Vsupply – 2.25 V) at 2
mA maximum
Active Low (internal weak pull-up): Low state < 2.25 V at 2 mA maximum
IO-Link Interface
IO Link Revision V1.1
Smart Sensor Profile: Yes
Baud Rate: 38400 bps
Process Data In Length: 32 bits
Process Data Out Length: 8 bits
Minimum Cycle Time: 3.6 ms
IODD files: Provides all programming options of the display, plus additional
functionality.
Application Note
For optimum performance, allow 10 minutes for the sensor to warm up for
the 2000 mm models and 20 minutes for the 5000 and 10000 mm models.
Environmental Rating
IP67 per IEC60529
Vibration
MIL-STD-202G, Method 201A (Vibration: 10 Hz to 55 Hz, 0.06 inch (1.52
mm) double amplitude, 2 hours each along X, Y and Z axes), with device
operating
Shock
MIL-STD-202G, Method 213B, Condition I (100G 6x along X, Y, and Z axes,
18 shocks), with device operating
Operating Conditions
–10 °C to +50 °C (+14 °F to +122 °F)
35% to 95% relative humidity
Storage Temperature
–25 °C to +70 °C (–13 °F to +158 °F)
Advanced Capabilities
Q5X Laser Measurement Sensor with Dual Discrete Outputs and IO-Link
10 www.bannerengineering.com - Tel: + 1 888 373 6767 P/N 208795 Rev. G

Output Rating
Current rating: 50 mA maximum
Black wire specifications per configuration
IO-Link Push/Pull Output High: ≥ Vsupply - 2.5 V
Output Low: ≤ 2.5 V
PNP Output High: ≥ Vsupply - 2.5 V
Output Low: ≤ 1V (loads ≤ 1 MegΩ)
NPN Output High: ≥ Vsupply - 2.5 V (loads ≤ 50 kΩ)
Output Low: ≤ 2.5 V
White wire specifications per configuration
PNP Output High: ≥ Vsupply - 2.5 V
Output Low: ≤ 2.5 V (loads ≤ 70 kΩ)
NPN Output High: ≥ Vsupply - 2.5 V (loads ≤ 70 kΩ)
Output Low: ≤ 2.5 V
Typical Excess Gain for the 2000 mm Model
Table 2: High Excess Gain (Standard Excess Gain) Using a 90% White Card
Response Speed (ms) at 100 mm at 500 mm at 1000 mm at 2000 mm
3 125 50 15 4
5 125 50 15 4
15 575 (175) 250 (75) 70 (25) 15 (6)
25 1000 (650) 450 (250) 125 (70) 30 (15)
50 2000 (1000) 900 (450) 250 (125) 60 (30)
Standard excess gain available in 15, 25, and 50 ms response speeds; standard excess gain provides increase noise immunity.
Typical Excess Gain for the 5000 mm Model
Table 3: Typical Excess Gain Using a 90% White Card
Gain Modes at 50 mm at 600 mm at 1000 mm at 2000 mm at 5000 mm
Performance (Default) 50 400 400 175 30
Excess gain is consistent for 15, 50, and 250 ms response speeds. Excess gain is approximately 10% lower in 2 ms and 5 ms response speed modes.
Excess gain in black gain mode is approximately three times higher than in performance gain mode. It is useful for low reflectivity targets.
Excess gain in shiny gain mode is approximately one third the excess gain of performance gain mode values. It is useful for highly reflective targets.
Typical Excess Gain for the 10000 mm Model
Table 4: Typical Excess Gain Using a 90% White Card
Gain Modes at 50 mm at 600 mm at 1000 mm at 2000 mm at 5000 mm at 6000 mm at 7500 mm at 10000 mm
Performance
(Default)
50 400 400 175 30 20 10 5
Excess gain is consistent for 15, 50, and 250 ms response speeds. Excess gain is approximately 10% lower in 2 ms and 5 ms response speed modes.
Excess gain in black gain mode is approximately three times higher than in performance gain mode. It is useful for low reflectivity targets.
Excess gain in shiny gain mode is approximately one third the excess gain of performance gain mode values. It is useful for highly reflective targets.

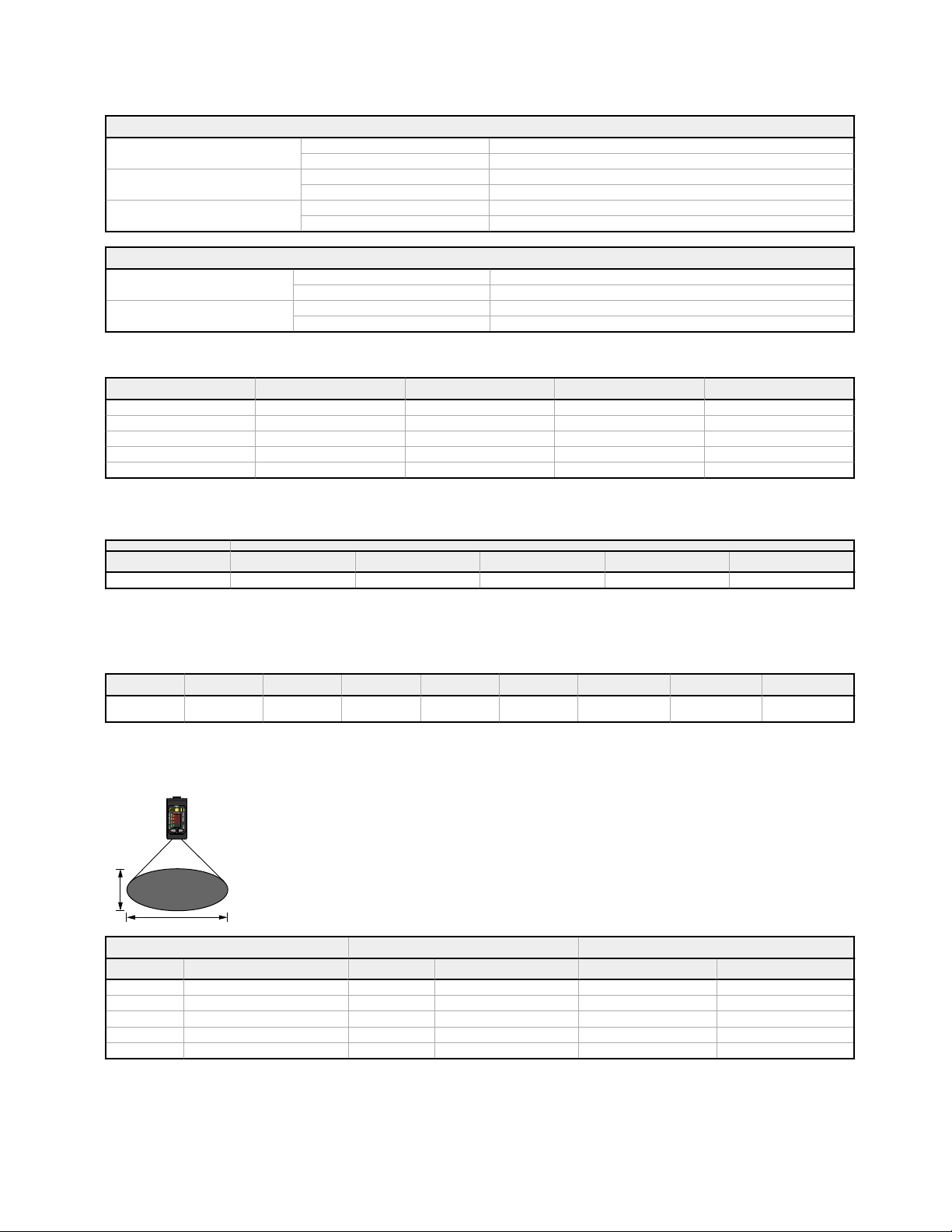

Beam Spot Size
x
yBeam
Spot
Pattern
2000 mm Models 5000 mm Models 10000 mm Models
Distance (mm) Size (x × y) (mm) Distance (mm) Size (x × y) (mm) Distance (mm) Size (x × y) (mm)
100 2.6 × 1.5 100 6 × 4 100 7 × 6
1000 4.2 × 2.5 2500 11 ×7 2500 16 × 11
2000 6 × 3.6 5000 15 × 11 5000 25 × 19
7500 32 × 25
10000 41 × 31
Beam spot size is calculated as 1.6 times the D4σ measured value
Q5X Laser Measurement Sensor with Dual Discrete Outputs and IO-Link
P/N 208795 Rev. G www.bannerengineering.com - Tel: + 1 888 373 6767 11

Discrete Output Distance Repeatability
Distance (mm) Repeatability (2000 mm Models)
95 to 300 ± 0.5 mm
300 to 1000 ± 0.25%
1000 to 2000 ± 0.5%
See the charts for the Repeatability of the 5000 mm and 10000 mm models.
Certifications
Banner Engineering BV
Park Lane, Culliganlaan 2F
bus 3, 1831 Diegem,
BELGIUM
Turck Banner LTD
Blenheim House, Blenheim
Court, Wickford, Essex
SS11 8YT, Great Britain
Industrial
Control
Equipment
3TJJ
Class 2 power
UL Environmental
Rating: Type 1
Required Overcurrent Protection
WARNING: Electrical connections must be made by qualified personnel in accordance with local and national electrical codes and
regulations.
Overcurrent protection is required to be provided by end product application per the supplied table.
Overcurrent protection may be provided with external fusing or via Current Limiting, Class 2 Power Supply.
Supply wiring leads < 24 AWG shall not be spliced.
For additional product support, go to www.bannerengineering.com.
Supply Wiring (AWG) Required Overcurrent Protection (Amps)
20 5.0
22 3.0
24 2.0
26 1.0
28 0.8
30 0.5
Performance Curves

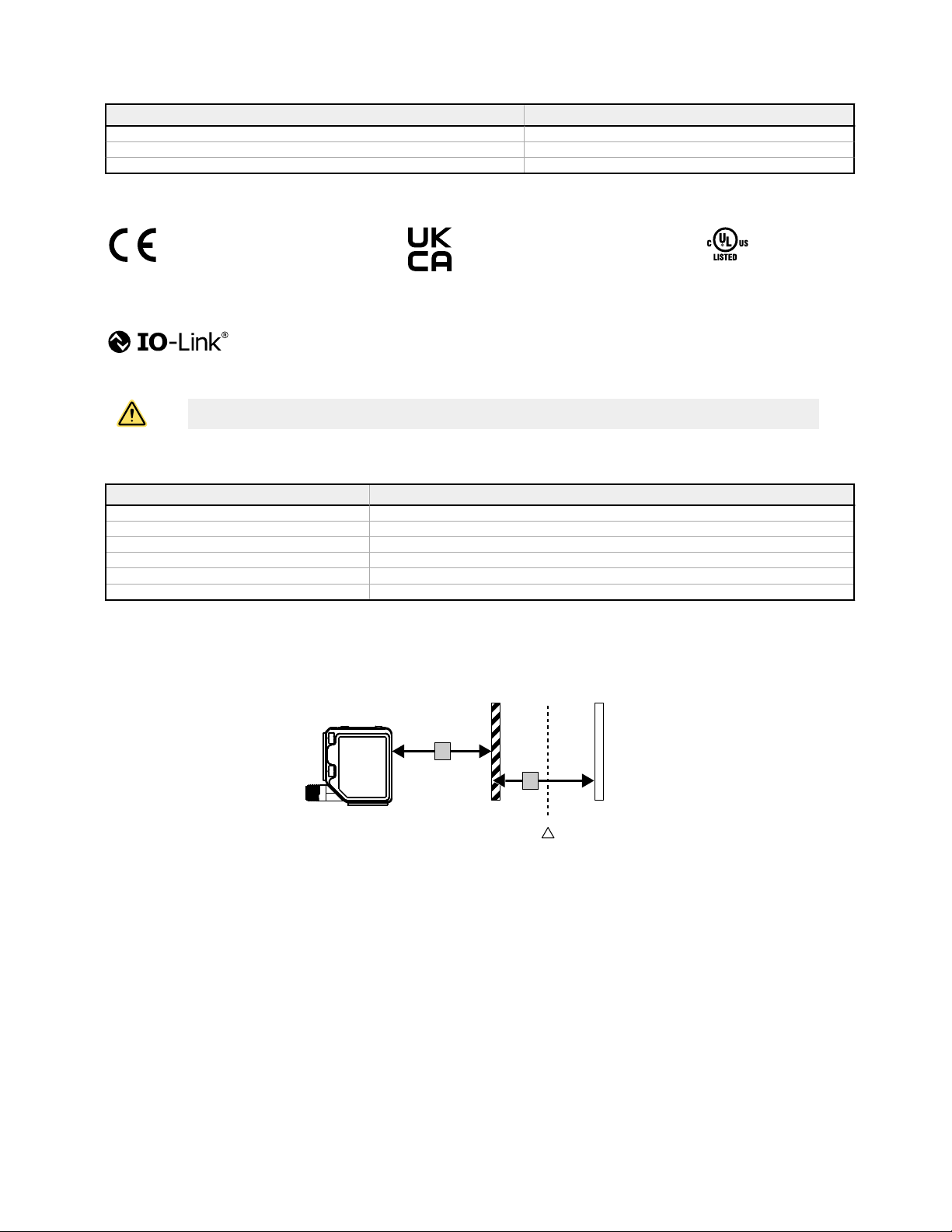

Figure 21. Minimum object separation distance (90% to 6% reflectance) for the 2000 mm models
Target
Switch Point
Distance
Background
X
Y
Q5X Laser Measurement Sensor with Dual Discrete Outputs and IO-Link
12 www.bannerengineering.com - Tel: + 1 888 373 6767 P/N 208795 Rev. G

Figure 22. Typical performance curves for the 2000 mm models
Minimum Separation Target to Background (mm)
Dimension Y
Distance to Target (mm)
Dimension X
0
10
20
30
40
50
60
70
80
0200 400 600 800 1000 1200 1400 1600 1800 2000
Matte targets with uniform
reflectivity: 6% to 90%
Matte targets with a non-uniform
reflectivity: 6% to 90%
Table 5: Typical performance curves for the 5000 mm models
Minimum Object Separation Repeatability
Figure 23. Minimum Object Separation for 50 ms Response Time
Target to Background (mm)
(Dimension Y)
0
0
Distance to Target (mm)
(Dimension X)
Minimum Object Separation
1000 2000 3000 4000 5000
20
40
60
80
100
6% black/90% white
90% white/90% white
Figure 24. Repeatability for 50 ms Response Time
Repeatability (50 ms)
01000 2000 3000 4000 5000
0
Distance to Target (mm)
(Dimension X)
2
4
6
8
10
12
14
1σ Repeatability in mm (inch)
6% black
18% Gray
90% white
Q5X Laser Measurement Sensor with Dual Discrete Outputs and IO-Link
P/N 208795 Rev. G www.bannerengineering.com - Tel: + 1 888 373 6767 13

Table 6: Typical performance curves for the 10000 mm models
Minimum Object Separation Repeatability
Figure 25. Minimum Object Separation for 50 ms Response Time
Minimum Object Separation (50 ms)
Distance to Target (mm)
(Dimension X)
Target to Background (mm)
(Dimension Y)
90% white/90% white
6% black/90% white
01000 2000 3000 4000 5000 6000 7000 8000 9000 10 000
0
20
40
60
80
100
120
140
180
160
Figure 26. Repeatability for 50 ms Response Time
Repeatability (50ms)
90% White
18% Gray
6% Black
Distance to Target (mm)
(Dimension X)
1σ Repeatability in mm
01000 2000 3000 4000 5000 6000 7000 8000 9000 10 000
0
5
10
15
20
25
30
Dual Mode Reference Surface Considerations
Optimize reliable detection by applying these principles when selecting your reference surface, positioning your sensor relative to the
reference surface, and presenting your target.
The robust detection capabilities of the Q5X allows successful detection even under non-ideal conditions in many cases. Typical
reference surfaces are metal machine frames, conveyor side rails, or mounted plastic targets. Contact Banner Engineering if you
require assistance setting up a stable reference surface in your application.
For detailed instructions for detecting clear or transparent objects, refer to the Instruction Manual, p/n 208794.
1. Select a reference surface with these characteristics where possible:
• Matte or diffuse surface finish
• Fixed surface with no vibration
• Dry surface with no build-up of oil, water, or dust
2. Position the reference surface between 200 mm (20 cm) and the maximum sensing range.
3. Position the target to be detected as close to the sensor as possible, and as far away from the reference surface as
possible.
4. Angle the sensing beam relative to the target and relative to the reference surface 10 degrees or more.
Banner Engineering Corp. Limited Warranty
Banner Engineering Corp. warrants its products to be free from defects in material and workmanship for one year following the date of shipment. Banner Engineering Corp. will repair or
replace, free of charge, any product of its manufacture which, at the time it is returned to the factory, is found to have been defective during the warranty period. This warranty does not
cover damage or liability for misuse, abuse, or the improper application or installation of the Banner product.
THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES WHETHER EXPRESS OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE), AND WHETHER ARISING UNDER COURSE OF PERFORMANCE, COURSE OF DEALING OR
TRADE USAGE.
This Warranty is exclusive and limited to repair or, at the discretion of Banner Engineering Corp., replacement. IN NO EVENT SHALL BANNER ENGINEERING CORP. BE LIABLE TO
BUYER OR ANY OTHER PERSON OR ENTITY FOR ANY EXTRA COSTS, EXPENSES, LOSSES, LOSS OF PROFITS, OR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL
DAMAGES RESULTING FROM ANY PRODUCT DEFECT OR FROM THE USE OR INABILITY TO USE THE PRODUCT, WHETHER ARISING IN CONTRACT OR WARRANTY,
STATUTE, TORT, STRICT LIABILITY, NEGLIGENCE, OR OTHERWISE.
Banner Engineering Corp. reserves the right to change, modify or improve the design of the product without assuming any obligations or liabilities relating to any product previously
manufactured by Banner Engineering Corp. Any misuse, abuse, or improper application or installation of this product or use of the product for personal protection applications when the
product is identified as not intended for such purposes will void the product warranty. Any modifications to this product without prior express approval by Banner Engineering Corp will void
the product warranties. All specifications published in this document are subject to change; Banner reserves the right to modify product specifications or update documentation at any time.
Specifications and product information in English supersede that which is provided in any other language. For the most recent version of any documentation, refer to:
www.bannerengineering.com.
For patent information, see www.bannerengineering.com/patents.
Q5X Laser Measurement Sensor with Dual Discrete Outputs and IO-Link
© Banner Engineering Corp. All rights reserved
