Barco Cine VERSUM 50 User manual

BARCOPROJECTION
CINE VERSUM SYSTEM
R9001870
R9005010
R9841020
OWNER’S MANUAL
06092002 R5976490/00

Barco nv Home Theatre
Noordlaan 5, B-8520 Kuurne
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
Visit us at the web: www.barco.com
Printed in India

Copyright ©
All rights reserved. No part of this document may be copied, reproduced or translated. It shall not otherwise be recorded, transmitted or
stored in a retrieval system without the prior written consent of BARCO.
Changes
Barco provides this manual “as is” without warranty of any kind, either expressed or implied, including but not limited to the implied war-
ranties or merchantability and fitness for a particular purpose. Barco may make improvements and/or changes to the product(s) and/or the
program(s) described in this publication at any time without notice.
This publication could contain technical inaccuracies or typographical errors. Changes are periodically made to the information in this
publication; these changes are incorporated in new editions of this publication.
Trademarks
Brand and product names mentioned in this manual may be trademarks, registered trademarks or copyrights of their respective holders.
All brand and product names mentioned in this manual serve as comments or examples and are not to be understood as advertising for
the products or their manufactures.
Federal Communication Commission (FCC Statement)
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user is encouraged to try to correct the interference by one or more of the following measures.
Introduction to the user :
If this equipment does cause interference to radio or television reception, the user may try to correct the interference by one or more of the
following measures :
• Re-orientation of the receiving antenna for the radio or television.
• Relocate the equipment with respect to the receiver.
• Plug the equipment into a different outlet so that the equipment and receiver are on different branch circuits.
• Fasten cables connectors to the equipment by mounting screws.
The use of shielded cables is required to comply within the limits of Part 15 of FCC rules and EN55022.
Guarantee and Compensation
Barco provides a guarantee relating to perfect manufacturing as part ofthe legally stipulated terms of guarantee. On receipt, the purchaser
must immediately inspect all delivered goods for damage incurred during transport, as well as for material and manufacturing faults Barco
must be informed immediately in writing of any complaints.
The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the date of commissioning,
at latest 30 days after the transfer of risks. In the event of justified notice of compliant, Barco can repair the fault or provide a replacement
at its own discretion within an appropriate period. If this measure proves to be impossible or unsuccessful, the purchaser can demand a
reduction in the purchase price or cancellation of the contract. All other claims, in particular those relating to compensation for direct or
indirect damage, and also damage attributed to the operation of software as well as to other services provided by Barco, being a component
of the system or independent service, will be deemed invalid provided the damage is not proven to be attributed to the absence of properties
guaranteed in writing or due to the intent or gross negligence or part of Barco.
If the purchaser or a third party carries out modifications or repairs on good delivered by Barco, or if the goods are handled incorrectly,
in particular if the systems are commissioned operated incorrectly or if, after the transfer of risks, the goods are subject to influences not
agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid. Not included in the guarantee coverage are
system failures which are attributed to programs or special electronic circuitry provided by the purchaser, e.g. interfaces. Normal wear as
well as normal maintenance are not subject to the guarantee provided by Barco either.
The environmental conditions as well as the servicing and maintenance regulations specified in the this manual must be complied with by
the customer.

Revision Sheet
To:
Barco nv Home Theatre/Documentation
Noordlaan 5, B-8520 Kuurne
Phone: [phone], Fax: [phone]
E-mail: [email protected], Web: www.barco.com
From:
Date:
Please correct the following points in this documentation (R5976490/00):
page wrong correct
R5976490 CINE VERSUM SYSTEM 06092002

Table of contents
TABLE OF CONTENTS
1. SAFETYINSTRUCTIONS...........................................................................................3
1.1 General Safety Instructions............................................................................................................. 3
1.2 Module Related Safety Instructions .................................................................................................... 3
1.2.1 CineVERSUM50................................................................................................................ 3
1.2.2 CineVERSUM80................................................................................................................ 4
1.2.3 CineVERSUMMaster ...........................................................................................................4
2. SYSTEM CONFIGURATIONS......................................................................................5
2.1 Video DistributionSystem .............................................................................................................. 5
2.2 SystemConfigurations.................................................................................................................. 5
3. OVERVIEW USER’s CONTROLS.................................................................................. 9
3.1 OnCineVERSUMMaster.............................................................................................................. 9
3.2 OnCineVERSUM50................................................................................................................... 9
3.3 OnCineVERSUM80..................................................................................................................10
3.4 OnInfraRedRemoteControl..........................................................................................................11
4. OPERATINGTHEREMOTECONTROL.........................................................................15
4.1 Battery Insertion in the Remote Control...............................................................................................15
4.2 Operating the Remote Control.........................................................................................................16
4.3 Visualization of commands ............................................................................................................17
5. SWITCHING ON/OFFTHECINEVERSUM SYSTEM..........................................................19
5.1 SwitchingOntheCineVERSUMSystem.............................................................................................20
5.1.1 SwitchingOntheSystem .......................................................................................................20
5.2 SwitchingOfftheCineVERSUMSystem.............................................................................................21
5.2.1 SwitchingOffthesystem........................................................................................................22
5.2.2 SwitchingDiagram ..............................................................................................................22
6. IMAGE DISPLAY ON/OFF .........................................................................................25
6.1 Starting Image display (from standby mode)..........................................................................................25
6.2 Interruption Image Display (to standby mode) ........................................................................................25
7. IMAGECONTROL..................................................................................................27
7.1 BrightnessControl.....................................................................................................................27
7.2 ContrastControl........................................................................................................................27
7.3 Sharpness (Detail) Control ............................................................................................................28
7.4 Color(Saturation)Control .............................................................................................................29
7.5 Tintcontrol .............................................................................................................................30
Index......................................................................................................................31
R5976490 CINE VERSUM SYSTEM 06092002 1

Table of contents
2R5976490 CINE VERSUM SYSTEM 06092002

1. SAFETY INSTRUCTIONS
1. SAFETY INSTRUCTIONS
Overview
• General Safety Instructions
• Module Related Safety Instructions
This manual is intended for the user/operator of the installed digital video distribution system. Any change
in cabling or servicing of the installed modules must be performed by service personnel having appropriate
technical training and experience necessary to be knowledgeable of potential hazards to which they are ex-
posed in performing a task, and of measures to minimize the potential risk to themselves or other persons.
1.1 General Safety Instructions
Lightning
For added protection for this video distribution system during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the power cord. This will prevent damage to the modules due to a
lightning and power-line surges.
Object and Liquid Entry
Never push objects of any kind into the modules through openings as they may touch dangerous voltage points or short-out parts
that could result in a fire or electrical shock. Never spill liquid of any kind on the product.
Servicing
Do not attempt to service the modules yourself as opening or removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
Damage Requiring Servicing
Unplug the modules from the wall outlet and refer servicing to qualified service personnel under the following circumstances:
• If the power-supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the modules.
• If the module has been exposed to rain of water.
• If the product exhibits a distinct change in performance, this indicates a need for service.
1.2 Module Related Safety Instructions
Overview
• Cine VERSUM 50
• Cine VERSUM 80
• Cine VERSUM Master
1.2.1 Cine VERSUM 50
Lightning conditions
In extremely bright surroundings, adjusting the screen intensity may not result in perceptibly brightener images. Keep in mind that
extreme intensity settings can reduce system service life.
Prevent condensation
One of the chief sources of problems during winter is ’condensation’. Rapid temperature fluctuations can deposit water vapor inside
the unit or on the screen, degrading performance. If condensation occurs, turn the unit off and leave it off for an hour or so. It is also
good practice to increase the room temperature gradually.
R5976490 CINE VERSUM SYSTEM 06092002 3

1. SAFETY INSTRUCTIONS
1.2.2 Cine VERSUM 80
On cooling
The cooling fan in this projector continues to run for about 1 min. after the projector is turned off. During normal operation, when
turning the power off always use the power down function on the Master or the remote control. Ensure the cooling fan has stopped
before switching off the projector using the power switch.
DURING NORMAL OPERATION, NEVER TURN THE PROJECTOR OFF BY DISCONNECTION THE POWER CORD. FAILURE
TO OBSERVE THIS WILL RESULT IN PREMATURE LAMP FAILURE;
Slots and Openings
Slots and openings in the cabinet and the sides are provided for ventilation; to ensure reliable operation of the projector and to
protect it from overheating, these openings must not be blocked or covered.
Protection from Ultraviolet Radiation
WARNING: DO NOT LOOK DIRECTLY IN THE HIGH INTENSITY LIGHT BEAM. The lamp contained in this product is an intense
source of light and heat. One component of the light emitted from the lamp is ultraviolet light.
1.2.3 Cine VERSUM Master
Unit damage
If the air filter is not regularly cleaned or replaced, the air flow inside the unit could be disrupted, causing overheating. Overheating
may lead to the master shutting down during operation.
4R5976490 CINE VERSUM SYSTEM 06092002

2. SYSTEM CONFIGURATIONS
2. SYSTEM CONFIGURATIONS
Overview
• Video Distribution System
• System Configurations
2.1 Video Distribution System
Concept
The Cine VERSUM is from a concept of view a true digital video distribution system to which at present one or more 50” Plasma
screens –Cine VERSUM 50– and one or more single chip DLPTM projectors based on the HD1 chip –Cine VERSUM 50– can be
connected or chained.
The heart ofthe system is a fully digital video signal switcher/signal processor called Cine VERSUM Master, which is entirely modular.
It can be equipped with up to 8 digital and analog input modules.
Another mayor benefit of the Master is that all input processing –scaling and switching– is done as close as possible to the sources,
from then on the entire system is digital, which results in optimal reproduction at all time.
Image 2-1
ACineVERSUM50
BCineVERSUM80
CCineVERSUMMaster
2.2 System Configurations

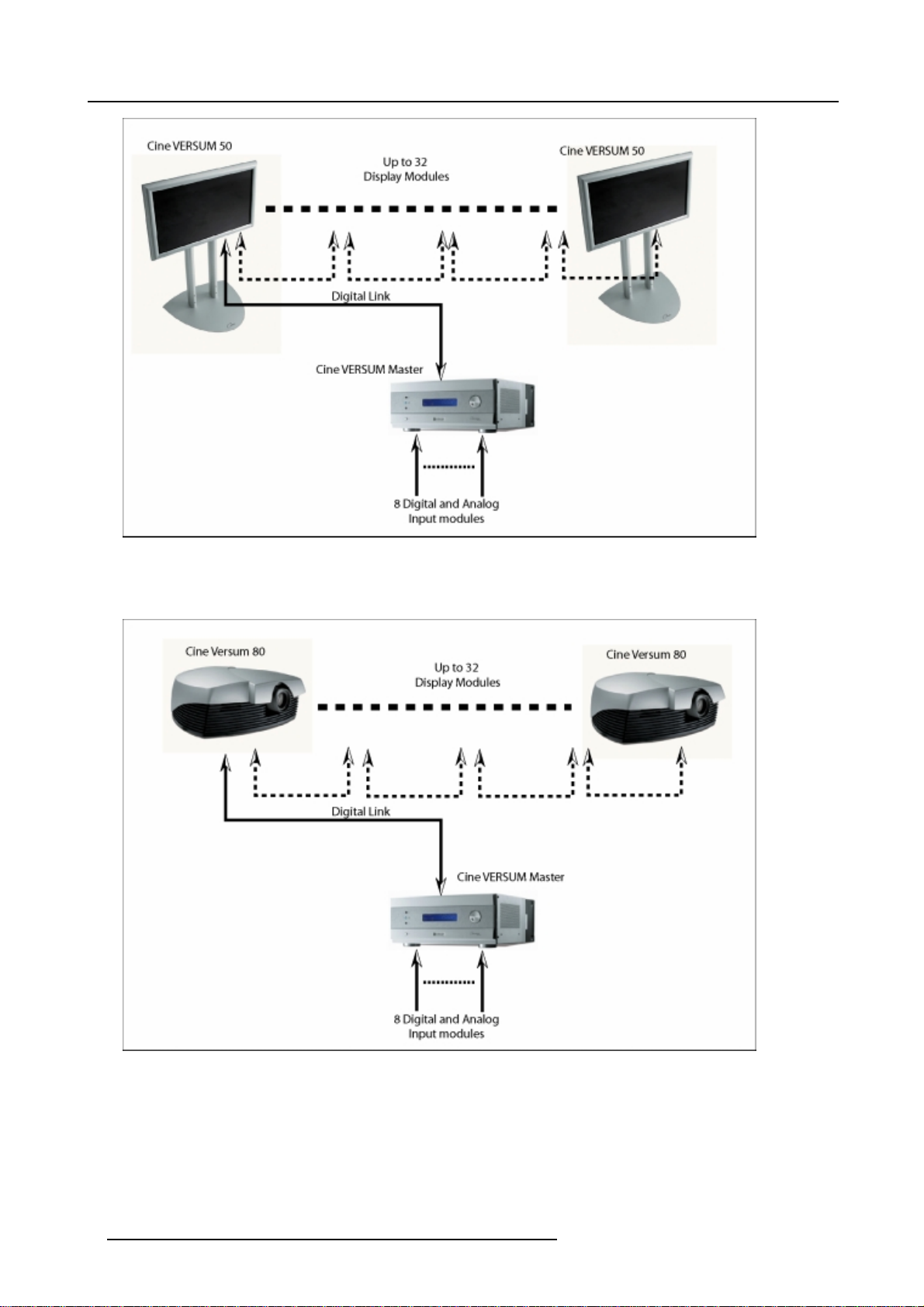

Cine VERSUM Master linked to one or more Cine VERSUM 50
The illustration below shows a configuration of the Cine VERSUM Master linked to one or more chained Cine VERSUM 50
R5976490 CINE VERSUM SYSTEM 06092002 5

2. SYSTEM CONFIGURATIONS
Image 2-2
Cine VERSUM Master linked to one or more Cine VERSUM 80
The illustration below shows a configuration of the Cine VERSUM Master linked to one or more chained Cine VERSUM 80
Image 2-3

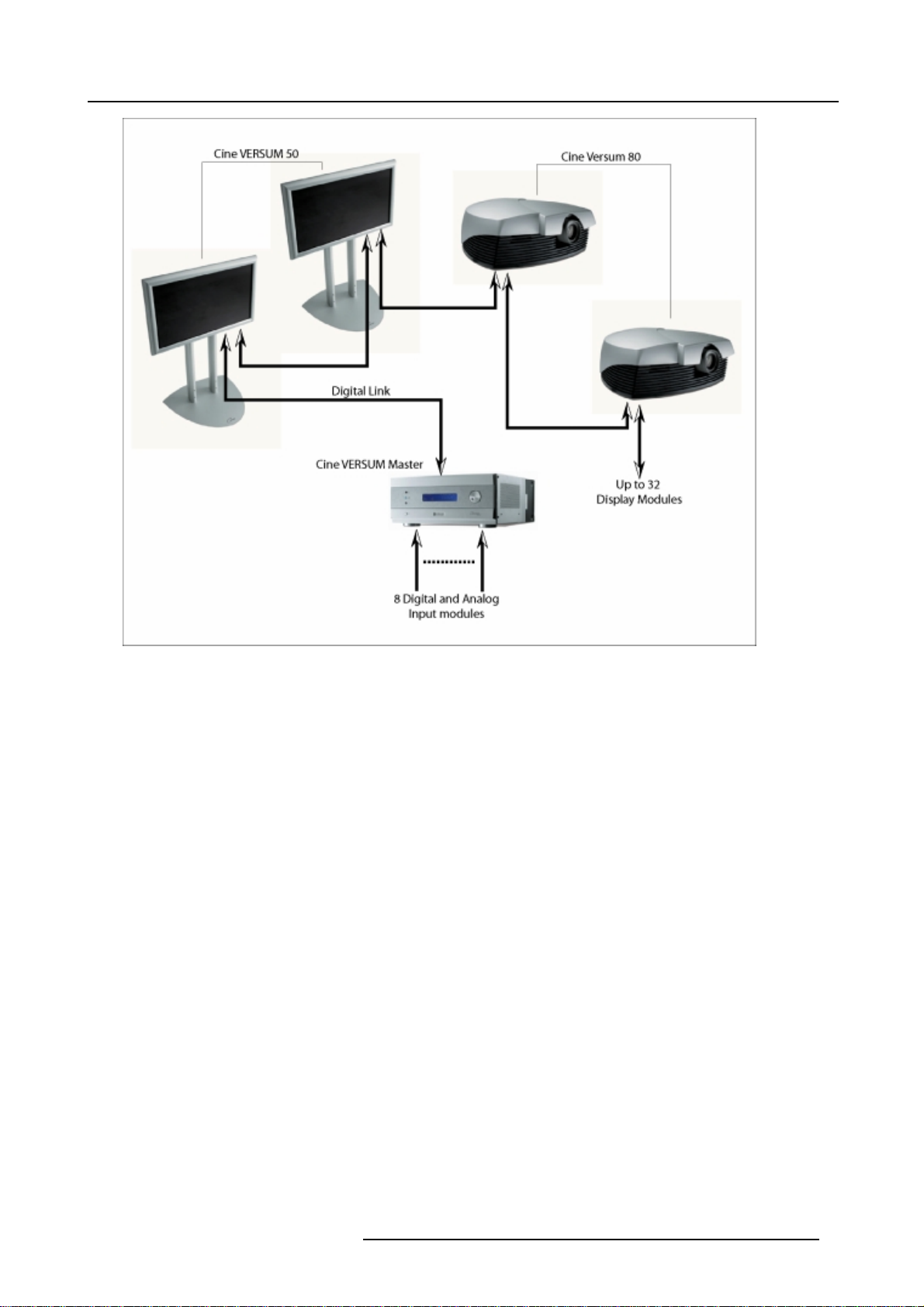

Cine VERSUM Master linked to a mixture of Cine VERSUM 50 and Cine VERSUM 80
The illustration below shows a configuration of the Cine VERSUM Master linked to a mixture of chained Cine VERSUM 50 and Cine
VERSUM 80.
6R5976490 CINE VERSUM SYSTEM 06092002

2. SYSTEM CONFIGURATIONS
Image 2-4
R5976490 CINE VERSUM SYSTEM 06092002 7

2. SYSTEM CONFIGURATIONS
8R5976490 CINE VERSUM SYSTEM 06092002

3. OVERVIEW USER’s CONTROLS
3. OVERVIEW USER’S CONTROLS
Overview
• OnCineVERSUMMaster
•OnCineVERSUM50
•OnCineVERSUM80
• On InfraRed Remote Control
3.1 On Cine VERSUM Master
Front View
The front side of theCine VERSUM Master is provided with the following controls:
Image 3-1
Front side Cine VERSUM Master
Controls function description
Ref. Function Description
1Infra Red Reception LED indicator Lights up when a valid IR signal from the Remote Control has been
captured.
2Infra Red Receiver Infra Red reception diode for the IR signals from the IR transmitter
3Standby LED Blinks when the Cine VERSUM Master has been powered down to
Standby or Economy Standby mode.
4Push button main power switch Button pressed, switches the Cine VERSUM Master in:
• the ’powered up’ mode if the latest Master status was’Operation
mode’.
• the ’standby’ mode if the latest Master status was ’standby’ or
’Economy standby’ mode.
5Blue Dot Matrix display with white LED
backlighting This display indicates the status of the Cine VERSUM Master and also the items when navigating through the different menu’s.
6Start up and Random access adjustment
mode selection knob All source parameters and picture tuning are setup in the adjustment mode.
Table 3-1
3.2 On Cine VERSUM 50
Rear and Front view
The only hardware control on the Cine VERSUM 50 is the Main Power Switch (1), located at the backside of the screen itself.
This switch puts the Screen in the OFF or Standby position. From the Standby position, operation mode is controlled by the Cine
VERSUM Master.
The status of the Plasma screen is indicated by a blue LED (3), located at the bottom on the right of the screen. In the same corner
an IR LED (2) is mounted to allow controlling the Cine VERSUM system via the screen.
R5976490 CINE VERSUM SYSTEM 06092002 9

3. OVERVIEW USER’s CONTROLS
Image 3-2
Cine VERSUM 50 controls
Controls function description
Ref. Function Description
1Main Power Switch Switches the Cine VERSUM 50 in the Standby mode. Operation mode is controlled
by the Cine VERSUM Master.
2Infra Red Receiver Infra Red reception diode for the IR signals from the IR transmitter to control the
Cine VERSUM Master.
3Standby LED Indicates the status of the Cine VERSUM 50, lights up in standby and operation
mode.
Table 3-2
3.3 On Cine VERSUM 80
Top View
The top side of the Cine VERSUM 80 is provided with the following controls:
Image 3-3
Cine VERSUM 80 controls
Controls function description
Ref. Function Description
1Infra Red Receiver Infra Red reception diode for the IR signals from the IR transmitter. Allows
switching On/Off (Standby) of the projector separately and controlling
theCineVERSUMMaster.
2Infra Red Reception LED indicator Lights up when a valid IR signal from the Remote Control has been
captured.
10 R5976490 CINE VERSUM SYSTEM 06092002

3. OVERVIEW USER’s CONTROLS
Ref. Function Description
3Standby LED Lights up continuously: projector in the operation mode.
Lights up repeatedly 2 times short, 1 time long: projector in the standby
mode
Blinks fast: projector in the cooling down mode after switching off
(duration 1 min.).
Lights up repeatedly 1 time long, 1 time short: projector has been started
up in the cooling down mode, waiting for lamp ignition.
4Push button main power switch Button pressed, switches the projector in the ’Economy standby’ mode.
This mode is indicated by the standby LED which lights up repeatedly
2 times short, 1 time long.
Table 3-3
3.4 On InfraRed Remote Control
Top side
The InfraRed Remote Control buttons support the following functionality:
R5976490 CINE VERSUM SYSTEM 06092002 11

3. OVERVIEW USER’s CONTROLS
Image 3-4
InfraRed Remote Control
Controls function description
Ref. Function Description
1Address button To match the address of the RCU with the Cine VERSUM Master(number between
0 and 9).
2Standby button To power up/down the Cine VERSUM Master and separately the displays in the link.
3Digit buttons Allow direct input selection and address setting
4RC operation indication Lights up when a button on the remote control is pressed (Visual indication of remote
control operation – Battery check).
5TEXT Press to remove barscale display when adjusting picture (Handy when adjusting
picture during a meeting). Press button again for re-activation.
6FREEZE Press to freeze the image
7Picture controls Allow to optimize the picture reproduction
Table 3-4
12 R5976490 CINE VERSUM SYSTEM 06092002

3. OVERVIEW USER’s CONTROLS
Stored sources
The fully digital video signal switcher/processor, called Cine VERSUM Master, can be equipped with up to 8 digital and analog input
modules, remote accessible with the digit buttons on the remote control.
The table below allows you to note the stored source per input slot, digit button 1 to 8.
Digit Button Stored source
1
2
3
4
5
6
7
8
R5976490 CINE VERSUM SYSTEM 06092002 13

3. OVERVIEW USER’s CONTROLS
14 R5976490 CINE VERSUM SYSTEM 06092002
