Barco wePresent WiPG 1600 User manual

For more information
www.wePresentWiFi.com
Contact: wePresentWiFi.com/contact.html
Support: wePresentWiFi.com/contact-support.html
© wePresent 2017
WIPG-1600-USER-GUIDE-01
WiPG 1600
User Guide

For more information
www.wePresentWiFi.com
Contact: wePresentWiFi.com/contact.html
Support: wePresentWiFi.com/contact-support.html
© wePresent 2017
WIPG-1600-USER-GUIDE-01
Contents
1. Overview 1
2. Package Contents 4
3. Physical Details 5
4. What you Might Need 7
5. Quick Installation 8
6. WiP-1600 Start/Standby Page 9
6.1 Quick Guide 9
6.2 Whiteboard 9
6.3 USB Player Function 11
6.4 Conference Control Mode 11
6.5 Sender List 12
6.6 Split Screen Mode 12
6.7 Setup 13
6.8 Remote Tocuh Control (UMT) 13
6.9 Pen Menu Function under Projecting Mode 14
7. Web Management 15
7.1 Home page 15
7.2 Conference Control 16
7.3 Admin 17
7.4 System Status 18
7.5 Device Setup 19
7.6 Network Setup 20
7.7 WiFi Setup 22
7.8 SNMP Setup 26
7.9 OSD Setup 27
7.10 Webslides Setup 28
7.11 Change Passwords 28
7.12 Reset to Default 29
7.13 Fireware Upgrade 30
7.14 Reboot System 31
7.15 Logout 32
7.16 Webslides 32
8. USB Player 33
8.1 Photo Viewer 34
8.2 Video Player 35
8.3 Music Player 36
 8.4 OfceViewer 37
8.5 Setup 38
9. Wall Mount 39
10. Safety 40

1
© wePresent 2017
WIPG-1600-USER-GUIDE-01
1
WiPG-1600 is a wireless presentation system which connects up to 64
devices on any platform (Windows/Mac/iOS/Android/Chromebook) for
engaging interactive presentations. It supports Multi-touch technology, virtual
whiteboard, HD video streaming, and USB HID compatible remote devices,
such as a wireless mouse or keyboard.

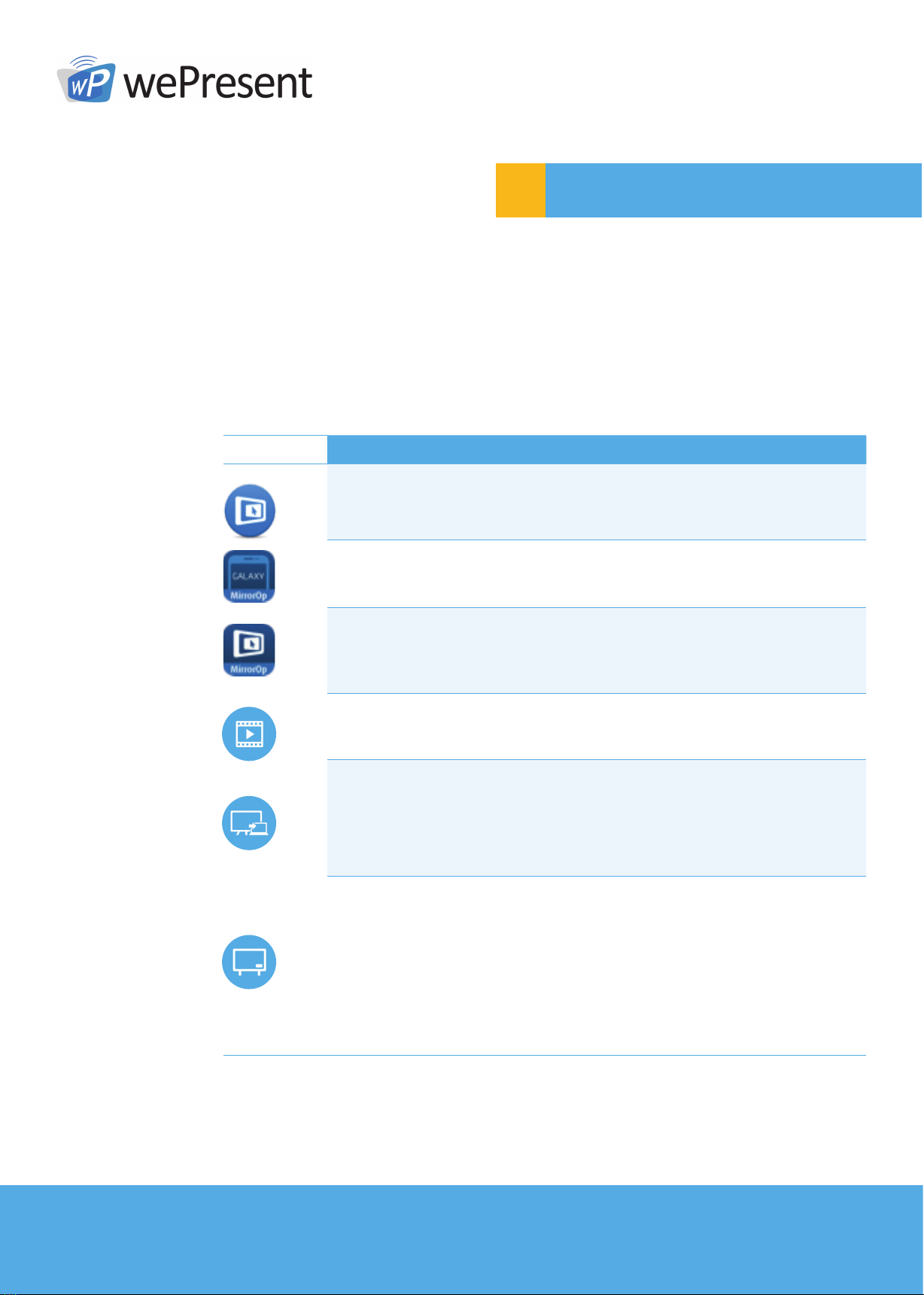

ICON FEATURE DESCRIPTION
MirrorOp for Windows and Mac
MirrorOp for Windows and Mac
• Win: 7/8
• Mac: 10.7/10.8/10.9/10.10
MirrorOp for Galaxy MirrorOp Sender for Samsung Galaxy
series devices
MirrorOp Presenter
High quality presentation and annotation via
iPhone/iPad or Android devices (Word, Excel,
PPT, PDF , Photo , Browser, Live
Camera, Screenshot)
Video Streaming Onboard Video/Music streaming for Win-
dows, Mac, iOS and Android
Webslides
Broadcast slides to your devices with WiFi
and web browser
• Audience can save the projecting slides
for taking notes
• Webslides can be secured by password
Whiteboard
• Write and draw on virtual whiteboard/
blackboard without any
computer connected
• Make annotations on any projecting
content. Allows on screen annotation
during presentation
• Annotating, writing and drawing can be
done using touch screen or any other
USB HID device
Overview

2
© wePresent 2017
WIPG-1600-USER-GUIDE-01
1Overview
ICON FEATURE DESCRIPTION
4 to 1 Projection Project four PC/Mac screens to one projector/
display at once
1 to 4 Projection Mirror the presentation to up to four
connected receivers at the same time
Conference Control /
OSD User-List
Control projection from web Admin, or use
mouse/keyboard to select a PC from the
standby screen.
• Conference control function can be se-
cured by password
• Moderator can control who is projecting.
• Moderator can compare 4 screens side
by side.
SNMP V3
Manage wePresent devices across the corpo-
rate network through enhanced SNMP
V3 protocol
UMT
Driverless remote touch control through net-
work. (Support standard Win 7/8 compatible
USB HID touch device)

3
© wePresent 2017
WIPG-1600-USER-GUIDE-01
1Overview
Key Features
• WiFi 802.1a/b/g/n (Dual-band 5G/2.4G WiFi)
• Power over Ethernet
• High performance screen/audio projection for Windows/Mac/Chromebook (Windows 7/8 and
Mac 10.7/10.8/10.9/10.10)
• Remote desktop control from Touch Screen or Mouse/Keyboard for Windows/Mac
• Plug&Show: Launch software without installation. Extras with the Plug&Show function can be
created in the wePresent software.
• High performance 4-to-1 Quadrant Screen Projection
• Supports up to 64 concurrent users
• Conference Control: Teacher/ Mediator function through the device web Admin or
standby screen
• Supports Wireless Multi-touch control (Win7/8 standard HID compatible device)
• Supports writing and drawing over presentation, or drawing on whiteboard/ blackboard
without PC
• Changeable customized standby screen
• Replace entire start screen with background image
• SNMP V3:
• manage/conguremultiplewePresentdevicesthroughSNMPV3protocol
• Firmware upgrade via FTP
• Enhance the remote SNMP manageability to higher security level
• Wi-Fi Enterprise encryption support (AES 128-bit, HTTPS)
• Supports MSI installer for Windows software deployment and execute application from
command line
• Extended desktop support for both Windows and Mac
• Security design: Session Login Code, WEP/WPA/WPA-Enterprise WiFi Security, and GateKeeper
access
• HDMI and VGA dual video interfaces
• WiFi AP, Station and AP-Client mode: Make WiPG-1600 a part of the wired or wireless network.
Allows internet access to all connected users and presentation from network computers

4
© wePresent 2017
WIPG-1600-USER-GUIDE-01
Package Contents
• wePresent WiPG-1600
• Power Adapter (DC +5V, 2.6A)
• 2 WiFi Antennas
• Quick Installation Guide
• Wall Mount Kit
• Warranty Card
• CE DoC
Package Contents
2

5
© wePresent 2017
WIPG-1600-USER-GUIDE-01
Front Panel
Physical Details
3
DESCRIPTION
Power Button
and LED
Power on/off bottom
LED Indicator: System Loading (red), Ready (blue)
USB Port (Front) 2 USB ports for USB, mouse and keyboard
Front Panel
Rear Panel

6
© wePresent 2017
WIPG-1600-USER-GUIDE-01
Physical Details
3
DESCRIPTION
Antenna WiFi Antenna
USB Port (rear) USB port for USB Thumb drive or Touch Device
RJ-45 10/100M RJ-45 port
PoE (Power Over Ethernet)
VGA Connector VGA Connector
HDMI HDMI Connector
Audio Jack Audio Jack (3.5mm)
Power Jack Power Jack (5V/2.5A)
Rear Panel
• The USB port can only supply up to 5V/0.5A to USB touch device and
USB drive
• PoE Standard: IEEE 802.3at Standard 13 watts type 1 (class 0) powered
device(PD) of Power Over Ethernet(PoE)
Bottom Side

7
© wePresent 2017
WIPG-1600-USER-GUIDE-01
Physical Details
3
Bottom Side
DESCRIPTION
Screw Hole Screw Hole for Wall Mount Kit
Reset Button Press reset button and power on the device to
execute Hardware Reset
What You Might Need
• Projector/display with VGA/HDMI input
• Windows or Mac PC/Laptop
• Apple iPhone or iPad device
• Android Phone or Tablet device
• Chromebook laptop
• Speaker (Optional, for audio projection feature)
• USB Mouse and Keyboard (Optional, for remote desktop feature)
• USB HID Touch Screen/IWB Device (Optional, for multitouch feature)
4

8
© wePresent 2017
WIPG-1600-USER-GUIDE-01

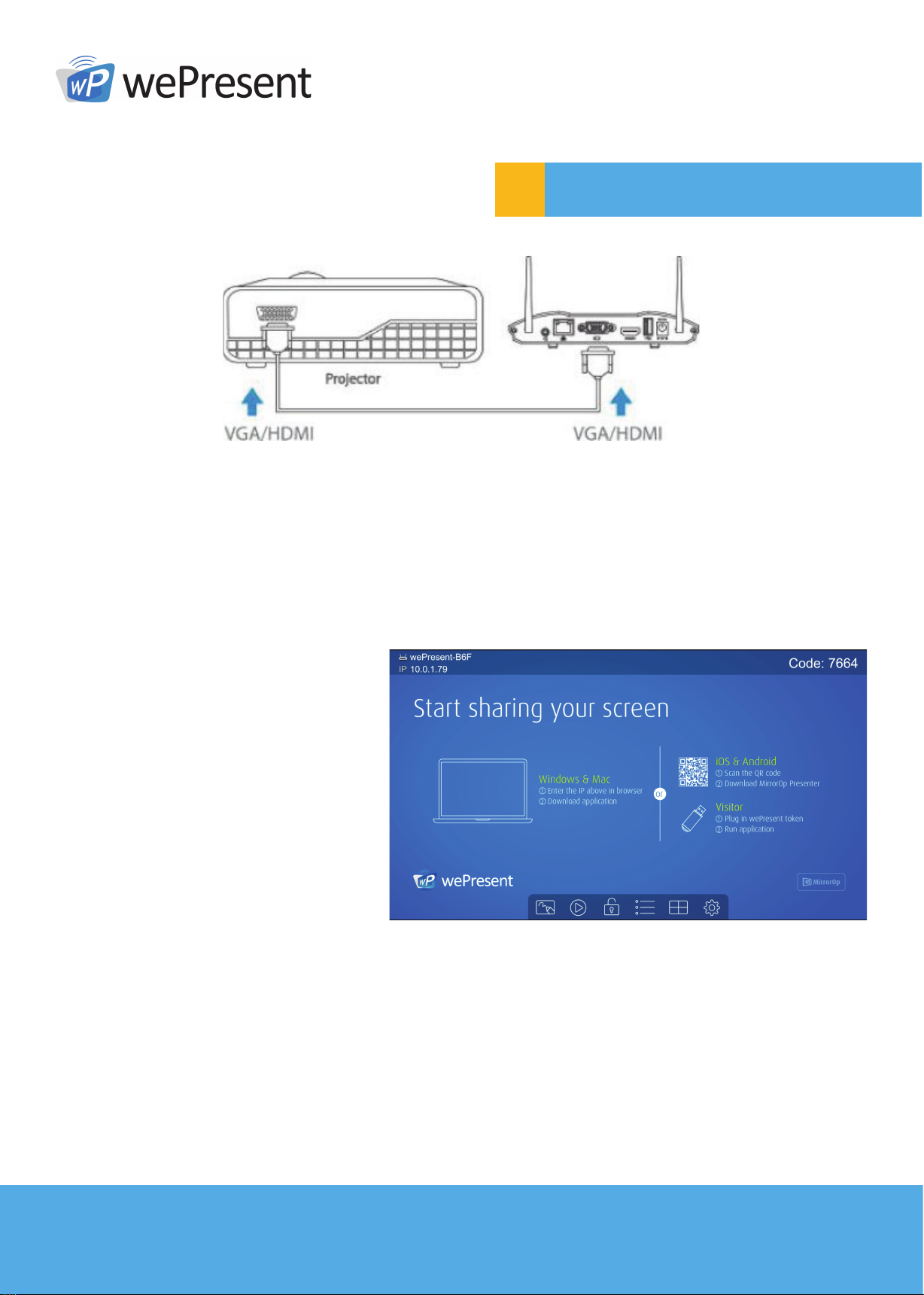

Quick Installation
1. Connect wePresent WiPG-1600 to Projector/display through VGA/HDMI port and turn on
projector/display power.
2. Connect the power adaptor to:
• WiPG-1600 and press the power button to turn on WiPG-1600
• System will be ready when the LED light turns to blue
5
3. Insert the speaker cable to WiPG-1600 audio jack for audio output (Optional).
4. Insert the USB mouse or keyboard or USB touch device to WiPG-1600 front/rear USB port for
On-Screen Display (OSD) control (Optional).

9
© wePresent 2017
WIPG-1600-USER-GUIDE-01
WiPG-1600 Start/Standby Page
6
6.1 Quick Guide
The device will show the startup screen as below, as well as the wePresent device
information and function icons.
6.2 Whiteboard
Click on the “whiteboard” icon on the start page to enter “whiteboard”
function. Write and draw on screen through USB Mouse, Touch Screen or
IWB device.

10
© wePresent 2017
WIPG-1600-USER-GUIDE-01
WiPG-1600 Start/Standby Page
6
Pen Menu Functions
BUTTON DESCRIPTION
Open/Minimize all Pen menu bar
Home, Go back to wePresent home standby
screen
Clear all of the drawing/writing on the screen
Erase part of drawing/writing
Select the pen colour. (Red, Green, Blue)
Select the size of the pen. (Small, Medium,
Large)
Click to use the blackboard. (All the drawing/
writing will be cleared when changing to
different mode)
Click to use the whiteboard. (All the drawing/
writing will be cleared when changing to
different mode)

11
© wePresent 2017
WIPG-1600-USER-GUIDE-01
WiPG-1600 Start/Standby Page
6

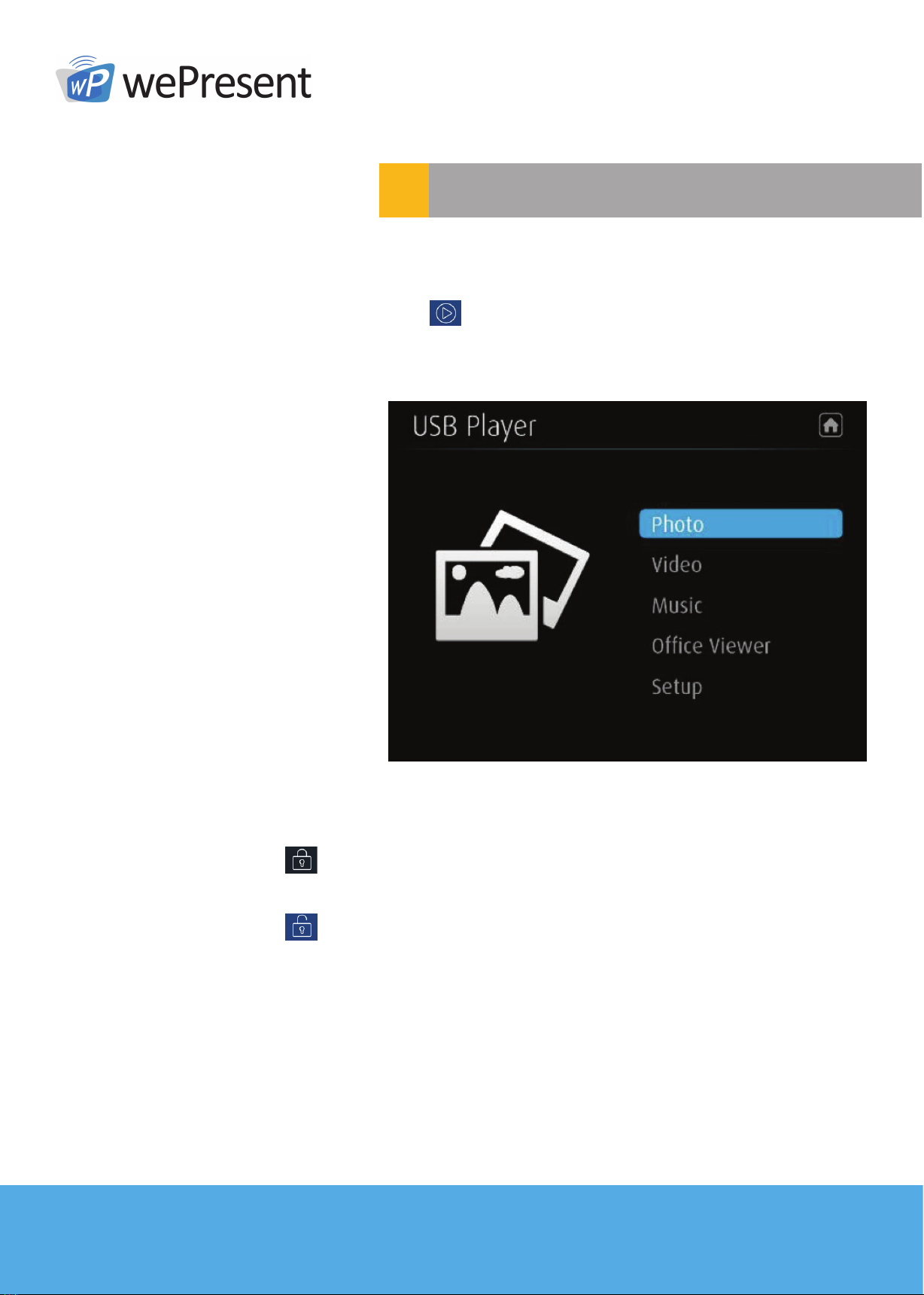

6.3 USB Player Function
Click on the “USB Player” button on the start page to enter “USB Player”
function.AccessandplaythePhoto/Music/Video/Ofcelesfromtheinserted
USB drive. For additional details, please see the USB Player section.
6.4 Conference Control Mode
1. Click to enable conference control mode and the users will be unable to present to
screen themselves. The moderator can only manage the projecting sender through web
conference control page or the user list.
2. Click to disable conference control mode, the users will be able to present to screen.

12
© wePresent 2017
WIPG-1600-USER-GUIDE-01
WiPG-1600 Start/Standby Page
6
6.5 Connected User List
Click on the “User-List” button to show all connected users. Moderator can select
a user to present from the list.
6.6 Quad Screen Mode
Click on the “Quad Screen” button on the start page to enter “Quad Screen”
page. Connected users will be listed. Select the “add” icon to choose a
presenter to the selected quadrant area.

13
© wePresent 2017
WIPG-1600-USER-GUIDE-01
WiPG-1600 Start/Standby Page
6
6.7 Setup
Click on Setup icon , to view Firmware (FW) version, resolution, WiFi channel
and AP-client status information on the screen. Select “Calibration” function to
calibrate the projecting screen to an optimal setting. Click on the “Make PnS Token”
to copy the Plug-n-Show application for Windows and Mac to attached USB drive.
6.8 Remote Touch Control (UMT)
WiPG-1600 can support standard Win7/8 compatible HID touch devices. By
connecting the HID touch screen/IWB device, users can control the standby screen,
whiteboard and the projecting screen remotely from the Touch Screen/IWB device.
Note:
1. The UMT can only support standard USB HID touch device, the supported touch device can
be found from wePresent distributor.
2. Windows XP, 7, 8, 10, and Mac are supported for touchscreen and mouse events.
3. The USB port on WiPG-1600 can supply up to 5V/0.5A power. An additional power supply is
required if the attached HID device requires more power.

14
© wePresent 2017
WIPG-1600-USER-GUIDE-01
WiPG-1600 Start/Standby Page
6
6.9 Pen Menu Function under Projecting Mode
When users are projecting through Windows, Mac, Android and iOS application,
any Win7/8 standard HID compatible device (i.e Mouse/IWB/Touchscreen) can be
used for Pen feature. Users can do free drawings/writings and annotation on the
projecting screen.
BUTTON DESCRIPTION
Home, Go back to wePresent home
standby screen
Enable/Disable the conference control mode
The tool for PowerPoint presentation.
PageUp/PageDn, this button to go to previ-
ous/next page.
SlideShow, When the user is projecting a PPT
le,pressthisbuttontoenableSlideShow
function.
ESC,WhentheuserisprojectingaPPTle,
press this button to quit Slide Show mode.
Clear all of the drawing/writing on the screen
Erase part of drawing/writing

15
© wePresent 2017
WIPG-1600-USER-GUIDE-01
WiPG-1600 Start/Standby Page
6

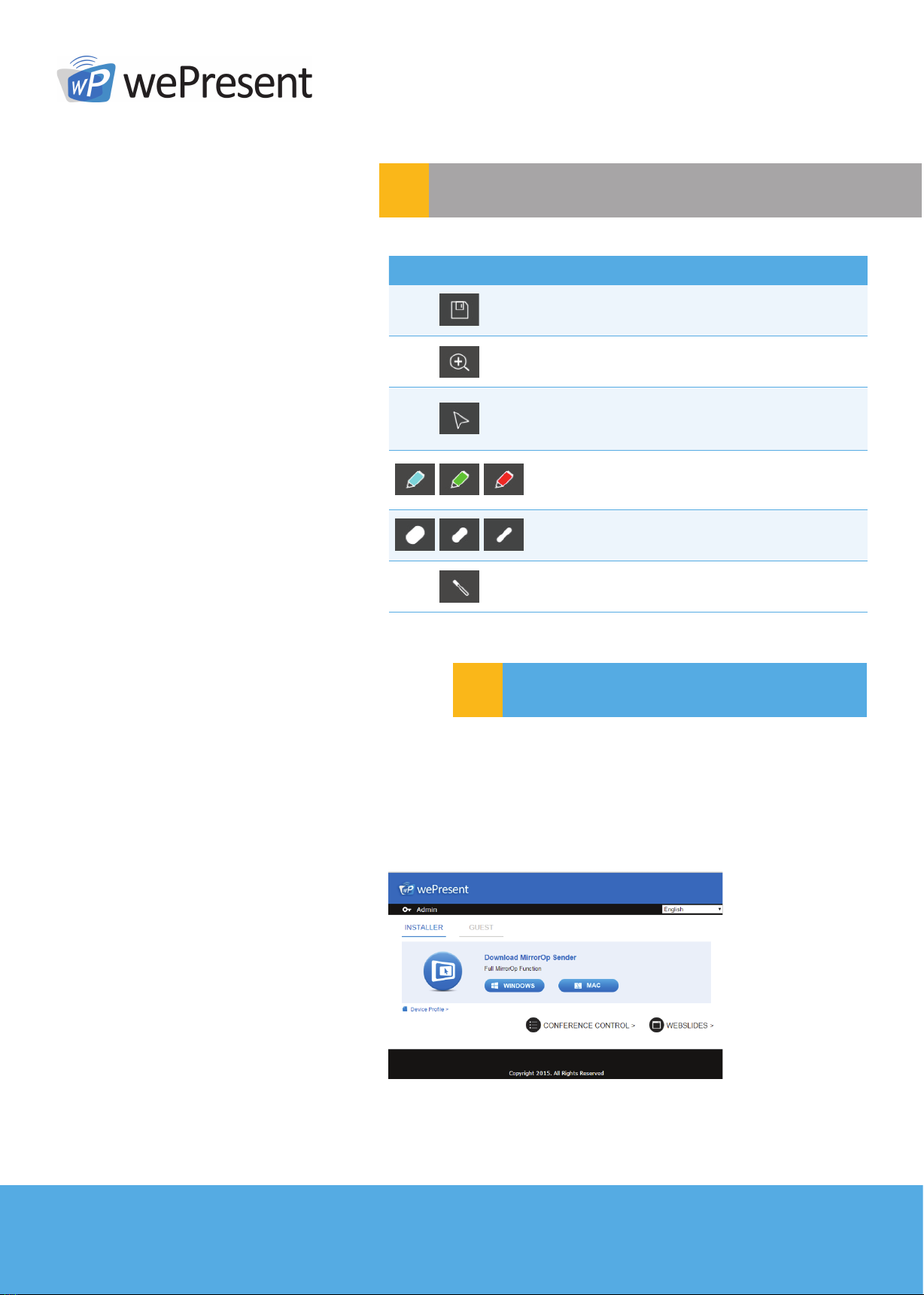

BUTTON DESCRIPTION
Save current screen image to USB driver
Enablethemagnierfunction
Change to Mouse mode for remote
control function
Select the color and size for Pen mode
(Red, Green, Blue)
Select the size of the pen (Small, Medium, Big)
Change to Pointer Mode
7.1 Home Page
1. Connect Mac/PC/Chromebook to the WiPG-1600.
2. Enter the receiver IP address on your browser. The IP address is found on the projector/
display screen. (Default IP is 192.168.100.10)
Web Management
7

16
© wePresent 2017
WIPG-1600-USER-GUIDE-01
Web Management
7
3. Please select the “Windows Utility” or “Mac Utility” and execute the installation program.
Note: Pleasedisablethe“SmartScreenFilter”onIEbrowser;otherwiselemaynotbe
downloaded.
4. DownloadtheDeviceProleonyourWindowsorMaclaptop,doubleclickthe.wipgprole.
The wePresent utility will launch automatically and connect to this device without further
operation.

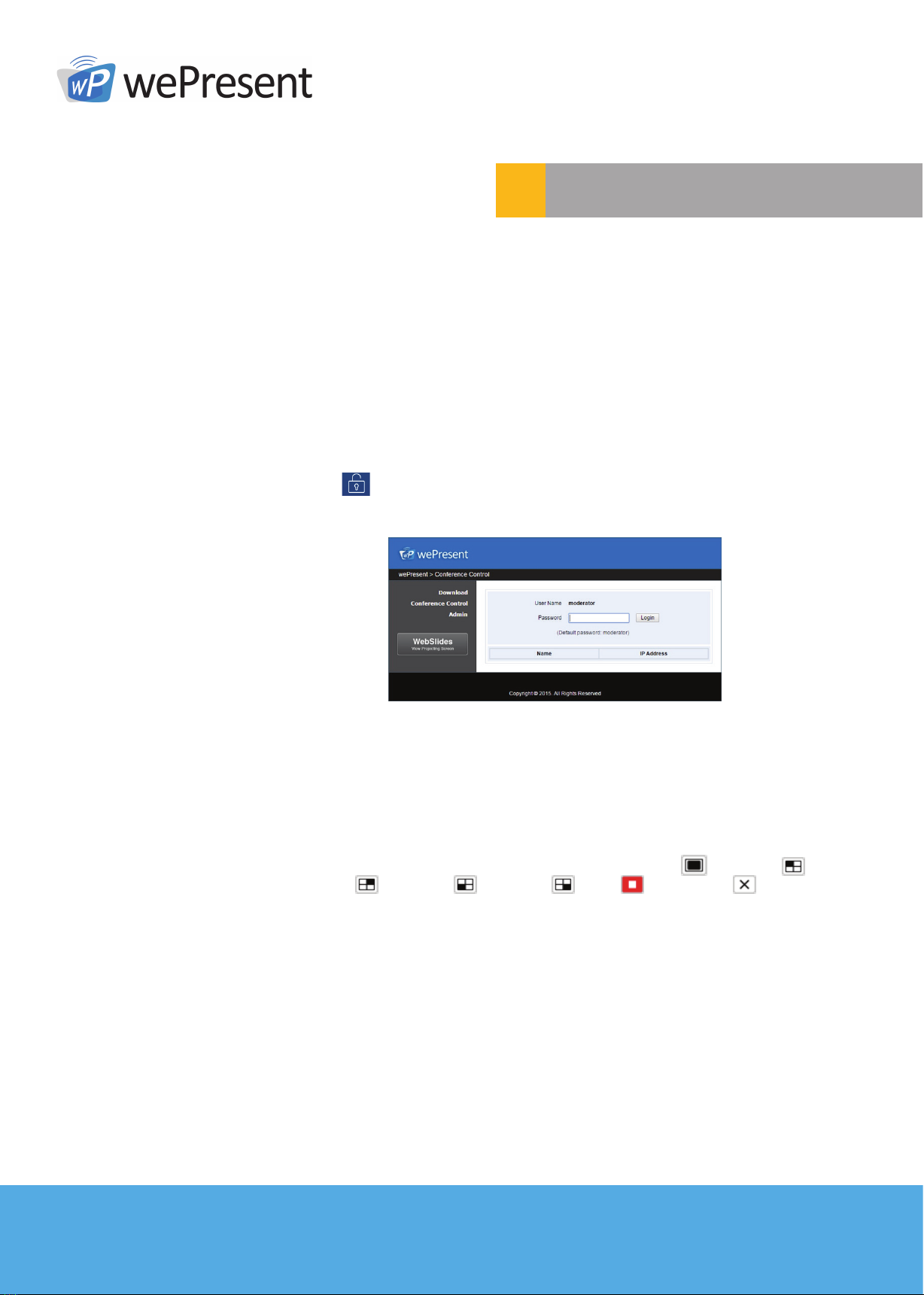

7.2 Conference Control
1. Select “Conference Control” function, The current connected user list can be found on this page.
Verify the lock on the start page is disabled.
2. Enter password and then press [Login]. (default password: moderator)
3. After login, User List can be found on the screen, which indicates all of the users connected to
wePresent WiPG-1600 box.
4. The default setting is “allow control from this page only”. When this function is checked, the
moderator can control all of the connected users’ projections.
5. There are three columns, “Name”, “Play Control” and “IP Address”.
a. Play Control: There are seven buttons, including Screen# Full ,Screen #1 ,
Screen#2 , Screen#3 , Screen#4 , Stop and Remove .
b. Moderator can click on the “Full” button to allow full screen projecting.
 c.Moderatorcanassignwhichusertoprojectinaspecicquadrantbyclickingonthescreen
numbers.
d. Moderator can “stop” the projecting or remove the user anytime.

17
© wePresent 2017
WIPG-1600-USER-GUIDE-01
Web Management
7
6. Uncheck the “Allow Control from this page only”, and the centralized control will be diabled.
User can project their screen to WiPG-1600 freely.
7. Moderator can log out from the conference control mode by clicking on the ”Logout” on the
upper right corner.
7.3 Admin
Click on “Admin” and then enter the password to login to the web admin page.
(Default Password: admin)

18
© wePresent 2017
WIPG-1600-USER-GUIDE-01
Web Management
7
7.4 System Status
Click on “System Status” option, it will show current system status.
Model Name: Product model name
Versions:
• Firmware version no.:Productrmwareversionnumber
Device Information:
• Resolution: Device output resolution
• Host Name: Device network hostname
Network Status:
• IP address: IP address of WiPG-1600 device
• Subnet Mask: subnet mask
• Default Gateway: default gateway
• Wireless MAC address: wireless MAC address
• Wire MAC address: wire MAC address
WiFi Information
• WiFi Mode: Access Point/WiFi Station/Concurrent AP-Station Mode
• SSID: Current SSID or the connected WiFi AP name
Connection Status:
• Projecting status: “Waiting for projecting” or “Projecting”
• Total Users: shows how many users login to wePresent WiPG-1600
• Code: shows current Code
Date and Time:
• Date: Current date
• Time: Current time
• Time Zone: Current Time zone
